DS18 PRO-GM8B 8" Mid-Range Loudspeaker with Bullet 580 Watts 8-Ohm
Product Overview DS18 PRO-GM8B 8" Mid-Range Loudspeaker with Bullet 580 Watts 8-Ohm The PRO GM series was...
- $50.95
- $50.95
- Unit price
- per
Subtotal:
$50.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

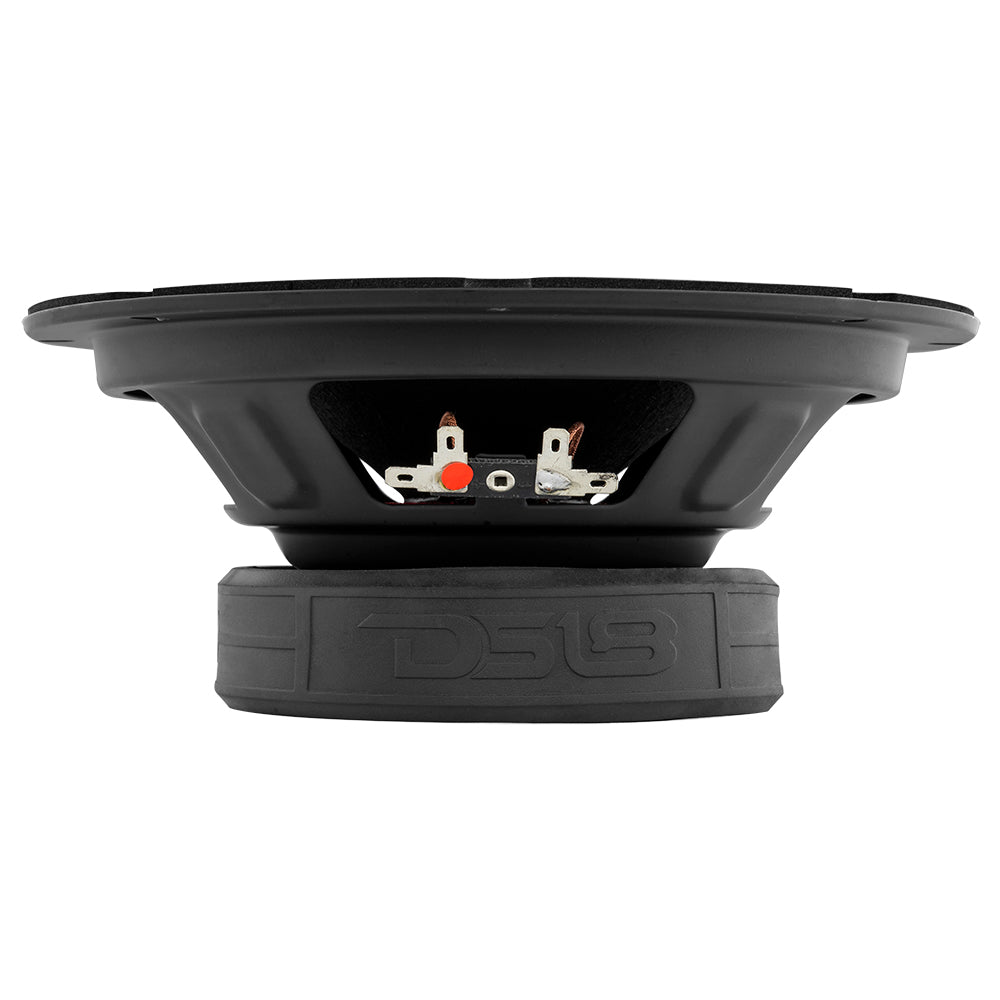

DS18 PRO-GM8B 8" Mid-Range Loudspeaker with Bullet 580 Watts 8-Ohm
|
The PRO GM series was brought in to bring loud high quality pro audio to the entry level user. This pro audio is leaps ahead of the competition in quality and over all loudness. The PRO GM series is offered in many different styles and variations to fit all your system’s needs. Highlights
|
Technical Details
| Model: | PRO-GM8B |
| Type: | Midrange Loudspeaker with Bullet |
| Size: | 8" |
| RMS Power: | 190W |
| MAX Power: | 580W |

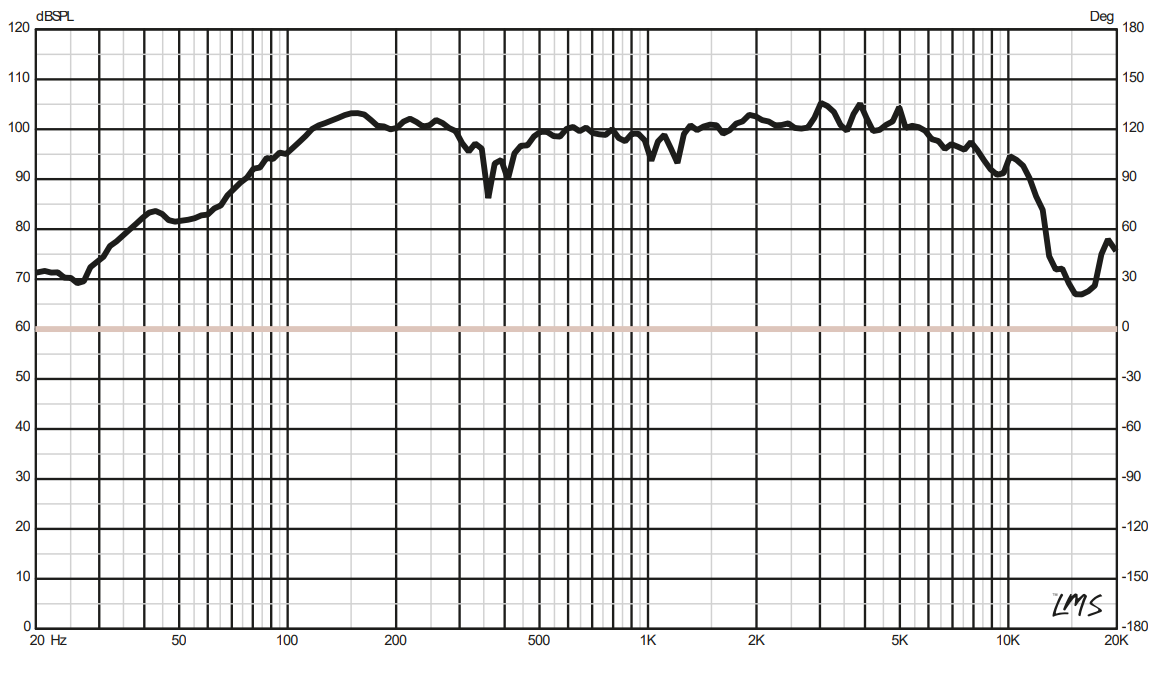

| Frequency Response: | 125Hz - 12KHz |
| Impedance: | 8 Ohms |
| Sensitivity: | 95dB |
| Materials | |
| Surround: | Cloth Surround |
| Frame: | Black Stamp Steel Basket |
| Cone: | Black Paper Woofer Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | Kapton |

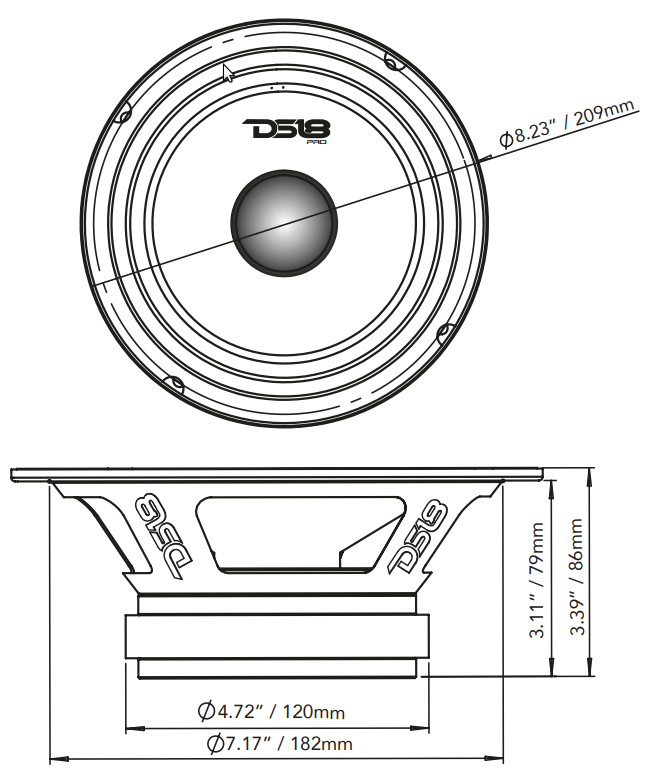

| Measurements | |
| Voice Coil Size: | 1.5" |
| Magnet Weight: | 30 oz. |
| Mounting Depth: | 3.11" (86mm) |
| Cut-Out Dimension: | 7.16" (182mm) |
Key Features
- 8" Mid-Range
- MAX Power: 580 Watts
- RMS Power: 190 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- With Bullet
Specifications
| SKU | PRO-GM8B |
|---|---|
| Nominal Diameter | 8" / 203.2mm |
| Nominal Impedance | 8 Ohm |
| RMS Power Handling | 190W |
| MAX Power Handling | 580W |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response | 80Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | N/A |
| Bullet Material / Color | Red Aluminum |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 30 oz |
| Equivalent Volume (Vas) | 23.61L / 0.83ft3 |
| Excursion (one way) (Xmax) | N/A |
| Free Air Resonance (Fs) | 91Hz |
| Mechanical Factor (Qms) | 13.426 |
| Electrical Factor (Qes) | 0.877 |
| Total Factor (Qts) | 0.823 |
| Mechanical Mass (Mms) | 8.272g |
| Mechanical Compliance (Cms) | 0.368mm/N |
| BL Factor (BL) | 5.89 |
| Voice Coil Inductance (Le) | 0.723mH |
| Cone Area (Sd) | 213.82cm2 |
| DC Resistance (Re) | 6.4 ohm |
| Overall Diameter | 8.26" / 210 mm |
| Overall Depth | 3.46" / 88 mm |
| Front Mount Baffle Cutout | 7.2" / 183 mm |
| Mounting Depth | 3.22" / 82mm |
| Motor Diameter | 4.72" / 120mm |
| Gross Single Unit Weight (lb) | 5 |
| Single Unit Box Dimensions W x L x H (Inches) | 9 x 9 x 4 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight (lb) | 40 |
| Master Carton Dimensions W x L x H (Inches) | 18.5 x 18.5 x 8.8 |
