Product Overview

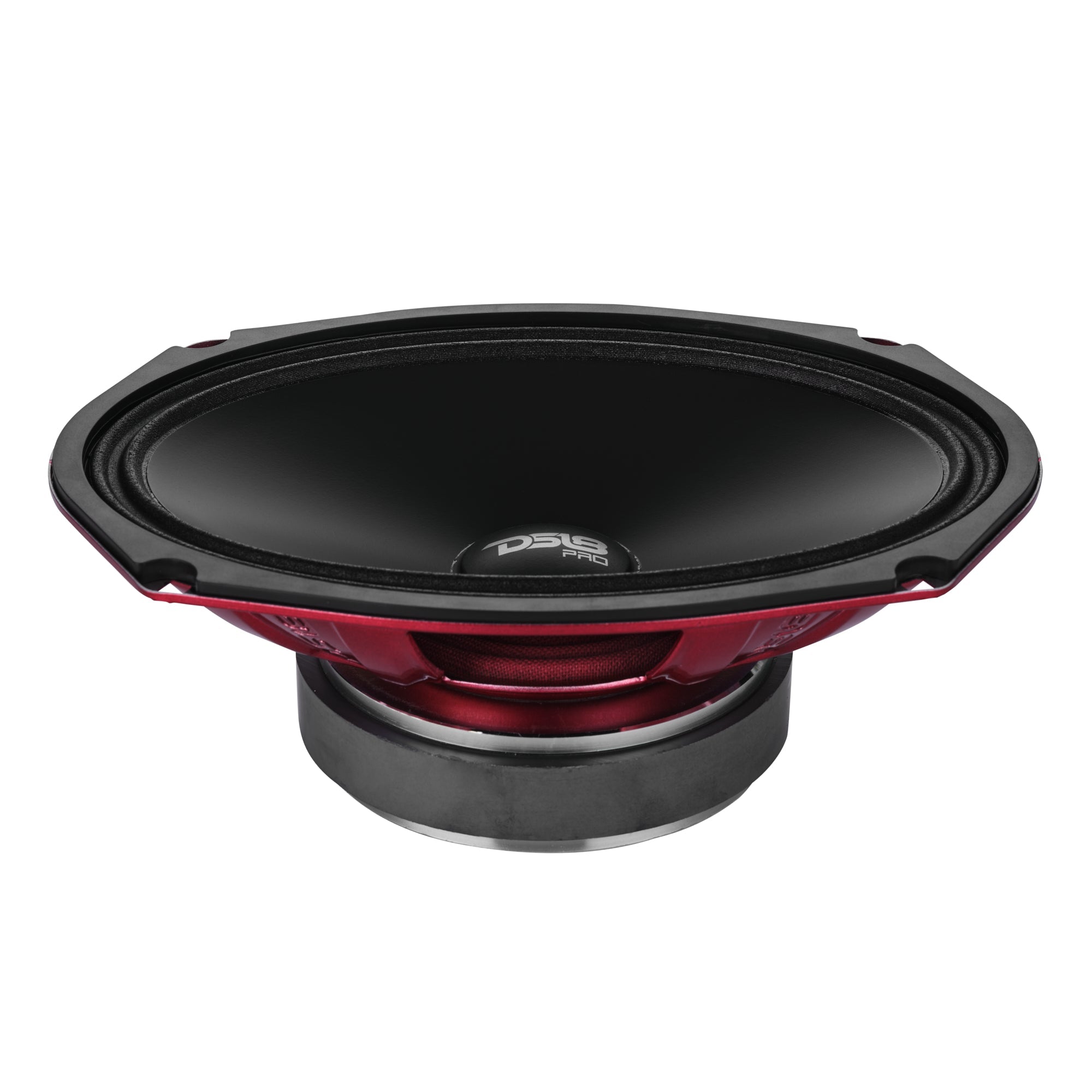

6x9” Shallow Water-Resistant Mid-Range Loudspeaker
The PRO-SM69.2 is engineered specifically for powerful, clear sound that withstands open-air challenges. Its shallow mounting depth makes it ideal for motorcycles where space is tight but performance can’t be compromised.
Rugged and Durable Design
Featuring a water-resistant paper cone and dust cap paired with a coated cloth surround, the PRO-SM69.2 delivers premium sound even in wet or dusty conditions.
Power and Performance
With 250W RMS and 500W peak power handling at 2 ohms, this speaker pumps out thunderous midrange tones that cut through all noise. The 1.5" Kapton voice coil and 33 oz ferrite magnet ensure dynamic output during every session.
Precision Fit and Easy Install

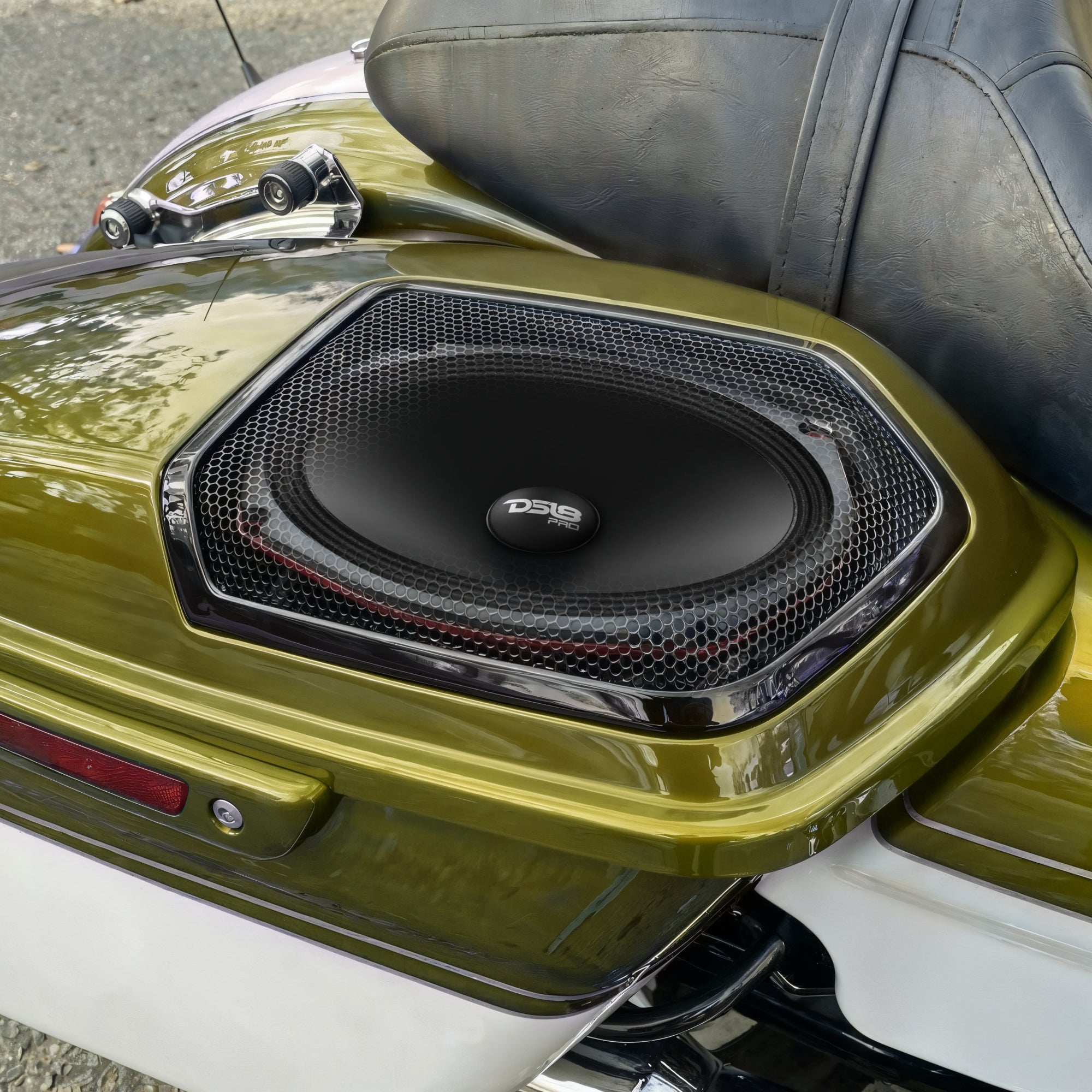

The PRO-SM69.2 installs quickly into your motorcycle with minimal effort, letting you upgrade your sound and get back on the road fast.
Upgrade to DS18’s PRO-SM69.2 for loud, clear, and weatherproof midrange that rides with you!
Key Features
- 6x9" Shallow Midrange Speaker 500W MAX / 250W RMS
- 2-Ohm Impedance for Easy Amplifier Matching
- Water-Resistant Cone, Dust Cap, and Cloth Surround
- High Sensitivity (96dB) for Clear, Loud Output
- 1.5" Kapton Voice Coil with 25oz Ferrite Magnet
- 2.83" Mounting Depth for Versatile Install Options
Specifications
| SKU | PRO-SM69.2 |
|---|---|
| Nominal Diameter | 6x9" / 152.4 mm x 228.6 mm |
| Nominal Impedance | 2 OHMS |
| RMS Power Handing | 250 Watts |
| Maximum Power Handing | 500 Watts |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 60 Hz-5 Khz |
| Recommended Hi Pass Crossover | 120 Hz |
| Voice Coil Diameter | 1.5" / 38.1 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 33 Oz |
| Vas | 10.147 L |
| Xmax | 6.7 mm |
| Fs | 110 Hz |
| Qms | 7.358 |
| Qes | 0.959 |
| Qts | 0.848 |
| Re | 2 OHMS |

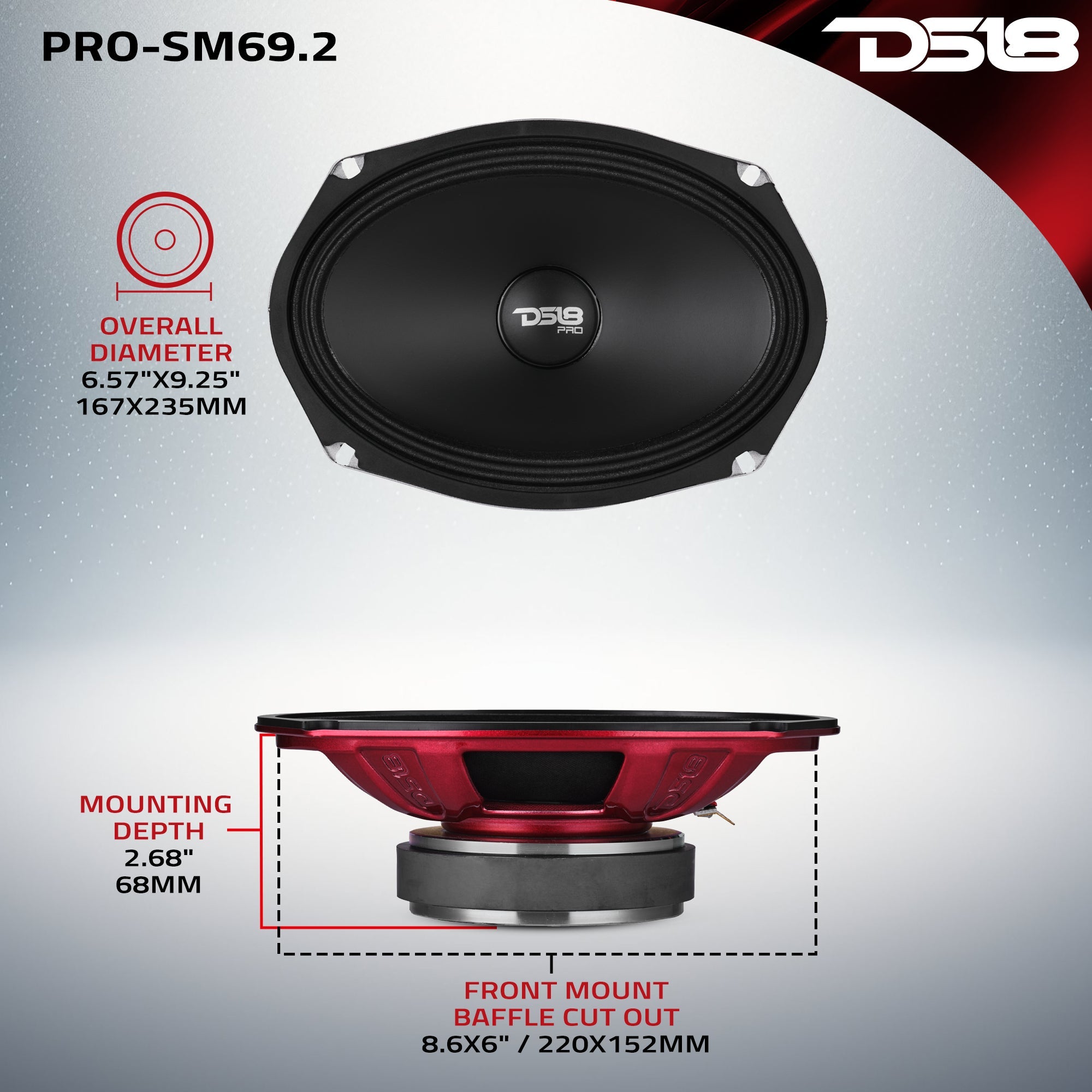

| Overall Diameter | 9.25" x 6.57" / 235 mm x 167 mm |
| Front Mount Baffle Cutout | 8.6" x 6" / 220 mm x 152 mm |

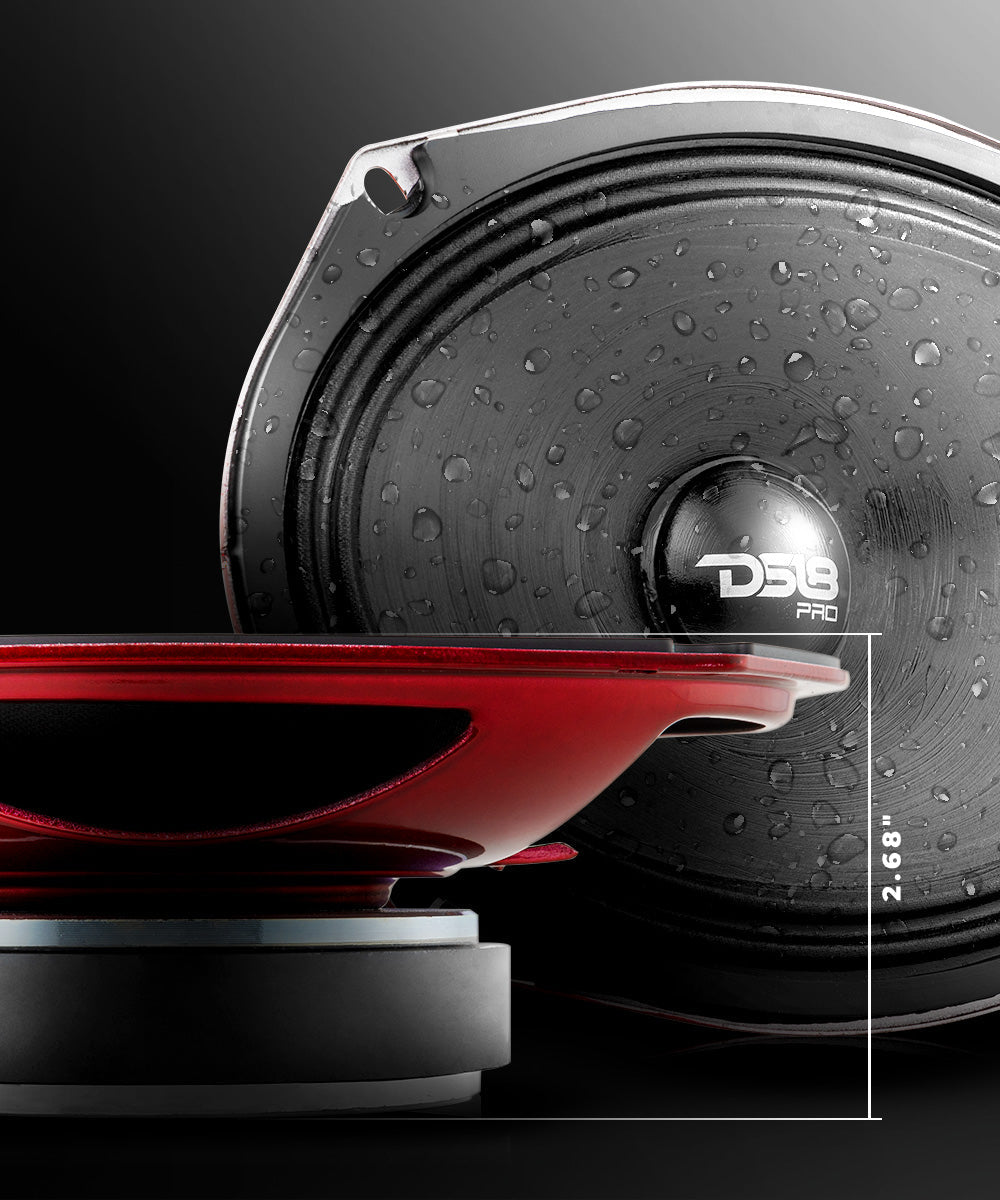

| Mounting Depth | 2.68" / 68 mm |
| Overall Depth | 2.91" / 74 mm |
| Product Weight | 5.5 lbs |
| Product Dimensions | 10 x 7.25 x 4 |
| M/C Weight | 44.5 lbs |
| M/C Dimensions | 20.75 x 15.25 x 9 |
| M/C QTY | 8 |
| Sold In | Piece |
