PRO 6.5" Slim Neodymium Mid-Range Loudspeaker with Bullet | 400W 4-Ohm
Product Overview

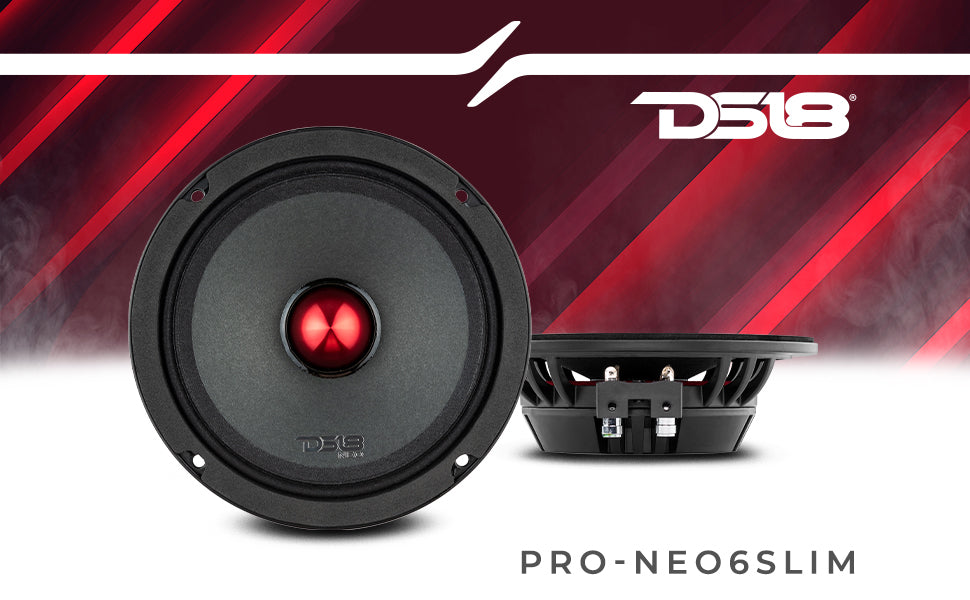

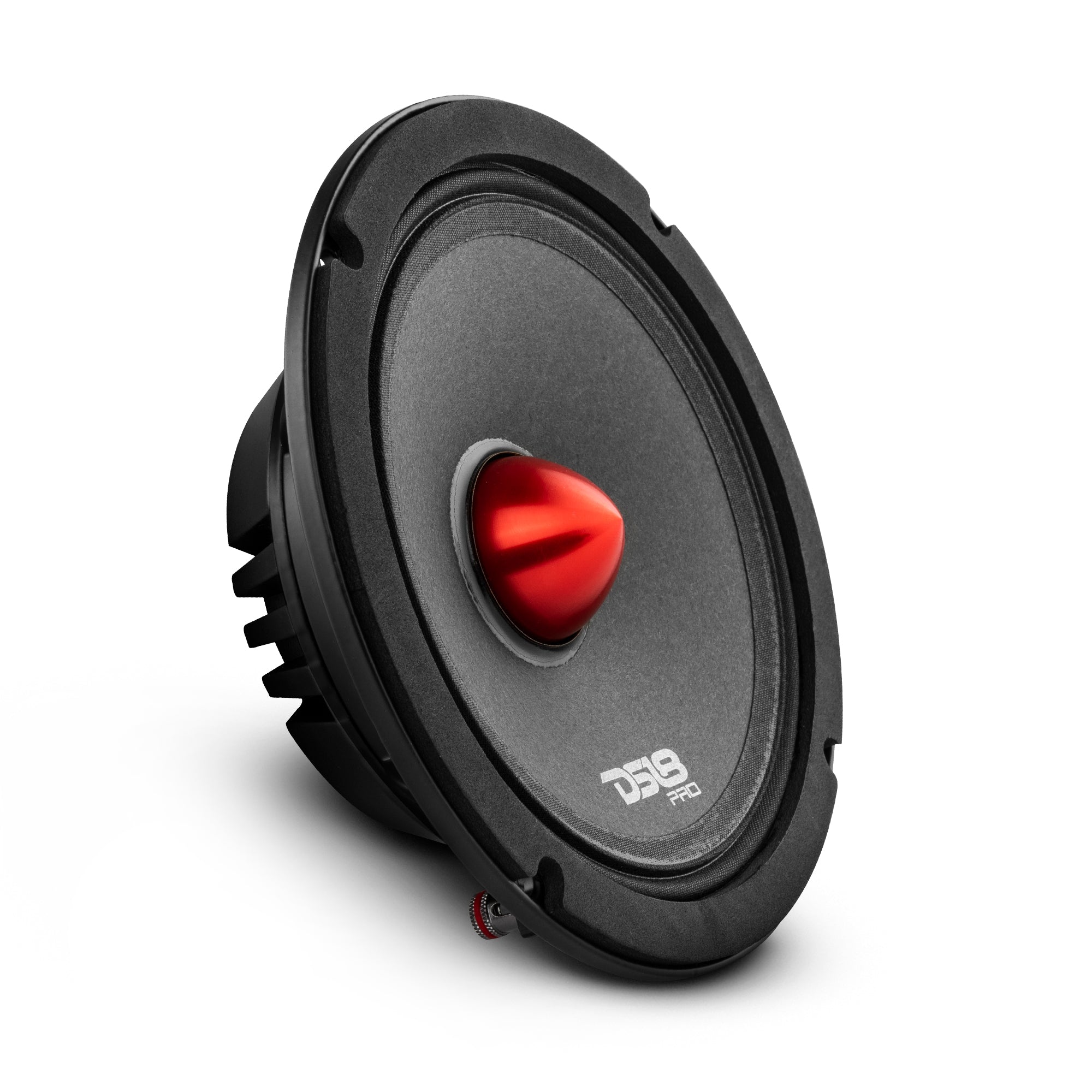

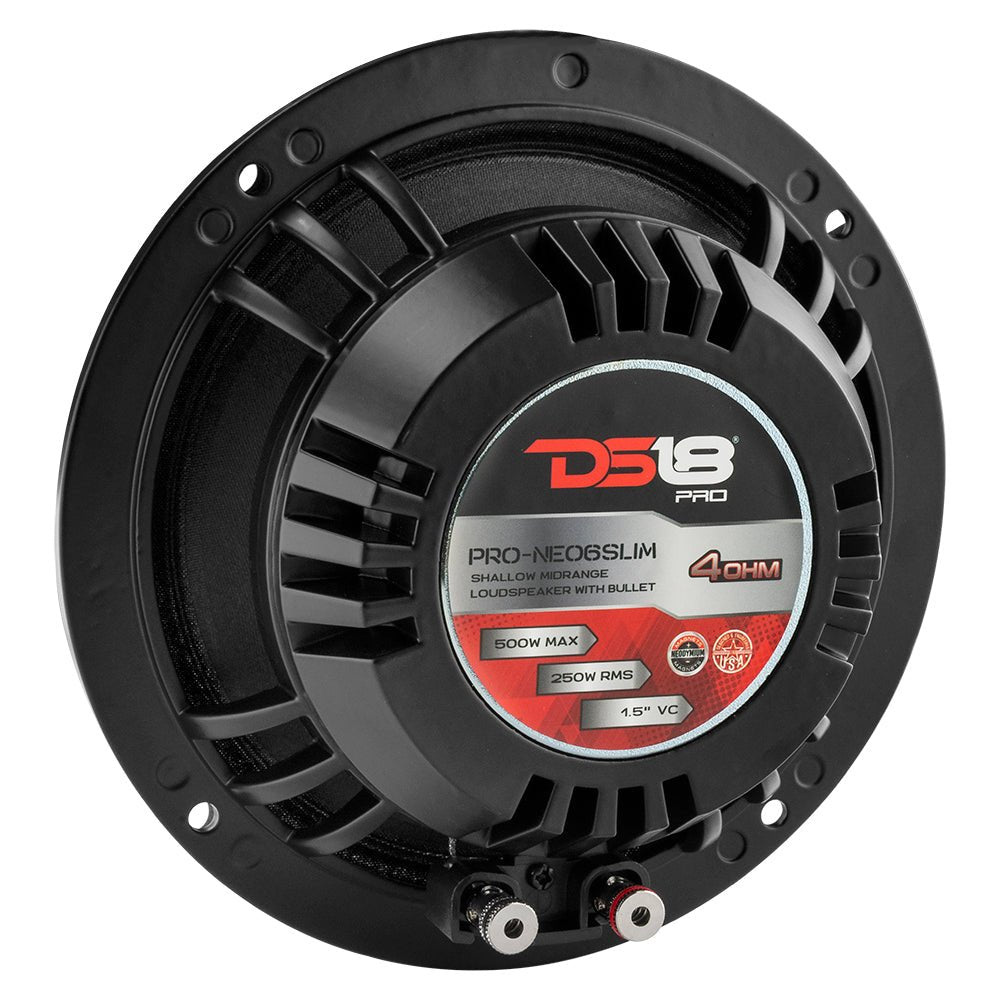

DS18 PRO-NEO6SLIM 6.5" Shallow Neodymium Mid-Range Loudspeaker with Bullet 400 Watts 4-Ohm
|

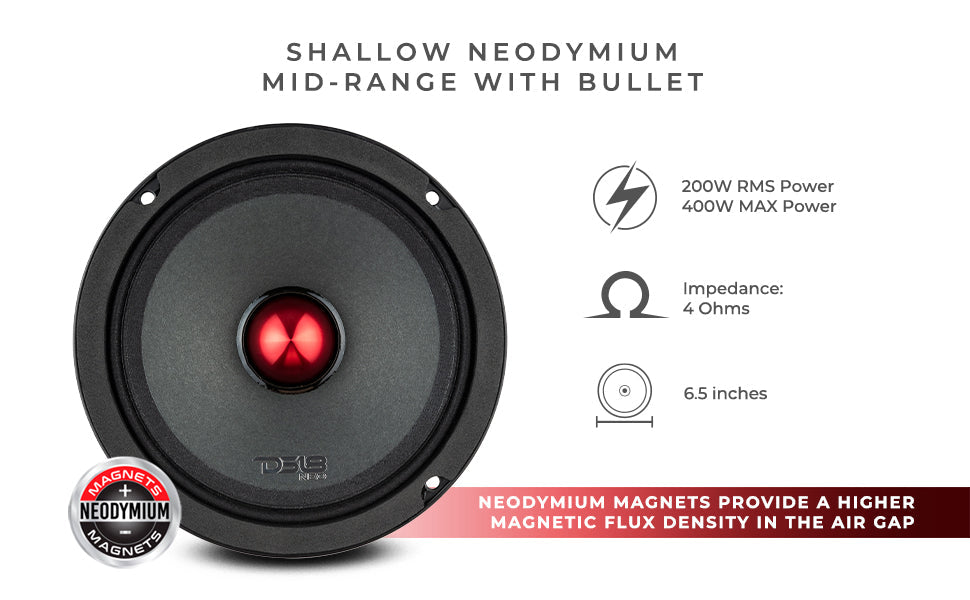

DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|
Technical Details
| Model: | PRO-NEO6SLIM |
| Type: | Shallow Midrange Loudspeaker with Bullet |
| Size: | 6.5" |
| RMS Power: | 200W |
| MAX Power: | 400W |
| Frequency Response: | 136Hz - 11KHz |
| Impedance: | 4 Ohms |
| Sensitivty: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Black Aluminum Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Neodymium |
| Voice Coil Wire: | KCCAW 2 Layer |
| Diameters | |
| Voice Coil Size: | 1.5" |
Key Features
- 6.5" Mid-Range W/Bullet
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm
- Neodymium Magnet

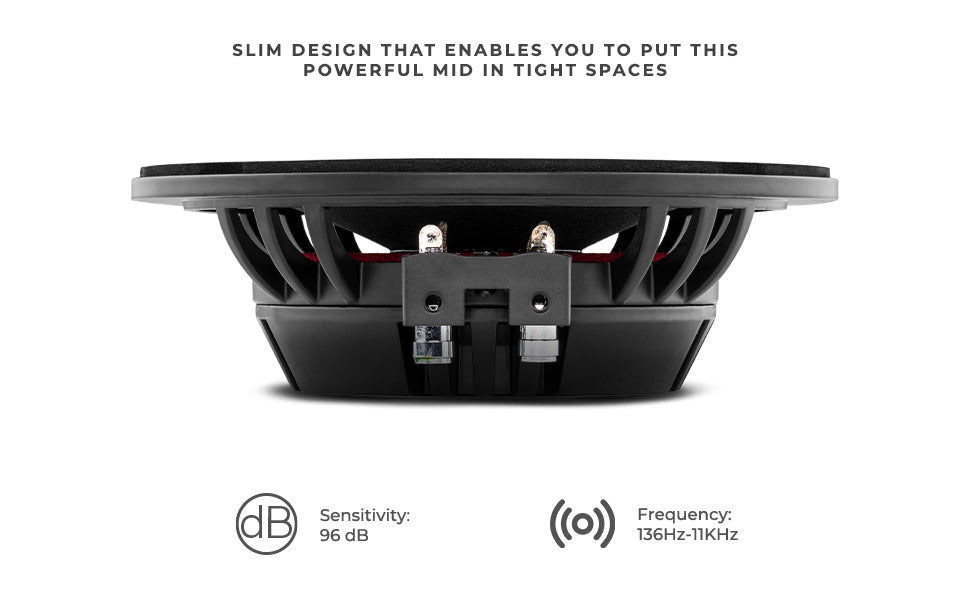

- Shallow ~ 96dB
Specifications
| SKU | PRO-NEO6SLIM |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 200W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 136Hz - 11KHz |
| Recommended HI Pass Crossover | 200Hz |

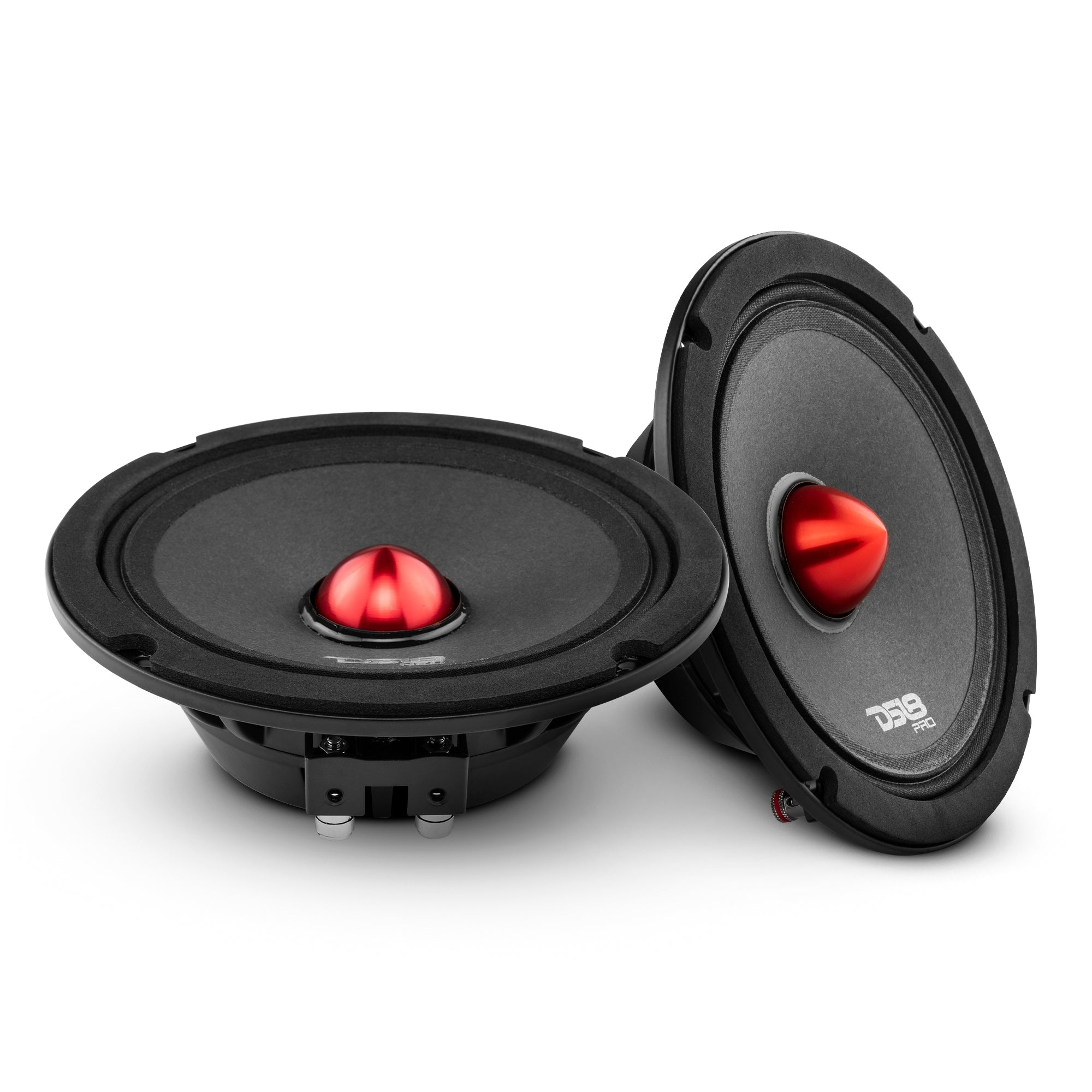

| Pair or Single | Single |
| Grill Included | NO |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | N/A |

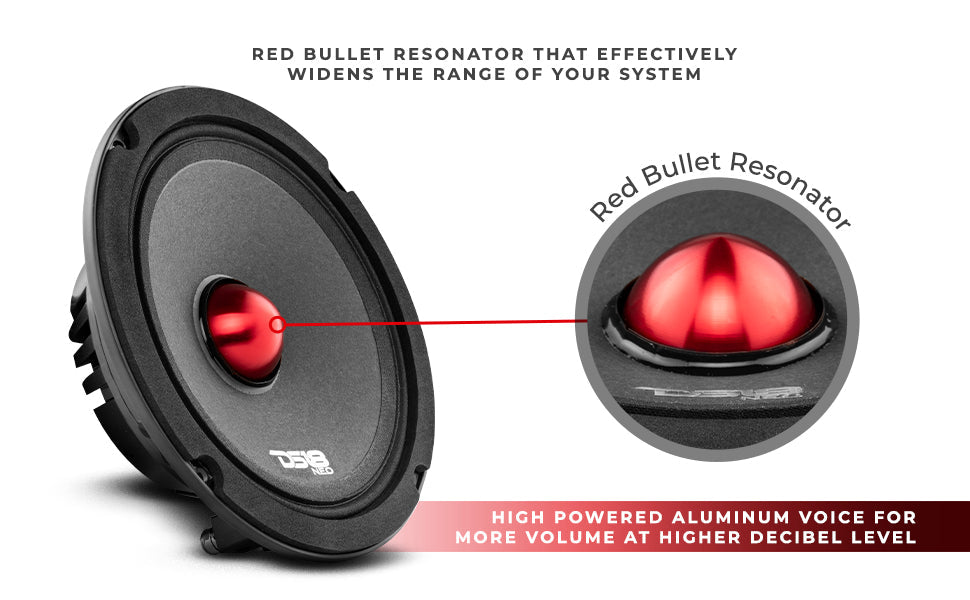

| Bullet Material | CNC Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Matte Black |
| Magnet Material | Neodymium |
| Magnet Weight | 3.5 Oz |
| Equivalent Volume Vas | 3.613L / 0.1276ft3 |
| Excursion (one way) Xmax | 8.2mm |
| Free Air Resonance Fs | 214Hz |
| Mechanical Factor Qms | 7.009 |
| Electrical Factor Qes | 1.376 |
| Total Factor Qts | 1.15 |
| Mechanical Mass Mms | 4.404g |
| Mechanical Compliance Cms | 0.126 mm/N |
| BL Factor BL | 3.91 |
| Voice Coil Inductance Le | 0.0885 mH |
| Cone Area Sd | 143.14 cm2 |
| CD Resistance Re | 3.5 ohm |
| Mechanical Mass w/o air Mmd | N/A |
| Overall Diameter | 6.8" / 173mm |

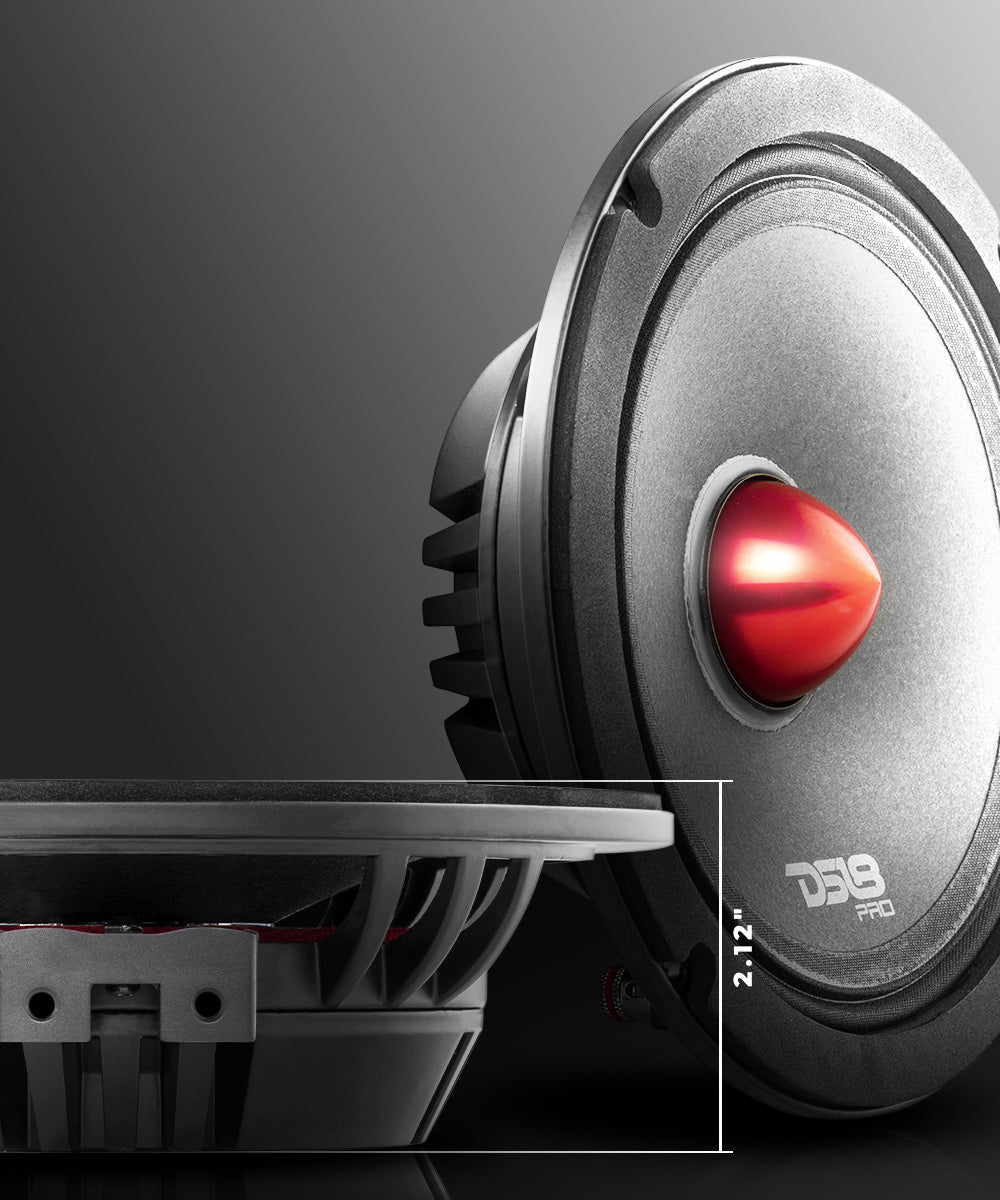

| Overall Depth | 2.12" / 54mm |
| Front Mount Baffle Cutout | 5.83" / 148mm |

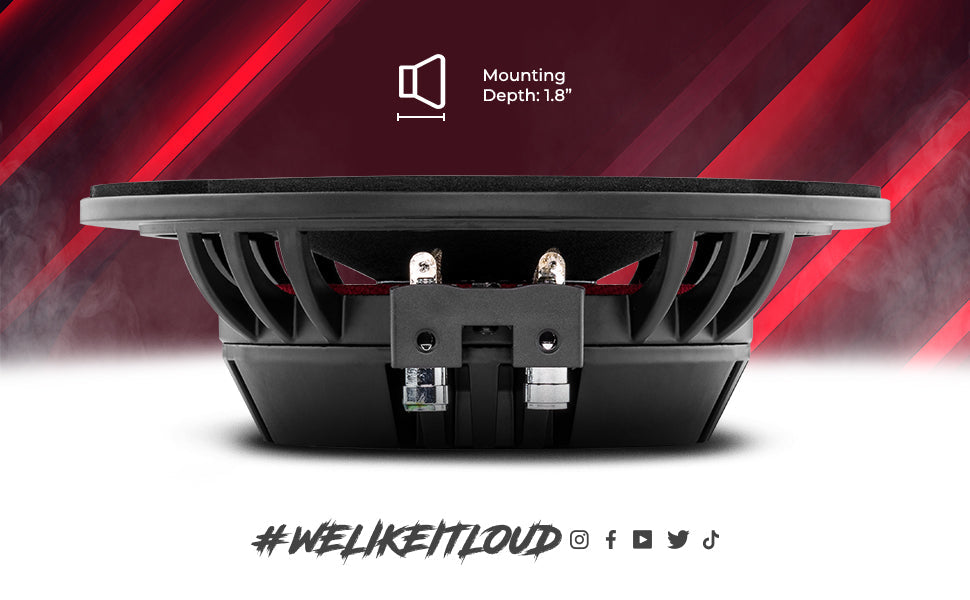

| Mounting Depth | 1.8" / 46mm |
| Motor Diameter | 3.74" / 95mm |
| Gross Single Unit Weight | 14.5 KG |
| Single Unit Box Dimensions W x L x H | 220 x 220 x 74 mm |
| Quantity of Units in Master Carton | 8 PCS |
| Gross Master Carton Weight | 16 KG |
| Master Carton Dimensions W x L x H | 460 x 235 x 320 mm |
