PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
PRO 6.5" Neodymium Mid-Range Loudspeaker 300 Watts Rms 4-Ohm
Product Overview

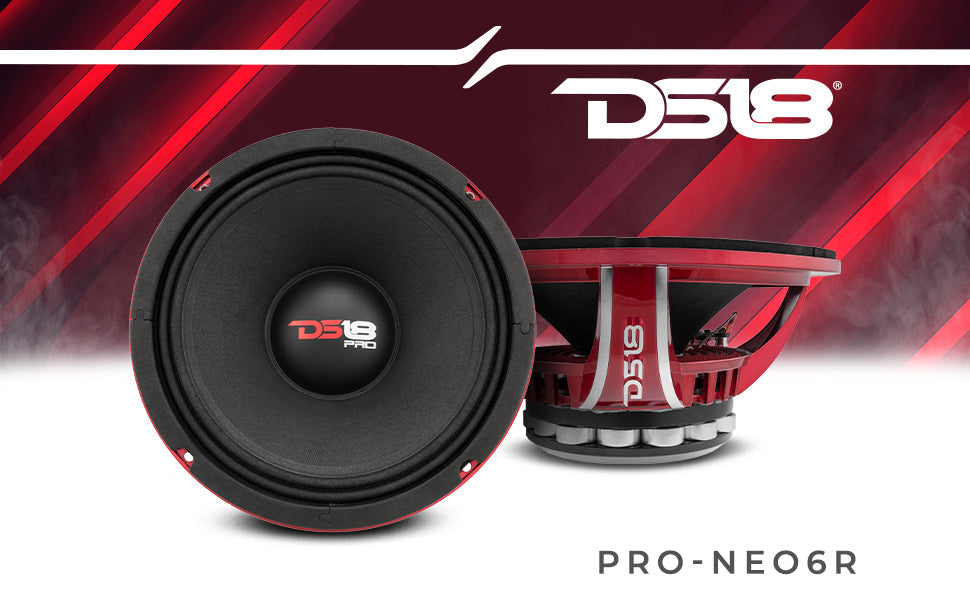

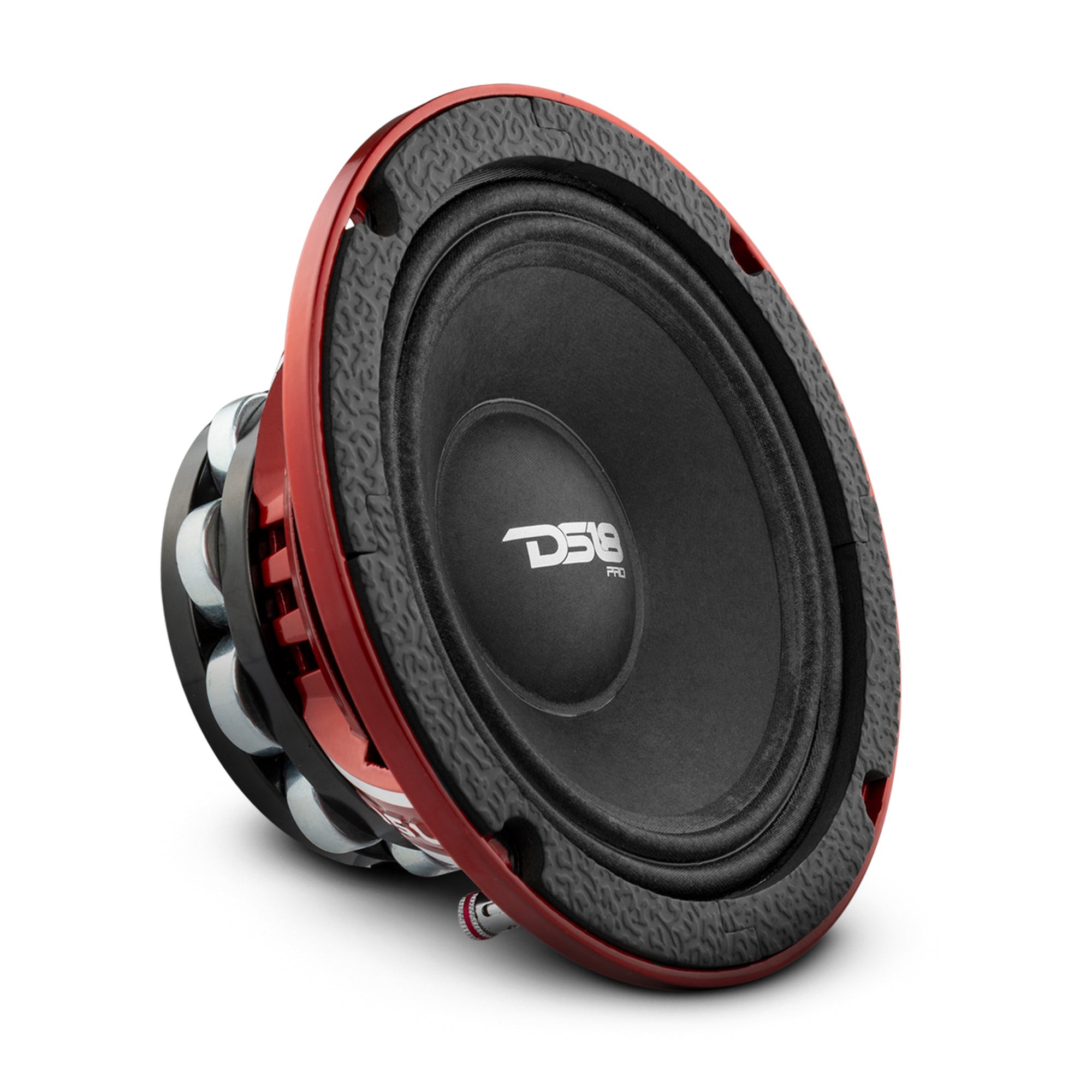

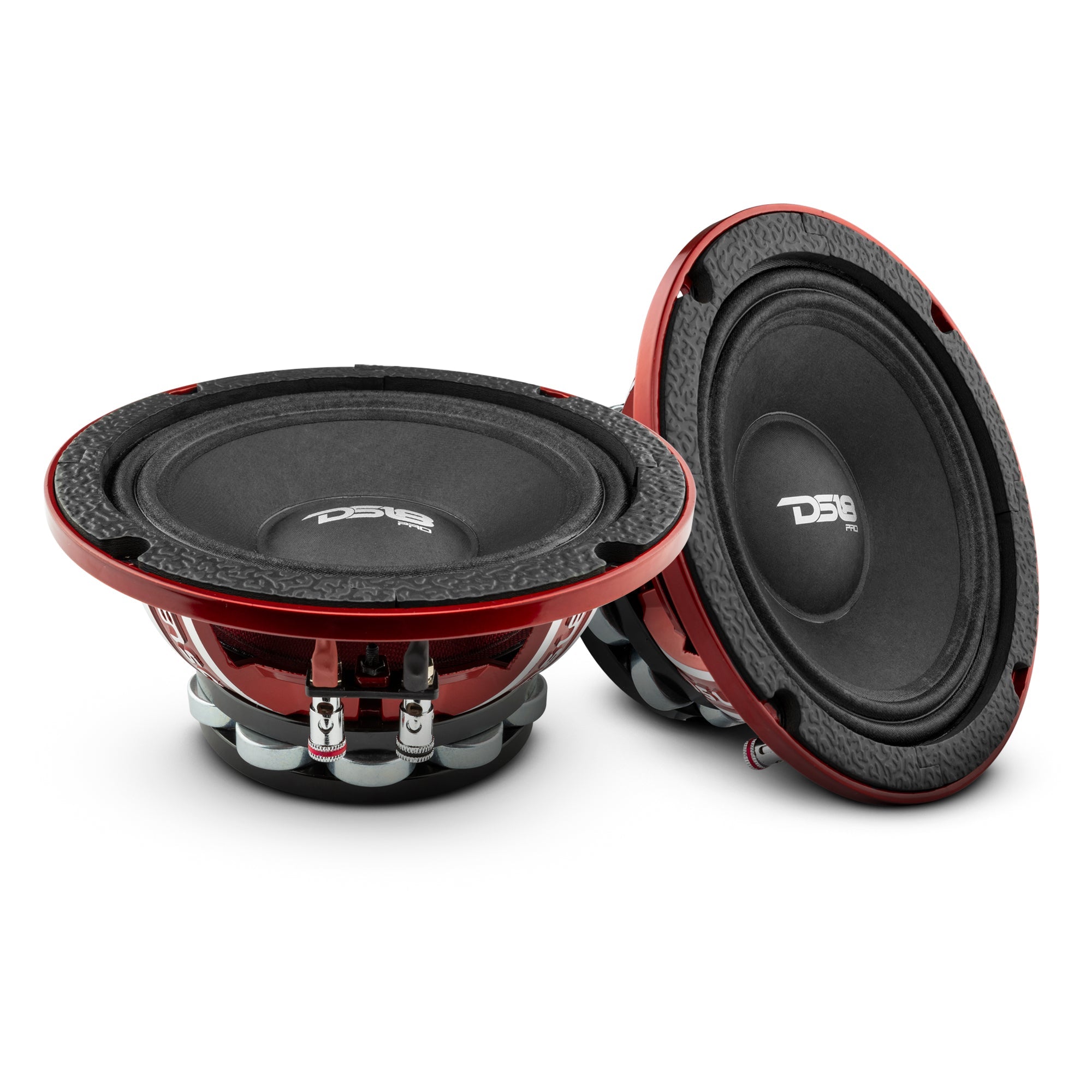

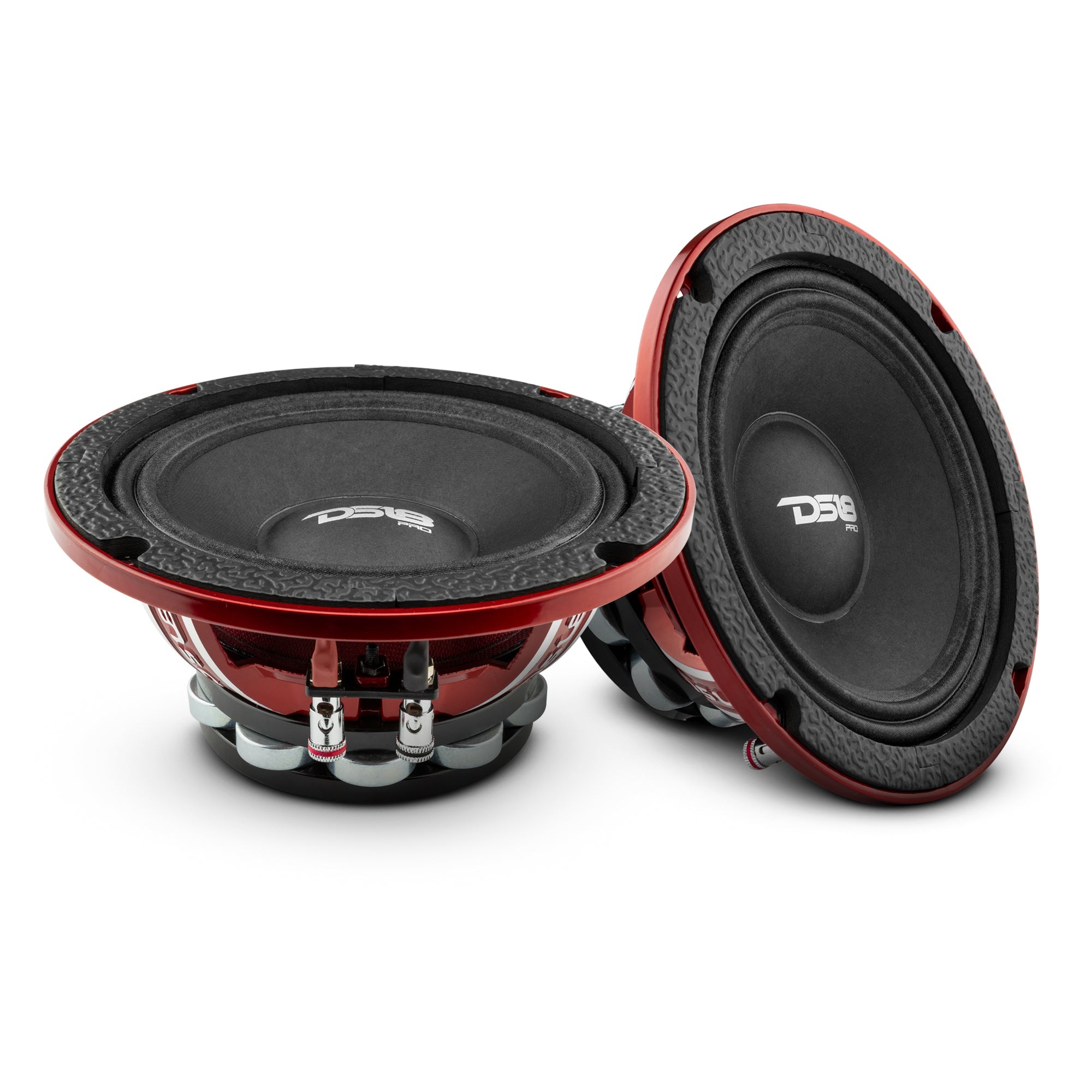

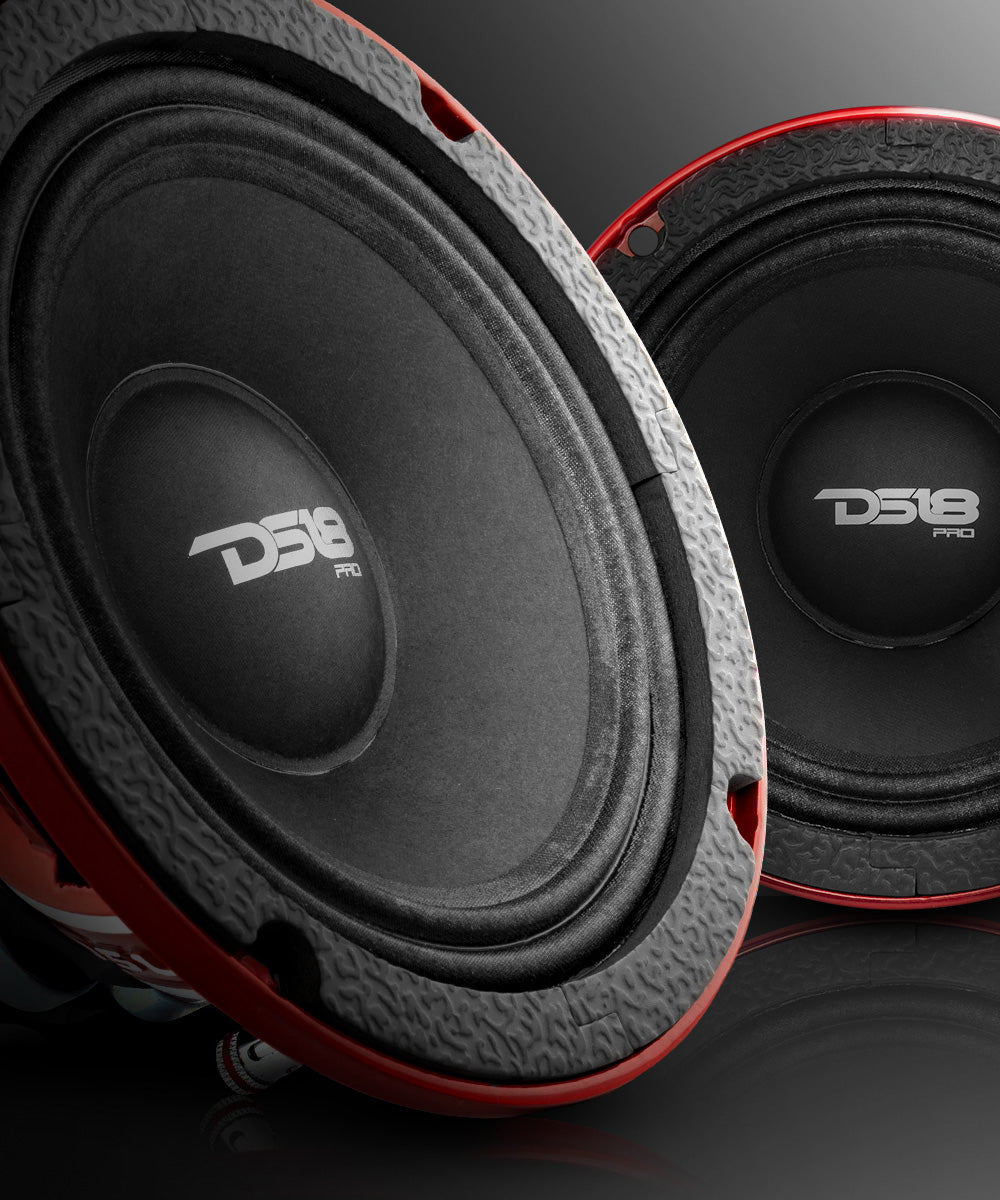

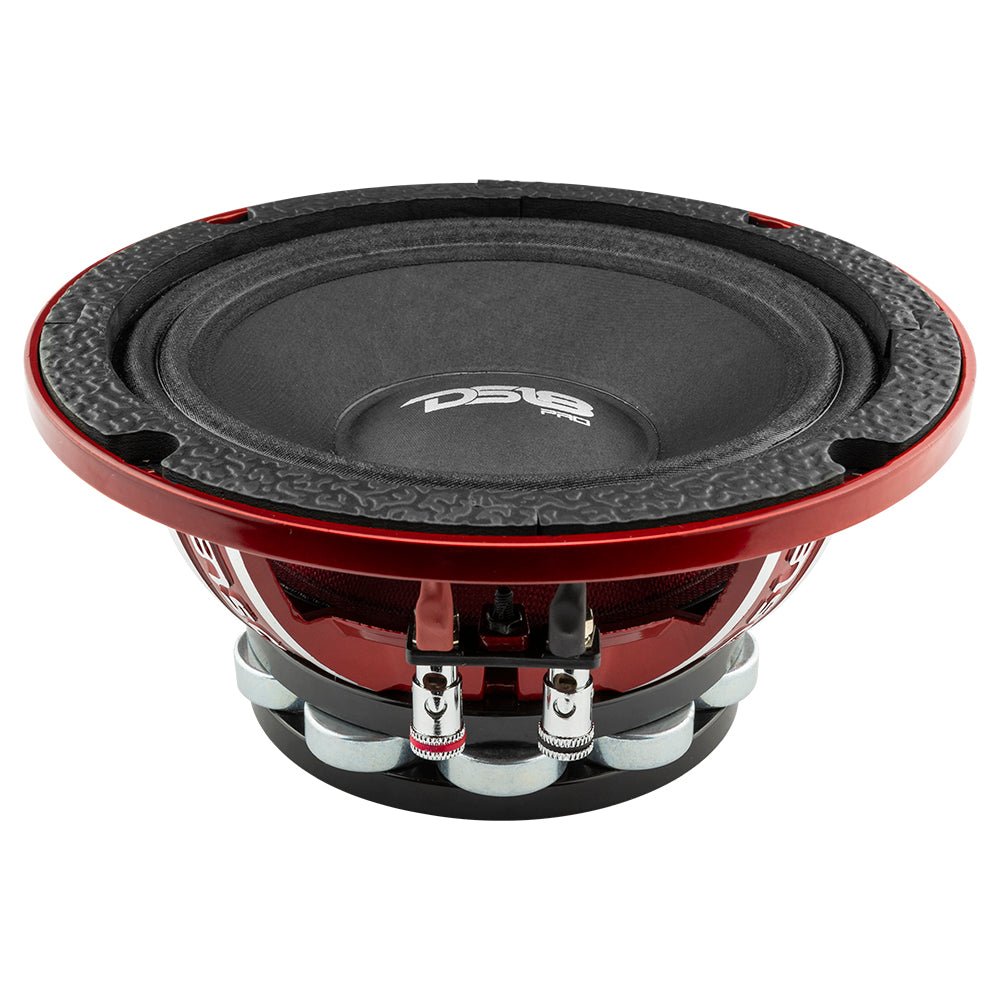

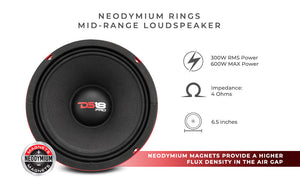

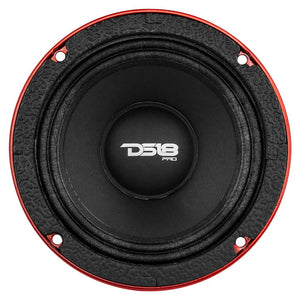

DS18 PRO-NEO6R 6.5" Neodymium Mid-Range Loudspeaker 600 Watts 4-Ohm
|
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|




Technical Details
| Model: | PRO-NEO6R |
| Type: | Midrange Loudspeaker |
| Size: | 6.5" |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Frequency Response: | 90Hz - 12.5KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 96dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Aluminum Basket |
| Cone: | Paper Cone |
| Magnet: | Neodymium Rings |
| Voice Coil Wire: | KCCAW |
| Measurements | |
| Voice Coil Size: | 2" |
| Magnet Weight: | 12 oz. |
| Mounting Depth: | 3" (75.5mm) |
| Cut-Out Dimensions: | 5.9" (150mm) |
| Net Weight: | 1.91kg |


Key Features
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Neodymium Magnet
- 96dB
Specifications
| SKU | PRO-NEO6R |
|---|---|
| Nominal Diameter | 6.5" |
| Nominal Impedance | 4 ohms |
| RMS Power Handing | 300W |
| Maximum Power Handing | 600W |
| Sensitivity (1w/1m) | 96dB |

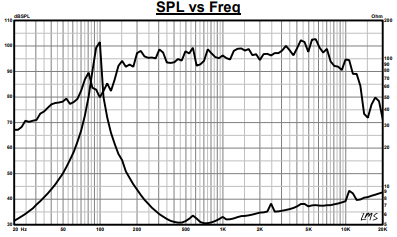

| Frequency Response | 90 Hz - 12.5 KHz |
| Recommended Hi Pass Crossover | 160Hz |
| Voice Coil Diameter | 2" /50.8mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 11.4 Oz |
| Vas | 5.088 Ltr |
| Xmax | 3.6mm |
| Fs | 99.5 Hz |
| Qms | 9.8 |
| Qes | 0.237 |
| Qts | 0.231 |
| Re | 3.2 ohm |

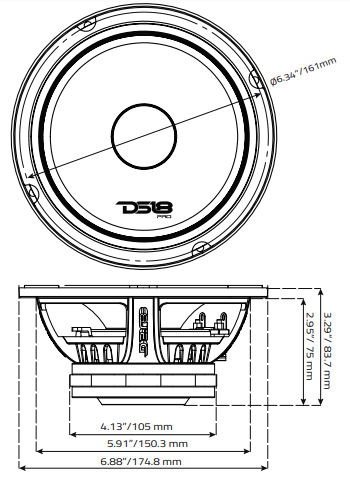

| Overall Diameter | 6.88" / 174.8mm |
| Front Mount Baffle Cutout | 5.91" / 150.3mm |

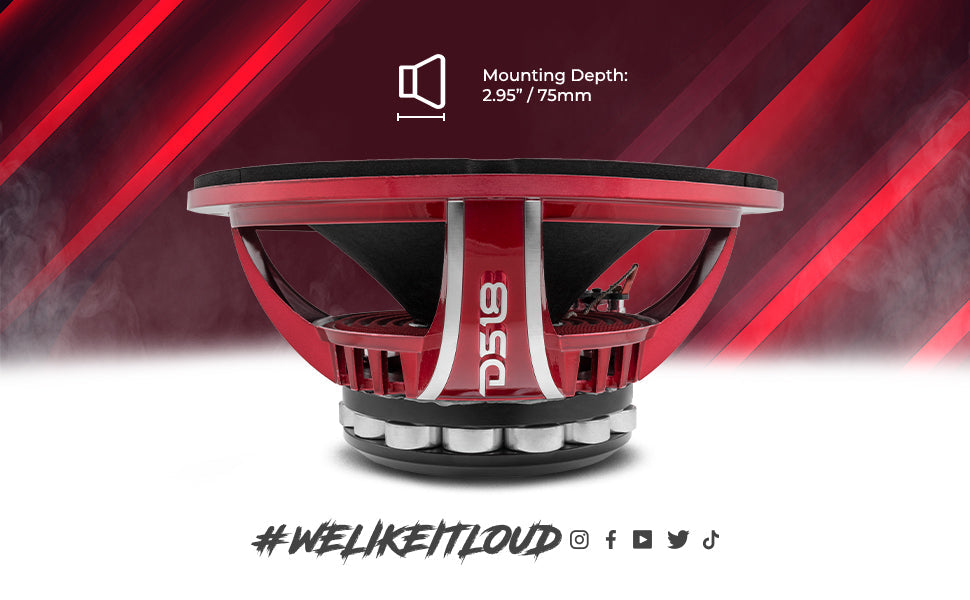

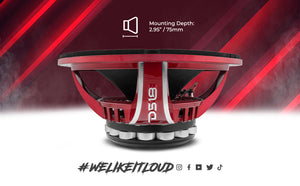

| Mounting Depth | 2.95" / 75mm |
| Overall Depth | 3.29" / 83.7mm |
| Product Weight | 4.5 lbs |
| Product Dimensions | 7.25 x 7.25 x 3.875 |
| M/C Weight | 38 lbs |
| M/C Dimensions | 15.5 x 15.5 x 8.5 |
| M/C QTY | 8 |
| Sold In | Piece |
