PRO 6.5" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 225 Watts Rms 4-Ohm
Product Overview DS18 PRO-HY6.4B 6.5" Water Resistant Mid-Range Loudspeaker with Built-in Driver 450 Watts 4-Ohm DS18's Hybrid...
- $113.95
- $113.95
- Unit price
- per
Subtotal:
$113.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 PRO-HY6.4B 6.5" Water Resistant Mid-Range Loudspeaker with Built-in Driver 450 Watts 4-Ohm

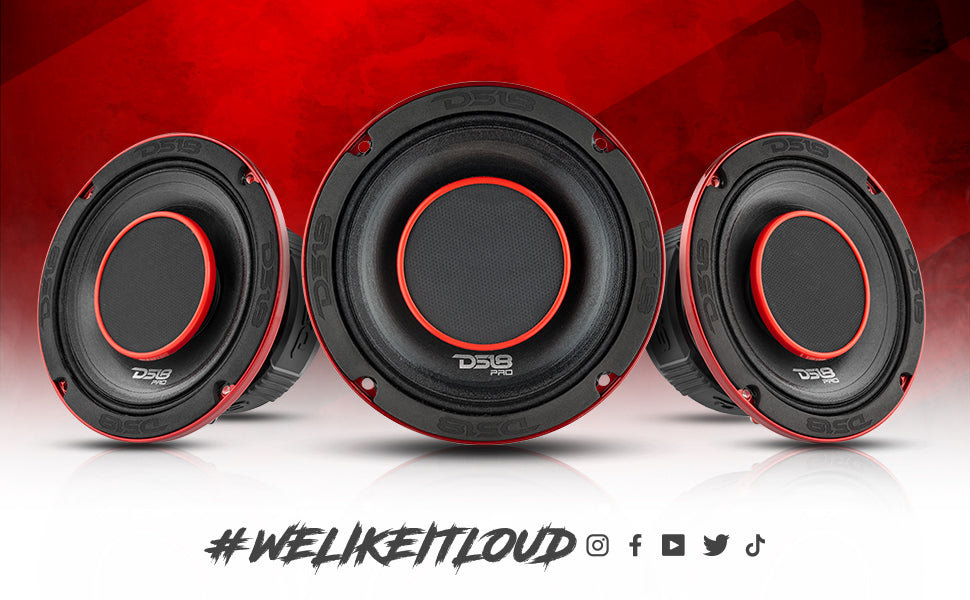

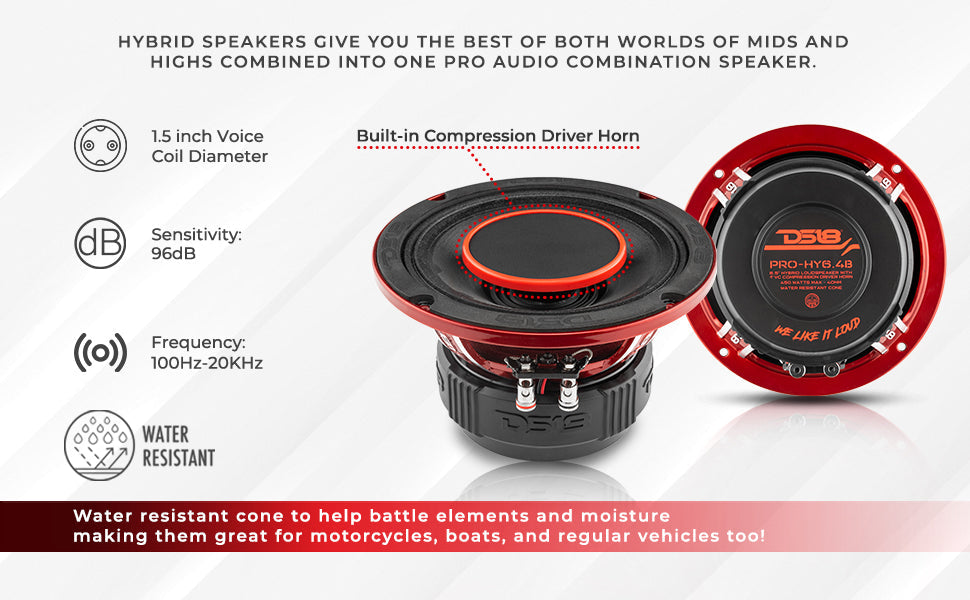

DS18's Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker.

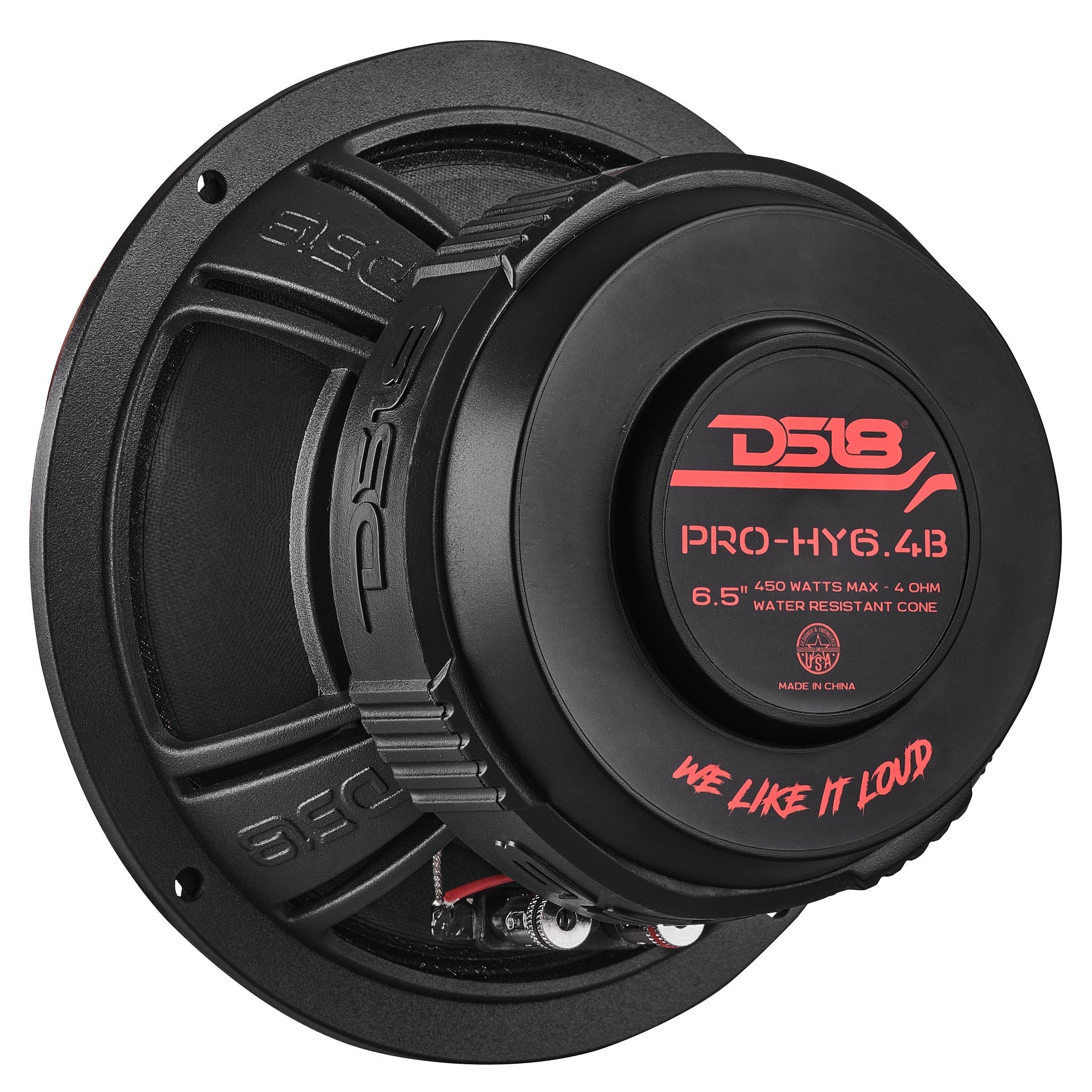

This high powered pro audio mega speaker combines both a 6.5 high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume.
These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.
Highlights
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 6.5 and 1" driver rated at 225w RMS and 450max for crazy loud volume in a full range of frequencies.
- Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4 OHMS |
| RMS Power Handling | 225W |
| MAX Power Handling | 450W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 100Hz-20KHz |
| Recommended Hi Pass Crossover | 120 Hz |
| Number of Ways | 2 |
| Pair or Single | Single |
| MID-RANGE SPECIFICATIONS | |
| Voice Coil Diameter | 1.5” / 38.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 27 oz |
| Displacement volumen | 0.047L |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | Vas 2.211L |
| Excursion (one way) | Xmax 9.2 mm |
| Free Air Resonance | FS 199Hz |
| Mechanical Factor | Qms 5.96 |
| Electrical Factor | Qes 1.524 |
| Total Factor | Qts 1.214 |
| Mechanical Mass | Mms 8.654g |
| Mechanical Compliance | Cms 73.792 mm/N |
| BL Factor | BL 4.769 |
| Voice Coil Inductance | Le 4.22mH |
| Cone Area | Sd 145.26 Cm2 |
| DC Resistance | Re 3.2 ohms |
| Mechanical Mass w/o Air | Mmd 6.7g |
| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.26" |

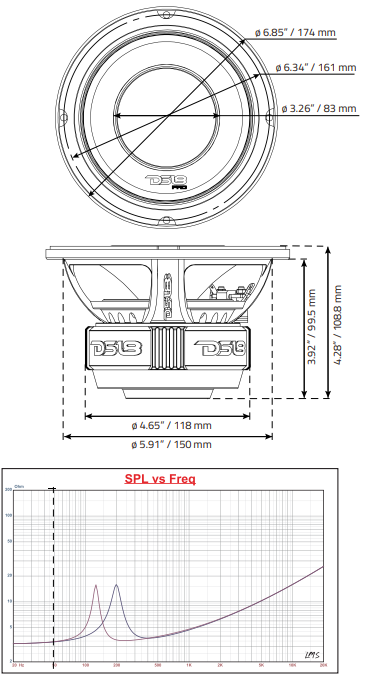

| MEASUREMENTS | |
| Overall Diameter | 6.85" / 174 mm |
| Overall Depth | 4.28" / 108.8 mm |
| Front Mount Baffle Cutout | 5.91" / 150 mm |
| Mounting Depth | 3.92" / 99.5 mm |
| Motor Diameter | 4.65" / 118 mm |
Key Features
- 6.5" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 225 Watts(450 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
Specifications
| SKU | PRO-HY6.4B |
|---|---|
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 225W |
| MAX Power Handling | 450W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 100Hz - 20Khz |
| Recommended HI Pass Crossover | 120Hz |
| Number of ways | 2 ways |
| Pair or Single | Single |
| Grill Included | Yes |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper (IPx5) |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 27 Oz |
| Displacement Volume | 0.047L / 0.0016ft3 |
| Equivalent Volume Vas | 2.21L / 0.078ft3 |
| Excursion (one way) Xmax | 9.2mm |
| Free Air Resonance Fs | 199Hz |
| Mechanical Factor Qms | 5.96 |
| Electrical Factor Qes | 1.524 |
| Total Factor Qts | 1.214 |
| Mechanical Mass Mms | 8.654g |
| Mechanical Compliance Cms | 73.792 mm/N |
| BL Factor BL | 4.769 |
| Voice Coil Inductance Le | 4.22mH |
| Cone Area Sd | 145.26 Cm2 |
| DC Resistance Re | 3.2 ohms |
| Mechanical Mass w/o air Mmd | 6.70g |
| Diaphragm Material | Titanium |
| Horn Diameter | 3" / 76.2mm |
| Overall Diameter | 6.85" / 174mm |
| Overall Depth | 4.28" / 108.8mm |
| Front Mount Baffle Cutout | 5.91" / 150mm |
| Mounting Depth | 3.92" / 99.5mm |
| Motor Diameter | 4.65" / 118mm |
| Gross Single Unit Weight | 5 |
| Single Unit Box Dimensions L x W x H (Inches) | 7.25 x 7.5 x 5 |
| Quantity of Units in Master Carton | 8 |
| Gross Master Carton Weight | 42.5 |
| Master Carton Dimensions L x W x H (Inches) | 15.75 x 15.75 x 10.25 |
