2" Throat Bolt on Neodymium Driver 450 Watts 3" Titanium Vc 8-Ohm
2" Throat Bolt on Neodymium Driver 450 Watts 3" Titanium Vc 8-Ohm
Product Overview

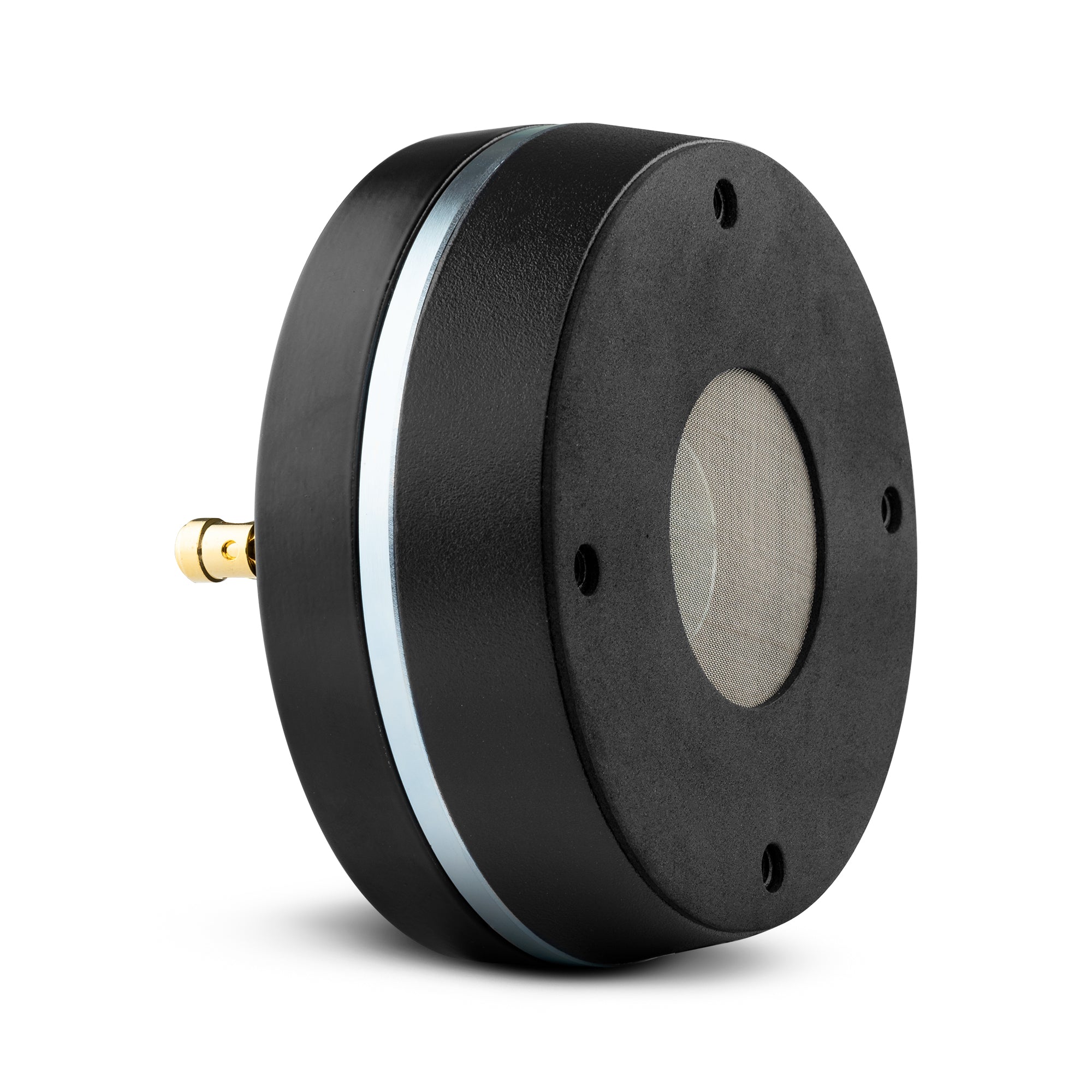

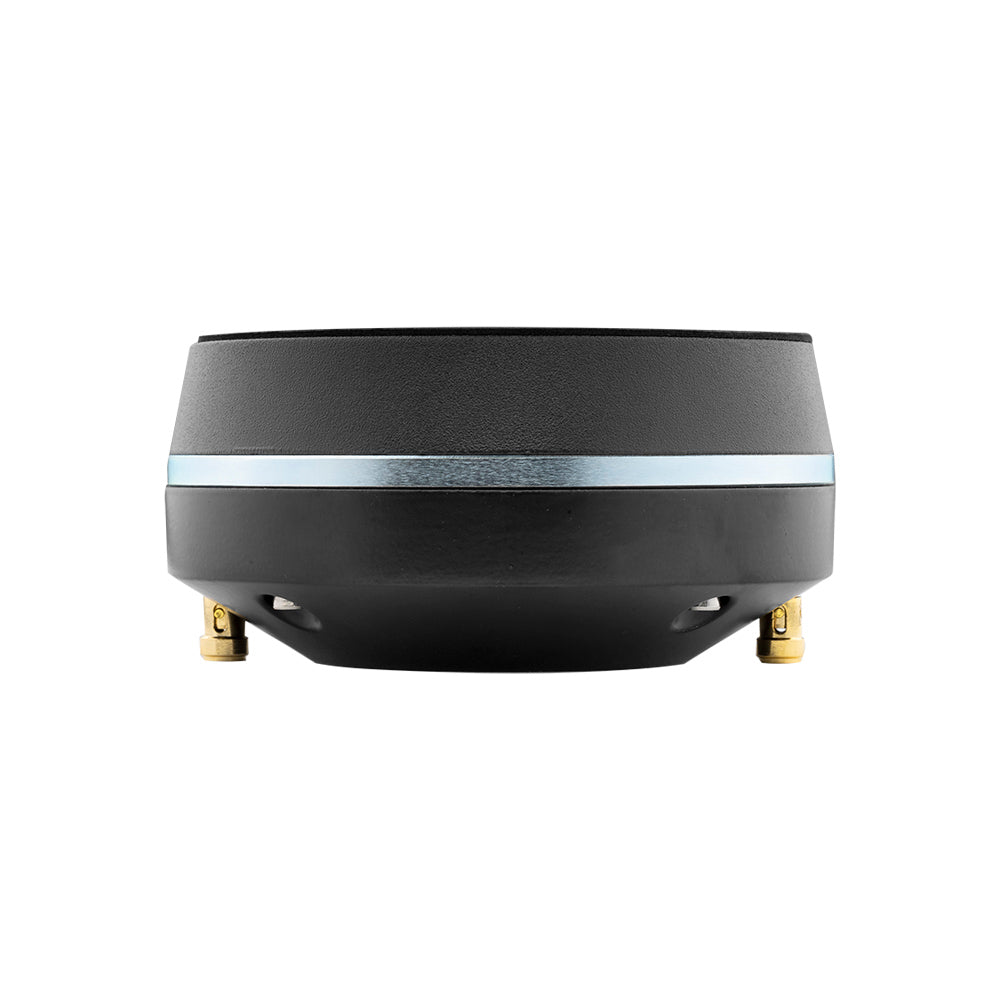

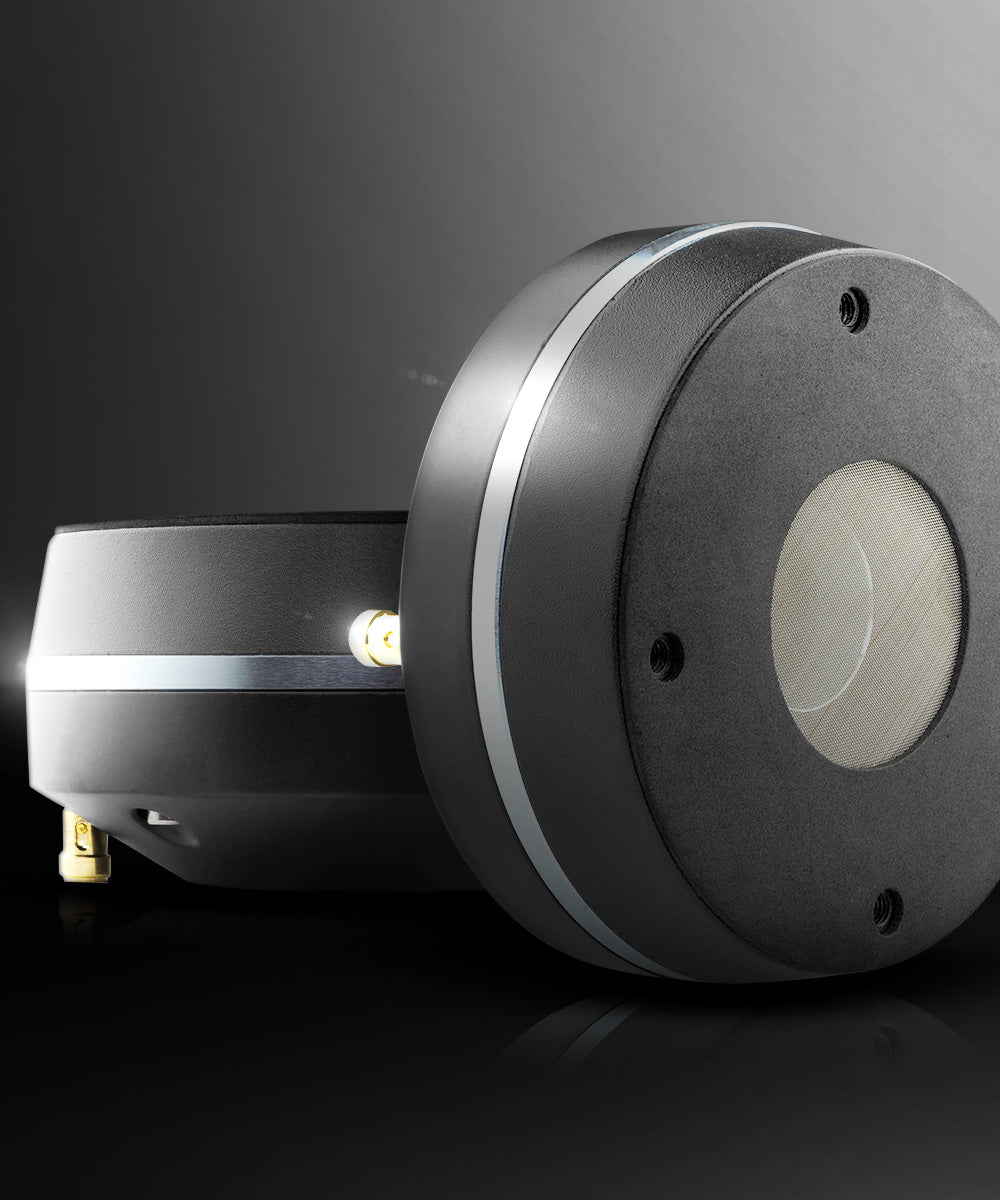

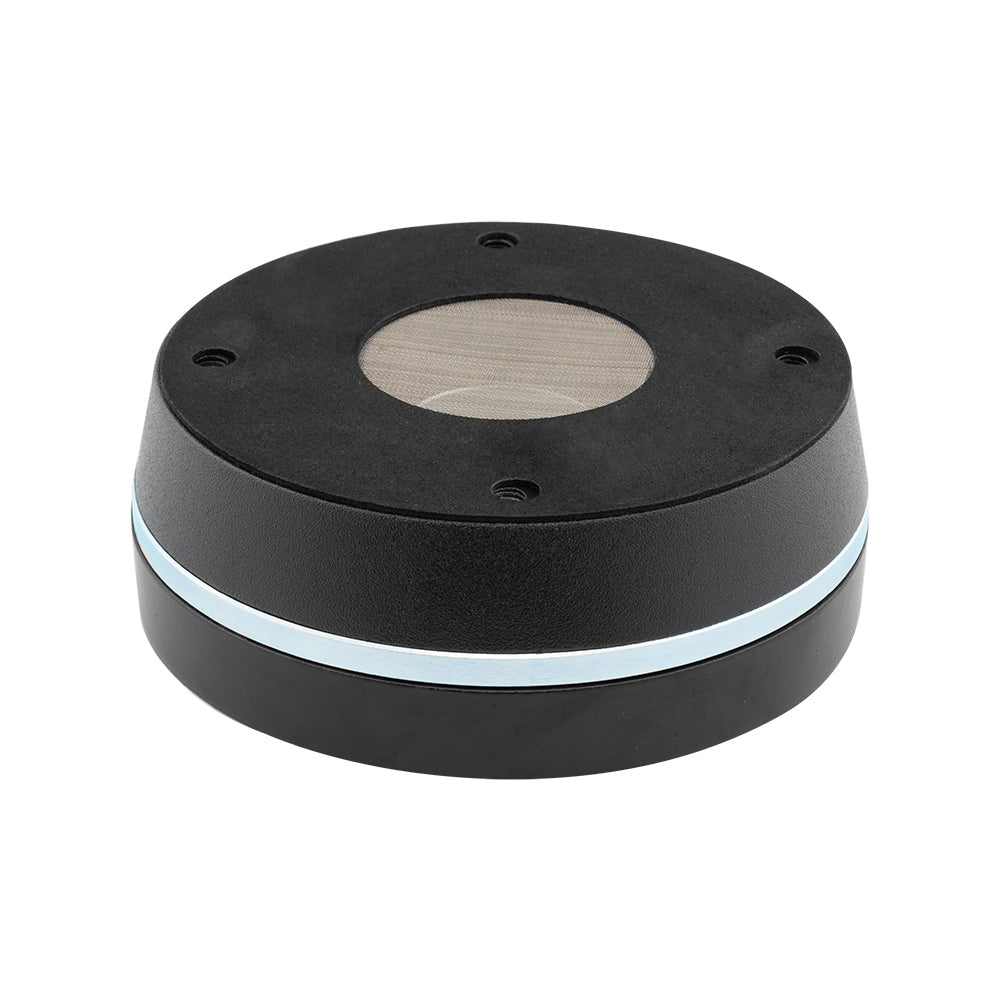

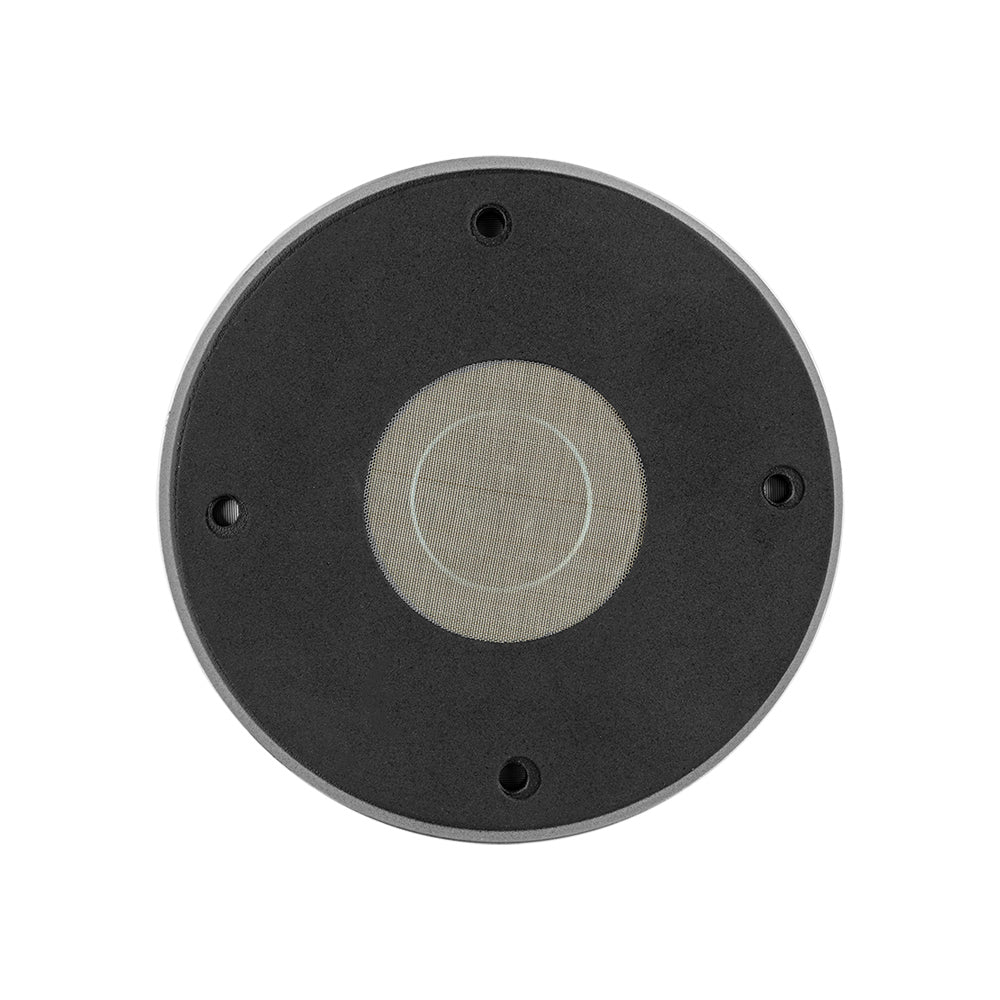

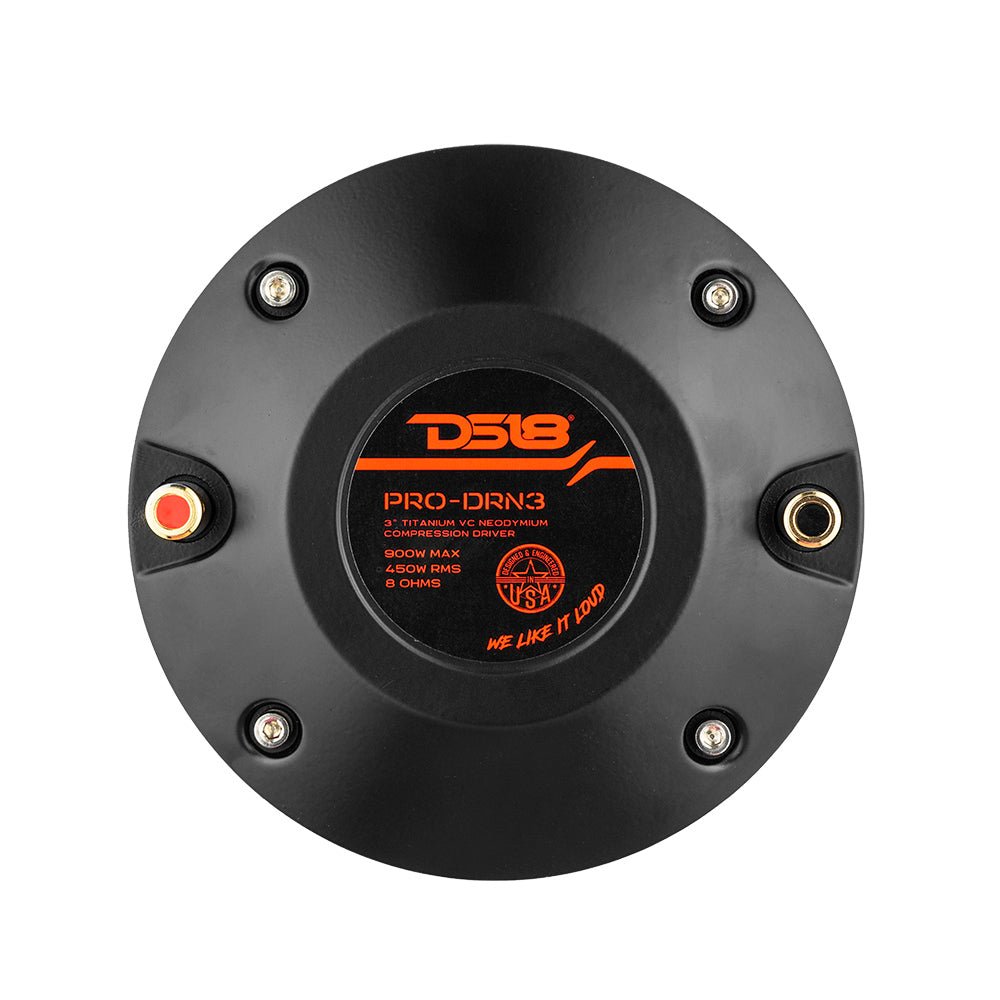

DS18 PRO-DRN3 2" Throat Bolt On Neodymium Driver 3" Titanium VC 600 Watts 110dB 8 Ohm
|
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! Highlights
|
Technical Details
| Model: | PRO-DRN3 |
| Type: | Neodymium |
| RMS Power: | 450W |
| MAX Power: | 900W |
| Sensitivity: | 110dB |
| Voice Coil Size: | 3" |
| Impedance: | 8 Ohms |
| Frequency Response: | 500Hz - 18KHz |
| Magnet: | Neodymium |
| Diaphragm Material: | Titanium |
| Throat Diameter: | 2" |

Key Features
- 2" Compression Driver
- RMS Power: 450 Watts(900 Watts Peak)
- Impedance: 8 Ohm ~ 110dB
- Neodymium Magnet - Titanium Diaphragm
- Bolt On
- Easily Repaired With The PRO-DRN3VC
Specifications
| SKU | PRO-DRN3 |
|---|---|
| Throat Diameter | 2" / 50.8 mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 225W |
| Program Power Handling | 450W |
| Peak Power Handling | 900W |
| Sensitivity (1w/1m) | 110 dB |

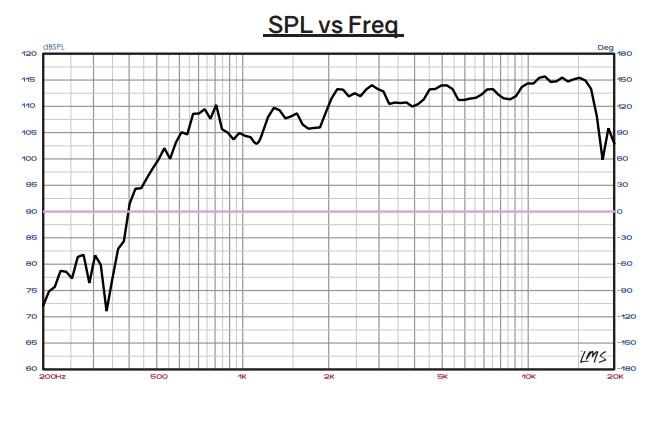

| Frequency Response | 500Hz-18KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 3" / 75 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum Wire |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Weight | 0.38 oz |
| Body Material | Aluminum |
| Overall Width | 5.12" / 130mm |
| Overall Depth | 2.52" / 64mm |
| Bolt Pattern | 4" / 102mm - M6 |
| Product Weight | 5.6 lbs |
| Product Dimensions | 5.75 x 5.5 x 3 |
| M/C Weight | 23 lbs |
| M/C Dimensions | 13.75 x 6.5 x 7.5 |
| M/C QTY | 4 |
| Sold In | Piece |
