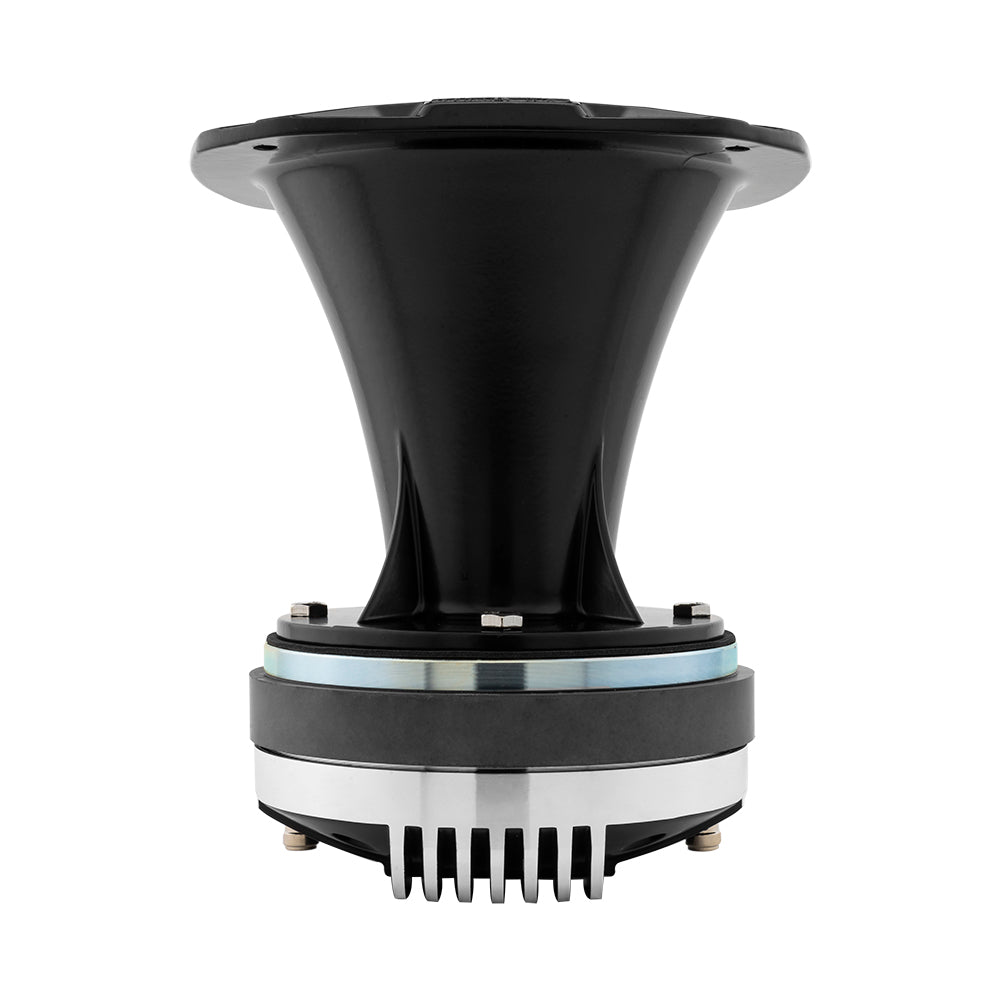

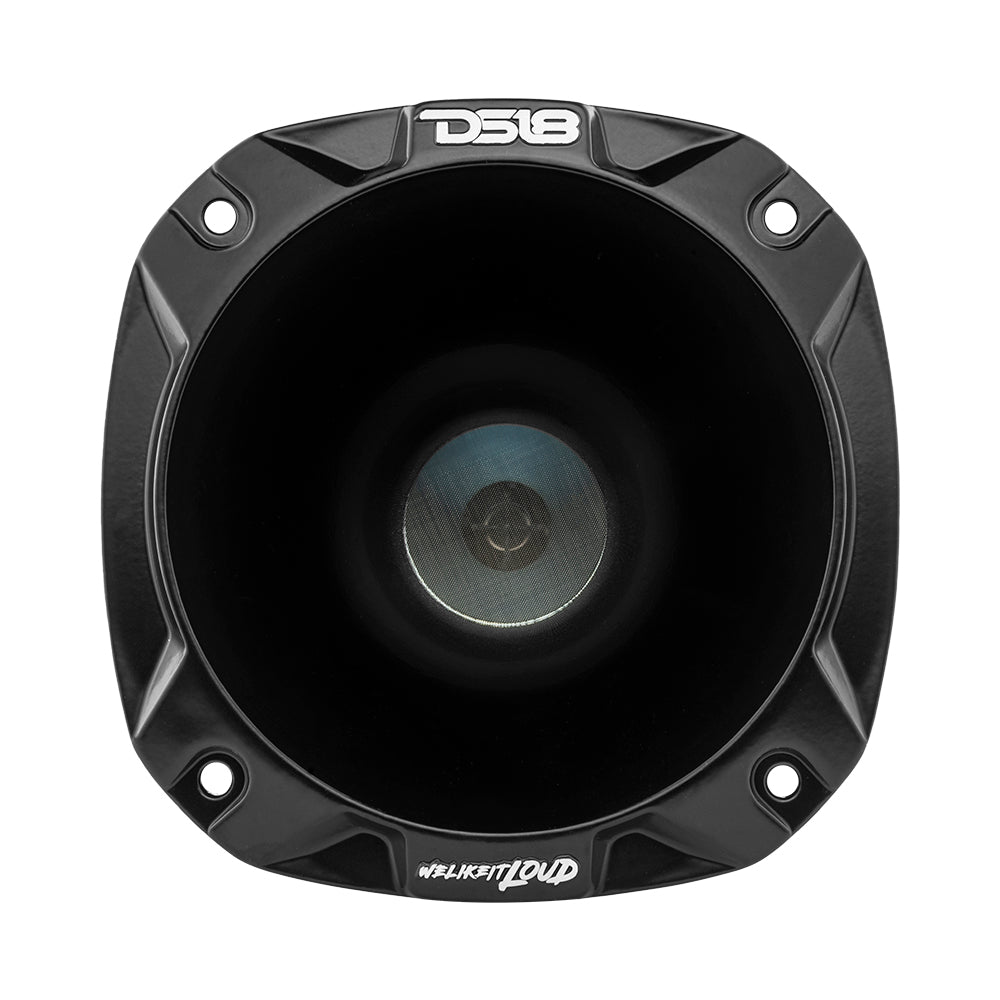

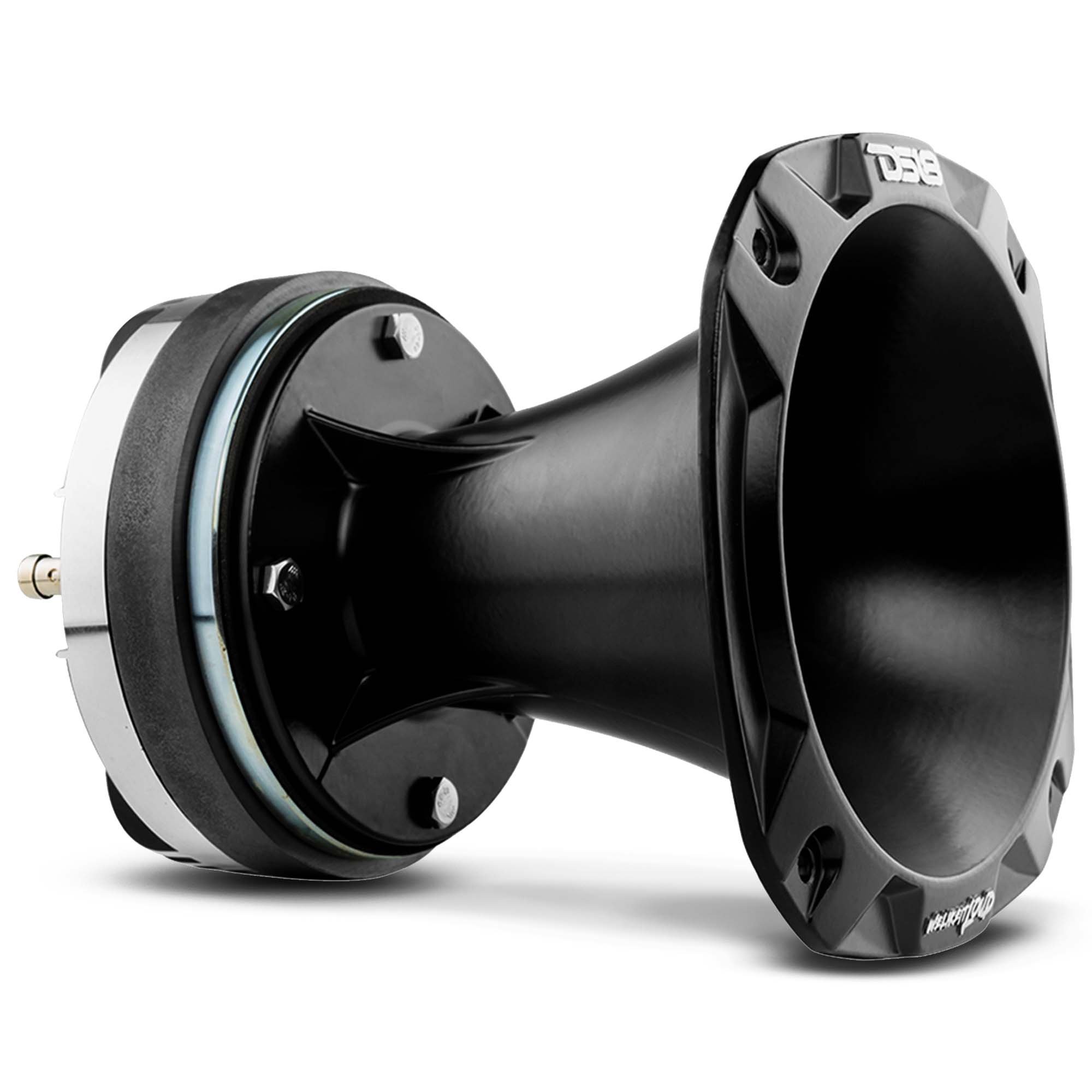

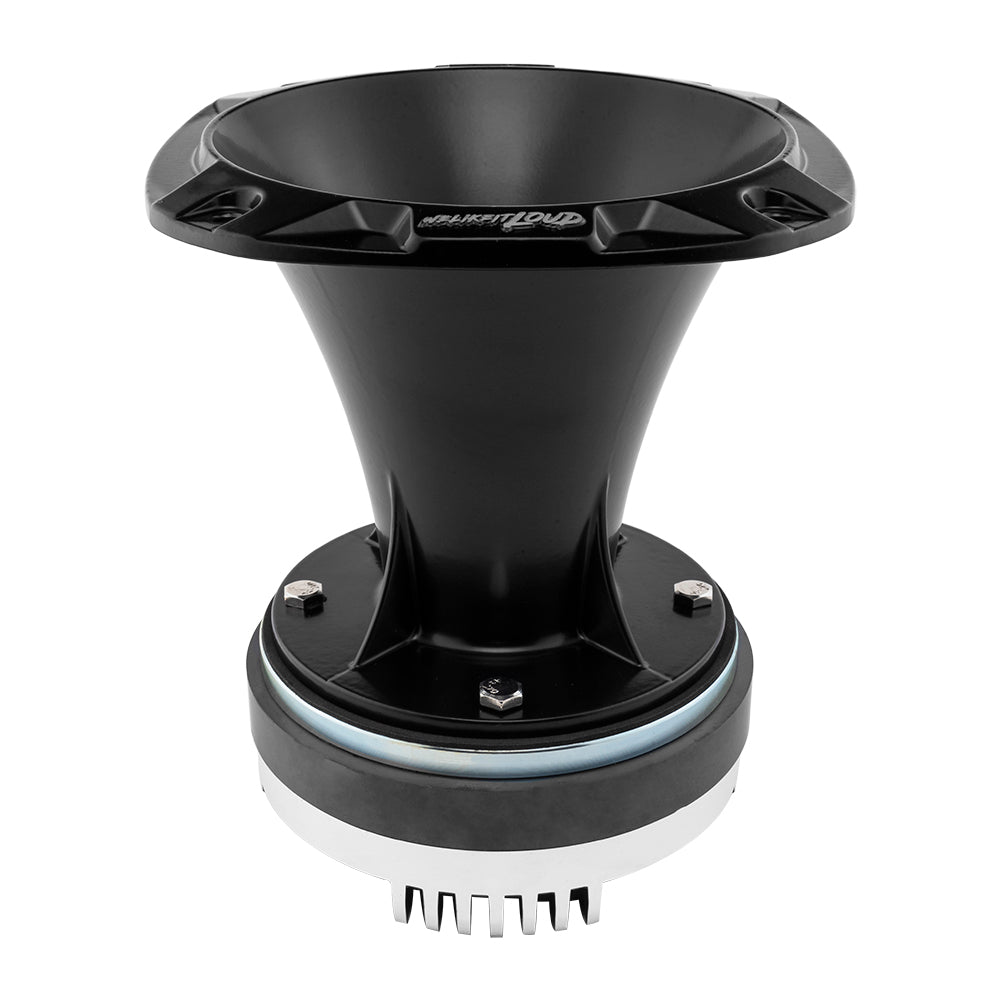

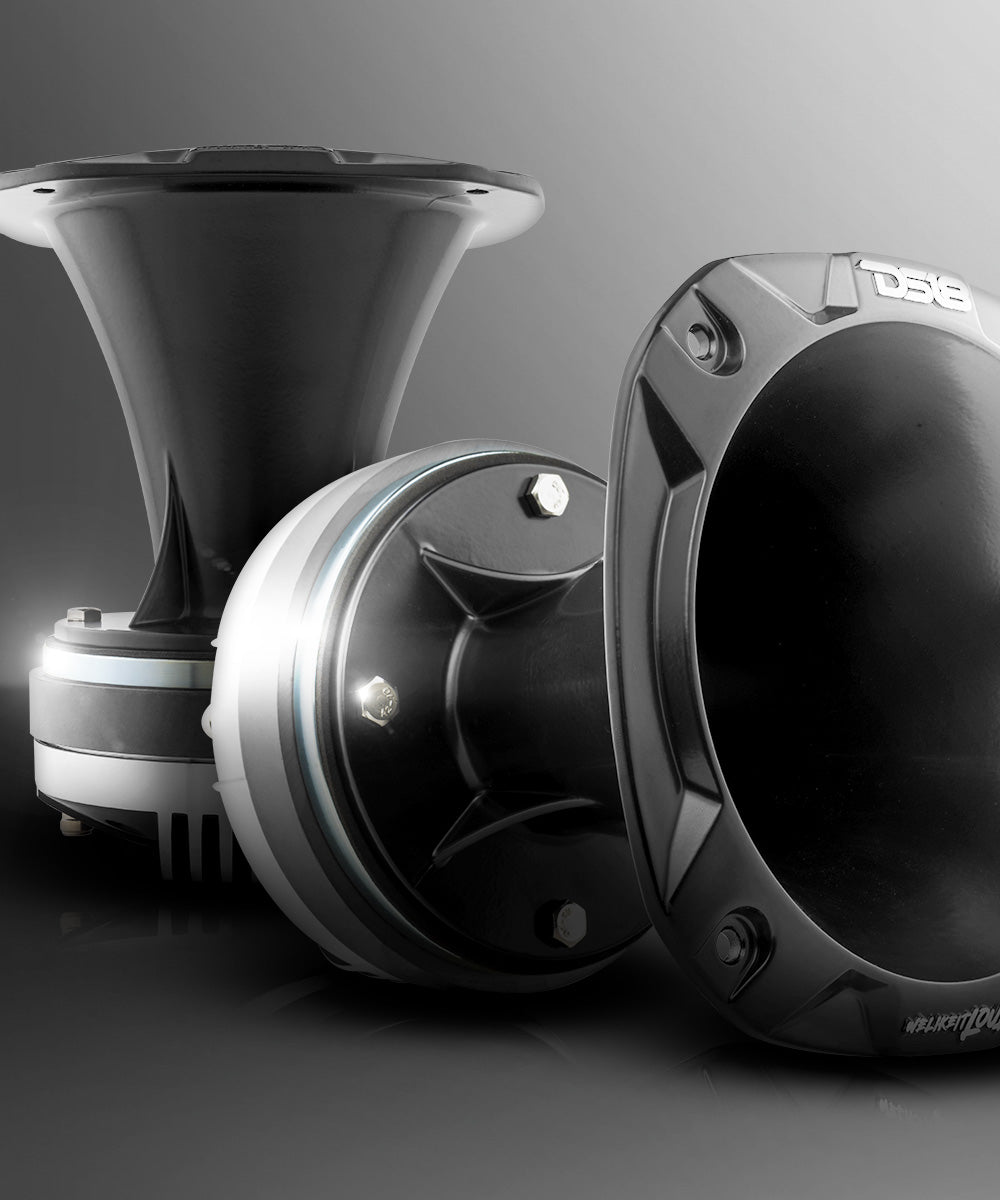

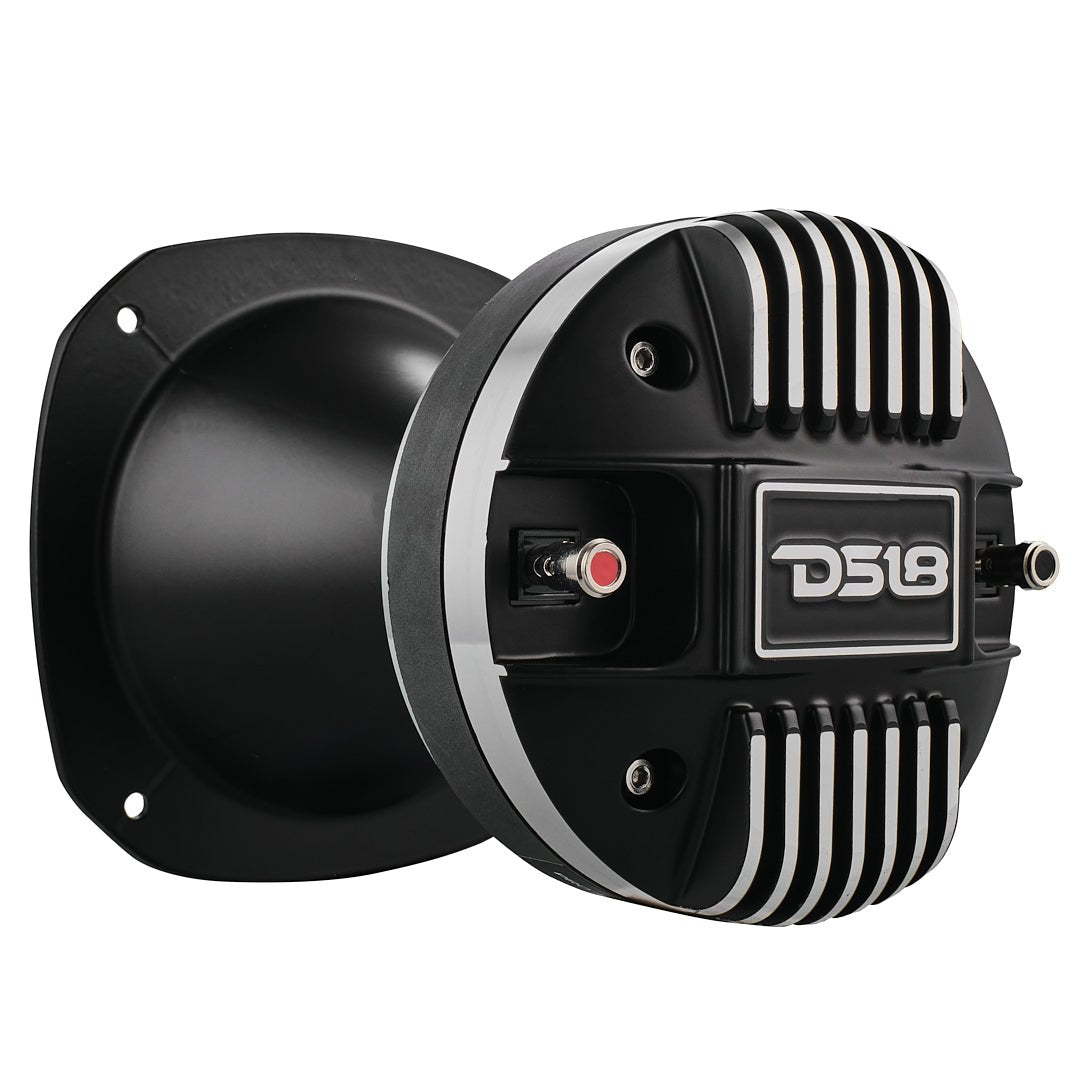

2" Driver And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
2" Driver And Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)
Product Overview

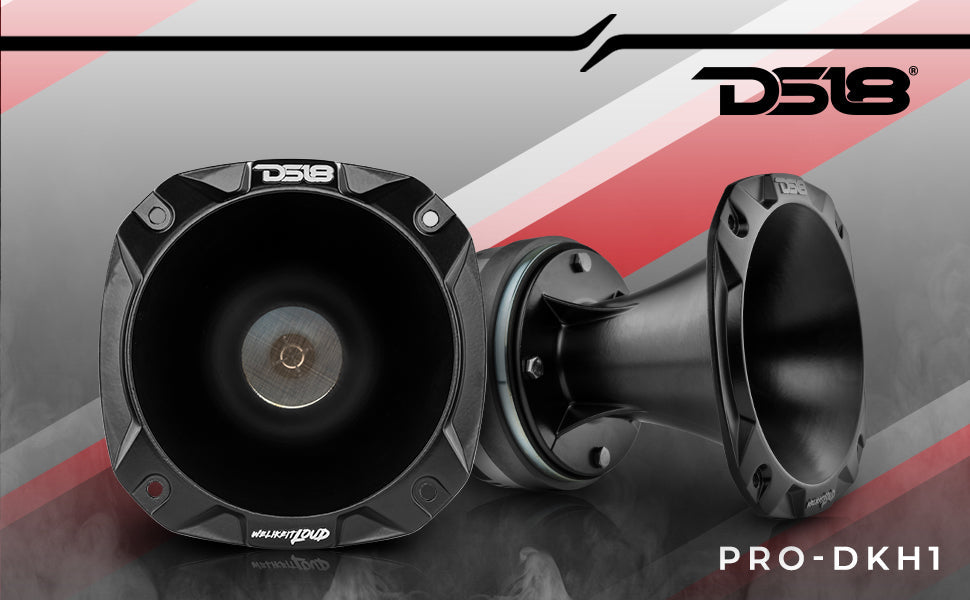

S18 PRO-DKH1 2" Bolt On Throat Compression Driver 2" Throat Titanium VC and PRO-HA102/BK Horn 640 Watts 111dB 8 ohm Mounting Depth 7.18"
|
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and non-stop innovating attitude! We are sure that you will love your Compression Driver as much as we do. WARNING: EXTREMELY LOUD!! Highlights
|
Technical Details
| Specifications | |
| Peak Power Handling | 640 Watts |
| Program Power handling | 320 Watts |
| AES Rated Power | 160 Watts |
| Sensitivity | 115 dB |
| Frequency Response | 500Hz-18.5KHz |
| Nominal Impedance | 8 Ohms |
| Throat Diameter | 2" |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 2.03" |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35 oz |
| Bolt Type | Bolt-on |
| Measurements | |
| Overall Diameter | 6.88" |
| Overall depth | 7.5" |

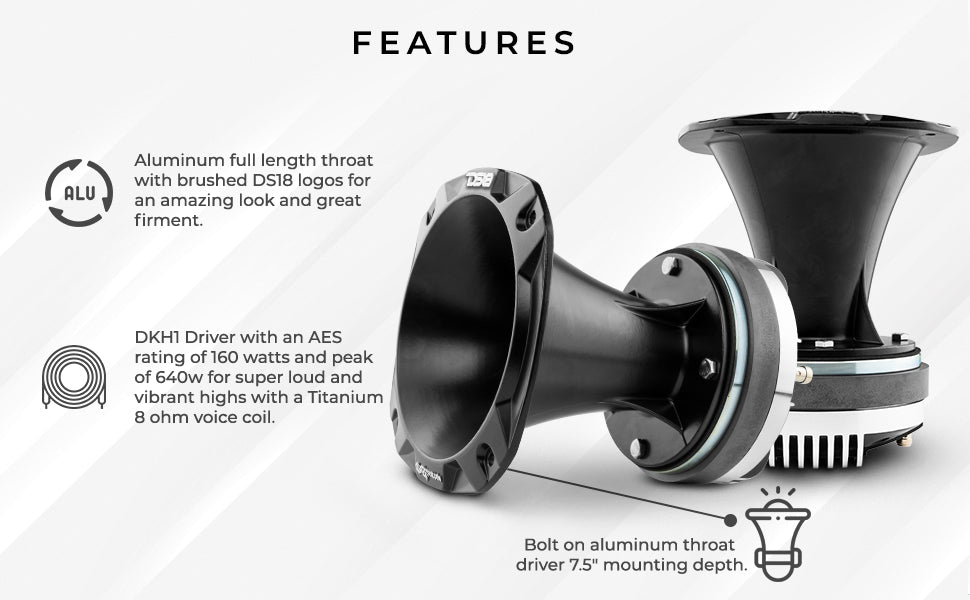

Key Features
- 2" Compression Driver with Horn
- 1 X PRO-D1
- 1 X PRO-HA102/BK
- RMS Power: 320 Watts(640 Watts Peak)
- Impedance: 8 Ohm ~ 111dB
- Ferrite Magnet
Specifications
| SKU | PRO-DKH1 |
|---|---|
| Nominal Impedance | 8 OHM |
| AES Power | 200 Watts |
| Program Power Handling | 320 Watts |
| Peak Power Handling | 640 Watts |
| Sensitivity (1w/1m) | 111 dB |
| Frequency Response | 800Hz-18.5KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | 2.03" / 51.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | 35 oz |
| Body Material | Aluminum |
| Nominal Diameter | 6.5" / 165mm |
| Throat Diameter | 2" / 50.8mm |
| Sound Coverage | 35° Rounded |
| Color | Finish | Black |

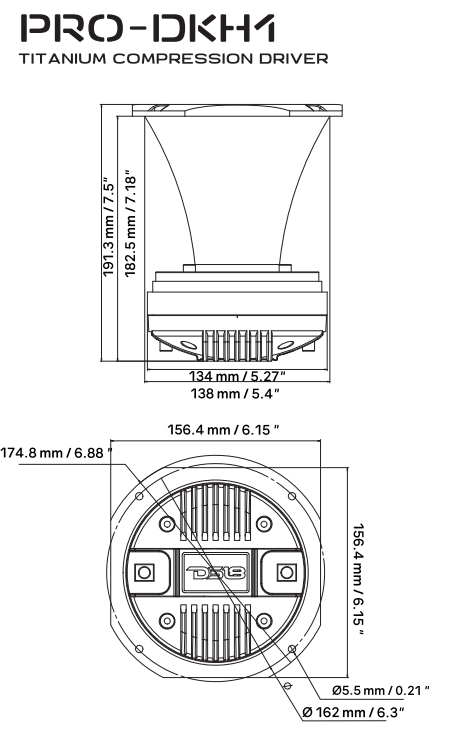

| Overall Diameter | 6.37" / 162mm |
| Overall Depth | 7.5" / 191.3mm |

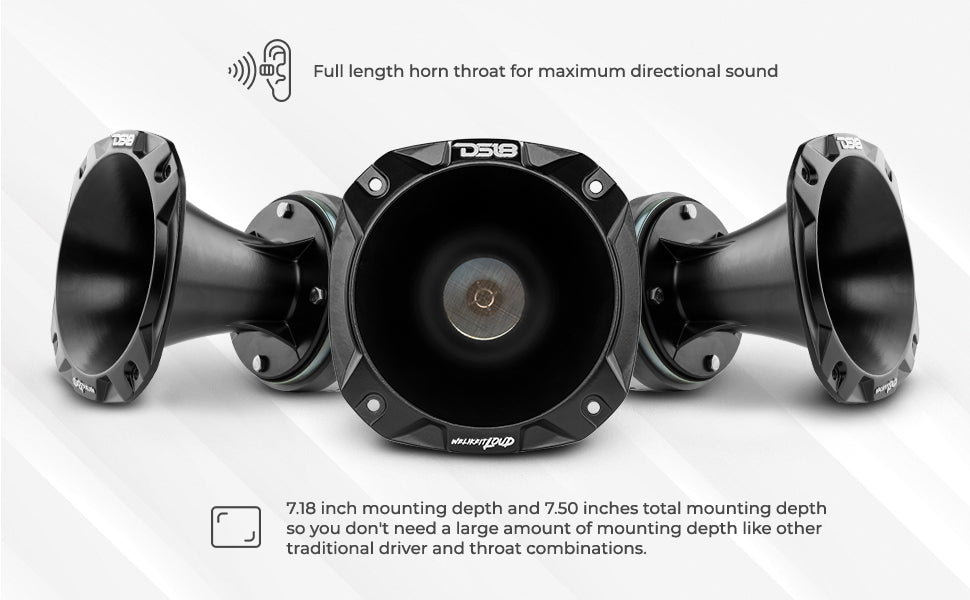

| Mounting Depth | 7.18" / 182.5mm |
| Mounting Hole Diameter | 5.7" / 145mm |
| Bolt Pattern / Type | Ø 6.33" / 161mm x 4 - 0.21" / 5.5mm Hole |
| Product Weight | 8.5 lbs |
| Product Dimensions | 7.0 x 7.0 x 8 |
| M/C Weight | 34 lbs |
| M/C Dimensions | 14.75 x 14.75 x 9.25 |
| M/C QTY | 4 |
| Sold In | Piece |
