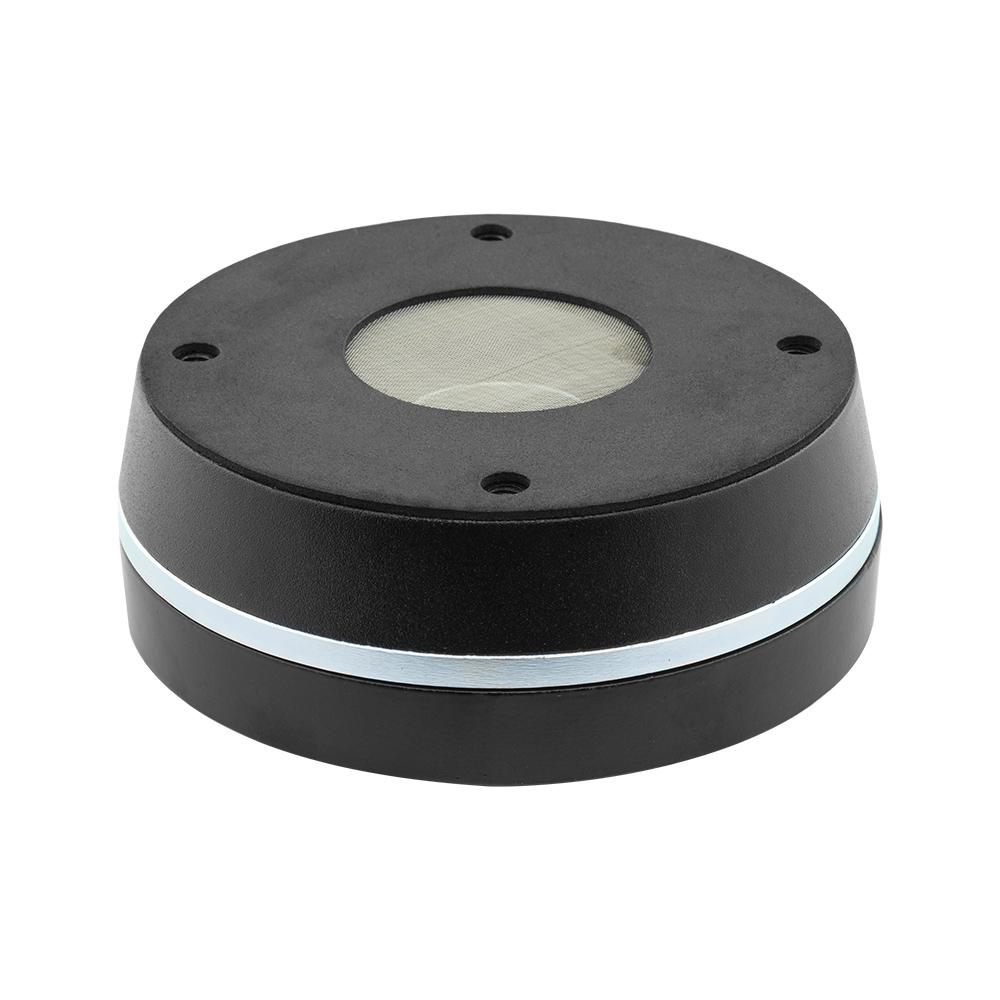

2" Throat Bolt on Neodymium Driver 450 Watts 3" Phenolic Vc 8-Ohm
Product Overview DS18 PRO-DRN3PH 2" Throat Bolt On Neodymium Driver 3" Phenolic VC 600 Watts 110dB 8...
Vendor:
DS18
Manufacturer SKU
PRO-DRN3PH
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $239.95
- $239.95
- Unit price
- per
Subtotal:
$239.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

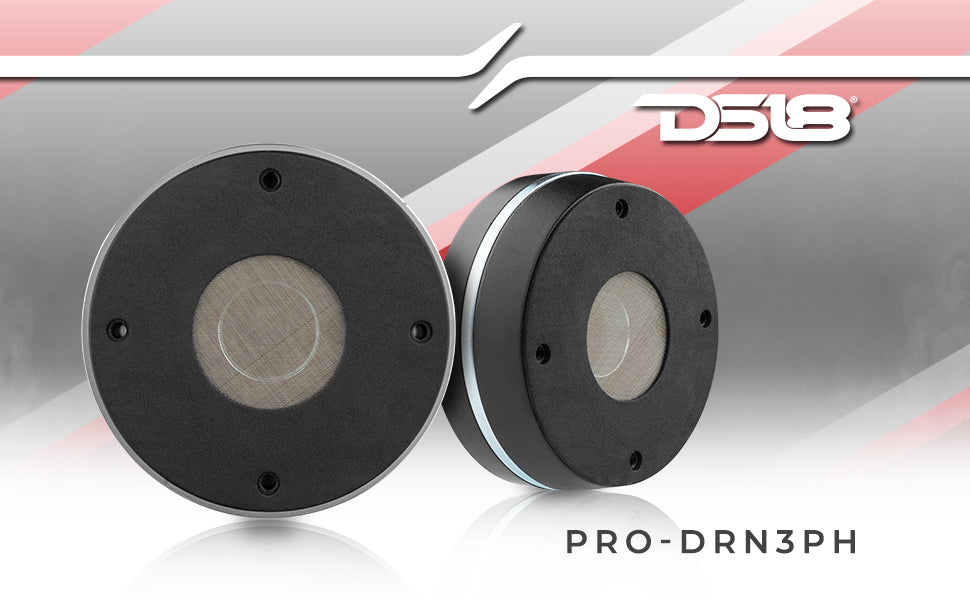

DS18 PRO-DRN3PH 2" Throat Bolt On Neodymium Driver 3" Phenolic VC 600 Watts 110dB 8 Ohm

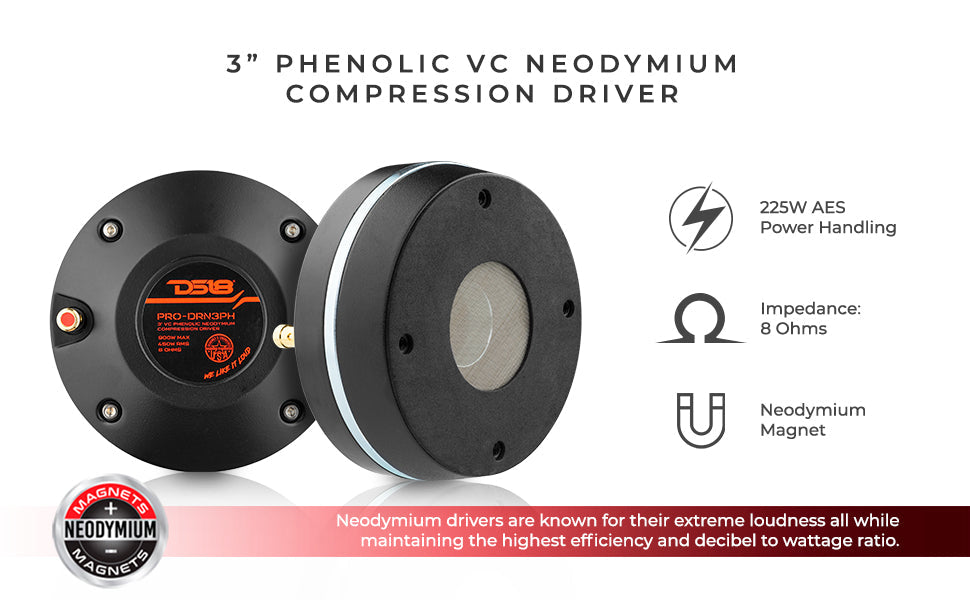

Neodymium drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio. Neodymium is definitely the motor structure you want to go with for the absolute loudest ear piercing high range frequencies.

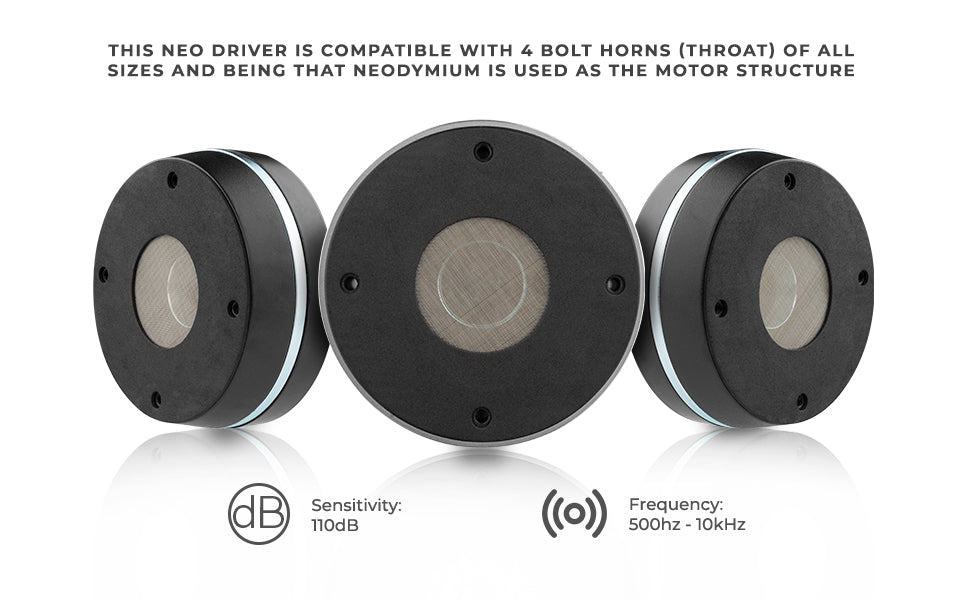

This NEO driver is compatible with 4 bolt horns (throat) of all sizes and being that Neodymium is used as the motor structure, it will be lighter than traditional ferrite motors leaving you less weight to adapt to.
This driver comes with a massive 3 inch voice coil that takes 225w AES and 900 peak power for extreme decibel production backed with a high efficiency Neodymium motor.
Highlights
- Neodymium motor structure that provides the most motor force of any other driver motor on the market.
- Intense high frequency loudness without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths.
Technical Details
| Throat Diameter | 2”/50.8 mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| Peak Power Handling | 900W |
| Program Power Handling | 450W |
| AES Power Handling | 225W |
| Sensitivity (1w/1m) | 110 dB |

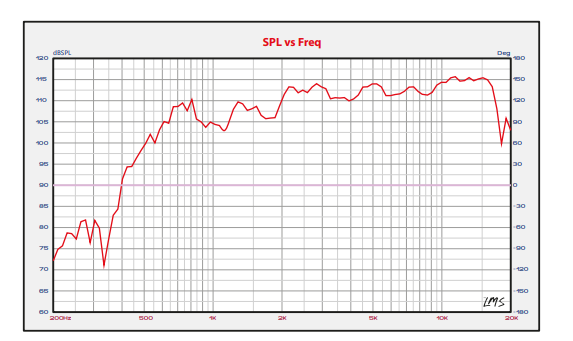

| Frequency Response | 500Hz-10KHz |
| Recommended HI Pass Crossover | 800 Hz |
| Motor | |
| Voice Coil Diameter | 3”/75 mm |
| Voice Coil Former Material | Kapton |
| Winding Materia | Aluminum Wire |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Weight | 0.38oz |
| Body Material | Aluminum |
| Measurements | |
| Overall Width | 5.12”/130 mm |
| Overall Depth | 2.52”/64 mm |
| Bolt Pattern/Type | 4"/102 mm - M6 |
Key Features
- 2" Compression Driver
- RMS Power: 450 Watts(900 Watts Peak)
- Impedance: 8 Ohm ~ 110dB
- Neodymium Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-DRN3PHVC
Specifications
| SKU | PRO-DRN3PH |
|---|---|
| Throat Diameter | 2" |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 225W |
| Program Power Handling | 450W |
| Peak Power Handling | 900W |
| Sensitivity (1w/1m) | 110 dB |
| Frequency Response | 500Hz-10KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 3" / 75mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum Wire |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium |
| Magnet Diameter | 130mm |
| Body Material | Aluminum |
| Overall Width | 5.12" / 130mm |
| Overall Depth | 2.52" / 64mm |
| Bolt Pattern | 4" / 102mm - M6 |
| Product Weight | 5.5 lbs |
| Product Dimensions | 5.5 x 5.5 x 3 |
| M/C Weight | 23.5 lbs |
| M/C Dimensions | 11.75 x 6.5 x 7.25 |
| M/C QTY | 4 |
| Sold In | Piece |
