2" Throat Bolt on Driver 400 Watts 3" Phenolic Vc 8-Ohm
Product Overview DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic VC 800 Watts 8 ohm...
Vendor:
DS18
Manufacturer SKU
PRO-D2PH
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $132.96
$155.95- $132.96
- Unit price
- per
Subtotal:
$132.96
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

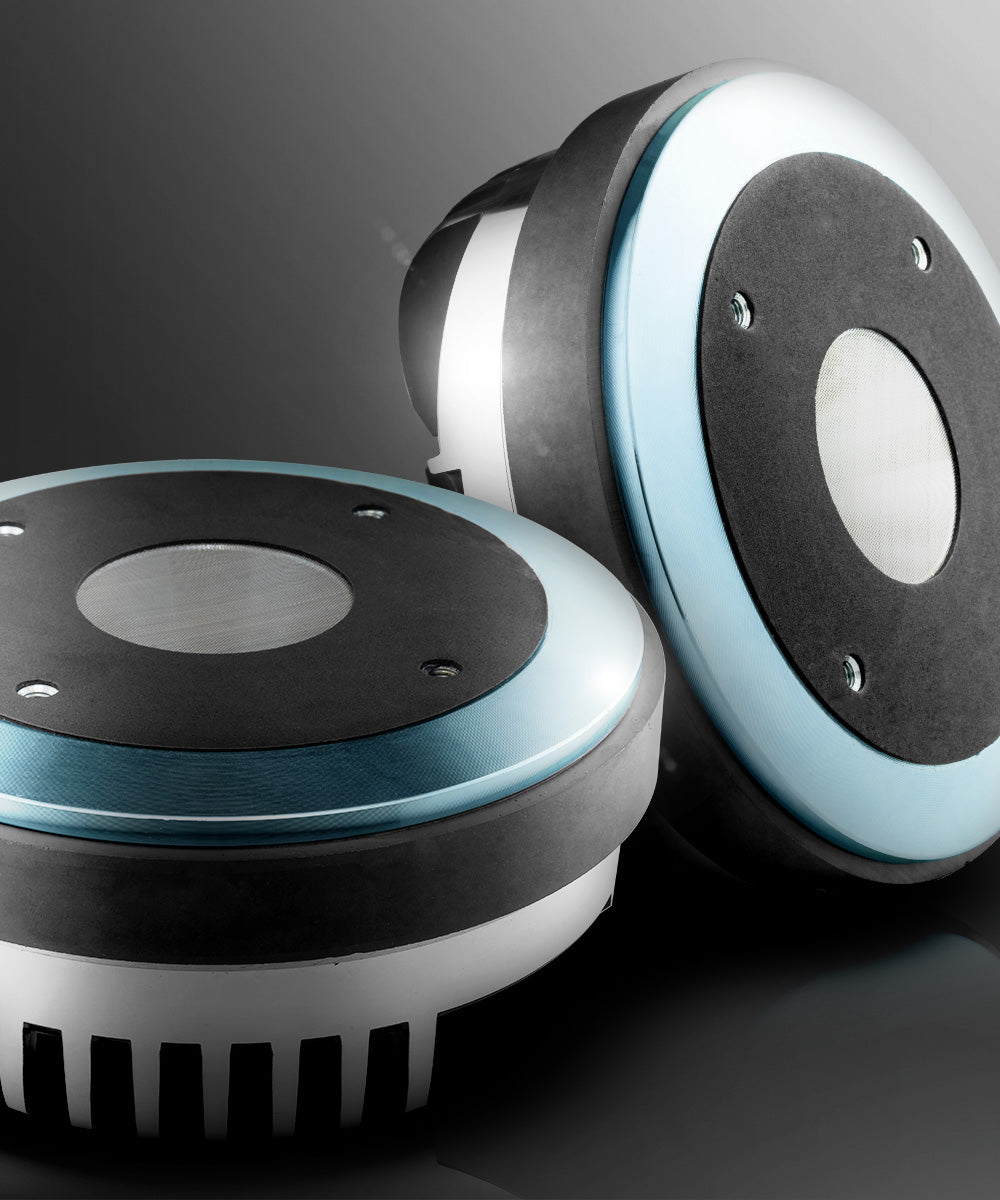

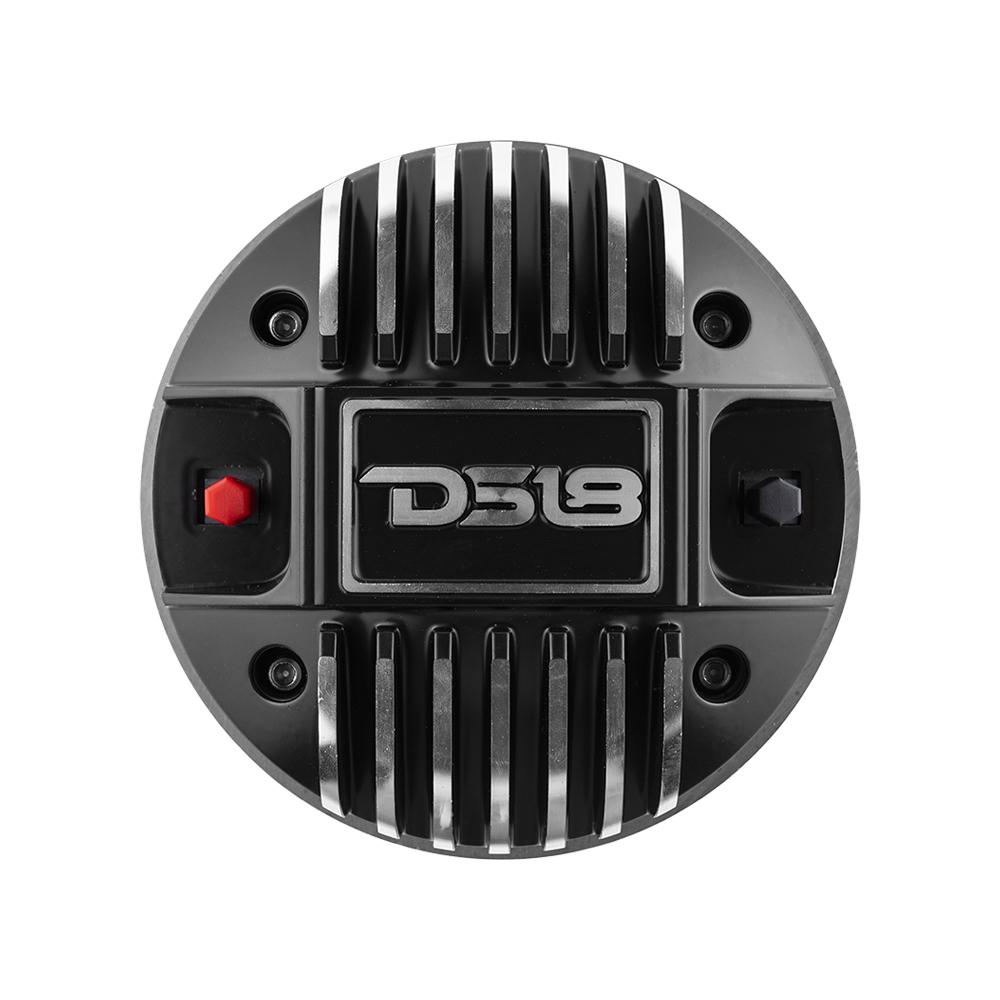

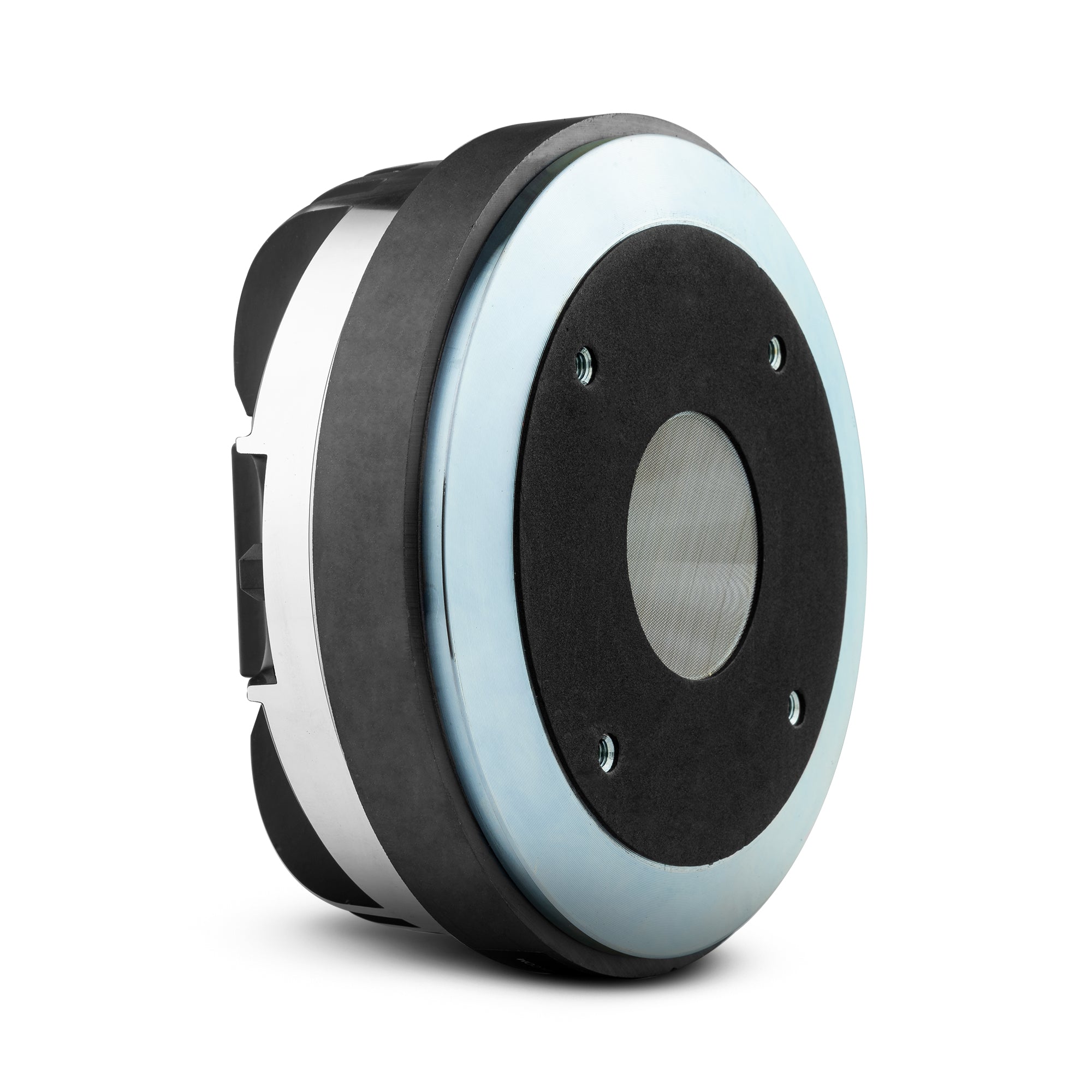

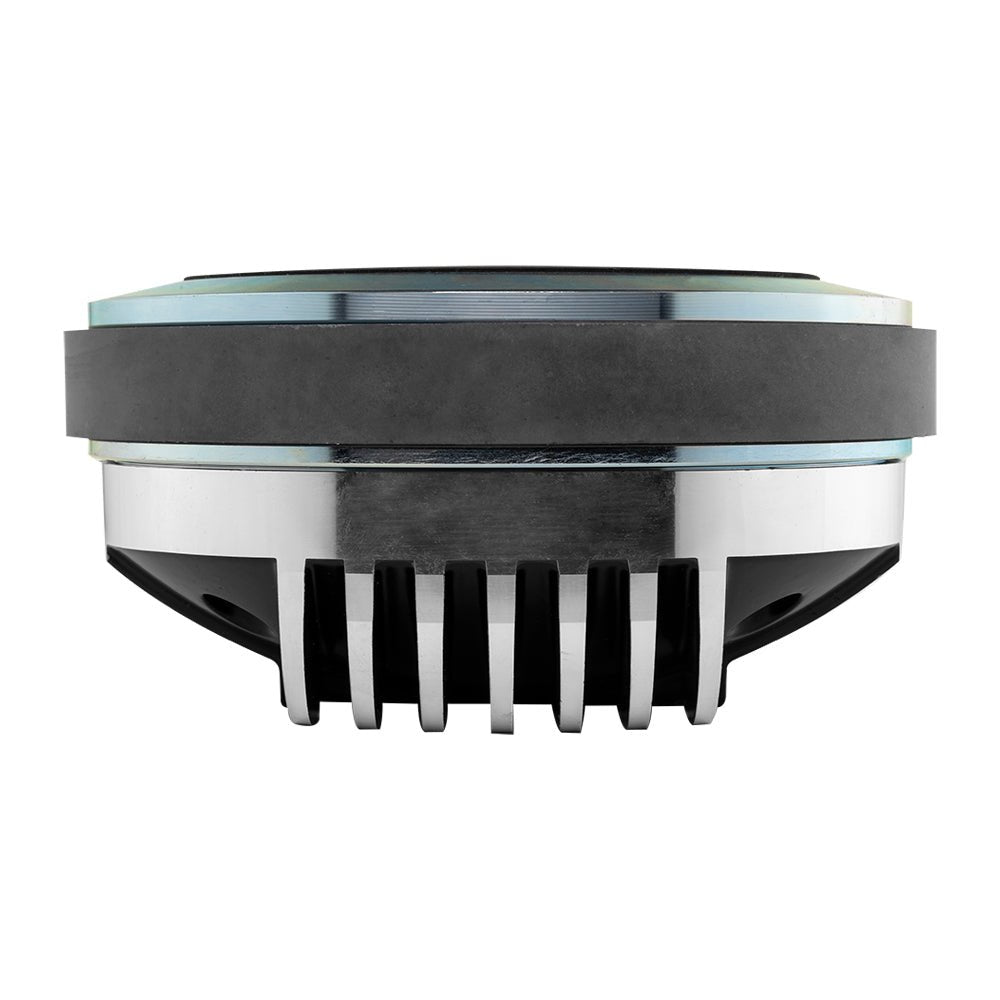

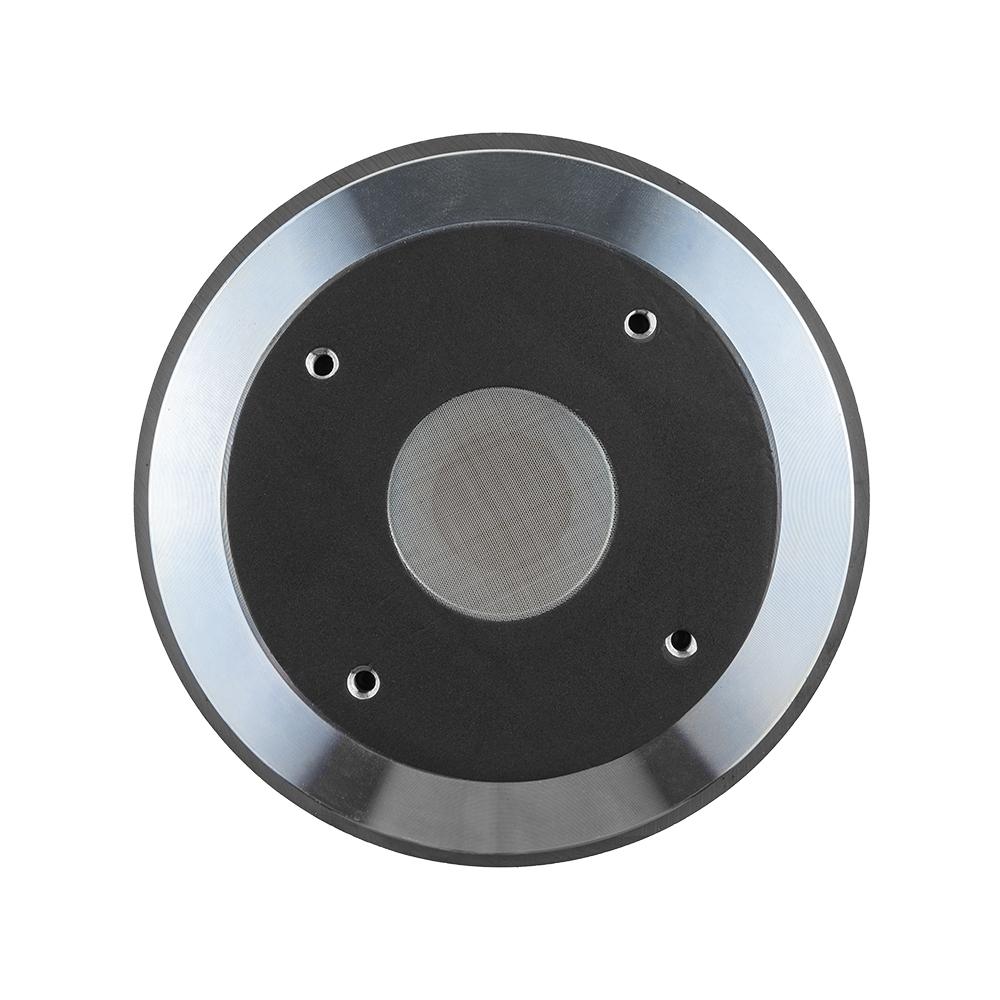

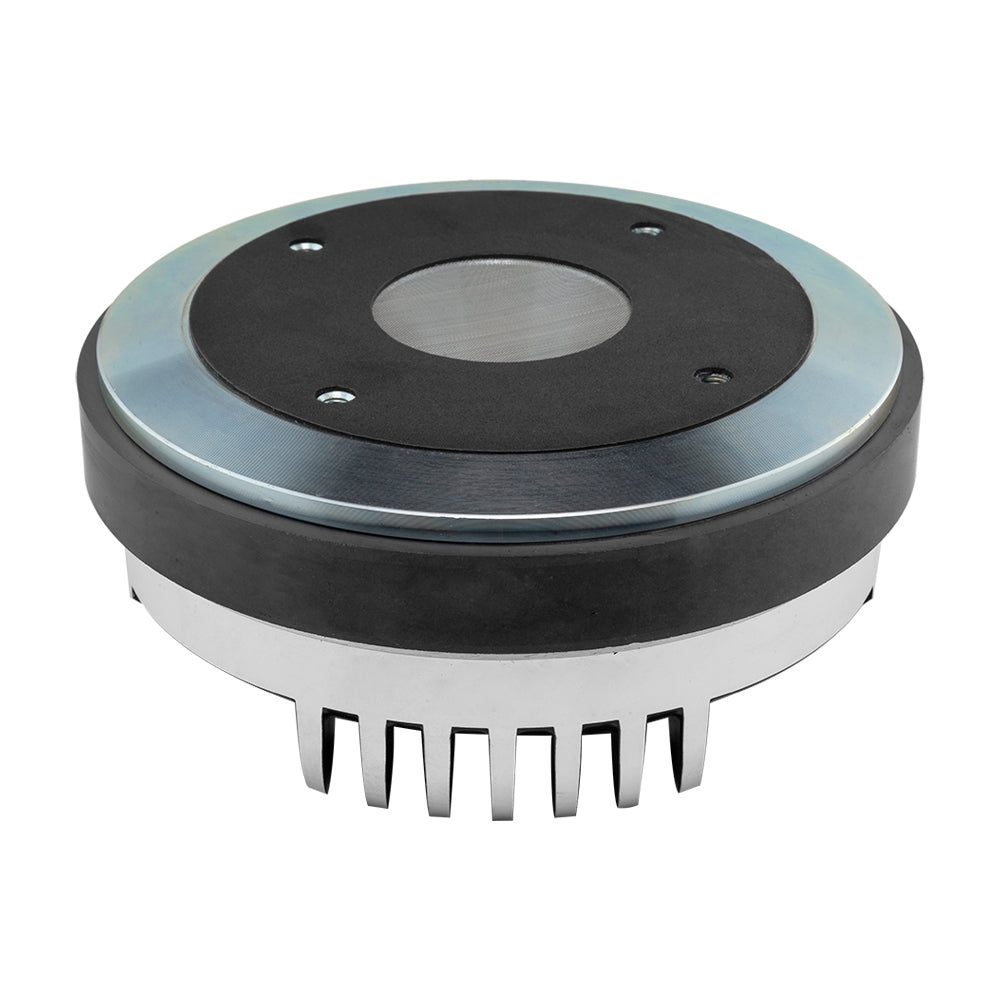

DS18 PRO-D2PH 2" Throat Bolt On Compression Driver 3" Phenolic VC 800 Watts 8 ohm
Drivers are known for their extreme loudness all while maintaining the highest efficiency and decibel to wattage ratio possible. Ferrite is definitely a great motor structure you want to go with for the absolute loudest ear piercing high range frequencies available. This ferrite driver is compatible with 4 bolt horns (throats) of all sizes and depths. This will be an amazing addition to any system that needs super loud highs with no compromises!
This driver comes with a large phenolic 2 inch voice coil that takes 200 AES and 800 Peak power for extreme decibel production backed with a high efficiency motor.
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength phenolic voice coil taking 200 AES watts and 800 Peak watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with all DS18 4 bolt throats giving a huge variety of mounting depths for your specific application.
Technical Details
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-On |
| Nominal Impedance | 8 Ohms |
| AES Power Handling | 200W |
| Program Power Handling | 400W |
| Peak Power Handling | 800W |
| Sensitivity | 109 dB |

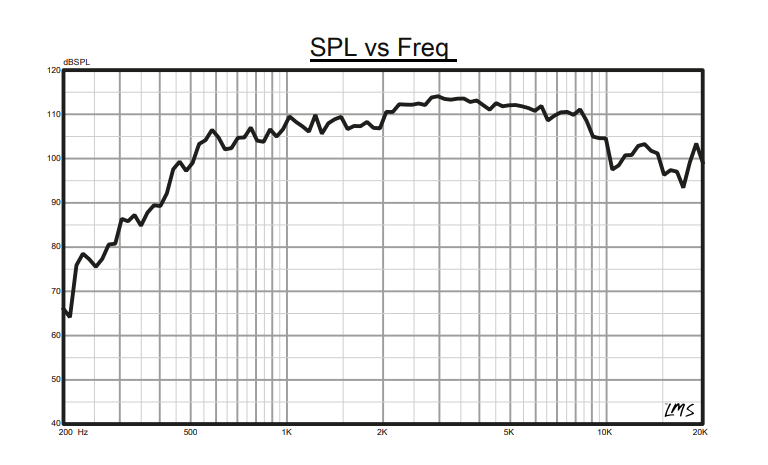

| Frequency Response | 500Hz - 10KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| MOTOR | |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 65 oz |
| Body Material | Aluminum |
| Body Color / Finish | Black Aluminum / Machined |

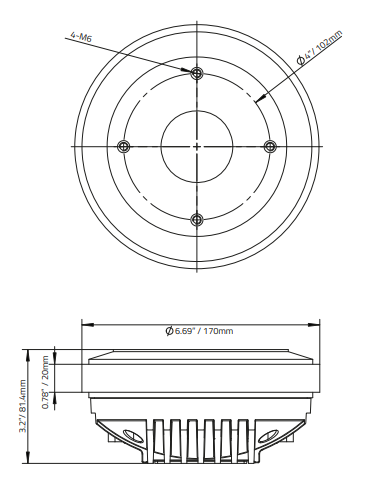

| MEASUREMENTS | |
| Overall Diameter | 6.69" / 170mm |
| Overall Depth | 3.2" / 81.4mm |
| Bolt Pattern Type | 4*M6 |
Key Features
- 2" Compression Driver
- RMS Power: 400 Watts(800 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Ferrite Magnet - Phenolic Diaphragm
- Bolt On
- Easily Repaired With The PRO-D2VC
Specifications
| SKU | PRO-D2PH |
|---|---|
| Throat Diameter | 2" / 50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 ohm |
| AES Power Handling | 200W |
| Program Power Handling | 400W |
| Peak Power Handling | 800W |
| Sensitivity (1w/1m) | 109 dB |
| Frequency Response | 500Hz - 10KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Phenolic |
| Magnet Material | Ferrite |
| Magnet Weight | 65 oz |
| Body Material | Aluminum |
| Color | Black Aluminum |
| Overall Diameter | 6.69" / 170mm |
| Overall Depth | 3.2" / 81.4mm |
| Bolt Pattern Type | 4*M6 |
| Product Weight | 11.5 lbs |
| Product Dimensions | 7.5 x 7 x 3.5 |
| M/C Weight | 48 lbs |
| M/C Dimensions | 15.75 x 14.75 x 4.75 |
| M/C QTY | 4 |
| Sold In | Piece |
