Product Overview

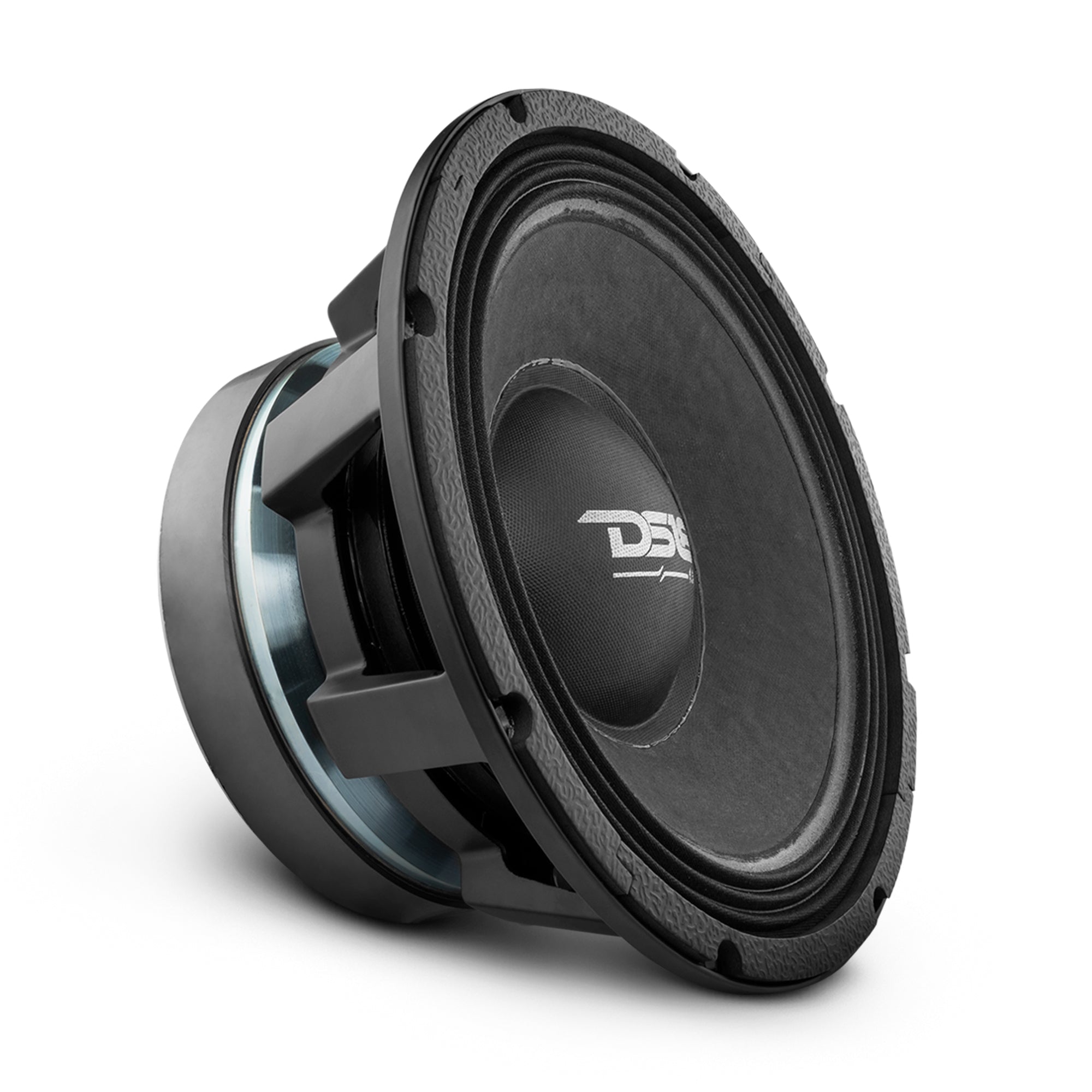

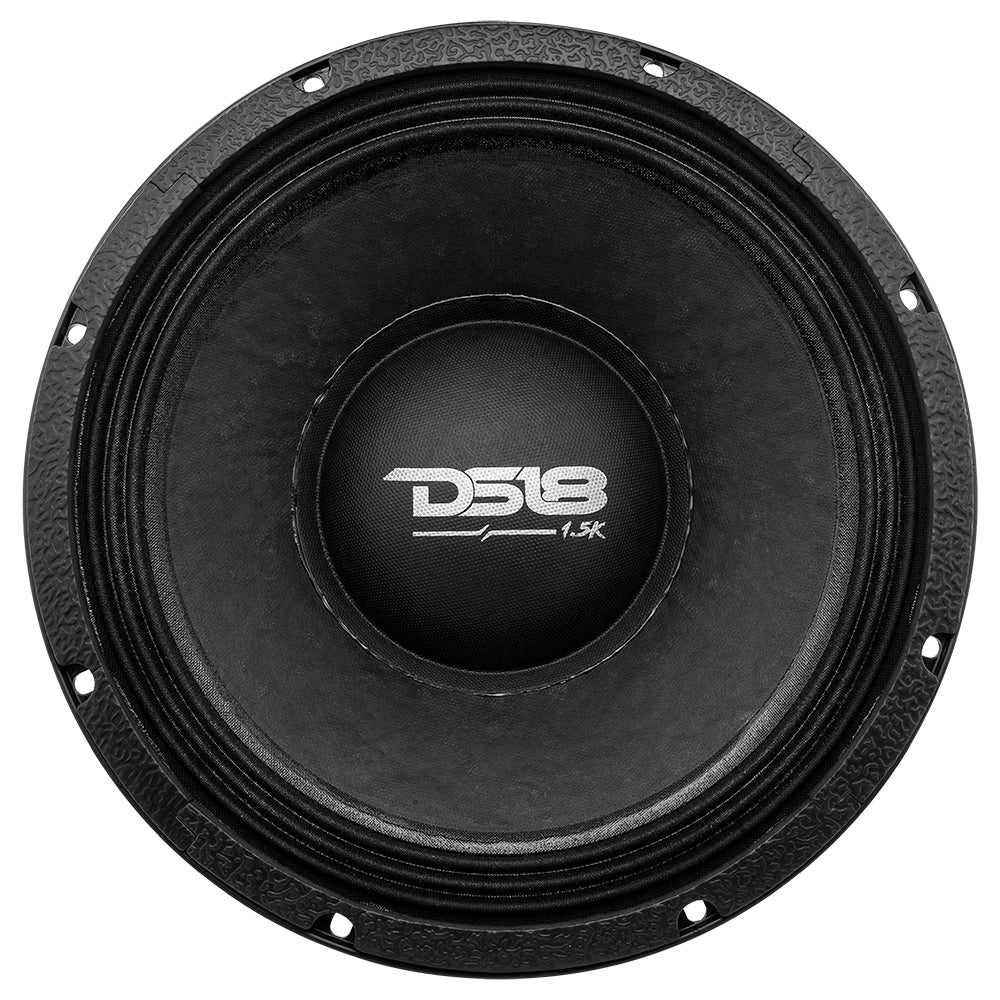

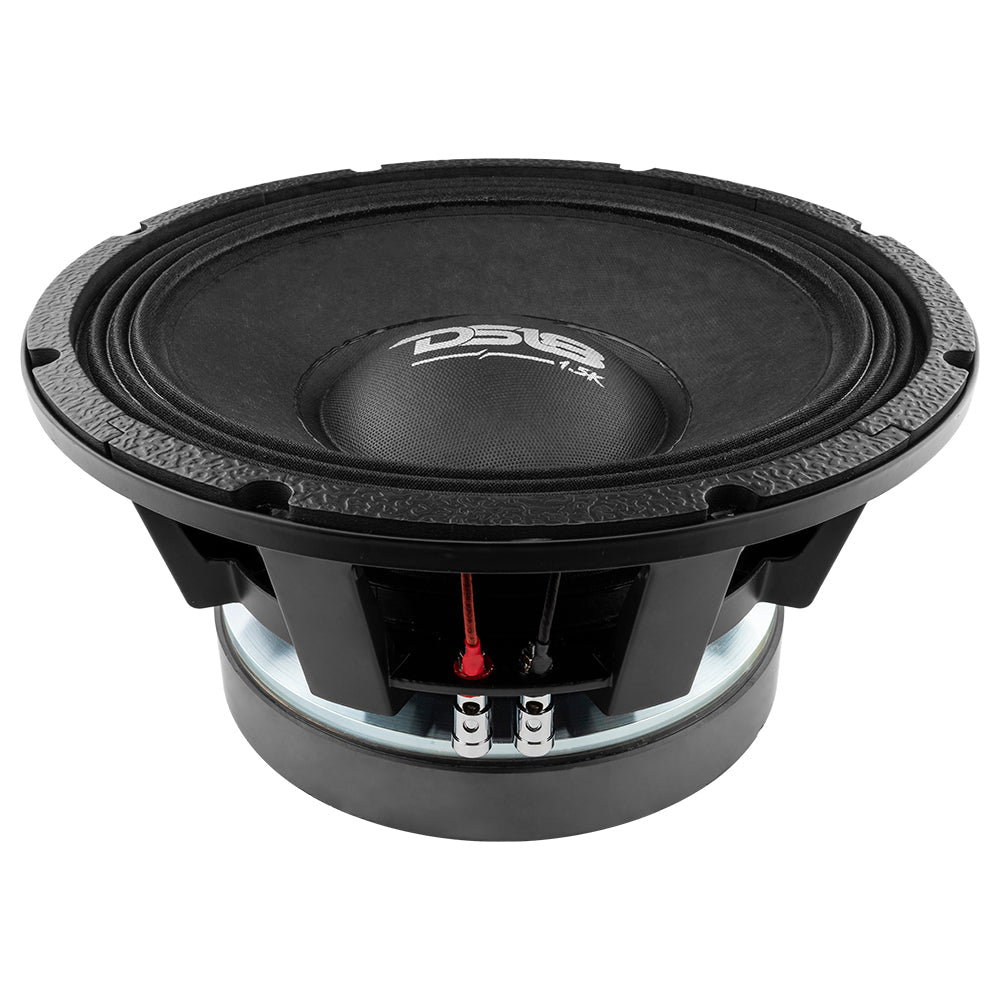

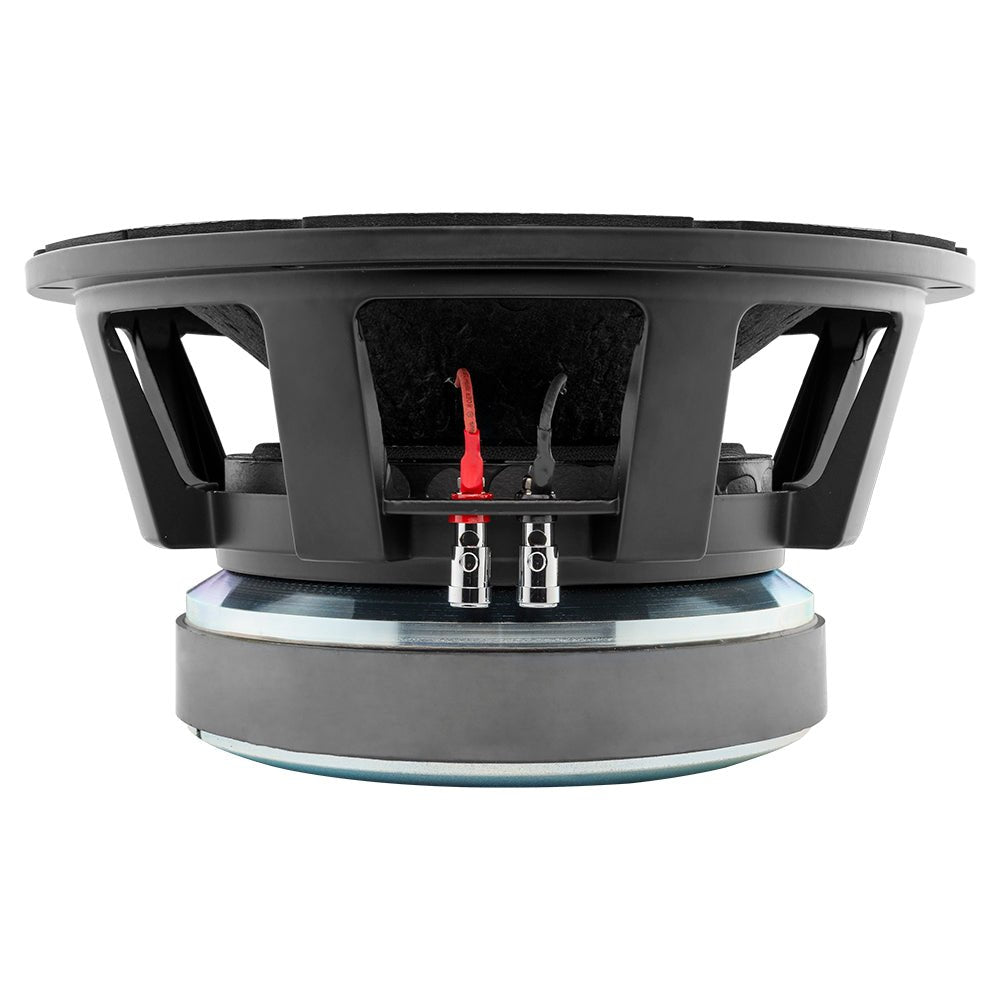

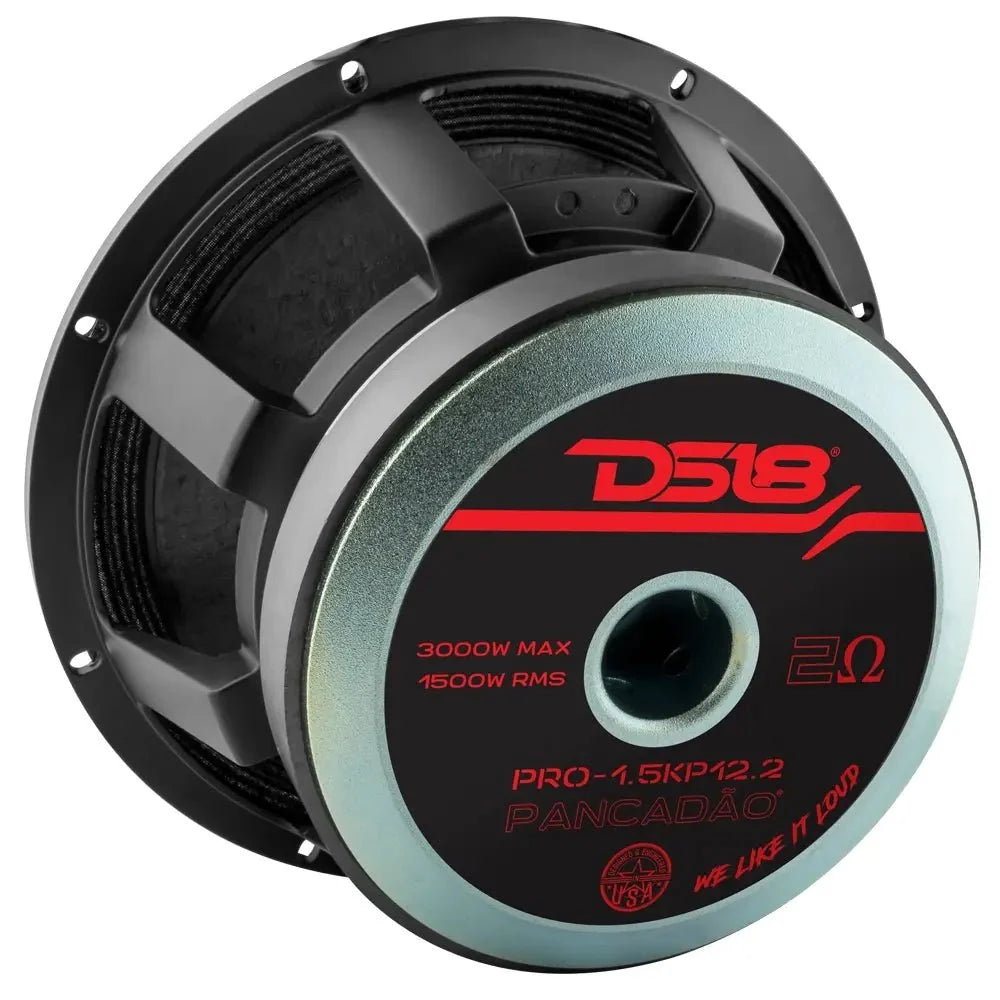

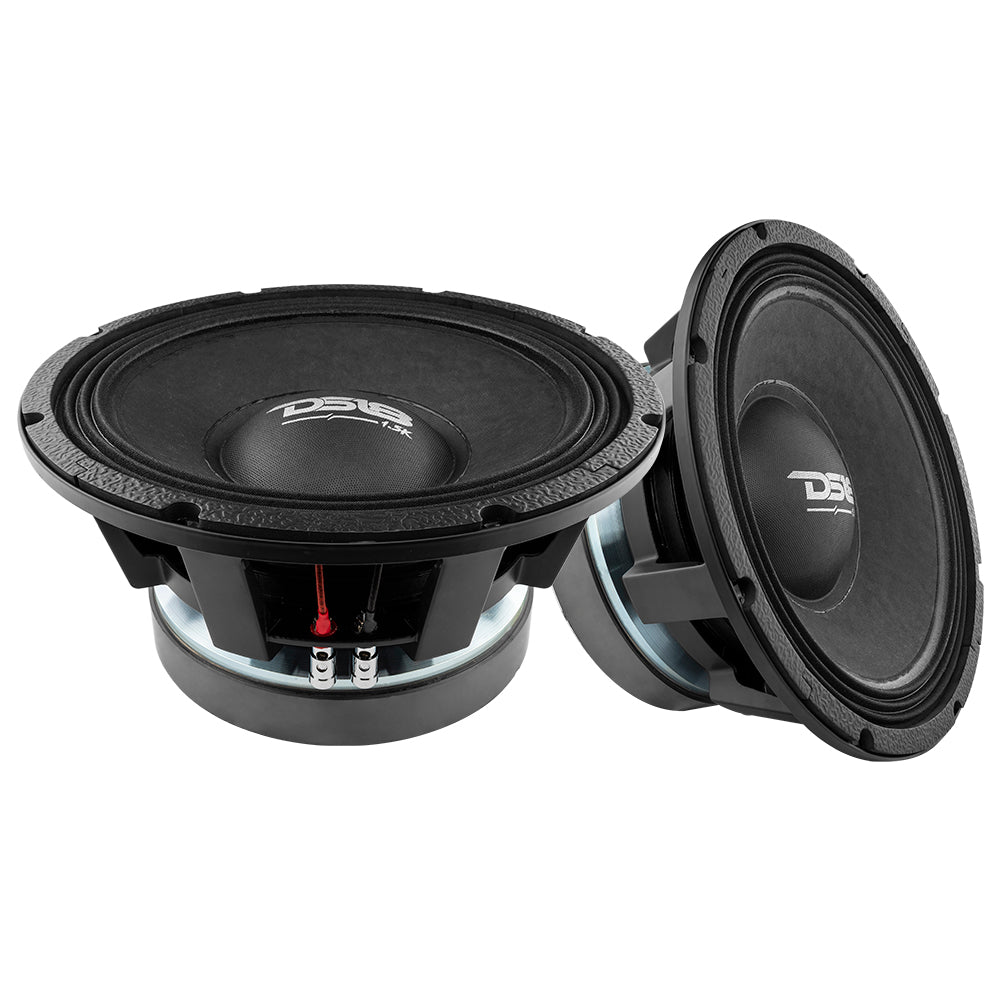

DS18 PRO-1.5KP12.2 PANCADÃO Mid-Bass/Woofer Loudspeaker 12" 1500 Watts RMS 2-Ohm
The Pancadao from DS18 has new siblings to complement anyone's high performance pro audio system! Now, not only do we offer them in 12", but also 10", and 8" so everyone can get a piece of Pancadao in their build. These high performance "do all" woofers can play an amazing range of frequencies. From hard punching mid-bass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Highlights
- The most powerful mid-bass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.
- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense mid-bass and high powered audio systems needing massive mid-bass.
Technical Details
| Model: | PRO-1.5KP12.2 |
| RMS Power Handling: | 1500 Watts |
| MAX Power Handling: | 3000 Watts |
| Sensitivity (1w/1m) | 96.5 dB |
| Frequency Response: | 72Hz-8kHz |
| Minimum Impedance: | 2 Ohms |
| Voice Coil Diameter: | 4" |
| Winding Material: | CCAW |
| Magnet Weight: | Ferrite 150oz |
| Basket Material: | Aluminum |
| Overall Diameter: | 12.36" |
| Baffle Cutout Diameter: | 11.18 |
| Overall Depth: | 6.53" |
| Mounting Depth: | 5.98" |
Key Features
- 12" Mid-Bass
- MAX Power: 3000 Watts
- RMS Power: 1500 Watts
- Impedance: 2-Ohm
- Ferrite Magnet
- Easily Repaired With The PRO-1.5KP12.2RCK
Specifications
| SKU | PRO-1.5KP12.2 |
|---|---|
| Nominal Diameter | 12" |
| Nominal Impedance | 2 ohms |
| RMS Power Handling | 1500 Watts |
| MAX Power Handling | 3000 Watts |
| Sensitivity (1w/1m) | 96.5 dB |
| Frequency Response | 50Hz-2KHz |
| Recommended HI Pass Crossover | 60 Hz |
| Pair or Single | Single |
| Grill Included | No |
| Voice Coil Diameter | 4" |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PAPER |
| Bullet Material | N/A |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 150 oz |
| Equivalent Volume Vas | 22.775 L |
| Free Air Resonance Fs | 72.4 Hz |
| Mechanical Factor Qms | 9.451 |
| Electrical Factor Qes | 0.301 |
| Total Factor Qts | 0.291 |
| Mechanical Mass Mms | 51.09 |
| Mechanical Compliance Cms | 70.323 mm/N |
| BL Factor BL | 15.144 |
| Voice Coil Inductance Le | 1.566MH |
| Cone Area Sd | 560 cm2 |
| CD Resistance Re | 1.6 ohm |
| Efficiency Bandwidth Product EBP | 240 |

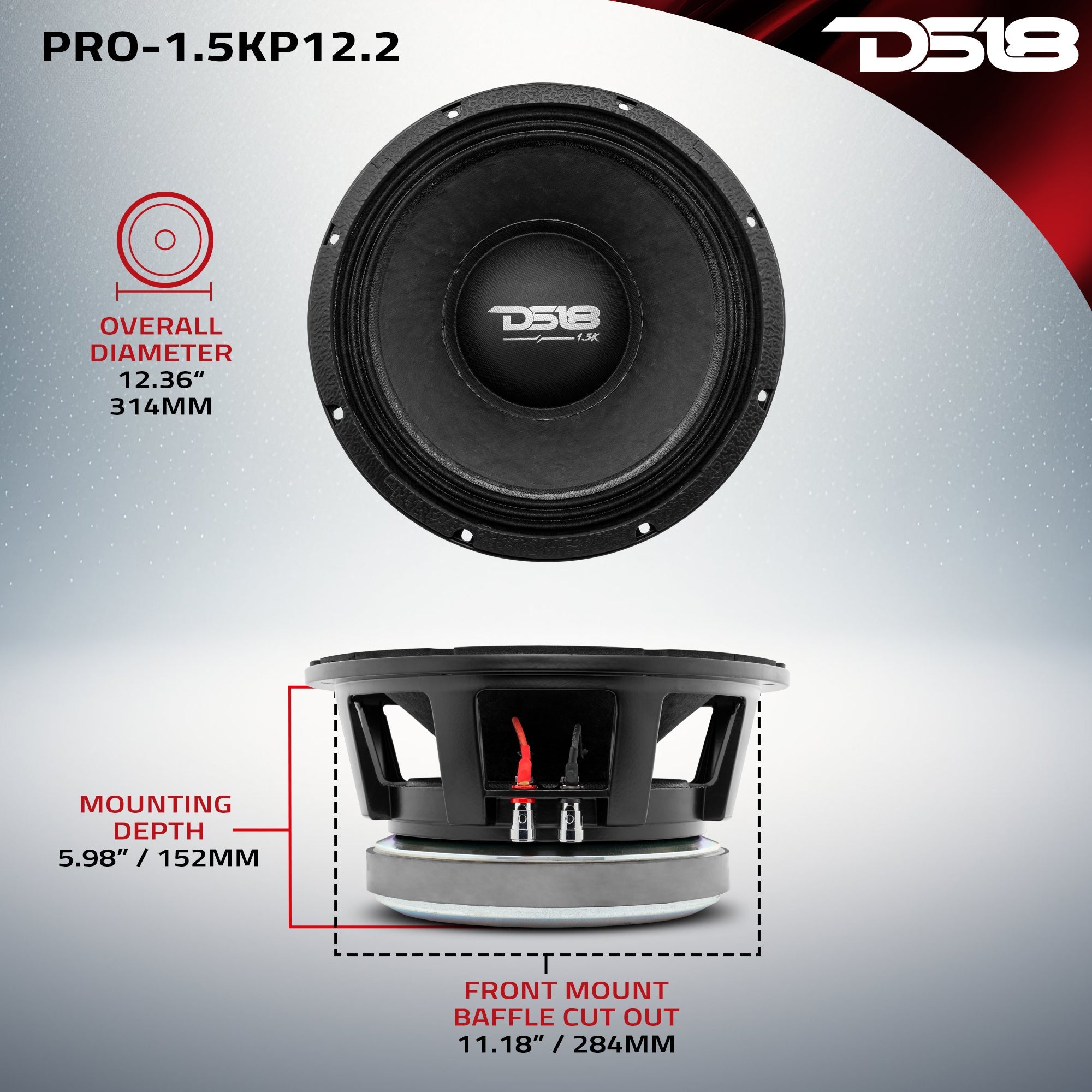

| Overall Diameter | 12.36" / 314 mm |
| Overall Depth | 6.53" / 166 mm |
| Front Mount Baffle Cutout | 11.18" / 284 mm |
| Mounting Depth | 5.98" / 152 mm |
| Motor Diameter | 8.66" / 220 mm |
