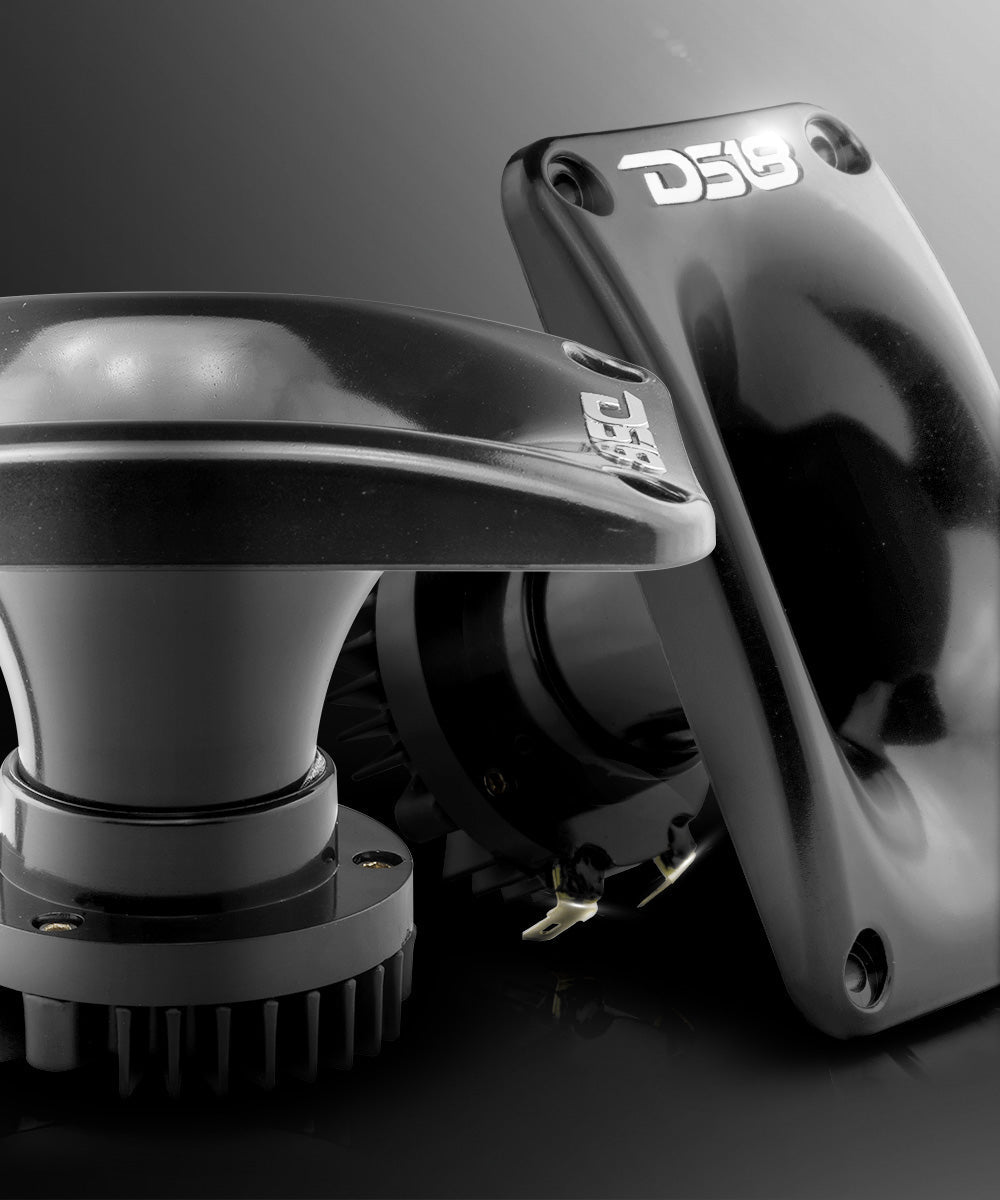

1" Neodymium Driver And Horn Kit 60 Watts 1" Phenolic 8-Ohm Vc
Product Overview DS18 PRO-DKN25 1" Throat Neodymium Driver 1" Phenolic VC and Horn 120 Watts 108dB 8...
Vendor:
DS18
Manufacturer SKU
PRO-DKN25
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $32.95
- $32.95
- Unit price
- per
Subtotal:
$32.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

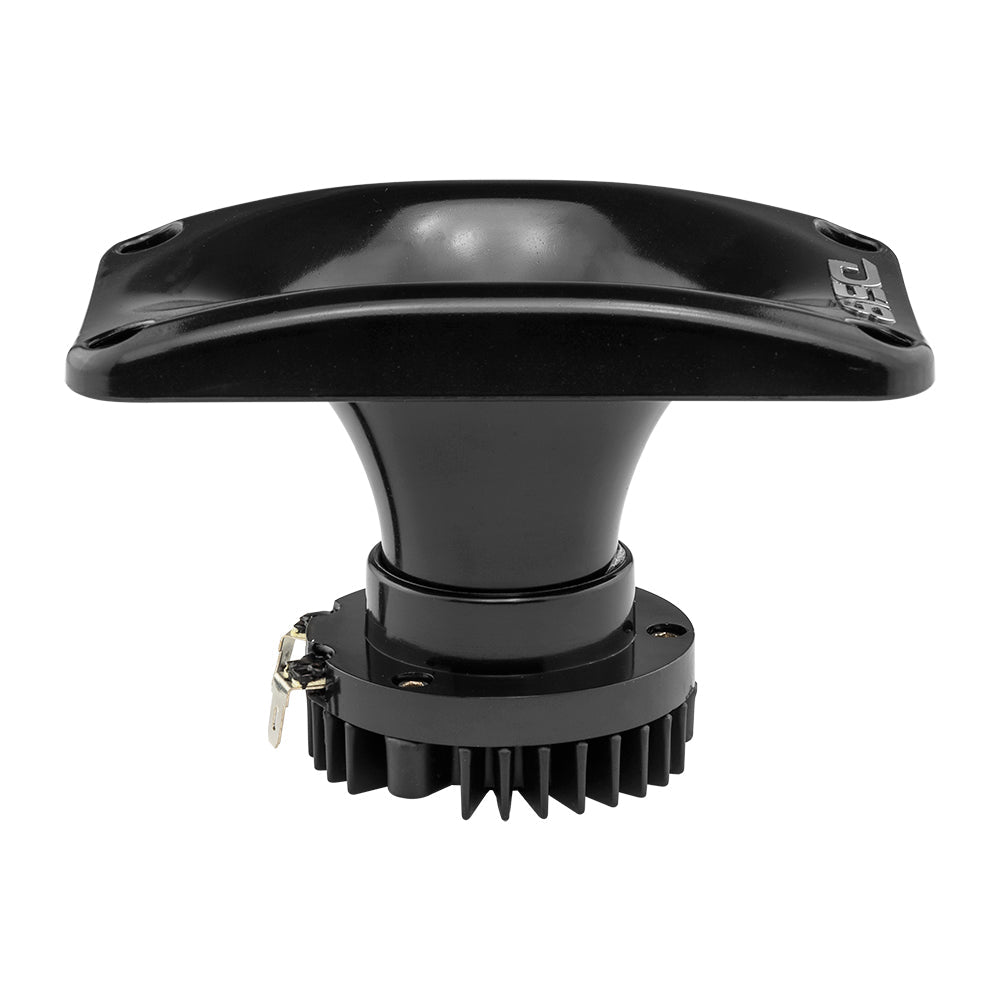

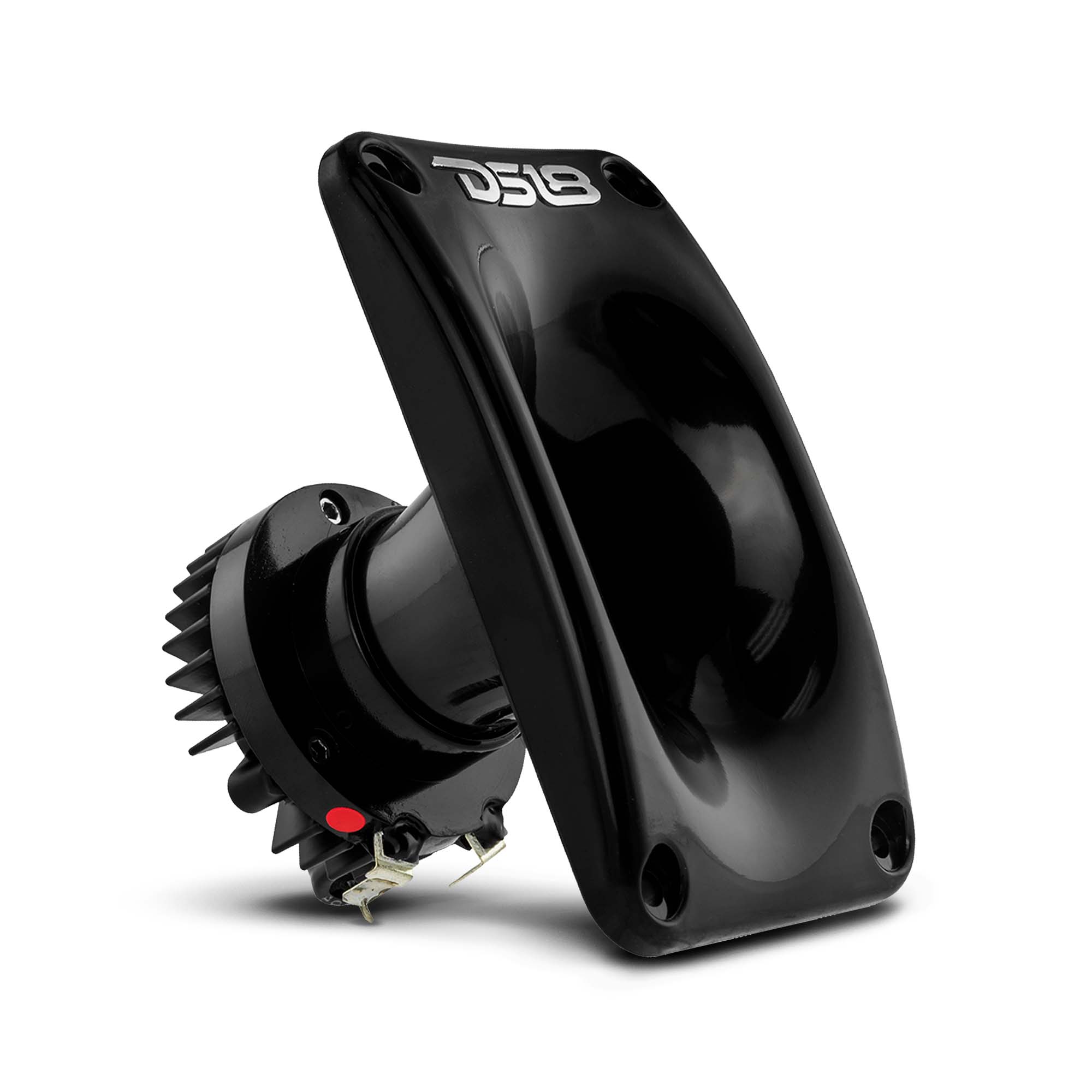

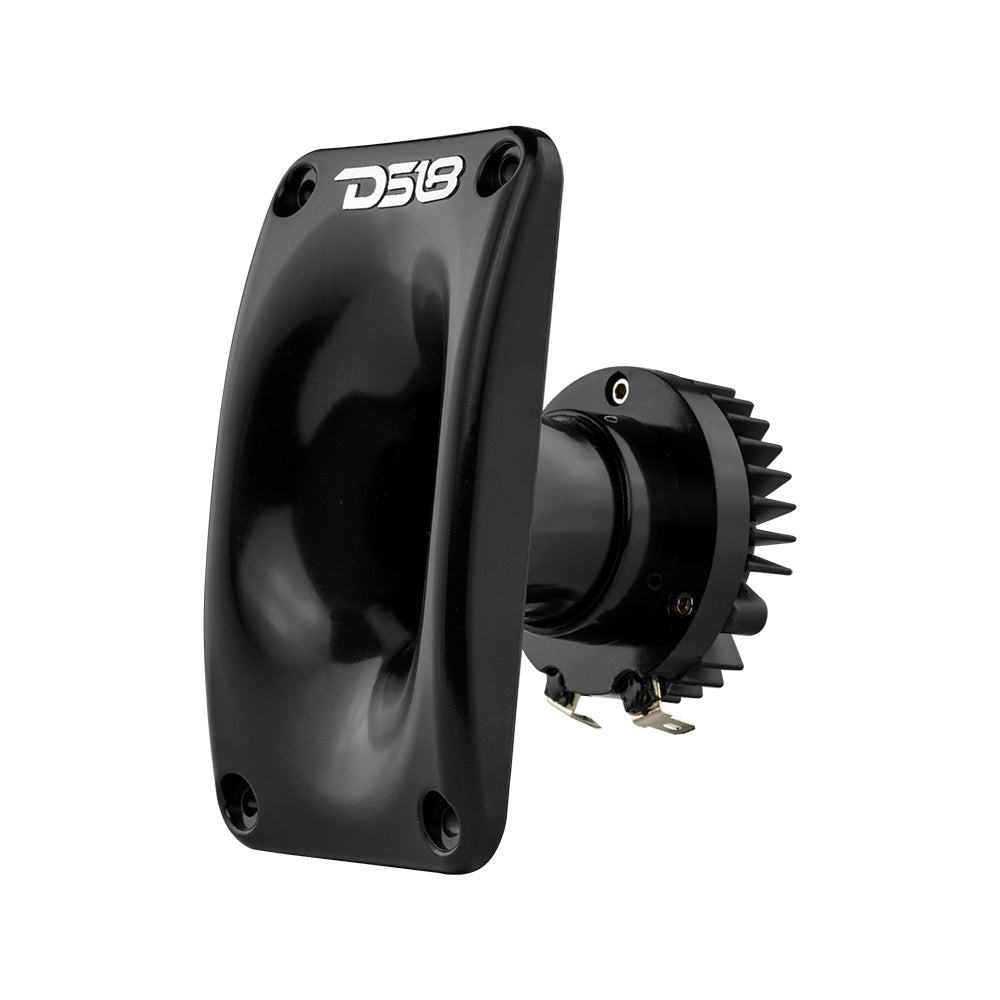

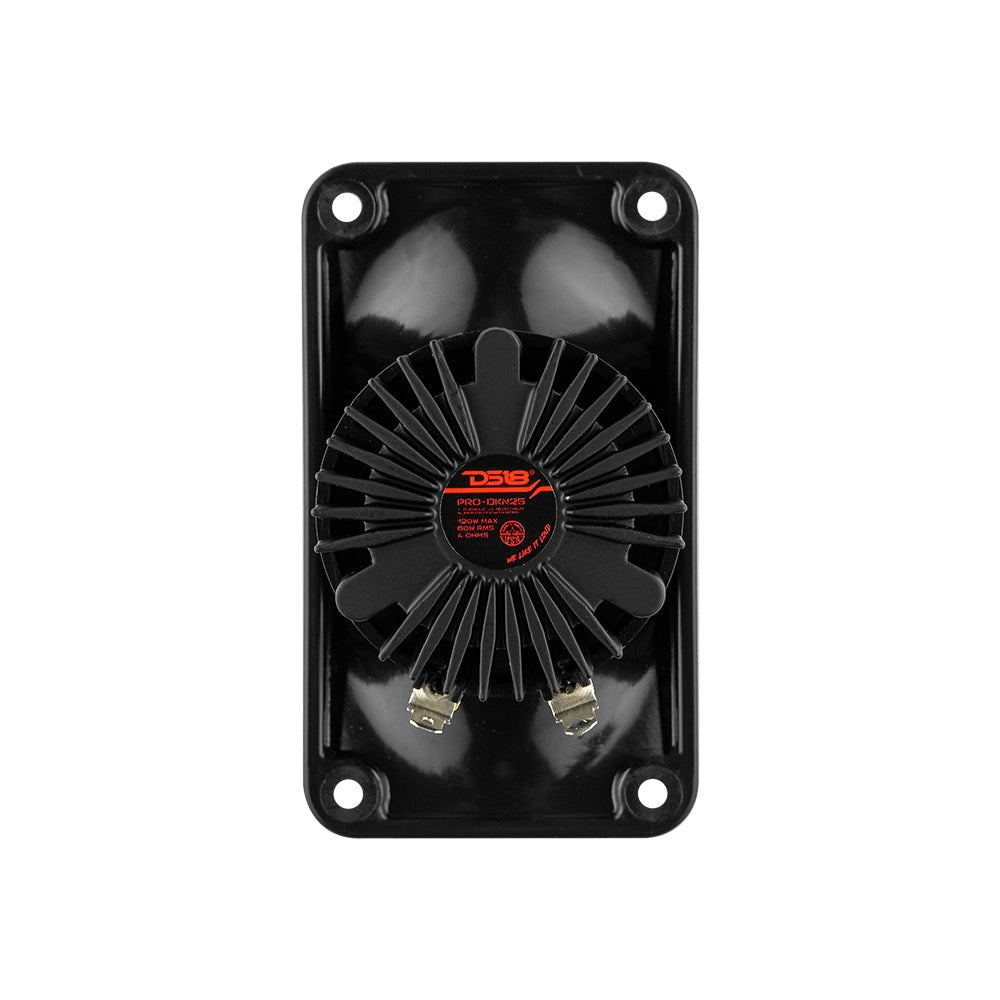

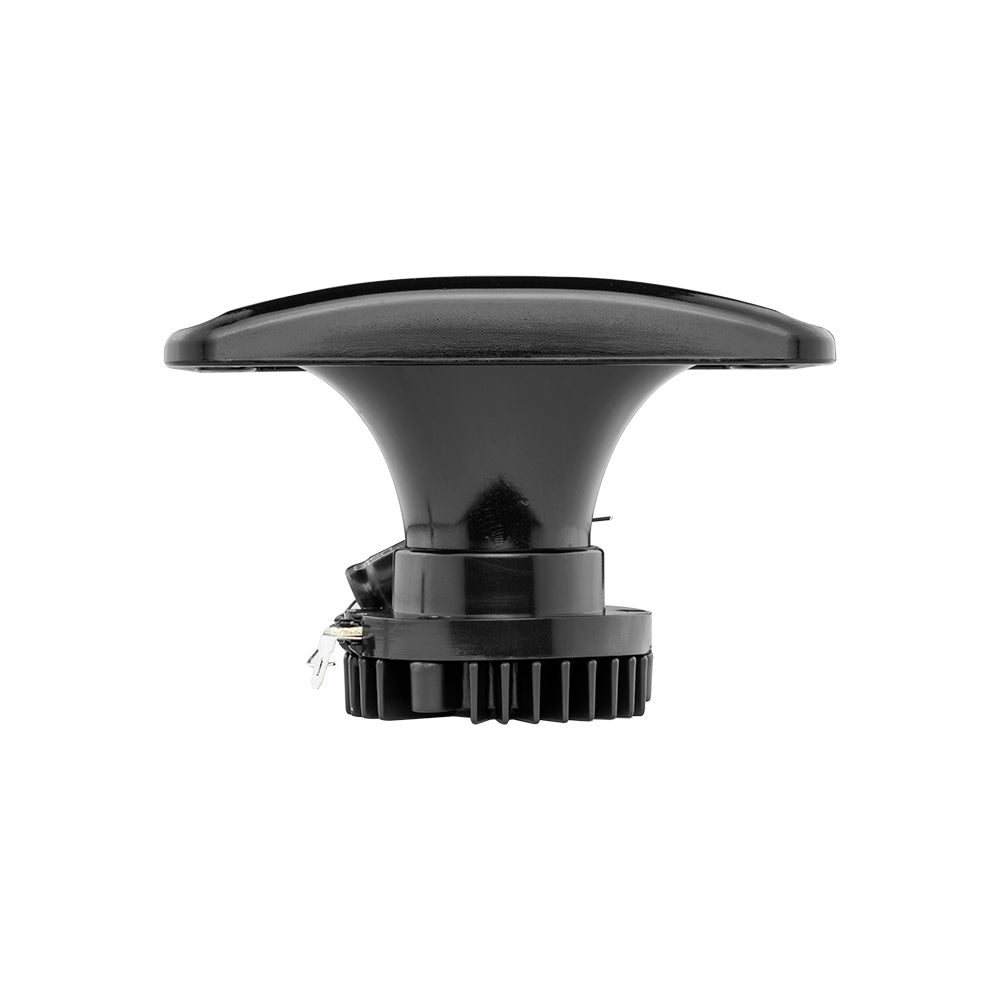

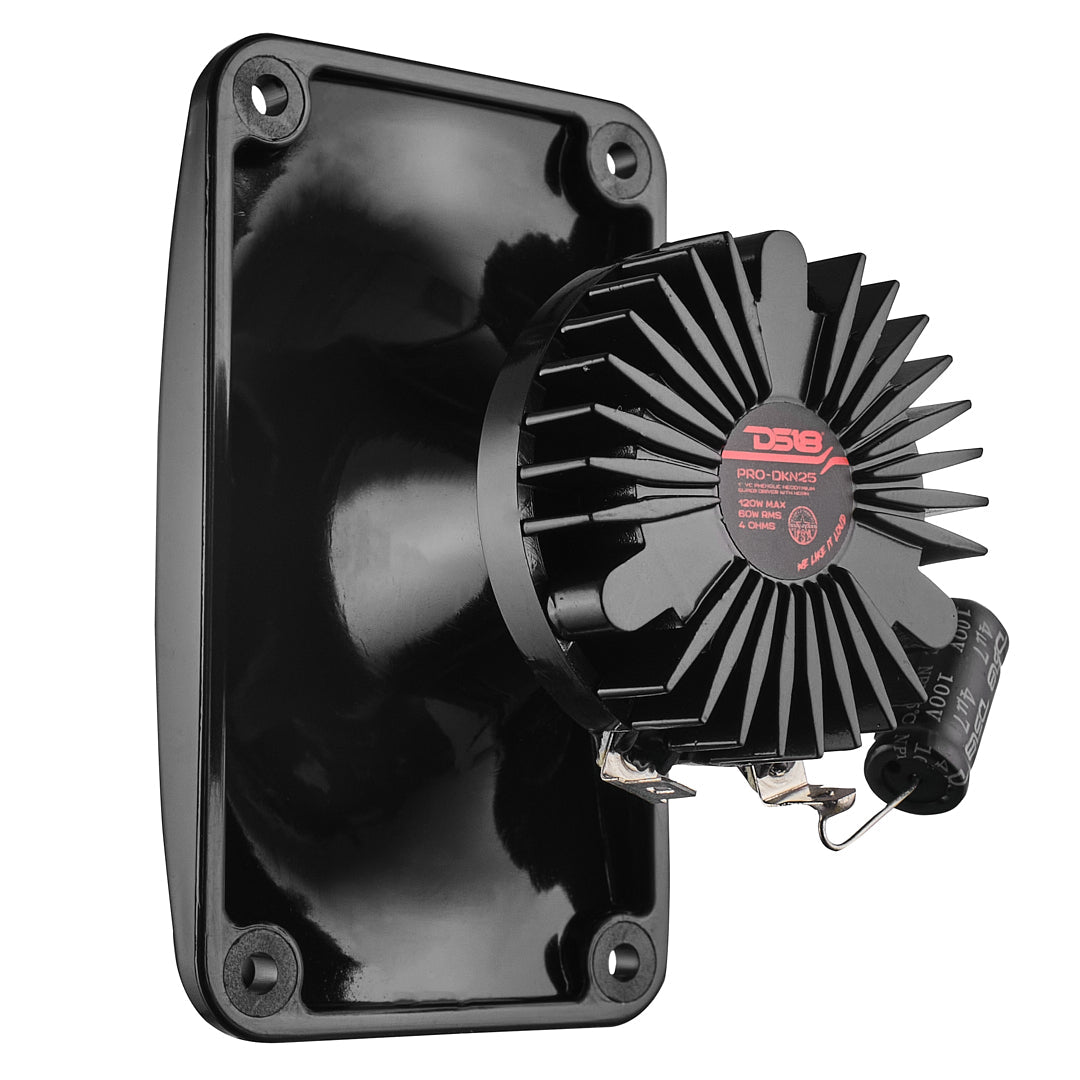

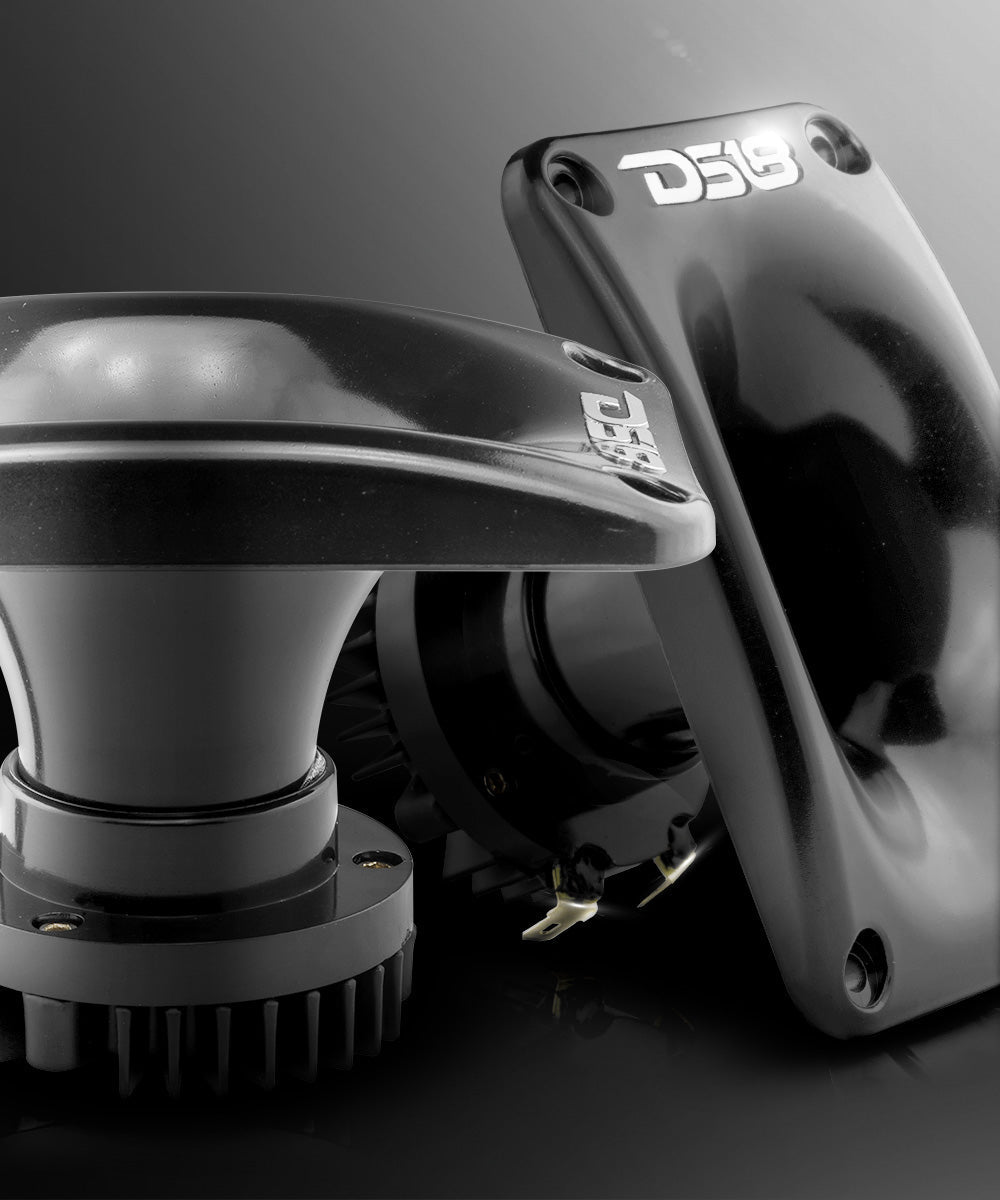

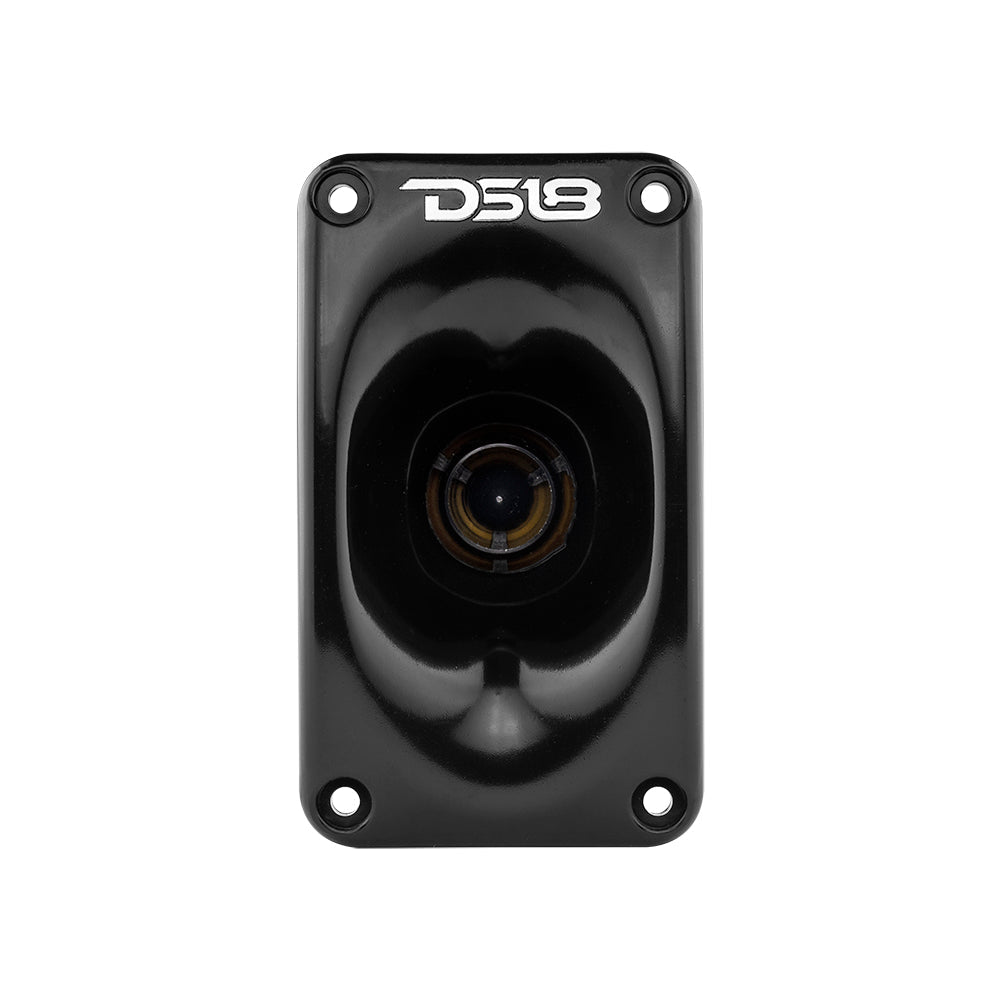

DS18 PRO-DKN25 1" Throat Neodymium Driver 1" Phenolic VC and Horn 120 Watts 108dB 8 Ohm
|
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the market. These bad boys deliver so much power that you'd think with one horn your whole sound system is ready to deploy for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these horns especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests and experiments, our team of audio-experts perfected the PRO line. We are ecstatic to share with you the product of hard-work and "non-stop innovating attitude." We are sure that you will love your Compression Driver as much as we do. Warning: EXTREMELY LOUD!! Highlights
|
Technical Details
| Model: | PRO-DKN25 |
| Type: | Super Driver with Horn |
| RMS Power: | 60W |
| MAX Power: | 120W |
| Sensitivity: | 108dB |
| Voice Coil Size: | 1" |
| Impedance: | 8 Ohms |
| Frequency Response: | 1.5KHz - 18KHz |
| Magnet: | Neodymium |
| Diaphragm Material: | Phenolic |
| Throat Diameter: | 1" |
| Replacement Diaphragm Model: | PRO-DKN25VC |
Key Features
- 1" Super Driver with Horn
- RMS Power: 60 Watts(320 Watts Peak)
- Impedance: 8 Ohm
- Neodymium Magnet - Phenolic Diaphragm
- 108dB
- Easily Repaired With The PRO-DKN25VC
Specifications
| SKU | PRO-DKN25 |
|---|---|
| Nominal Impedance | 8 OHM |
| RMS Power Handling | 60 Watts |
| MAX Power Handling | 120 Watts |
| Peak Power Handling | 320 Watts |
| Sensitivity (1w/1m) | 108 dB |
| Frequency Response | 1.5 K-18 KHz |
| Recommended Hi Pass Crossover | 2 KHz |
| Voice Coil Diameter | 11'' (25.4 mm) / 1" / 25.4 mm |
| Pair or Single | Single |
| Voice Coil Former Materia | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Phenolic |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 2.4 Oz |
| Body Color | Finish | Silver | Raw |
| Body Material | Aluminum |
| Nominal Diameter | 3.15" / 180 mm |
| Throat Diameter | 1" / 25.4 mm |
| Sound Coverage | 60° (Round) |
| Color | Finish | Silver | Raw |
| Overall Diameter | 3.15" / 80 mm |
| Overall Depth | 2.42" / 61.5 mm |
| Mounting Depth | 2.22" / 56.5 mm |
| Mounting Hole Diameter | 2.75" / 70 mm |
| Bolt Pattern (Horn) | 2.13" / 54mm |
| Product Weight | 0.5 lbs |
| Product Dimensions | 5 x 3.0 x 3.5 |
| M/C Weight | 17 lbs |
| M/C Dimensions | 15.5 x 10.875 x 11.5 |
| M/C QTY | 30 |
| Sold In | Piece |
