Polaris RZR XP 1000 Short Box Enclosure
Polaris RZR XP 1000 Short Box Enclosure
Custom 4th Order Bandpass Subwoofer Enclosure
Built for serious output in an open-air powersports environment, this custom 4th order bandpass enclosure is designed to hit hard, stay controlled, and look as good as it sounds. The enclosure uses a compact sealed chamber feeding into a larger ported chamber, giving the subwoofer strong motor control while adding the extra output needed for a loud side-by-side or off-road audio build.

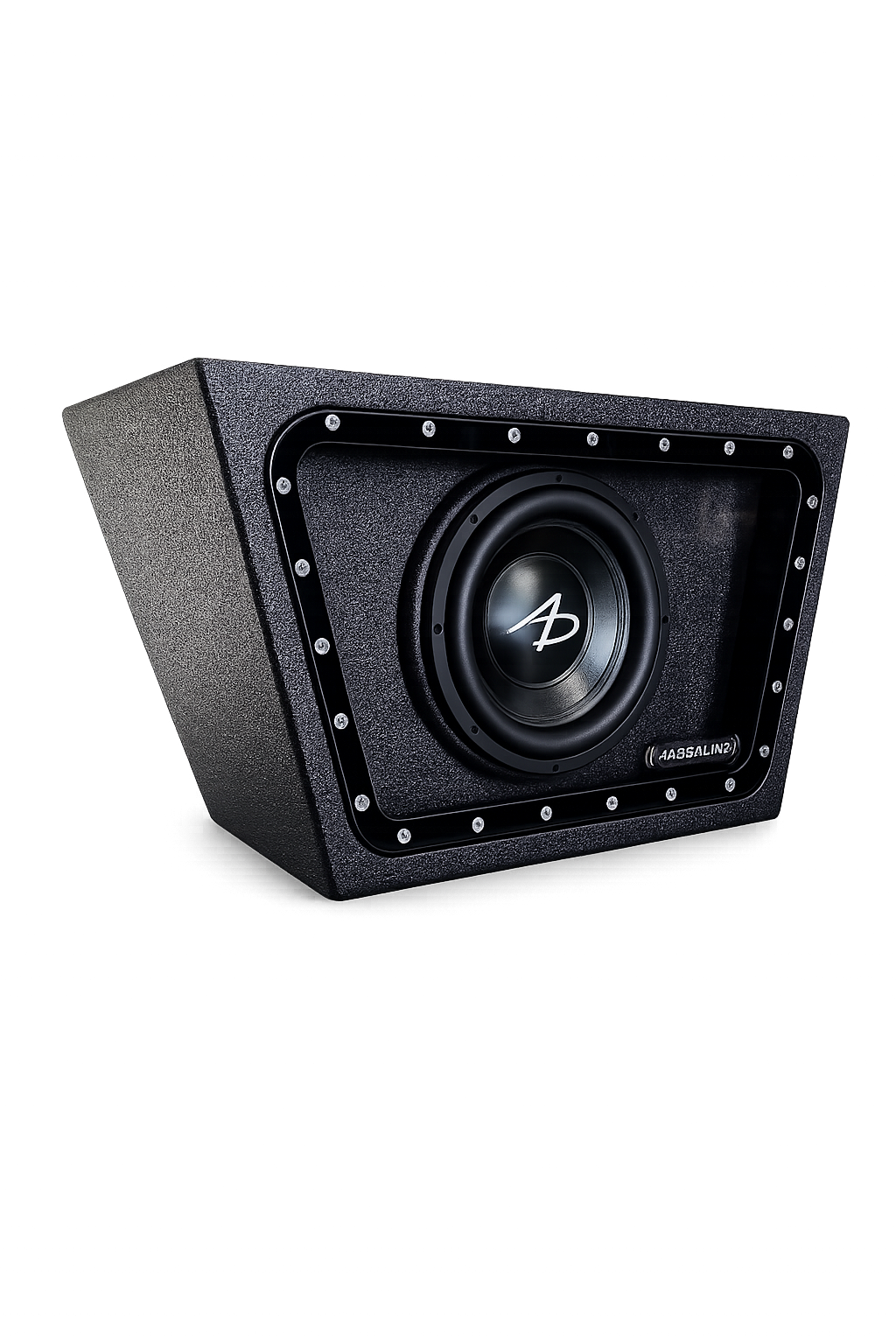

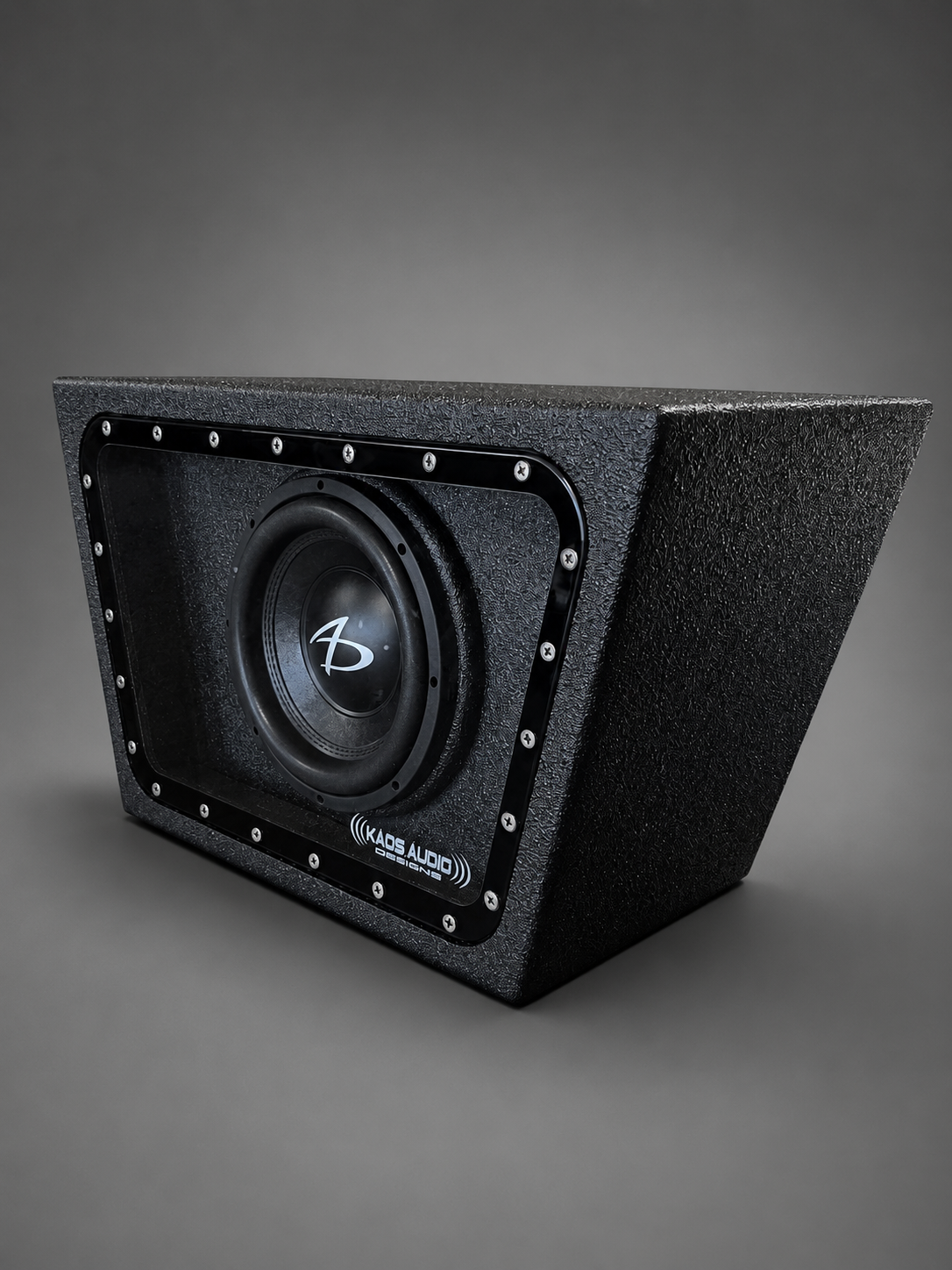

The enclosure is finished in a rugged black textured coating for durability and a clean custom look. The front acrylic window shows off the subwoofer while the exposed hardware and black trim give it a high-end, aggressive finish.
This box is tuned around 48 Hz, making it ideal for loud, punchy bass that cuts through wind, engine noise, exhaust, and open-cab riding conditions.
Enclosure Specs
| Spec | Result |
|---|---|
| Sealed Chamber | 0.37 ft3 net |
| Ported Chamber | 1,203 ft3 net |
| Chamber Ratio | 3.25:1 |

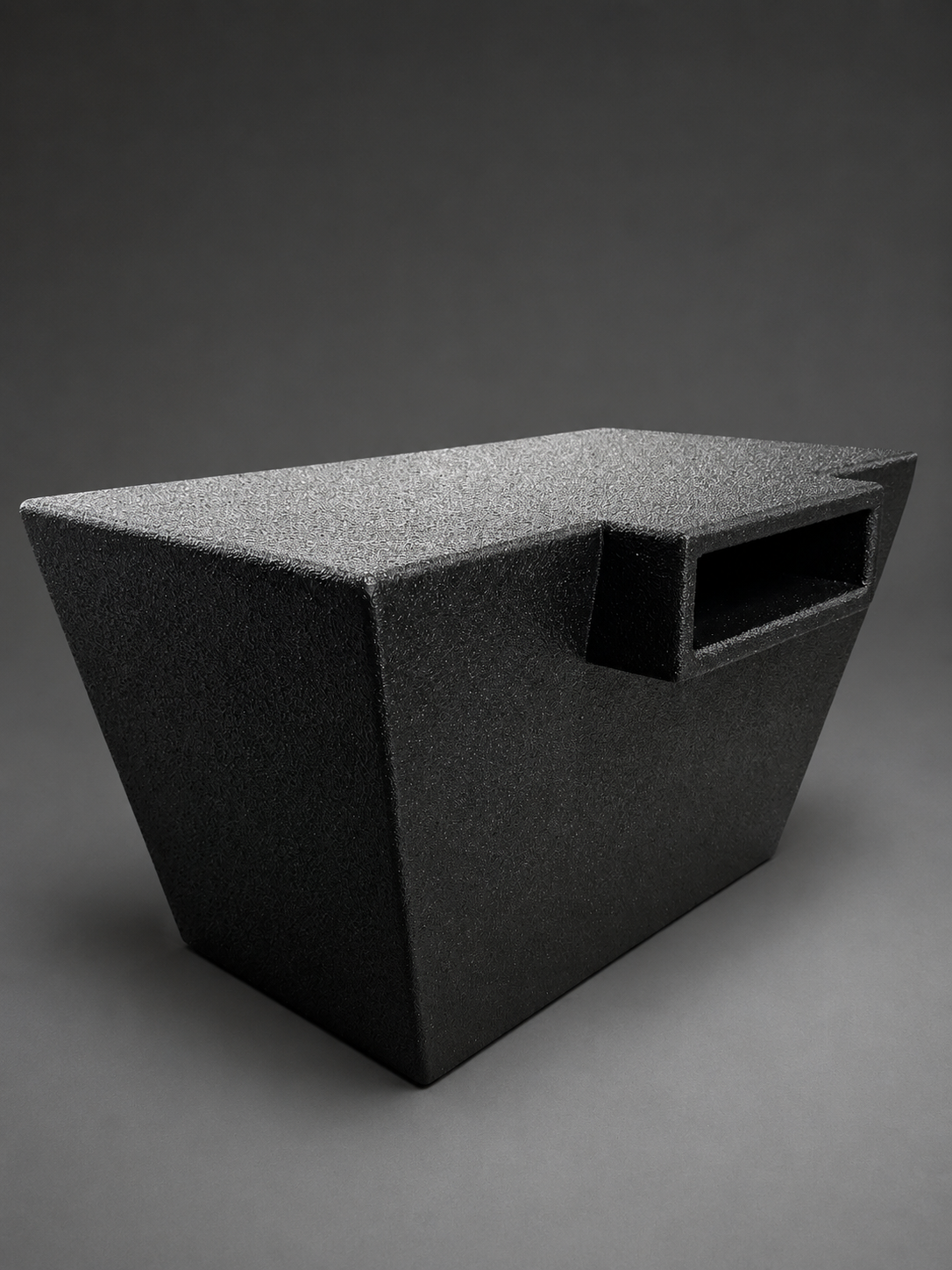

| Port Size | 2.25" x 9" |
| Port Length | 15.75" |
| Tuning | About 48 Hz |
Built For
Open-air bass performance
UTV and side-by-side audio systems
High-output daily riding
Clean custom show-quality installs
Punchy bass that carries outdoors
Custom etching is available. Please send a note when you place your order. I will reach out for your design request.
