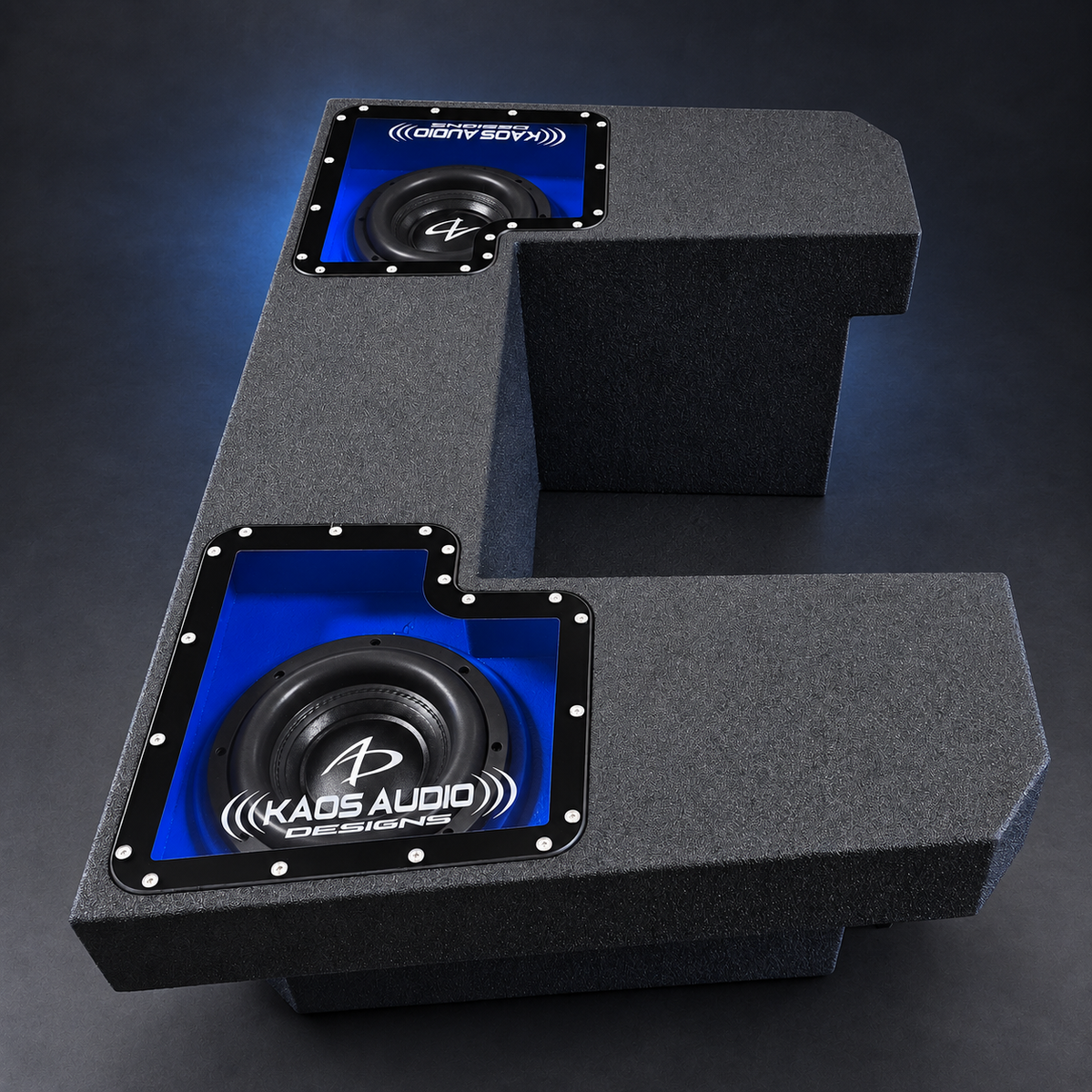

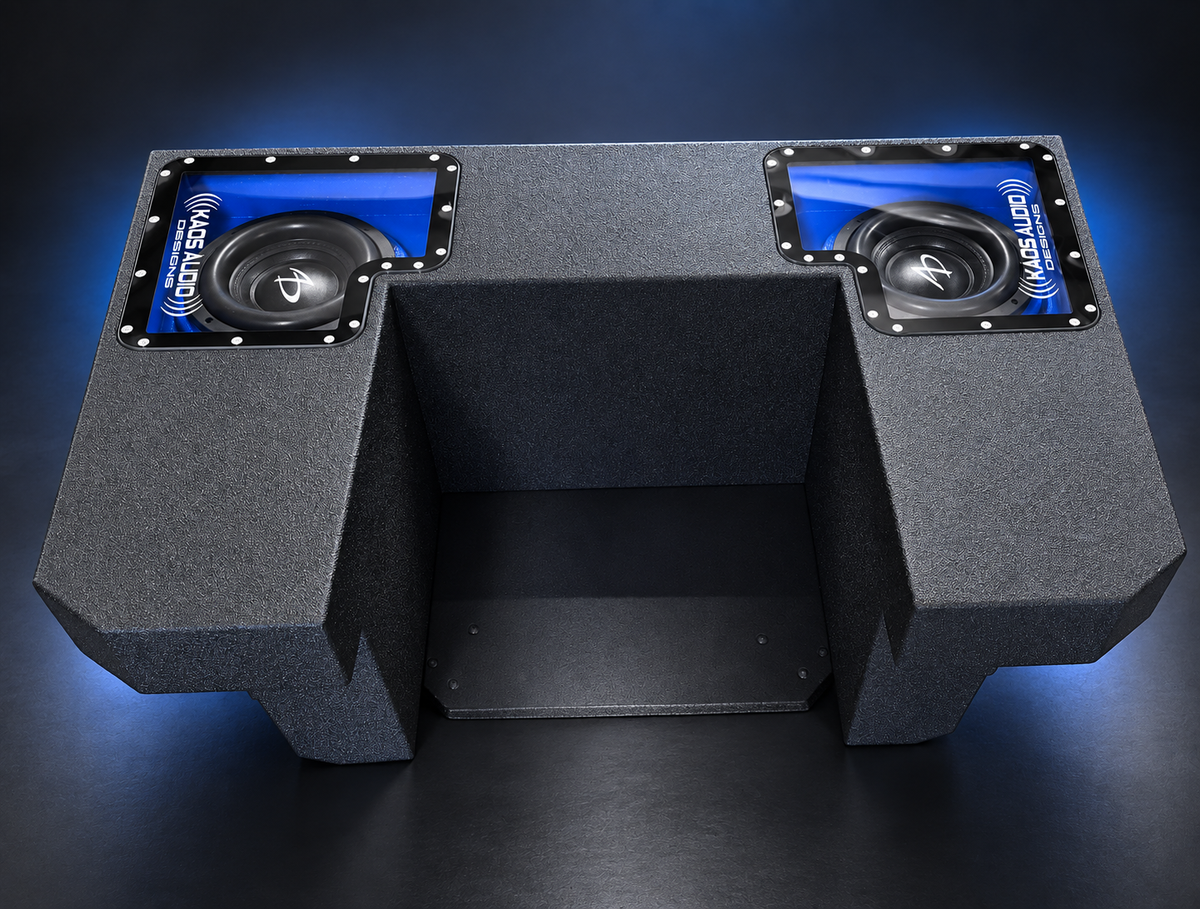

The Kaos Polaris General Dual 10 Enclosure is a large, vehicle-specific 4th-order bandpass enclosure designed for serious open-air output in the rear bed of the Polaris General.
The enclosure was engineered around two Audio Dynamics 3010D4 10-inch subwoofers and approximately 1,500 watts RMS total at 1 ohm. A matched pair of Orion XTRPRO104D dual 4-ohm competition subwoofers is also available as a product option.
Subwoofer Options
Select No Subwoofer for the enclosure by itself, or add a matched pair of Orion XTRPRO104D subwoofers for an additional $699.90.
Enclosure Specifications
- Vehicle-specific Polaris General bed-mounted design
- Dual 10-inch 4th-order bandpass configuration
- Overall dimensions: 50.5 in W × 31 in D × 17.75 in H
- Material: 3/4-inch Baltic birch
- Sealed chamber: 1.00 ft³ net total
- Ported chamber: 3.00 ft³ net
- Chamber ratio: 3:1
- Slot-port opening: 5 in × 10.5 in
- Port area: 52.5 in²
- Target tuning: approximately 47–48 Hz
Subwoofer and System Configuration
- Primary design subwoofers: two Audio Dynamics 3010D4
- Recommended power: approximately 1,500 watts RMS total at 1 ohm
- Subwoofer orientation: cones toward the sealed chamber with the motors exposed inside the ported chamber
- Recommended subsonic/high-pass filter: 34–36 Hz at 24 dB/octave
Construction and Features
- Premium 3/4-inch Baltic birch construction
- Durable textured exterior coating for powersports use

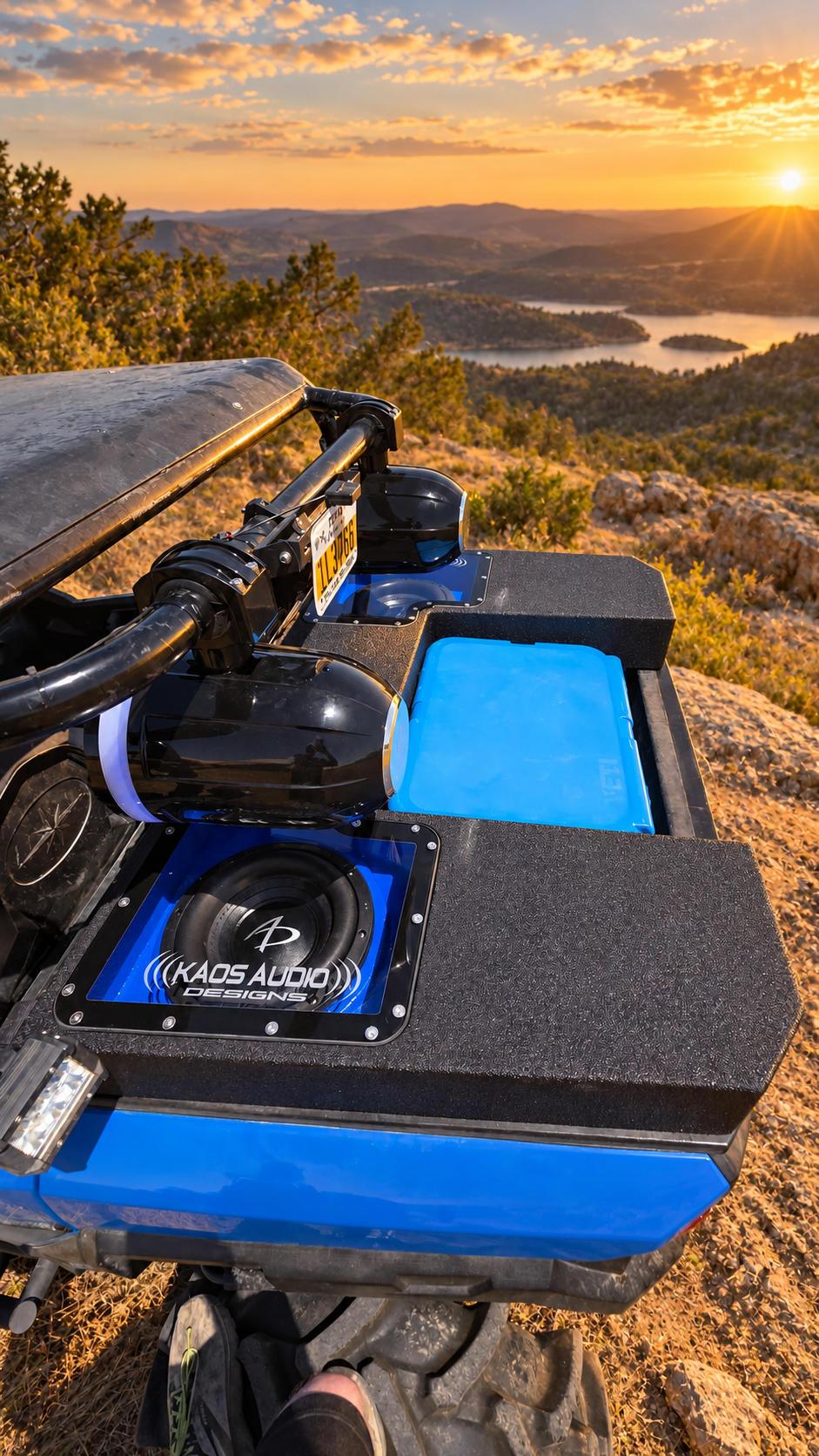

- Dual custom acrylic viewing panels
- Upward-firing high-output slot-port design
- Built by Kaos Audio Designs in Fort Worth, Texas
Finish and Customization
Choose the standard finish or the full color-and-engraving finish. Optional glass etching, enclosure engraving, or both can be added from the product options.
Fitment
Built for the Polaris General. Confirm the exact year, model, seating configuration, rear-bed accessories, and available bed space before ordering.
Important Ordering Information

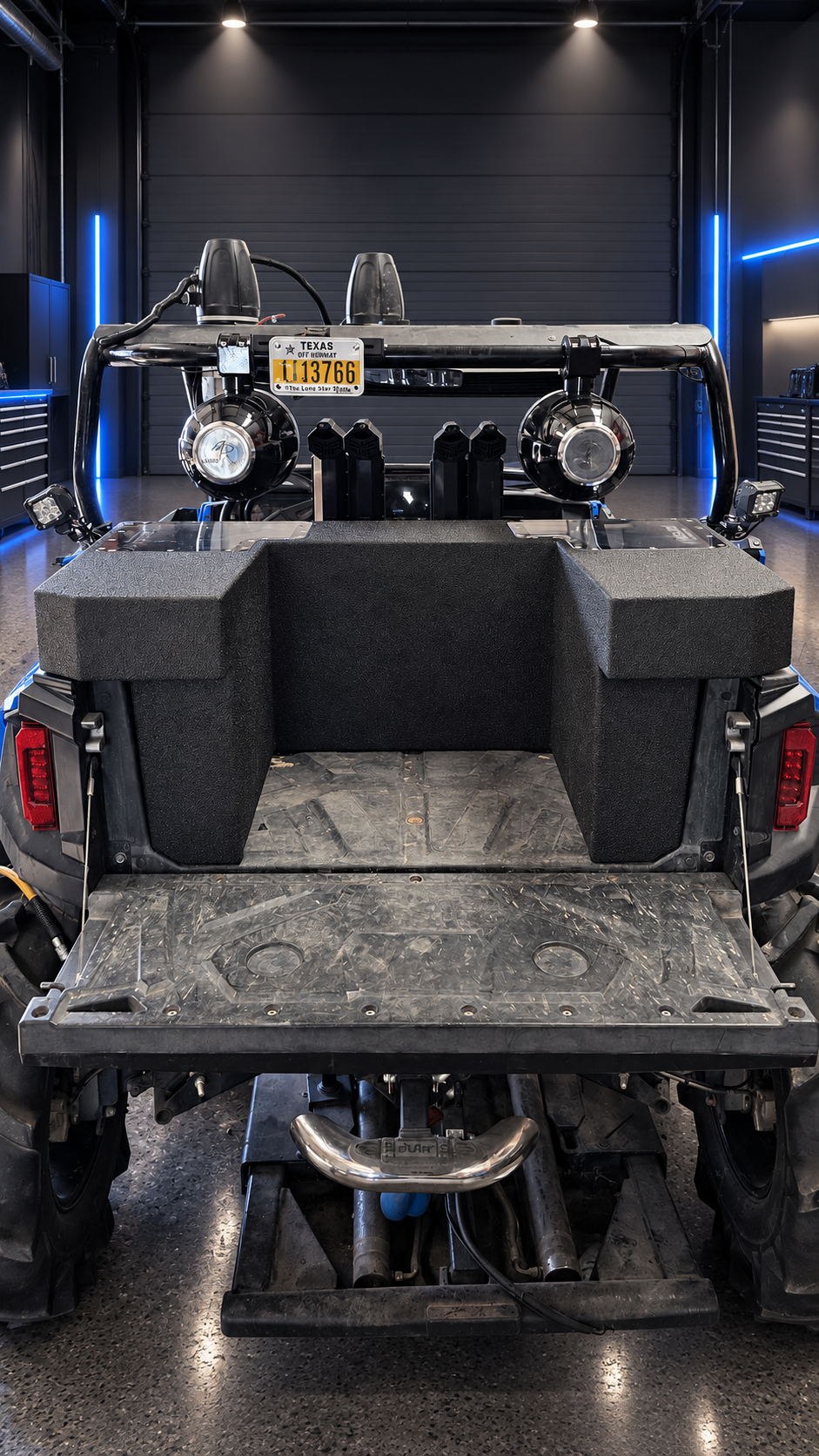

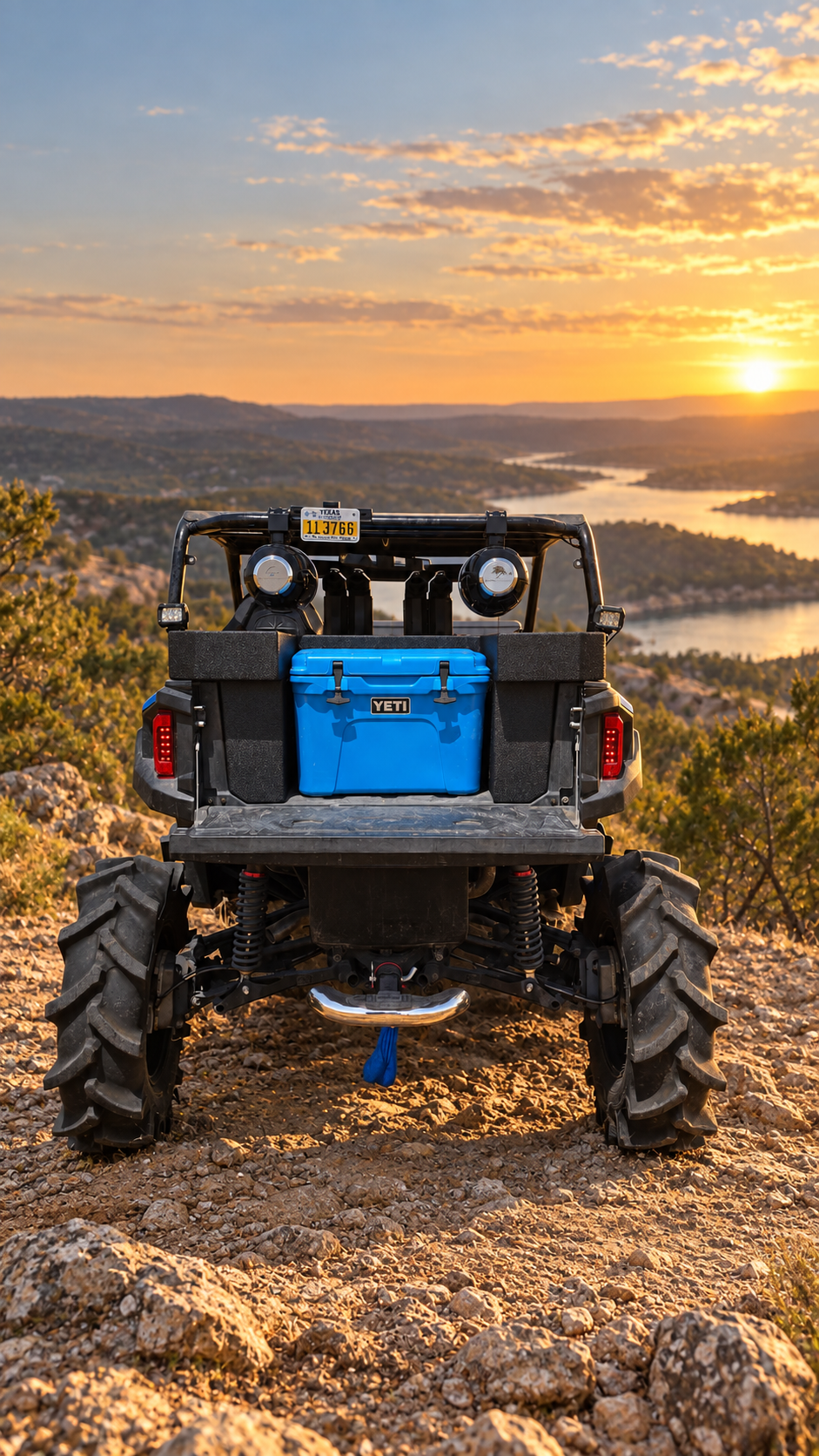

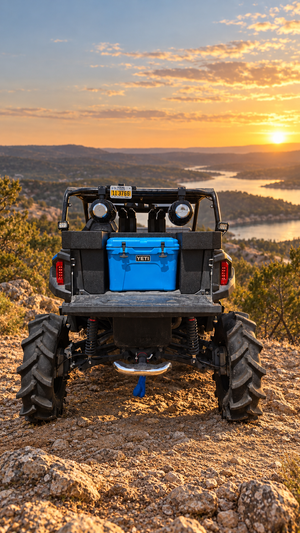

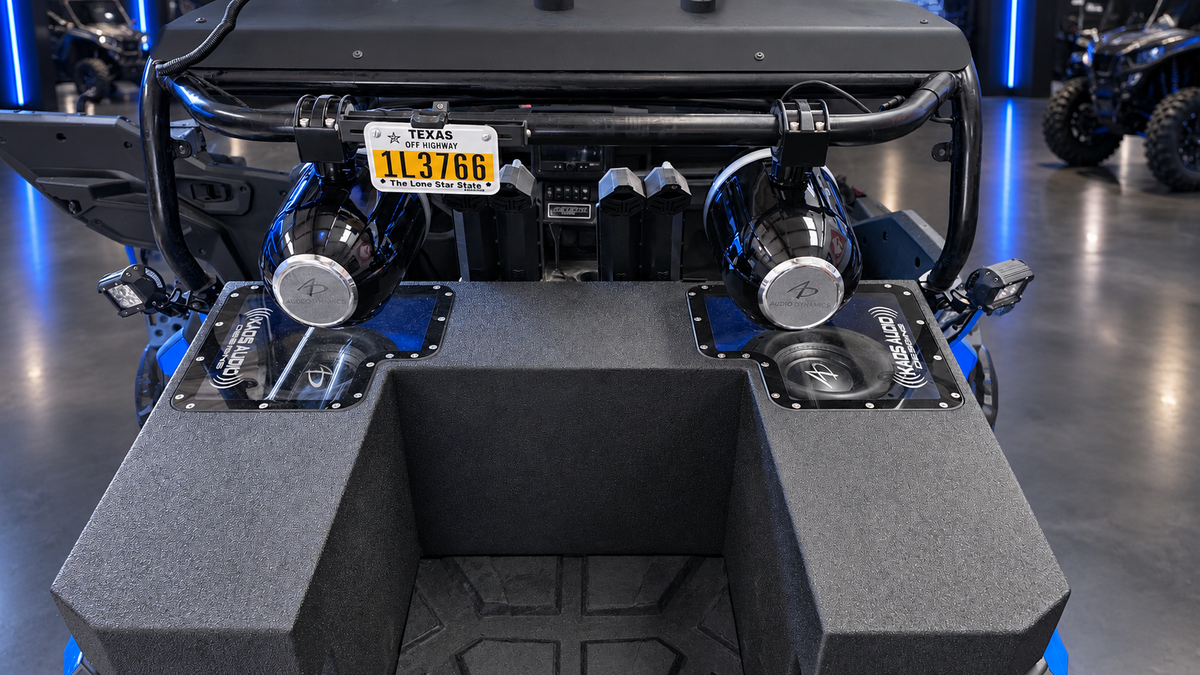

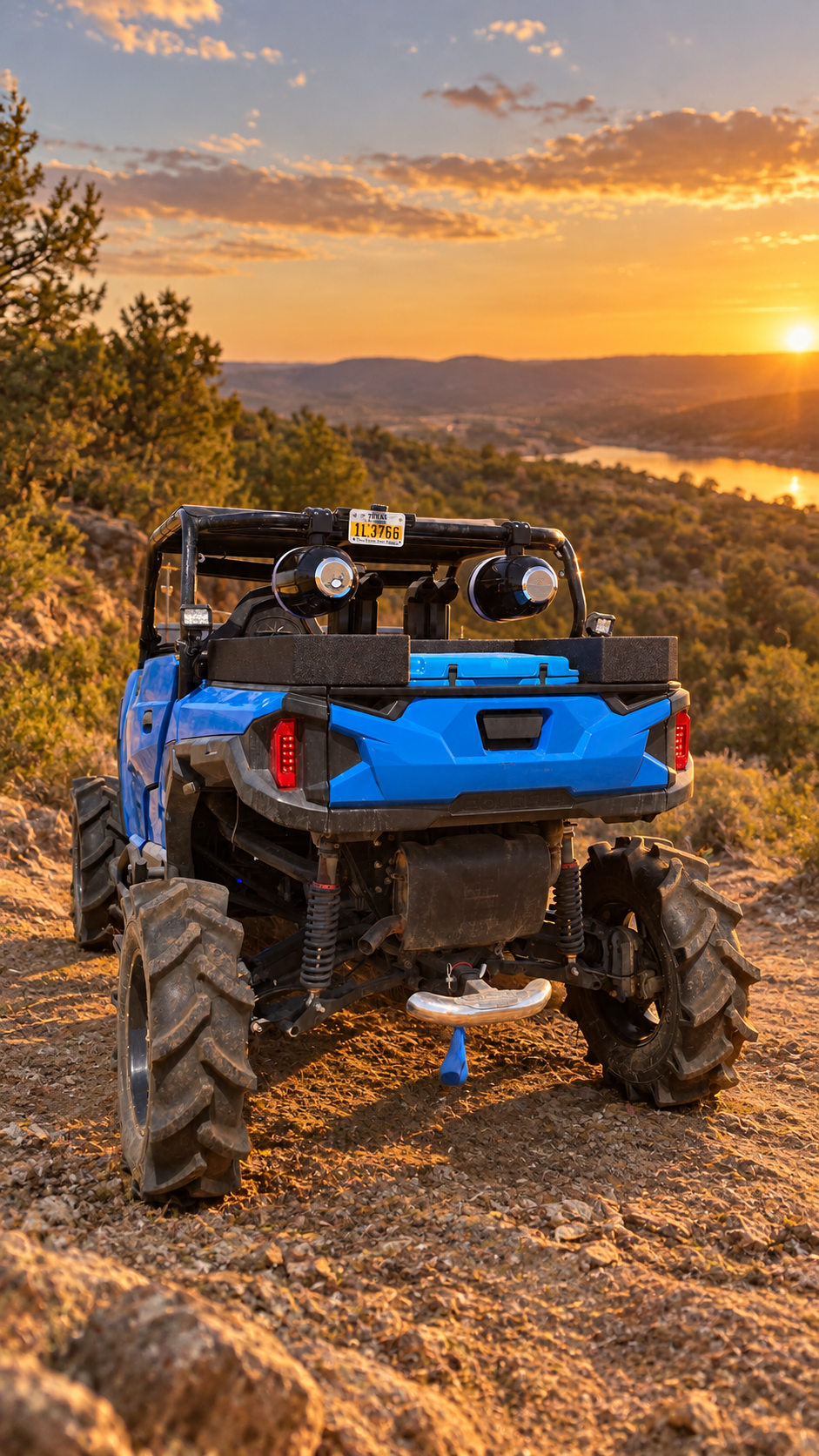

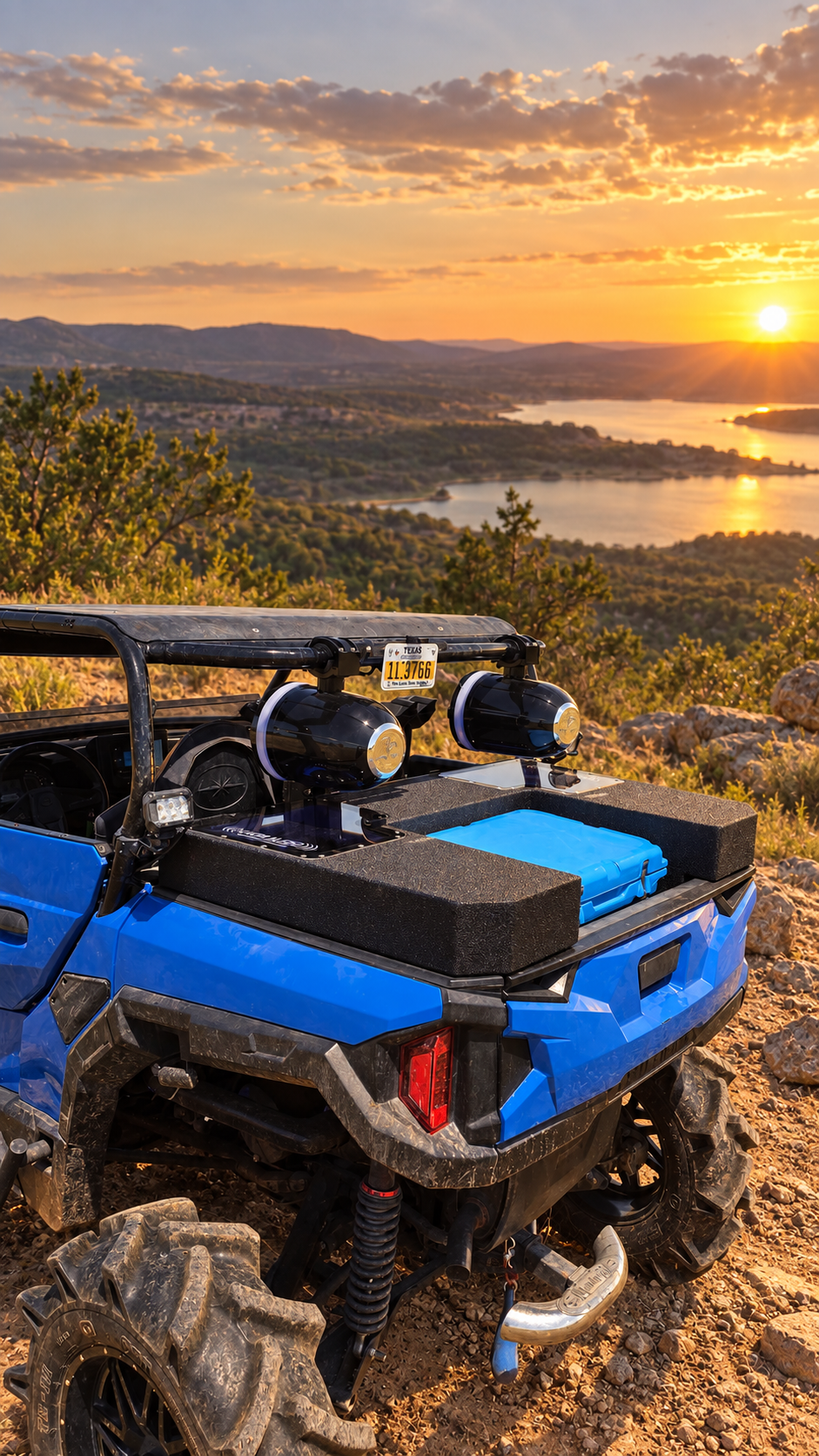

The photos show a completed custom installation using Audio Dynamics subwoofers. The vehicle, cooler, amplifier, wiring, roll-cage speakers, installation, and Audio Dynamics subwoofers shown are not included unless specifically selected, listed, or quoted. Selecting No Subwoofer means the listing includes the enclosure only.
This is a custom, made-to-order enclosure. Lead times typically vary from 5–10 business days once specifications are confirmed.
