AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.
Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.
| Part Number | PNW-65CS2 |
|---|---|
| UPC | 850038647506 |
| Specification | Crossover Type 2nd order Linkwitz-Riley |
| Specification | Power 100W RMS / 125W Max |
| Specification | DC Resistance (Re). 2.3 ohms |
| Specification | Filter Type HP / LP |
| Specification | Frequency Response 60-20k Hz |
| Specification | XO Frequency 3.5kHz HP / LP |
| Specification | Slope (Octave) -12 dB |
| Specification | Tweeter Voice Coil Diameter 25 mm |
| Specification | Midrange Voice Coil Diameter 35 mm |

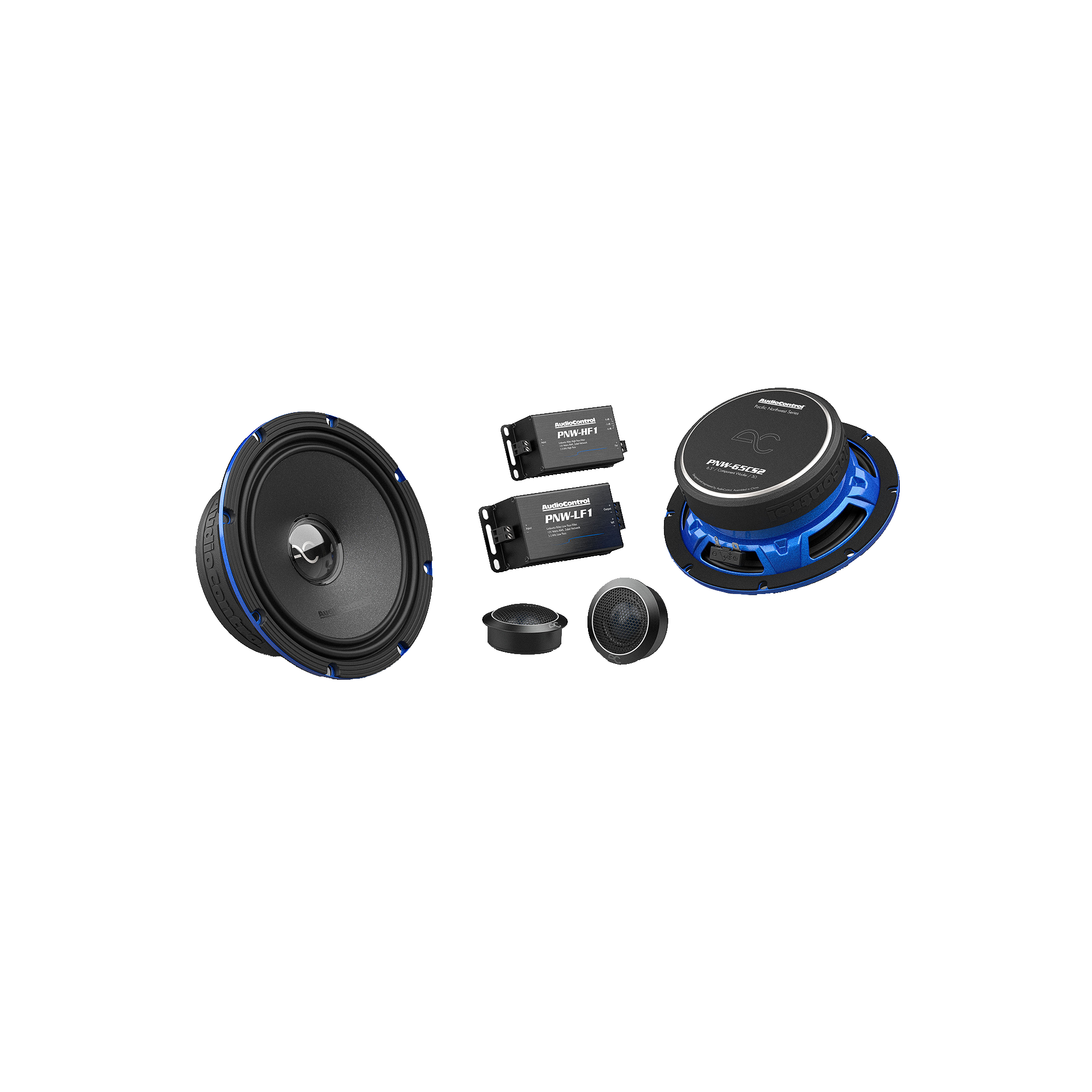

| IN THE BOX | (2) PNW-65CS2 Speakers, Manual, Warranty |
| Specification | Overall Diameter (w/o Grille) 6.5 in / 166 mm |
| Cut Out Diameter | 5.59 in / 142 mm |
| Mounting Depth | 2.36 in / 60 mm |
| Mounting Height (w/o Grille) | 0.20 in / 5.2 mm |
| Mounting Height (w/ Grille) | 0.86 in / 22 mm |
| Motor Diameter (w/ Cover) | 4.6 in / 117 mm |
| Grille Overall Diameter | 7.05 in / 179 mm |
| Specification | DIMENSIONS FOR TWEETER |
| Overall Diameter | 2.13 in / 54 mm |
| Cut Out Diameter | 1.85 in / 47 mm |
| Mounting Depth | 0.63 in / 16 mm |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
