PMX-HD14
Overview
Explore the Power of Sound with Rockford Fosgate's PMX-HD14 Audio Receiver. Elevate your riding experience with premium audio quality and advanced features.
Features

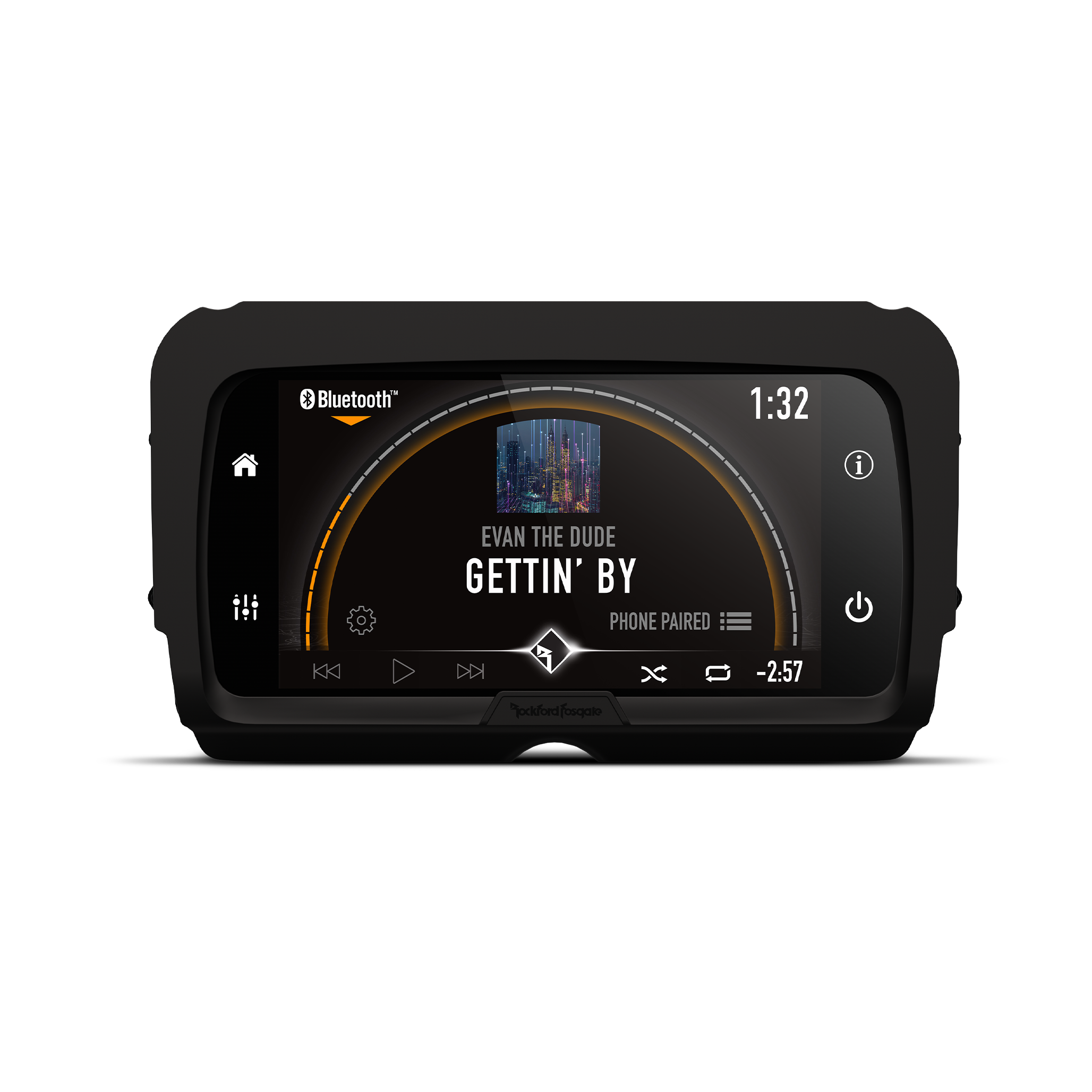

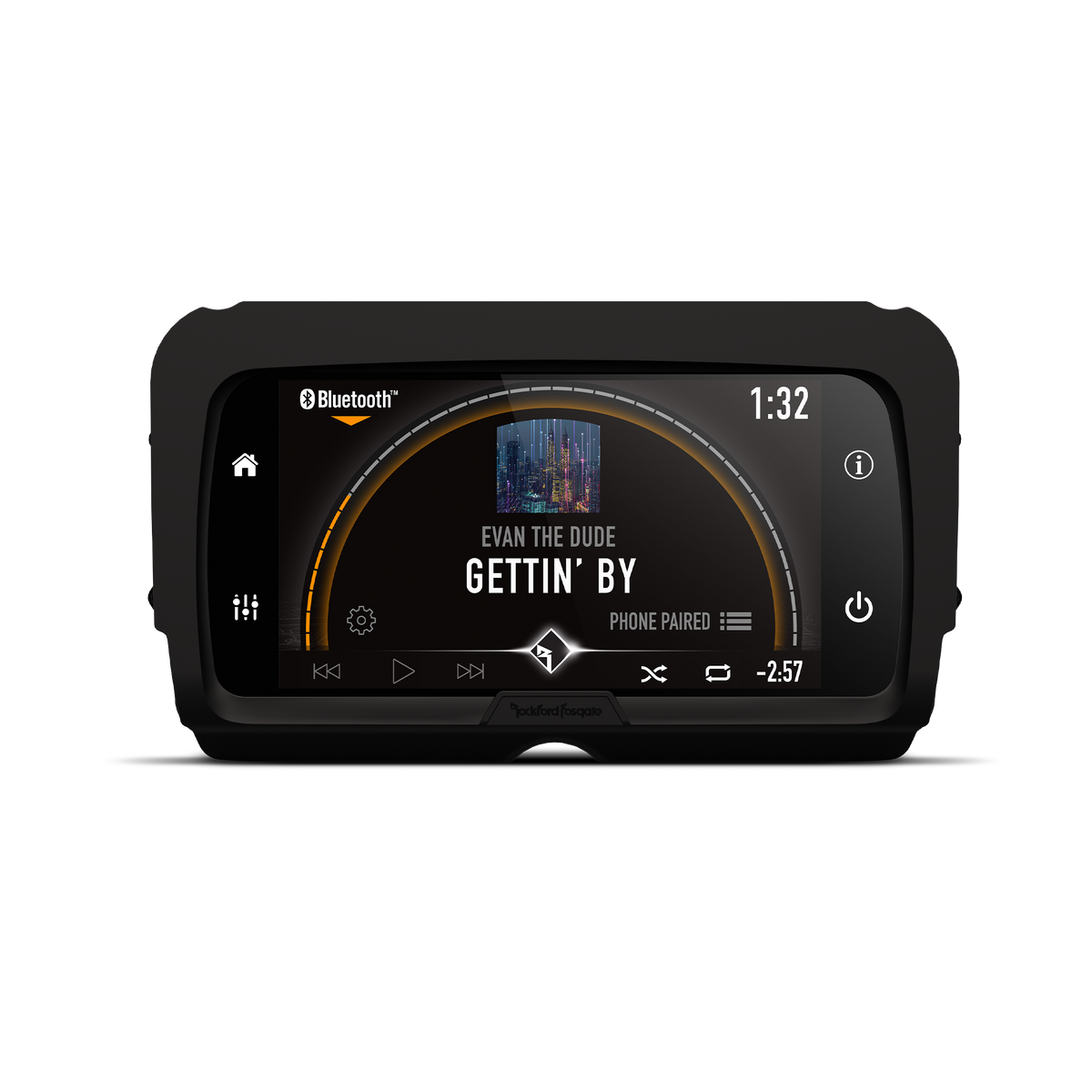

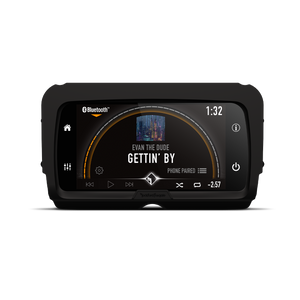

- 7" full color, glove friendly, capacitive multi-touch screen
- Plug and Play Installation with OEM electrical connectors

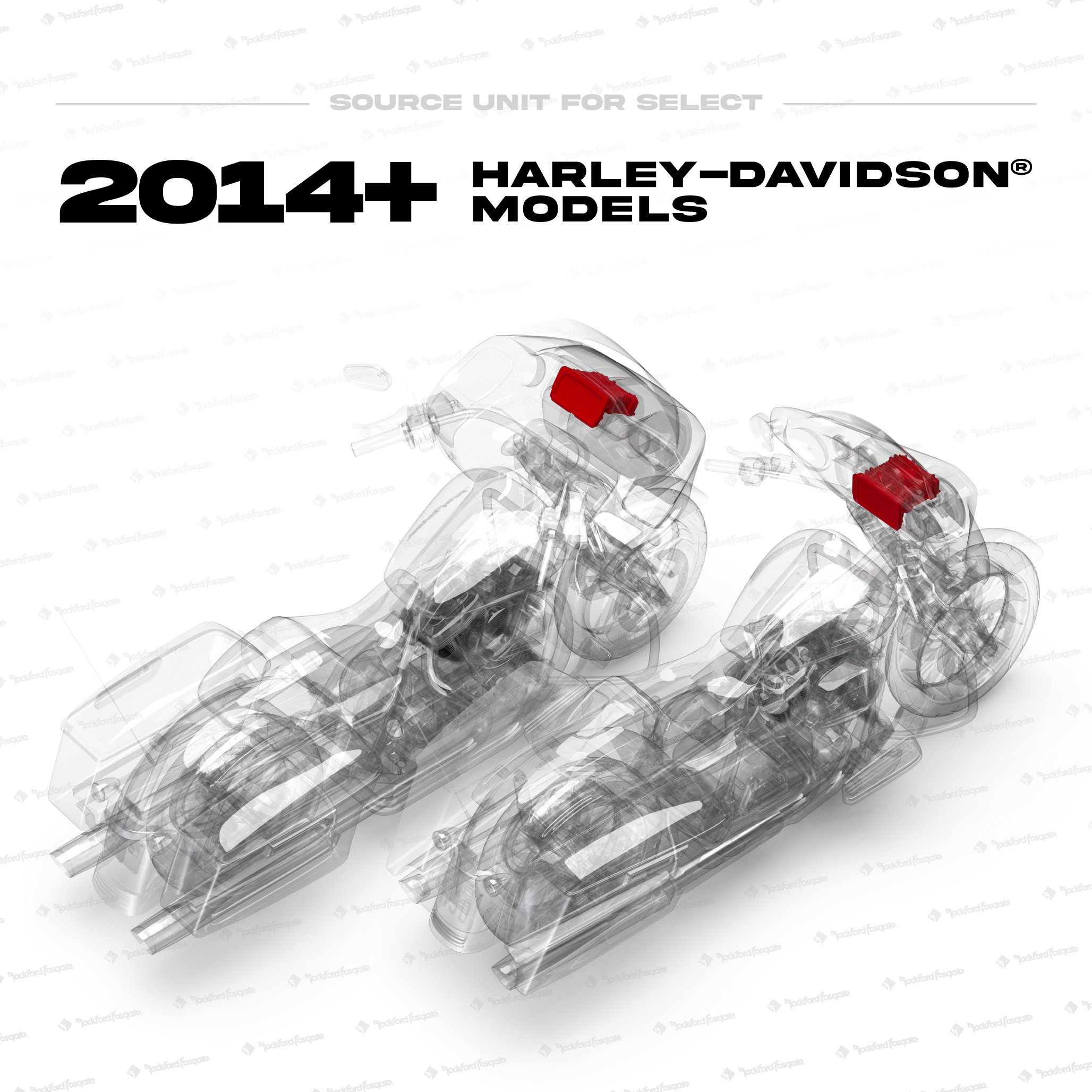

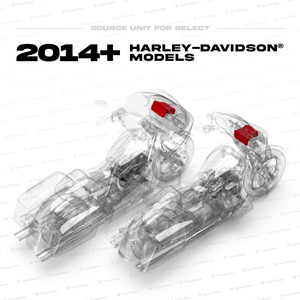

- 2014+ Harley-Davidson direct replacement digital media receiver
- Eliminates the need to "flash" your radio
- Digital AM/FM/WB tuner with presets
- Retains factory thumb control functionality
- Glove friendly touch controls
- Street Party ModeTM can broadcast audio up to 100 feet to 8 additional PMX-HD14
- Optimized DSP presets for all 2014+ Rockford Fosgate H-D stage kits
- Apple CarPlay built in
- Built in DSP with Subwoofer control
- Works with wired intercom headsets on Ultra models (requires "push to talk" interface)
- Bluetooth connectivity with A2DP wireless audio streaming
- Works with wireless headsets and OEM CB (WHIM & CB modules required)
- Software updatable via USB
- SiriusXM-Ready satellite radio (requires SXV300 tuner)
- USB Input with 1.5A USB Charging
- AUX Input
- 2-Year Warranty
- Multi-region radio frequencies
- *Antenna not included
- 14 band graphic EQ
Specifications
- Output Power: CEA-2006 Power Rating; 25W x 4 @ 4Ohm RMS; 50W x 4 @ 2Ohm MAX; <=1.0% THD+N
- Display Size: 7"
- Display Type: Color TFT
- EQ Bands: 14
- Source Zones: 1
- EQ Type: Graphic
- Audio Zones: 1
- Output Impedance: < 500Ohm
- Frequency Response: 20 Hz - 20 kHz
- Pre-Amp Output Voltage: 4.0 VRMS Front; 4.0 VRMS Rear
- iPhone via USB: Yes
- Pre-Amp Outputs: 6 (Left/Right)
- Android via USB: Charge Only
- USB Max Capacity: 32 GB
- USB Charging Current: 1.5 A
- USB Max Folders/Files: 999
- USB Type: Type A
- AUX Inputs: 1 (left/right)
- AUX Input Sensitivity: 800 mV - 4 V
- AM/FM Tuner: Yes
- Bluetooth: 5
- SiriusXM: Yes (SXV300)
- Made for iPhone: Yes
- Apple CarPlay: Yes
- Android Auto: No
- Clock: Yes
- SD Card Input: No
- Street Party Mode: Broadcast: 100 ft. max; Receiving: 8 radios max
- Playback: MP3: Yes
- Playback: FLAC: Yes
- Playback: WMA: Yes
- Playback: AAC: No
- Playback: LC3: No
- Playback: DRM: Yes
- Playback: USB: Yes

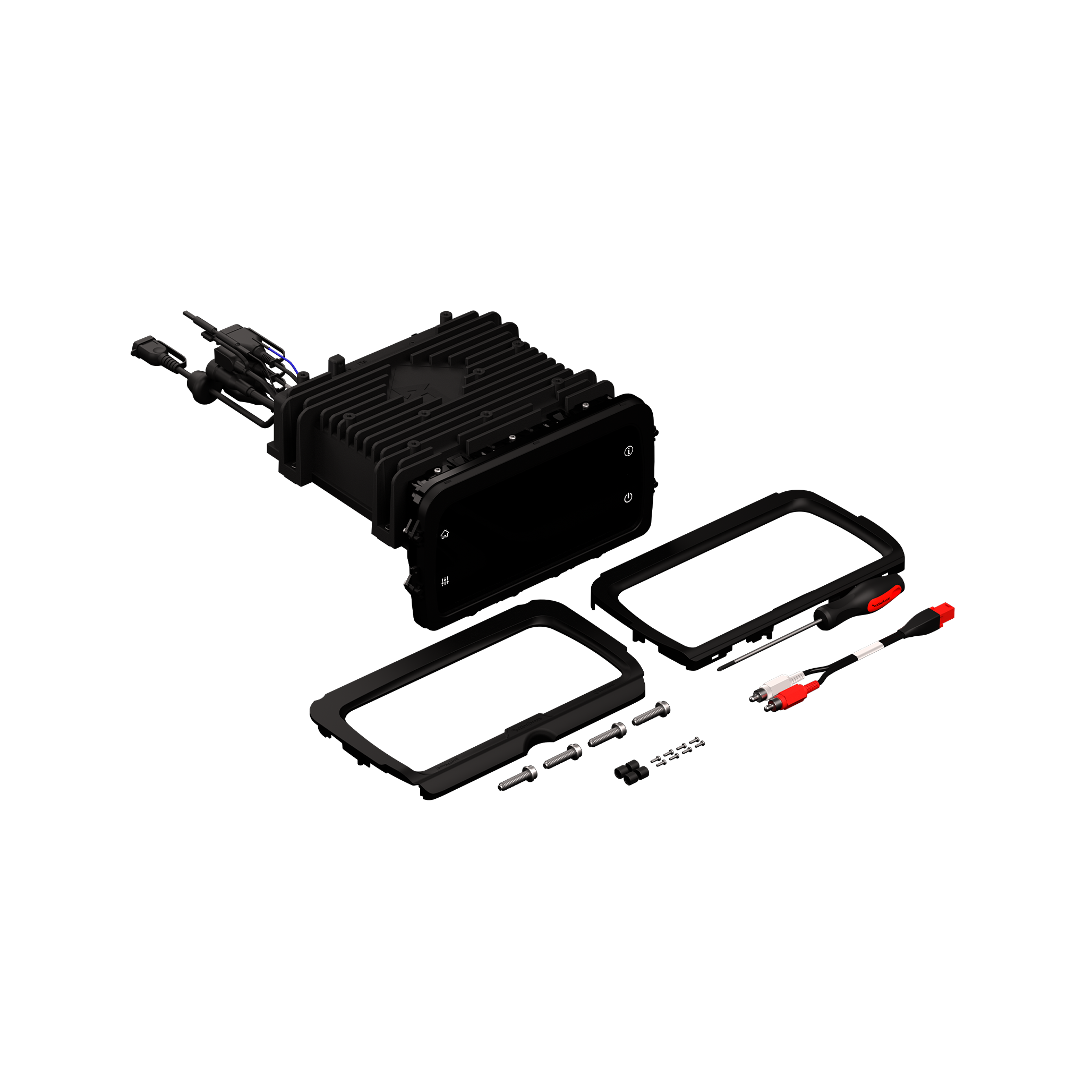

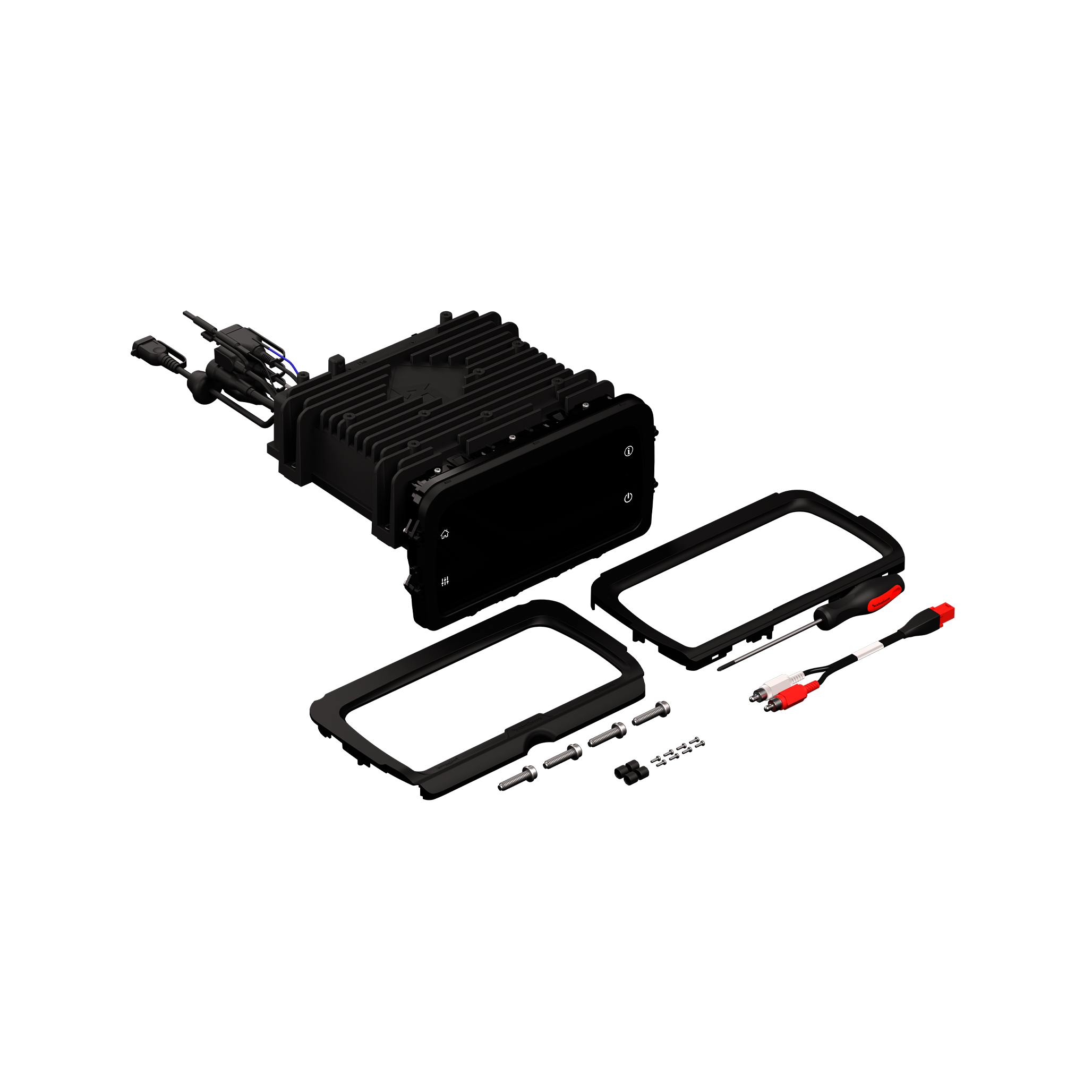

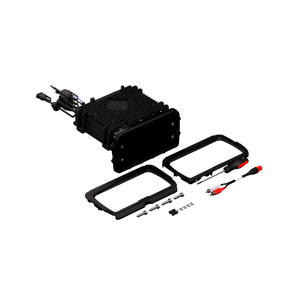

- Included In The Box: (1) Road Glide trim bezel; (1) Street Glide trim bezel; (8) Trim Panel Screws; (1) Mini Phillips screwdriver for trim bezel; (4) Radio Chassis Mount screws; (8) Rubber sleeves for radio chassis screws
- Operating Voltage: 9 - 16 VDC
