PMX-8DH

Overview

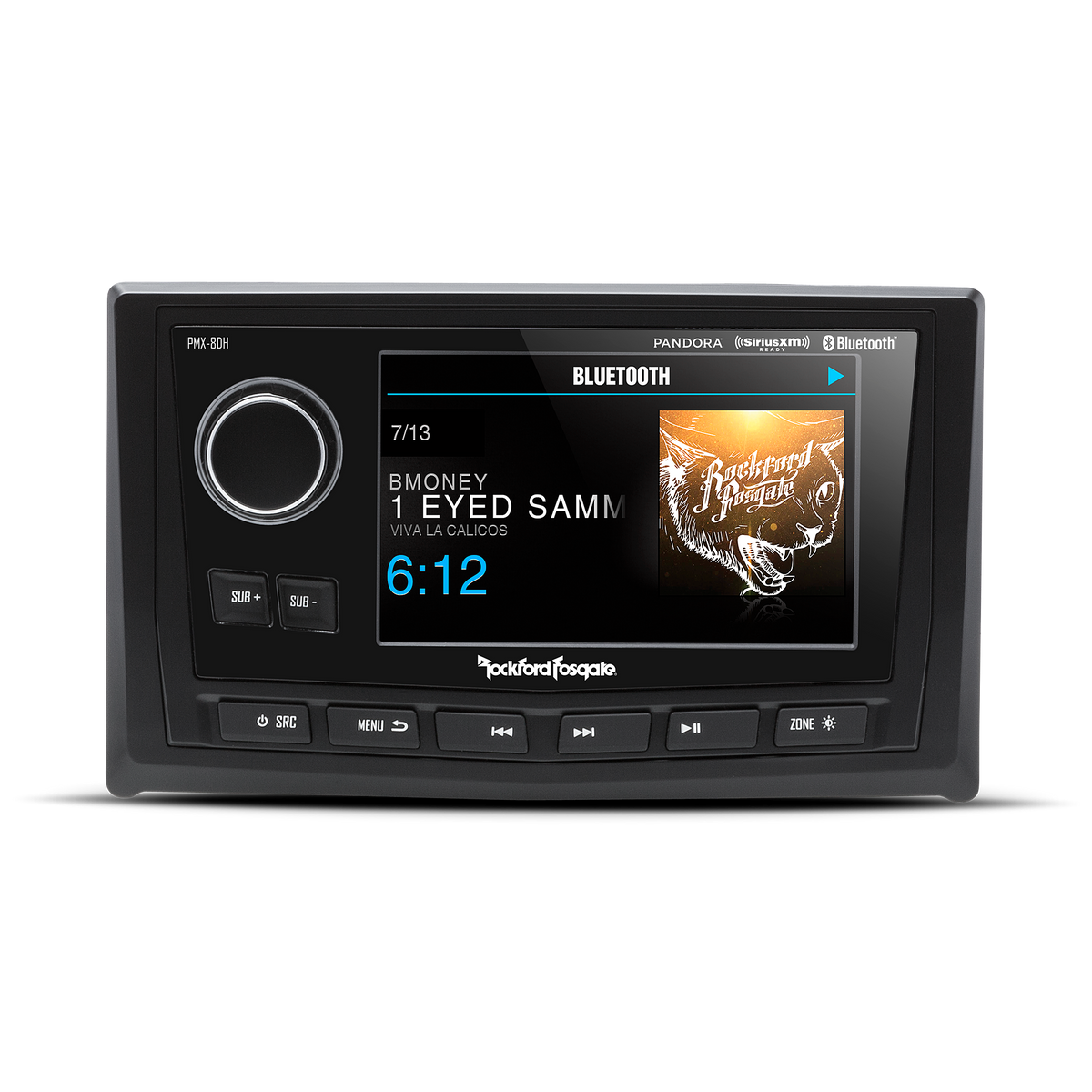

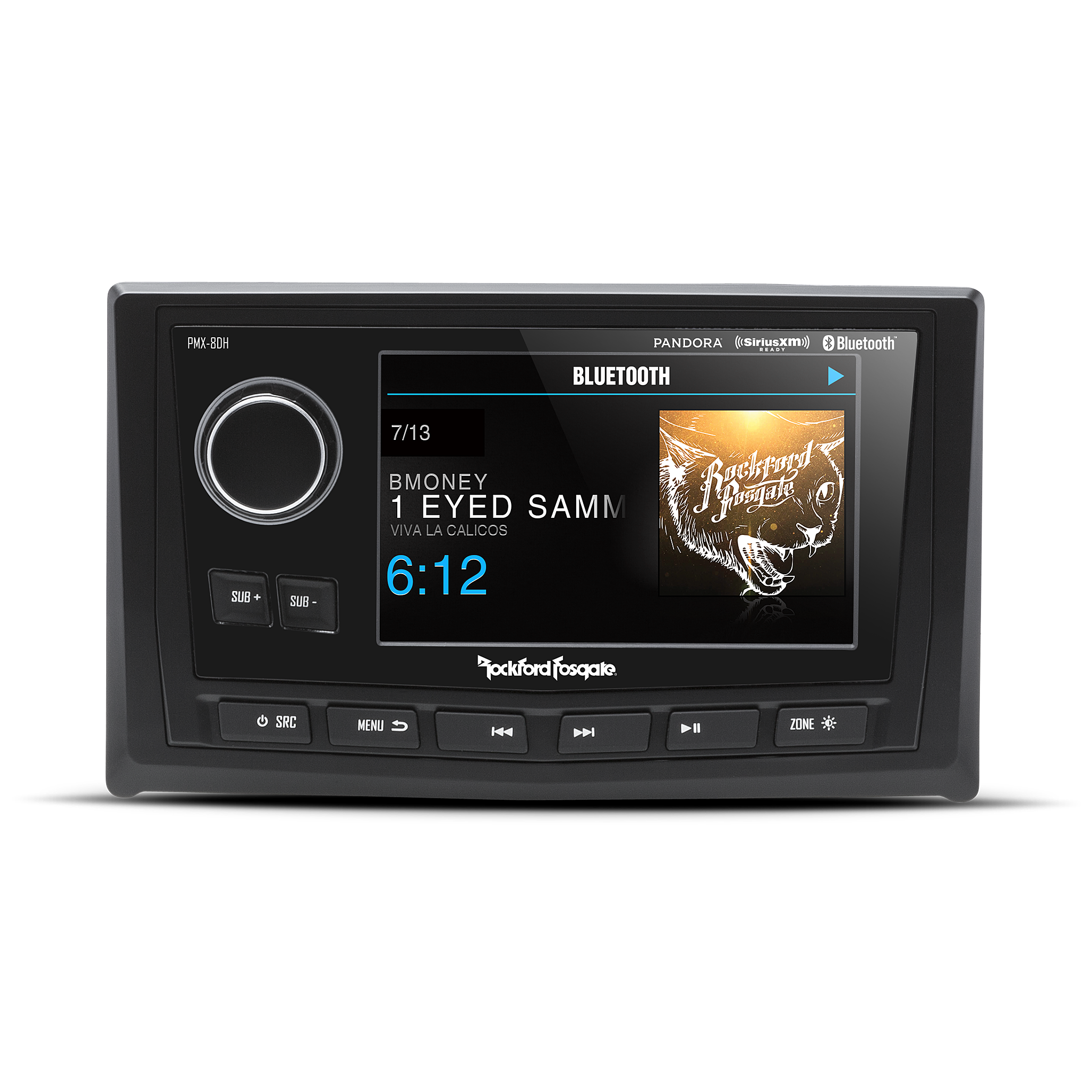

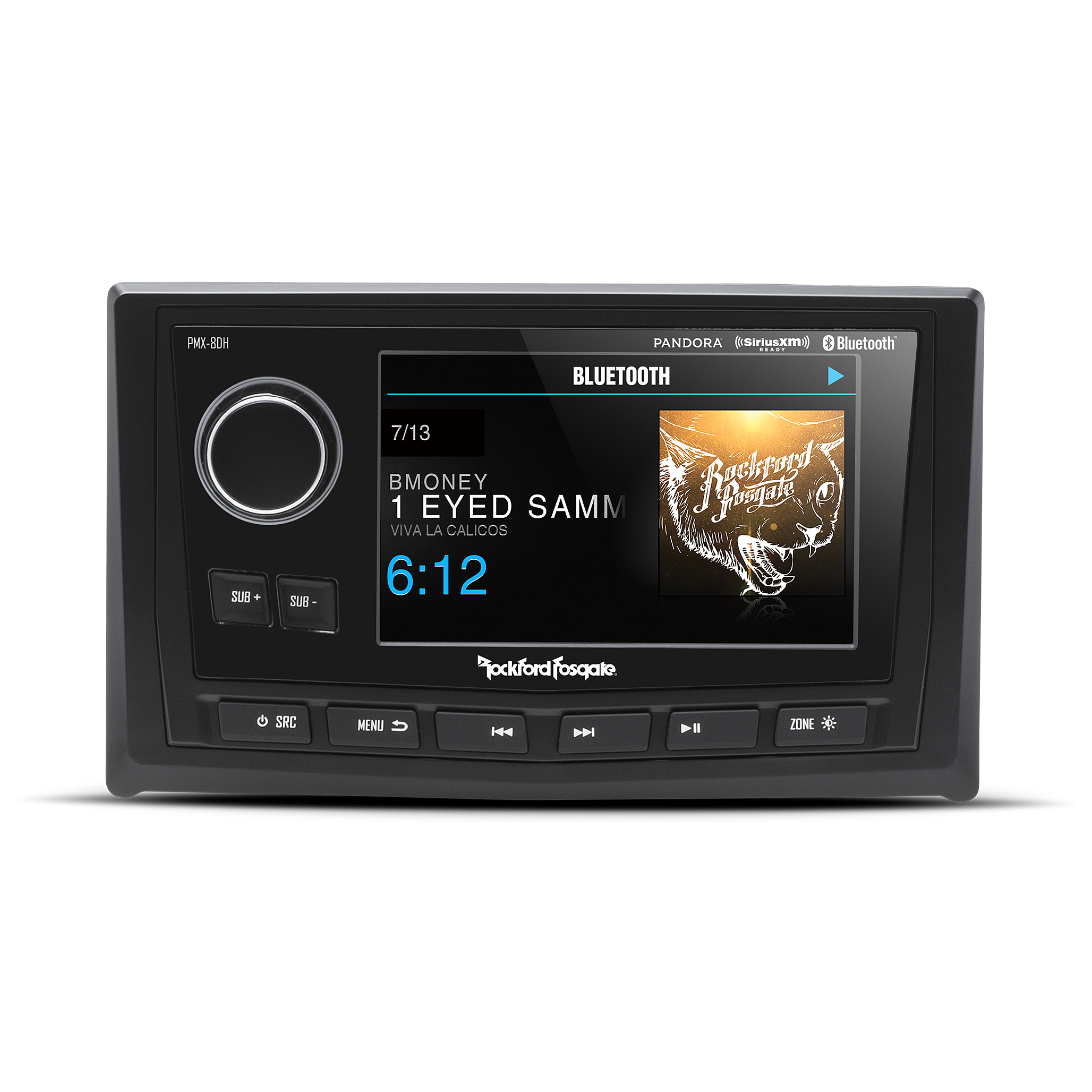

The PMX-8DH features a 5" ultra bright color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent moisture penetration.

Features

• White LED button illumination
• Front Panel Sub Control
• Epoxy coated circuit board for water resistance
• Water resistant rotary encoder volume control
• 5" Full color Thin Film Transistor display
• 2-Year Warranty
• Direct composite video input connection
• Two-piece mounting system to secure panel to mounting surface
• Wet Bonded Faceplate: An epoxy layer between display and cover glass eliminates air gap to improve visual clarity and preventing dust build-up.
• American Society for Testing and Materials (ASTM): B117 Salt Fog Test Standard, D4329 UV Exposure of Plastics Test Standard
• IPX6 Marine Grade for prevention of water intrusion

Specifications

• Speaker Impedance: No
• Pandora Internet Radio; (Yes/No): Yes
• Bluetooth; (Yes/No): Yes; 3.0+EDR, A2DP 1.3
• Display Size: 5" Color TFT
• Device Type: Digital-Media Display Head
• Speaker Outputs; (Yes/No): No
• Power Output: No
• Dimensions (HxWxD): H5.1" x W8.3" x D0.8"; (130mm x 211mm x 20mm)
• MEDIA PLAYER; Audio Format Compatibility: No
• USB Version: 2.0 (Firmware Updating Only)
• USB Output Current: 1A
• AUX Input; (Yes/No): No
• Steering Wheel Control Ready; (Yes/No): No
• Multi-Zone/Multi-Source; (Yes/No): No
• Operating Voltage: 10.5V - 16V
• Apple/AndroidTM Compatible; (Yes/No): No
• Video Input: (1) Female RCA Jack
• Clock; (Yes/No): No
• SiriusXM-Ready; (Yes/No): Yes; Requires SXV300
• USB Charging; (Yes/No): Yes

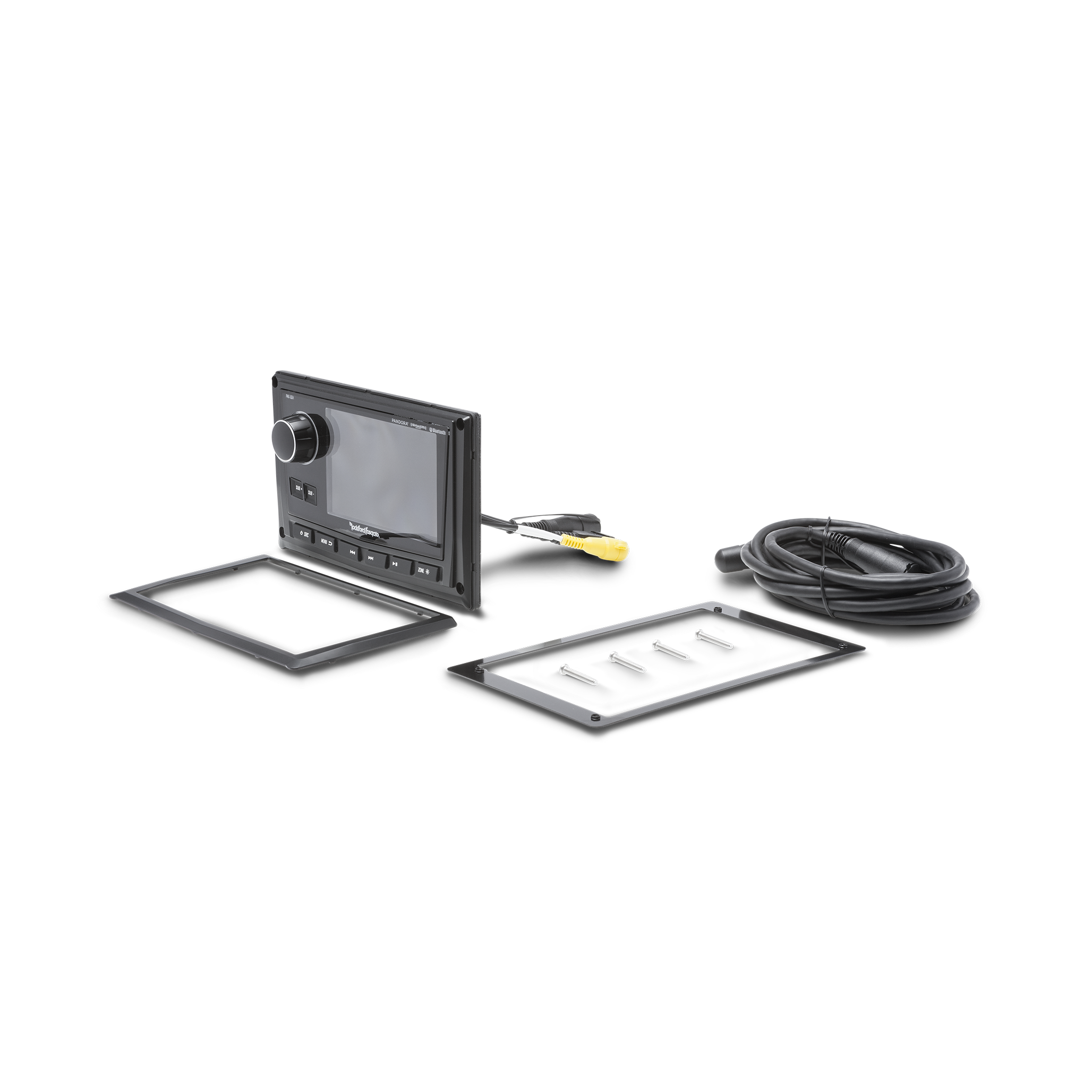

• Included In The Box: (1) PMX-8DH display head; (1) PMX10C
