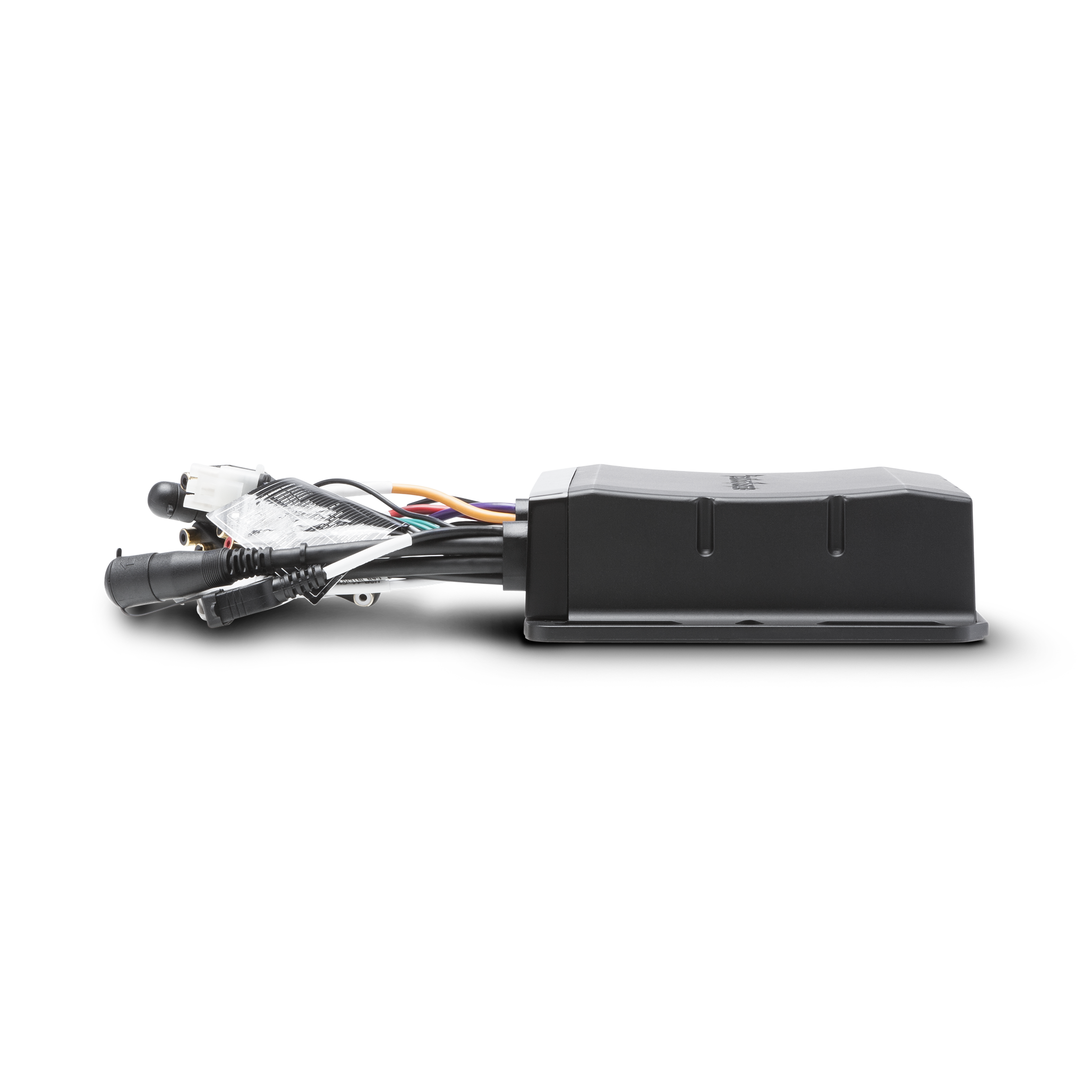

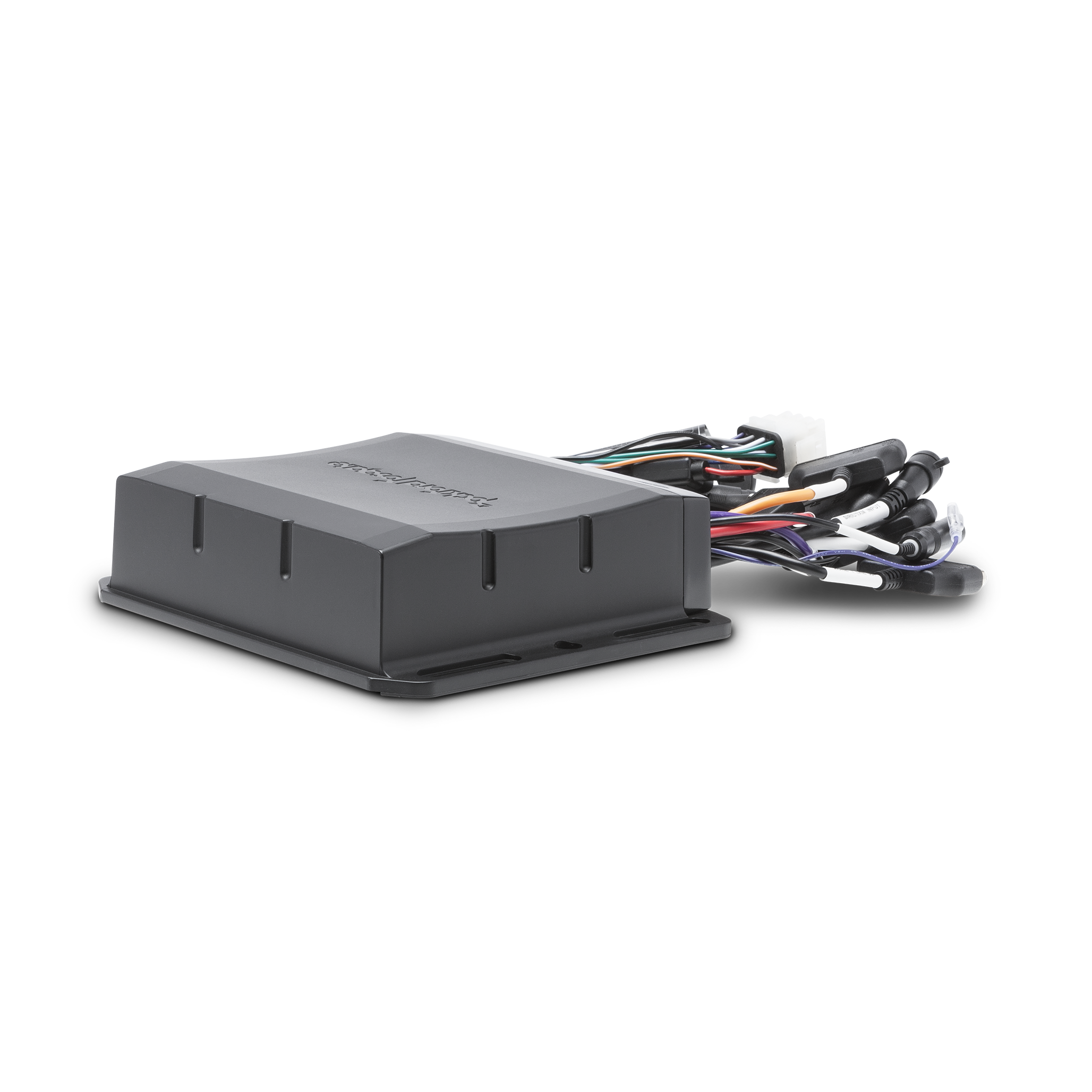

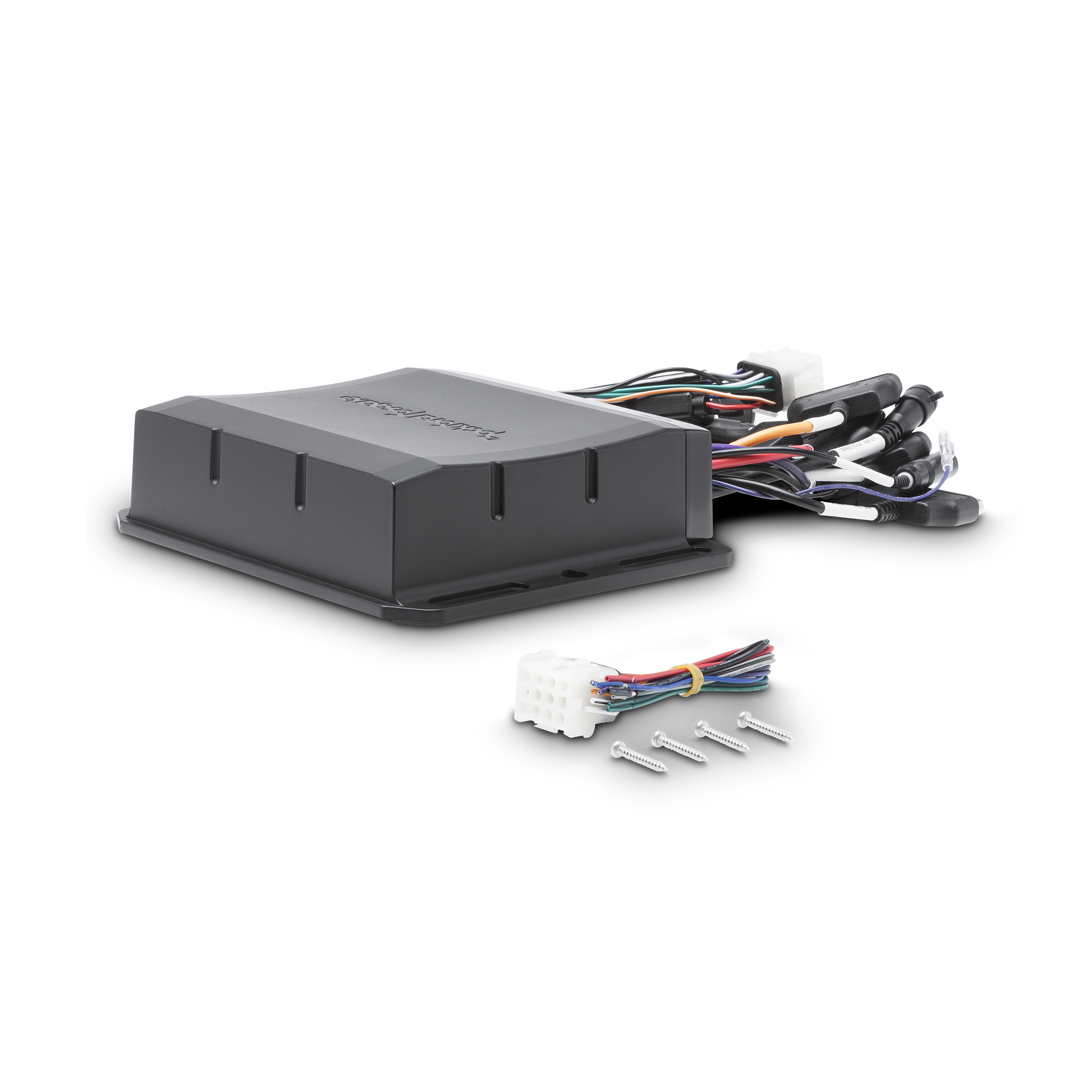

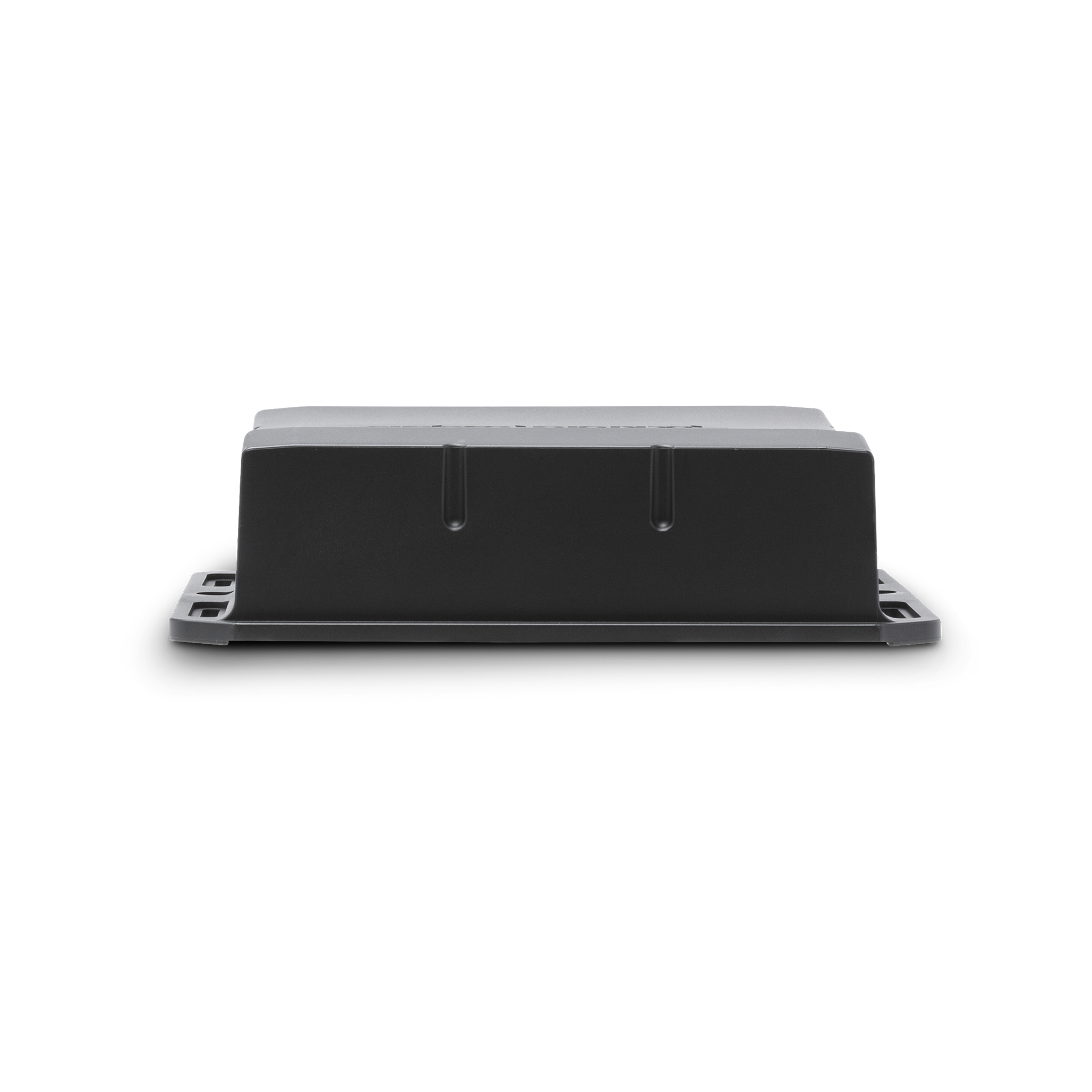

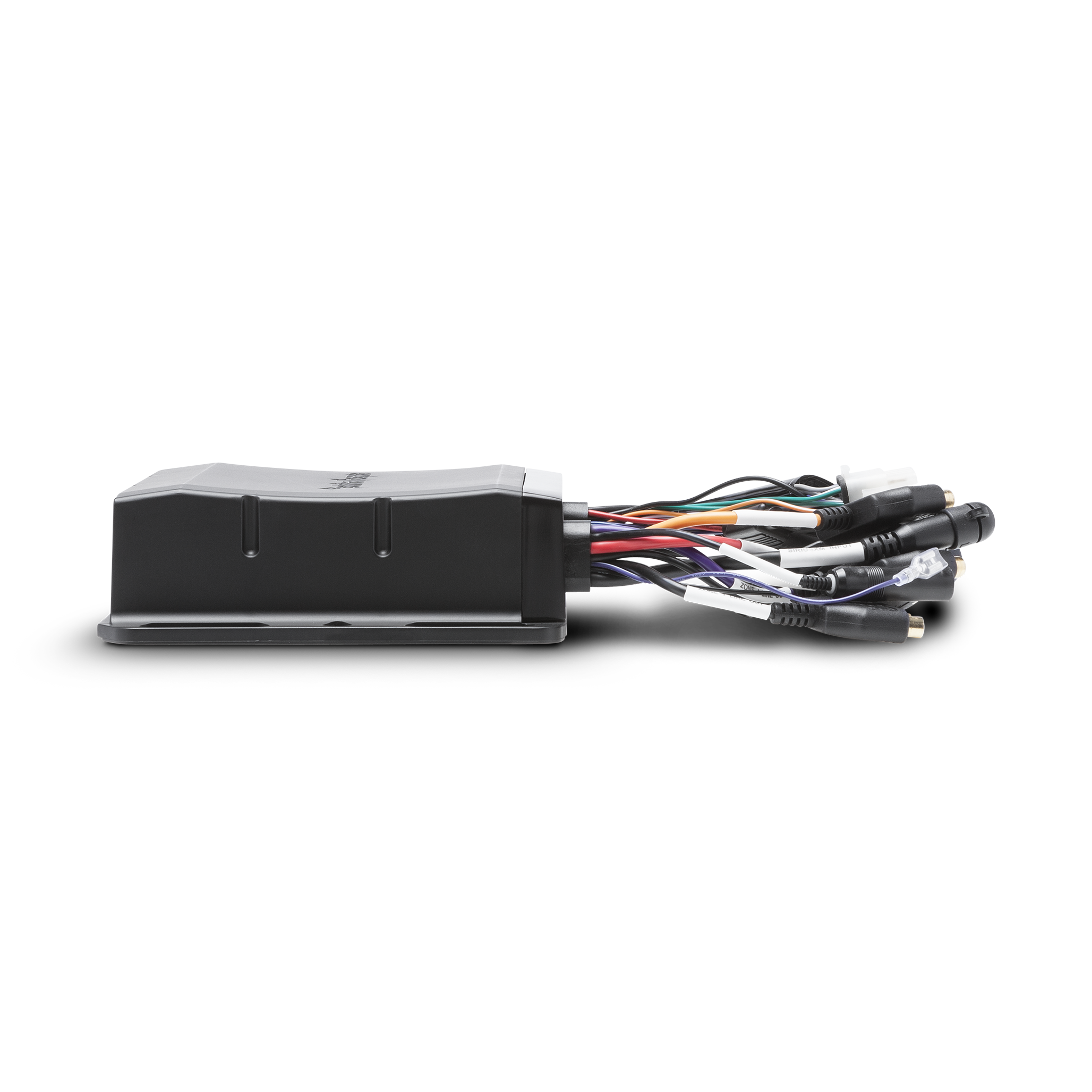

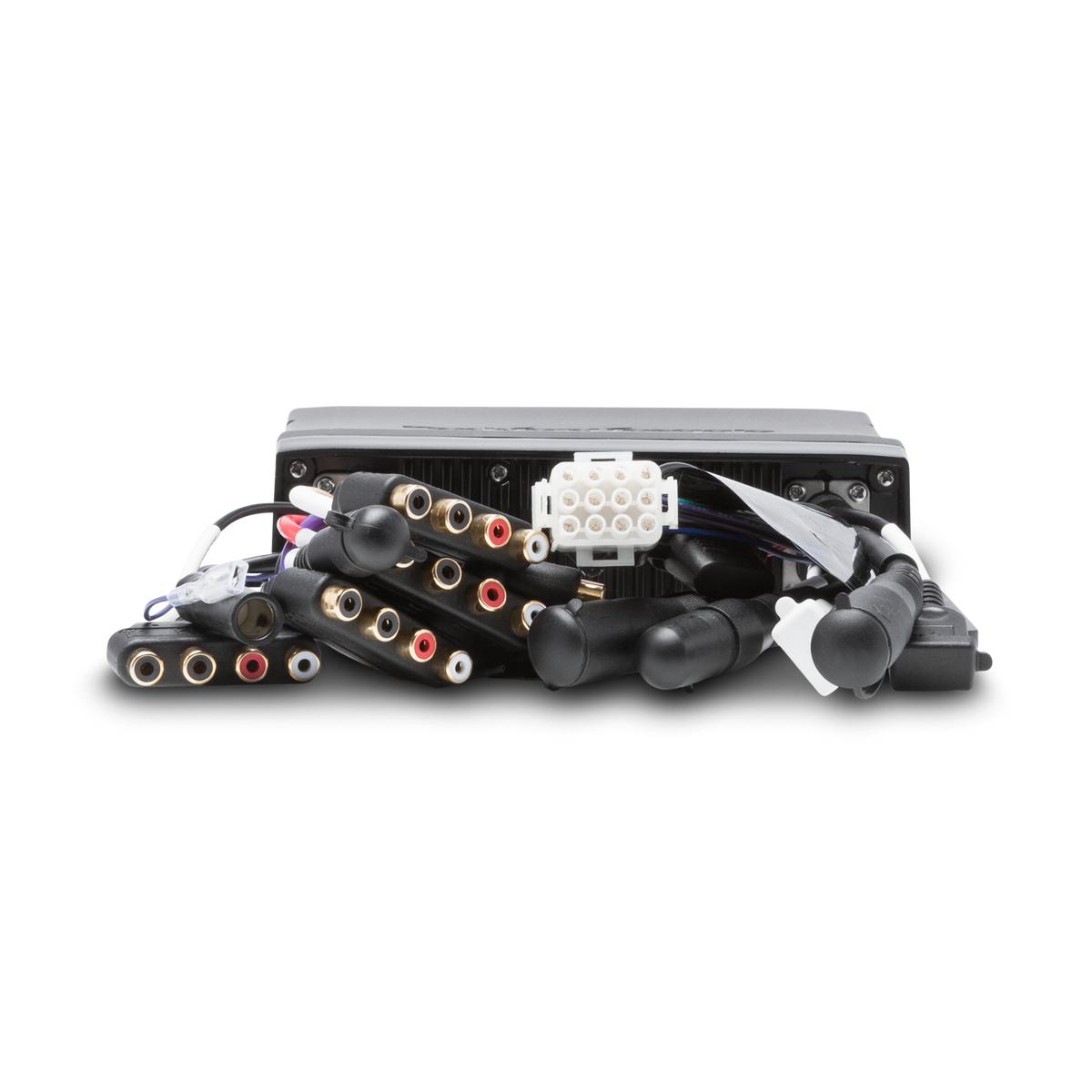

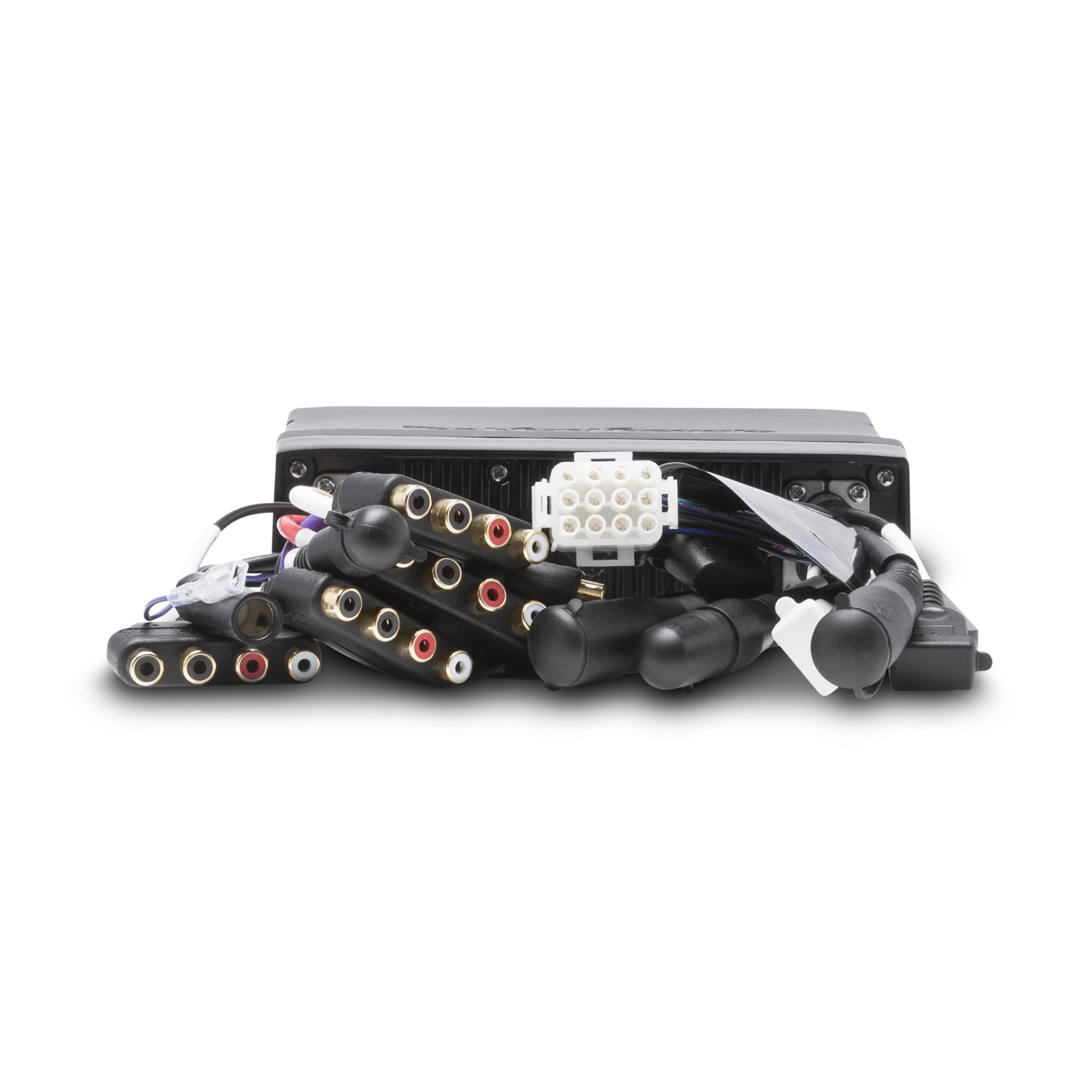

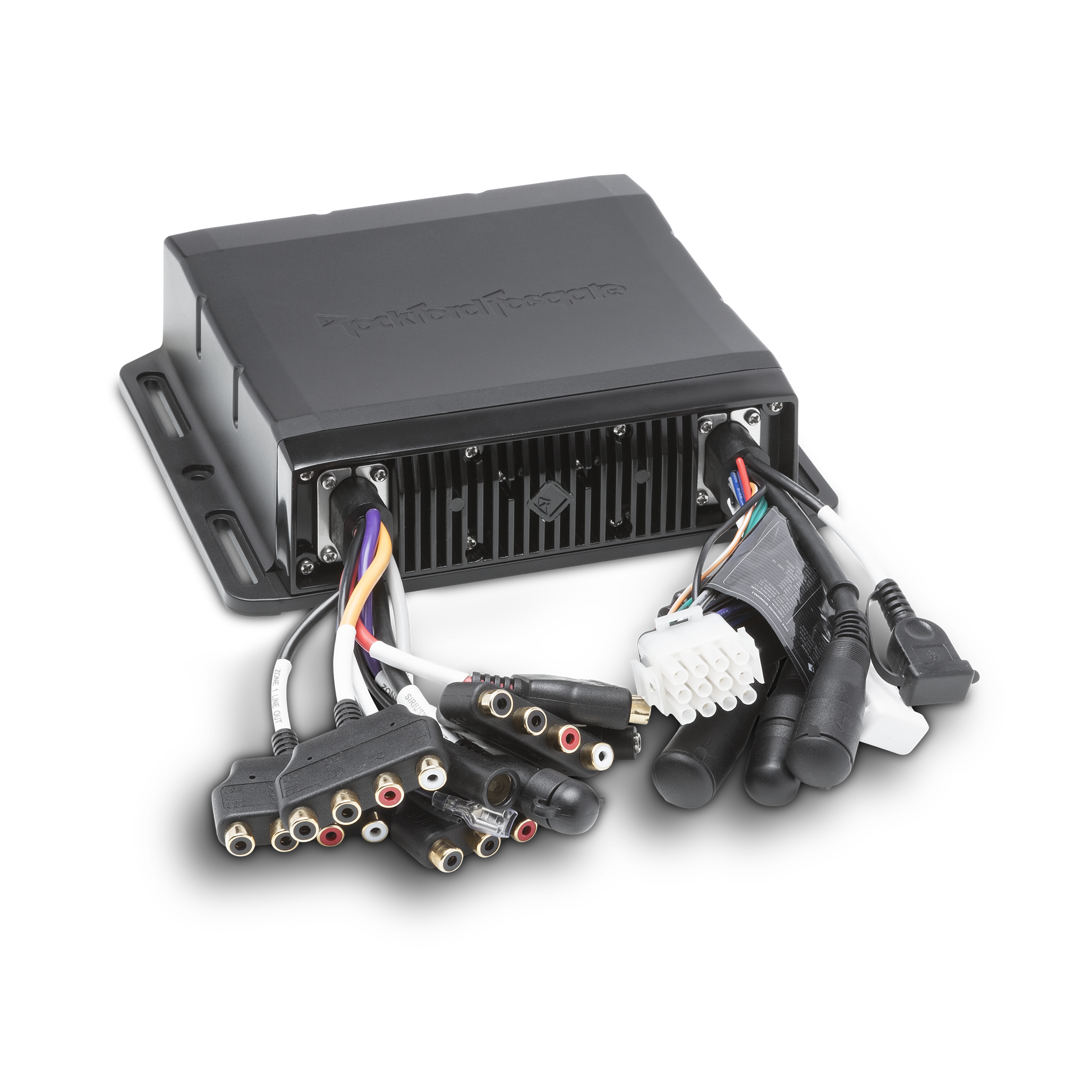

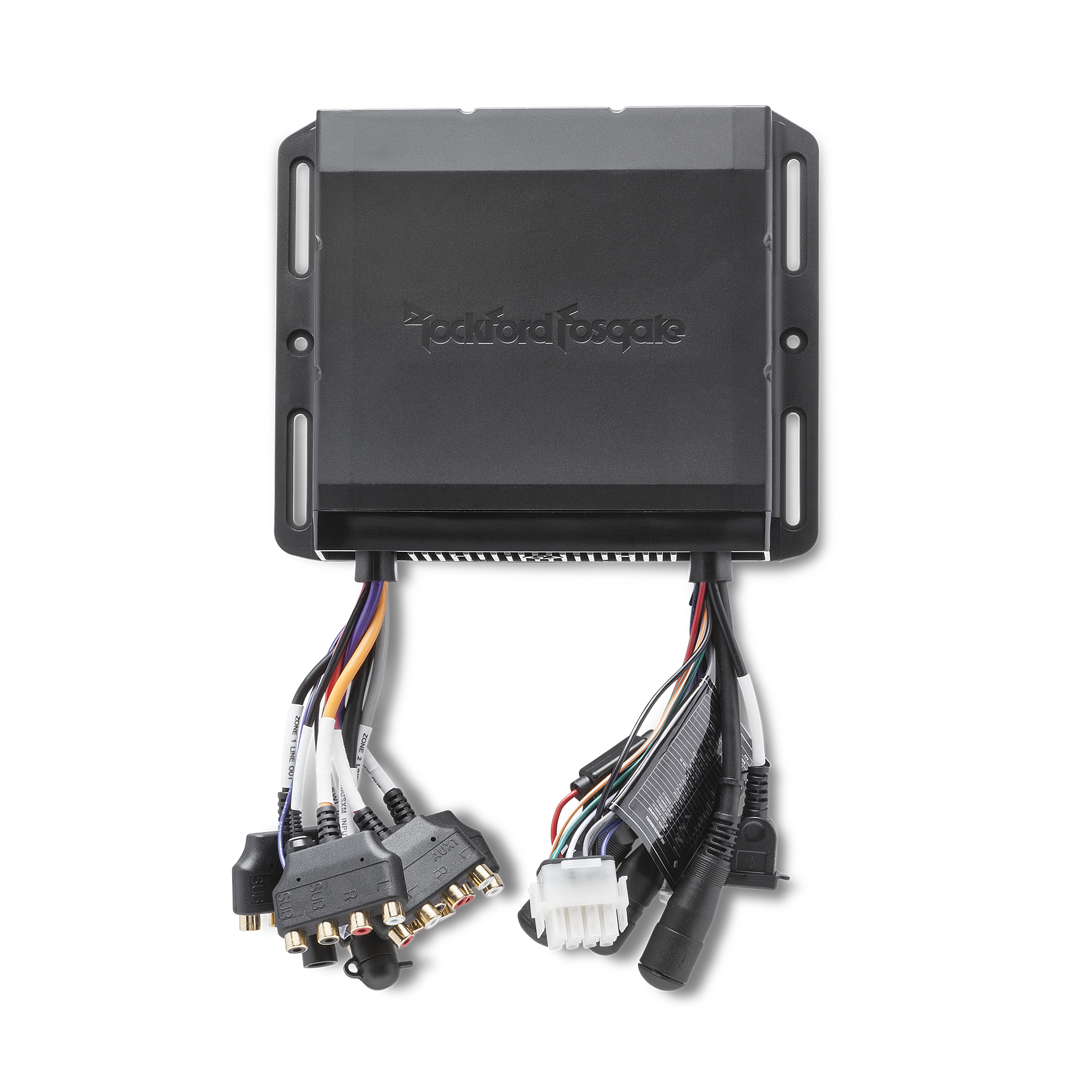

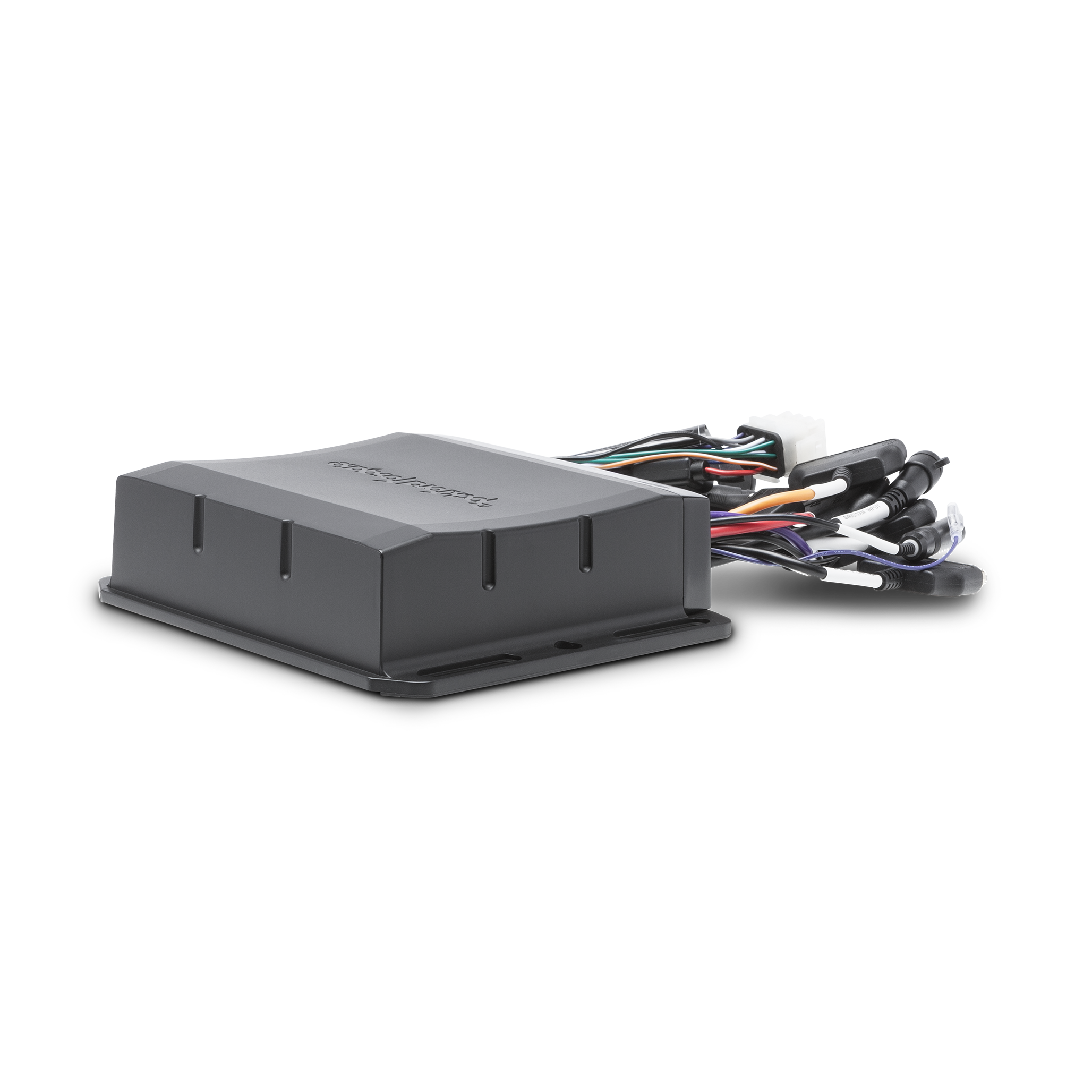

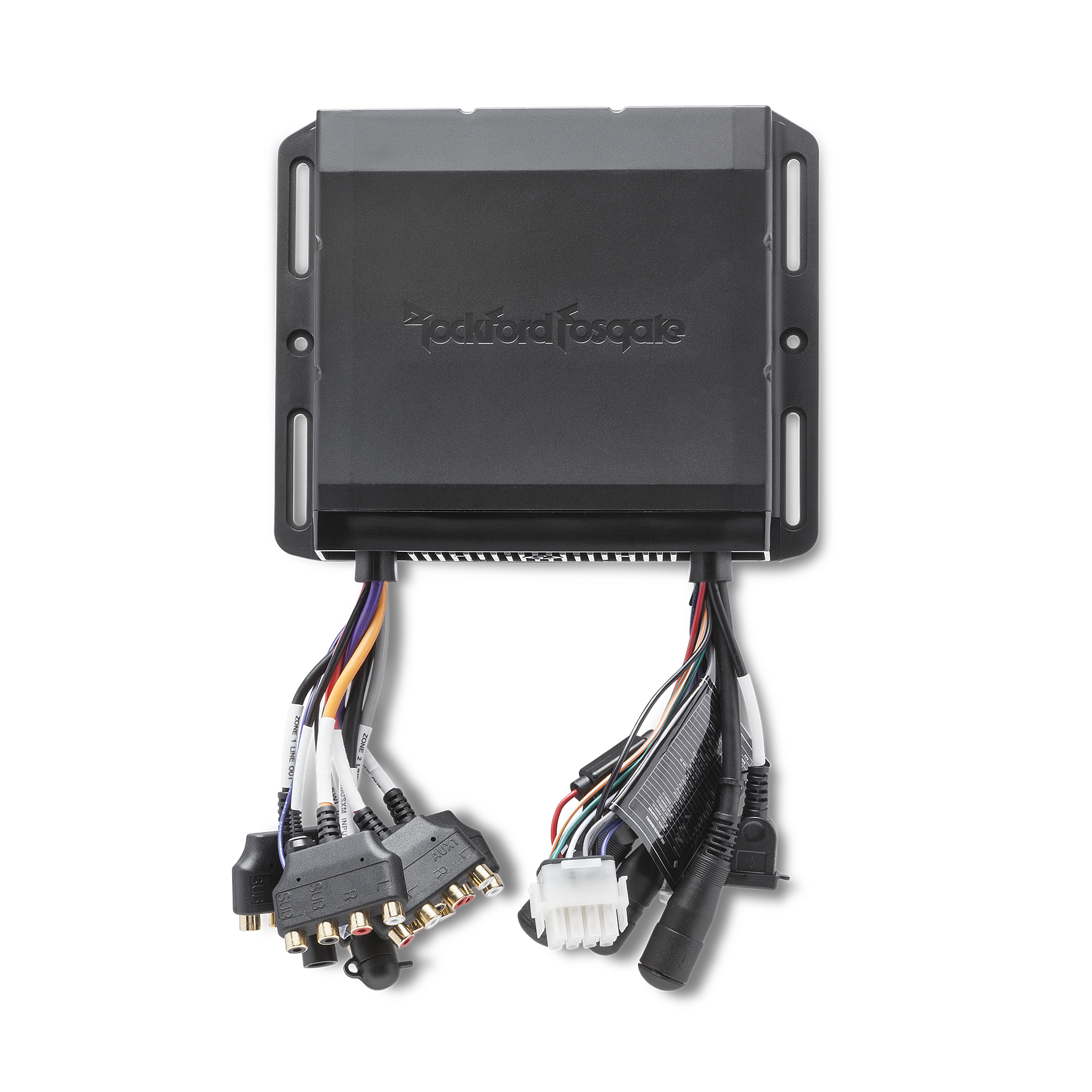

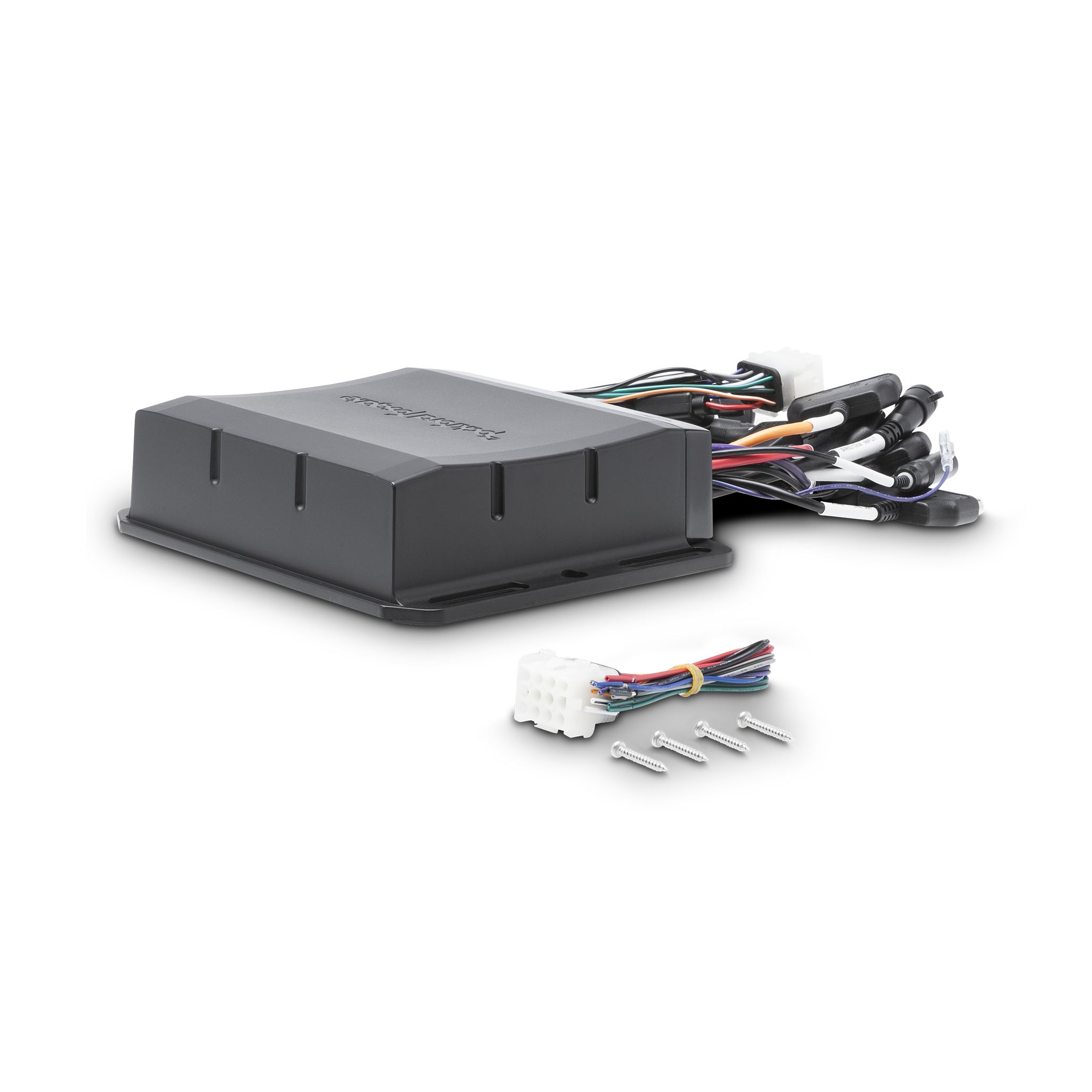

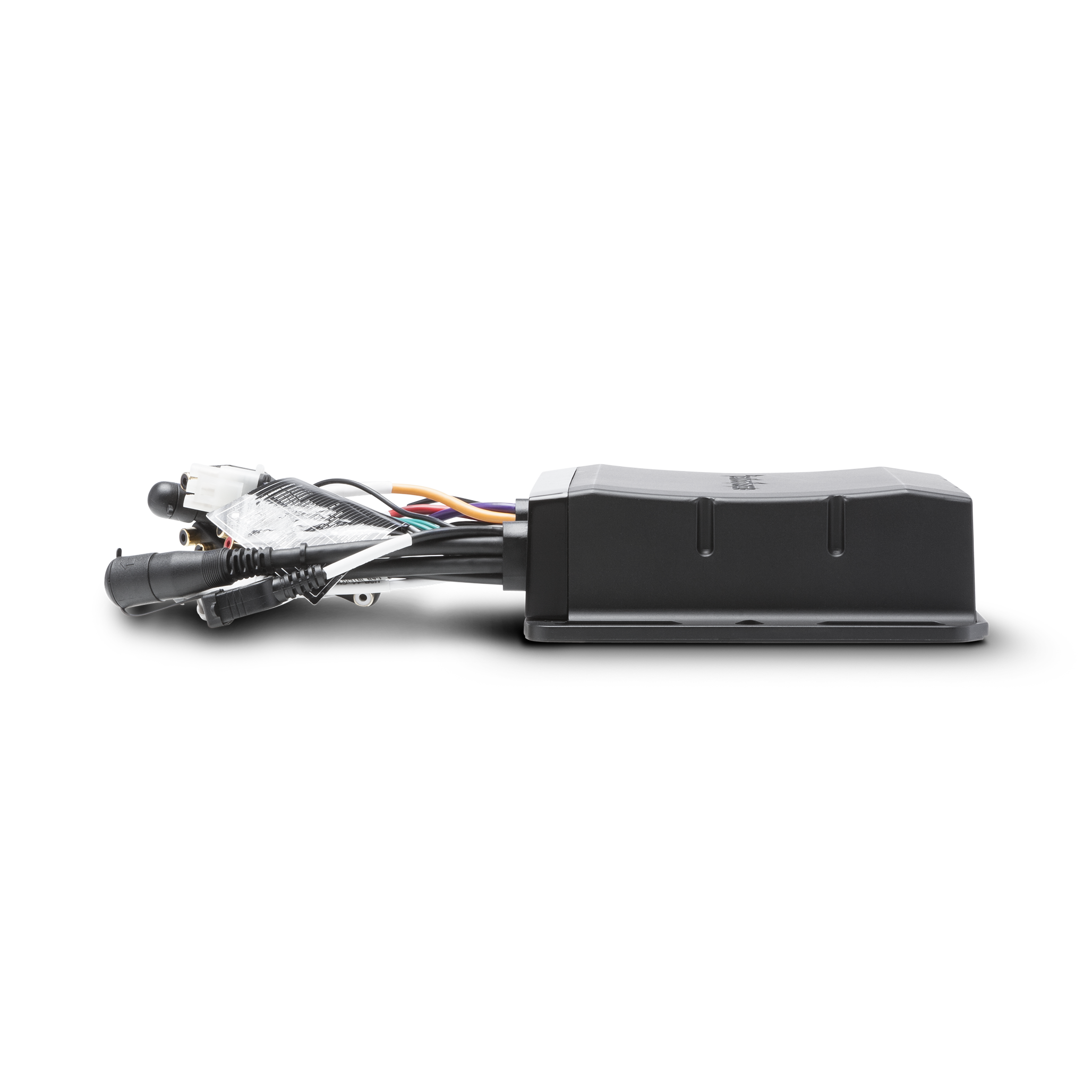

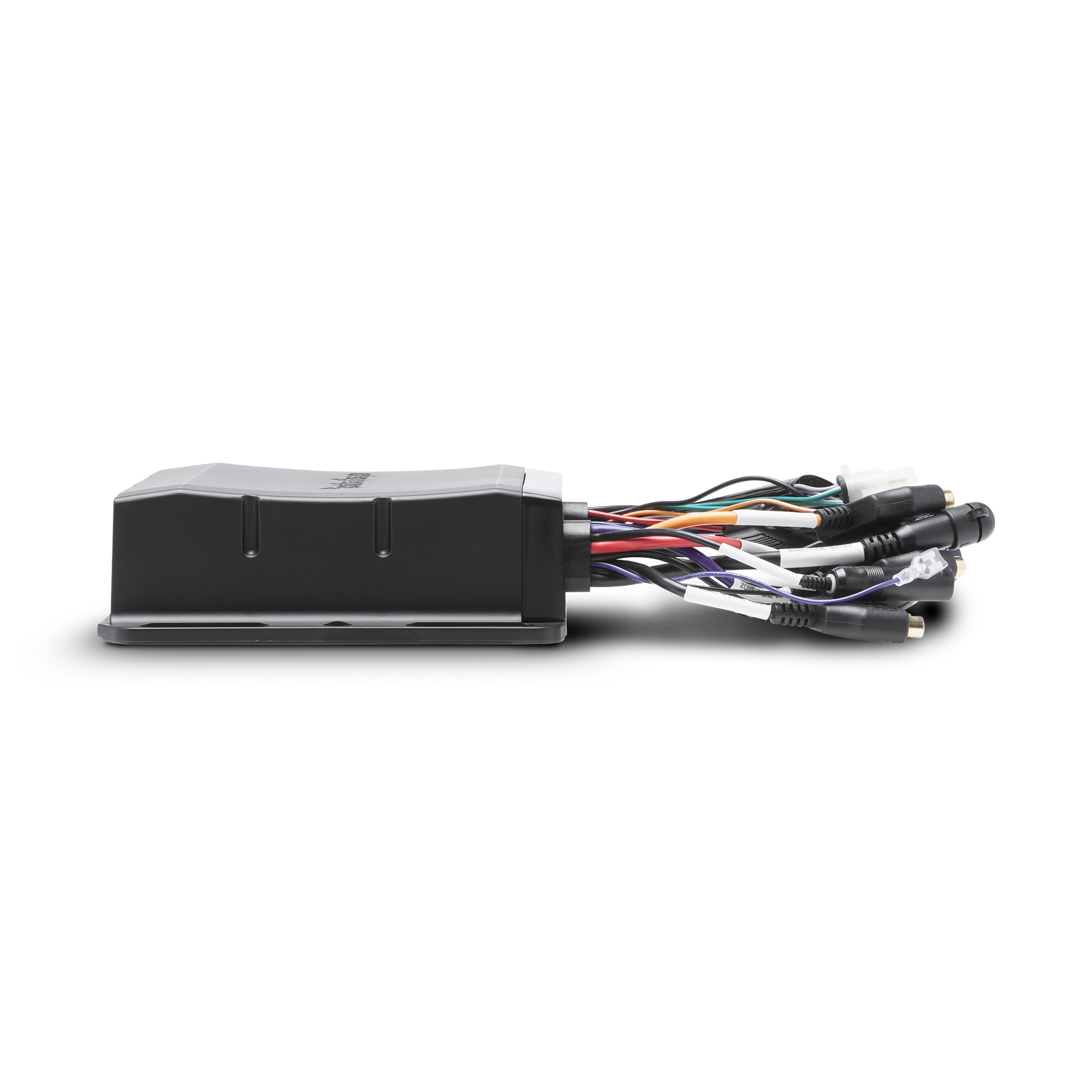

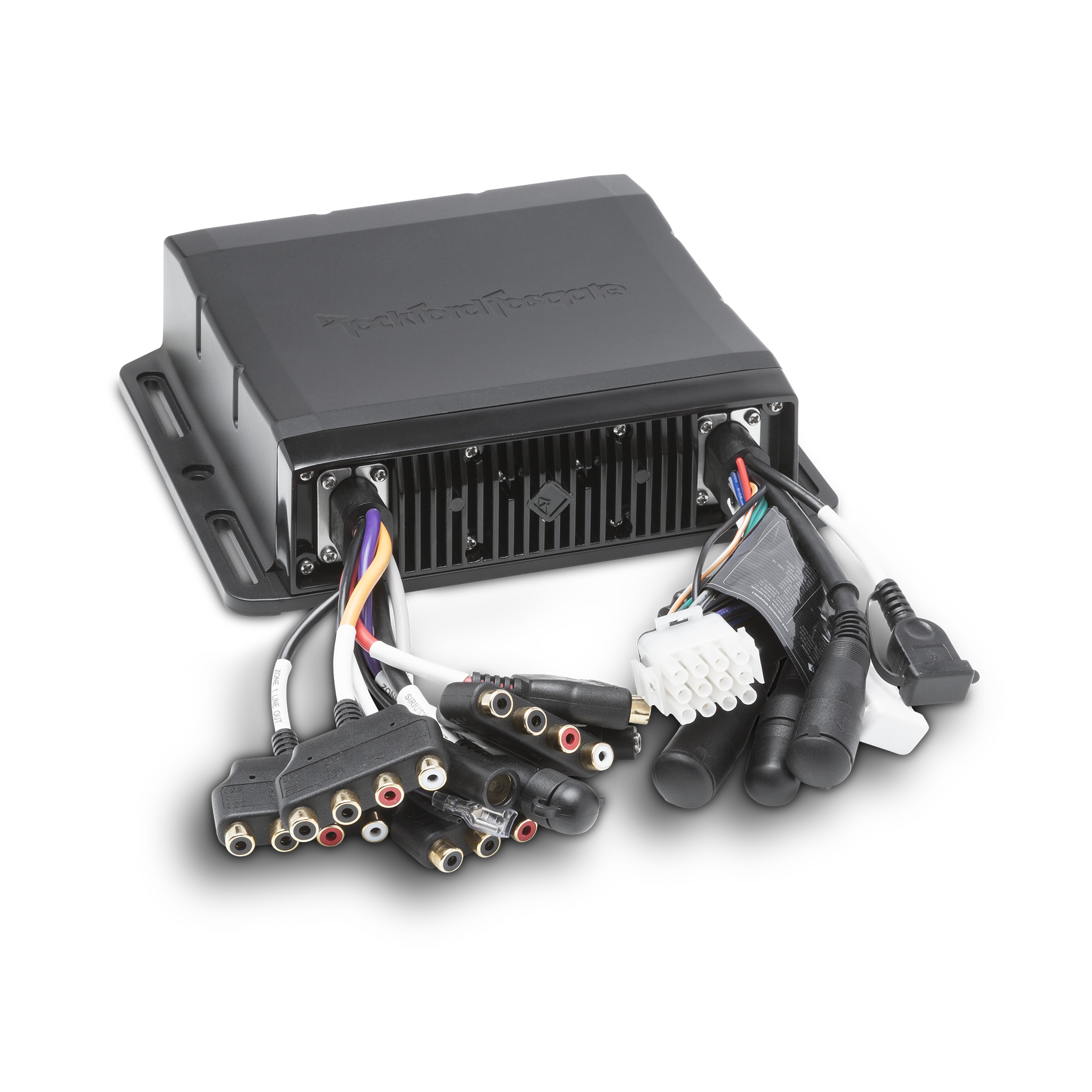

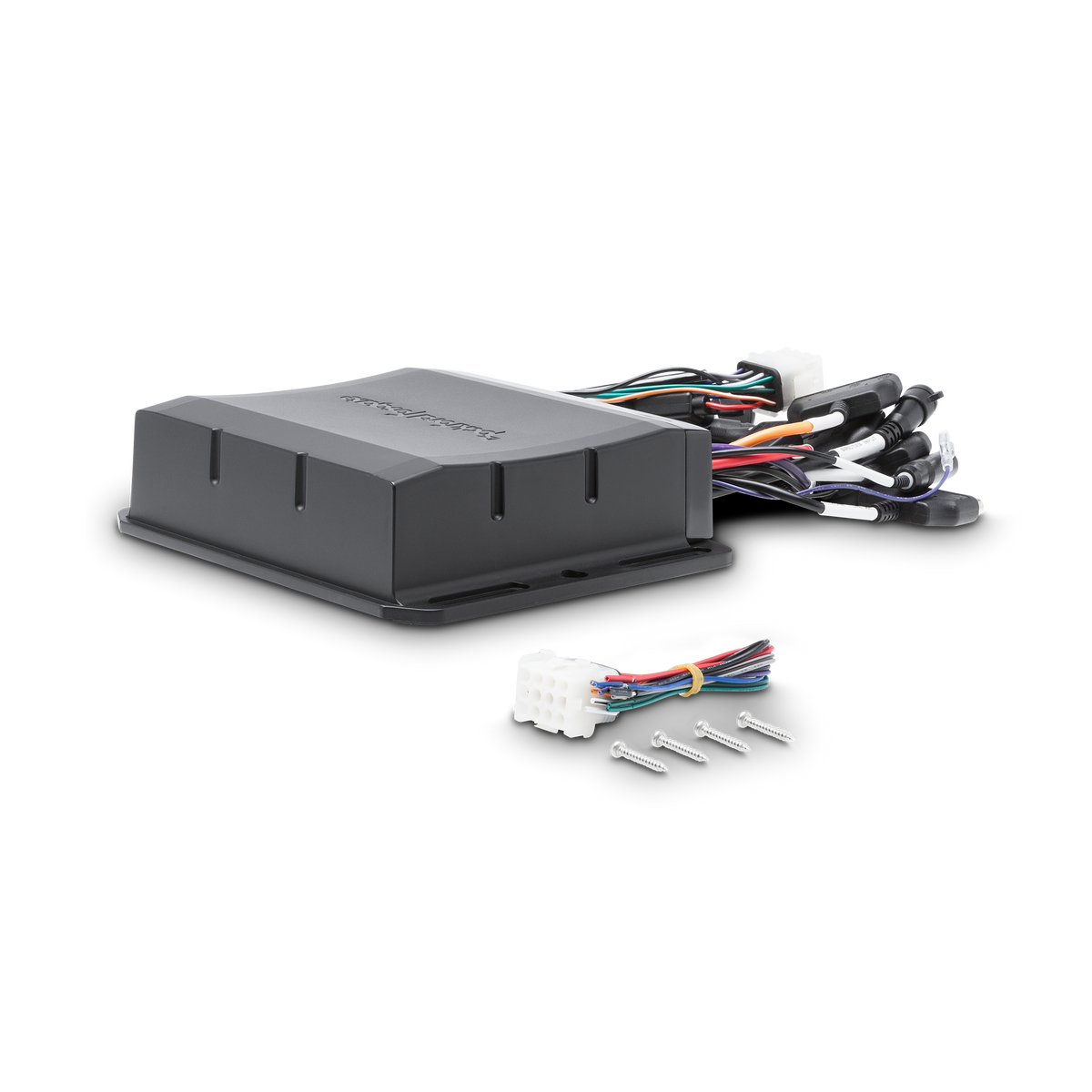

Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver

Overview

The Punch Marine Hide-Away AM/FM/WP Digital Media Receiver features a 5" ultra bright color TFT display for optimum viewing even in full sun.

Features

• Made for iPhone apple certified
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
• Simple secure pairing bluetooth profile for android & iOS
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Bluetooth, A2DP only, AVRCP 1.4
• Internal power amplifier 4x50w 2 ohm stable
• Folder browsing via BT connected iPhones
• Selectable high pass and low pass crossover points for each independent zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Adjustable input gain for each source
• Display album art from connected iPhones on the radios display
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• External steering wheel remote control interface compatible
• Wired remote ready (up to 3 remotes)
• Epoxy coated circuit board
• Upgradeable Firmware and Bluetooth Software via USB
• External trigger input to activate reverse camera mode
• Wired illumination control
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• Rear aux-in (L/R)
• CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• *Antenna not included
• 2-Year Warranty

Technologies

• Made for Android: This device supports the Google "Made for Android" protocol.
• CANbus: CANbus allows communication with other devices.
• Pandora® Internet Radio: Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
• Element Ready™ | Source Units: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• SiriusXM-Ready®: This radio is ready to accept SiriusXM® satellite programming.
• Made for iPod/iPhone: This device supports the Apple "Made for iPod/iPhone" protocol.
• USB Playback: This source unit supports playback from a USB device.
• Built In Bluetooth®: Built In Bluetooth®
• FLAC: The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.

Specifications

Operating Voltage	10.5V - 16V
Device Type	Digital-Media Black Box
Power Output	CEA-2006 Power Rating 25W x 4 @ 4Ω RMS ≤1.0% THD+N
Remote Capacity	(see Compatibility Chart)
Speaker Impedance	2-Ohms
GENERAL
Frequency Response	20 Hz - 20 kHz
FEATURES
Display Size
SPEAKER OUTPUTS	YES
Dimensions (HxWxD)	H4.25" x W8.3" x D2.2" (108mm x 211mm x 56mm)
Fuse Rating	15A
Speaker Outputs (Yes/No)	Yes
Clock (Yes/No)	No
Bluetooth® (Yes/No)	Yes 3.0+EDR, A2DP 1.3
Multi-Zone/Multi-Source (Yes/No)	Yes
SiriusXM-Ready® (Yes/No)	Yes Requires SXV300
Apple®/AndroidTM Compatible (Yes/No)	Yes
Steering Wheel Control Ready (Yes/No)	Yes
Pandora® Internet Radio (Yes/No)	Yes
AUX Input (Yes/No)	Yes
USB Charging (Yes/No)	Yes
FM TUNER Frequency Range	87.5 MHz - 107.9 MHz
TUNER
TUNER Number Of Presets	18 FM / 12 AM / 6 WB
AM TUNER Frequency Range	530 kHz - 1710 kHz
WB TUNER Frequency Range	162.40 - 162.55 (US & Canada)
MEDIA PLAYER Audio Format Compatibility	MP3 WMA FLAC
USB Version	2
MEDIA PLAYER
USB Capacity	32Gb max 999 Folders max 999 Songs max
USB Output Current	1A
Made for iPod Models	iPod Touch (5th generation) iPod Touch (4th generation) iPod Nano (7th generation) iPod Nano (6th generation)
Android Compatibility	Bluetooth® Only
RCA OUTPUTS
Made for iPhone Models	iPhone XS (pending) iPhone XS Max iPhone XR (pending) iPhone X iPhone 8 iPhone 8 Plus iPhone 7 iPhone 7 Plus iPhone 6s iPhone 6s Plus iPhone 6 iPhone 6 Plus iPhone 5S iPhone 5C iPhone 5 iPhone 4 iPhone 4S Phone 3GS
RCA Output Voltage	4V
RCA Output Impedance	500Ω

Videos

• Firmware Update | PMX-8BB - This illustrates how to download and perform a firmware update on your PMX-8BB multi-media source unit.
