PMX-5CAN
PMX-5CAN
PMX-5CAN
Overview

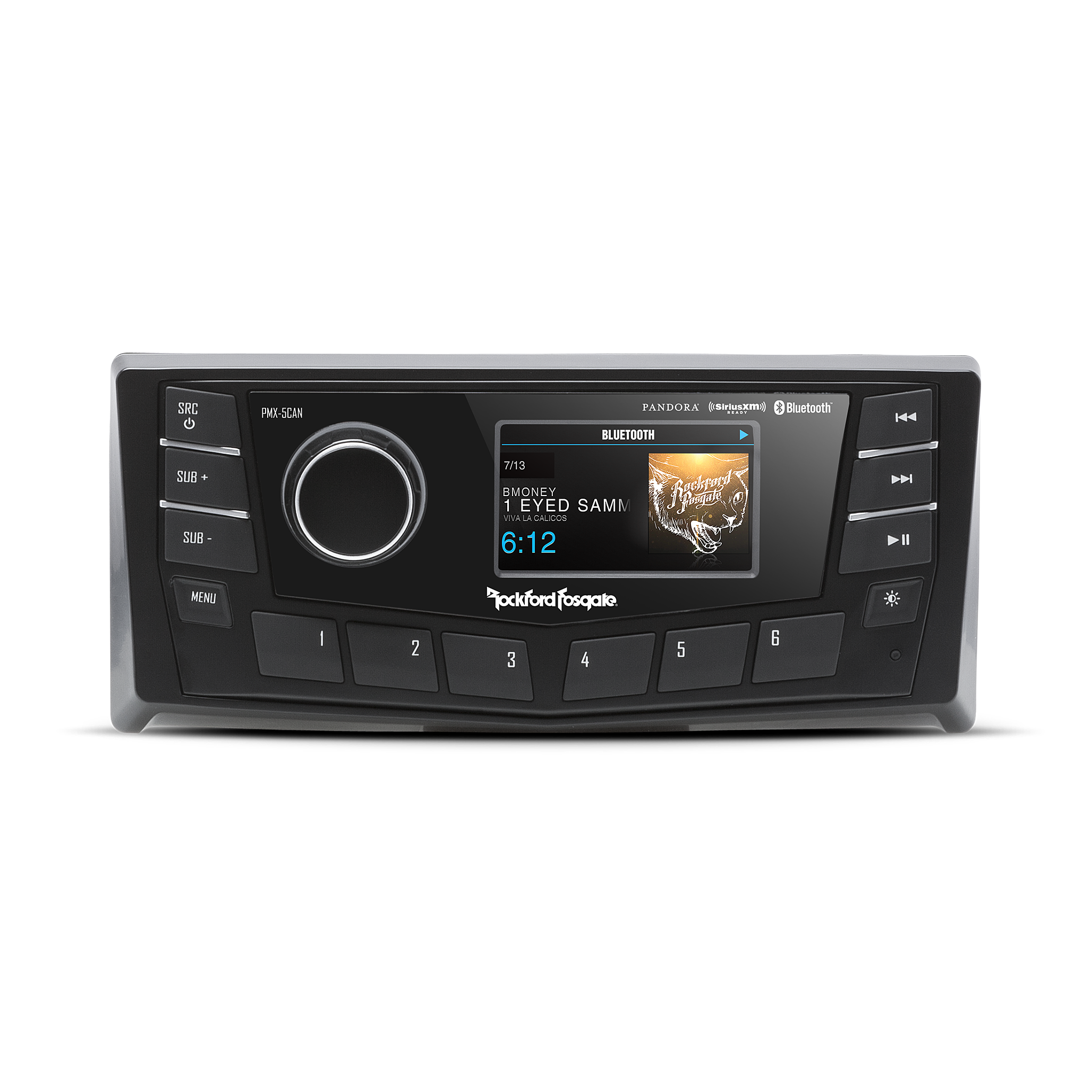

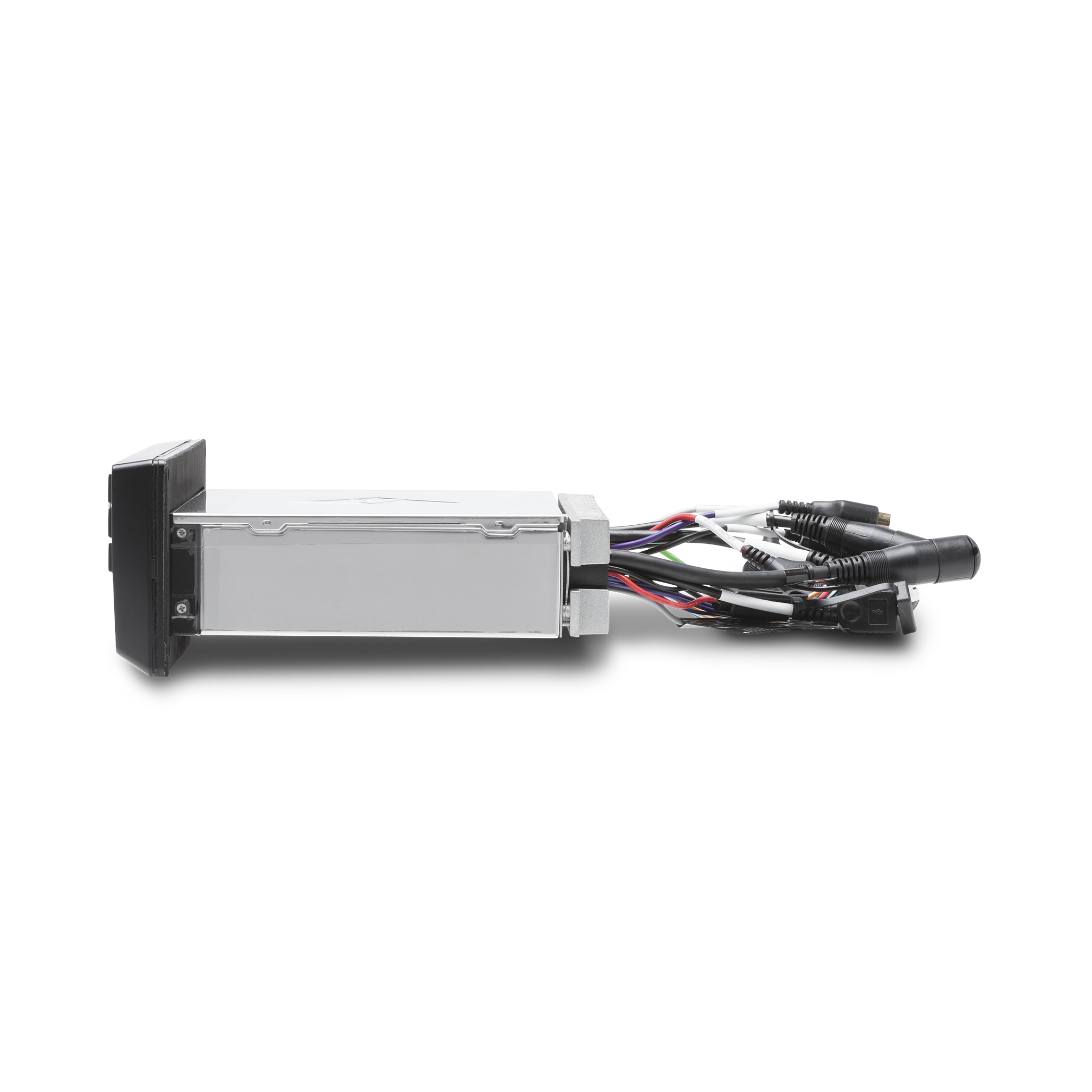

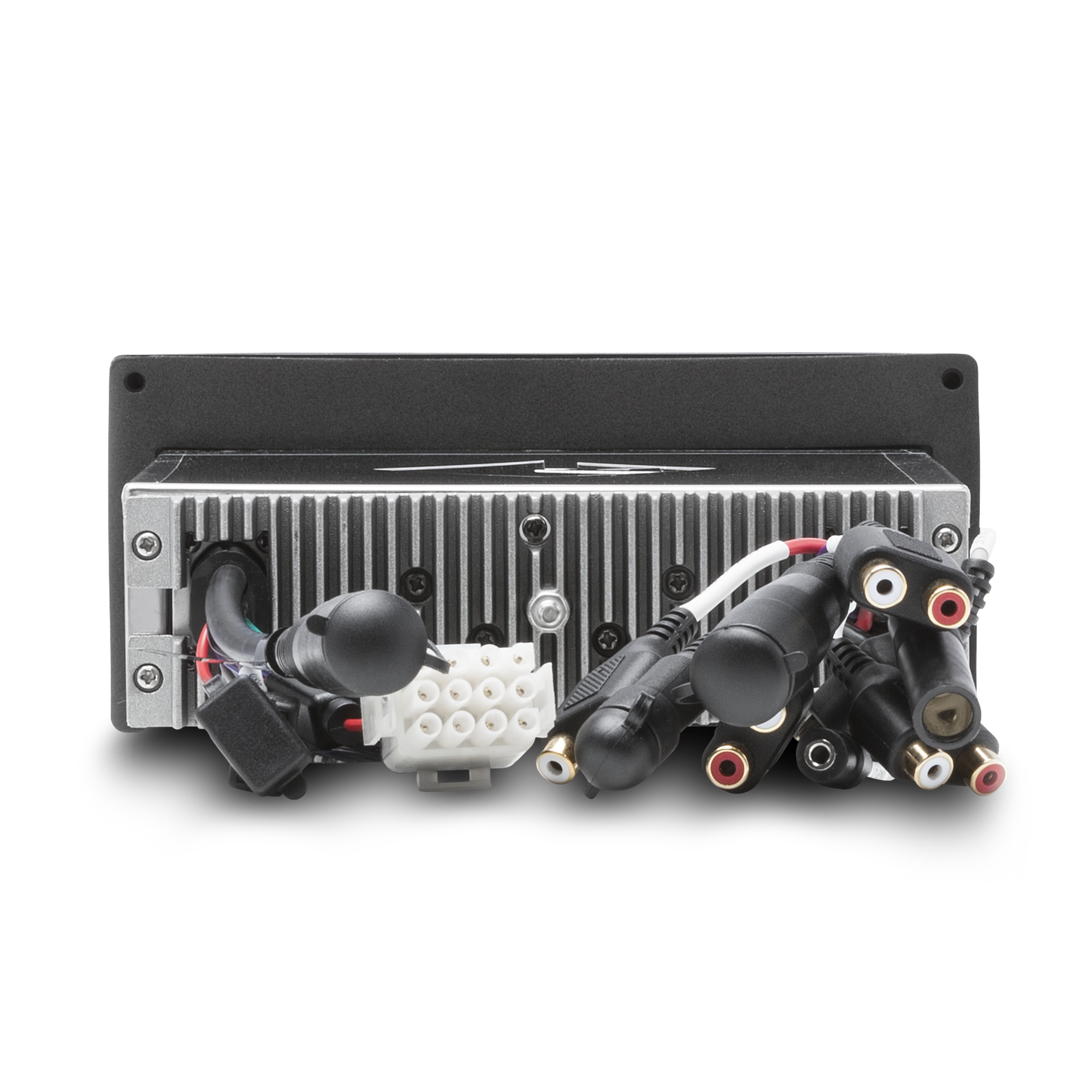

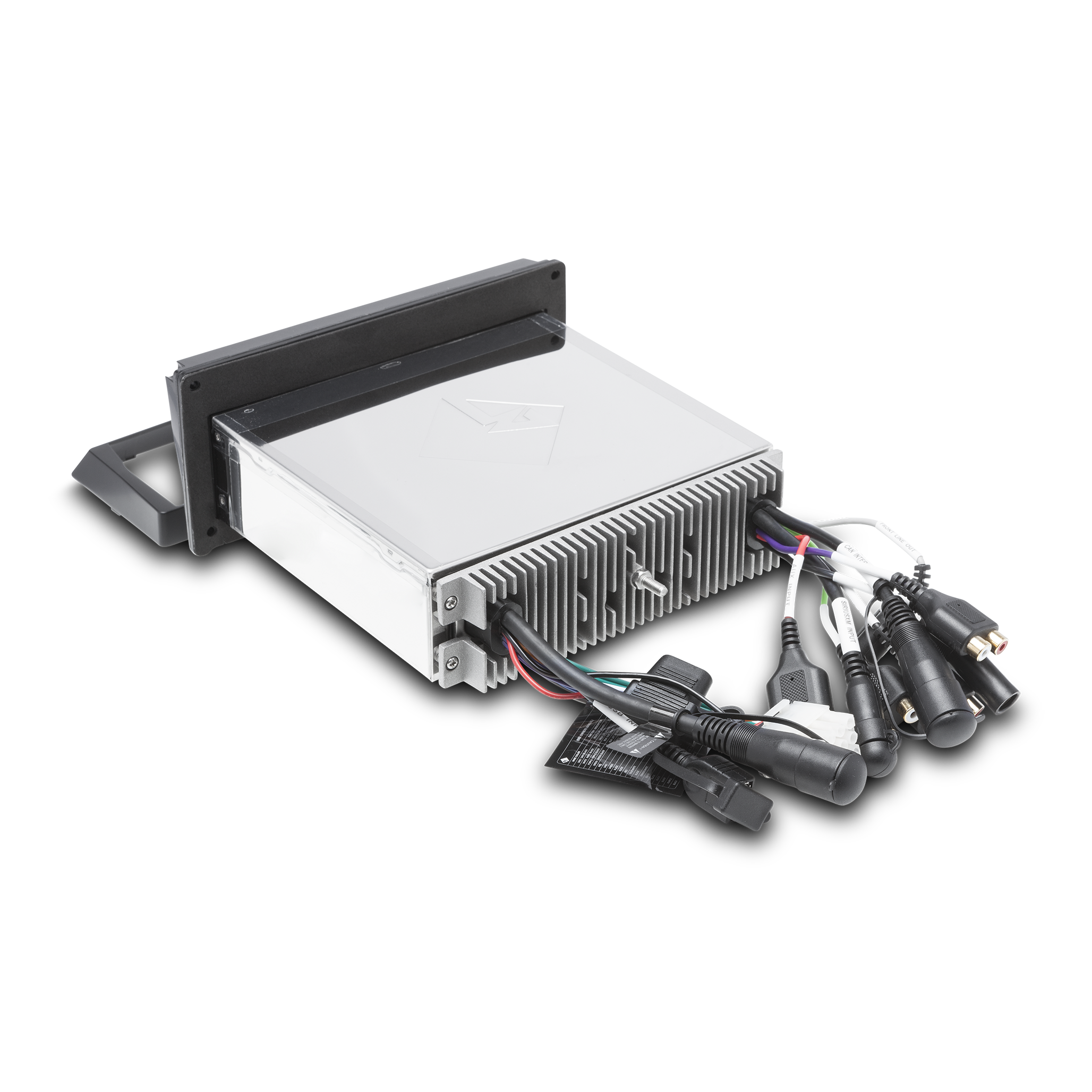

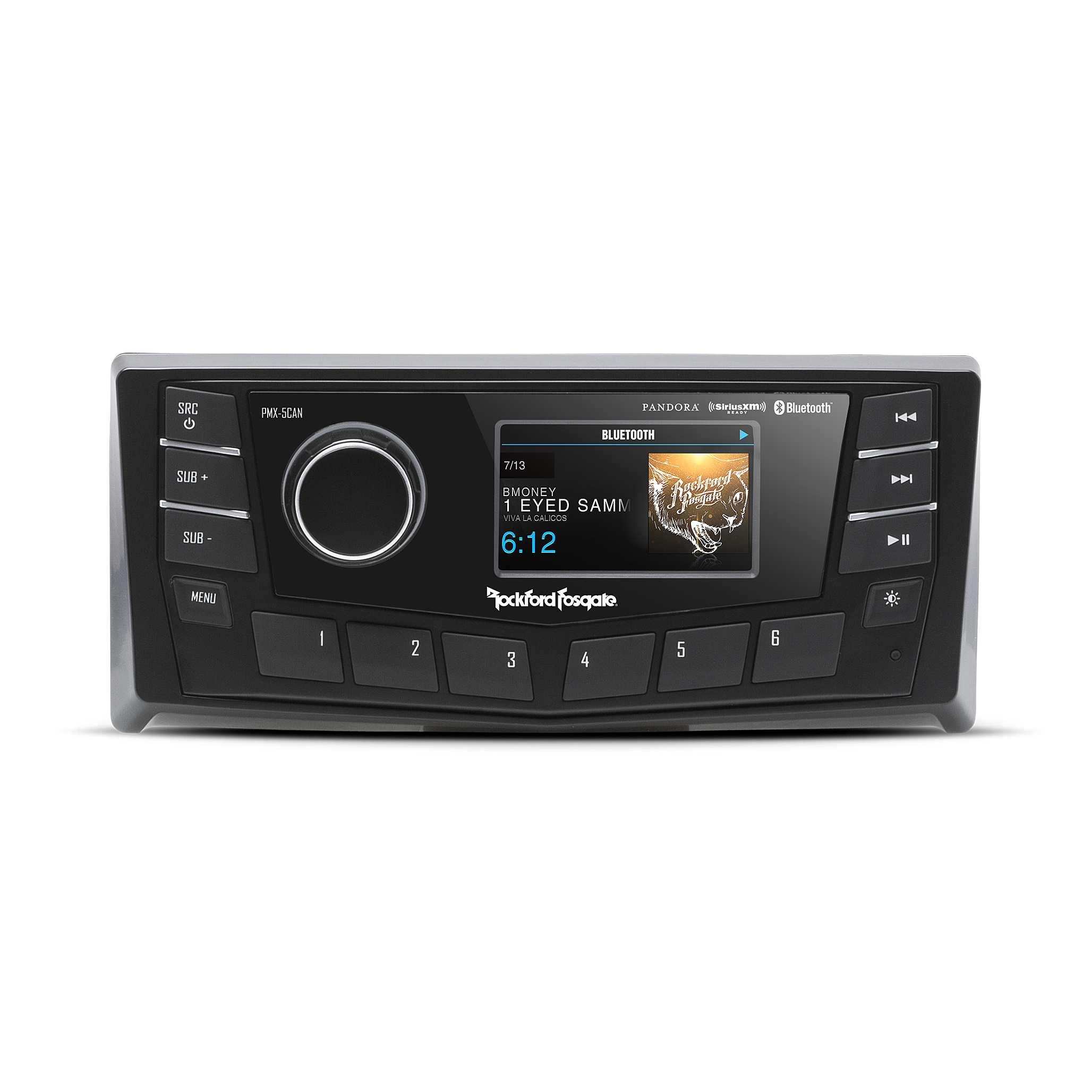

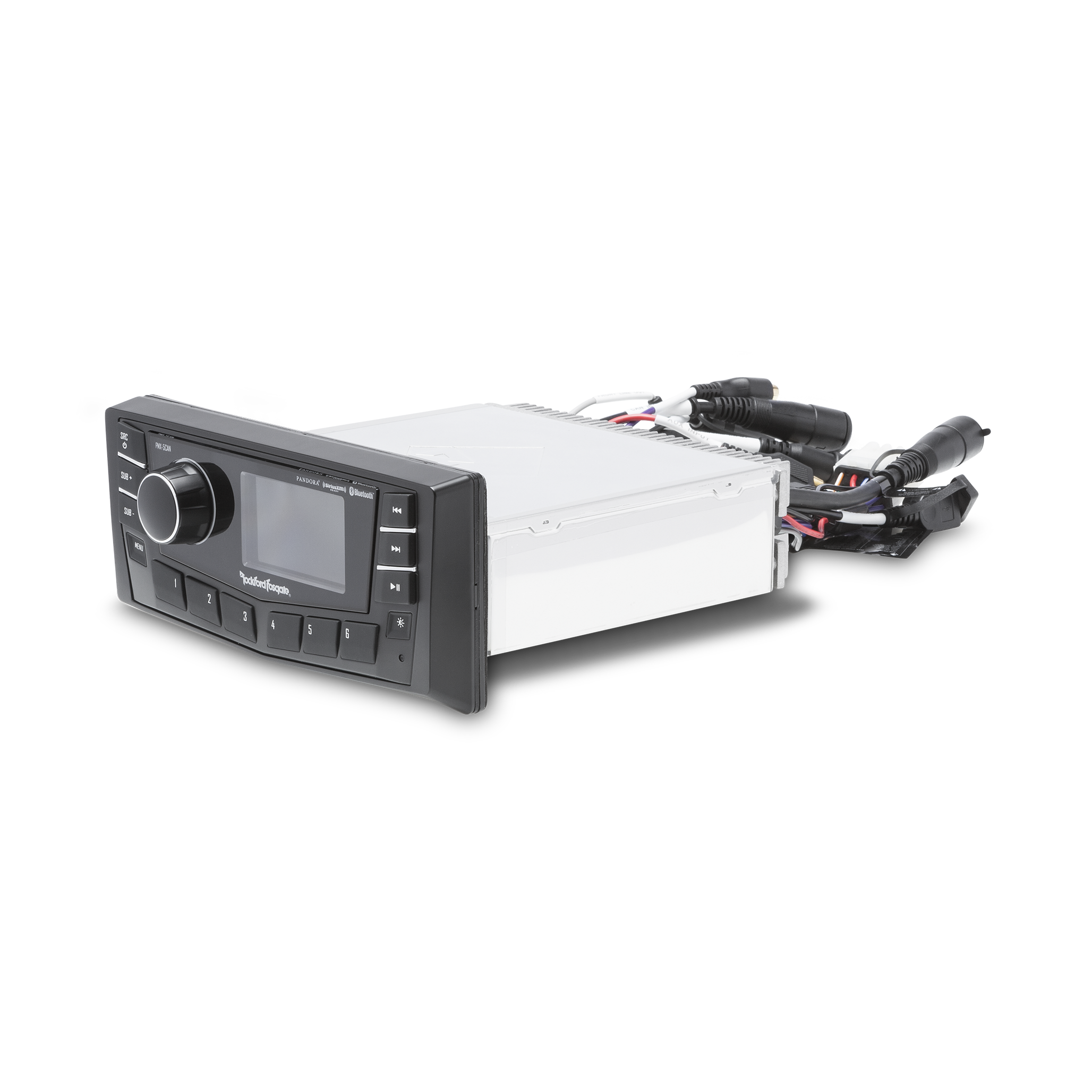

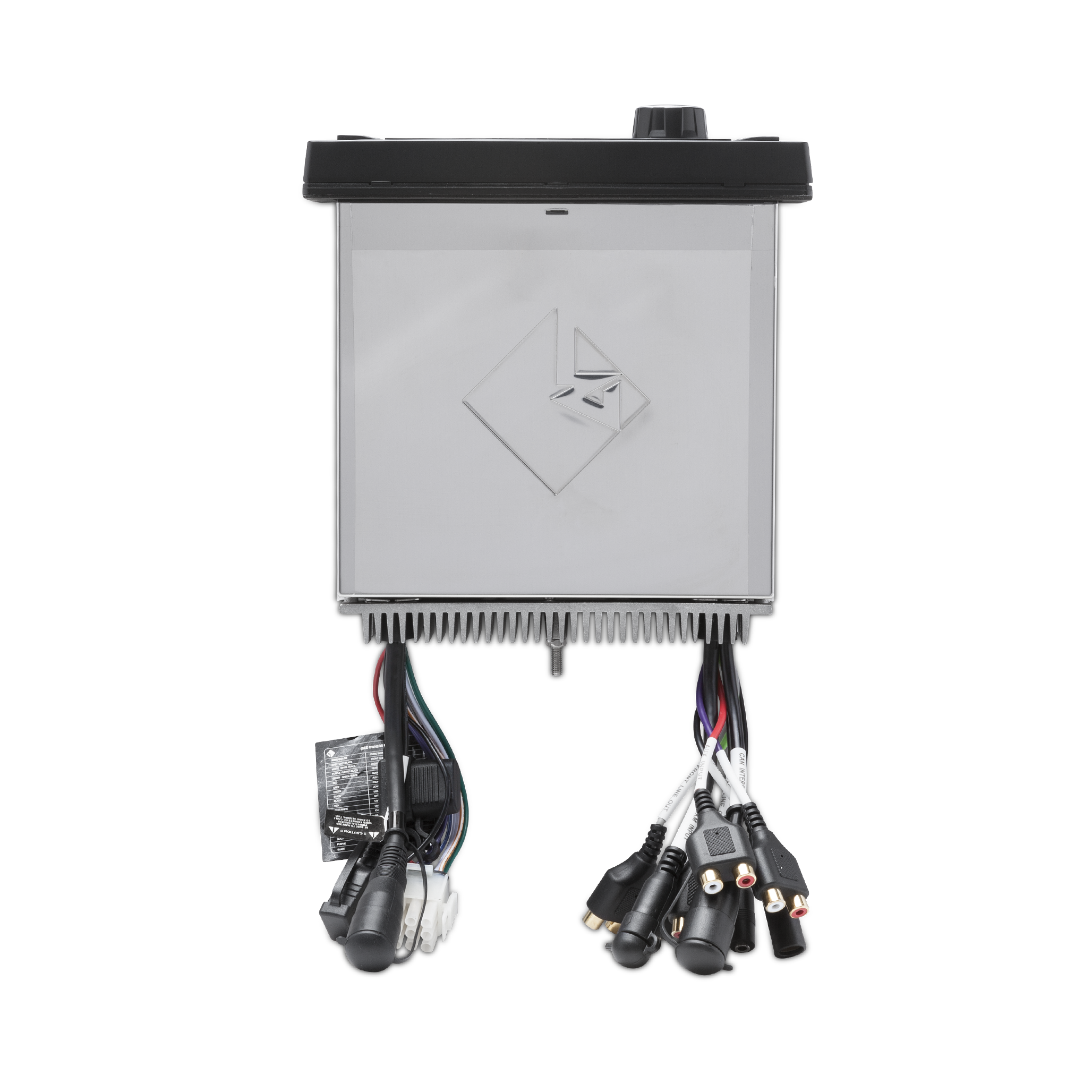

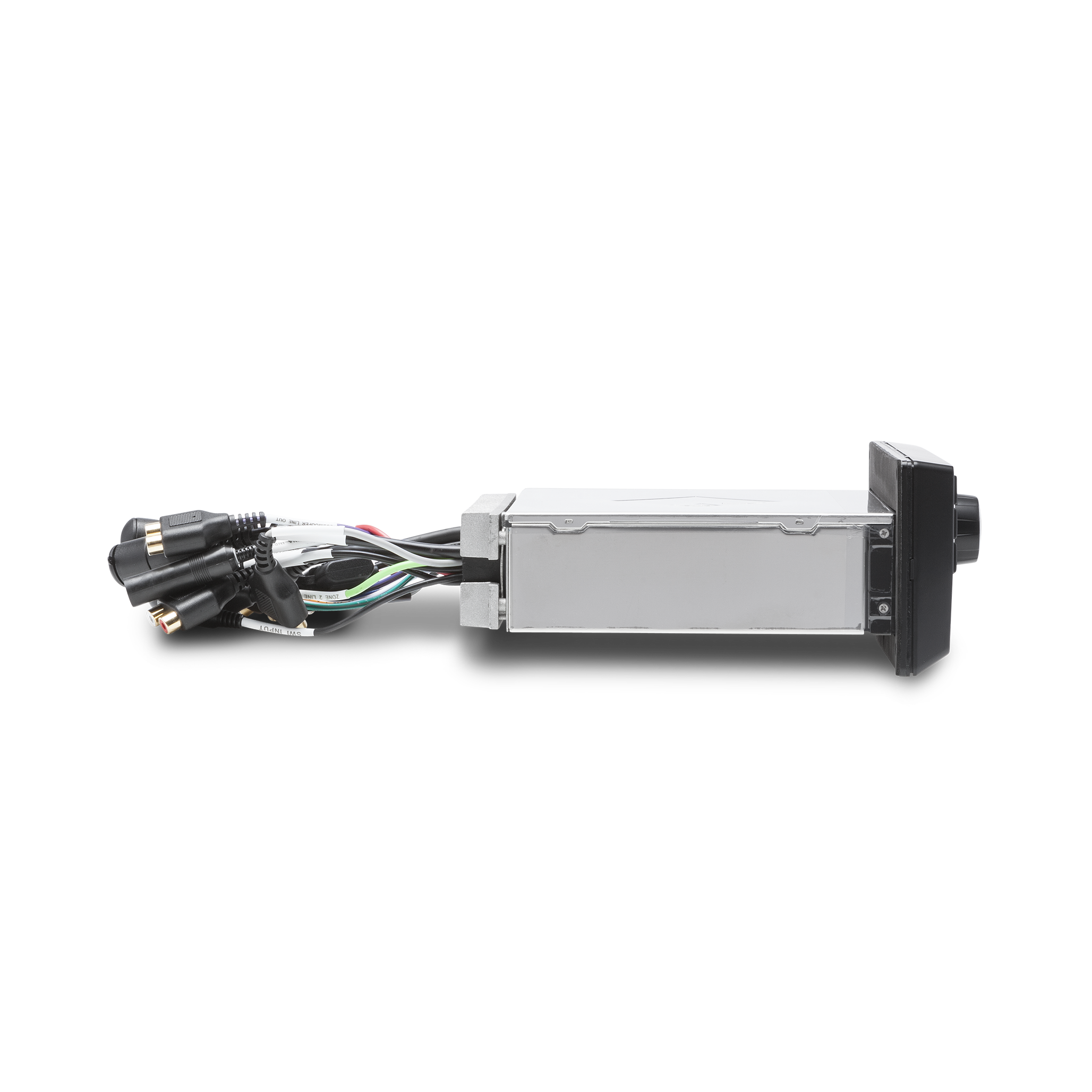

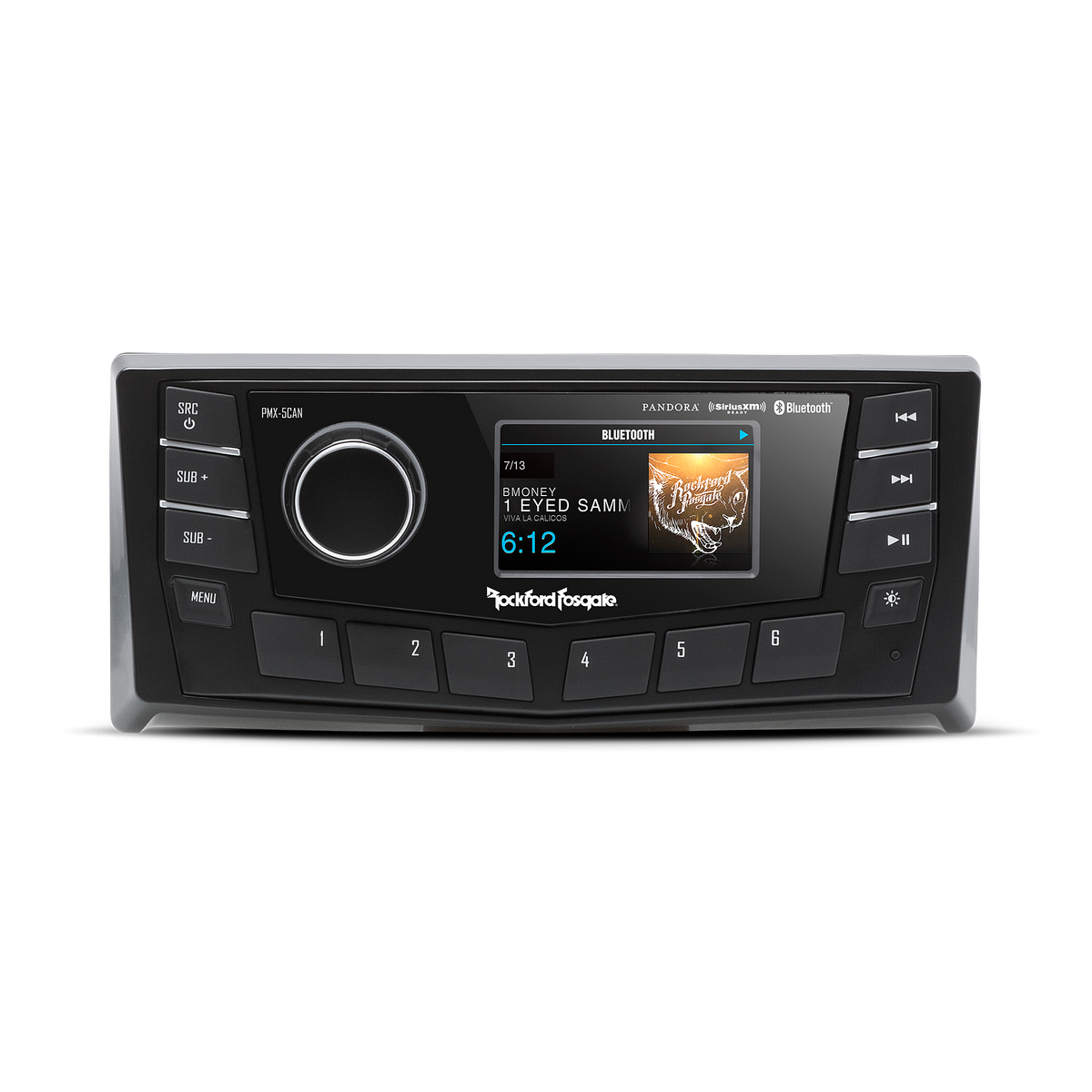

The PMX-5CAN is an AM/FM/WB tuner and digital media receiver with 2.7" full-color display with CANbus functionality.
Features
- Pandora Internet Radio
- SiriusXM-ReadyTM

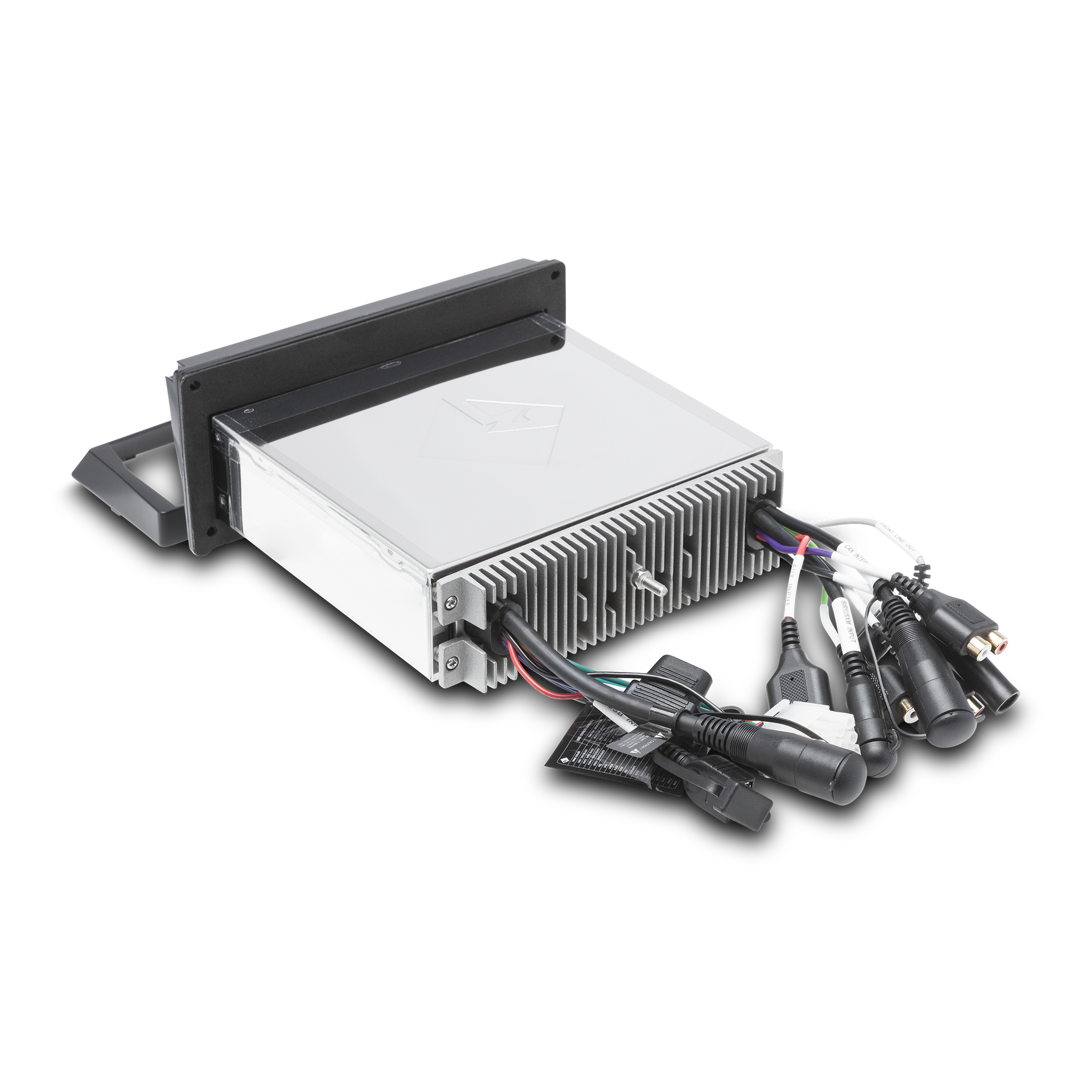

- Stainless Steel Rear Chassis
- 2.7" full color display w/ auto dimming backlightning
- ISO8846/SAE J1171 Ignition Protection Certified
- Low Voltage Warning Alert
- 7-Band Graphic EQ
- Steering Wheel Control Interface Compatible
- IPX6 Marine Grade for prevention of water intrusion
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Zone Control: 2 Zone / 2 Source (F/R/S + F)
- AUX and USB Inputs with USB Charging
- Multi-region radio frequencies
- Independent Subwoofer Level Control
- On Board Punch EQ Control
- 2-Year Warranty
- Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility
- AM/FM/WB Tuner
- CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
- *Antenna not included
Specifications
- Operating Voltage: 10.5 V - 16 V
- Compatible Remotes: PMX-1R; PMX-0R; (3 Remote Limit, 100 ft Total Wired Distance)
- Frequency Response: 20 Hz - 20 kHz
- Pandora Internet Radio; (Yes/No): Yes
- Device Type: Digital-Media Receiver
- SiriusXM-Ready; (Yes/No): Yes; Requires SXV300
- Dimensions (HxWxD): Width 8" (20.3cm); Face Depth 1.5" (3.8cm); Mount Depth 7.1" (18.2cm); Height 3.5" (8.9cm); Chassis to Face Top 0.9" (2.3cm); Chassis to Face Bottom 0.59" (1.5cm)
- Power Output: CEA-2006 Power Rating; 25W x 4 @ 4Ohm RMS; 50W x 4 @ 2Ohm Peak; <=1.0% THD+N
- Display Size: 2.7" Color TFT
- Speaker Impedance: 2-Ohms
- Fuse Rating: 15 A
- Speaker Outputs; (Yes/No): Yes
- Multi-Zone/Multi-Source; (Yes/No): Yes
- Apple/AndroidTM Compatible; (Yes/No): Yes
- AUX Input; (Yes/No): Yes
- USB Charging; (Yes/No): Yes
- Clock; (Yes/No): No
- FM TUNER; Frequency Range: 87.9-107.9 MHz
- Steering Wheel Control Ready; (Yes/No): Yes
- TUNER; Number Of Presets: 18 FM / 12 AM / 6 WB
- FM TUNER; Sensitivity: 8 dB
- AM TUNER; Usable Sensitivity: 40 dB
- AM TUNER; Frequency Range: 530 kHz - 1710 kHz
- WB TUNER; Frequency Range: 162.40 - 162.55; (US & Canada)
- RCA Output Voltage: 4V
- RCA Frequency Response: 87.5 MHz - 107.9 MHz
- RCA Output Impedance: 500Ohm
- MEDIA PLAYER; Audio Format Compatibility: MP3; WMA; FLAC
- Made for iPod Models: iPod Touch (5th generation); iPod Touch (4th generation); iPod Nano (7th generation); iPod Nano (6th generation)
- Made for iPhone Models: iPhone XS (pending); iPhone XS Max; iPhone XR (pending); iPhone X; iPhone 8; iPhone 8 Plus; iPhone 7; iPhone 7 Plus; iPhone 6s; iPhone 6s Plus; iPhone 6; iPhone 6 Plus; iPhone 5S; iPhone 5C; iPhone 5; iPhone 4; iPhone 4S; Phone 3GS
- USB Capacity: 32Gb max; 999 Folders max; 999 Songs max
- Android Compatibility: Bluetooth Only
- USB Output Current: 1A
- USB Version: 2
