Overview

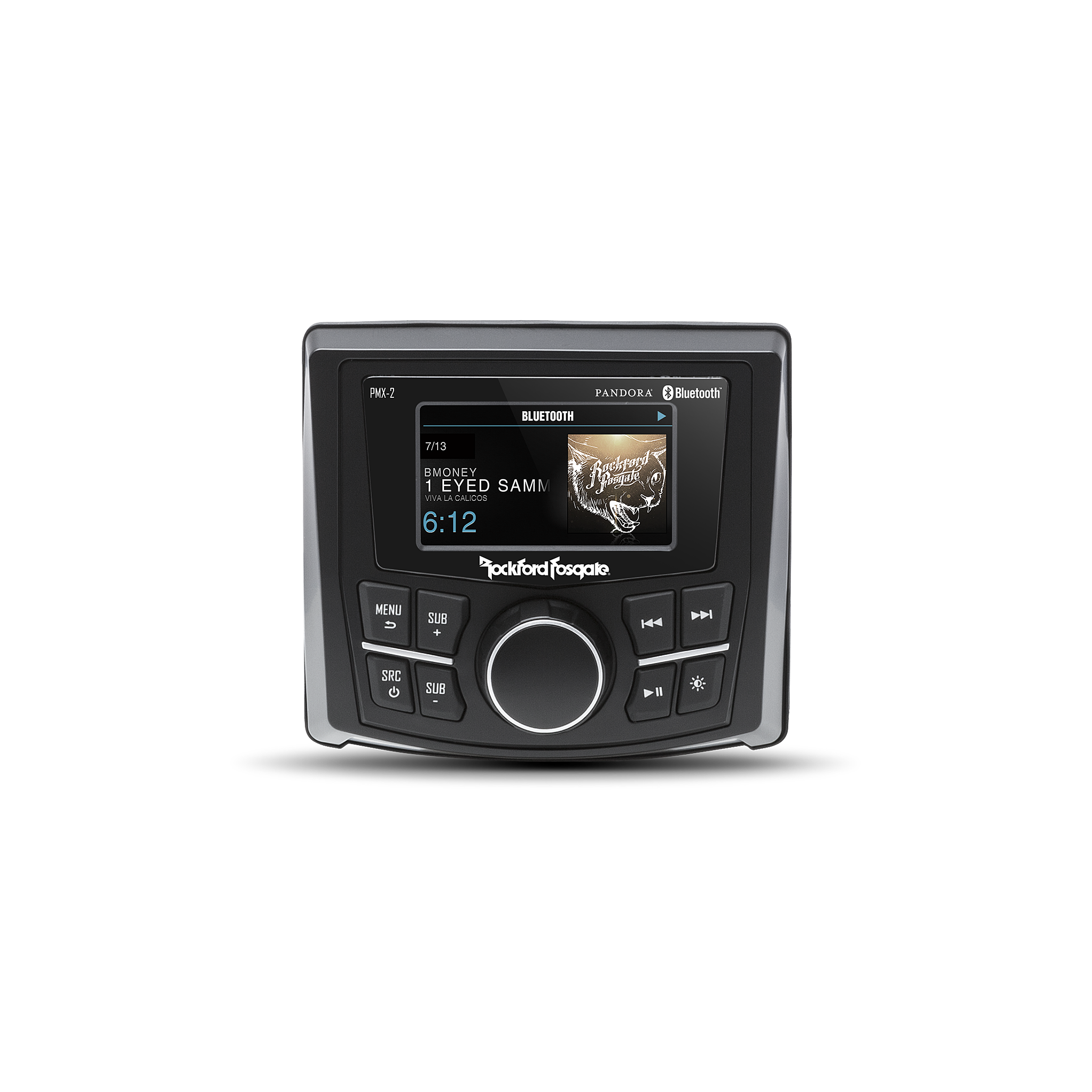

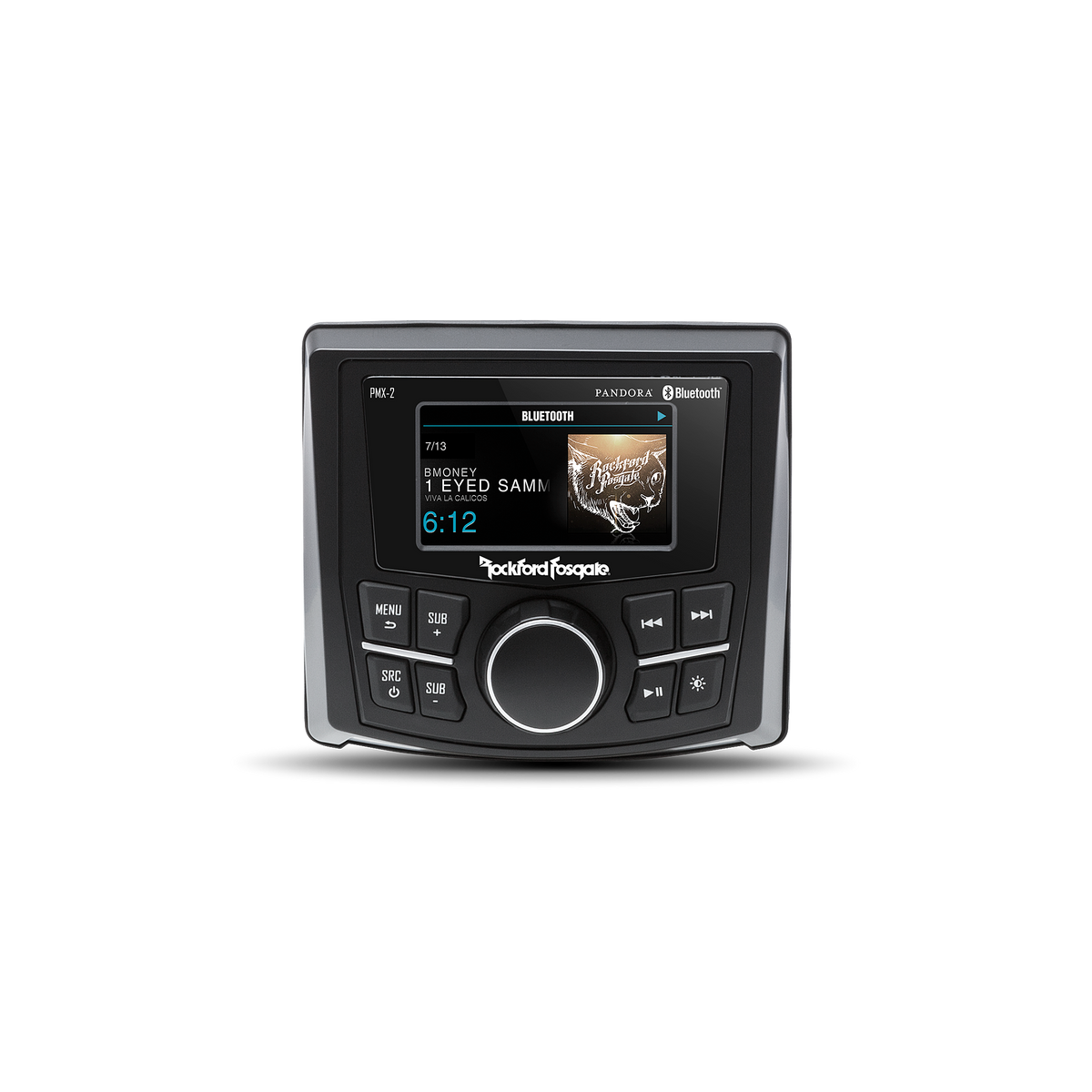

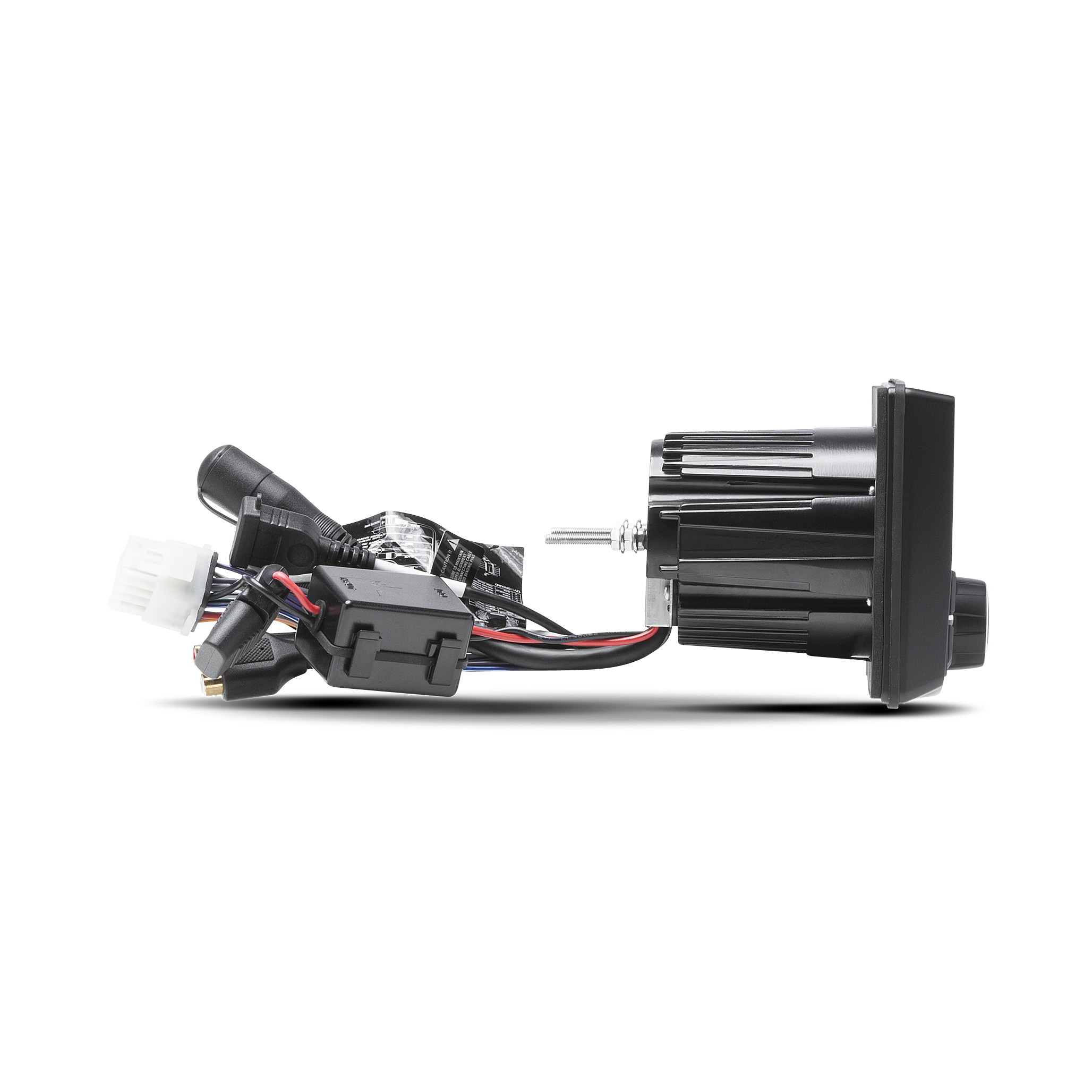

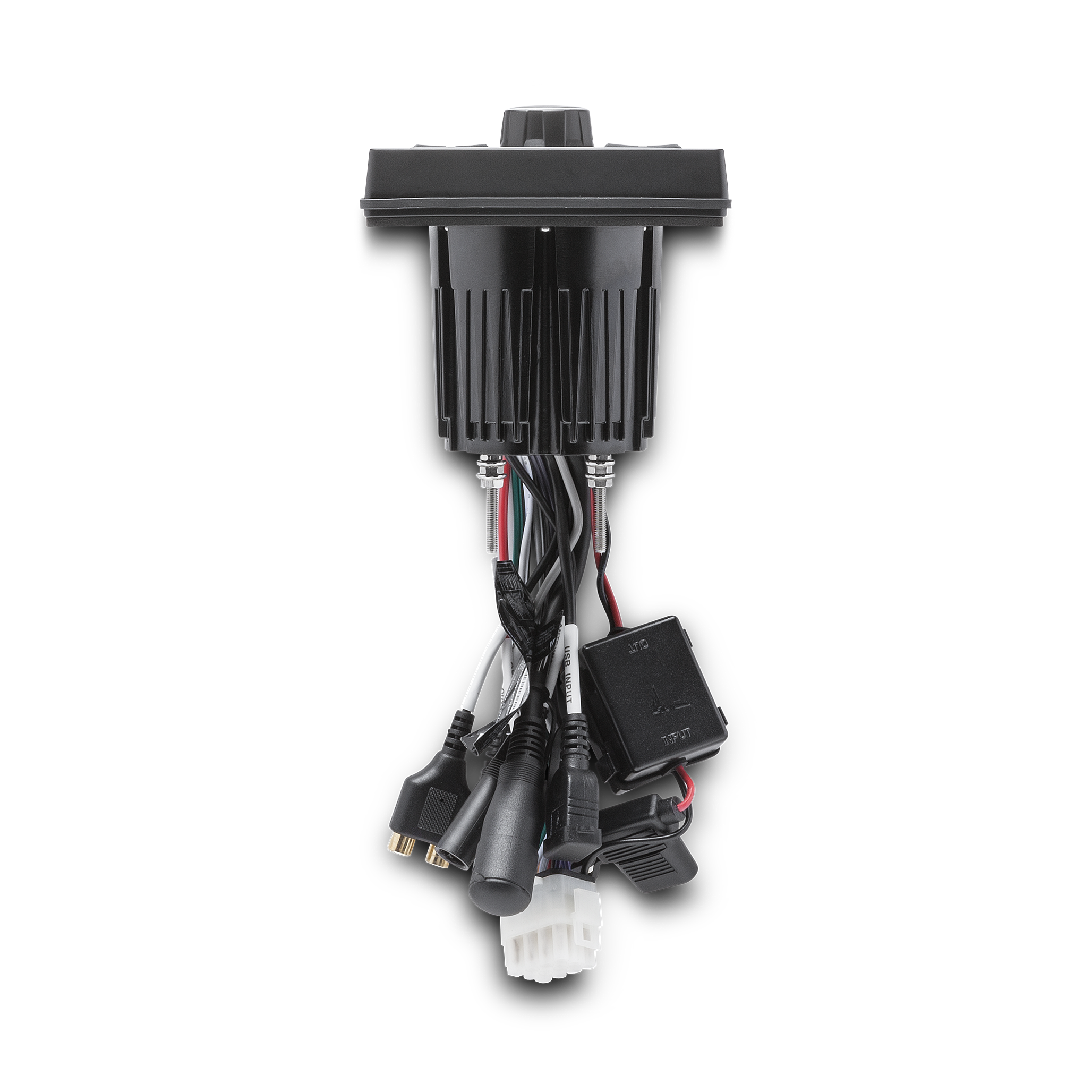

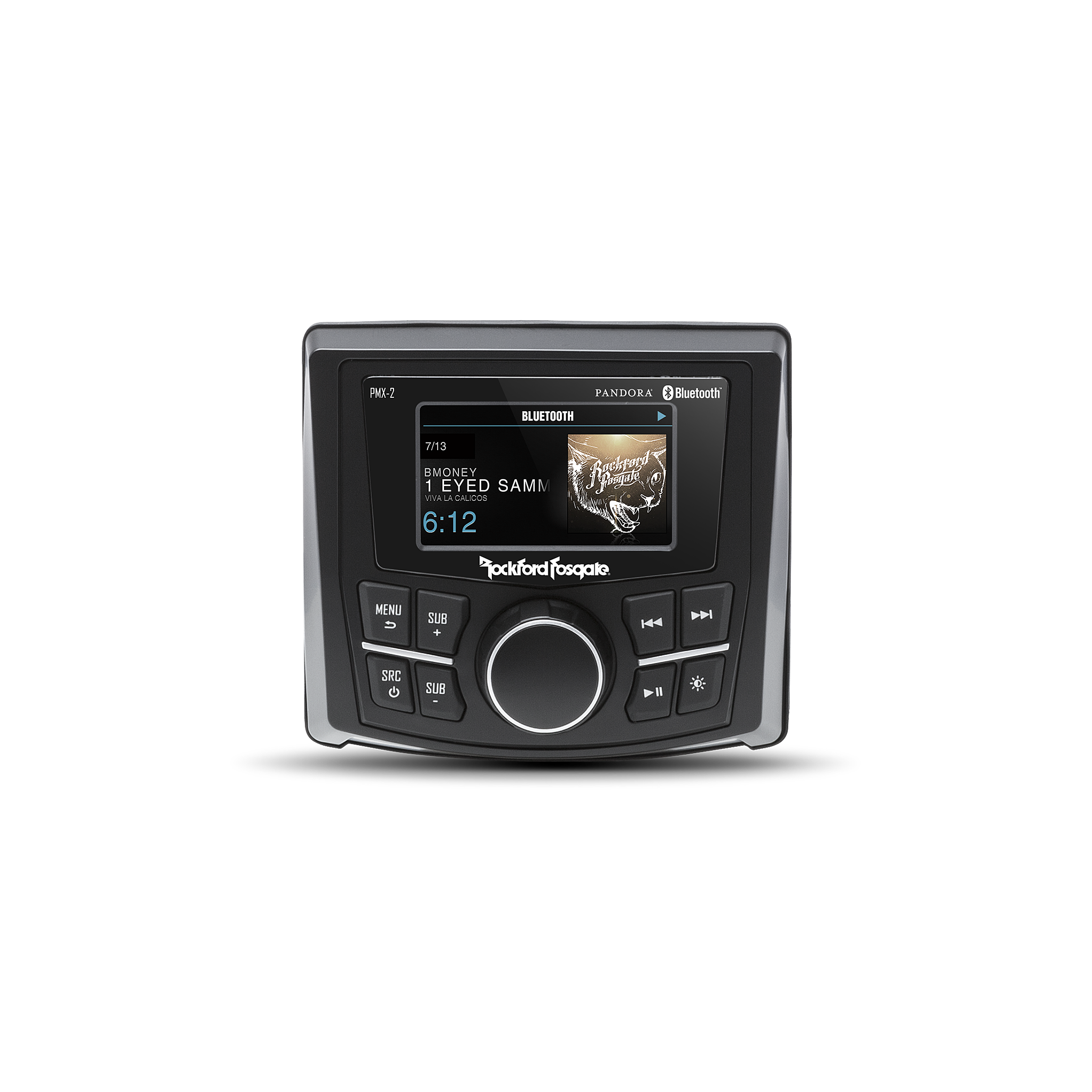

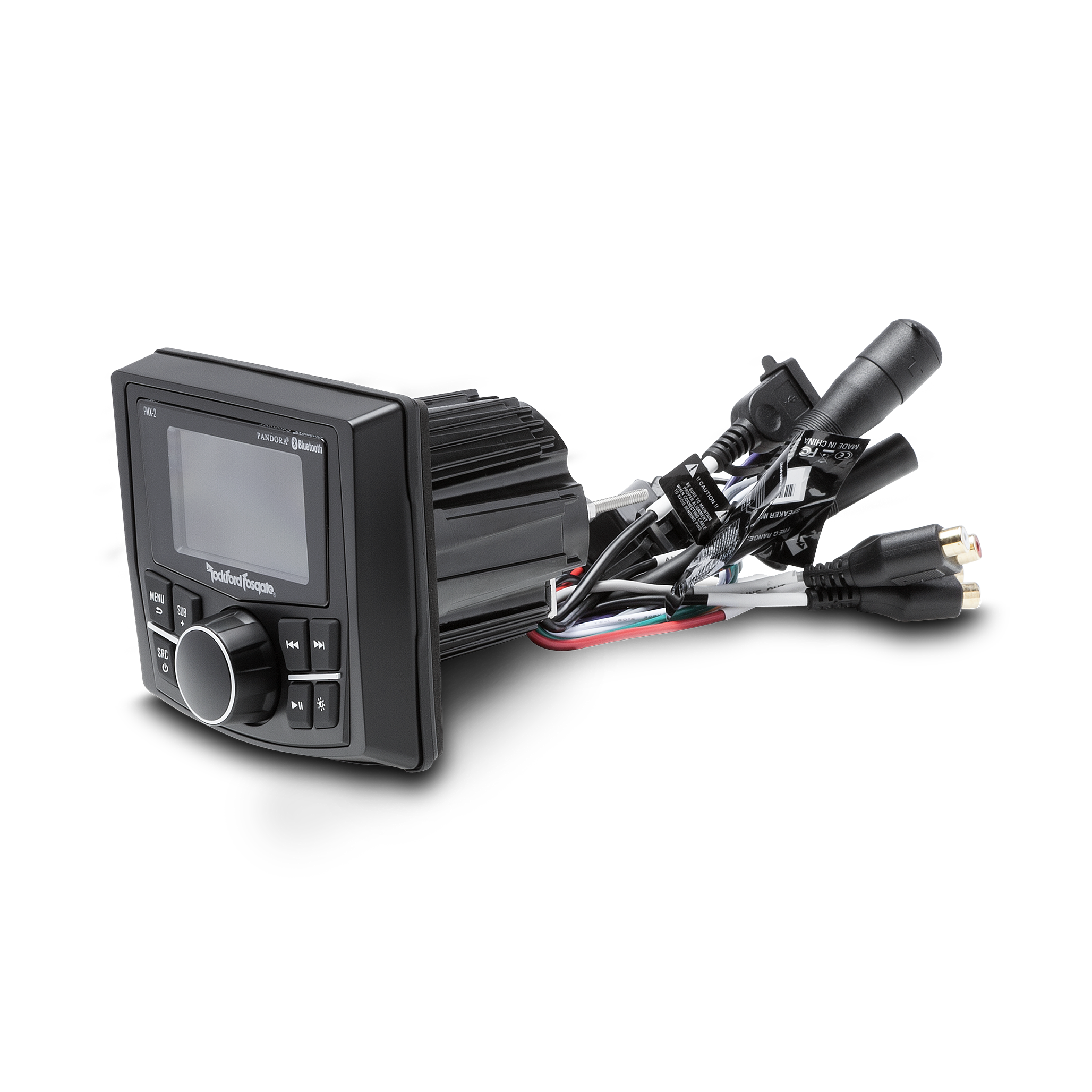

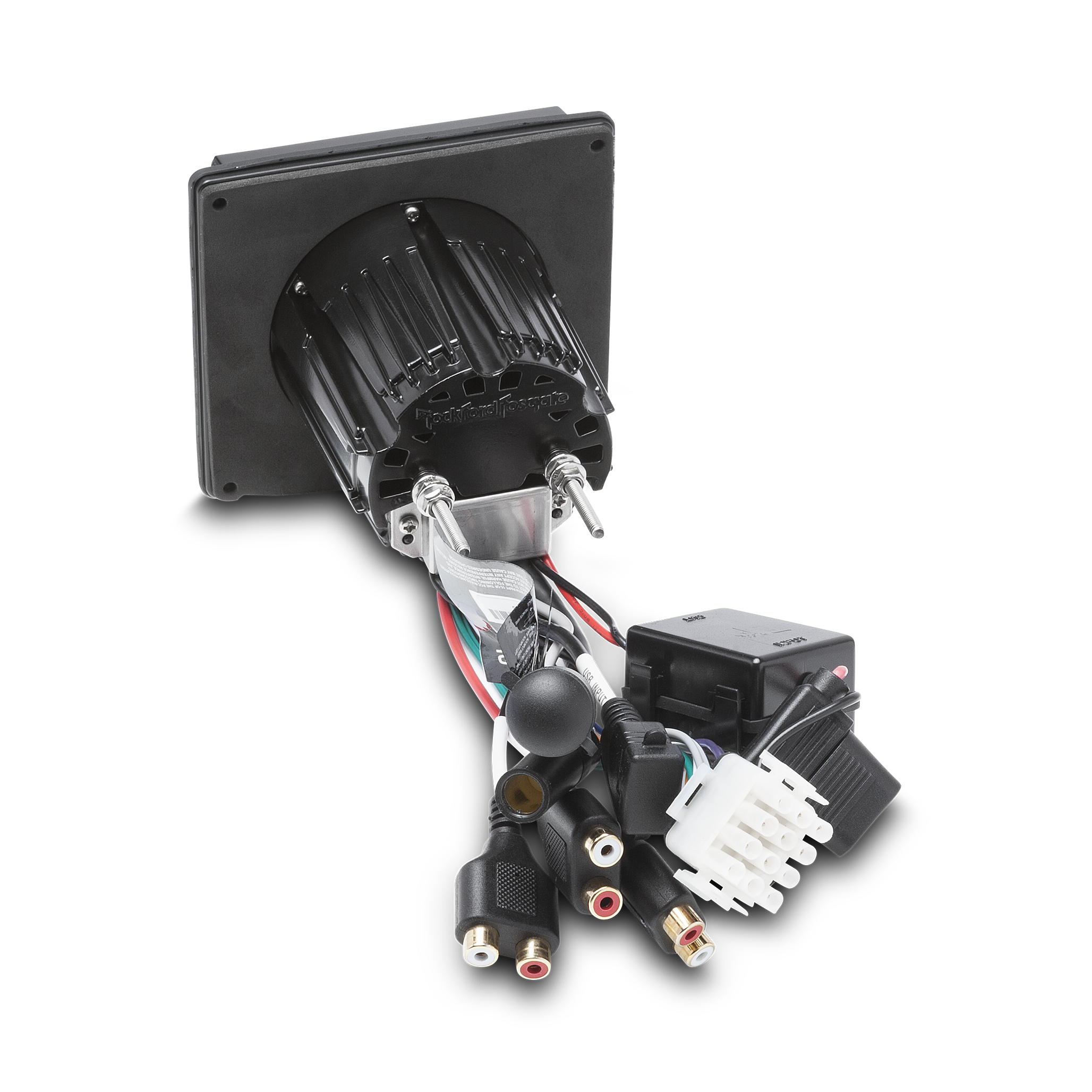

Rockford Fosgate's PMX-2 Marine Digital Media Receiver with 2.7" Color Display, Bluetooth Streaming is Element Ready TM and IPX6 rated for water resistance.
Features
- AUX and USB Inputs with USB Charging
- ISO8846/SAE J1171 Ignition Protection Certified
- Pandora Internet Radio
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- AM/FM/WB Tuner
- IPX6 Marine Grade for prevention of water intrusion
- 7-Band Graphic EQ
- Independent Subwoofer Level Control
- Low Voltage Warning Alert
- Multi-region radio frequencies
- iPod playback with on-screen display
- 2-Year Warranty
- On Board Punch EQ Control
- *Antenna not included
- 2.7" full color display w/ auto dimming backlightning
- Zone Control: 1 Zone / 1 Source (F/R or Sub)
Specifications
- FM TUNER; Sensitivity: 8 dB
- AM TUNER; Frequency Range: 530 kHz - 1710 kHz
- AM TUNER; Usable Sensitivity: 40 dB
- RCA Output Voltage: 2V RMS; Does not clip at full output
- RCA Output Impedance: 500Ohm
- Operating Voltage: 10.5 V - 16 V
- Speaker Impedance: 2-Ohms
- Fuse Rating: 20 A
- Dimensions (HxWxD): Width 4.5" (11.5cm); Face Depth 1.5" (3.8cm); Mount Depth 2.9" (7.4cm); Height 4.2" (10.6cm)
- USB Capacity: 32Gb max; 999 Folders max; 999 Songs max
- MEDIA PLAYER; Audio Format Compatibility: MP3; WMA; FLAC
- Compatible Remotes: PMX-1R; PMX-0R; (3 Remote Limit, 100 ft Total Wired Distance)
- Android Compatibility: Bluetooth Only
- SPEAKER OUTPUTS: Yes
- Bluetooth; (Yes/No): Yes; 3.0+EDR, A2DP 1.3
- Pandora Internet Radio; (Yes/No): Yes
- Device Type: Digital-Media Receiver
- WB TUNER; Frequency Range: 162.40 - 162.55; (US & Canada)
- TUNER; Number Of Presets: 18 FM / 12 AM / 6 WB
- USB Version: 2
- USB Charging; (Yes/No): Yes
- Steering Wheel Control Ready; (Yes/No): No
- Frequency Response: 20 Hz - 20 kHz
- Multi-Zone/Multi-Source; (Yes/No): No
- FM TUNER; Frequency Range: 87.5 MHz - 107.9 MHz
- Power Output: CEA-2006 Power Rating; 25W x 4 @ 4Ohm RMS; 50W x 4 @ 2Ohm Peak; <=1.0% THD+N
- Clock; (Yes/No): No
- Speaker Outputs; (Yes/No): Yes (4-channel)
- Made for iPod Models: iPod Touch (5th generation); iPod Touch (4th generation); iPod Nano (7th generation); iPod Nano (6th generation)
- RCA OUTPUTS: (1 pr) Front; (1 pr) Rear (or Sub-out)
- Display Size: 2.7" Color TFT
- SiriusXM-Ready; (Yes/No): No
- USB Output Current: 1A
- Made for iPhone Models: iPhone XS (pending); iPhone XS Max; iPhone XR (pending); iPhone X; iPhone 8; iPhone 8 Plus; iPhone 7; iPhone 7 Plus; iPhone 6s; iPhone 6s Plus; iPhone 6; iPhone 6 Plus; iPhone 5S; iPhone 5C; iPhone 5; iPhone 4; iPhone 4S; Phone 3GS
- Apple/AndroidTM Compatible; (Yes/No): Yes; Limited functionality on Android. See owners manual.
- AUX Input; (Yes/No): Yes (1pr)
- Back Panel Cutout: 3" (77mm)
- Shipping Weight: 3 Lbs. (1.36 Kg)
