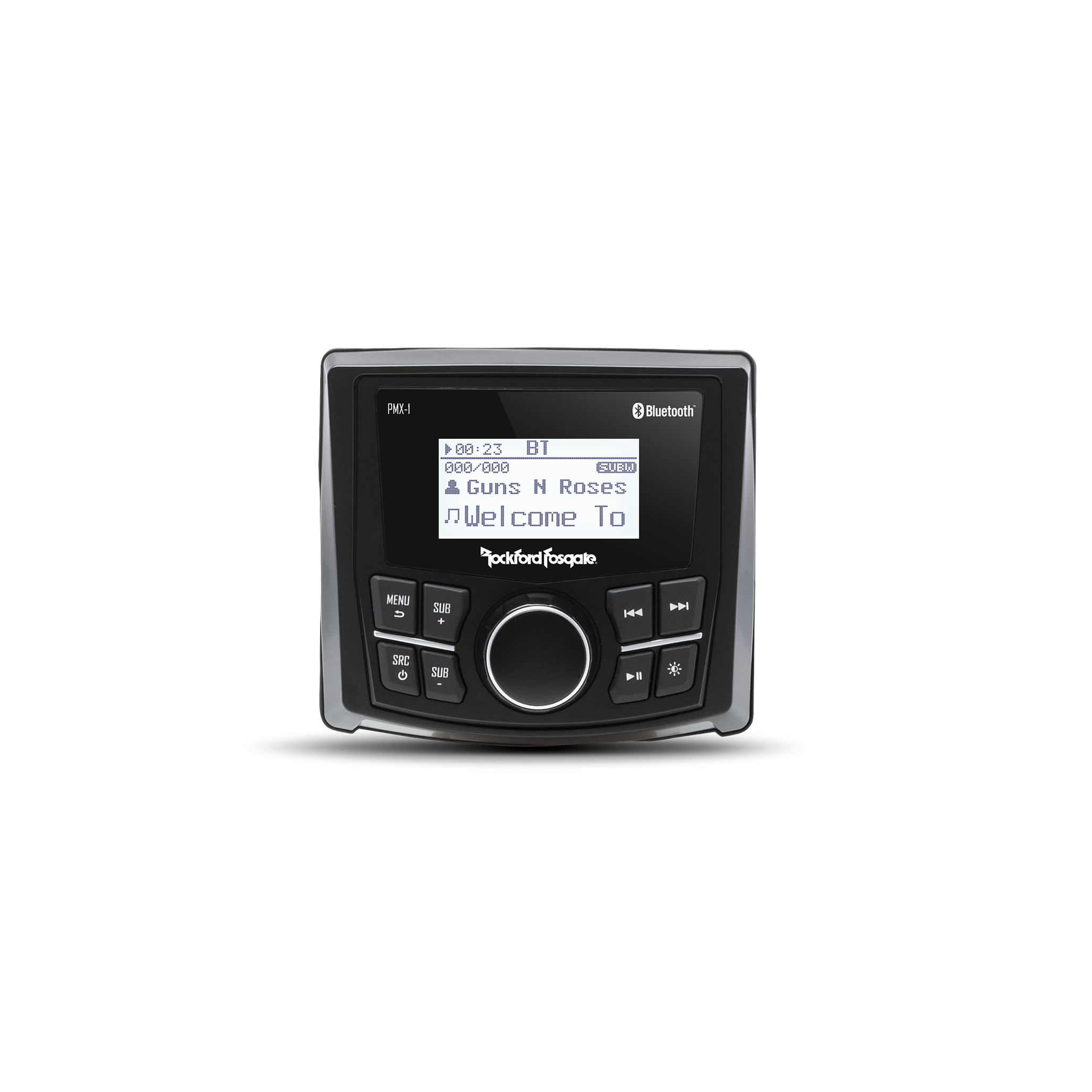

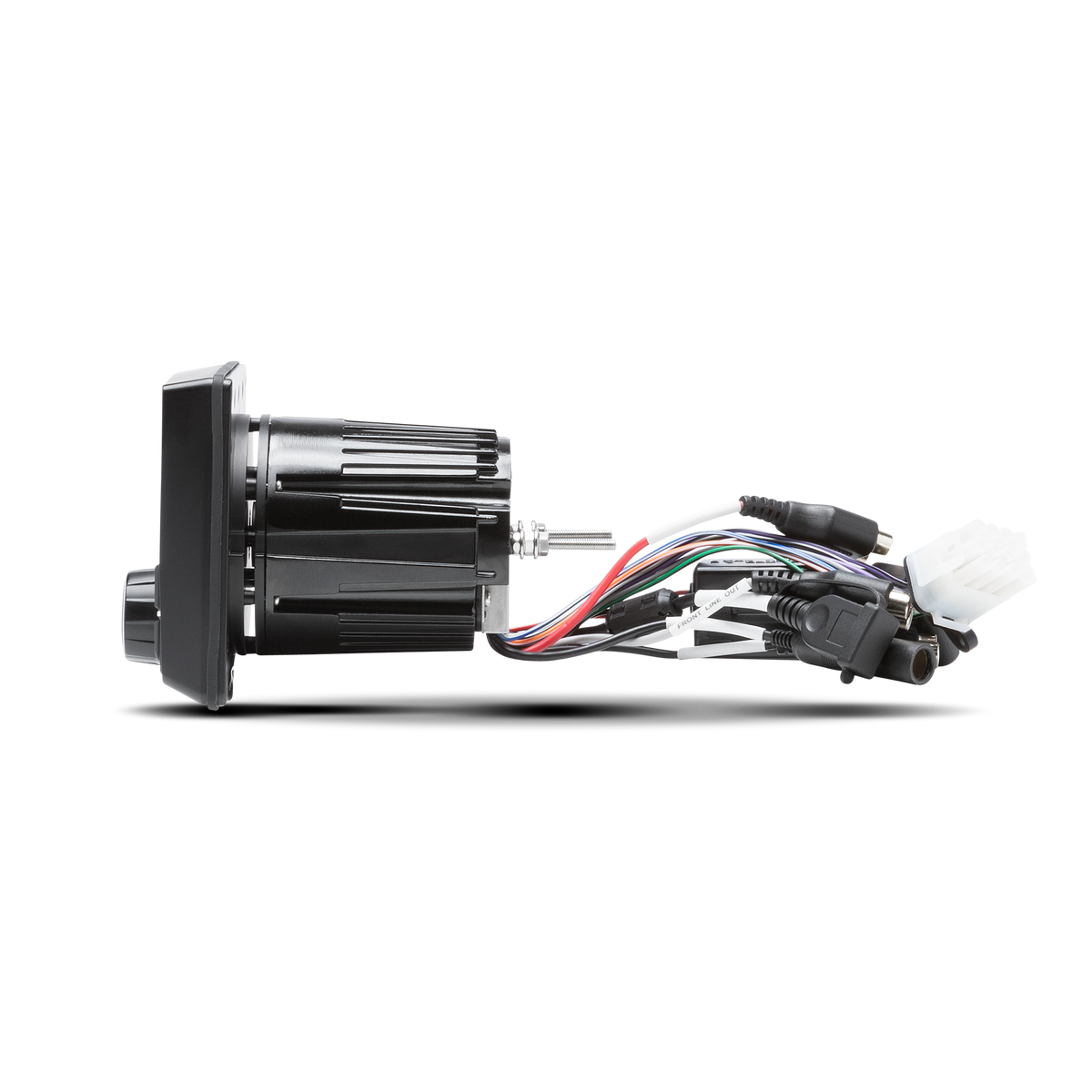

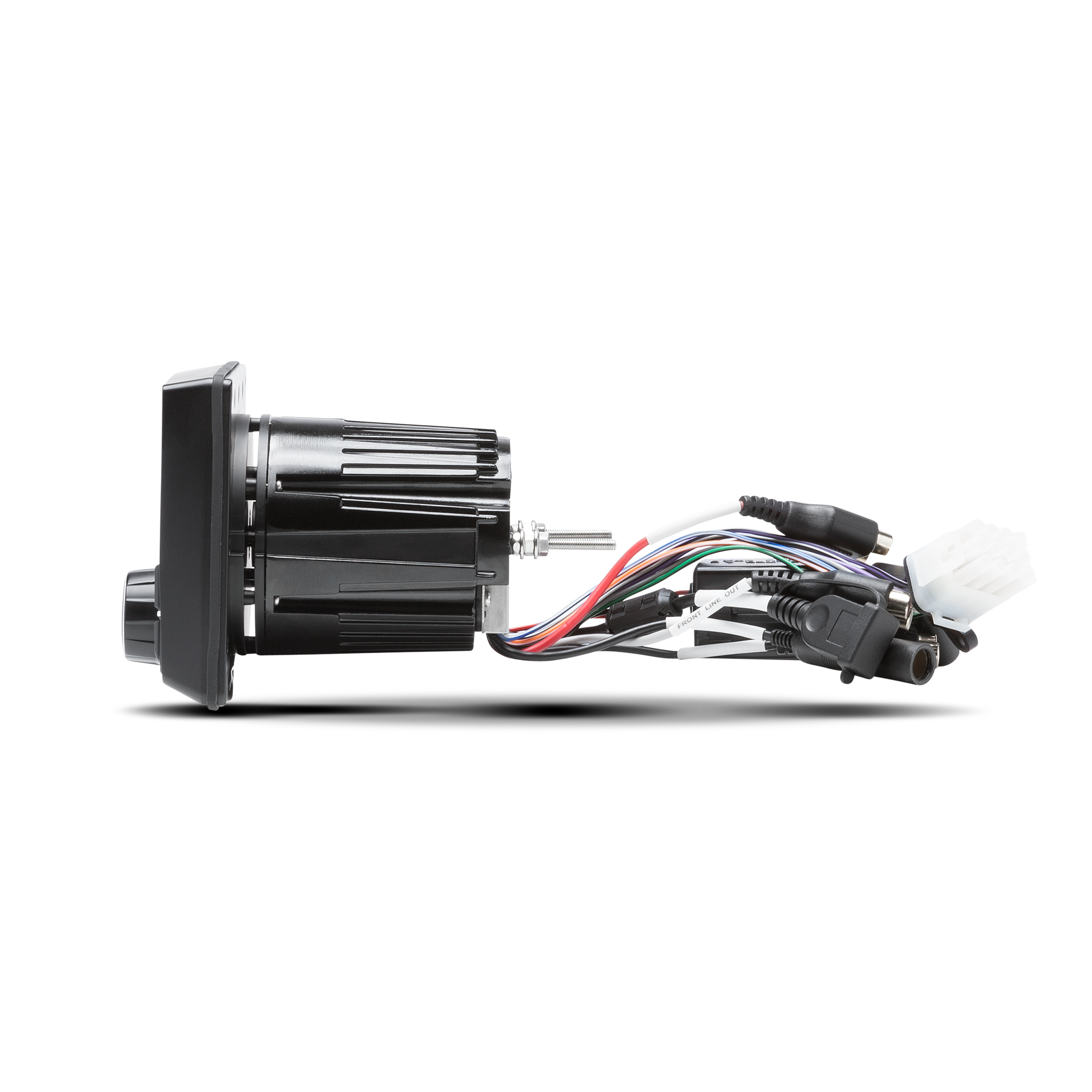

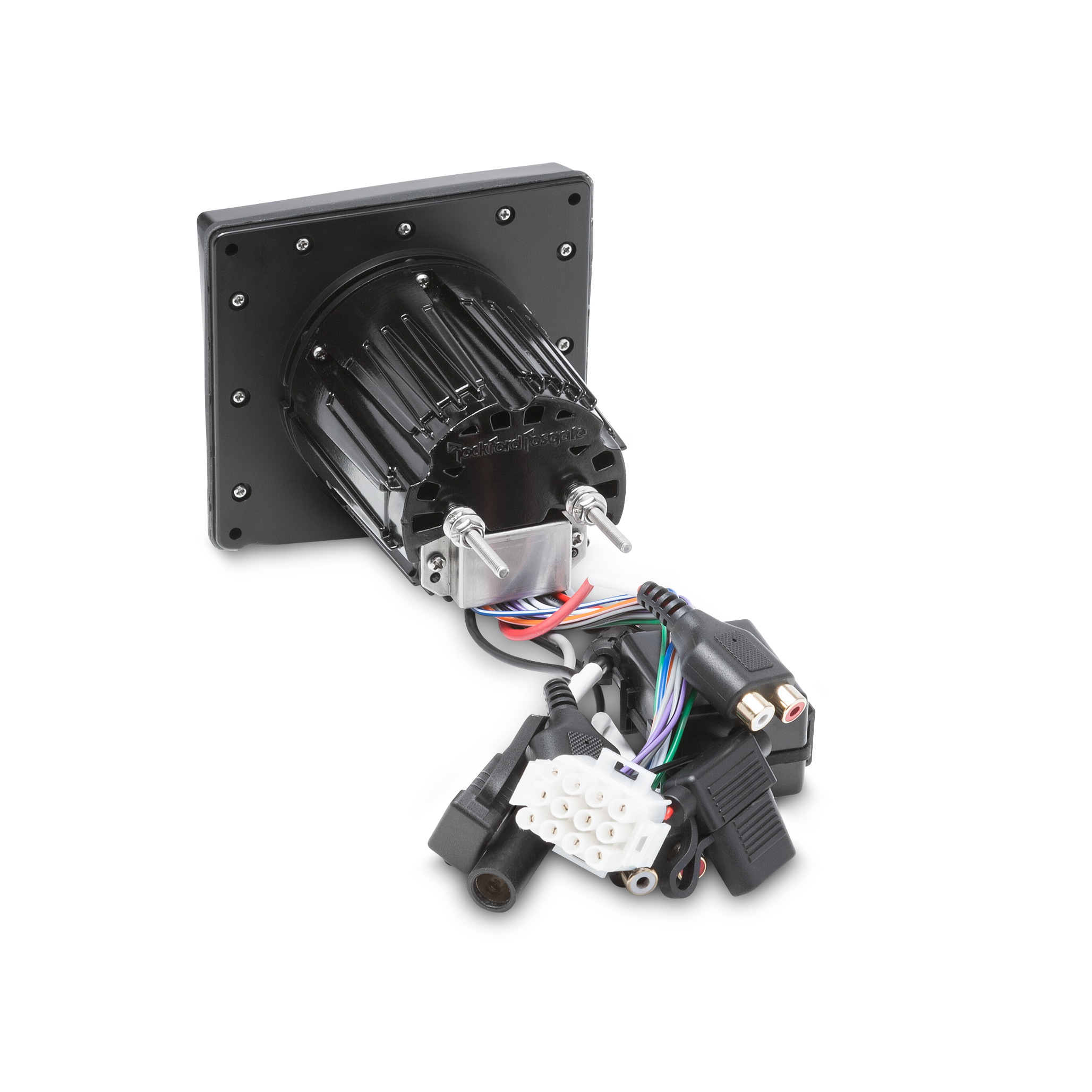

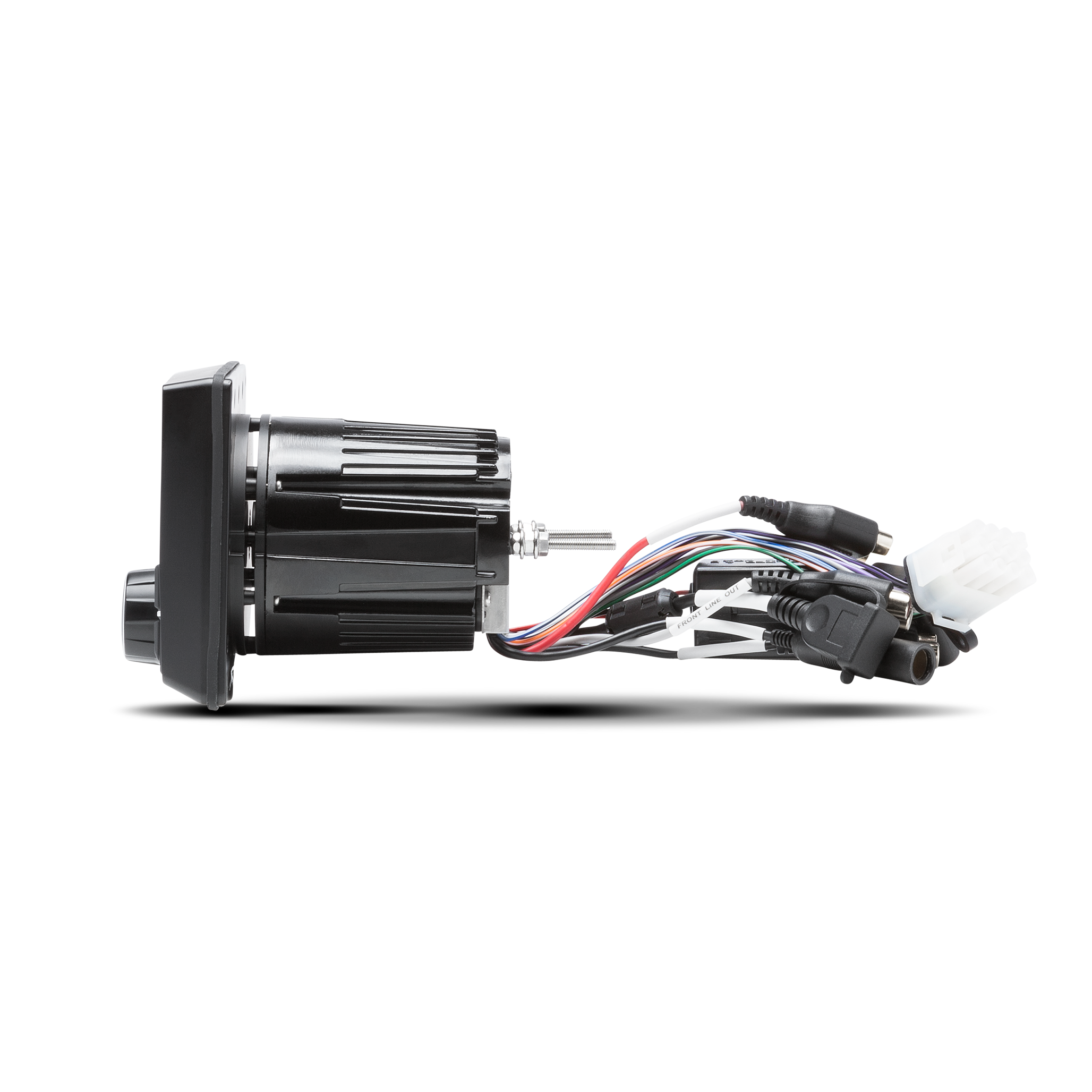

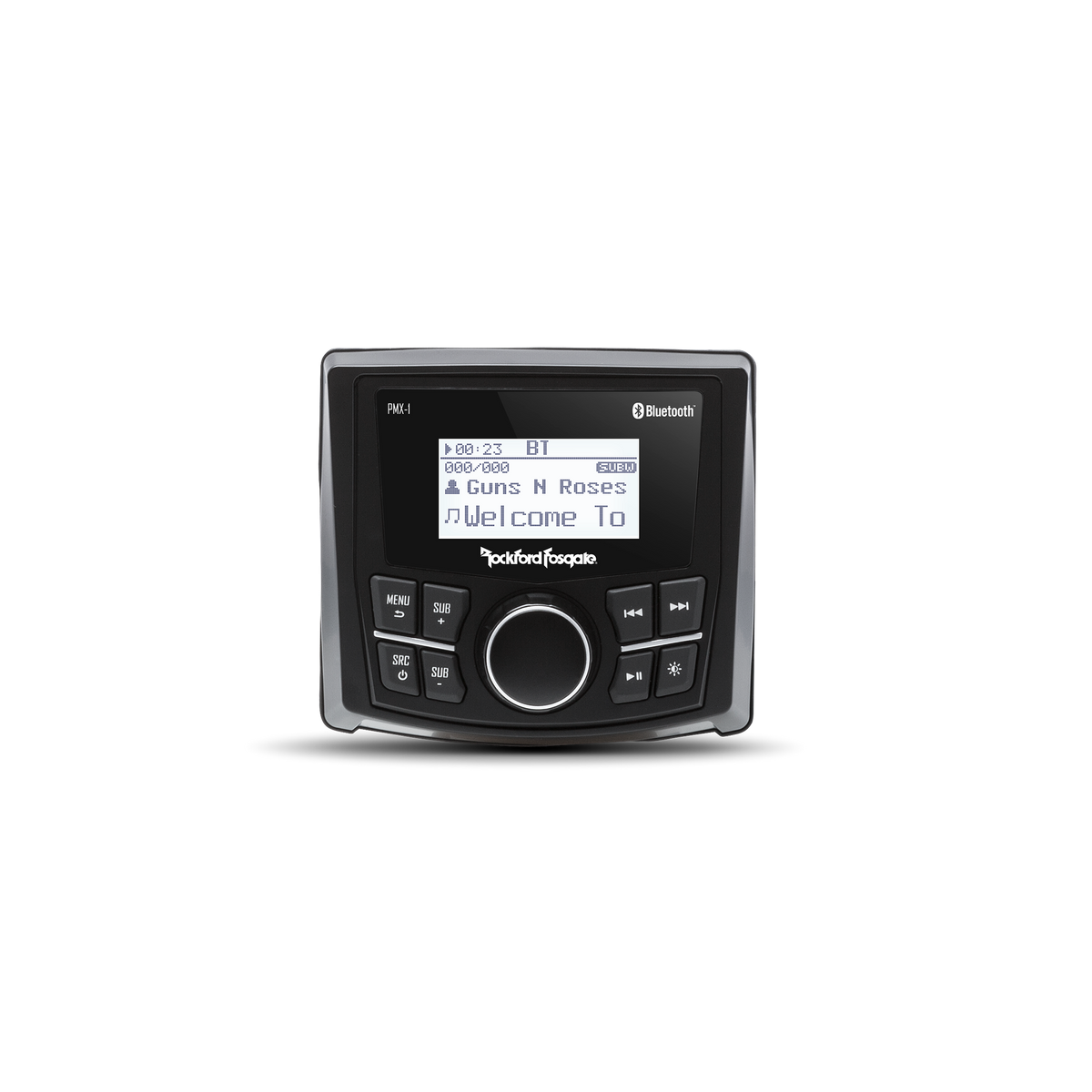

PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 1
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 2
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 3
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 4
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 5

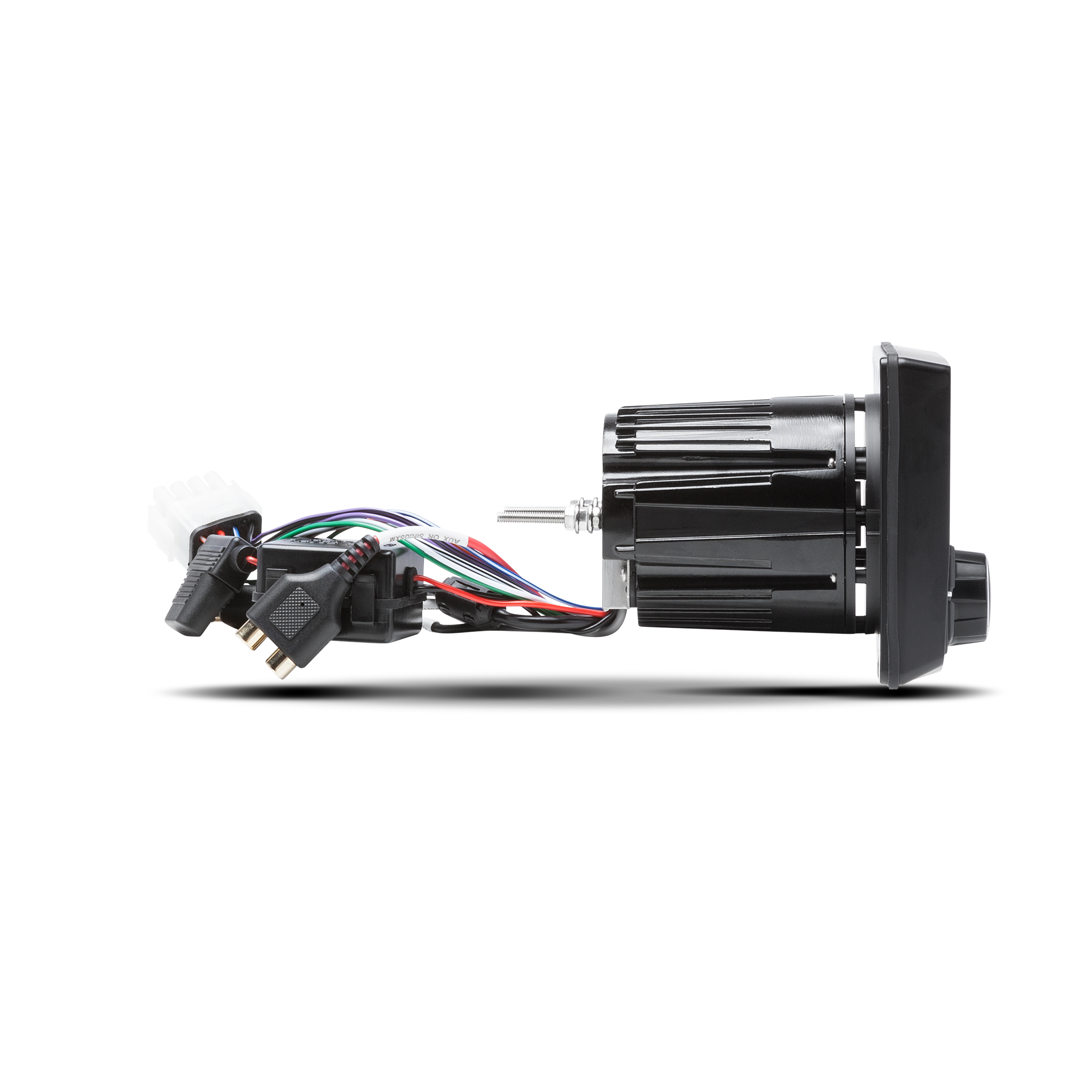

PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 6
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 1
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 2
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 3
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 4
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 5
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 6

PMX-1

Availability: In stock SKU: PMX-1
Sale price $329.99

PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 1
PMX-1
Sale price$329.99
PMX-1 - Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display - image 1

PMX-1

$329.99

Overview

The PMX-1 features a scratch resistant screen optically bonded for optimized viewing of the dot matrix display under all lighting & viewing conditions.

Features

  • A2DP and AVRCP Bluetooth Wireless Streaming
  • Multi-region radio frequencies
  • AM/FM/WB Tuner
  • 7-Band Graphic EQ + PEQ
  • Wet bonded 2.3" Full Dot Matrix LCD Display
  • Independent Subwoofer Level Control
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IP6 Marine Grade Front Panel
  • 9H Tempered Glass Screen
  • Compatible with PMX-BTUR Steering Wheel Remote

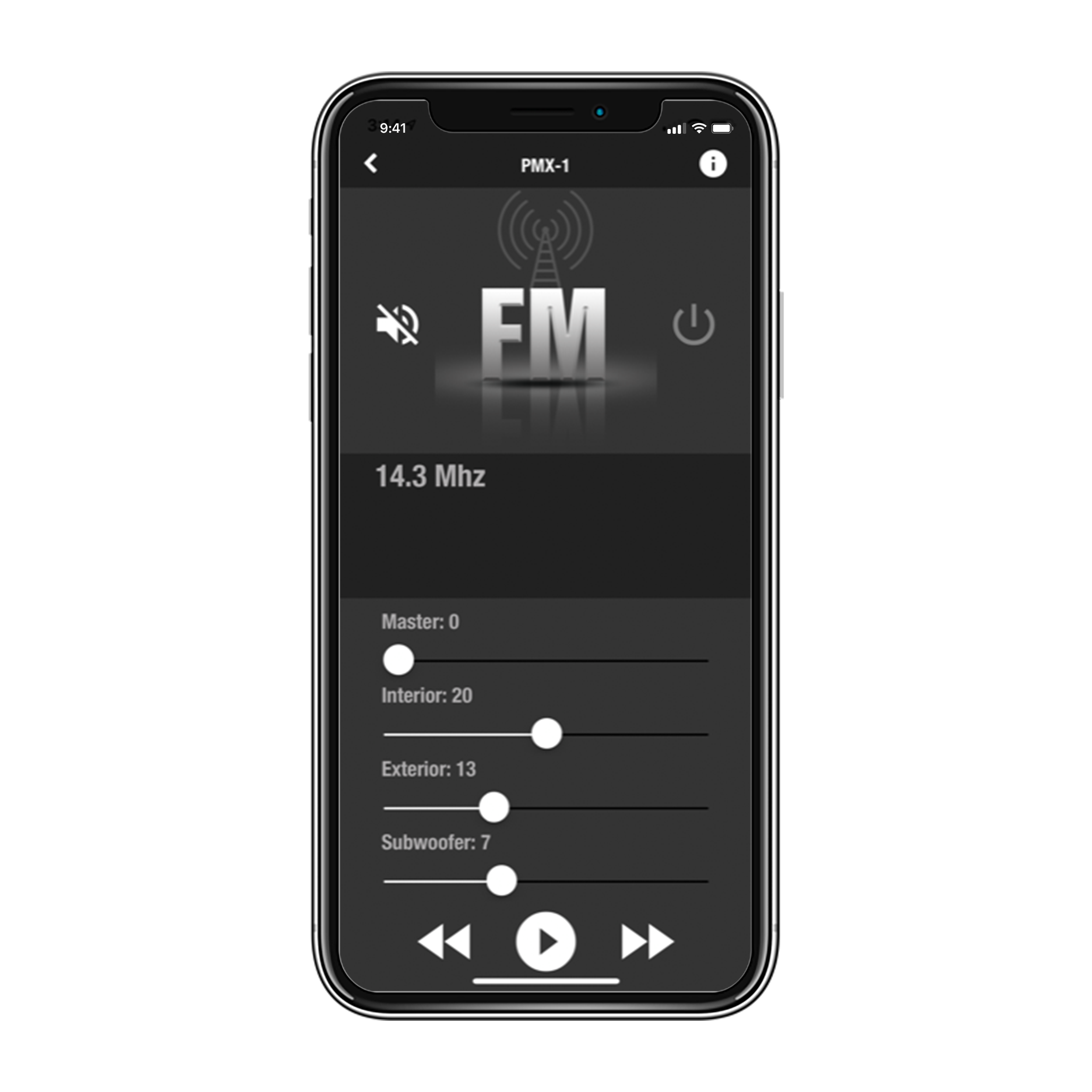

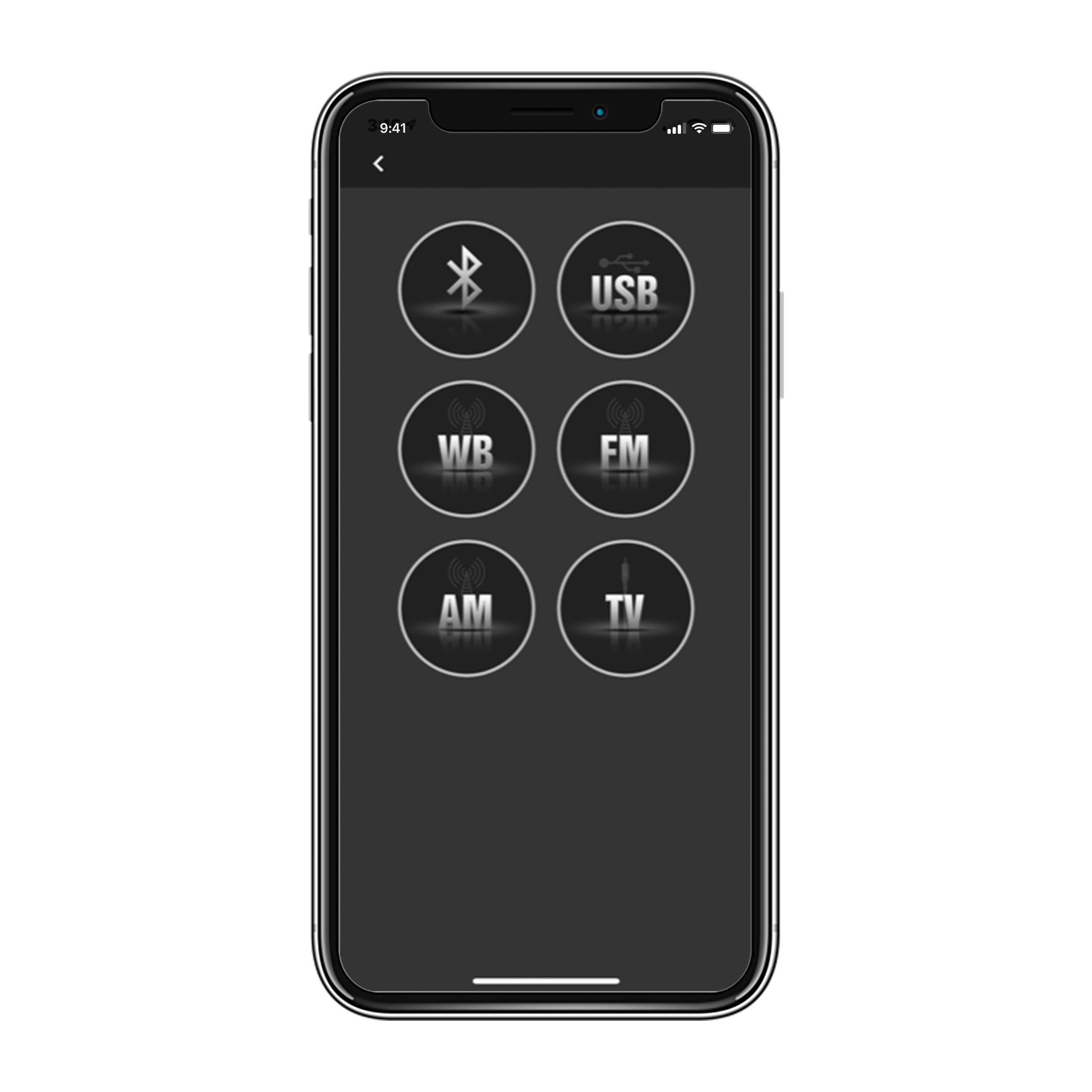

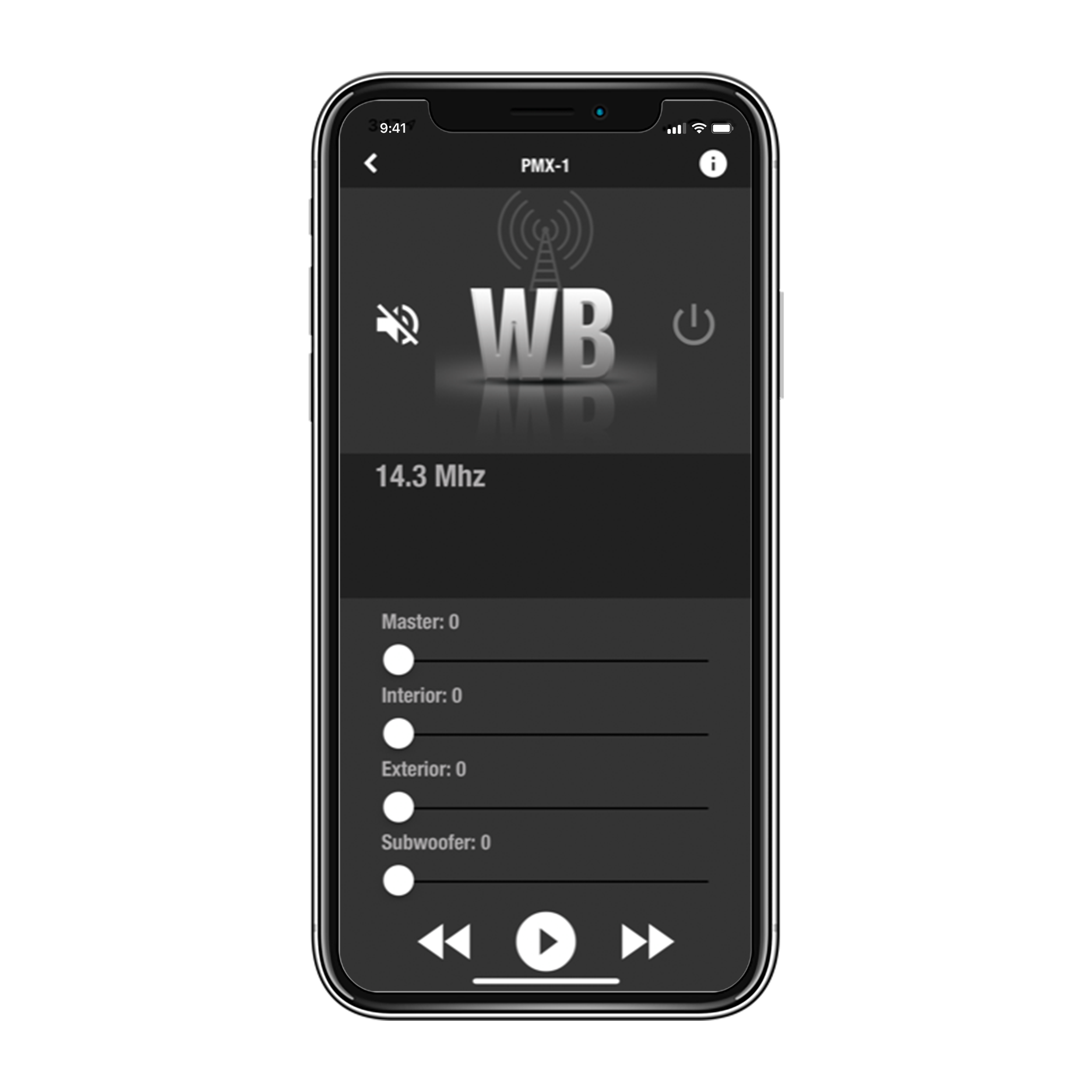

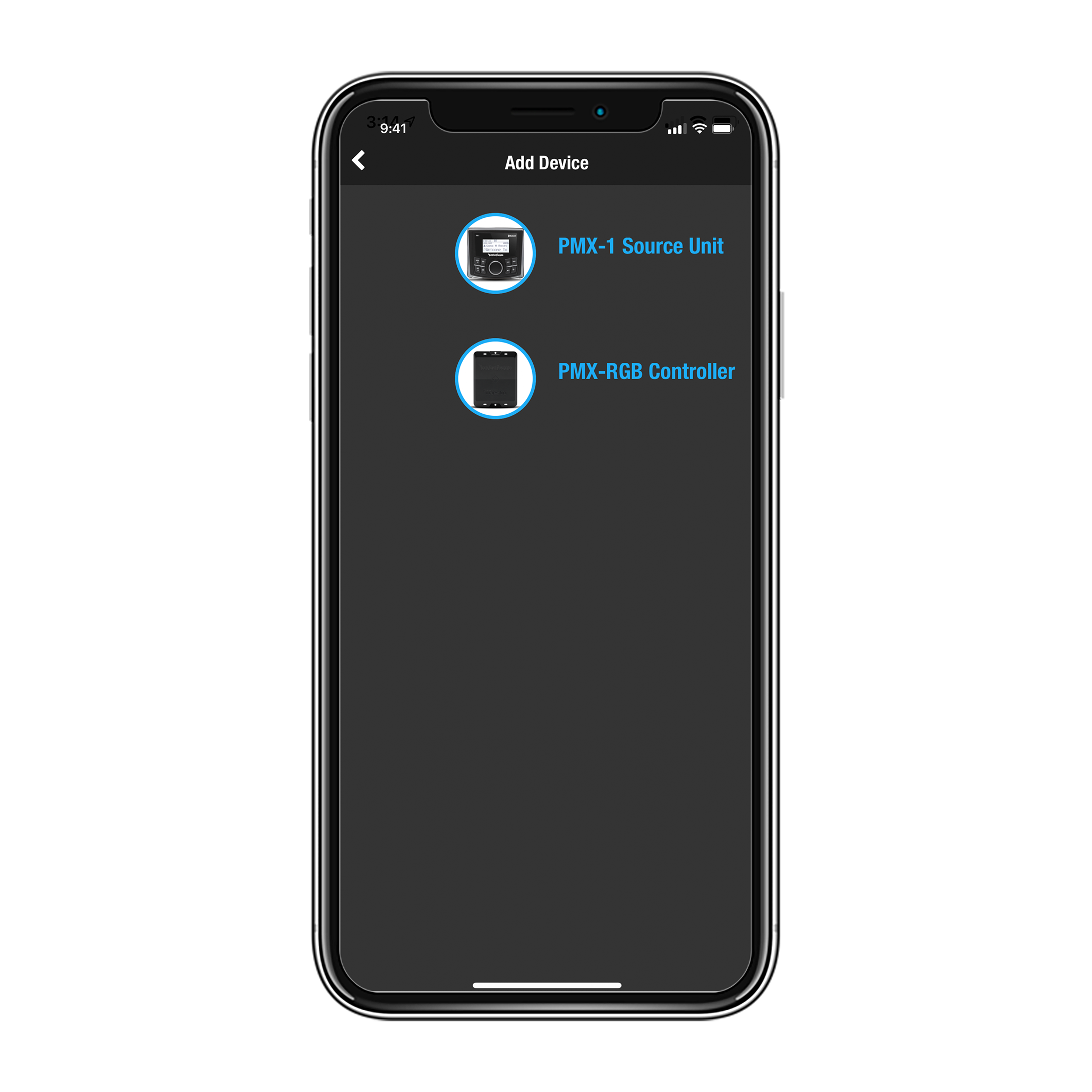

  • RF Connect iOS / Android App with native control of PMX-1
  • AUX and USB Inputs with USB Charging
  • Voltage gauge with Low voltage Warning
  • 2-Year Warranty
  • FCC, CE and EN60945 Certified

Specifications

  • Multi-Zone/Multi-Source; (Yes/No): No
  • Speaker Outputs; (Yes/No): Yes
  • Device Type: Digital-Media Receiver
  • Pandora Internet Radio; (Yes/No): No
  • Steering Wheel Control Ready; (Yes/No): No
  • AUX Input; (Yes/No): Yes (1 RCA pair)
  • SiriusXM-Ready; (Yes/No): No
  • Clock; (Yes/No): No
  • Bluetooth; (Yes/No): Yes; 3.0+EDR, A2DP 1.3
  • USB Charging; (Yes/No): Yes
  • Frequency Response: RCA: 20 Hz - 20 kHz; High-Level: 20 Hz - 20 kHz
  • TUNER; Number Of Presets: 18 FM / 12 AM / 6 WB
  • AM Tuner: Range: 530 - 1710 kHz; Sensitivity: 40 dB; Frequency Response: 45 to 2.4 KHz
  • Power Output (max): CEA-2006 Power Rating; 25W x 4 @ 4Ohm RMS; 50W x 4 @ 2Ohm MAX; <=1.0% THD+N
  • Media Formats: MP3; WMA
  • FM Tuner: Range: 87.9 - 107.9 MHz; Sensitivity: 8 dB; Frequency Response. 20 - 15 KHz
  • MIn. Speaker Impedance: 2Ohm
  • Output Impedance: <500 Ohm
  • Max Output Voltage: RCA Front: 2 V; RCA Rear/Sub: 2 V
  • Signal to Noise Ratio: RCA 2V: >85 dB; High-Level CEA-2006: >75 dB; High-Level Max Watts: >85 dB
  • Channel Separation: RCA: >70 dB; High-Level: >50 dB
  • Max THD+N: High-Level: <1.0 @ 4-Ohm
  • USB Output Current: 0.041666666666666664
  • Operating Voltage: 9 - 16 VDC
  • USB Version: 2
  • Idle Current: <2 A
  • Fuse Rating: 20 A
  • Dimensions: Width: 4.5" (11.5 cm); Face Depth: 1.5" (3.8 cm); Mount Depth: 3.38 (8.6 cm); Height: 4.2 (10.6 cm)
  • Shipping Weight: 1.22 Lbs. (0.55 Kg)
  • Back Panel Cutout: 3" (77 mm)
