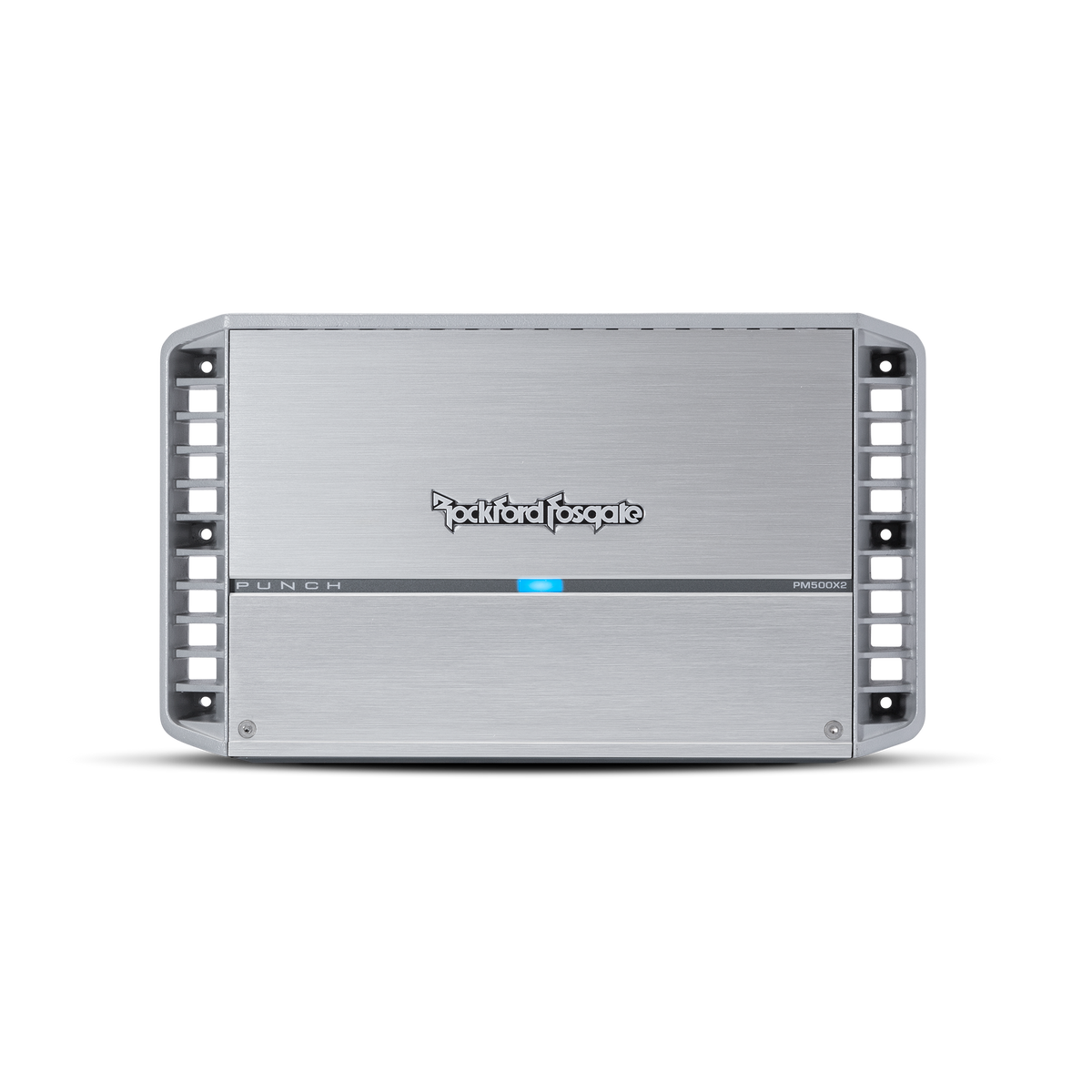

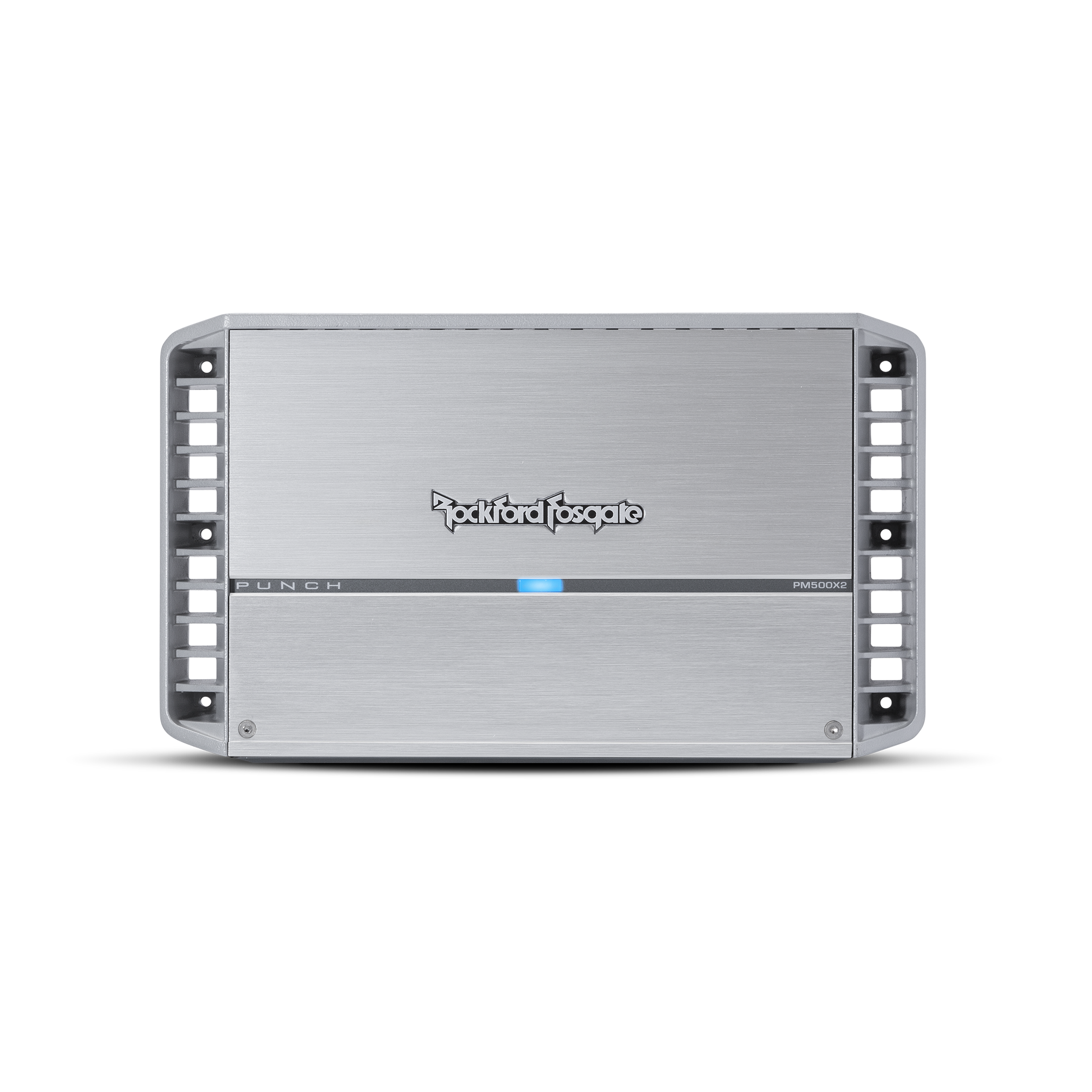

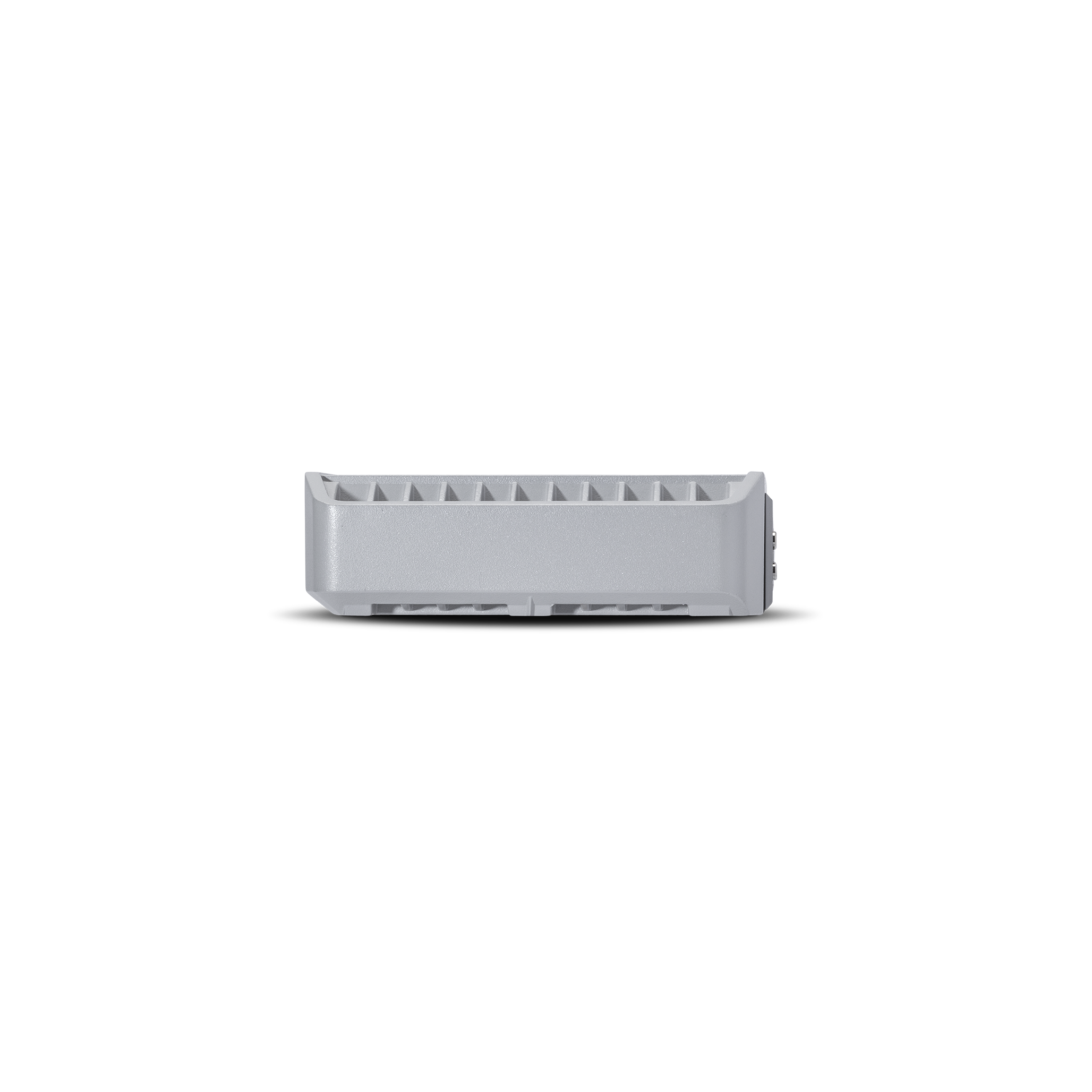

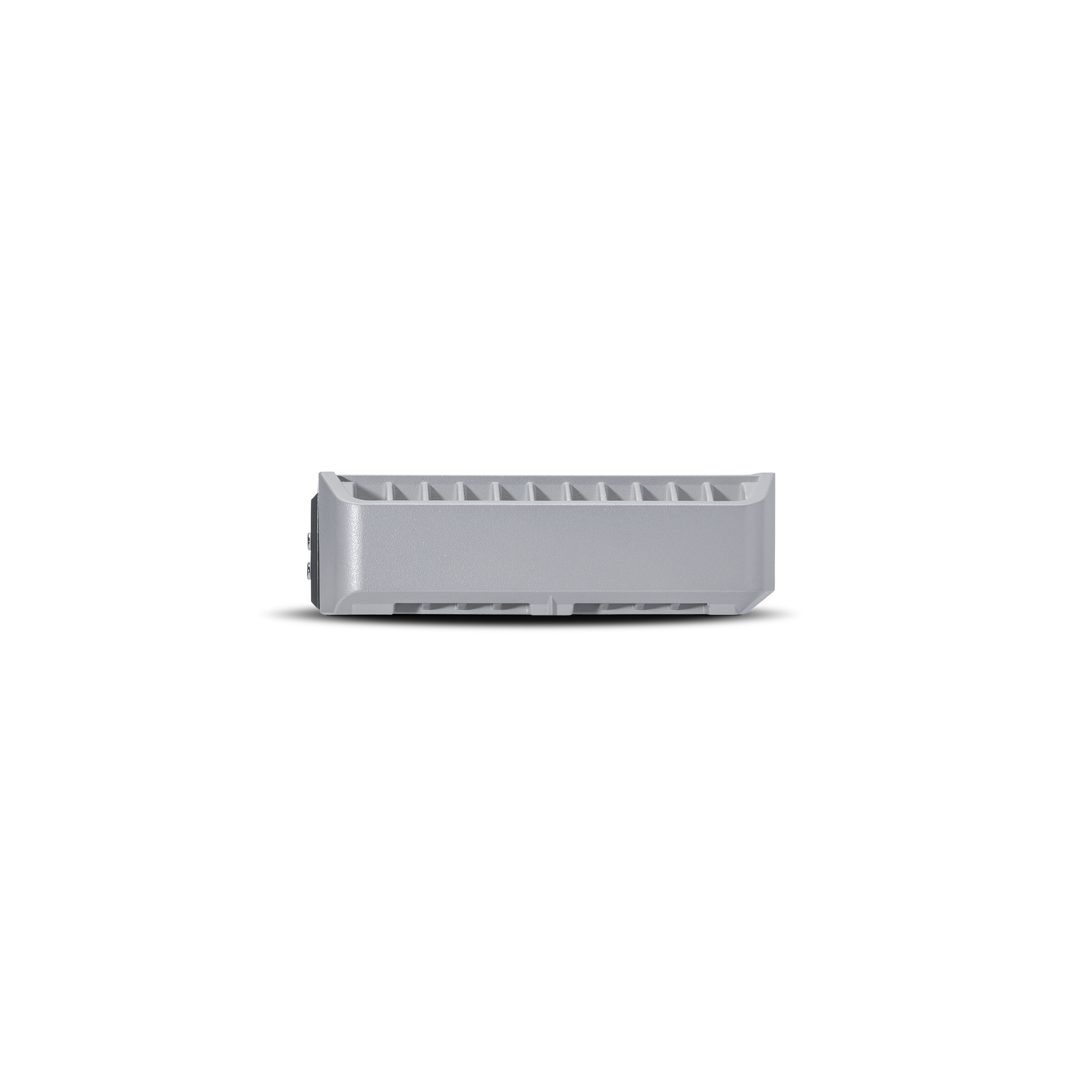

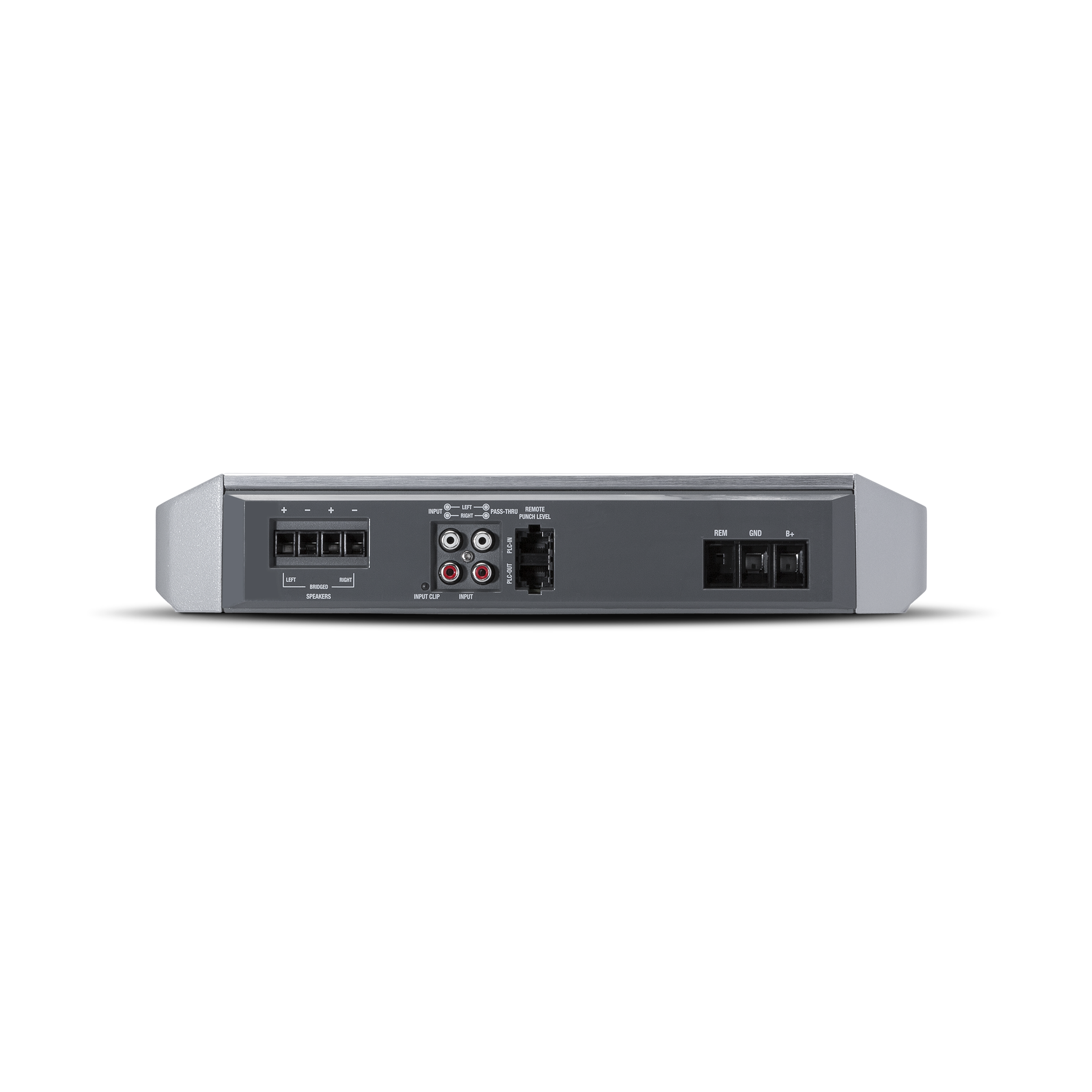

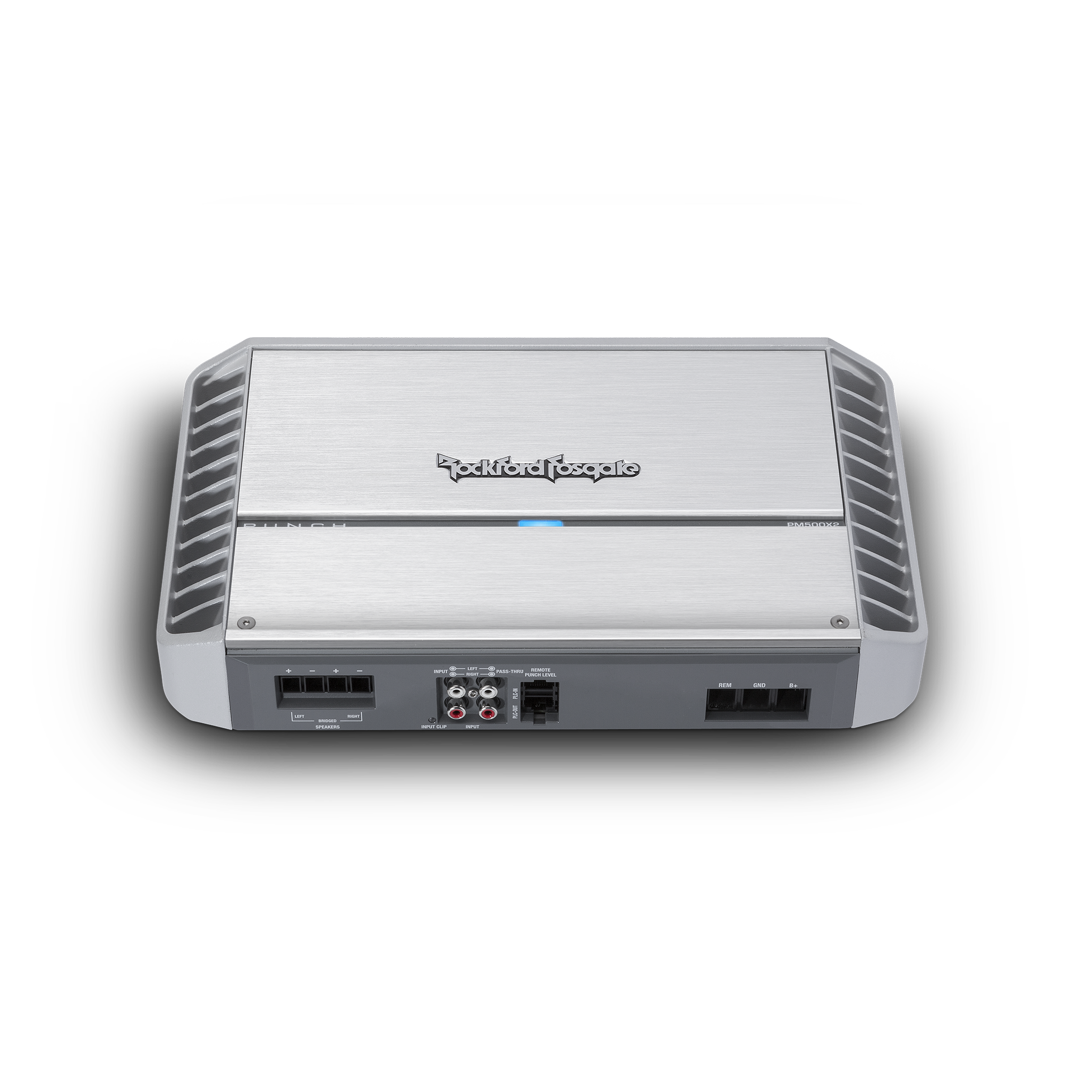

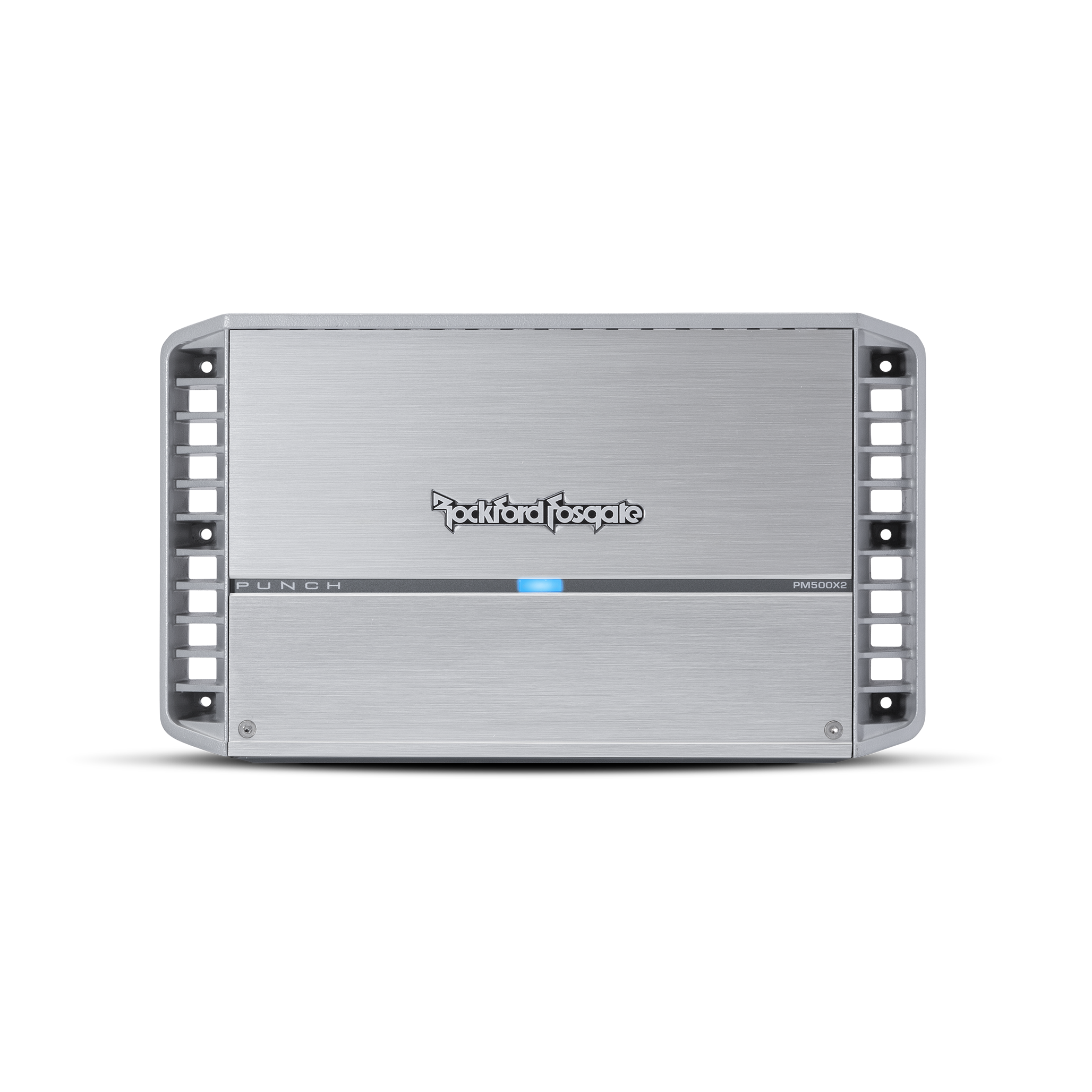

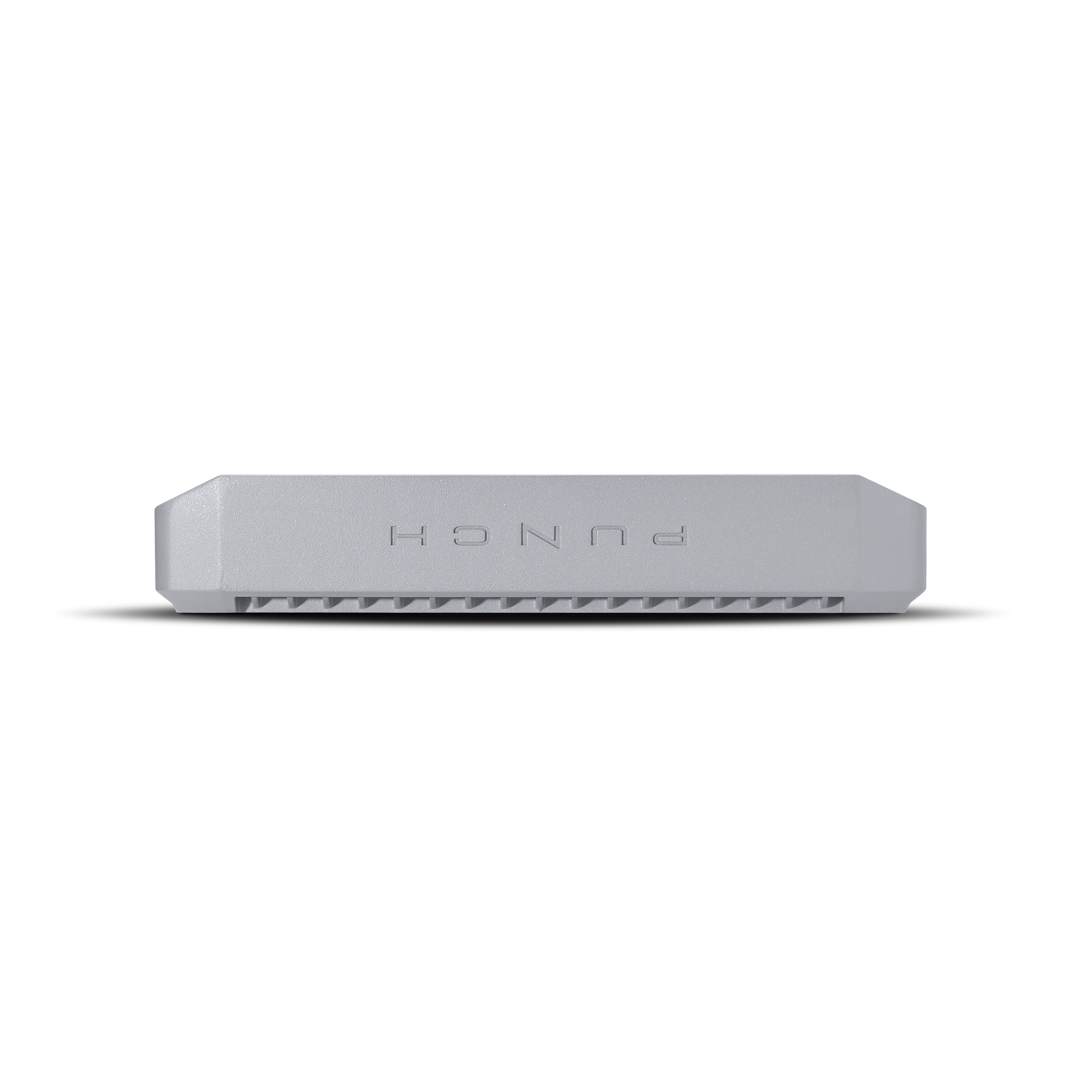

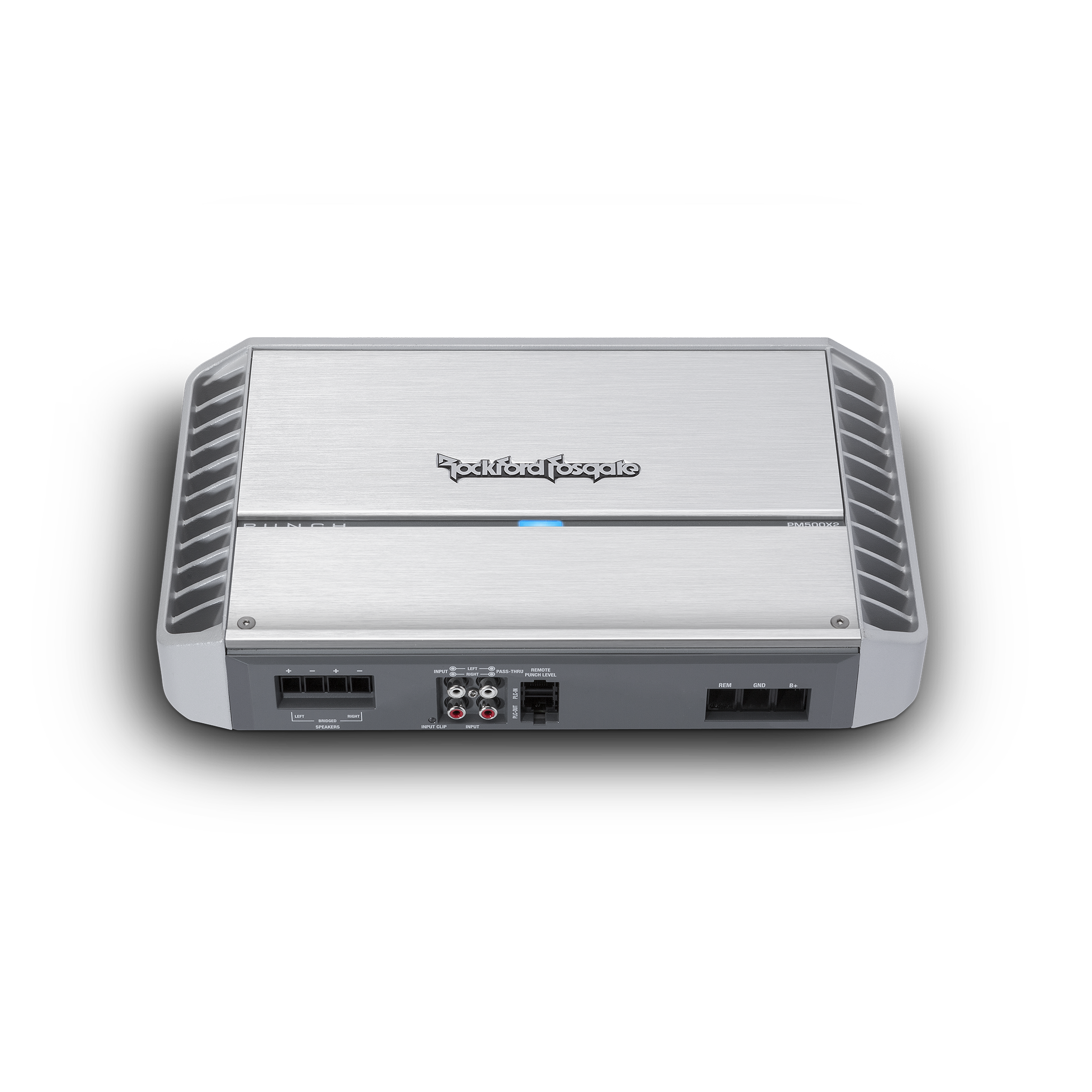

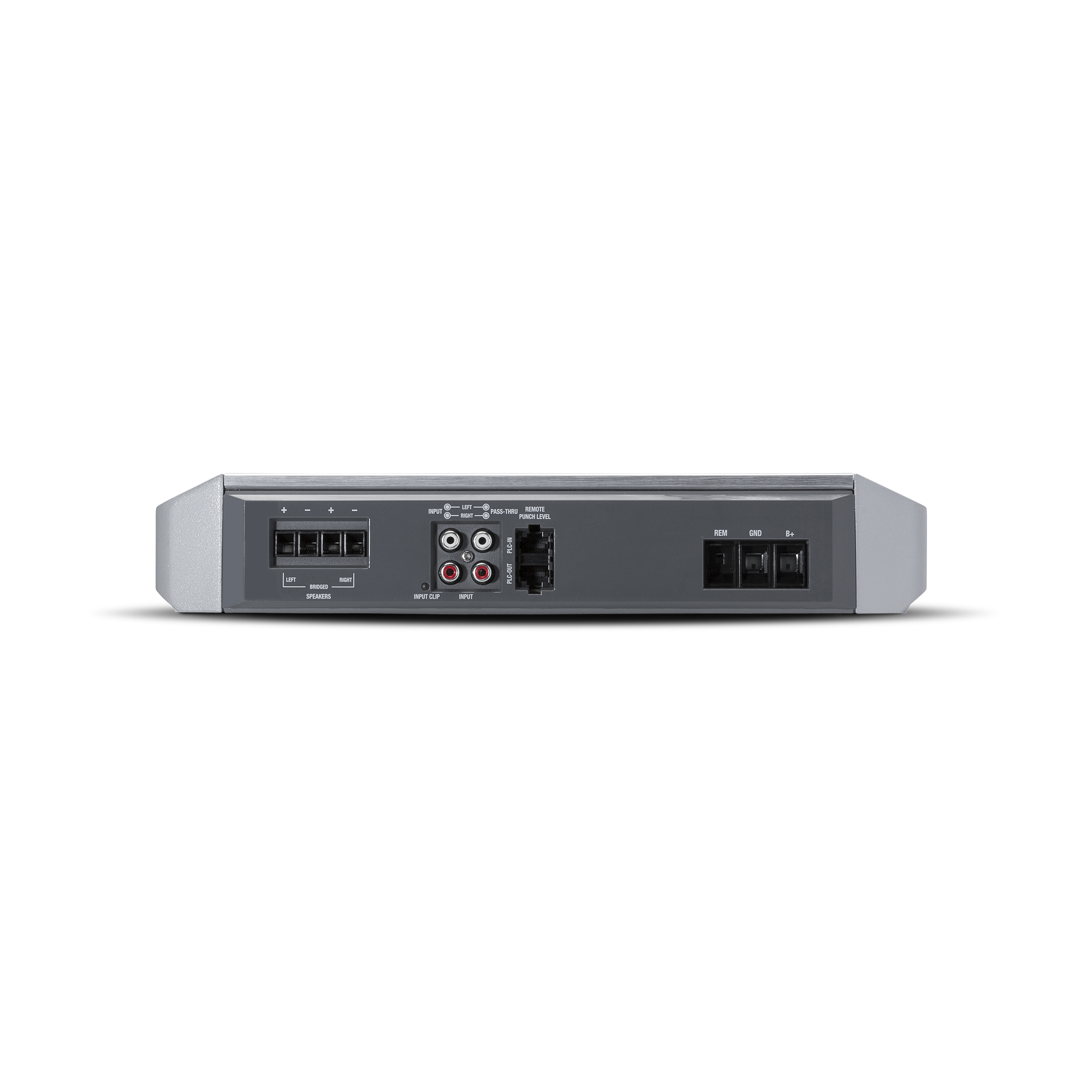

Punch Marine 500 Watt 2-Channel Amplifier

Overview

The PM500X2 is a 500 Watt 2-channel amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications.

Features

• RCA pass-thru outputs
• High level input capable with Auto Turn-On circuit
• 12dB/octave Butterworth crossover
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• On-board Punch EQ with +18dB boost @ 45Hz
• Short circuit protection
• Over current protection
• Marine grade 2-part epoxy coated PCB
• Muted turn on
• Cast aluminum heatsink
• 2-Year Warranty
• Marine grade stainless steel hardware

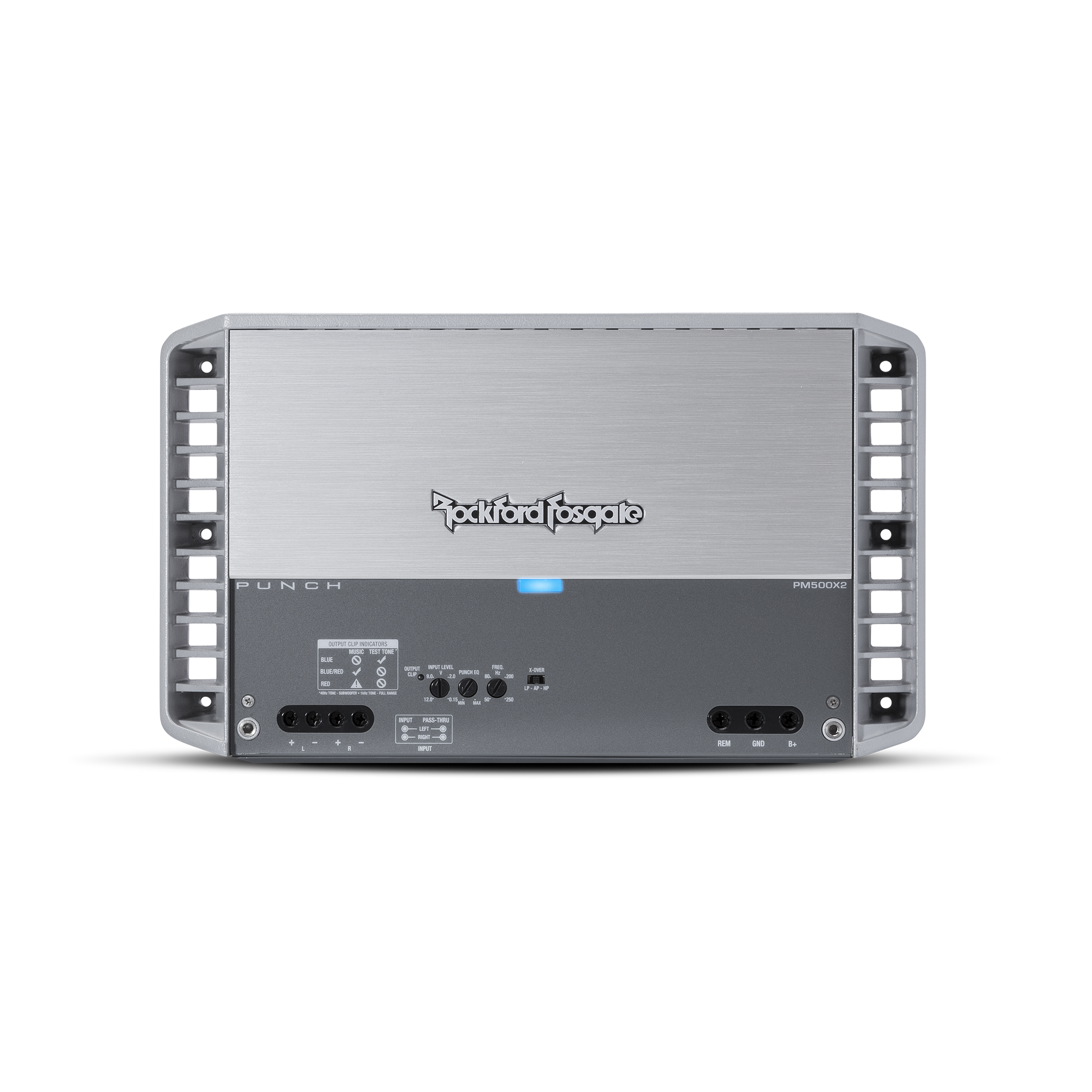

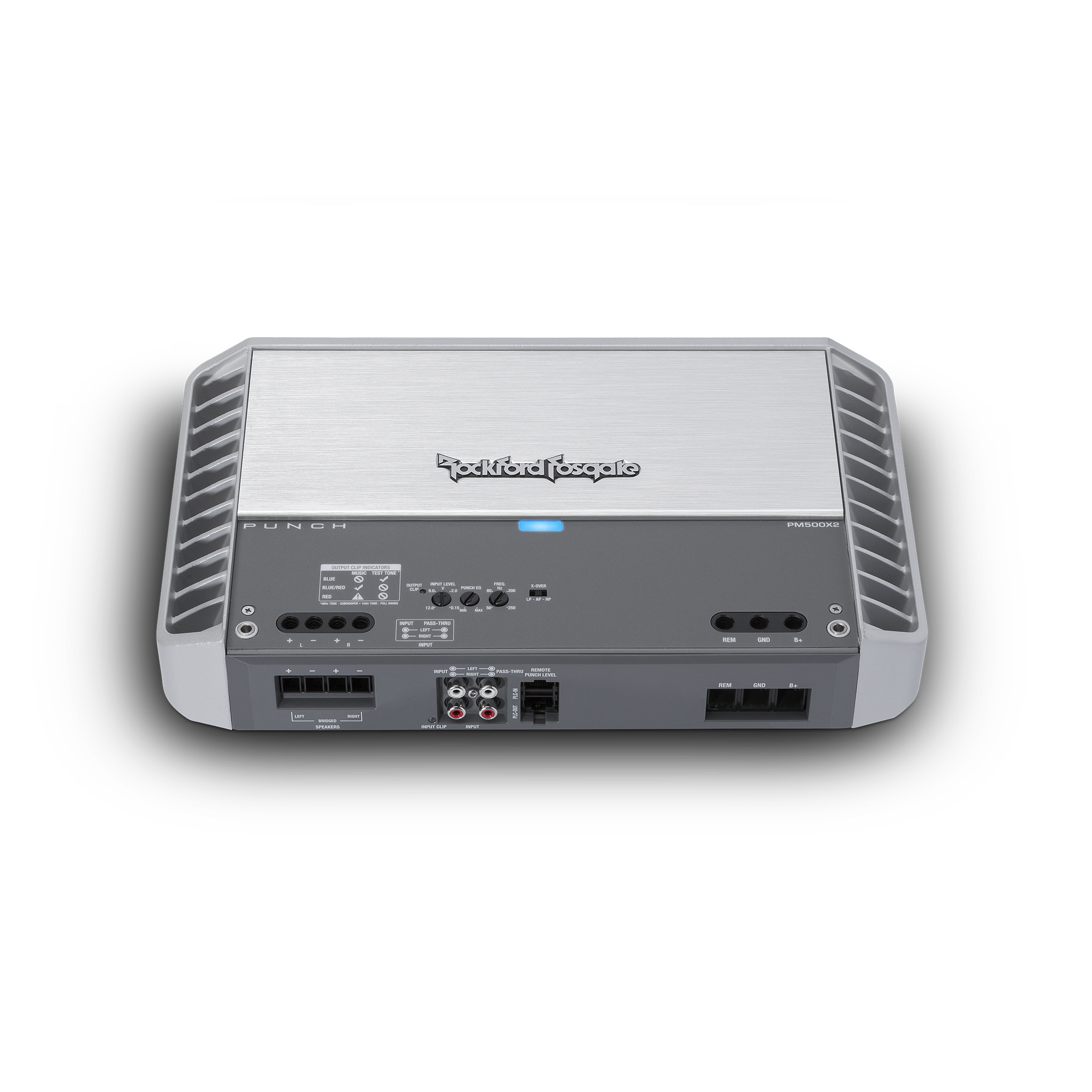

• Stealth top mounted control panel

Technologies

• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications

Input Sensitivity	150 mV - 12 V
Rated Power (RMS Continuous Power)	150 Watts x 2 @ 4-Ohm 250 Watts x 2 @ 2-Ohm 500 Watts x 1 @ 4-Ohm Bridged
Bridgeable	Yes
Number of Channels	2
Power Input Connector	Captive C-Clamp
Remote Controls	Optional Punch Level Control (PLC2) Ready
Speaker Output Connector	Captive C-Clamp
Heat Sink Type	Cast aluminum
Cooling	Convection
Frequency Response	20Hz to 20kHz +/- 1.0dB
Circuit Topology Class	Class A/B
Shipping Weight	12.3 lb. (5.57 Kg.)
Dynamic Power (PVC/PowerCube®)	223 Watts x 2 @ 4-Ohms 0° Res 365 Watts x 2 @ 2-Ohms 0° Res
Dimensions (H x W x D)	2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
Tone Controls	Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12kHz Function depends upon LP/AP/HP switch position
Recommended Fuse (not included)	80 A
Signal Input	Hi/Low level: 1 RCA pair
Operating Voltage	9 - 16 VDC
Signal Output	Low level: 1 RCA pair
Suggested Alternator	75 A
Power Wire Gauge	4 AWG
Speaker Wire Gauge	8 AWG to 18 AWG
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Average Current Draw (13.8V Music)	40 A
Max. Current Draw (13.8V Sinewave)	80 A
Crossover Controls	High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes
Total Power (Sum of Rated Power)	500 Watts
Efficiency (average)	73% @ 4-Ohm
CEA-2006 Compliant	CEA-2006 Power Rating 150W x 2 @ 4Ω ≤1.0% THD+N
