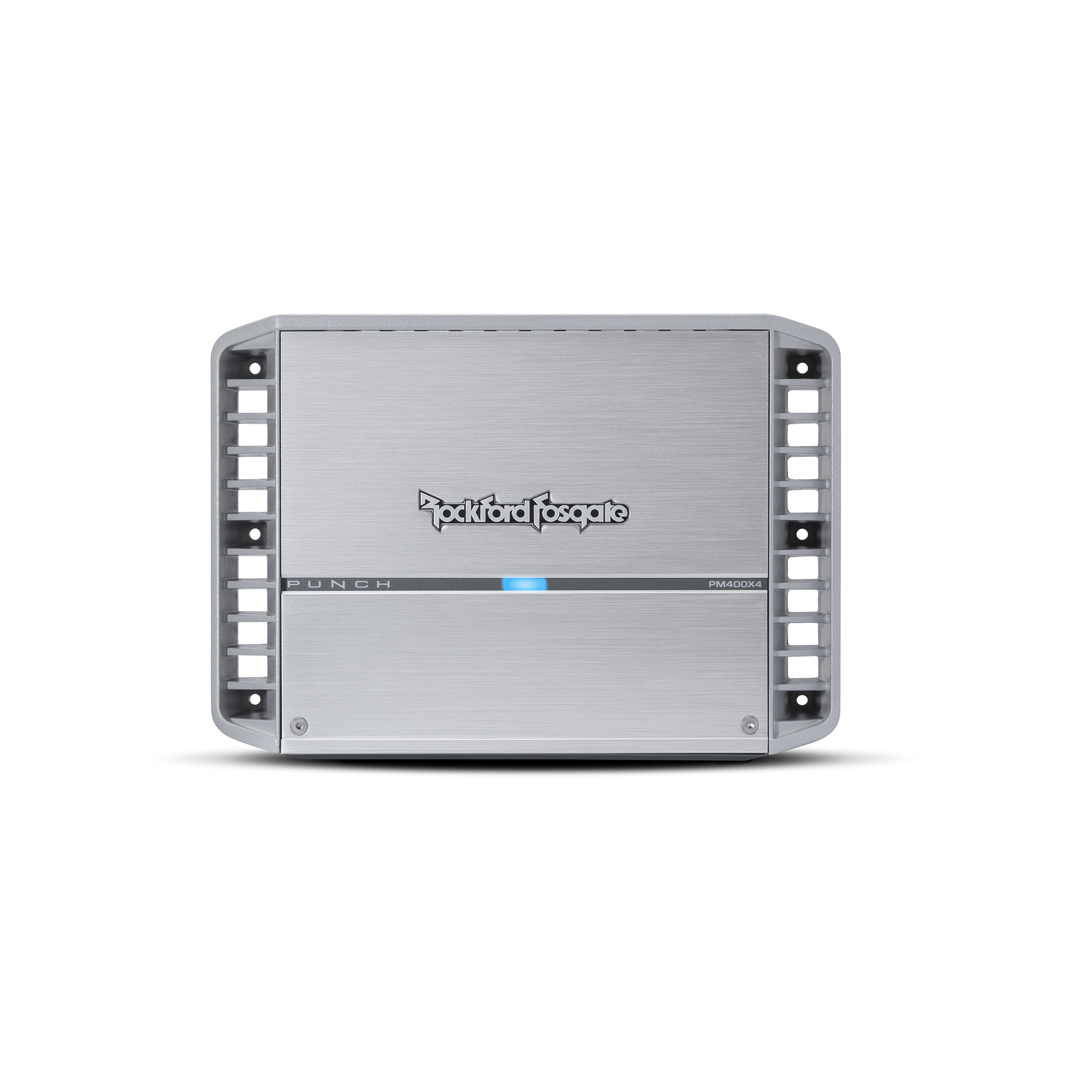

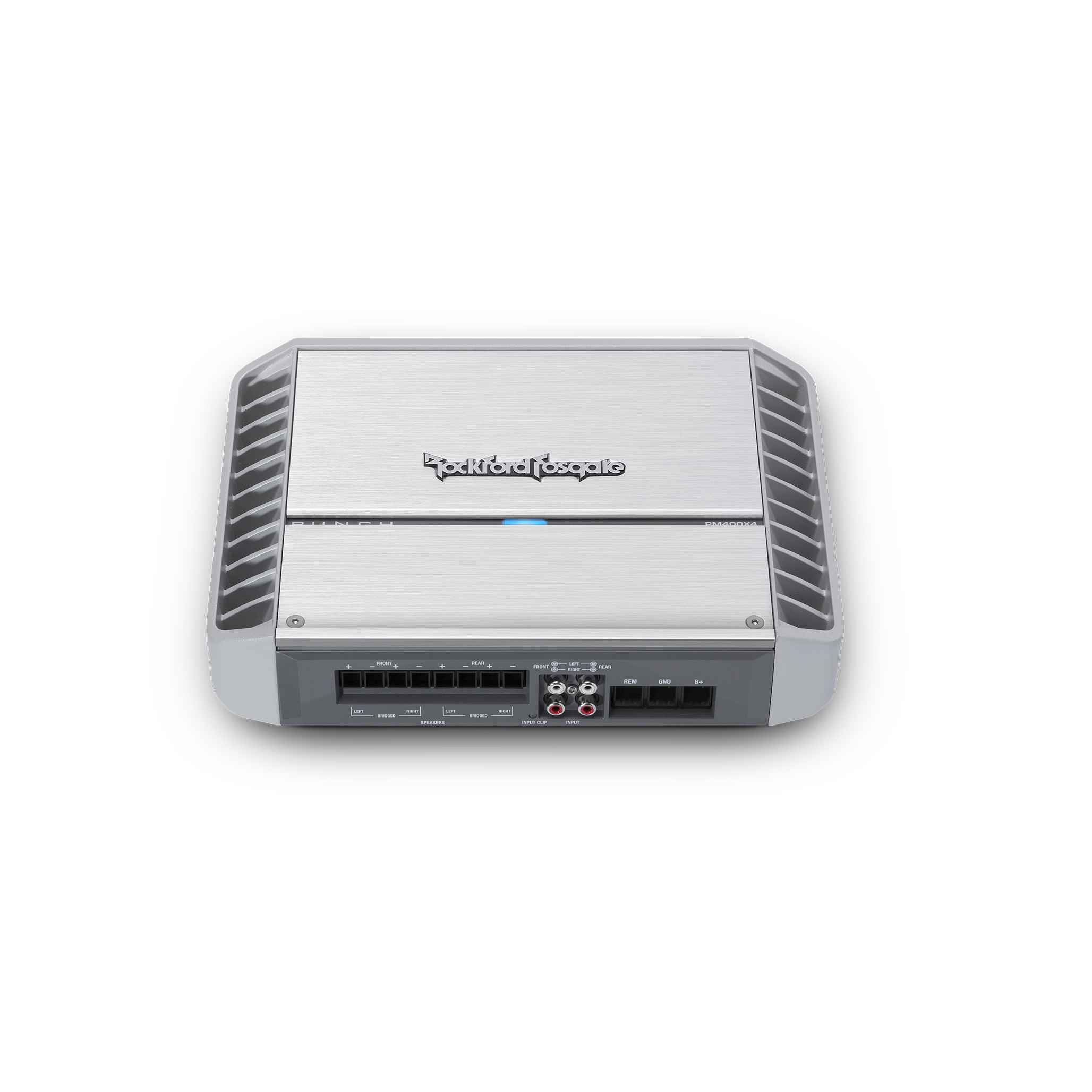

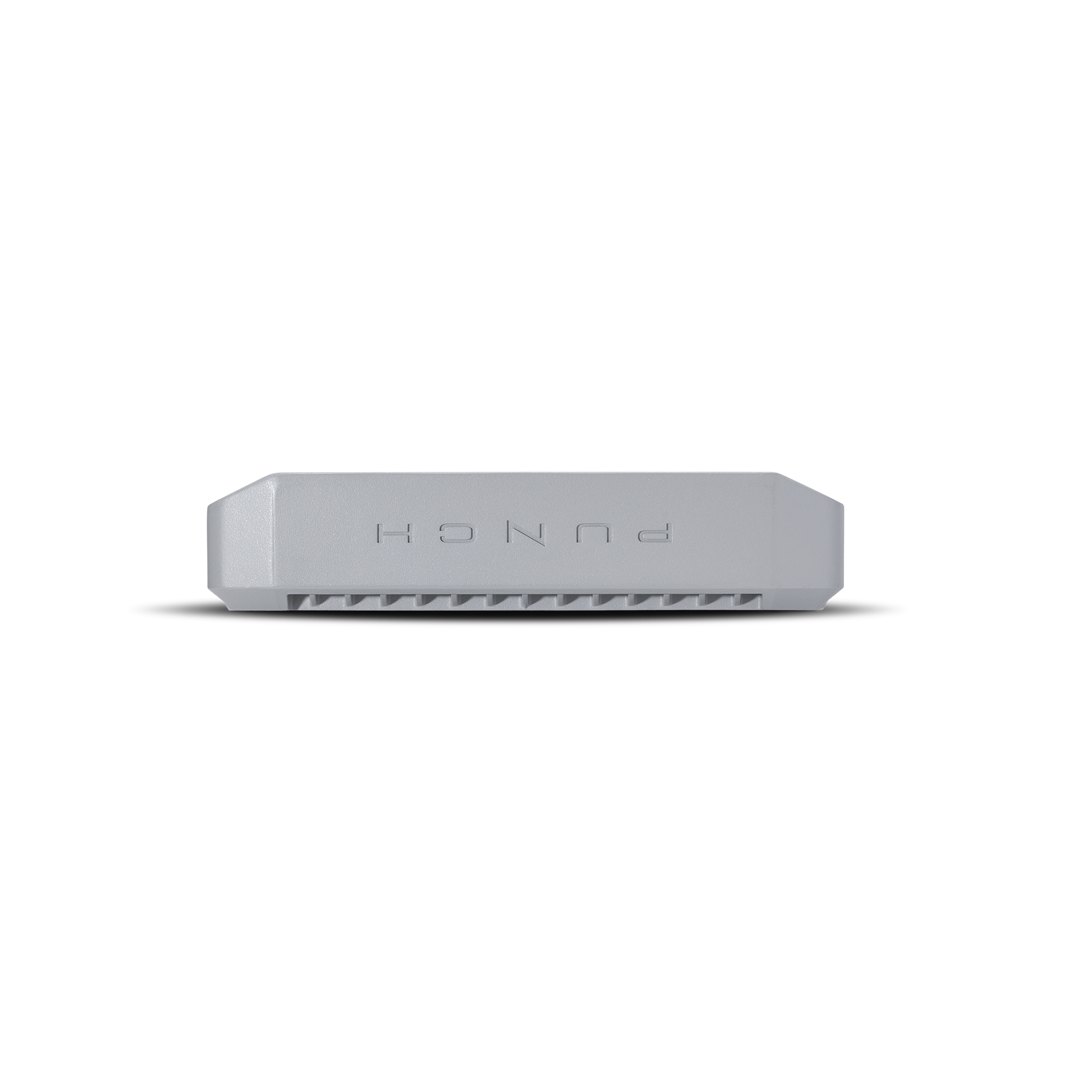

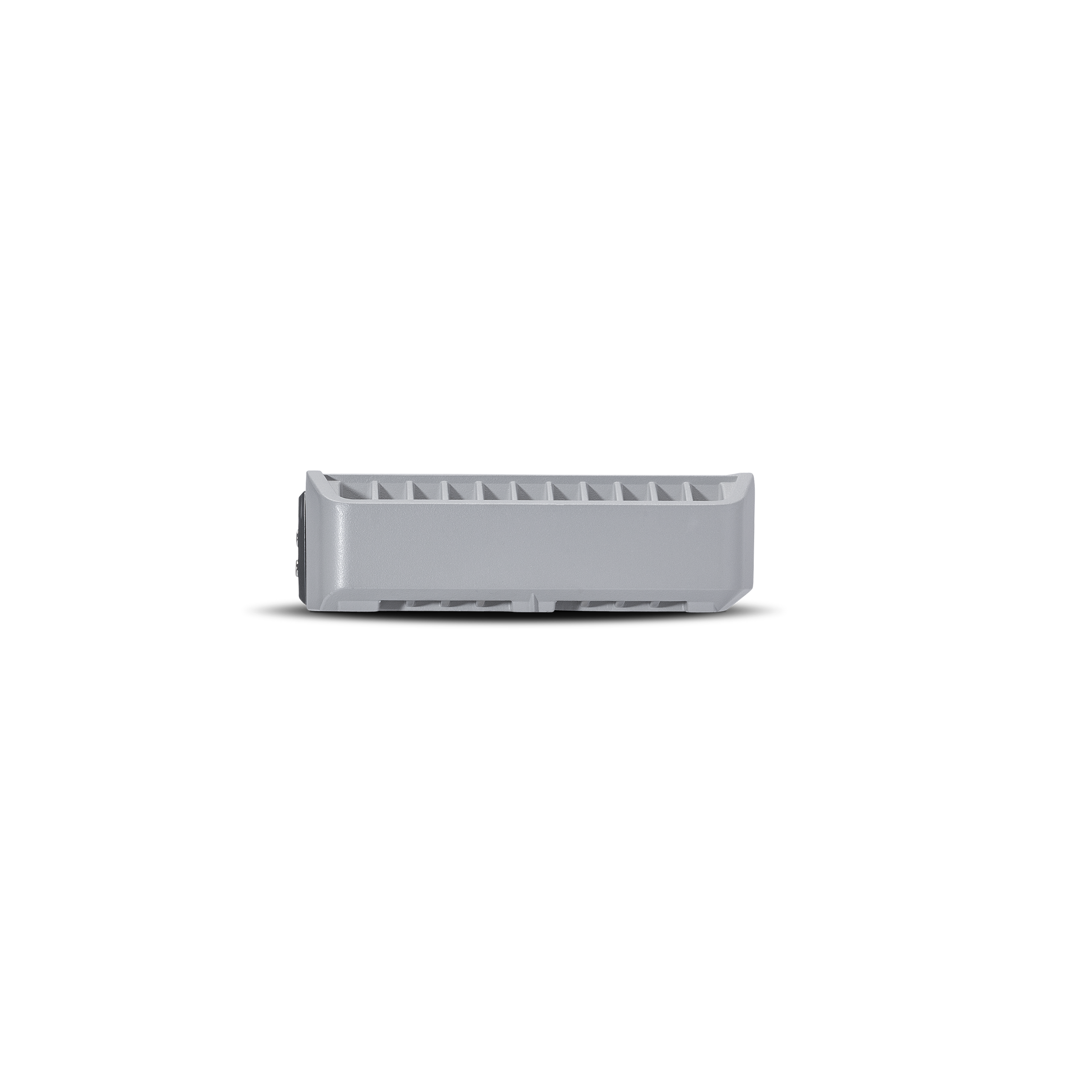

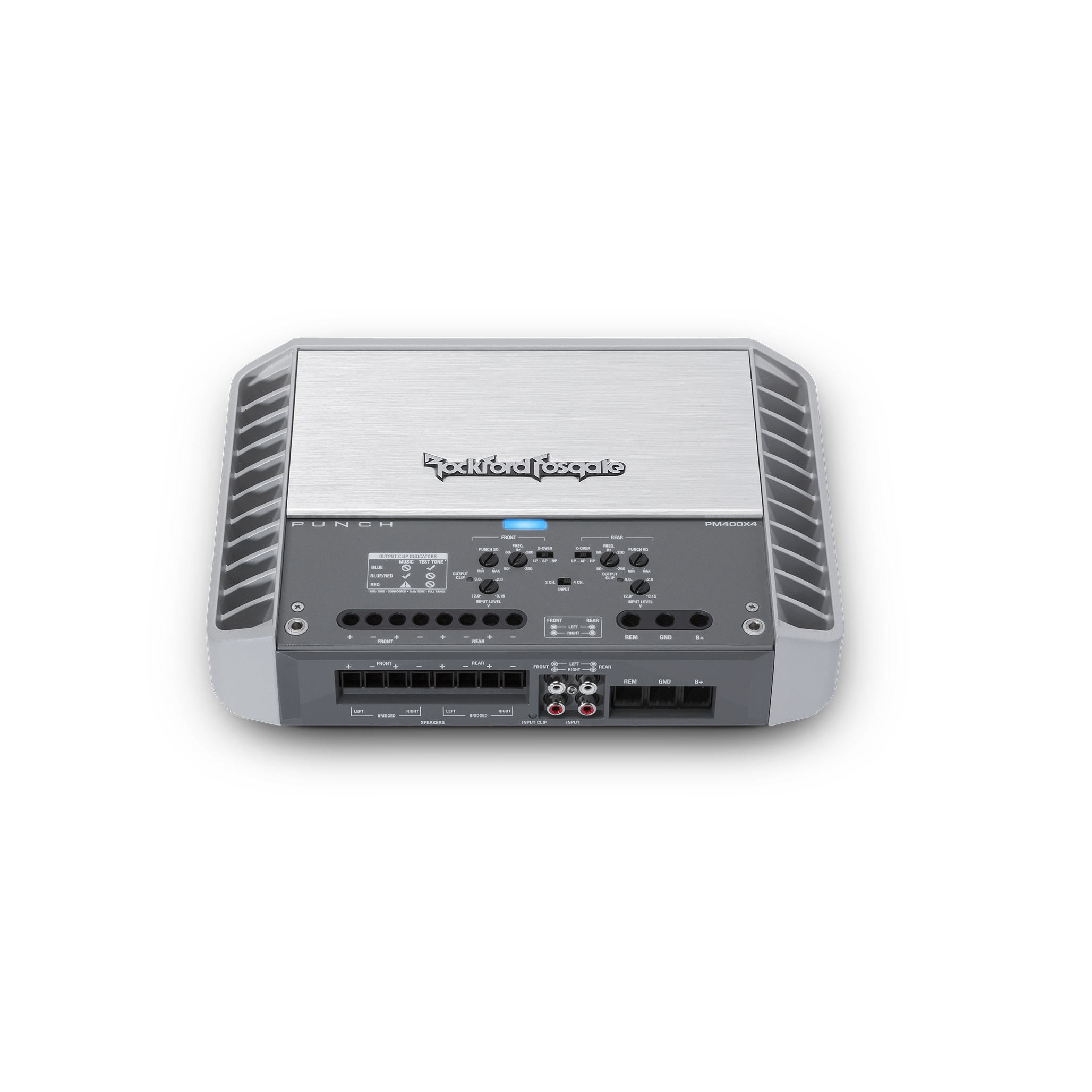

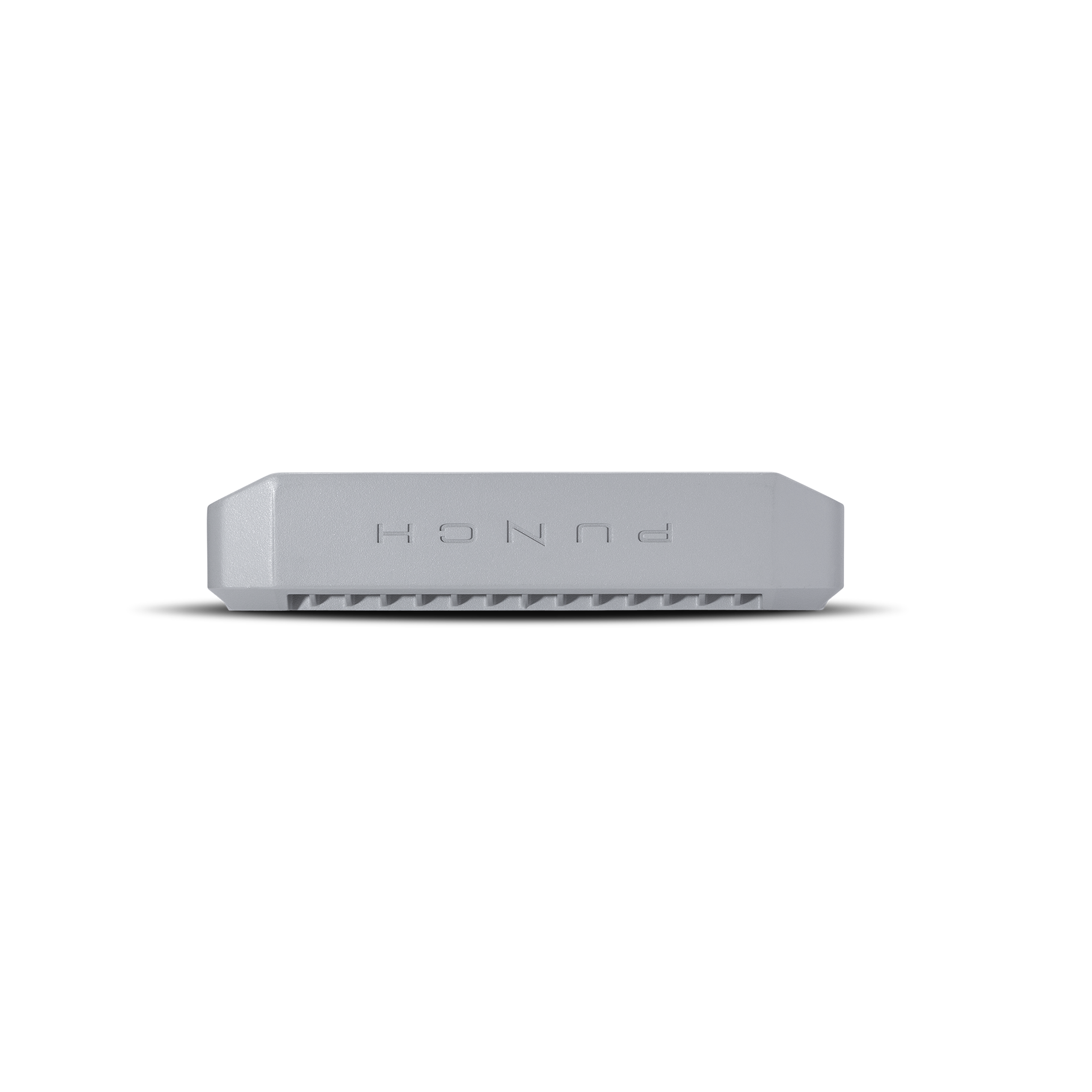

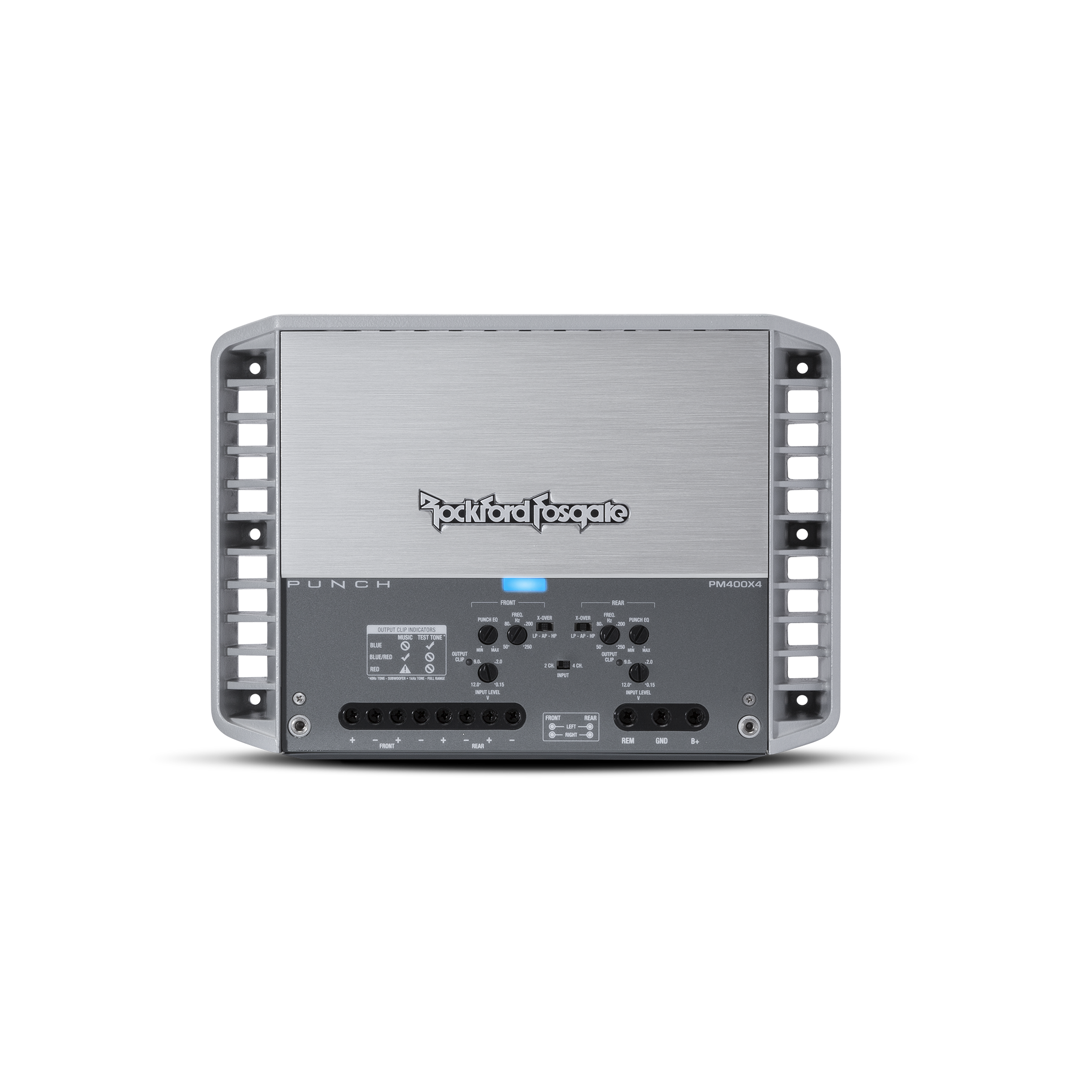

Punch Marine 400 Watt 4-Channel Amplifier

Overview

The PM400X4 is a 400-Watt 4-channel amplifier with high dynamic power using Class-A/B technology & a conformal coated PC board designed for motorsport & marine.

Features

• Features C.L.E.A.N. Set-up
• 12dB/octave Butterworth crossover
• Over current protection
• Muted turn on
• On-board Punch EQ with +18dB boost @ 45Hz
• High level input capable with Auto Turn-On circuit
• Cast aluminum heatsink

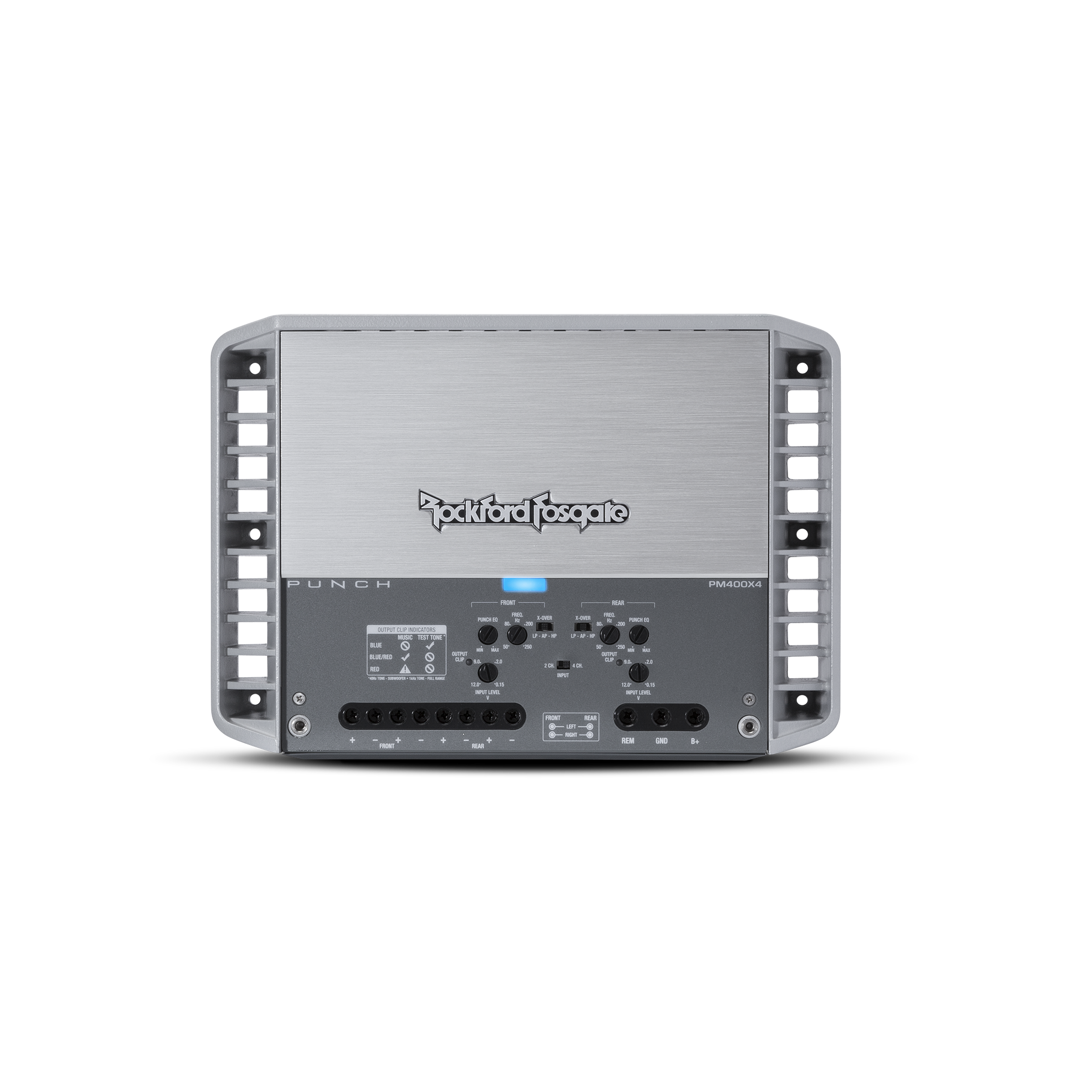

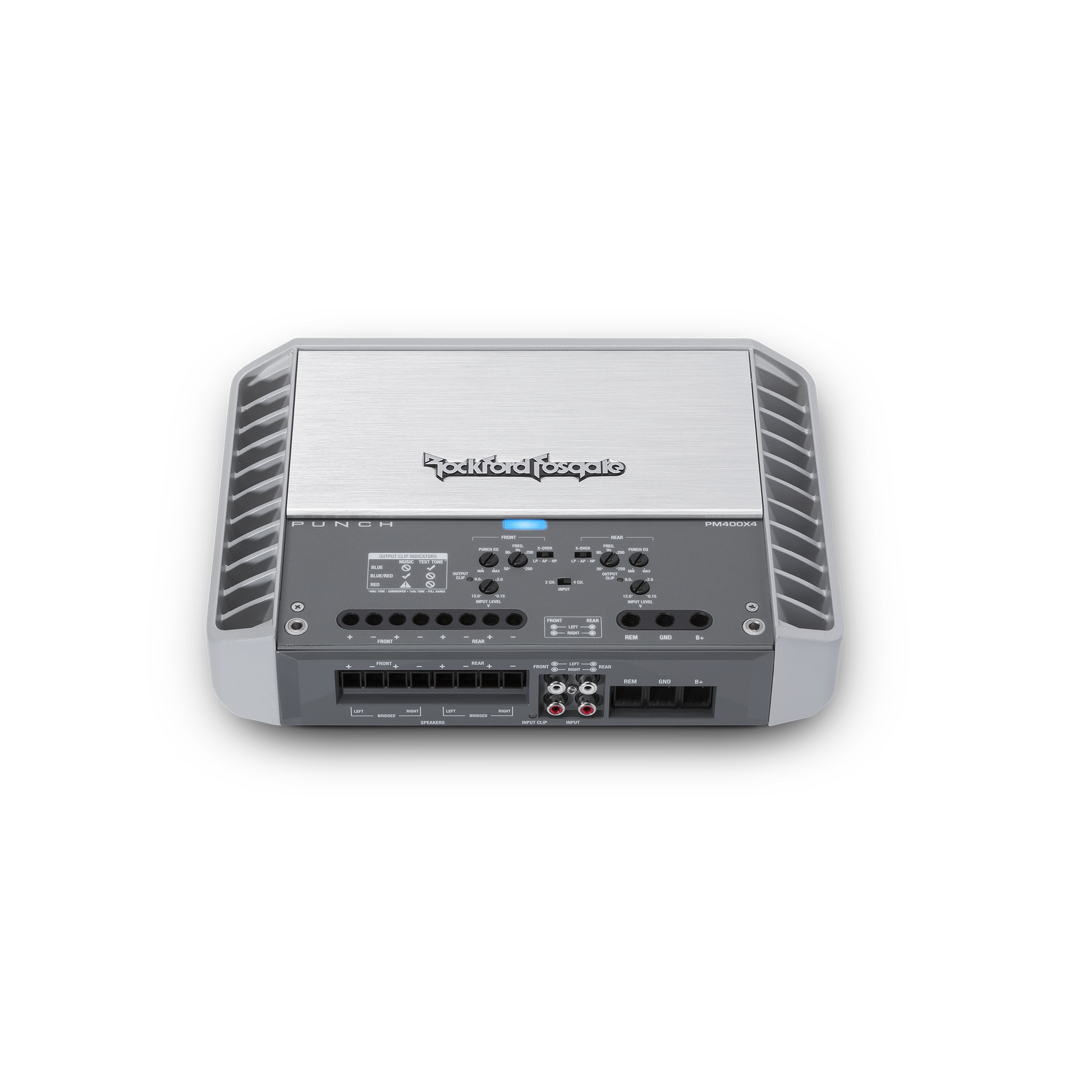

• Stealth top mounted control panel
• Short circuit protection
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• 2-Year Warranty

Technologies

• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications

Recommended Fuse (not included)	60 A
Average Current Draw (13.8V Music)	30 A
Max. Current Draw (13.8V Sinewave)	60 A
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Number of Channels	4
CEA-2006 Compliant	CEA-2006 Power Rating 50W x 4 @ 4Ω ≤1.0% THD+N
Efficiency (average)	67% @ 4-Ohm
Dynamic Power (PVC/PowerCube®)	82 Watts x 4 @ 4-Ohm 137 Watts x 4 @ 2-Ohm 266 Watts x 2 @ 4-Ohm Bridged
Shipping Weight	10.8 lb. (4.89 Kg.)
Operating Voltage	9 - 16 VDC
Crossover Controls	Front High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth Rear High-Pass/Low-Pass (HP/LP): 50Hz-250Hz @ 12dB/octave Butterworth All-Pass: Yes
Input Sensitivity	150 mV - 12 V
Rated Power (RMS Continuous Power)	50 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged
Suggested Alternator	75 A
Total Power (Sum of Rated Power)	400 Watts
Bridgeable	Yes
Tone Controls	Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Front Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Rear Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP/AP/HP switch position
Speaker Wire Gauge	8 AWG to 18 AWG
Signal Output	-

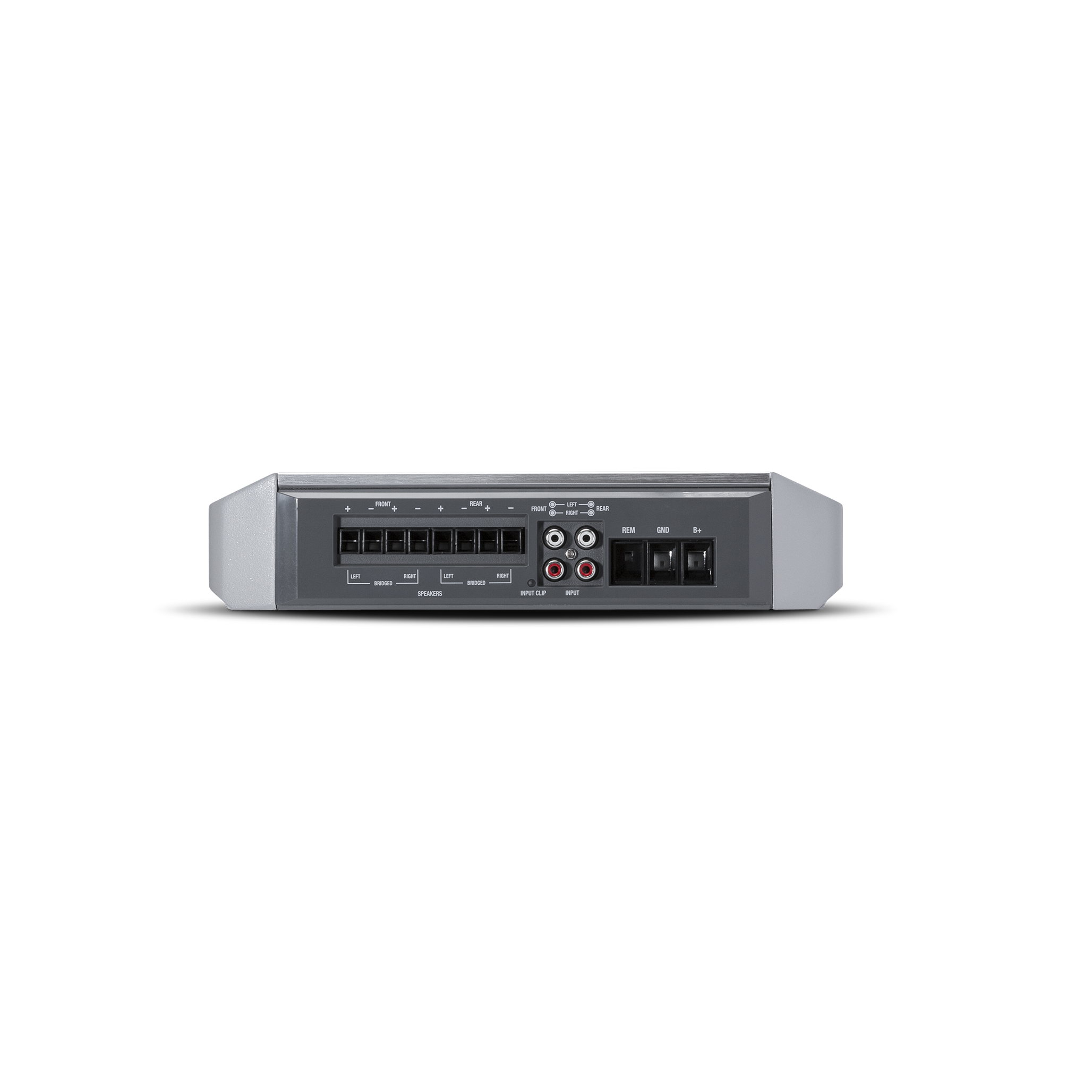

Signal Input	Hi/Low level: 2 RCA pair
Power Wire Gauge	8 AWG to 4 AWG
Speaker Output Connector	Captive C-Clamp
Remote Controls	-
Power Input Connector	Captive C-Clamp
Heat Sink Type	Cast aluminum
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Cooling	Convection
Frequency Response	20Hz to 20kHz +/- 1.0dB
Circuit Topology Class	Class A/B
Dimensions (H x W x D)	2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm)
