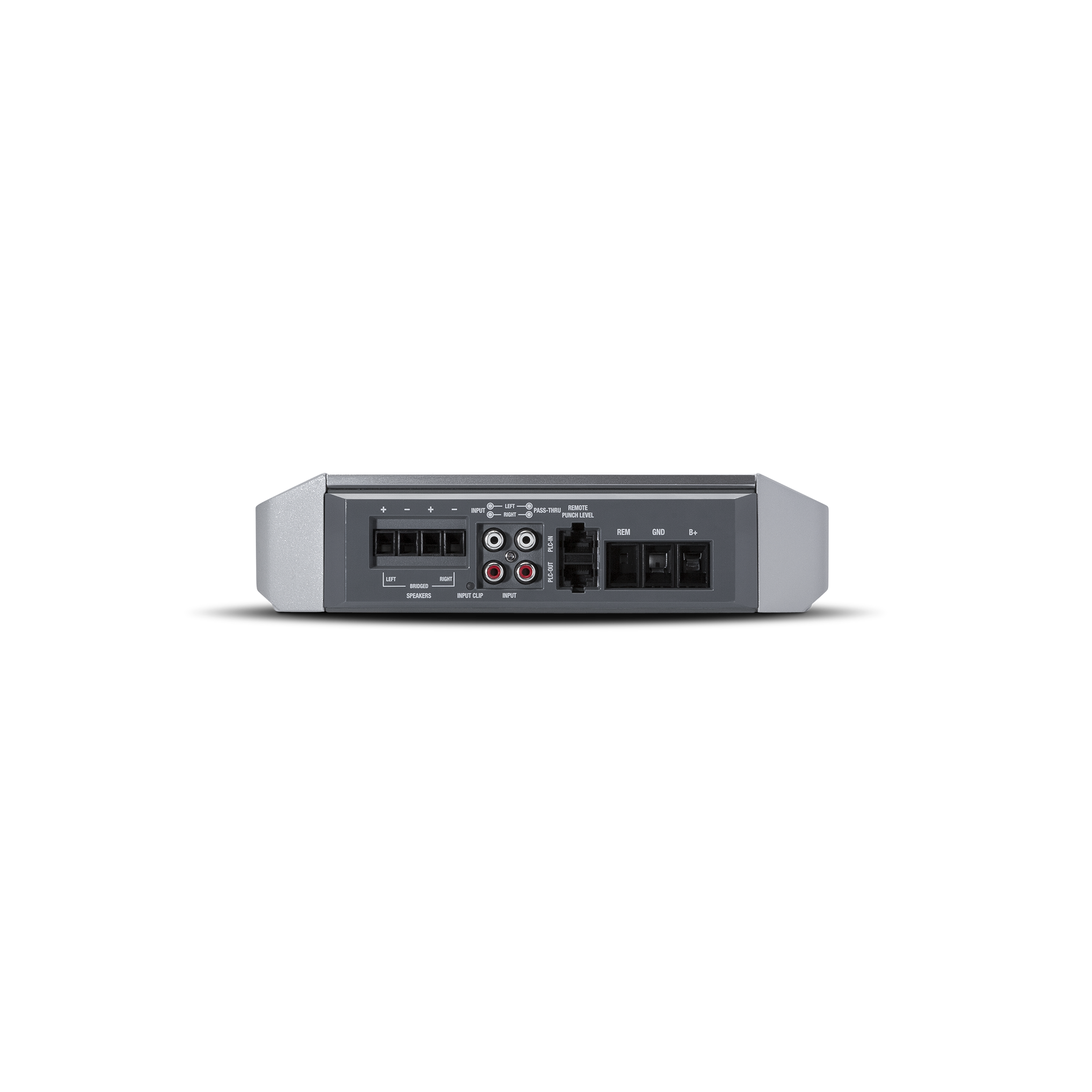

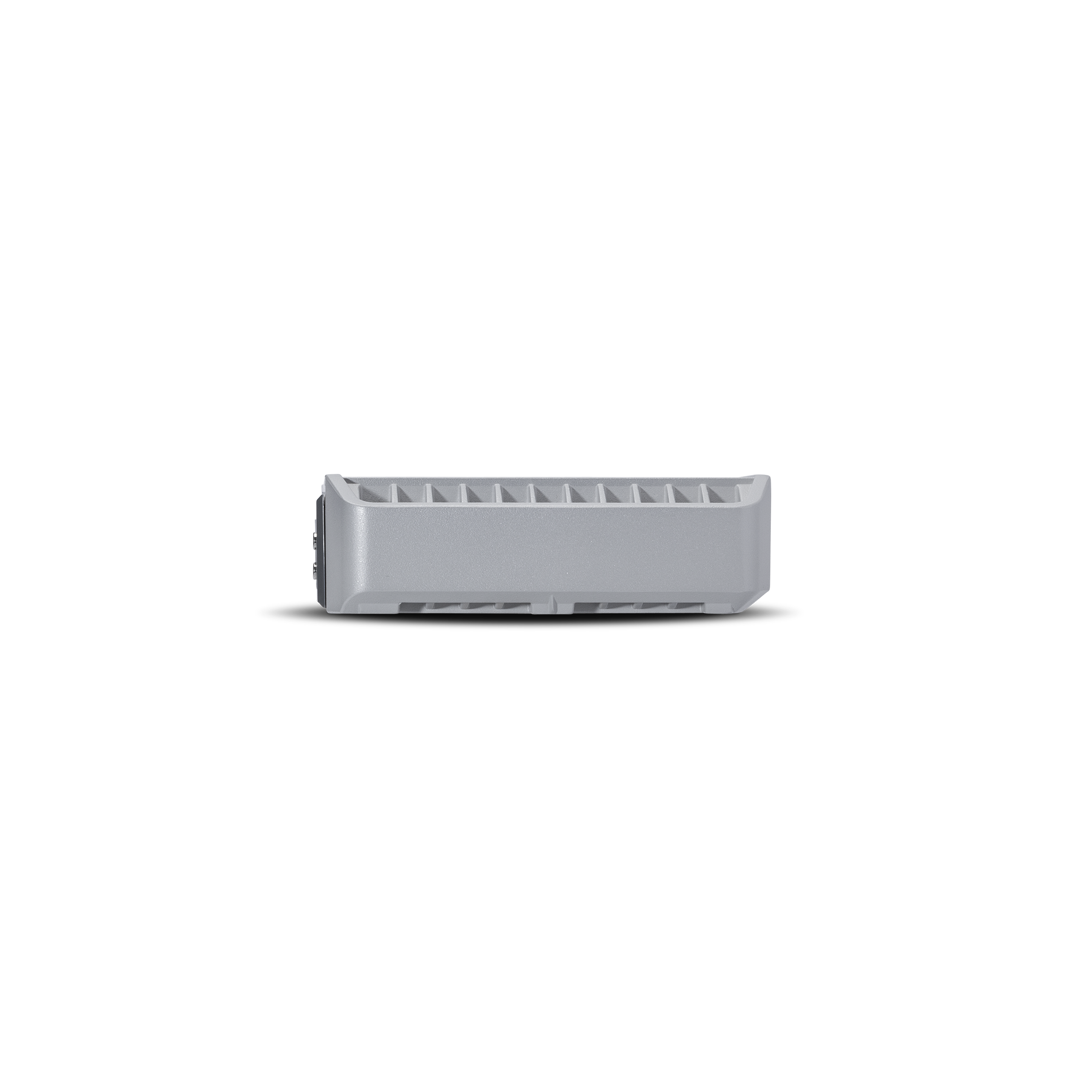

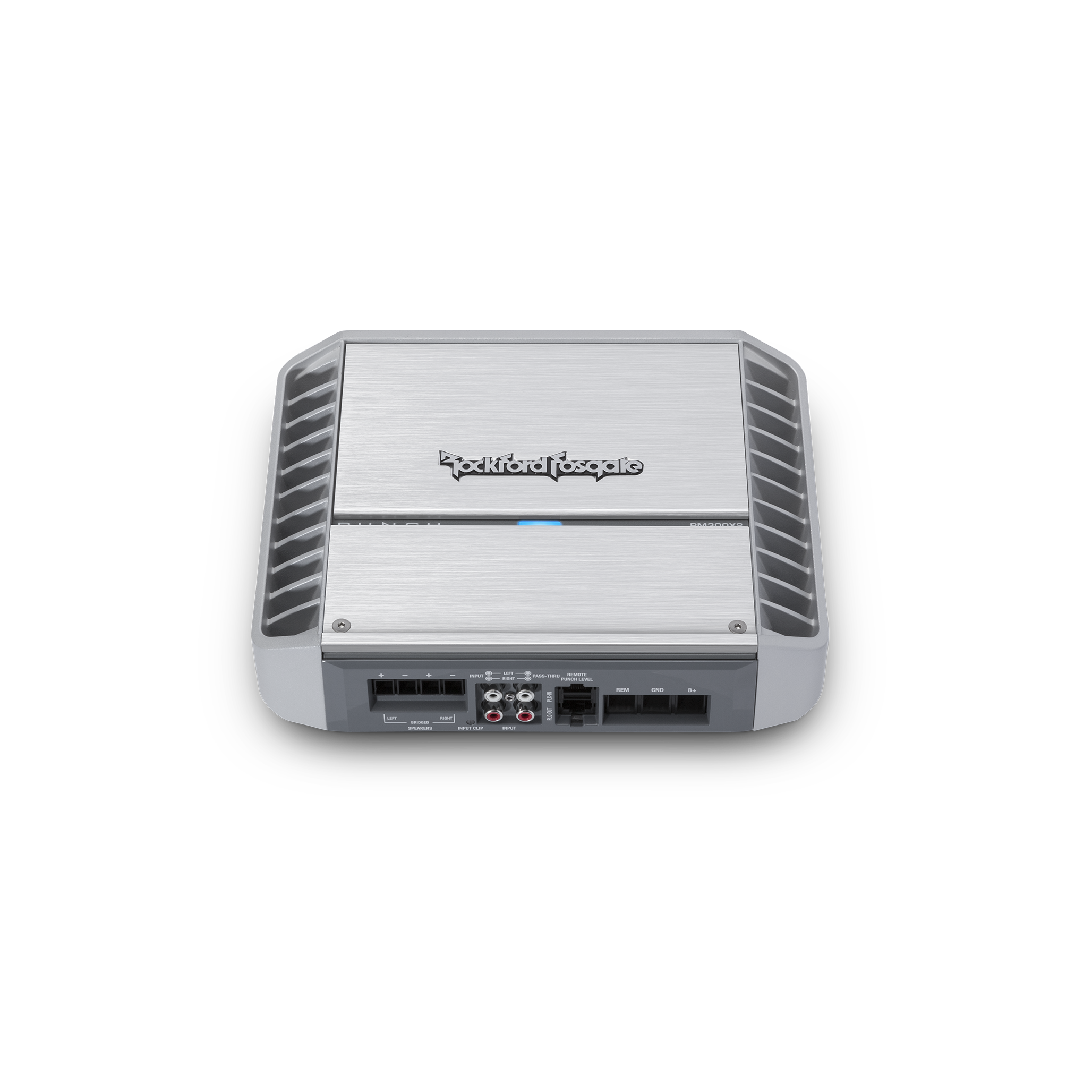

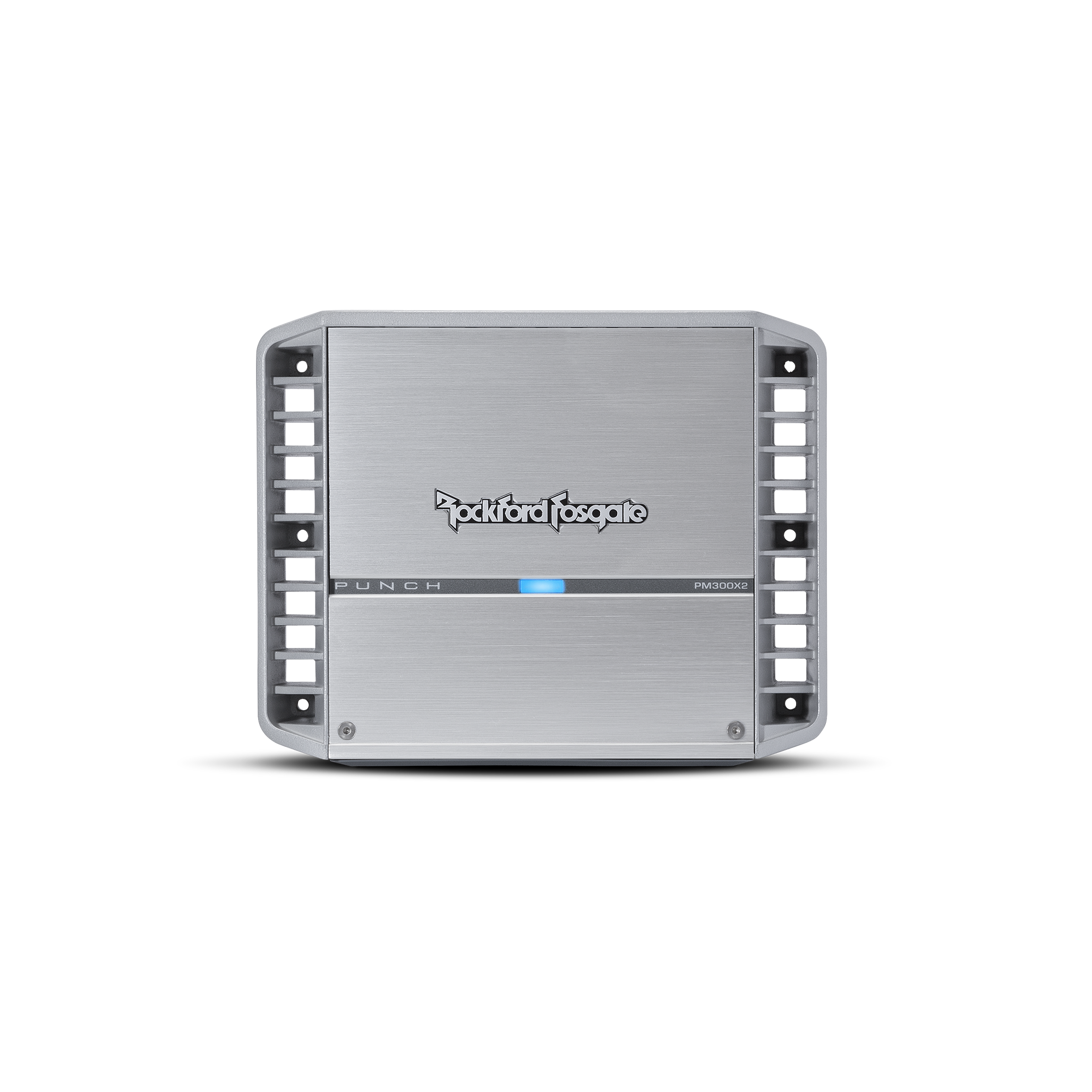

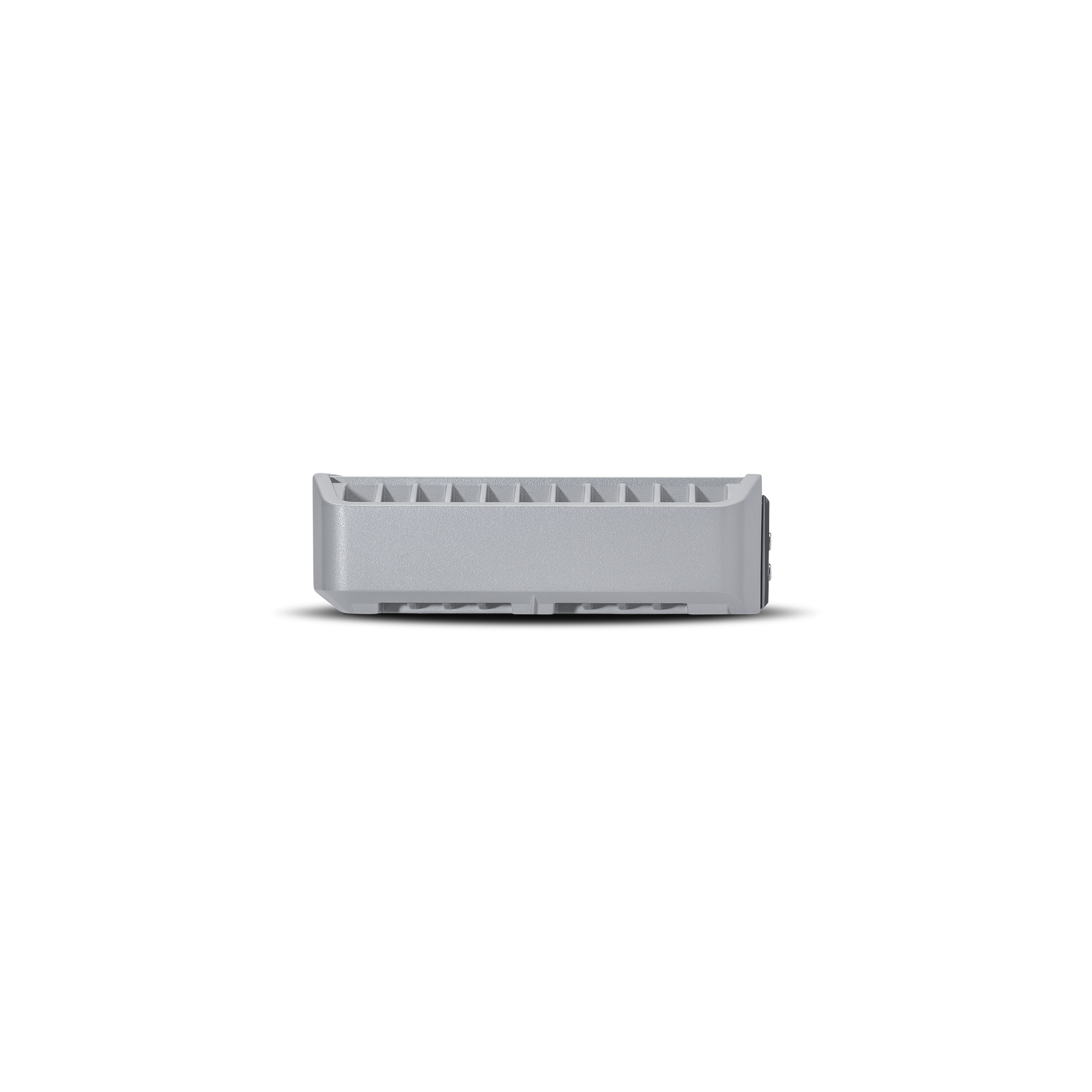

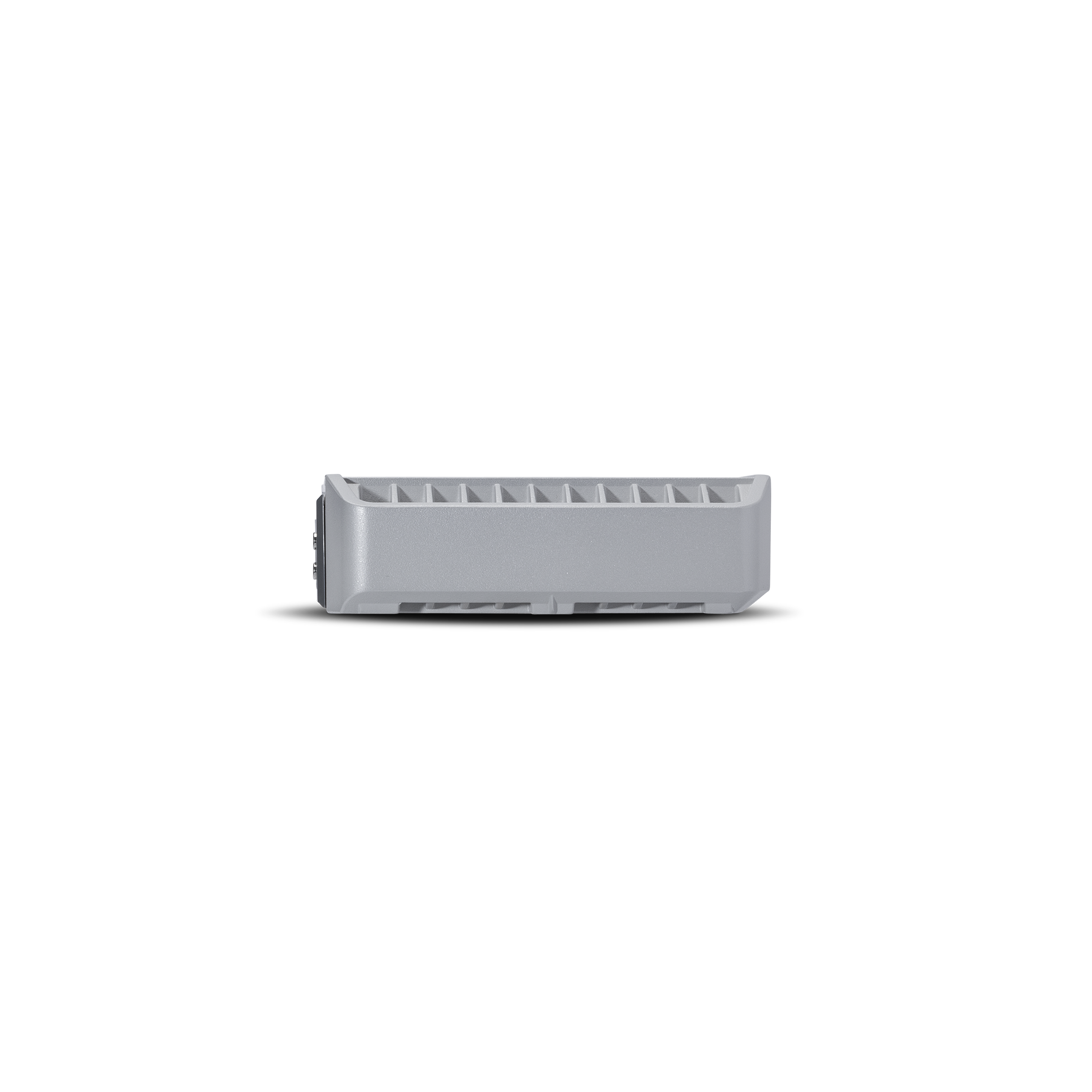

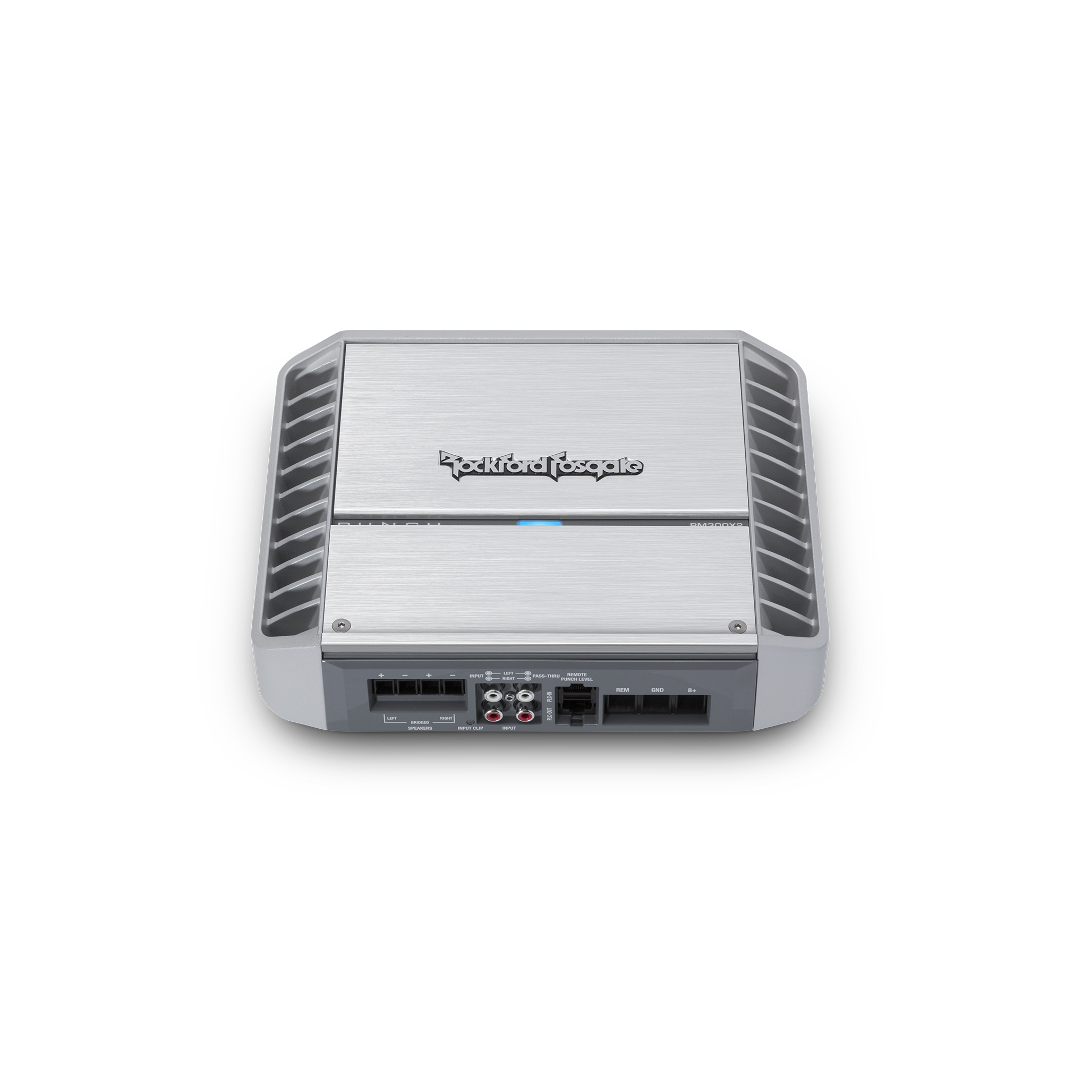

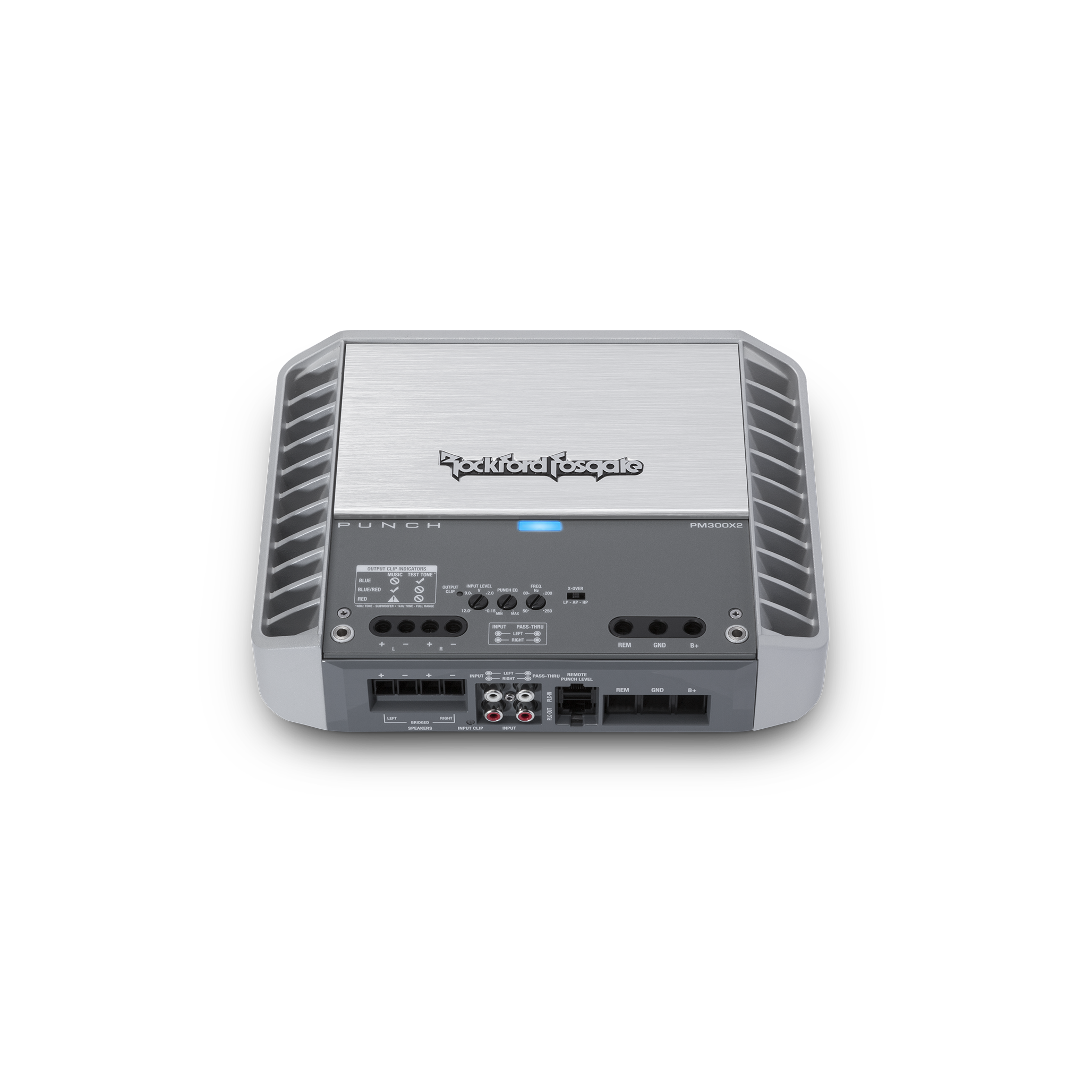

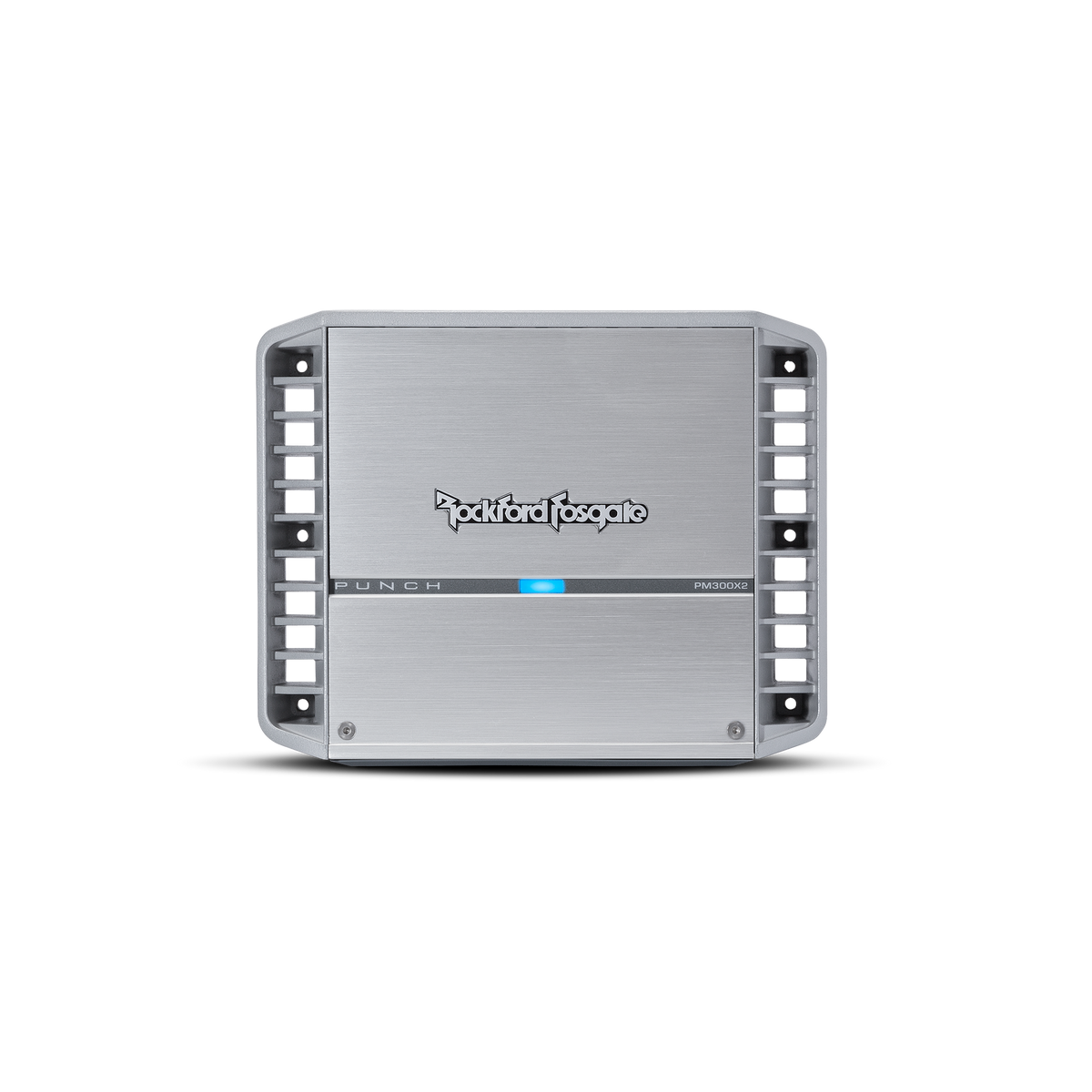

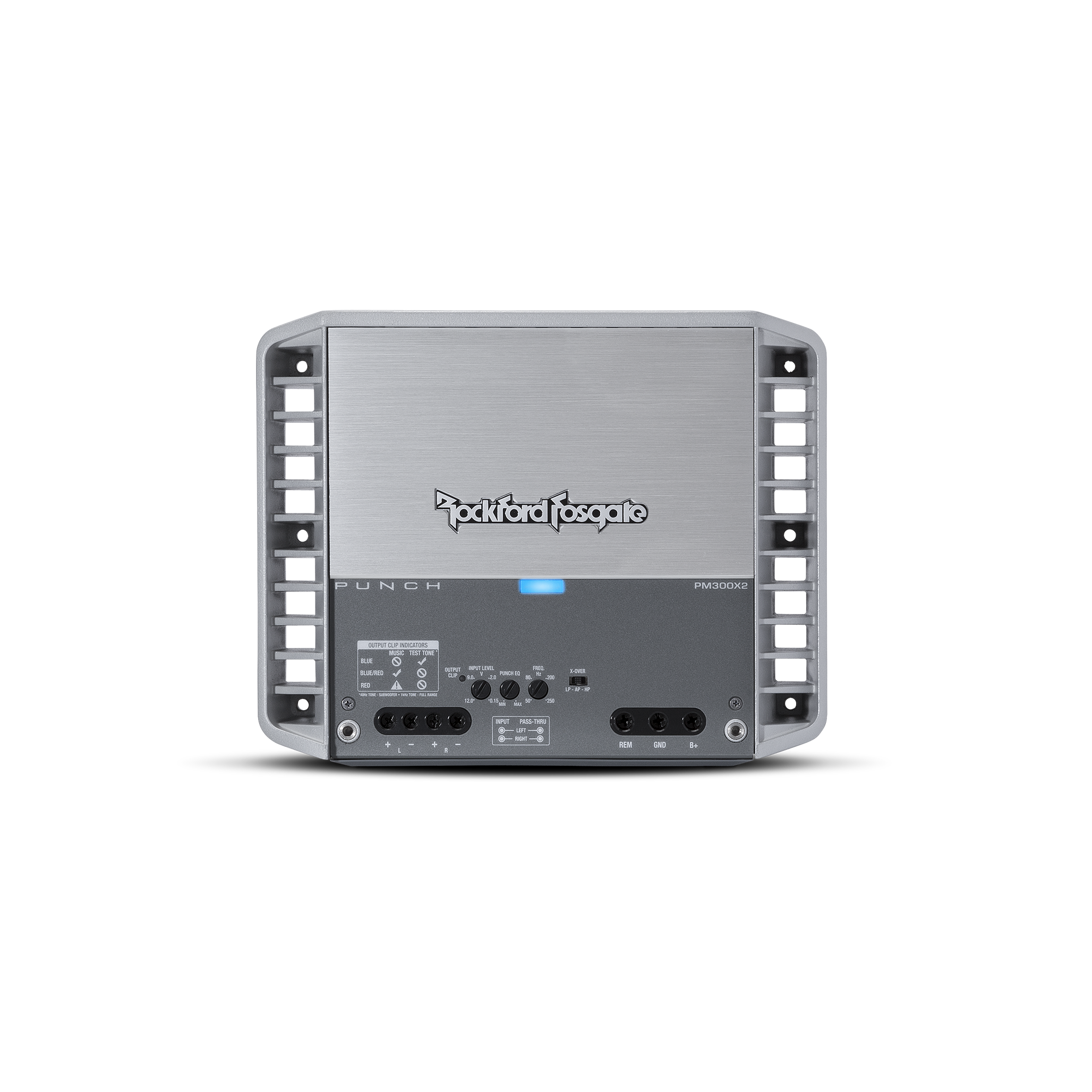

Punch Marine 300 Watt 2-Channel Amplifier

Overview

The PM300X2 300-Watt 2-channel amplifier with high dynamic power using Class-a/b technology & conformal coated PC board for motorsport & marine applications.

Features

• Features C.L.E.A.N. Set-up
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• High level input capable with Auto Turn-On circuit
• Cast aluminum heatsink
• 2-Year Warranty
• Over current protection
• 12dB/octave Butterworth crossover
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• Muted turn on
• Short circuit protection

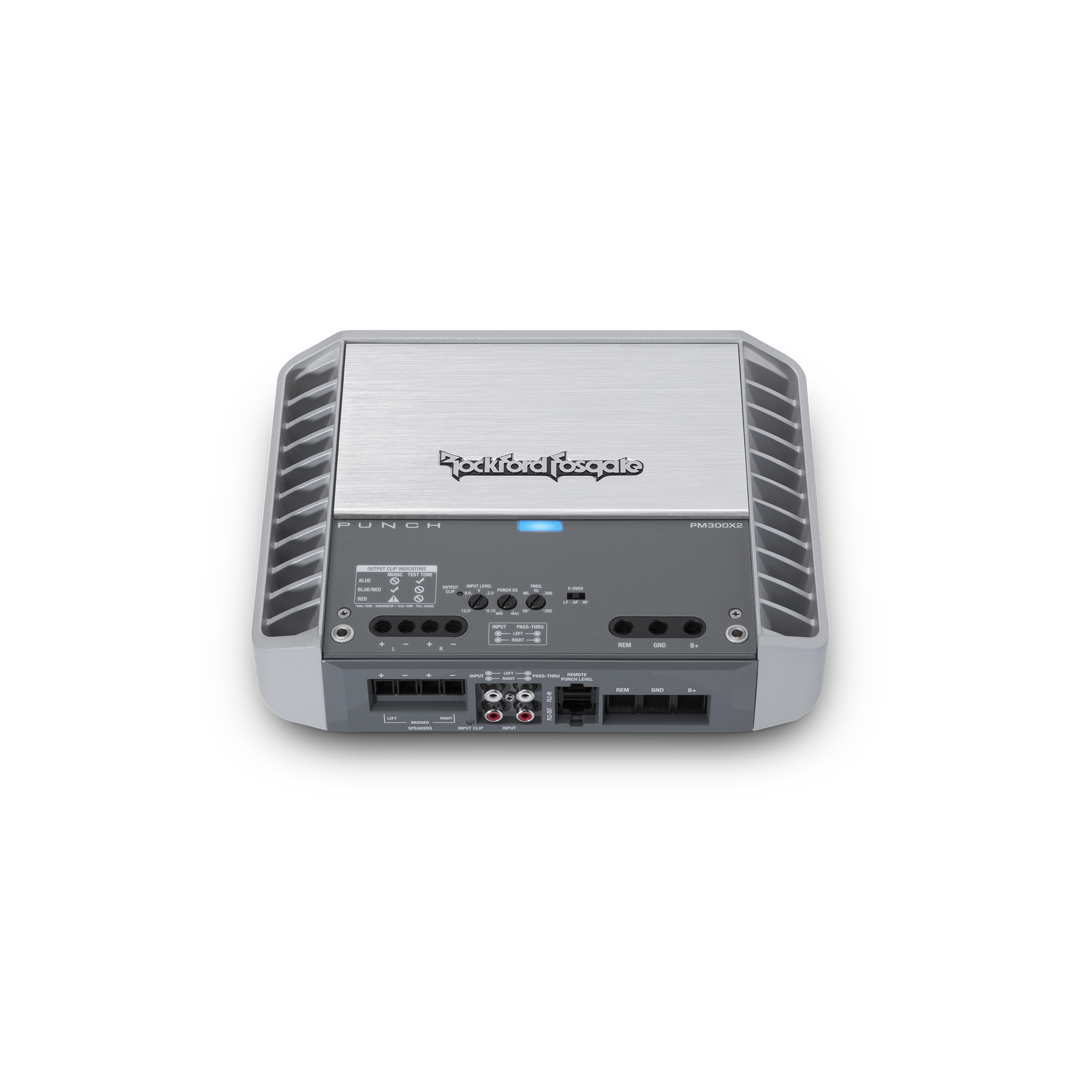

• Stealth top mounted control panel

Technologies

• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Specifications

Input Sensitivity	150 mV - 12 V
Recommended Fuse (not included)	50 A
Operating Voltage	9 - 16 VDC
Speaker Output Connector	Captive C-Clamp
Suggested Alternator	75 A
Bridgeable	Yes
Crossover Controls	High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes
CEA-2006 Compliant	CEA-2006 Power Rating 100W x 2 @ 4Ω ≤1.0% THD+N
Signal Output	Low Level: 1 RCA Pair
Power Input Connector	Captive C-Clamp
Signal Input	Hi/Low Level: 1 RCA Pair
Cooling	Convection
Speaker Wire Gauge	8 AWG to 18 AWG
Remote Controls	Optional Punch Level Control (PLC2) Ready
Dimensions (H x W x D)	2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm)
Max. Current Draw (13.8V Sinewave)	45 A
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Dynamic Power (PVC/PowerCube®)	120 Watts x 2 @ 4-Ohms 0° Res 203 Watts x 2 @ 2-Ohms 0° Res
Rated Power (RMS Continuous Power)	100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged
Number of Channels	2
Total Power (Sum of Rated Power)	300 Watts
Tone Controls	0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz
Power Wire Gauge	8 AWG to 4 AWG
Heat Sink Type	Die Cast Aluminum
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Circuit Topology Class	Class A/B
Frequency Response	20Hz-20kHz
Shipping Weight	9.5 lb. (4.3 Kg.)
Efficiency (average)	69% @ 4-Ohm
Average Current Draw (13.8V Music)	23 A
