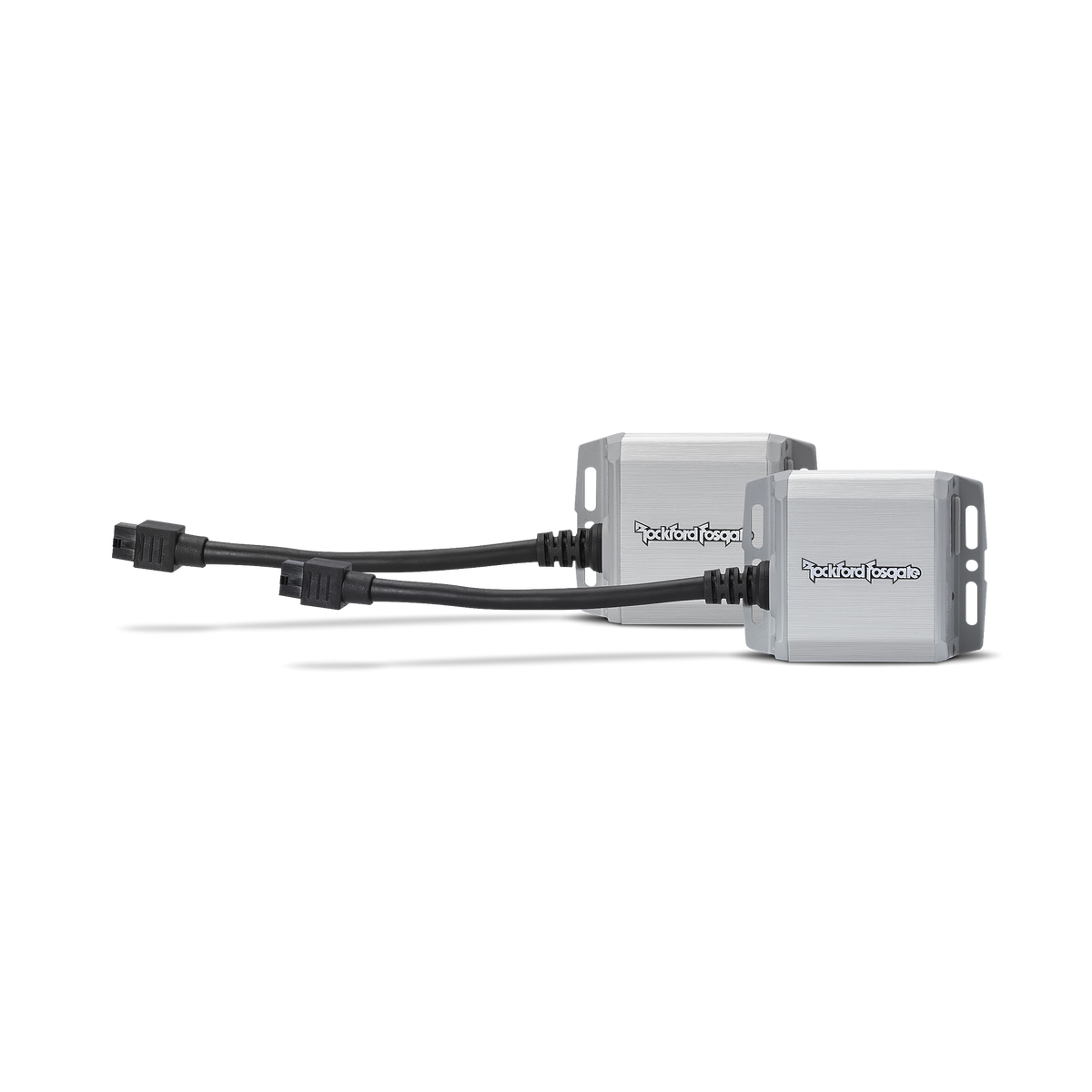

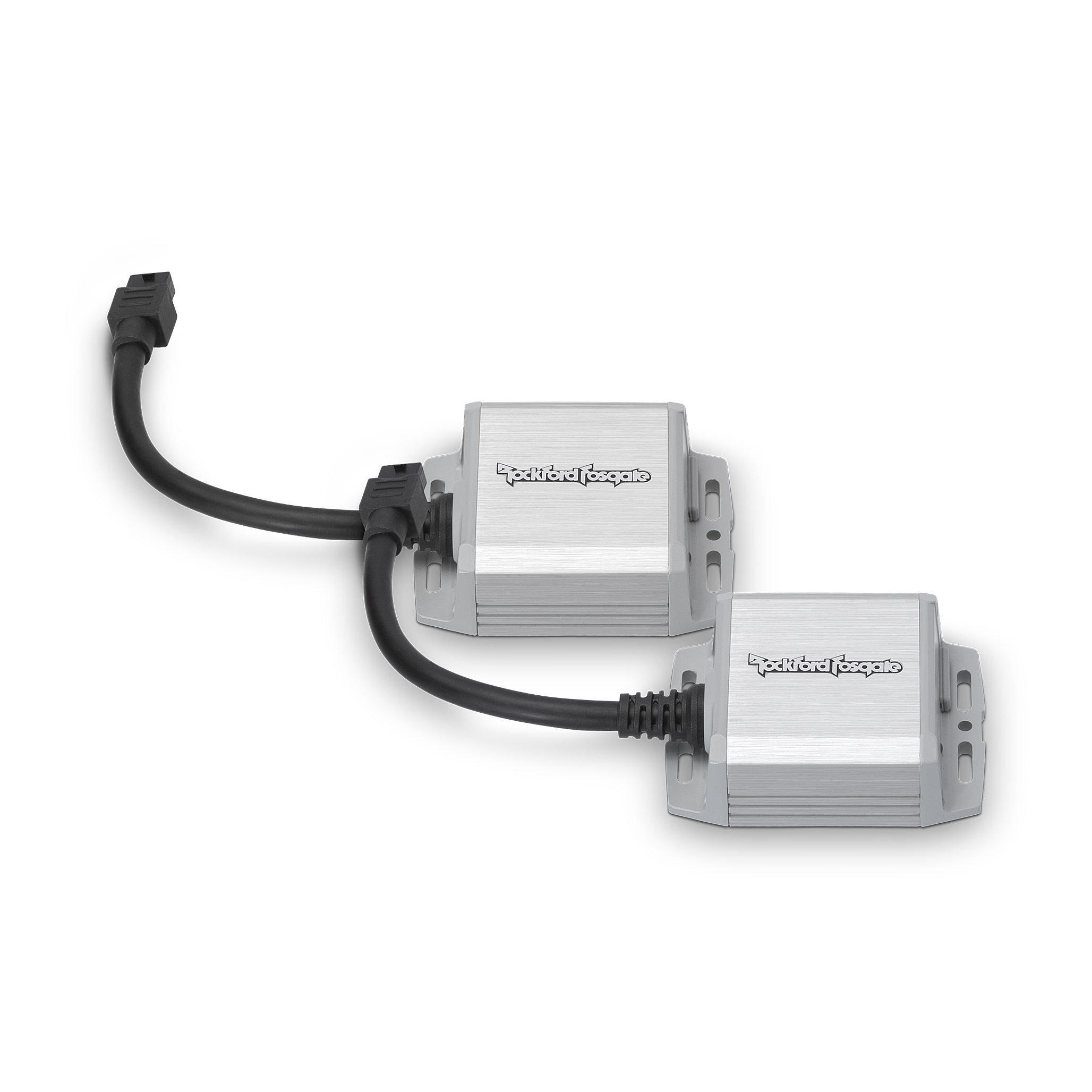

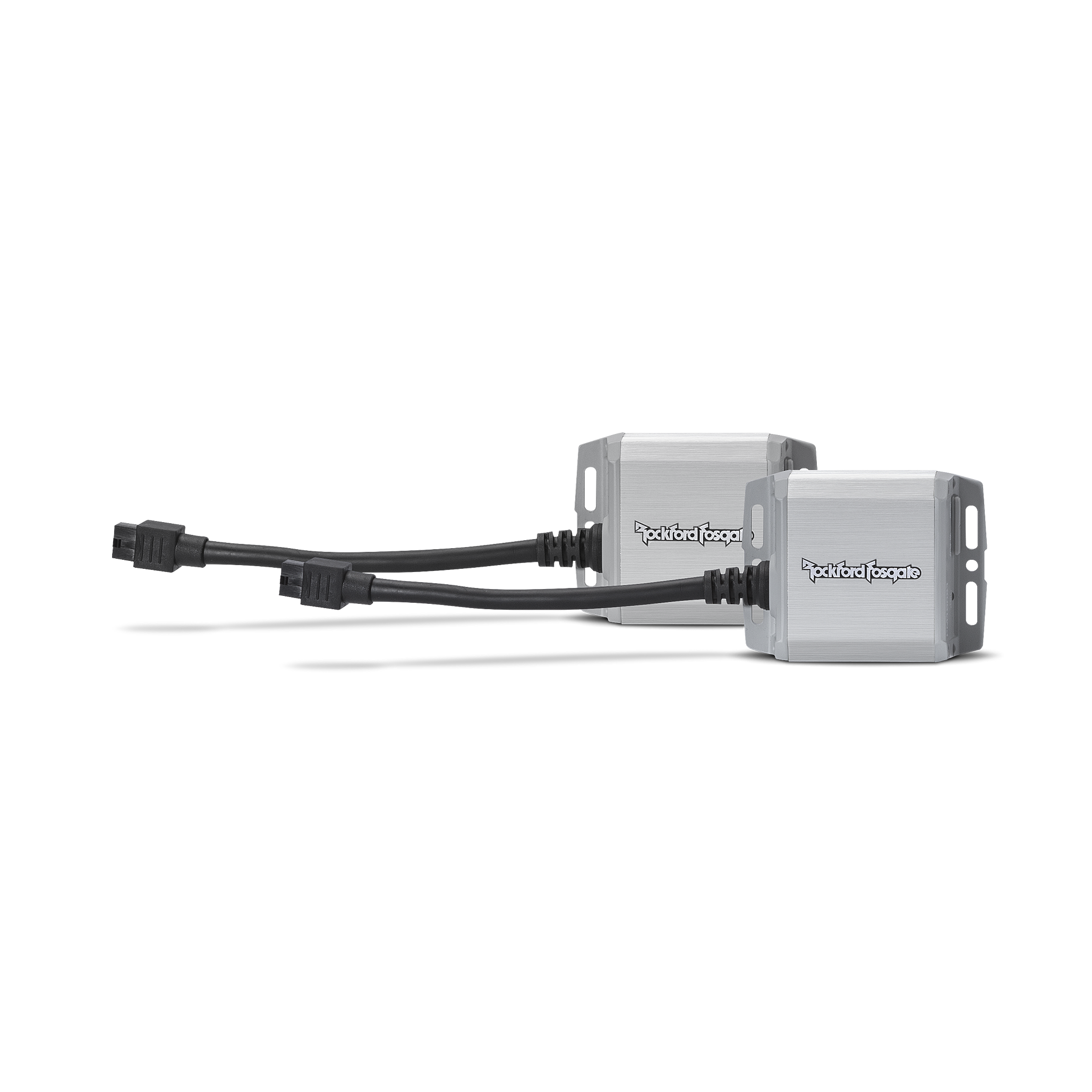

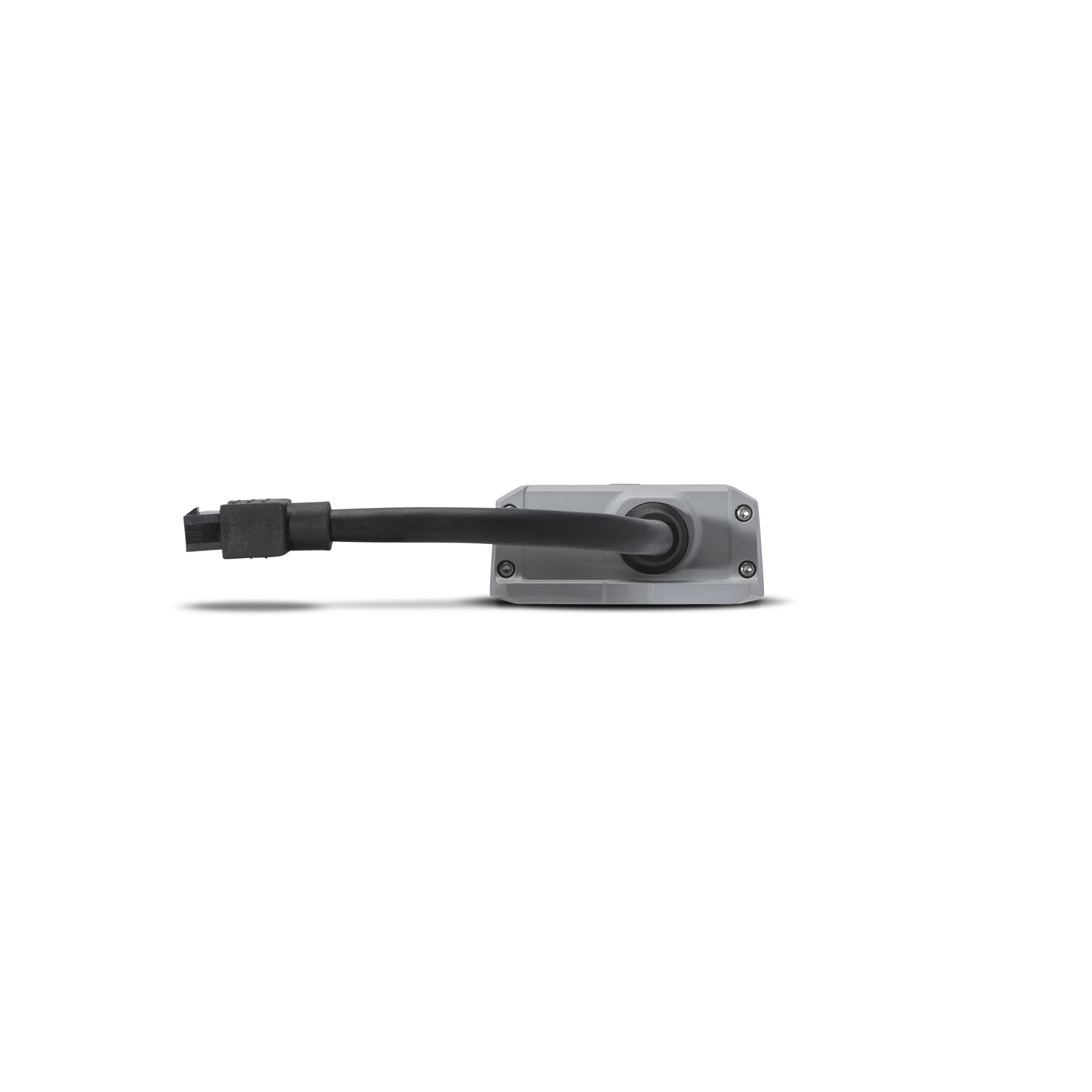

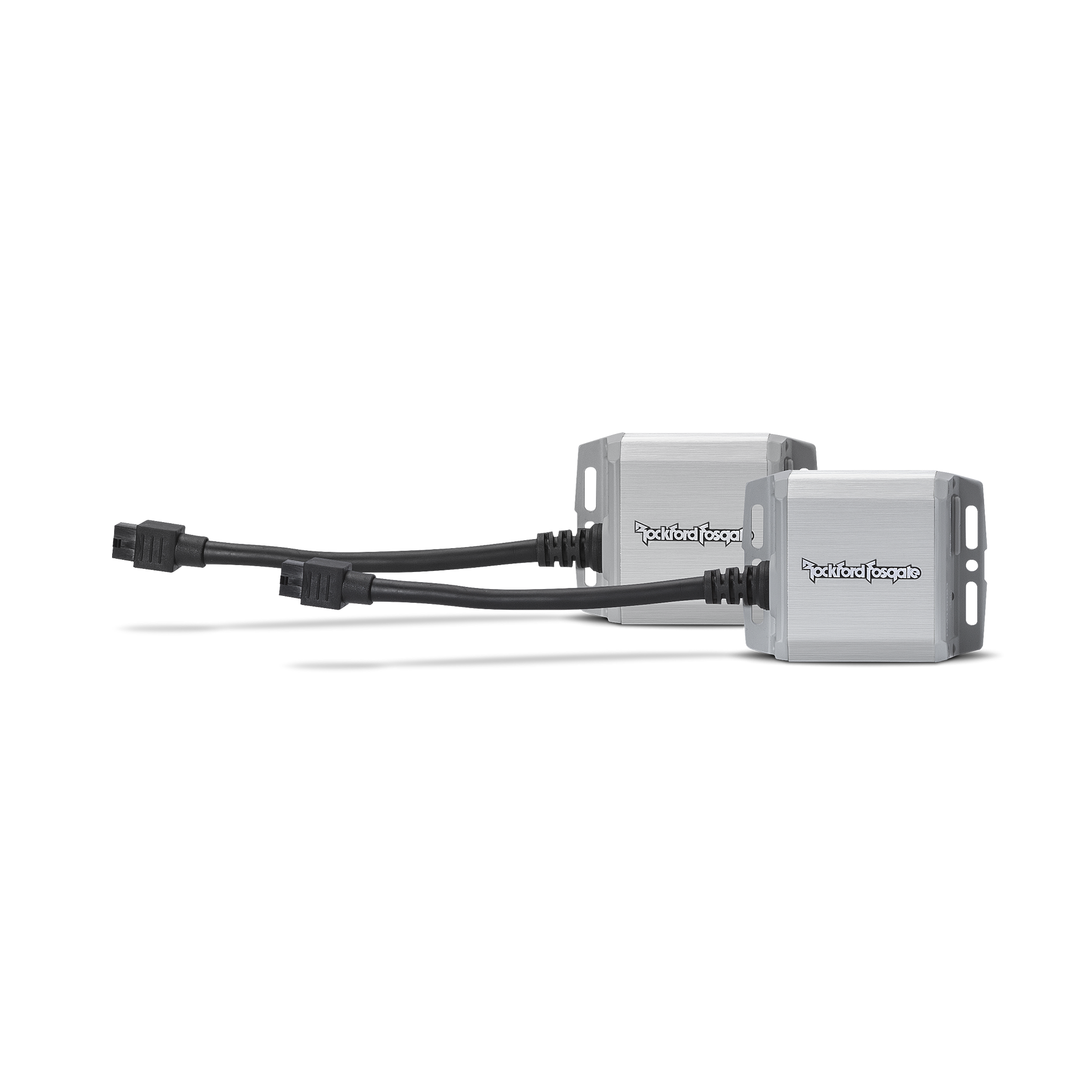

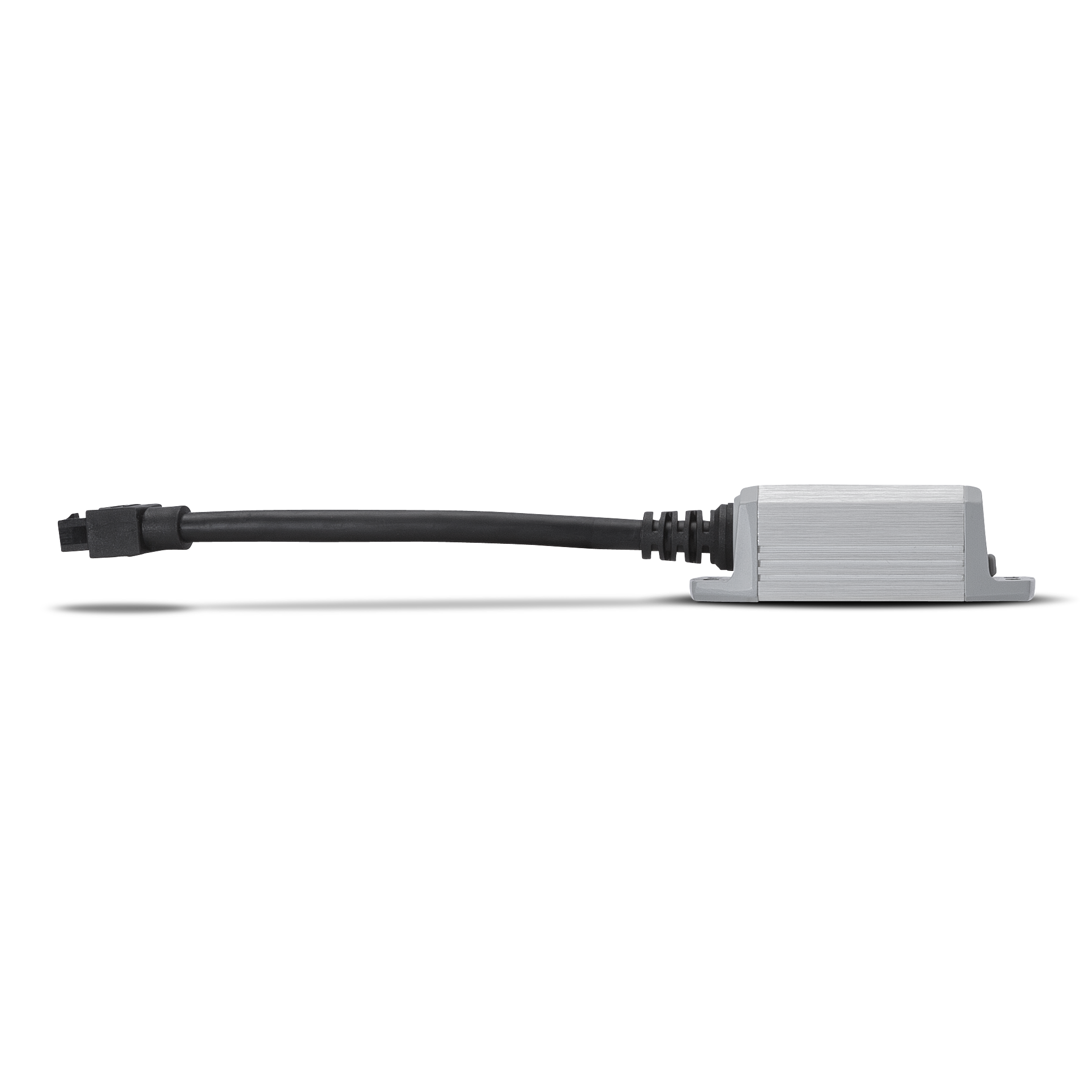

Punch 100 Watt Full-Range Element Ready Mono Amplifier (pair)

Overview

The PM100X1 is 100-watt dynamic power mono amp designed to harvest DC and AC voltages present on existing radio speaker outputs to boost power output.

Features

• CEA-2006 Compliant & CE Compliant
• FreeLoad charges an internal capacitor bank to produce power when needed
• Extruded Aluminum Heat Sink
• Current Limited to Protect Head Unit for Both 4 Ohm and 2 Ohm Configurations

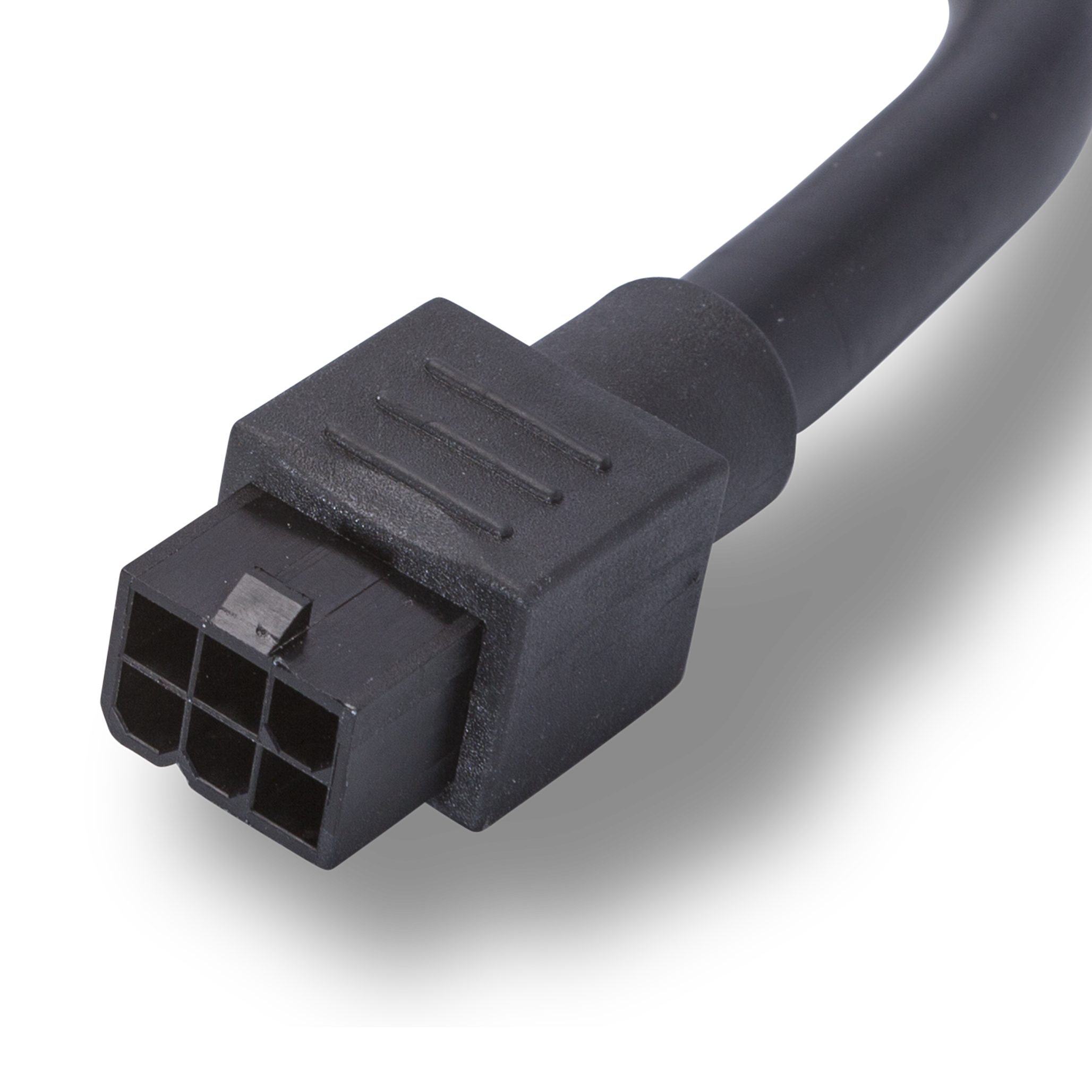

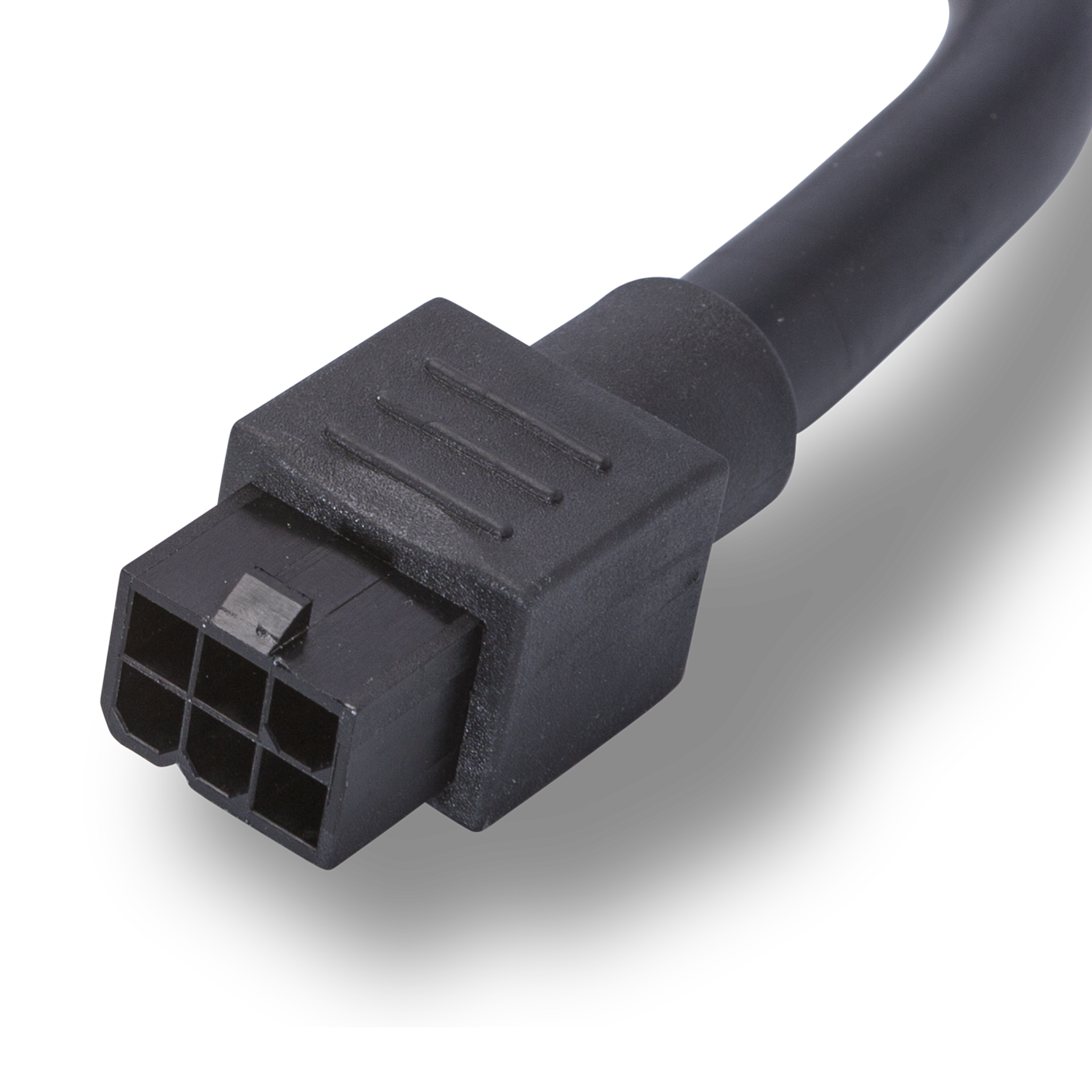

• Pig Tail Connectivity for Easy Installation
• Harvests both B+ and Audio Signal From Standard Source Unit Speaker Outputs
• Uses Stored Energy from BTL Amplifier to Produce Dynamic Power of Over 100W
• High Level Turn On
• Short Circuit & Over Voltage Protection
• Discrete surface mount technology
• Optional B+ Connection for Non-Standard Speaker Outputs
• Thermal Protection
• Small Stealth Package that Allows for Anywhere Installation
• 60, 80, and 100 Hz Selectable 12dB/Oct HP Butterworth Crossover
• Selectable 4 and 2 Ohm Play
• 2-Year Warranty
• Muted turn on
• Sold in pairs (left/right)

Technologies

• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• CEA-2006: Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects.
• ecoPUNCH: A series of proprietary Rockford Fosgate technologies designed to deliver all the PUNCH, while consuming less juice.
• FreeLoad: Patented BTL powered "FreeLoad" technology is a small amplifier that does not require a B+/GND connection to produce power.

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 60W x 1 @ 4Ω ≤1.0% THD+N
Total Power (Sum of Rated Power)	100 Watts
Dynamic Power (PVC/PowerCube®)	61 Watts x 1 @ 4-Ohm 109 Watts x 1 @ 2-Ohm
Rated Power (RMS Continuous Power)	60 Watts x 1 @ 4-Ohm 100 Watts x 1 @ 2-Ohm
Number of Channels	1
Cooling	Convection

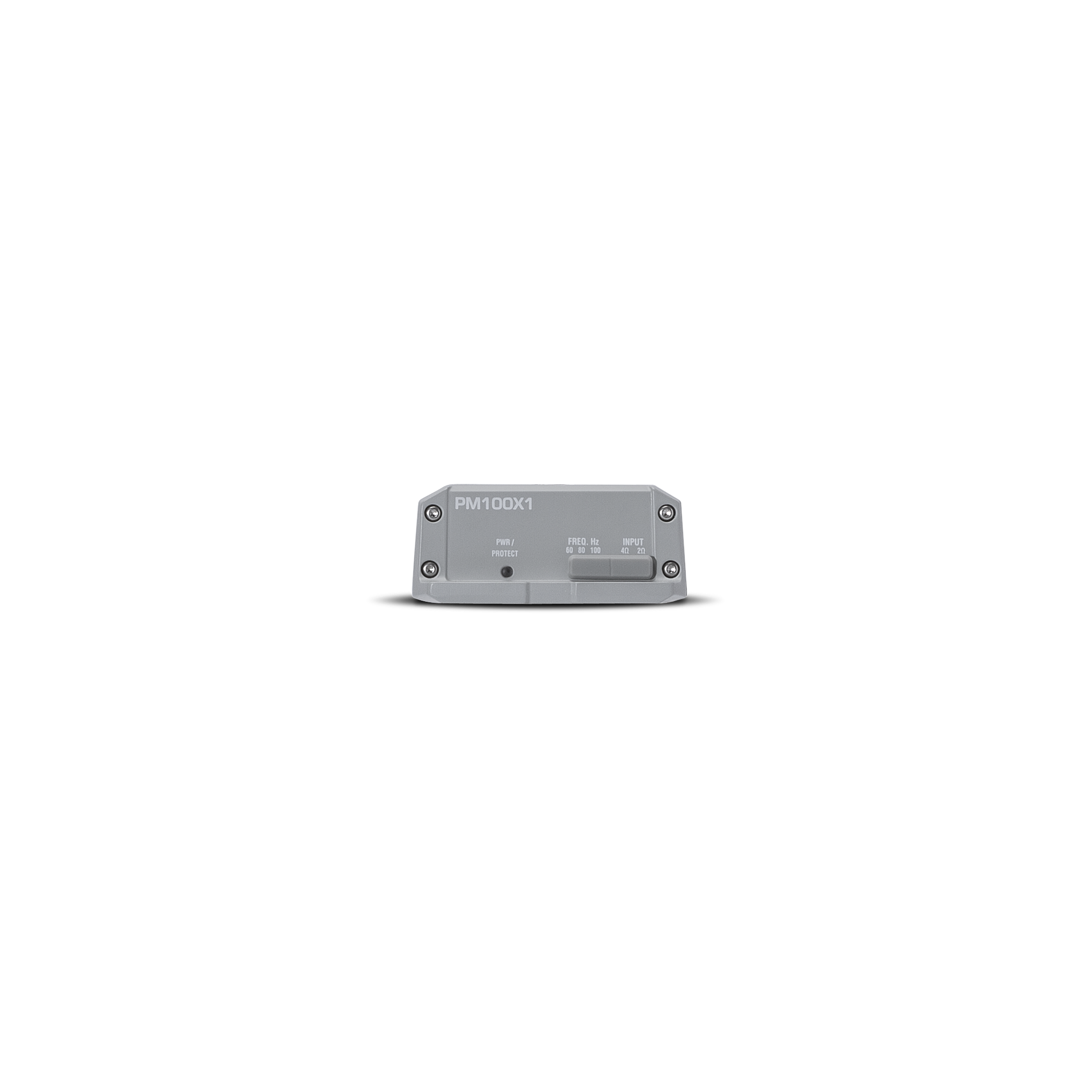

Visual Indicators	Power/Protect LED
Bridgeable	No
Frequency Response	60Hz to 20kHz +/- 1.0dB
Signal-to-Noise (CEA)	>90 dB
Common Mode Rejection	>55 dB
Channel Separation	—
Heat Sink Type	Extruded aluminum
Crossover Controls	High-Pass: Selectable 60Hz, 80Hz, 100Hz @ 12dB/octave Butterworth
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Dimensions (H x W x D)	1.3 x 3 x 3.9 (in) 3.3 x 7.62 x 9.91 (cm)
Operating Voltage	9 - 16 VDC
Shipping Weight	2.8 lb. (1.27 Kg.)
