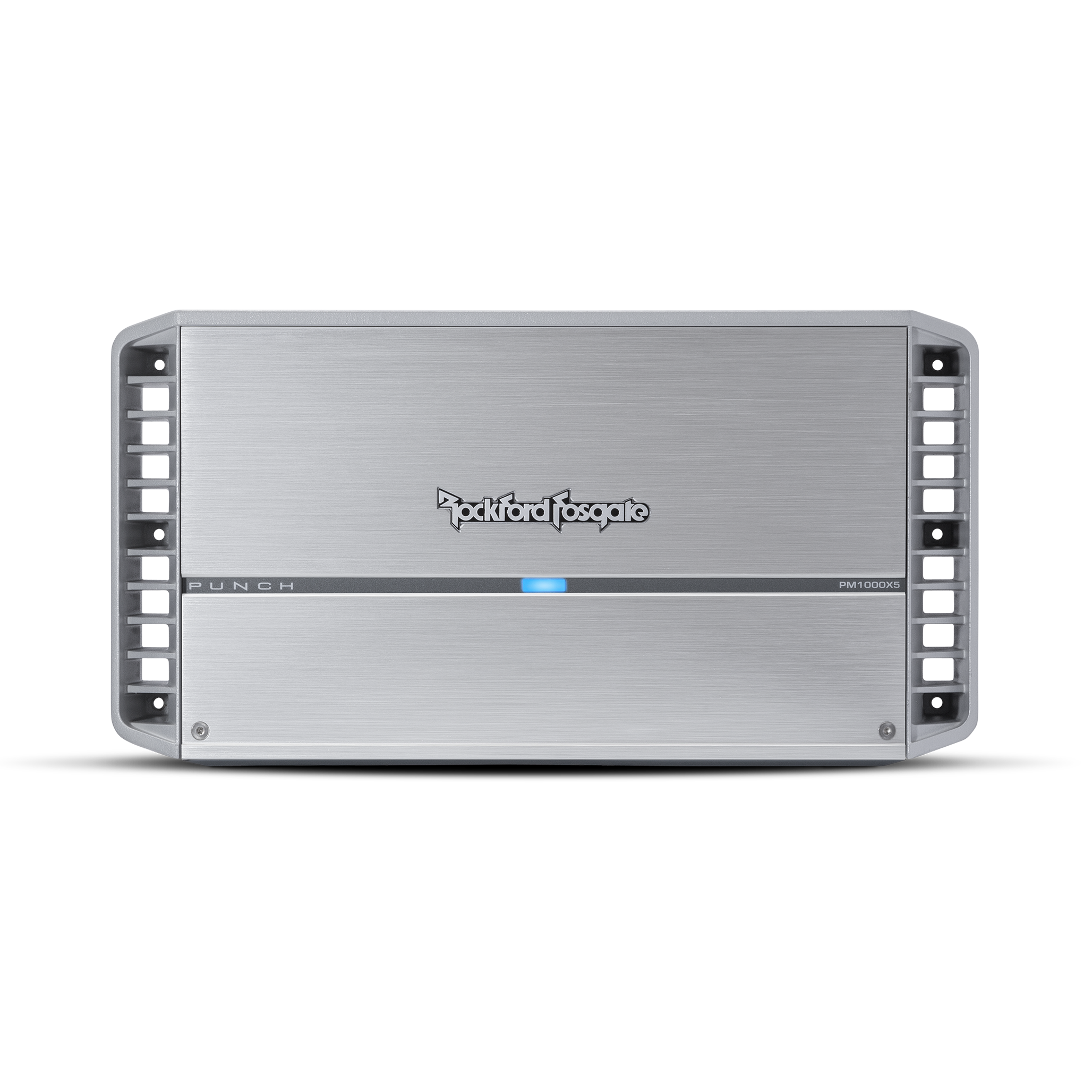

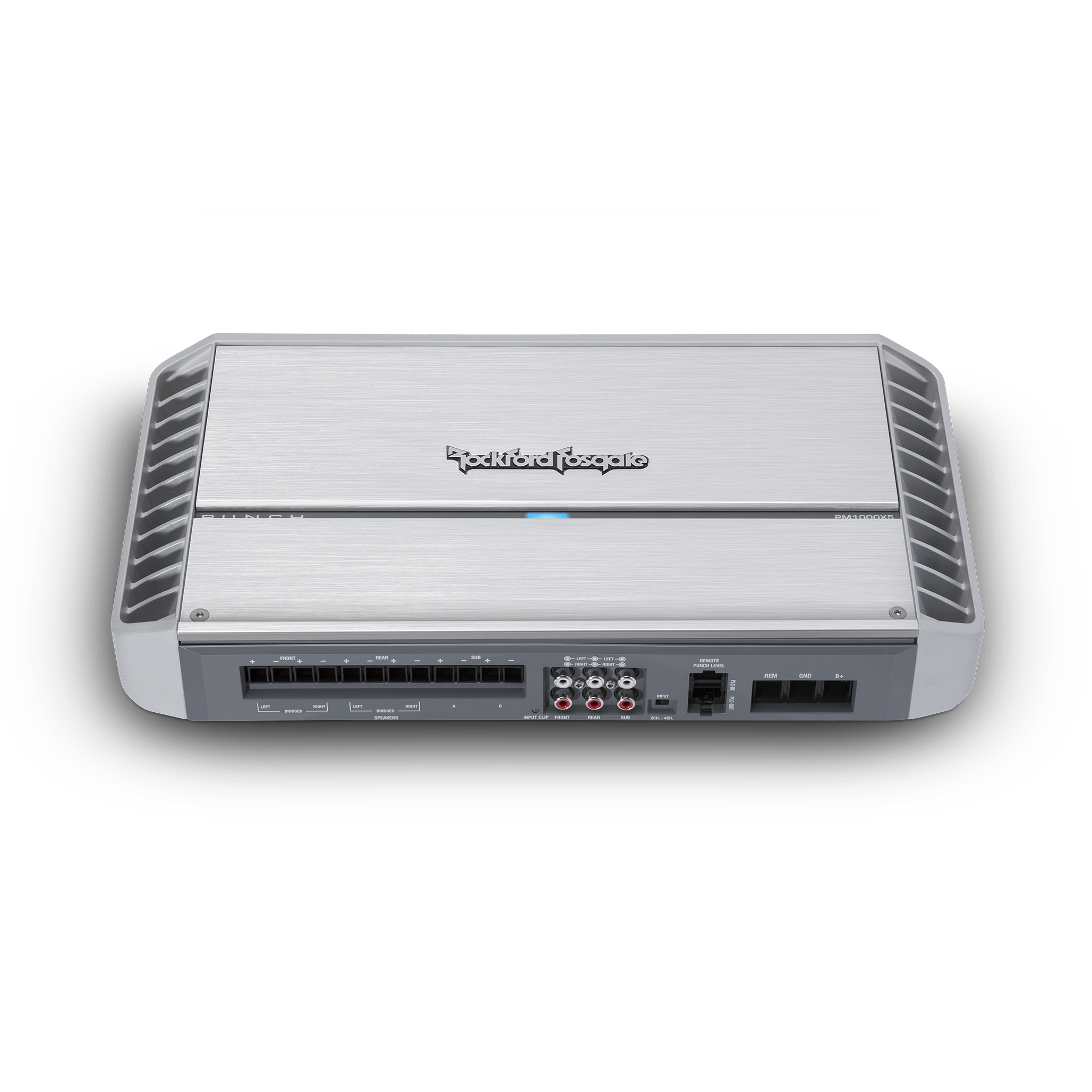

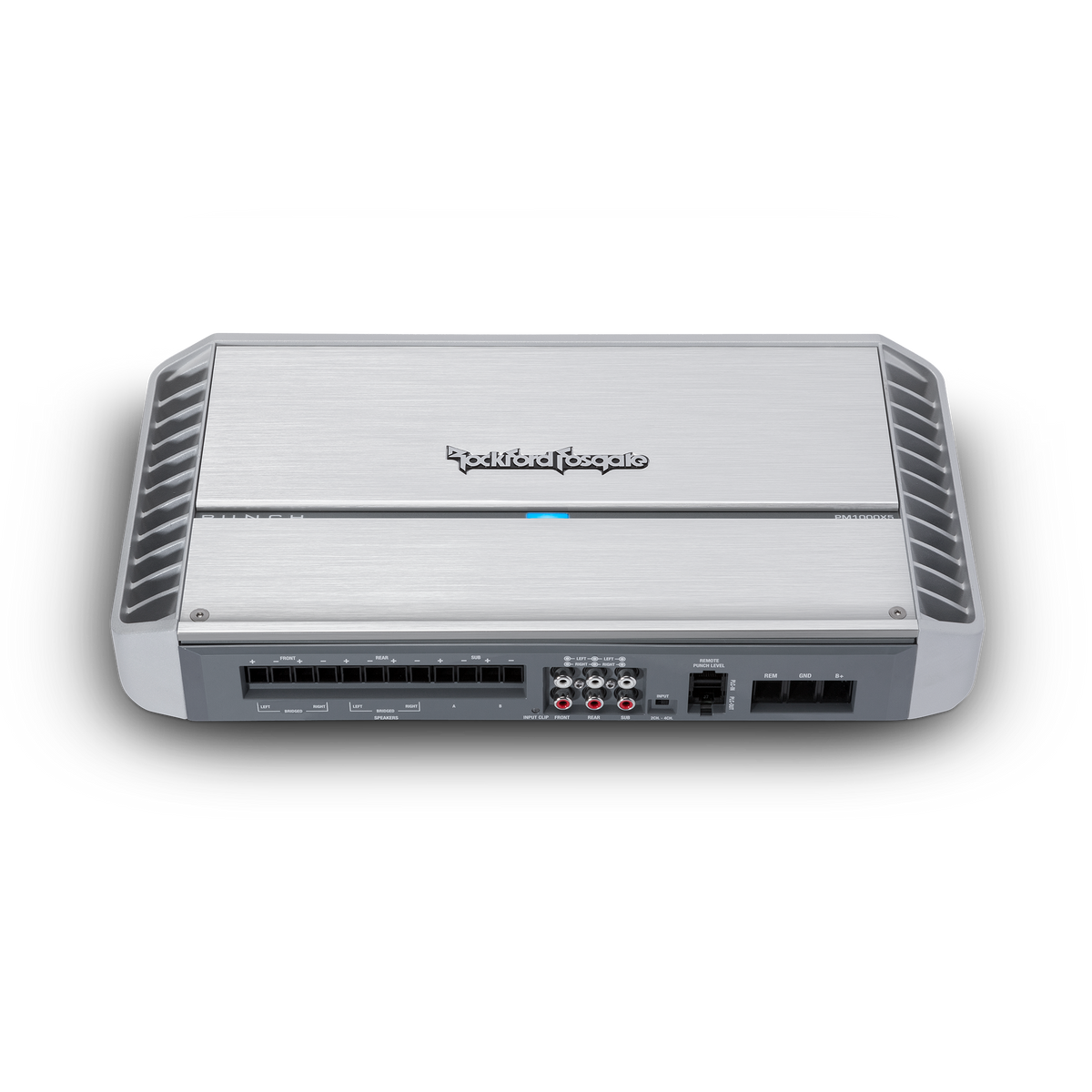

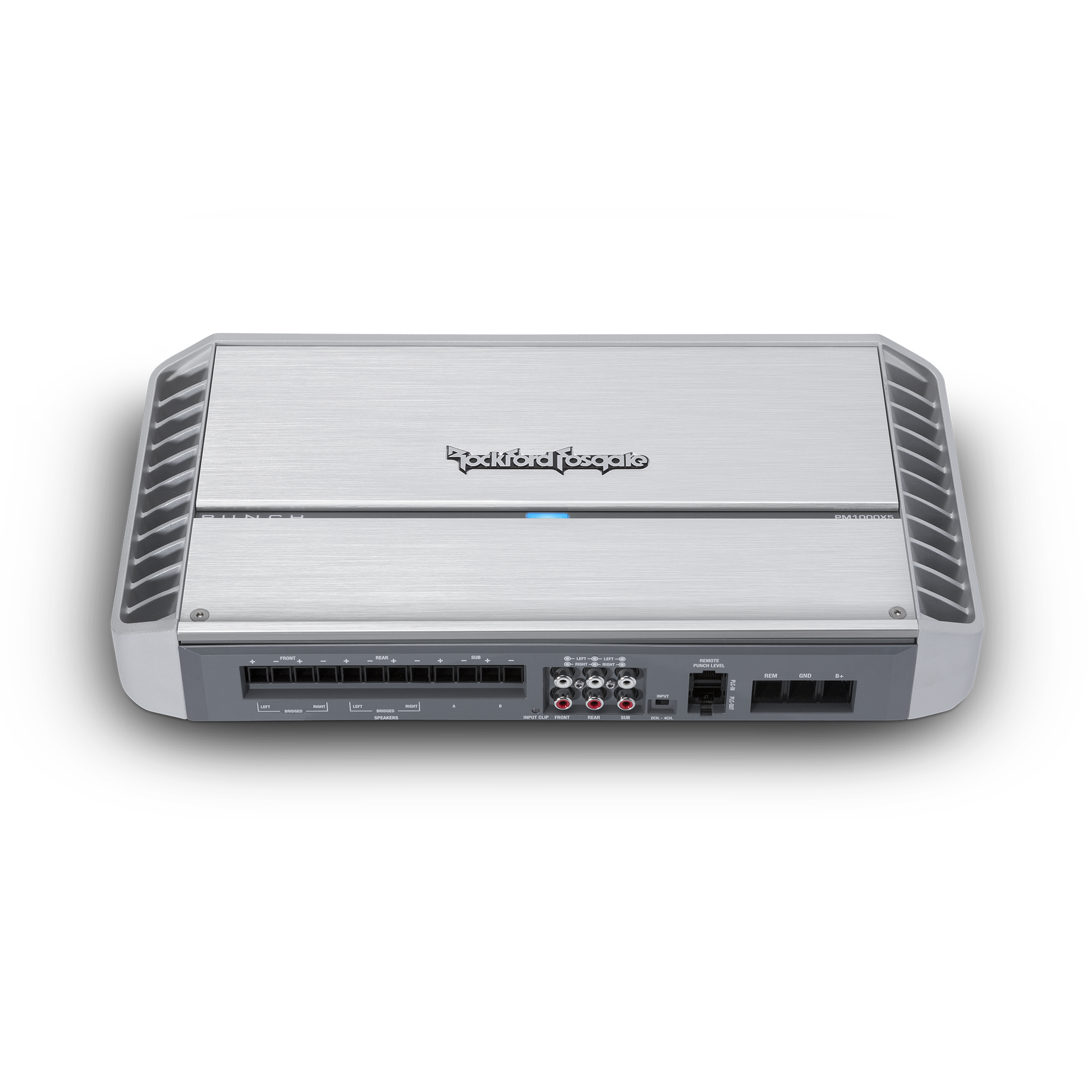

Punch Marine 1,000 Watt Class-bd 5-Channel Amplifier

Overview

The Punch P1000X5 is an ultra-efficient 5-channel amplifier capable of running your entire system without excessive drain on your charging system.

Features

• Features C.L.E.A.N. Set-up
• High level input capable with Auto Turn-On circuit
• 12dB/octave Butterworth crossover
• Muted turn on
• Short circuit protection
• Infrasonic filter
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• 2-Year Warranty

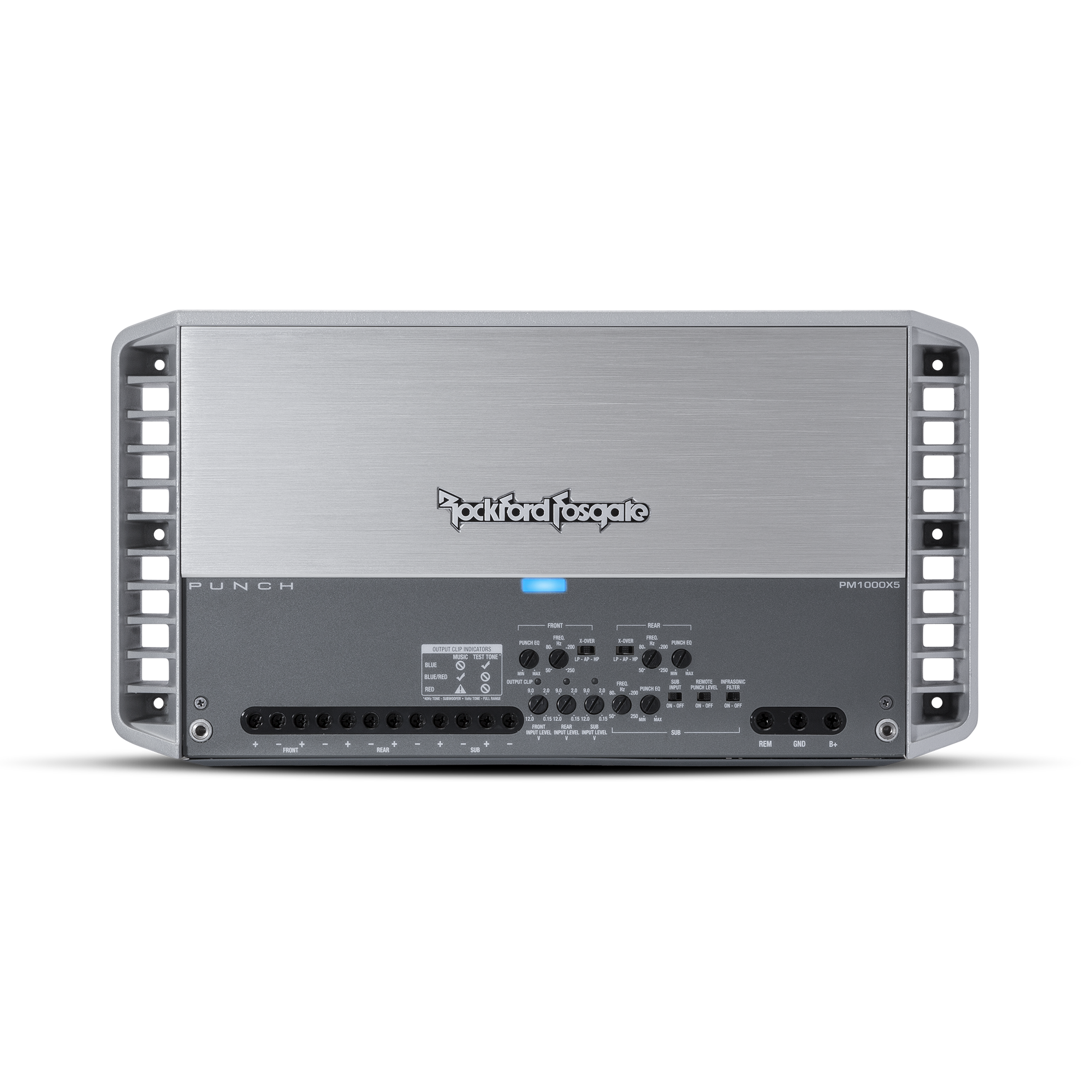

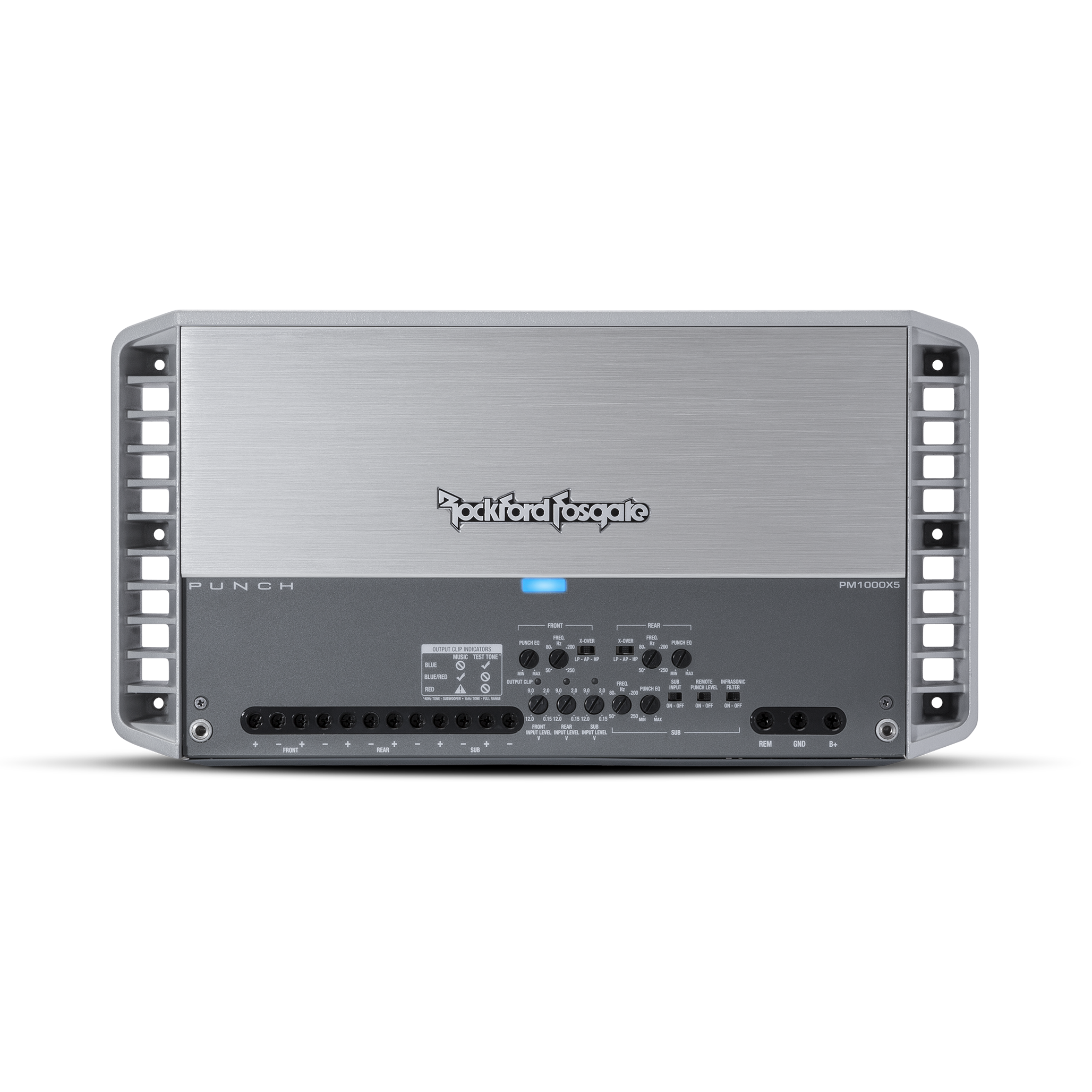

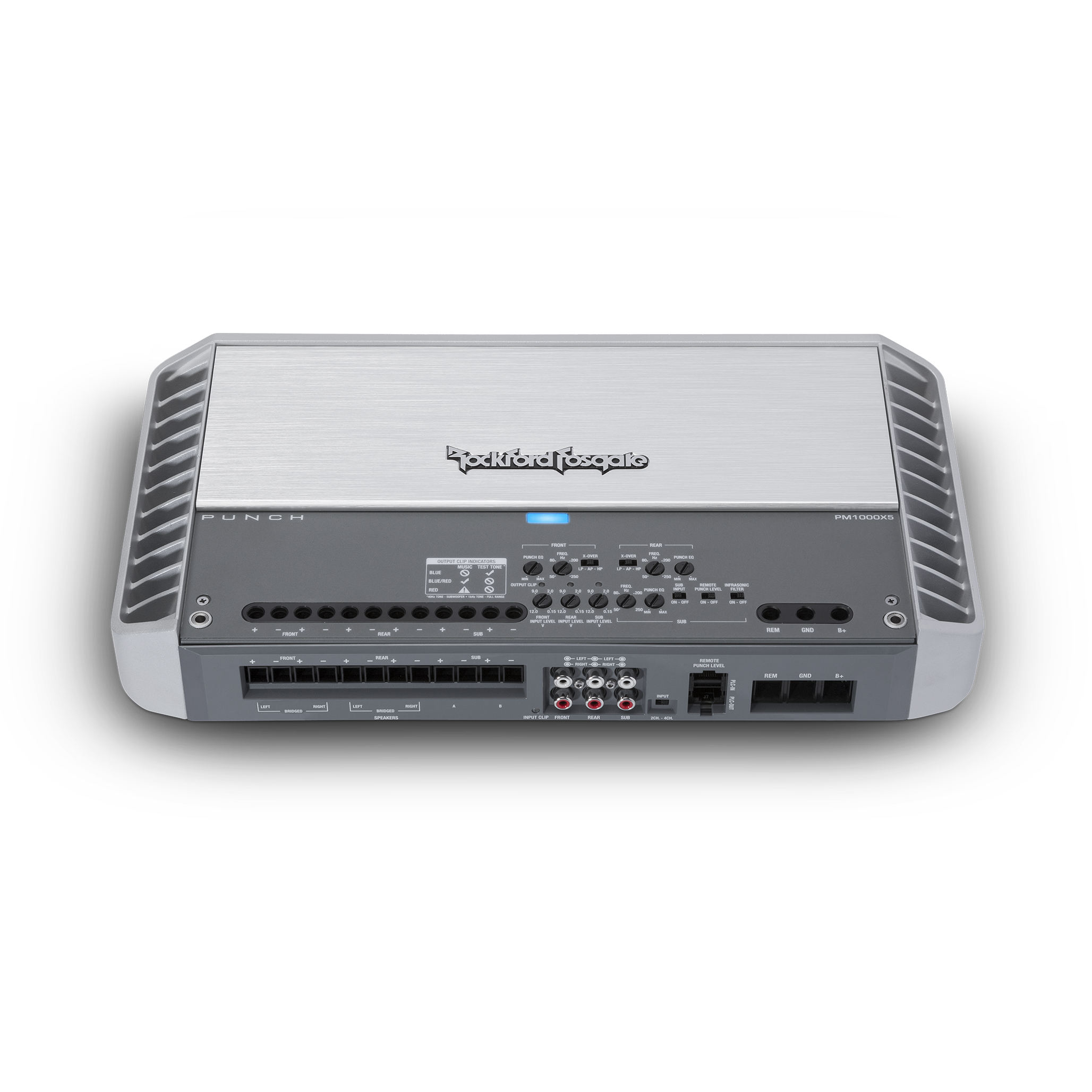

• Stealth top mounted control panel
• Over current protection
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 2/4 channel input switch
• Marine grade stainless steel hardware
• Marine grade two part epoxy coating on circuit boards

Technologies

• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• Class-BD: Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Specifications

Input Sensitivity	150 mV - 12 V
Operating Voltage	9 - 16 VDC
Number of Channels	5
Tone Controls	Sub: 0dB to +18dB @ 45Hz
CEA-2006 Compliant	CEA-2006 Power Rating 75Wx4 + 150Wx1 @ 4Ω ≤1.0% THD+N
Power Input Connector	Block
Signal Output	-
Power Wire Gauge	4 AWG

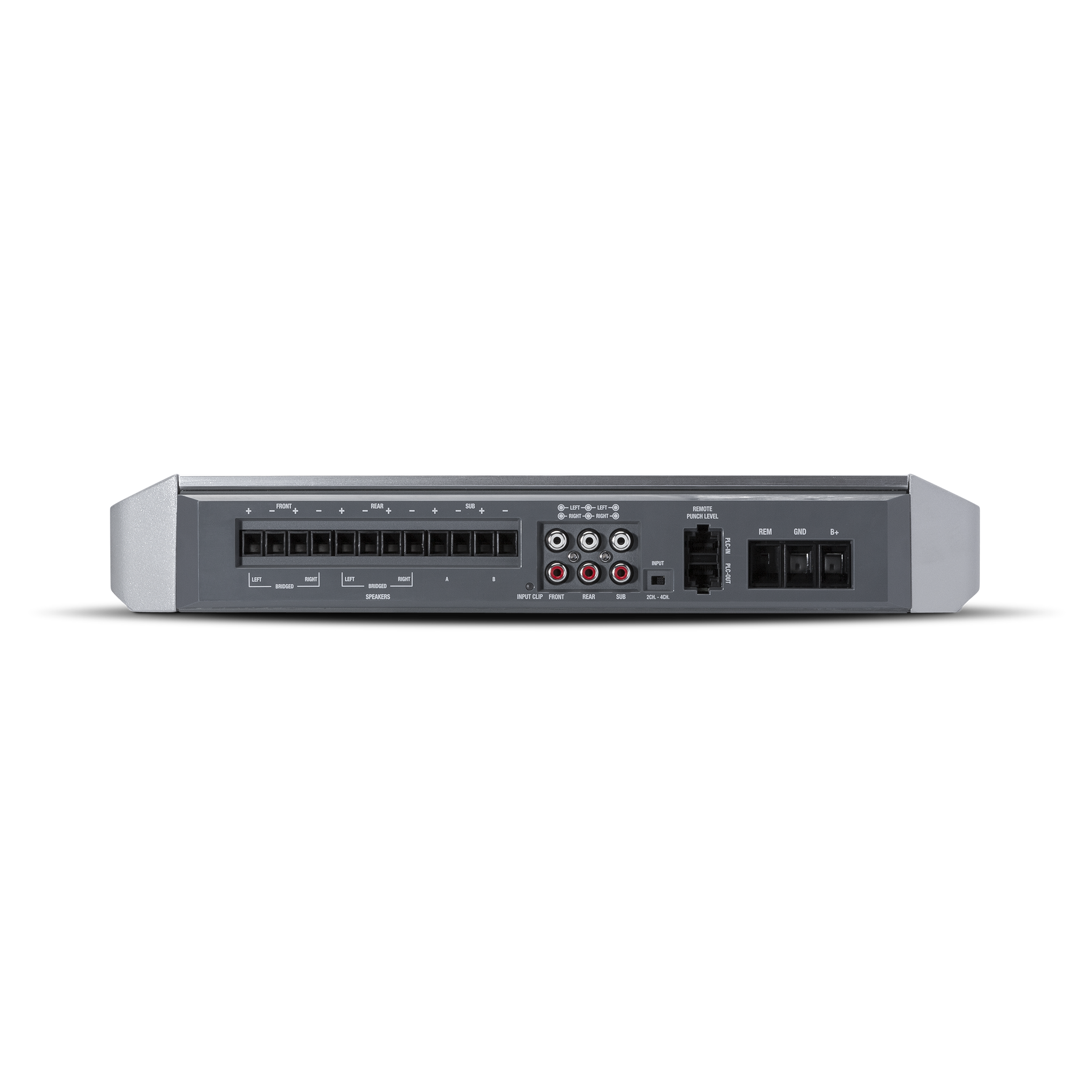

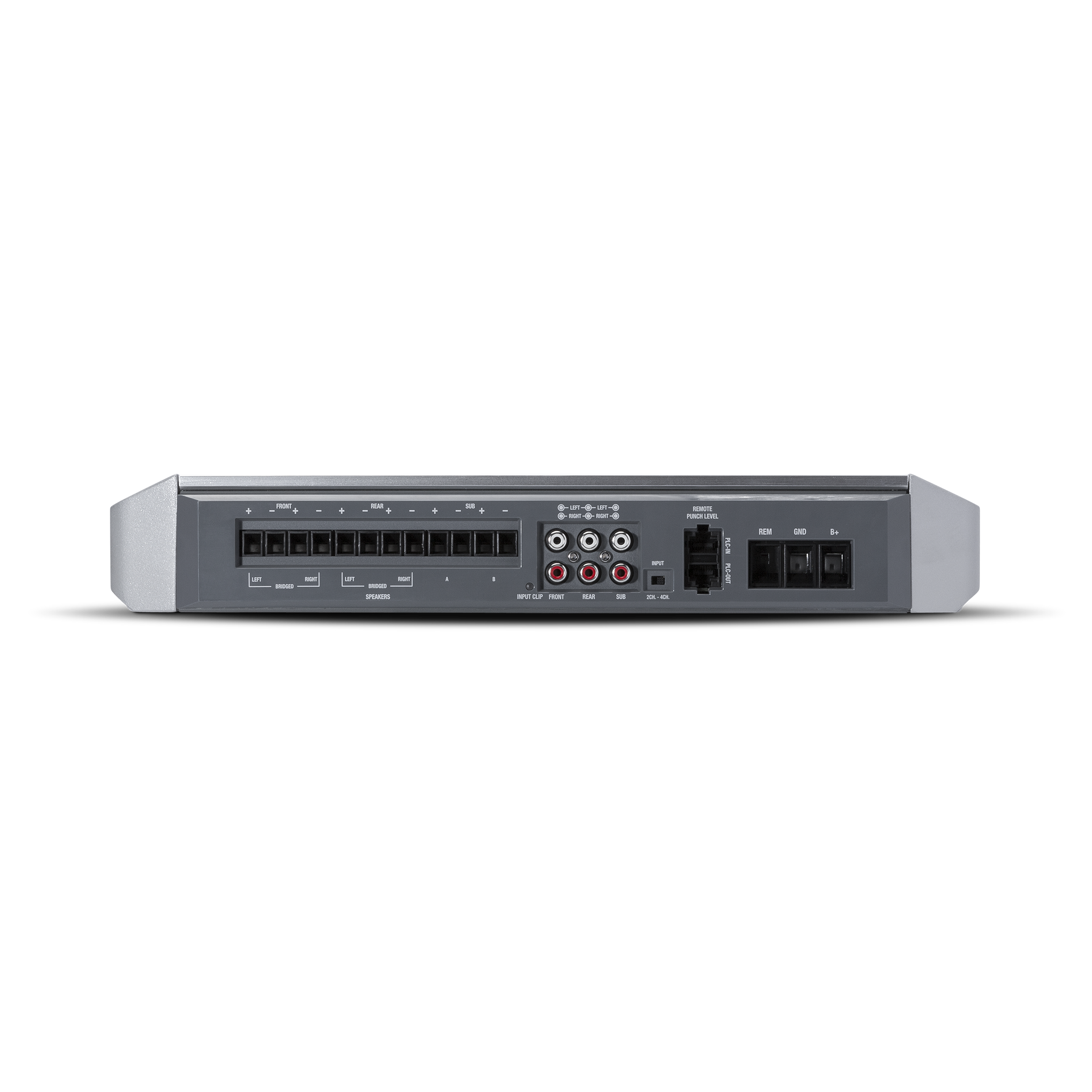

Signal Input	Input Switch: Hi/Low level input Input Switch: 2/4 channel input Hi/Low Level: 3 RCA Pair Sub: front/sub input switch
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Speaker Output Connector	Block
Speaker Wire Gauge	12 AWG
Total Harmonic Distortion (THD+Noise)	<1.0%
Dimensions (H x W x D)	2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm)
Max. Current Draw (13.8V Sinewave)	150 A
Average Current Draw (13.8V Music)	75 A
Recommended Fuse (not included)	150 A
Bridgeable	Yes (front/rear channels)
Total Power (Sum of Rated Power)	1000 Watts
Suggested Alternator	100 A
Rated Power (RMS Continuous Power)	75 Watts x 4 + 150 Watts x 1 @ 4-Ohm 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm N/A + 500 Watts @ 1-Ohm
Heat Sink Type	Cast
Crossover Controls	Front: 50Hz - 250Hz High-Pass @ 12dB/Octave Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave Sub: 50Hz - 250Hz Low-Pass Sub: 28Hz infrasonic filter @ 12dB/Octave
Cooling	Convection
Circuit Topology Class	Class A/B + Class BD (Sub)
Remote Controls	Optional Punch Level Control (PLC2) Ready
Shipping Weight	15.3 lb. (6.93 Kg.)
Frequency Response	Front/Rear: 20Hz - 20kHz +/-3dB Sub: 20Hz - 500Hz +/-3dB
Dynamic Power (PVC/PowerCube®)	115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res 190 Watts x 4 + 540 Watts x 1 @ 2-Ohms 0° Res N/A + 863 Watts x 1 @ 1-Ohm 0° Res
Efficiency (average)	Front/Rear: 66% @ 4-Ohm Sub Channel: 80% @ 4-Ohm
