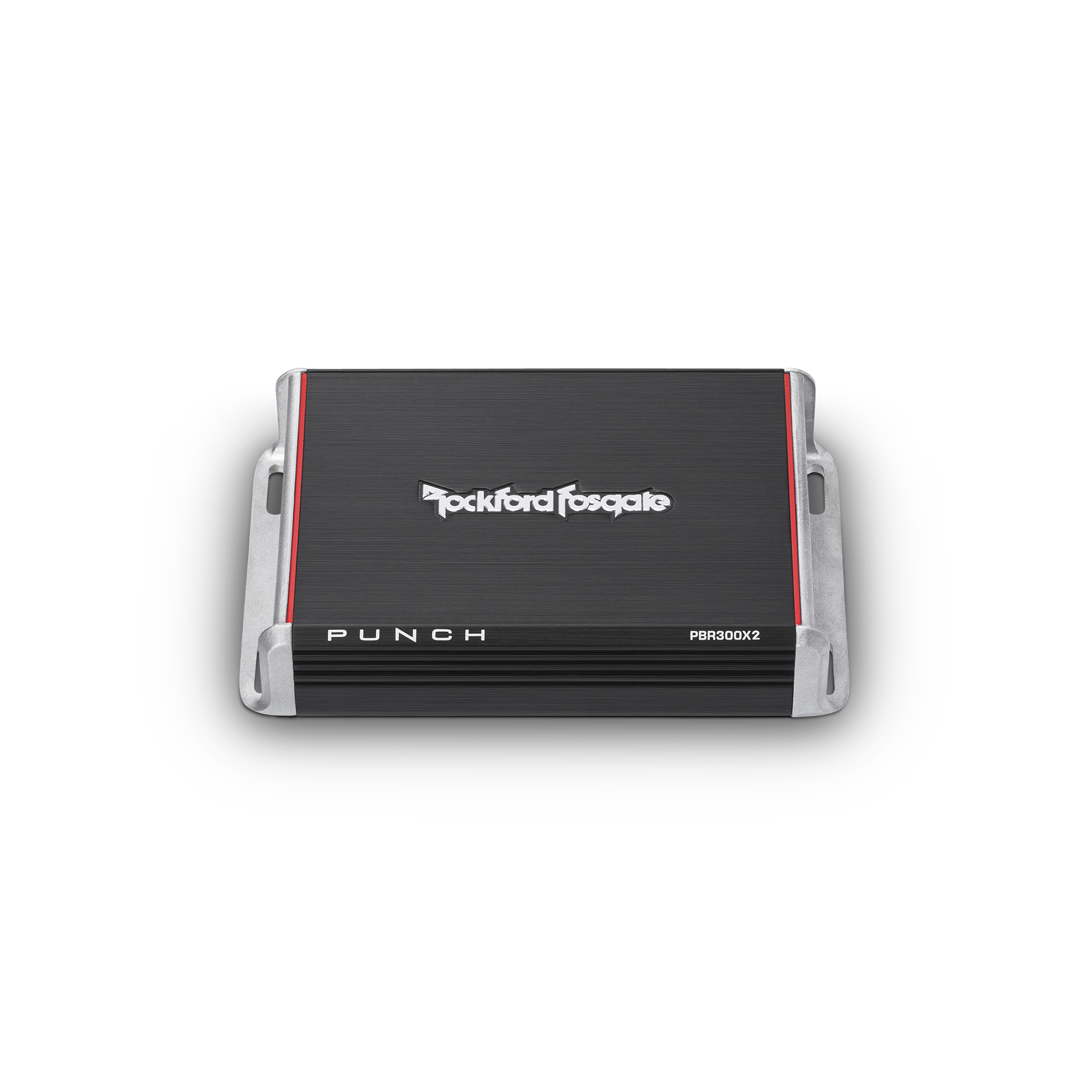

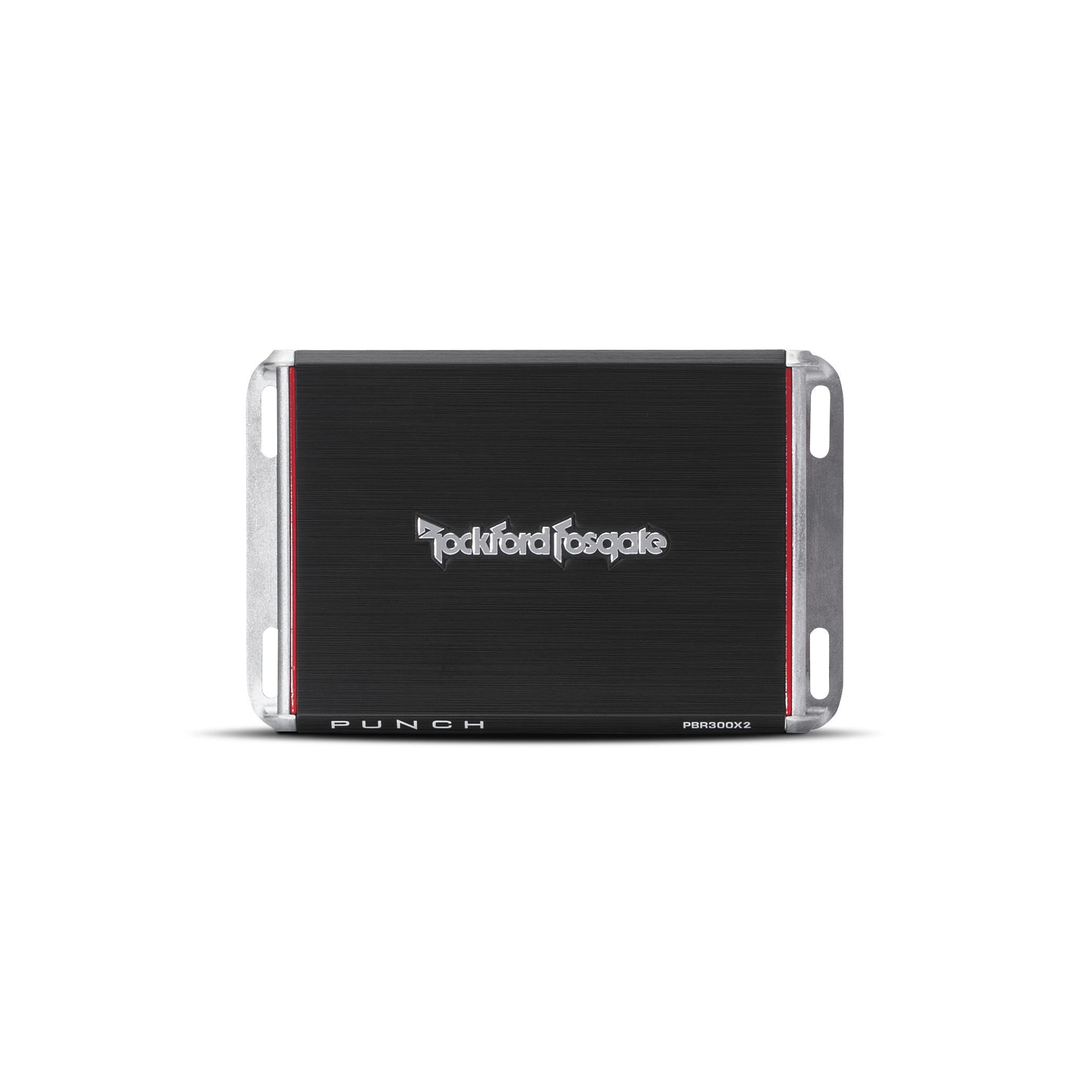

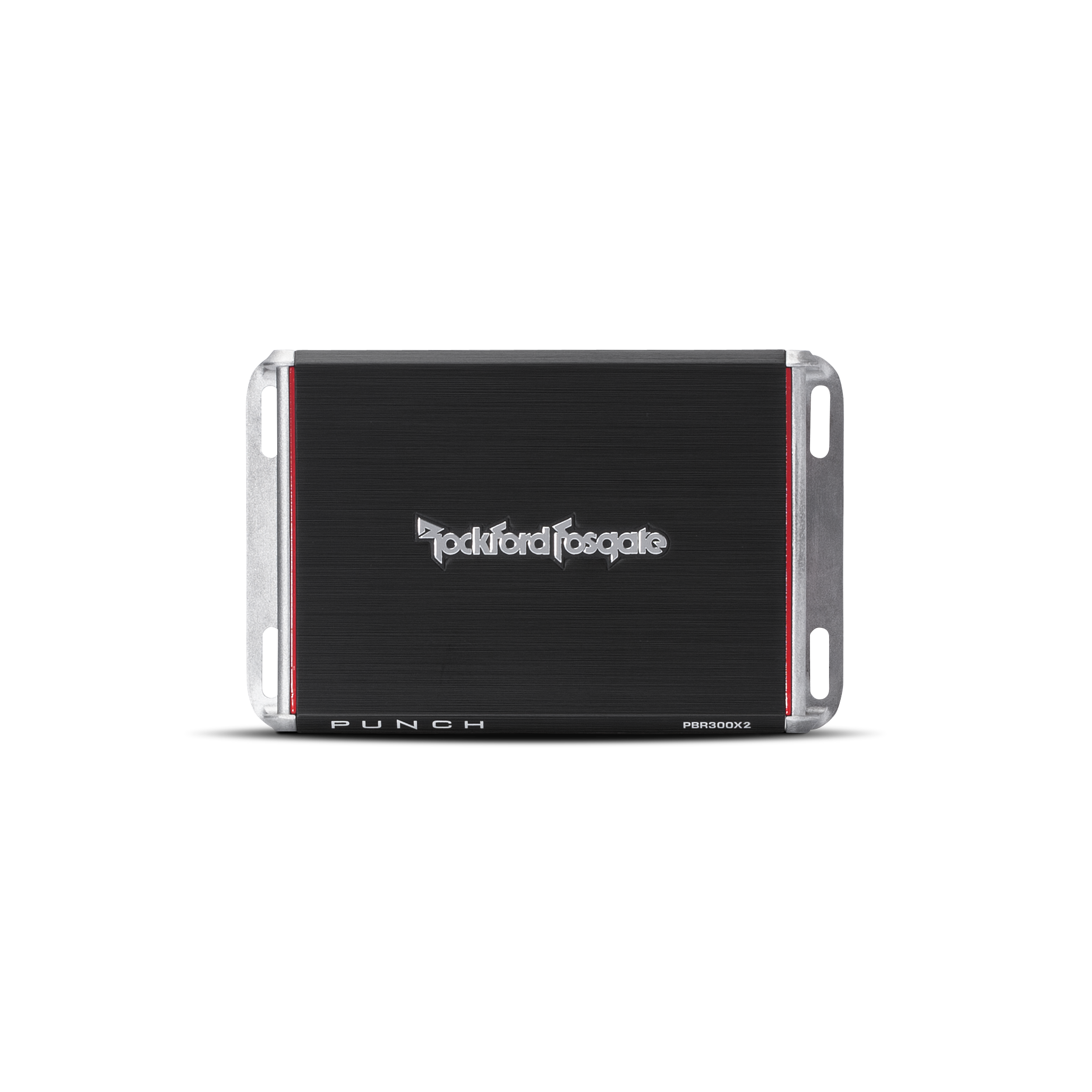

PBR300X2

Overview

Rockford Fosgate's PBR300X2 is a compact, efficient 300W car audio amp with Boosted Rail Technology for big power in any vehicle, without draining your battery.

Features

• 1 Year Warranty
• High level inputs
• MOSFET output stage
• Variable 4-6 volt hi level DC offset voltage input turn-on control
• 12dB/octave Butterworth crossover
• Ultra compact chassis

Specifications

• CEA-2006 Compliant: CEA-2006 Power Rating; 100W x 2 @ 4Ohm; <=1.0% THD+N
• Total Power; (Sum of Rated Power): 300 Watts
• Dynamic Power; (PVC/PowerCube): 114 Watts x 2 @ 4-Ohm; 160 Watts x 2 @ 2-Ohm; 387 Watts x 1 @ 4-Ohm Bridged
• Rated Power; (RMS Continuous Power): 100 Watts x 2 @ 4-Ohm; 150 Watts x 2 @ 2-Ohm; 300 Watts x 1 @ 4-Ohm Bridged
• Recommended Fuse; (not included): 50 A
• Bridgeable: Yes
• Suggested Alternator: 75 A
• Number of Channels: 2

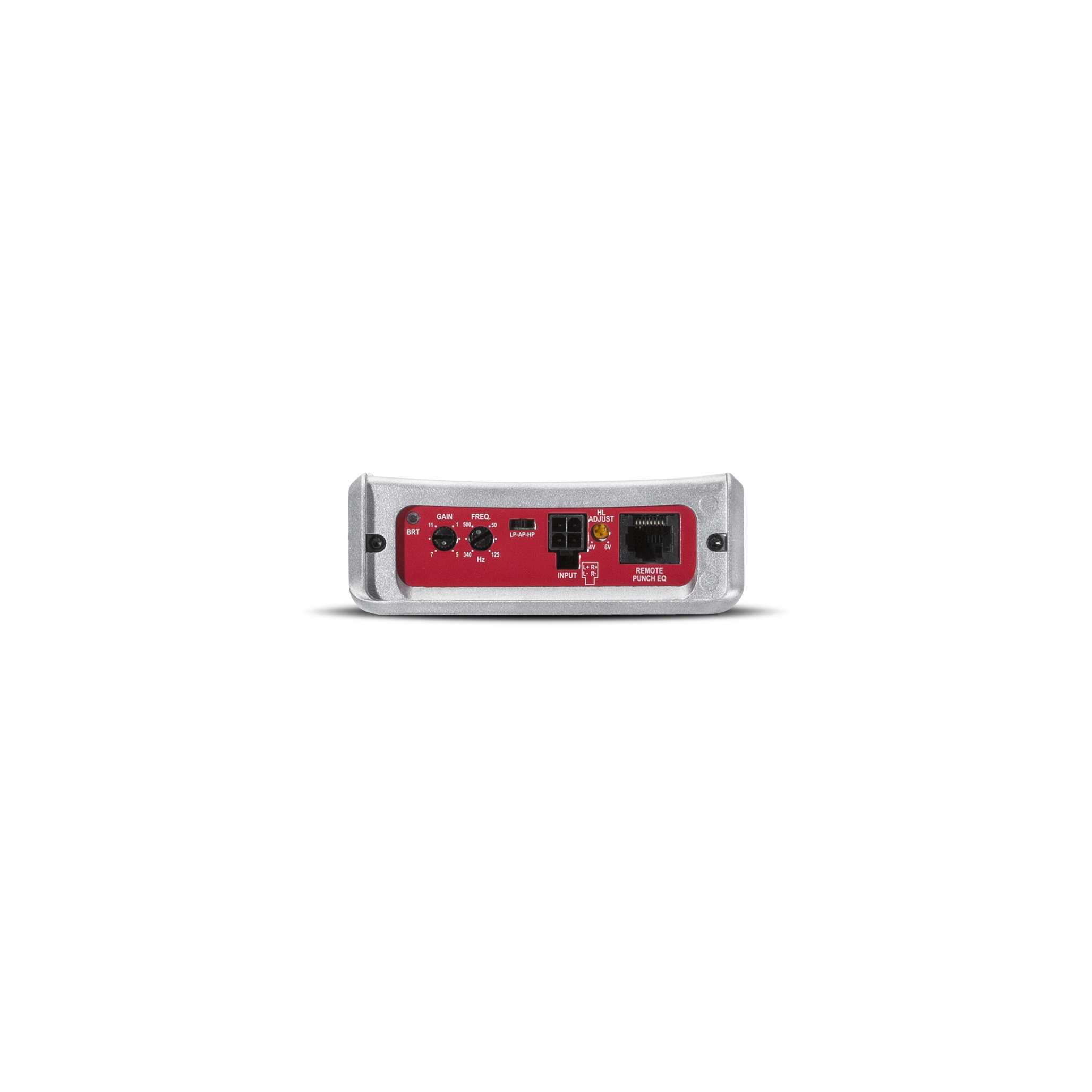

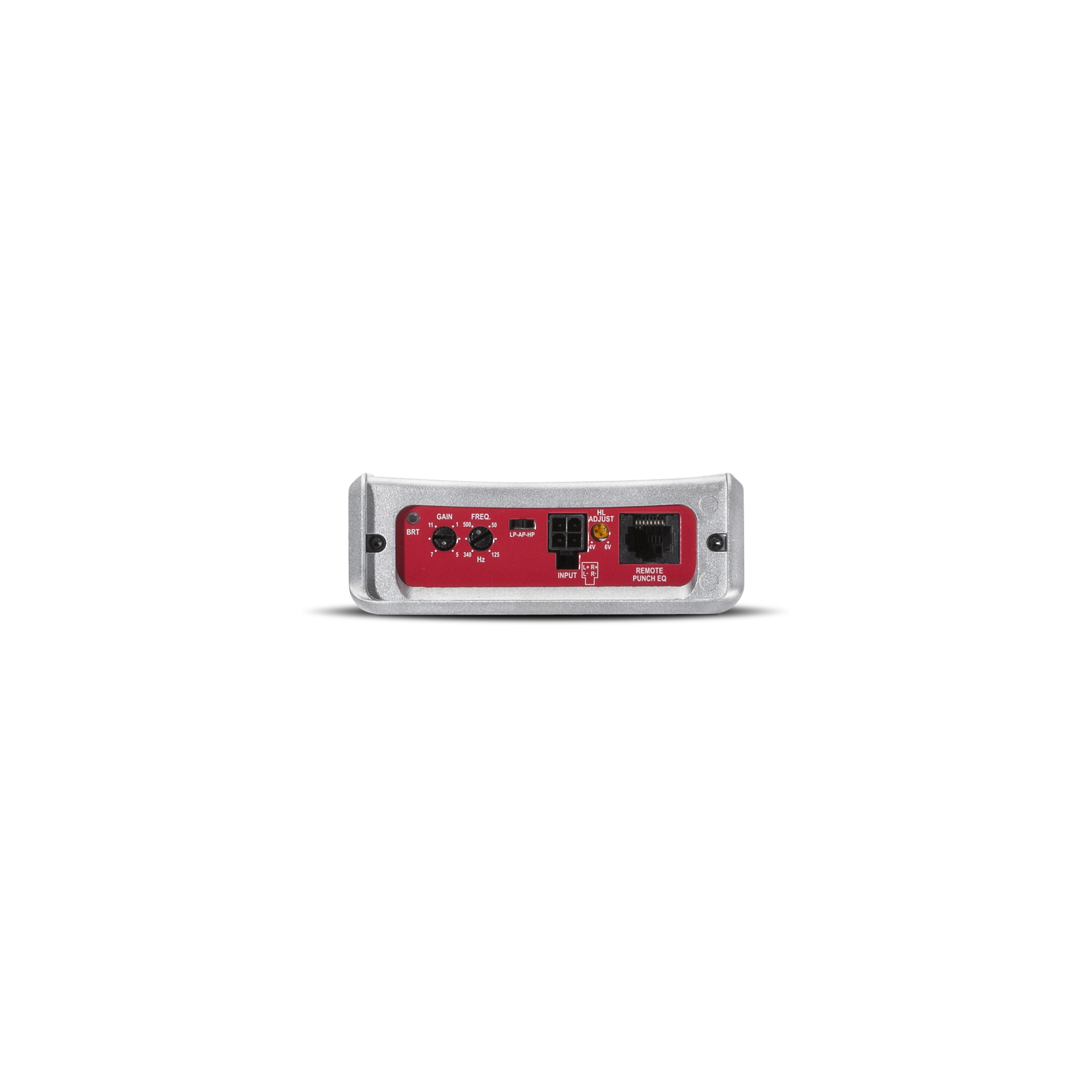

• Crossover Controls: High-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth; Low-Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth; All-Pass: Yes
• Tone Controls: Optional Remote Punch EQ
• Signal Output: -

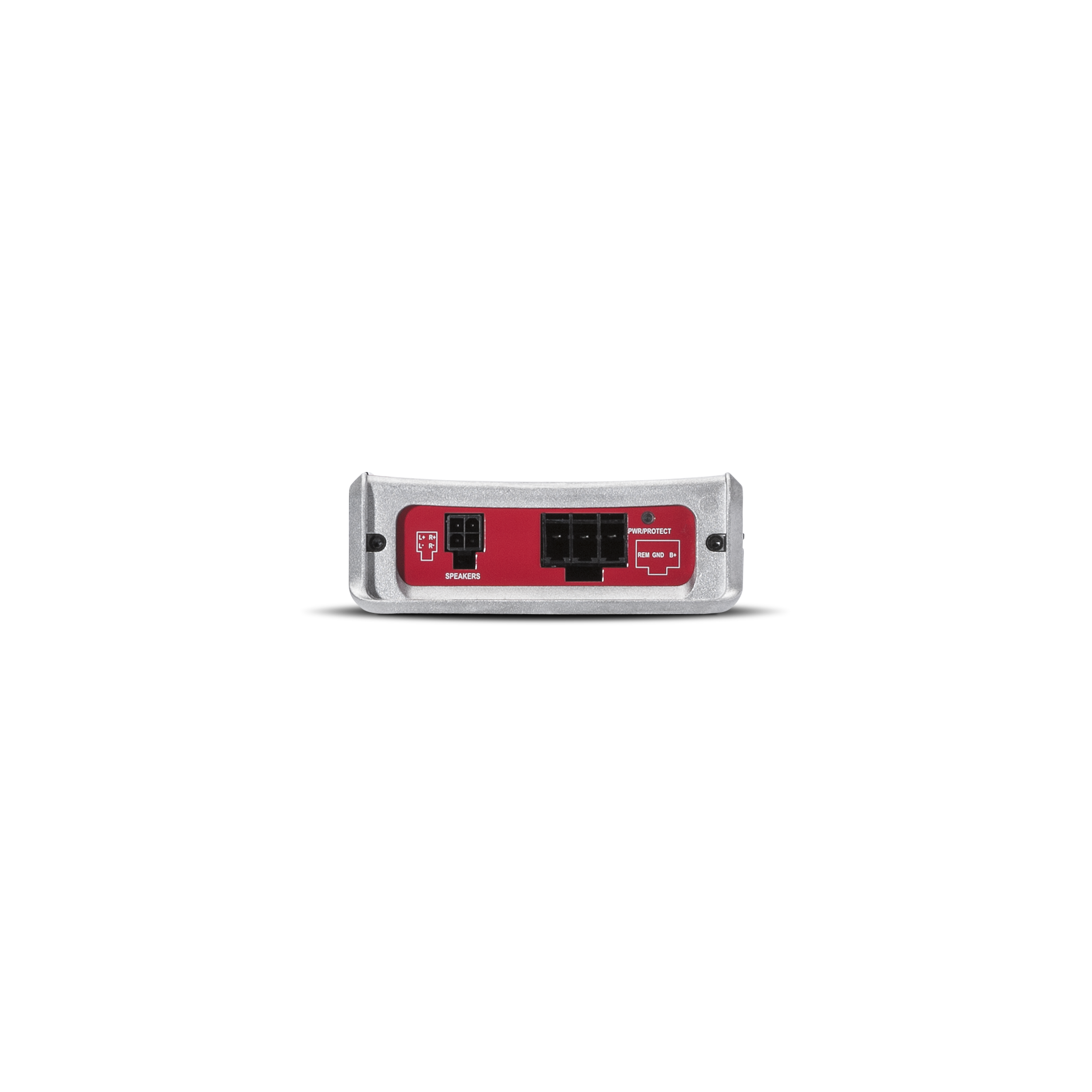

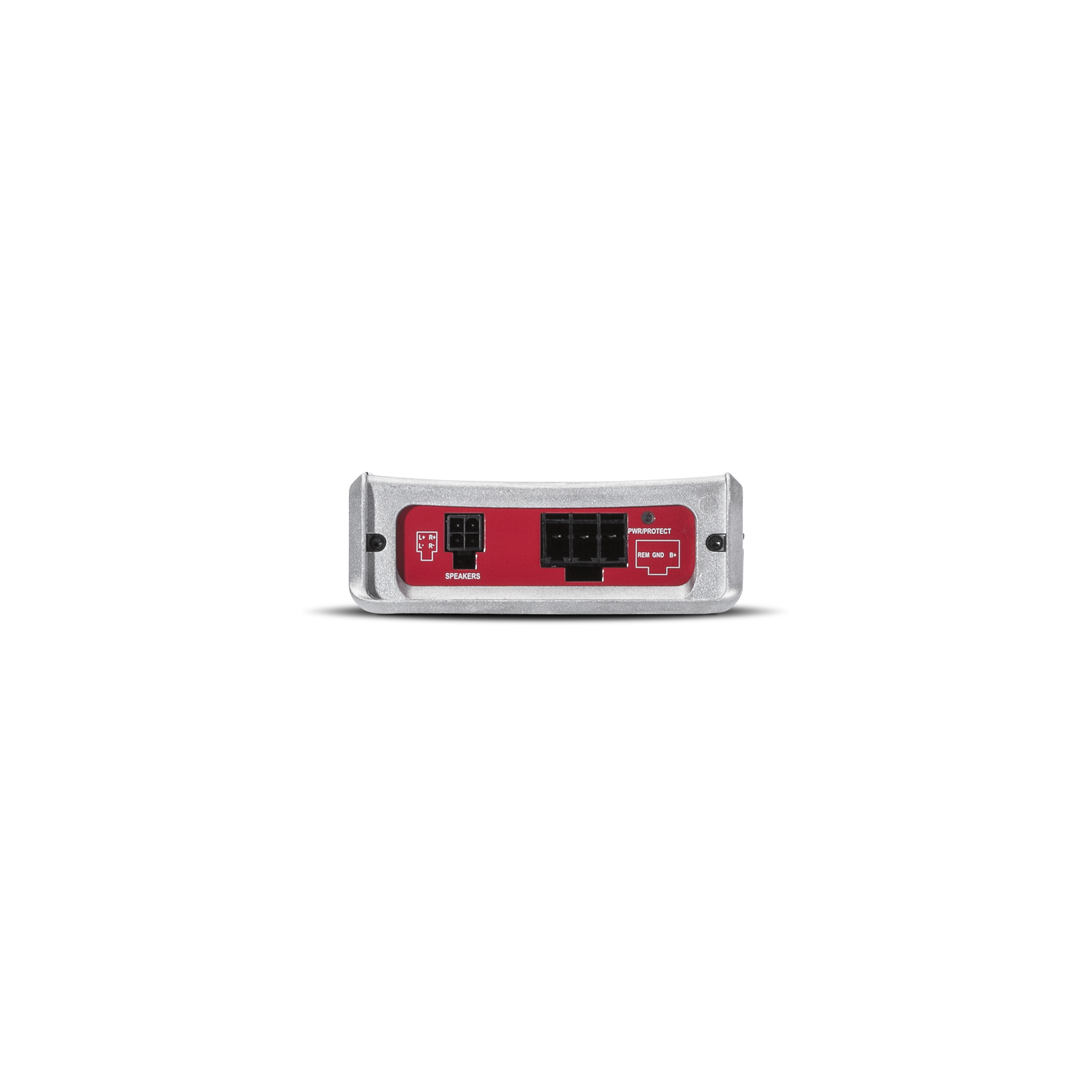

• Power Input Connector: Detachable Compression Terminal
• Visual Indicators: Power/Protect, BRT (Boost)
• Speaker Output Connector: 4-Pin Harness
• Speaker Wire Gauge: 16 AWG
• Cooling: Convection
• Heat Sink Type: Extruded Aluminum
• Circuit Topology Class: Class BR
• Efficiency (average): 68% @ 4-Ohm
• Max. Current Draw (13.8V Sinewave): 45 A
• Input Sensitivity: 150 mV - 11 V
• Operating Voltage: 9 - 16 VDC
• Shipping Weight: 2.8 Lbs. (1.27 Kg.)
• Dimensions (H x W x D): 1.53 x 4.25 x 6.75 (in.); 3.90 x 10.8 x 17.2 (cm)
• Frequency Response: 20Hz - 20kHz +/-3dB
• Remote Controls: Optional PEQ provides 0dB to +18dB @ 45Hz
• Power Wire Gauge: 10 AWG
• Signal Input: High/Low Level Input: 4-Pin harness; Hi-Level Sensitivity: Variable DC offset sensitivity
• Total Harmonic Distortion (THD+Noise): 4-Ohm: 2-Ohm: <1.0%
• Average Current Draw (13.8V Music): 23 A
• Signal-to-Noise (CEA): 84 dB
• Channel Separation: 65 dB
• Common Mode Rejection: 62 dB
• Damping Factor: >200
