PBR300X1

Overview

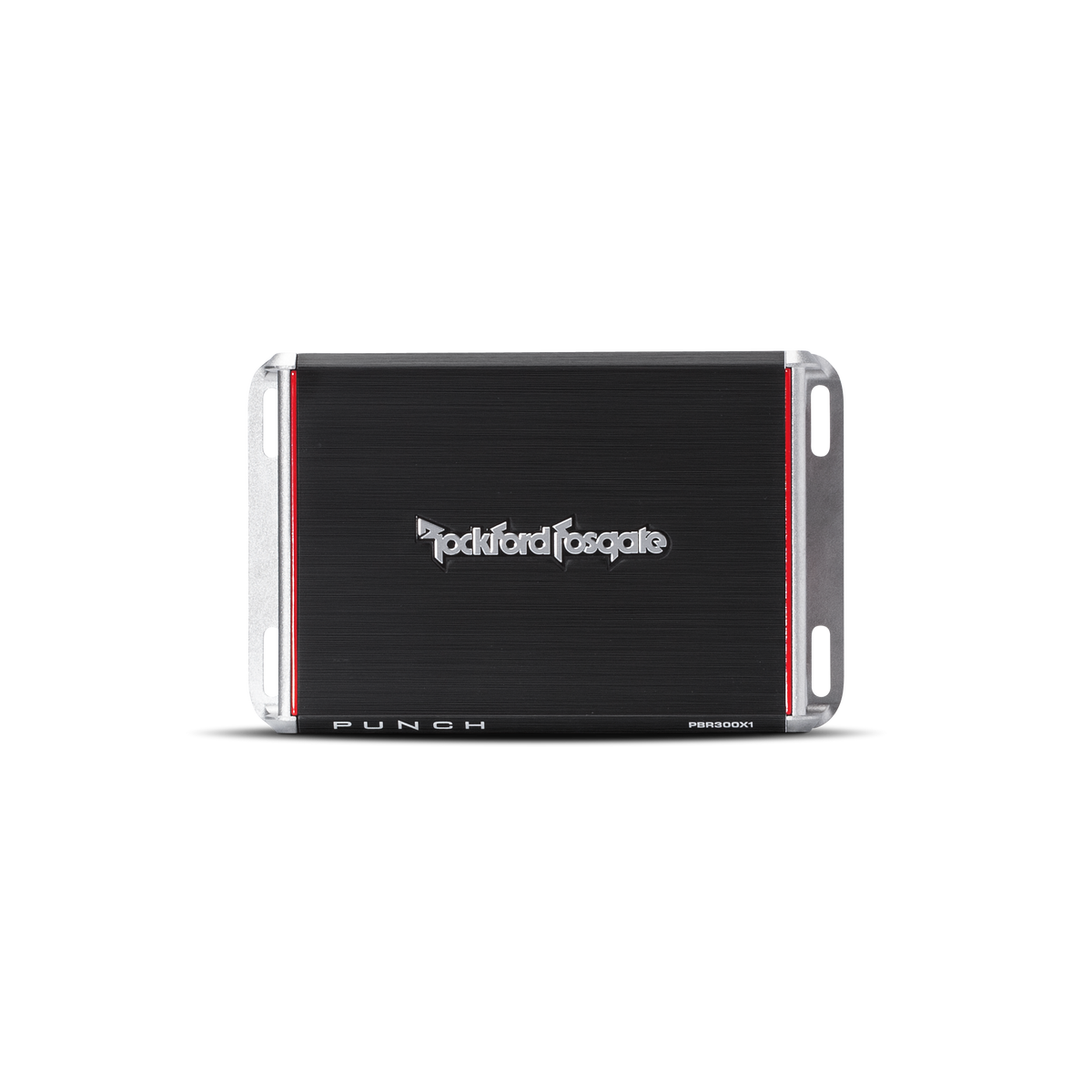

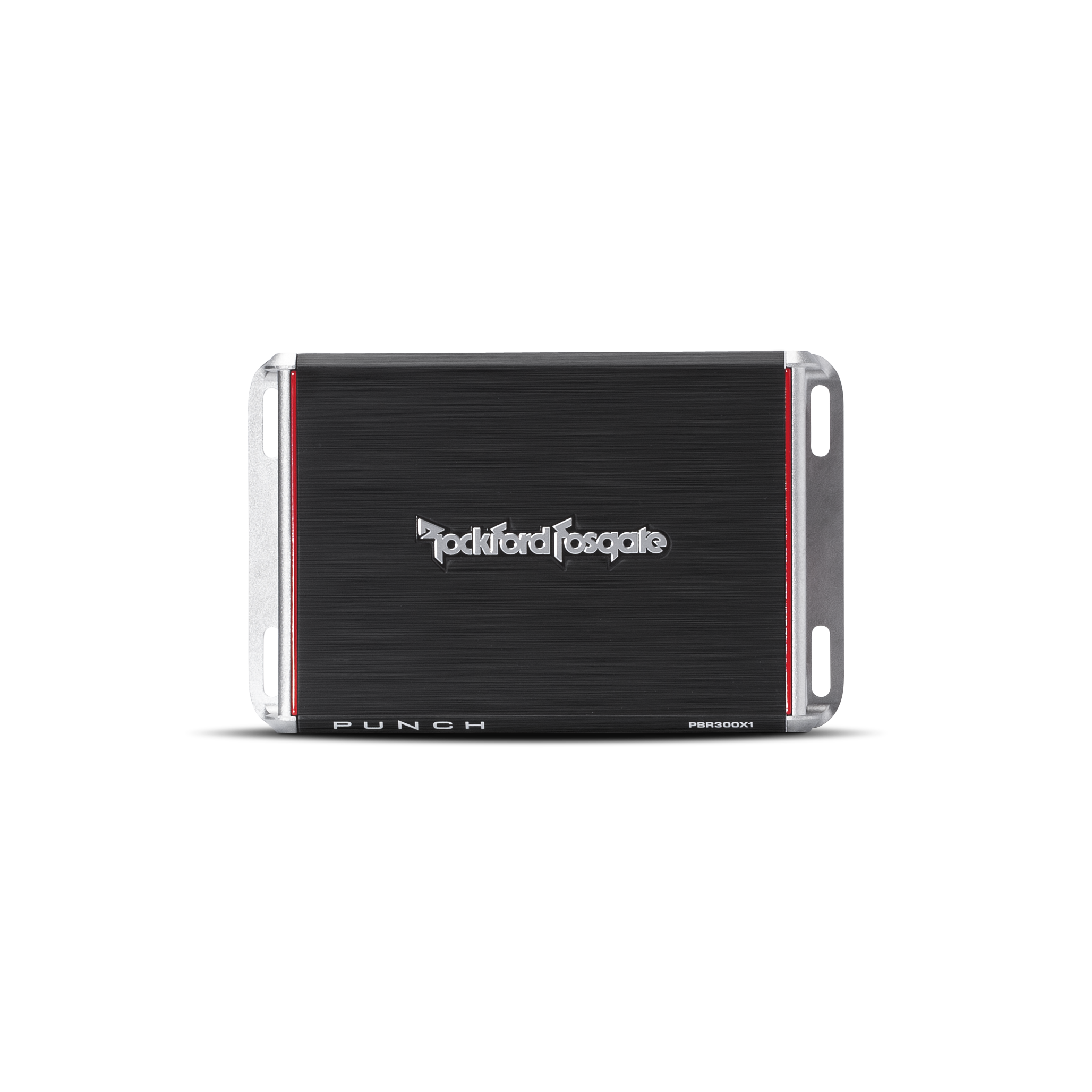

The Punch PBR300X1 is a compact, efficient 300W mono subwoofer amp with Boosted Rail Technology for big bass in small cars, trucks, and electric vehicles.

Features

• 1 Year Warranty
• High level inputs
• MOSFET output stage
• Variable 4-6 volt hi level DC offset voltage input turn-on control
• 12dB/octave Butterworth crossover
• Ultra compact chassis

Specifications

• CEA-2006 Compliant: CEA-2006 Power Rating; 75W x 1 @ 4Ohm; <=1.0% THD+N
• Total Power; (Sum of Rated Power): 300 Watts
• Dynamic Power; (PVC/PowerCube): 96 Watts x 1 @ 4-Ohm; 189 Watts x 1 @ 2-Ohm; 326 Watts x 1 @ 1-Ohm
• Rated Power; (RMS Continuous Power): 75 Watts x 1 @ 4-Ohm; 150 Watts x 1 @ 2-Ohm; 300 Watts x 1 @ 1-Ohm
• Heat Sink Type: Extruded aluminum
• Bridgeable: No
• Suggested Alternator: 75 A

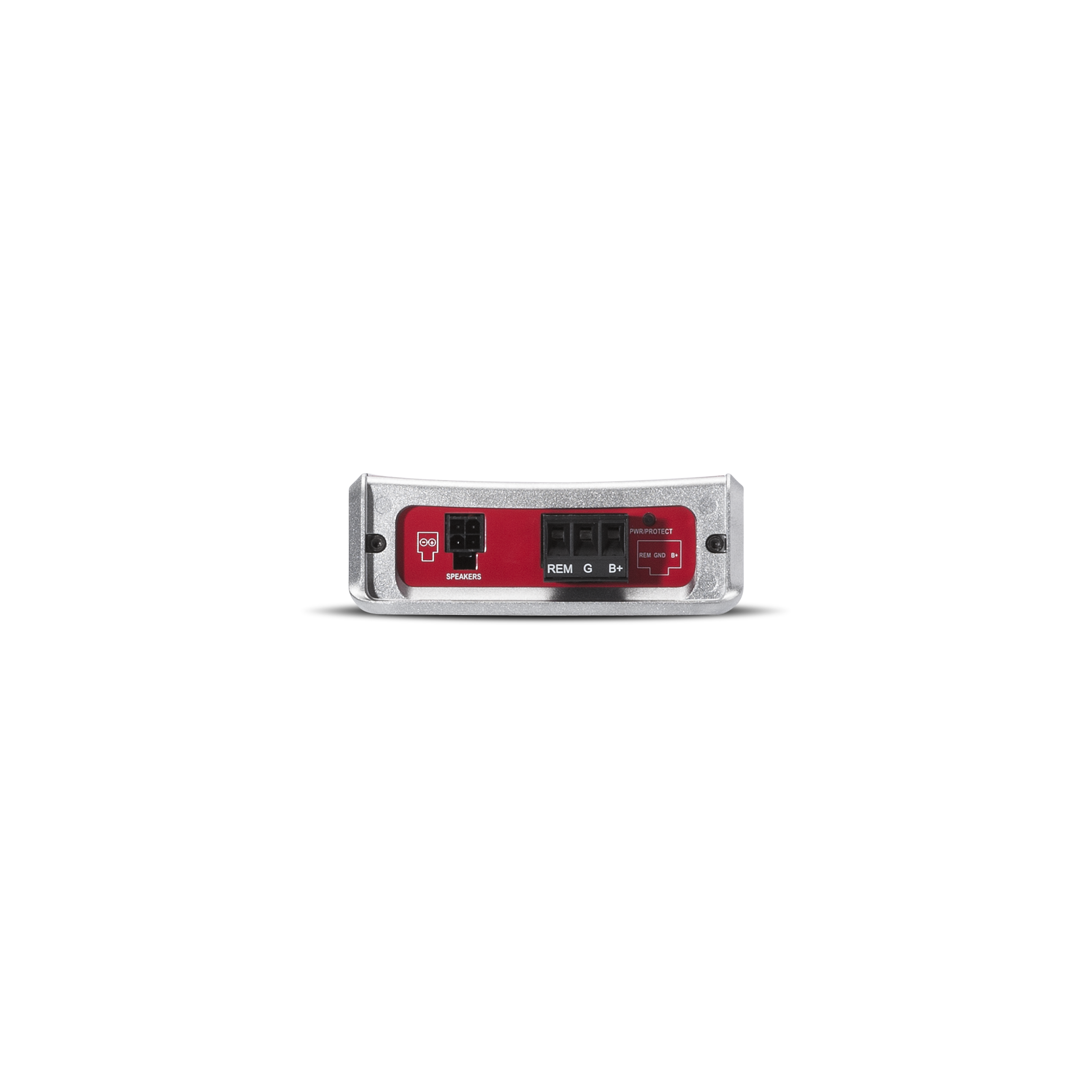

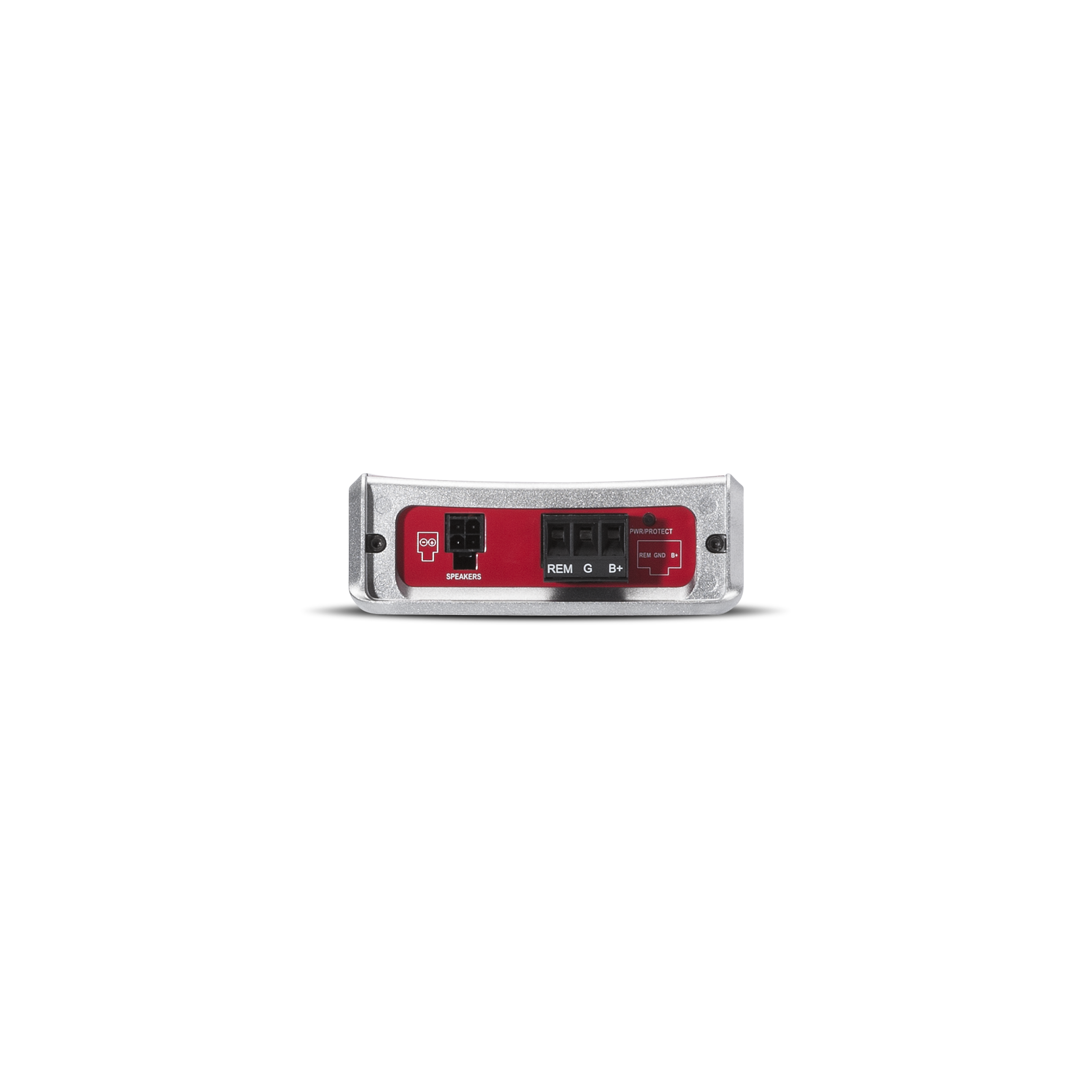

• Power Input Connector: Detachable Compression Terminal
• Power Wire Gauge: 10 AWG
• Signal Output: -
• Remote Controls: Optional PEQ provides 0dB to +18dB @ 45Hz
• Visual Indicators: Power/Protect, BRT (Boost)
• Dimensions (H x W x D): 1.53 x 4.25 x 6.75 (in.); 3.90 x 10.8 x 17.2 (cm)
• Shipping Weight: 2.76 Lbs. (1.25 Kg.)
• Efficiency (average): 75% @ 4-Ohm; 75% @ 2-Ohm; 75% @ 1-Ohm
• Average Current Draw (13.8V Music): 15 A
• Total Harmonic Distortion (THD+Noise): 4-Ohm: 2-Ohm: <1.0%
• Operating Voltage: 9 - 16 VDC
• Input Sensitivity: Low-Level: 150 mV - 4 V; High-Level: 400 mV - 11 V
• Number of Channels: 1
• Crossover Controls: Low-Pass: 35Hz - 250Hz @ 12dB/Octave Butterworth
• Tone Controls: External via Optional Punch EQ
• Recommended Fuse; (not included): 30 A

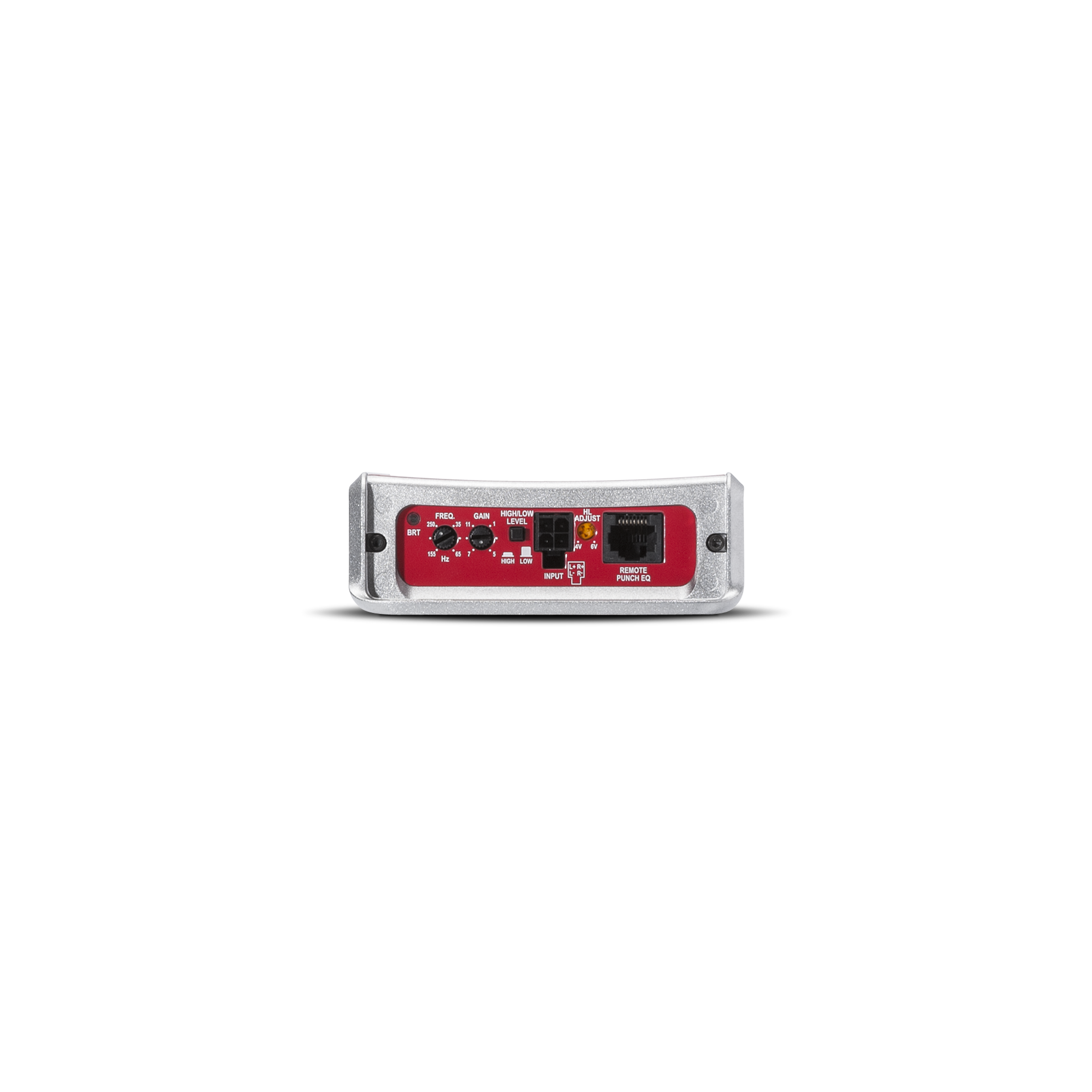

• Signal Input: High/Low Input Switch; High/Low Level Input: 4-Pin harness; Hi-Level Sensitivity: Variable DC offset sensitivity
• Speaker Output Connector: 4-Pin Harness; Wiring Convenience:; 2 Negative Terminals (-); 2 Positive Terminals (+)
• Speaker Wire Gauge: 16 AWG
• Cooling: Convection
• Circuit Topology Class: Class BR
• Frequency Response: 20Hz - 250Hz +/-3dB
• Max. Current Draw (13.8V Sinewave): 30 A
• Channel Separation: -
• Signal-to-Noise (CEA): >86 dB
• Common Mode Rejection: >65 dB
• Damping Factor: >200
