Product Overview

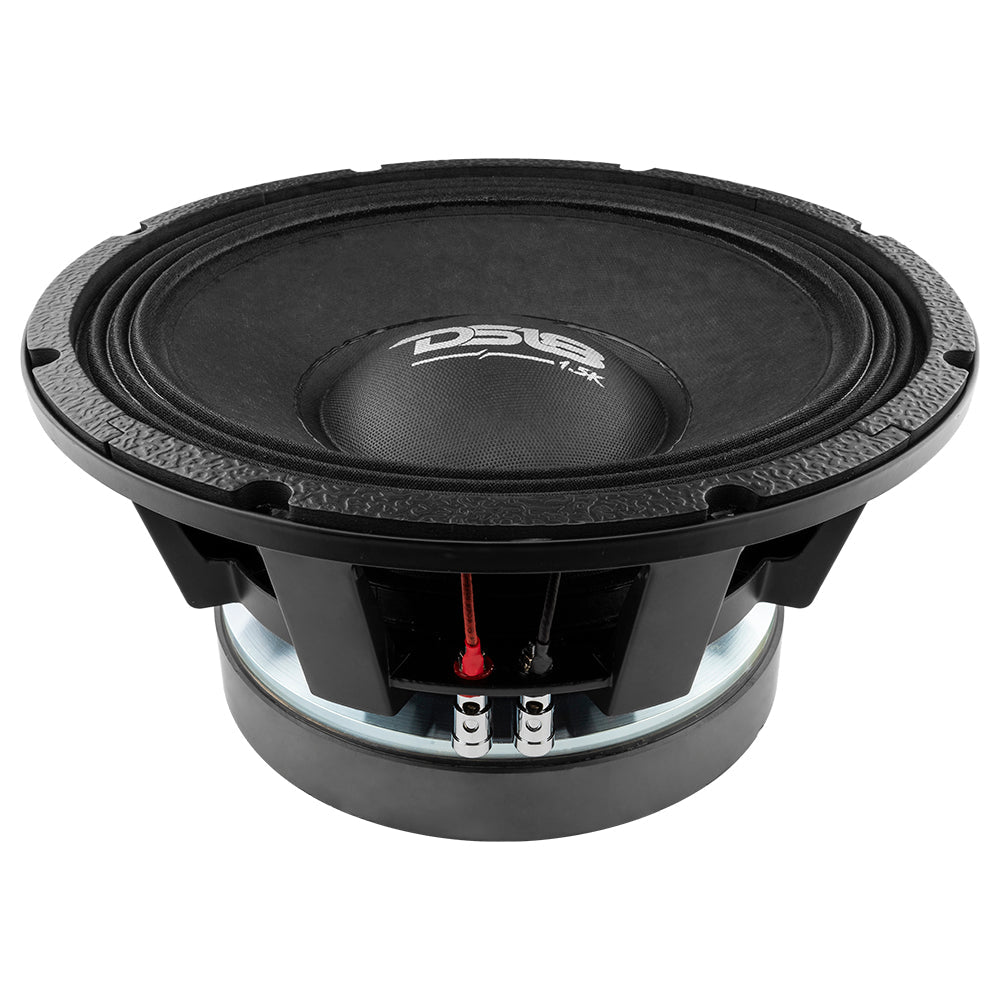

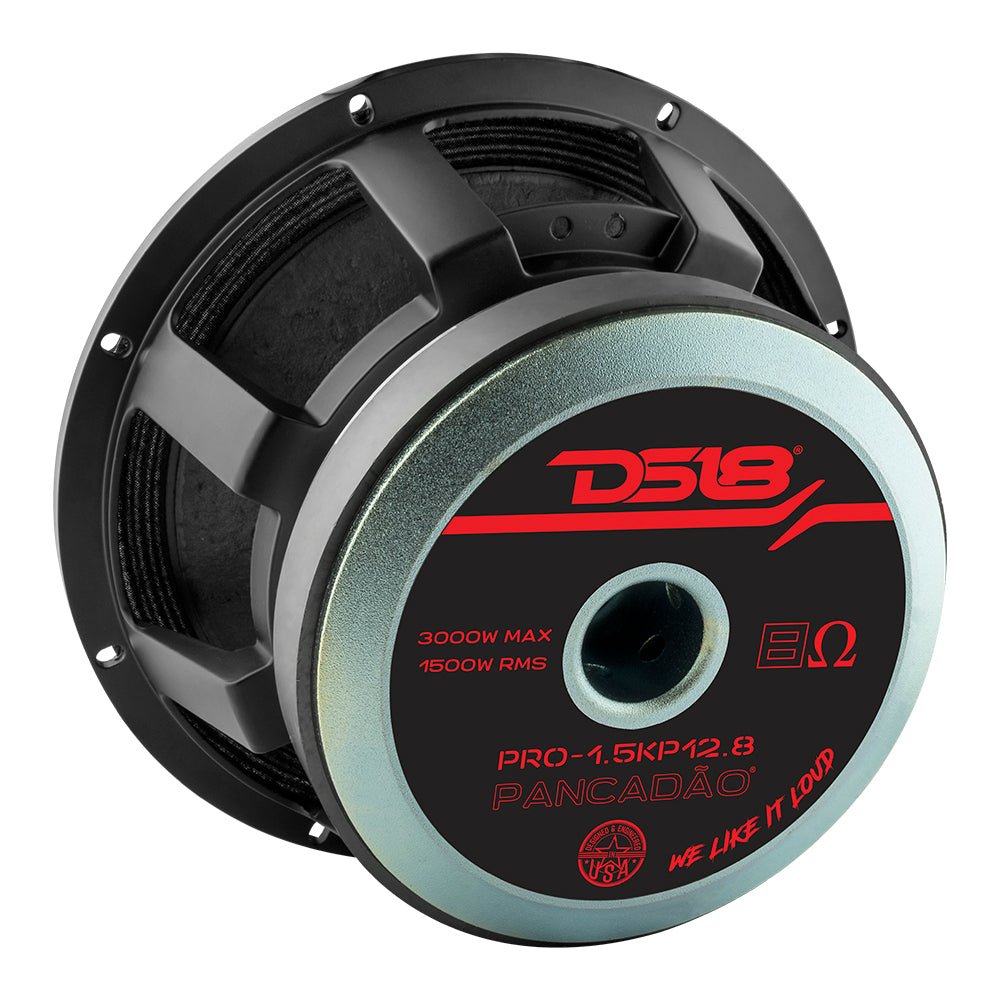

DS18 PRO-1.5KP12.8 PANCADÃO Mid-Bass/Woofer Loudspeaker 12" 1500 Watts RMS 8-Ohm
The PANCADAO from DS18 has new siblings to complement anyone's high performance pro audio system! Now, not only do we offer them in 12", but also 10", and 8" so everyone can get a piece of Pancadao in their build. These high performance "do all" woofers can play an amazing range of frequencies. From hard punching midbass to mid high vocals at an unbelievable volume. These are the go to DS18 Pro Audio speakers to set your sound above the rest.
Highlights
- The most powerful midbass DS18 has to offer that not only plays intense punch mid-bass, it also has the ability to play mid to high vocals as well.

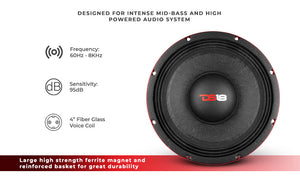

- Large high strength ferrite magnet and reinforced basket for great power handing and durability.
- Designed for intense midbass and high powered audio systems needing massive mid-bass.
Technical Details
| Model: | PPRO-1.5KP12.8 |
| RMS Power Handling: | 1500 Watts |
| MAX Power Handling: | 3000 Watts |
| Sensitivity (1w/1m) | 95dB |
| Frequency Response: | 60Hz-8KHz |
| Minimum Impedance: | 8 Ohms |
| Voice Coil Diameter: | 4" |
| Winding Material: | CCAW |
| Magnet Weight: | Ferrite 150 Oz |
| Basket Material: | Aluminum |
| Overall Diameter: | 12.36" |
| Baffle Cutout Diameter: | 11.18" |
| Overall Depth: | 6.53" |
| Mounting Depth: | 5.36" |
Key Features
- 12" Mid-Bass
- MAX Power: 3000 Watts
- RMS Power: 1500 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 95dB
Specifications
| SKU | PRO-1.5KP12.8 |
|---|---|
| Nominal Diameter | 12" |
| Nominal Impedance | 8 ohms |
| RMS Power Handing | 1500W |
| Maximum Power Handing | 3000W |
| Sensitivity (1w/1m) | 95 dB |

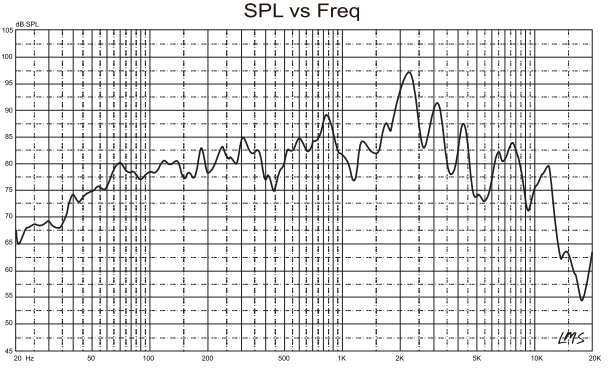

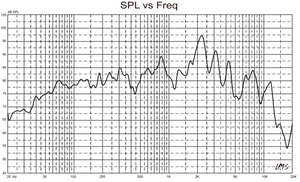

| Frequency Response | 60Hz-8kHz |
| Recommended Hi Pass Crossover | 70 Hz |
| Voice Coil Diameter | 4" |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Basket Material | Aluminum |
| Magnet Weight | 150 Oz |
| Vas | 19.9 L |
| Fs | 73.5 Hz |
| Qms | 10.02 |
| Qes | 0.383 |
| Qts | 0.369 |
| Re | 5.6 OHMS |

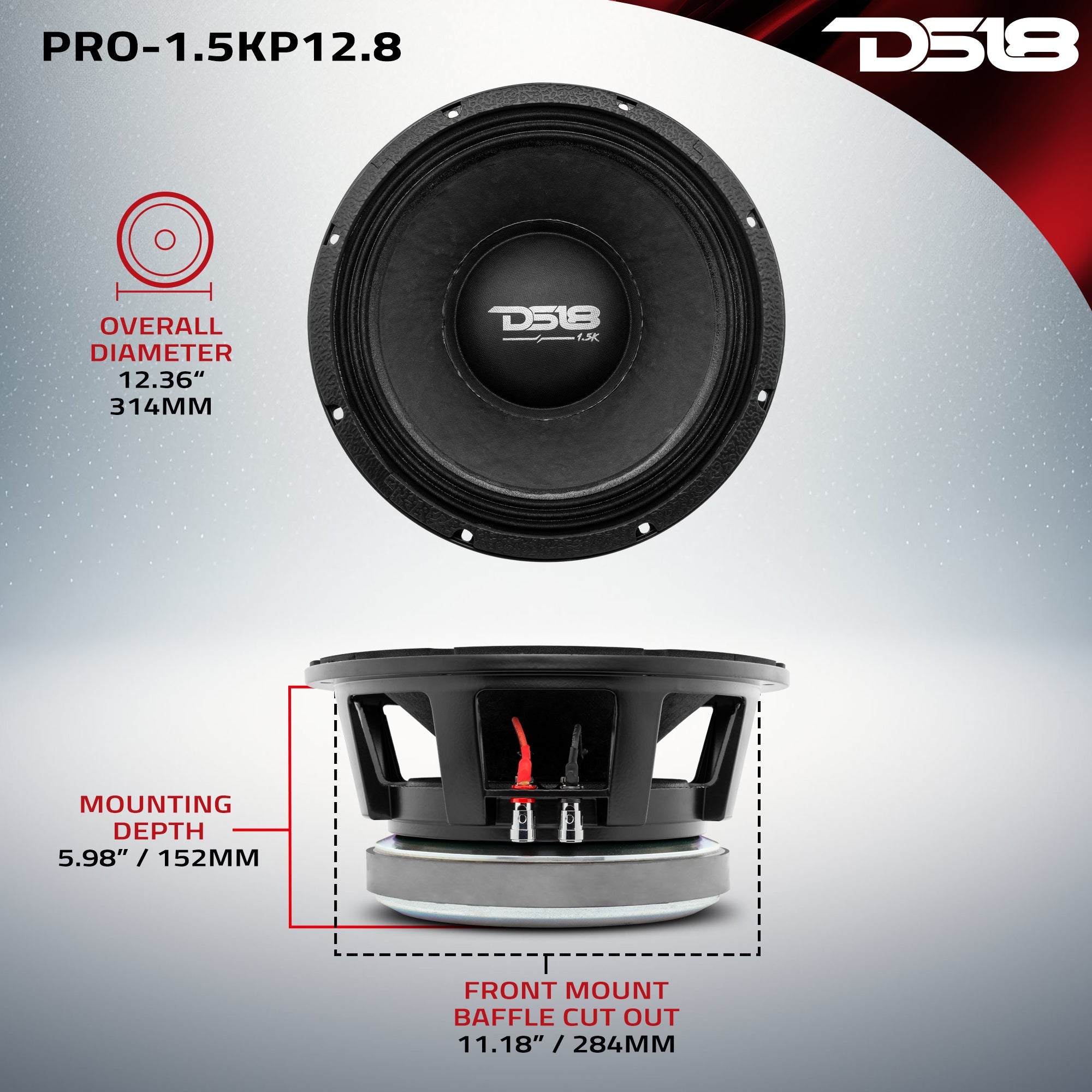

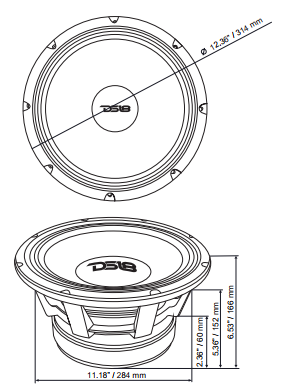

| Overall Diameter | 12.36" / 314 mm |
| Front Mount Baffle Cutout | 11.18" / 284 mm |
| Mounting Depth | 5.36" / 152 mm |
| Overall Depth | 6.53" / 166 mm |
| Product Weight | 36 lbs |
| Product Dimensions | 14.75 x 14.75 x 9 |
| M/C Weight | 36 lbs |
| M/C Dimensions | 14.75 x 14.75 x 9 |
| M/C QTY | 1 |
| Sold In | Piece |
