Overview

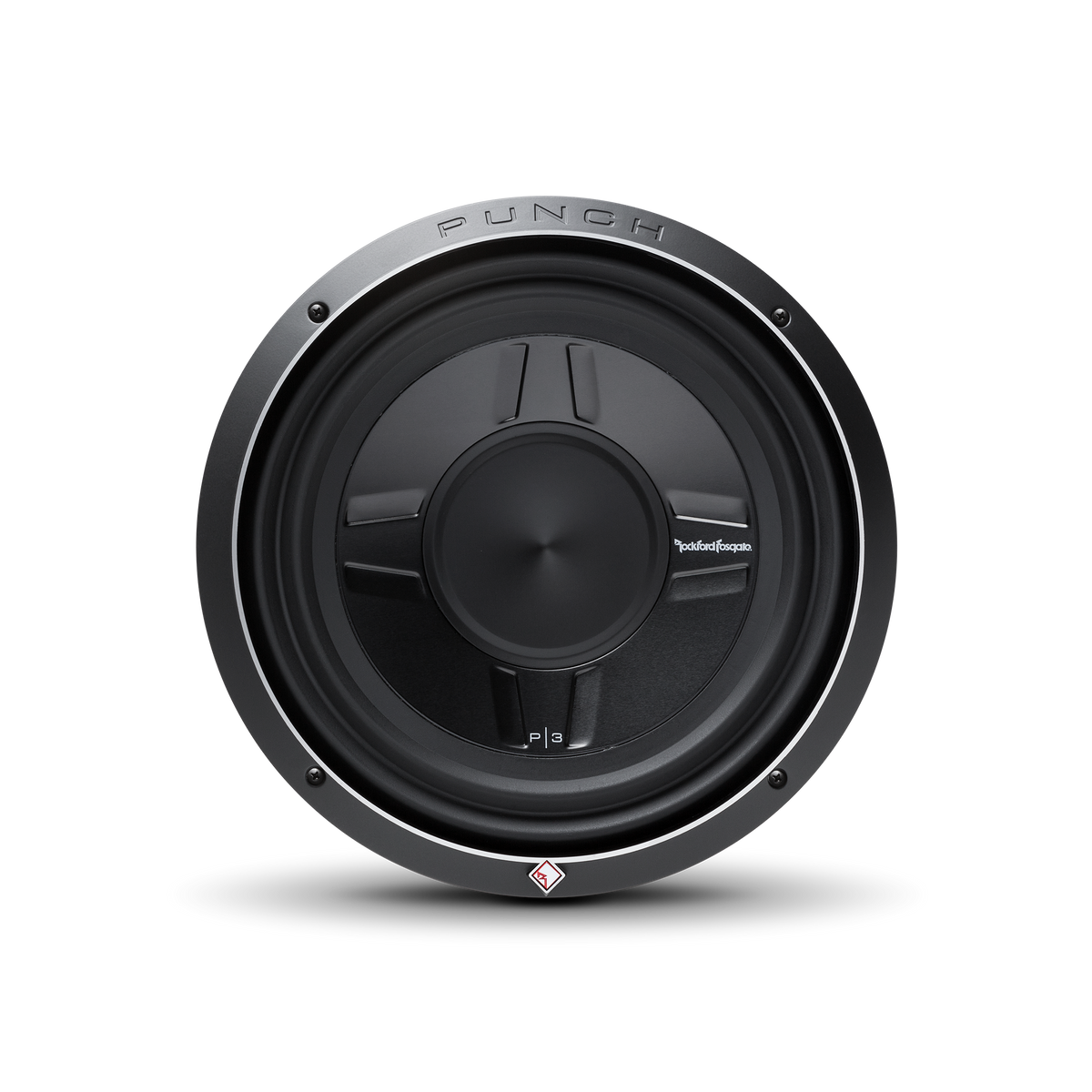

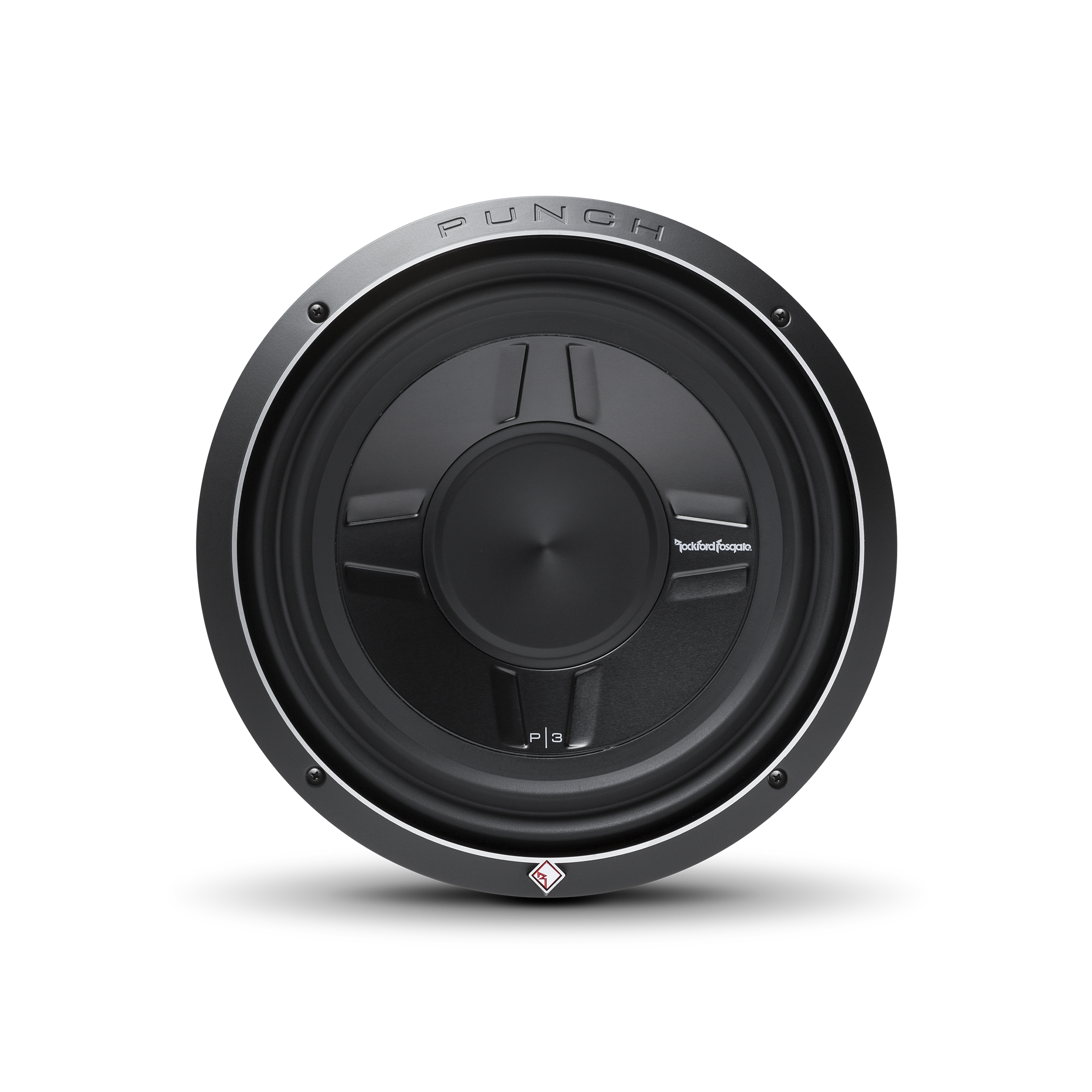

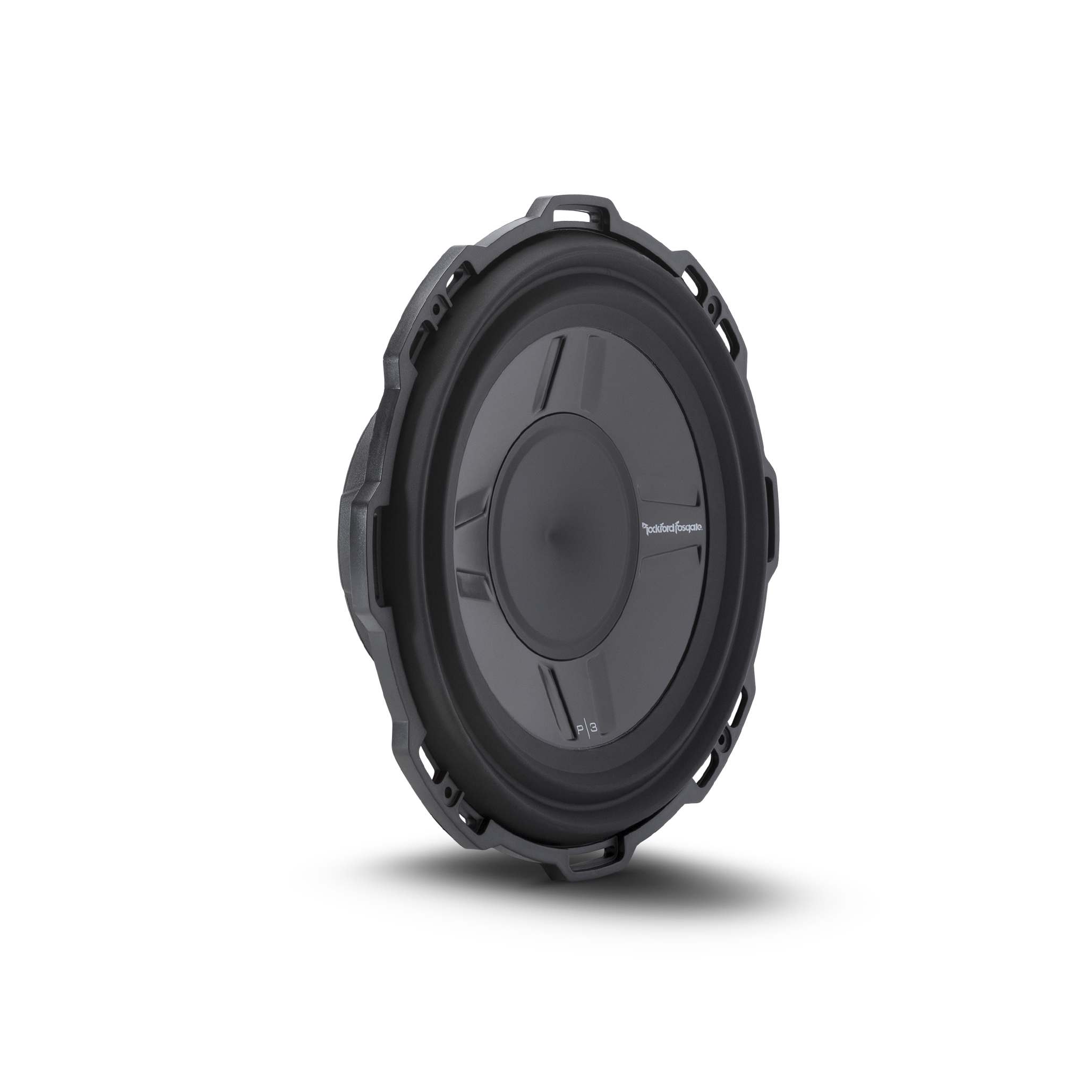

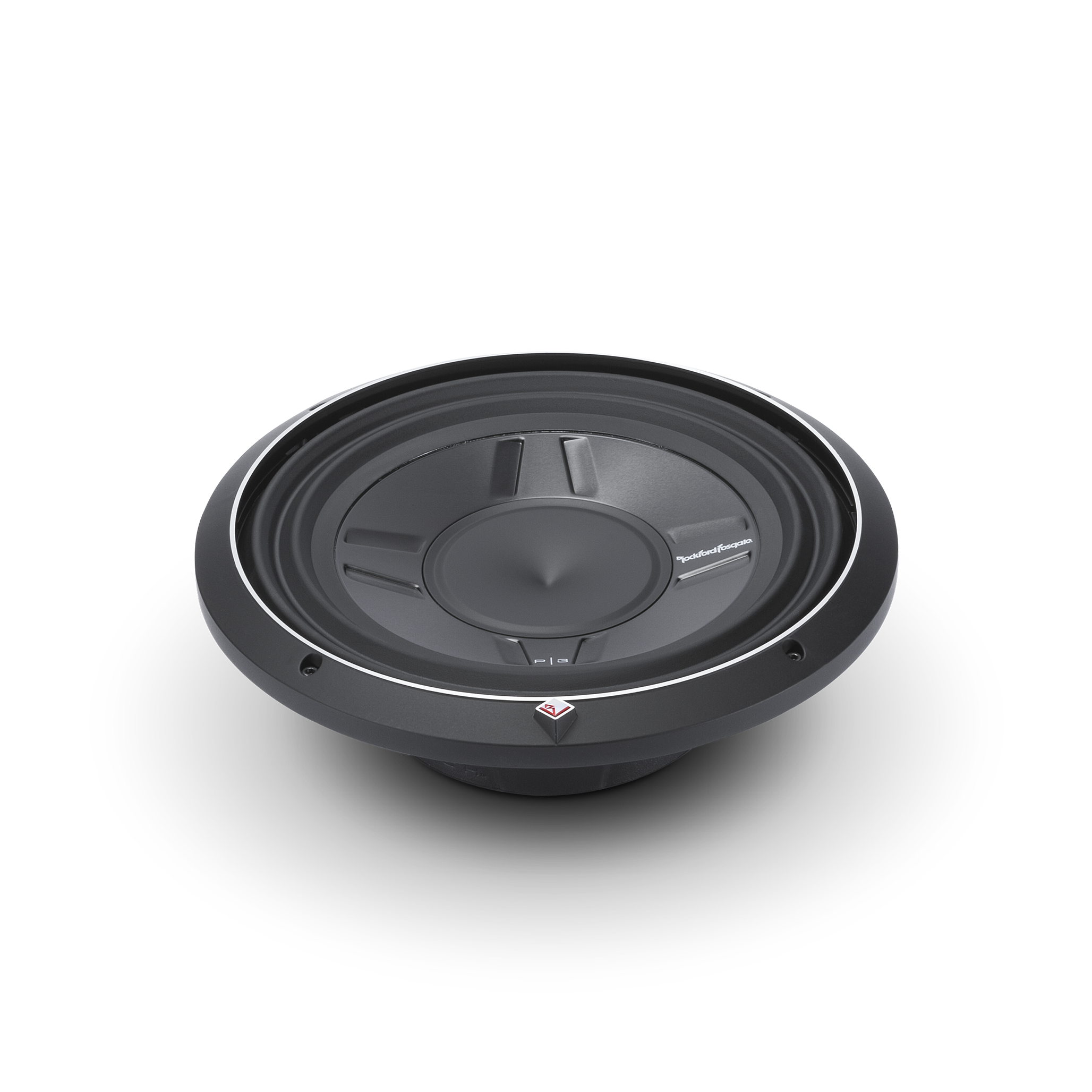

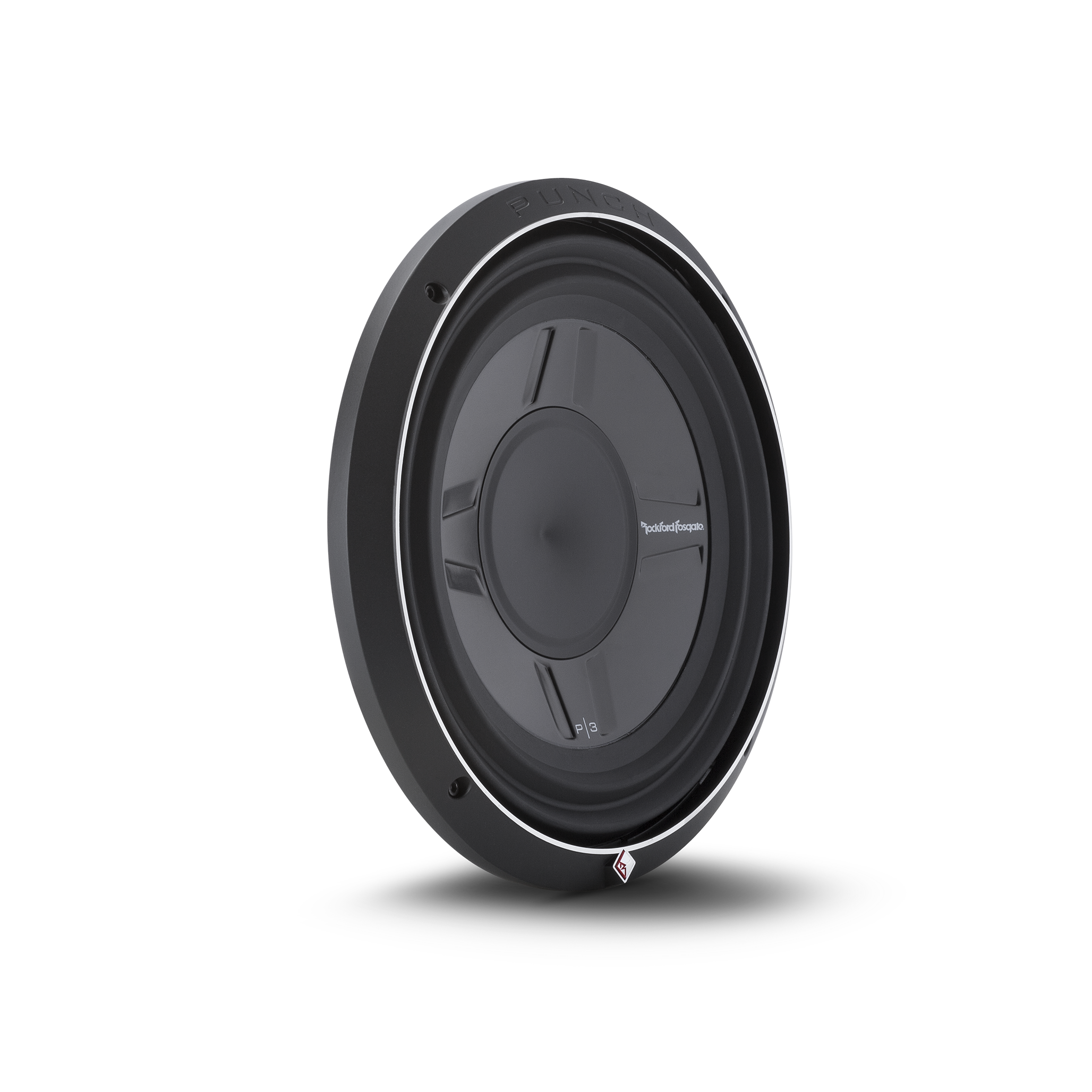

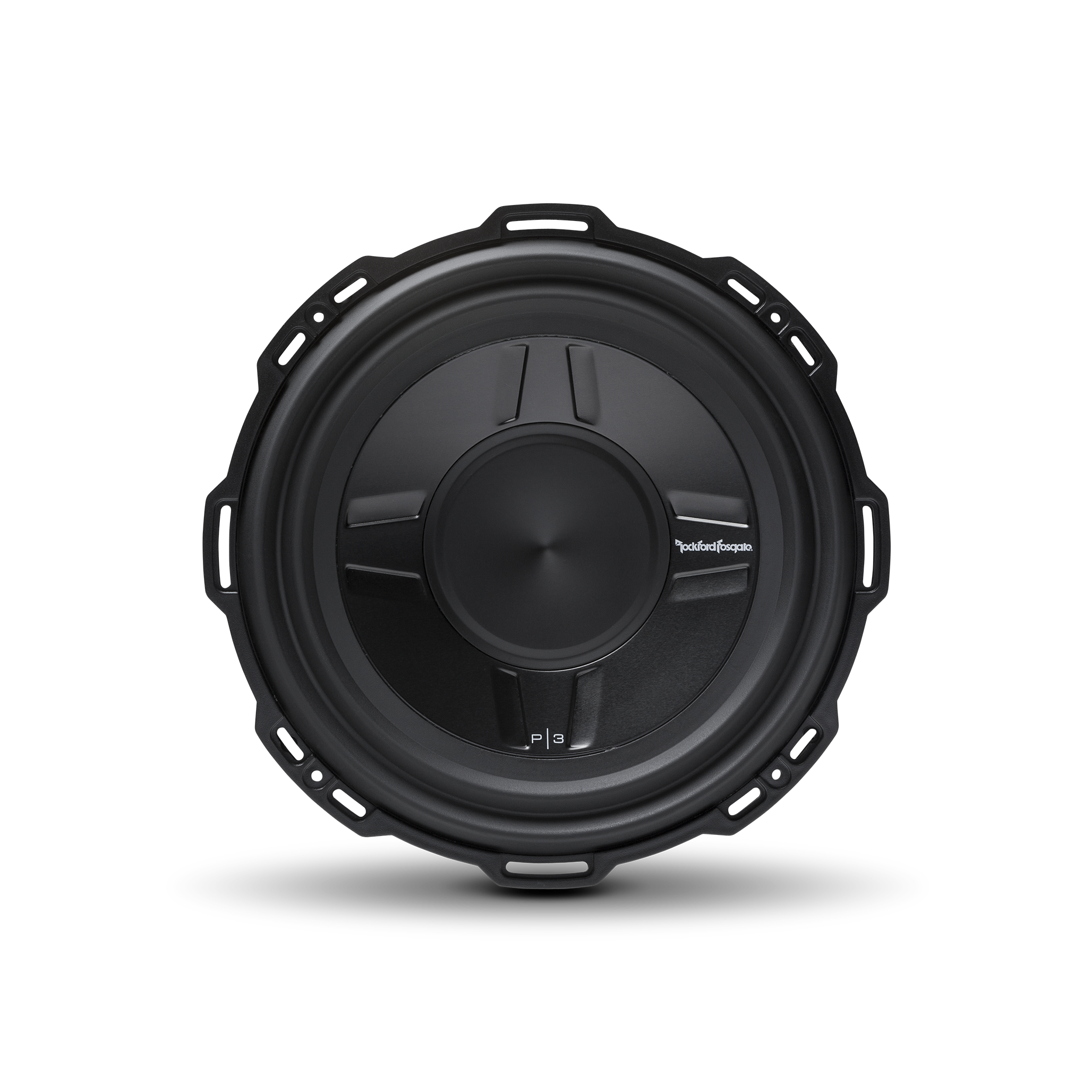

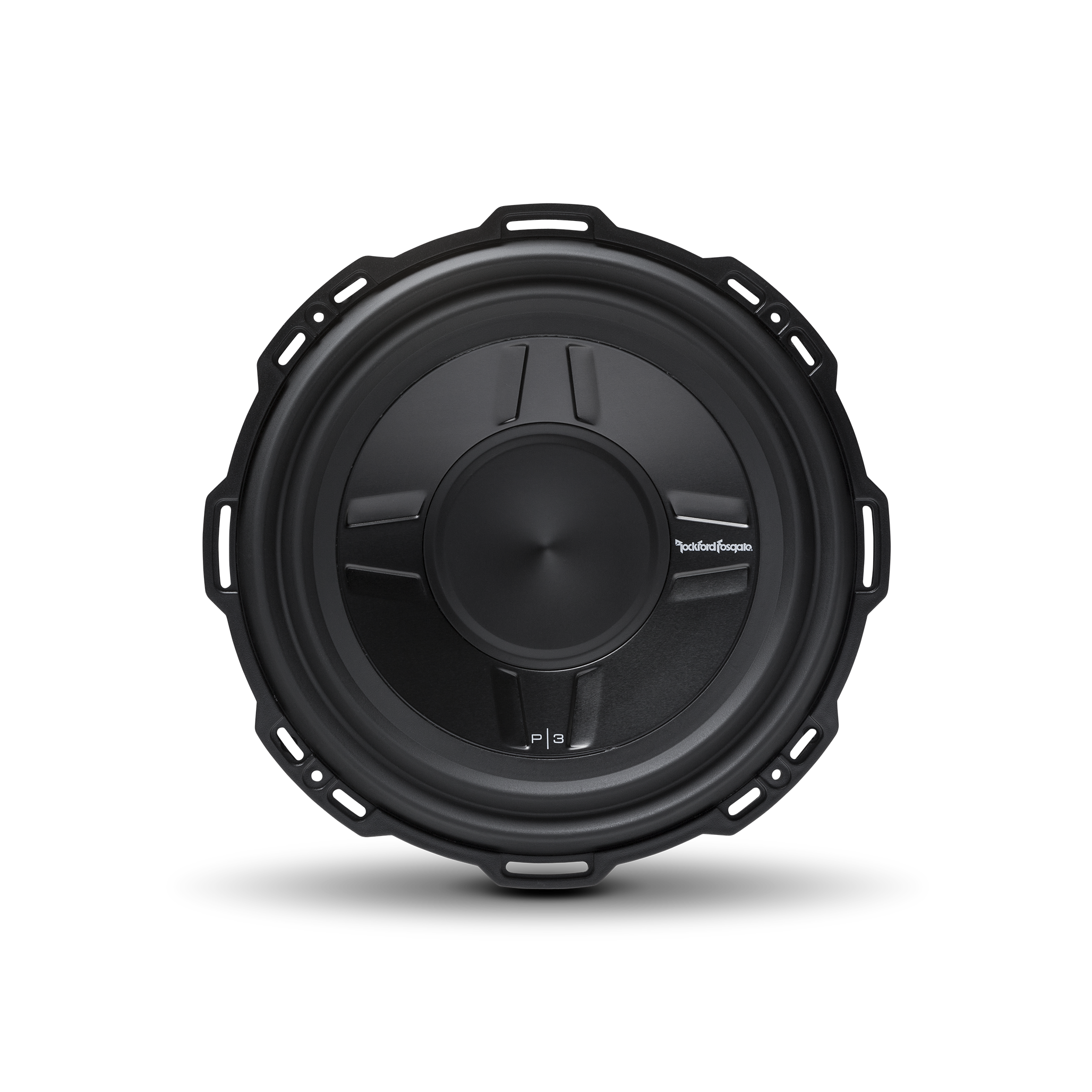

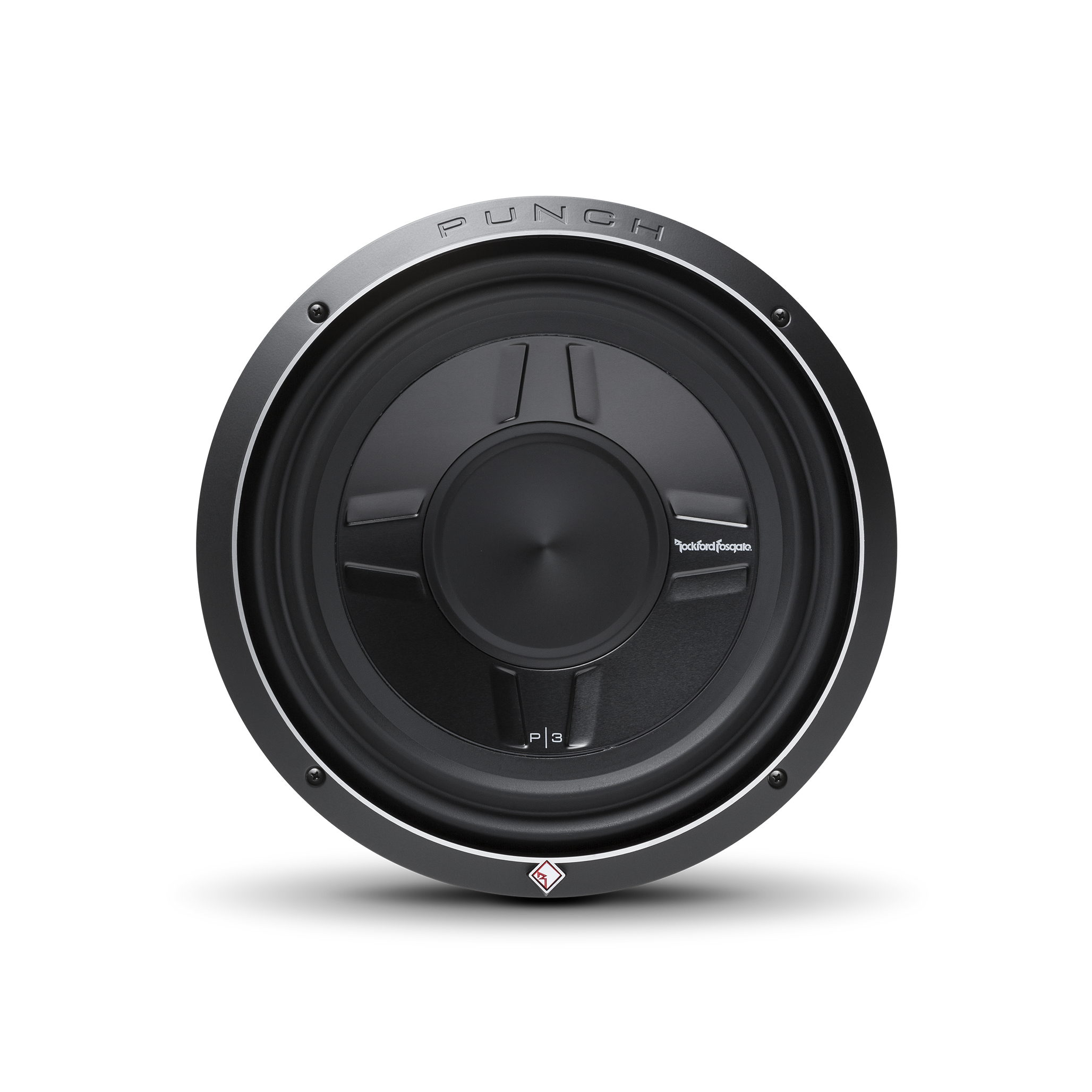

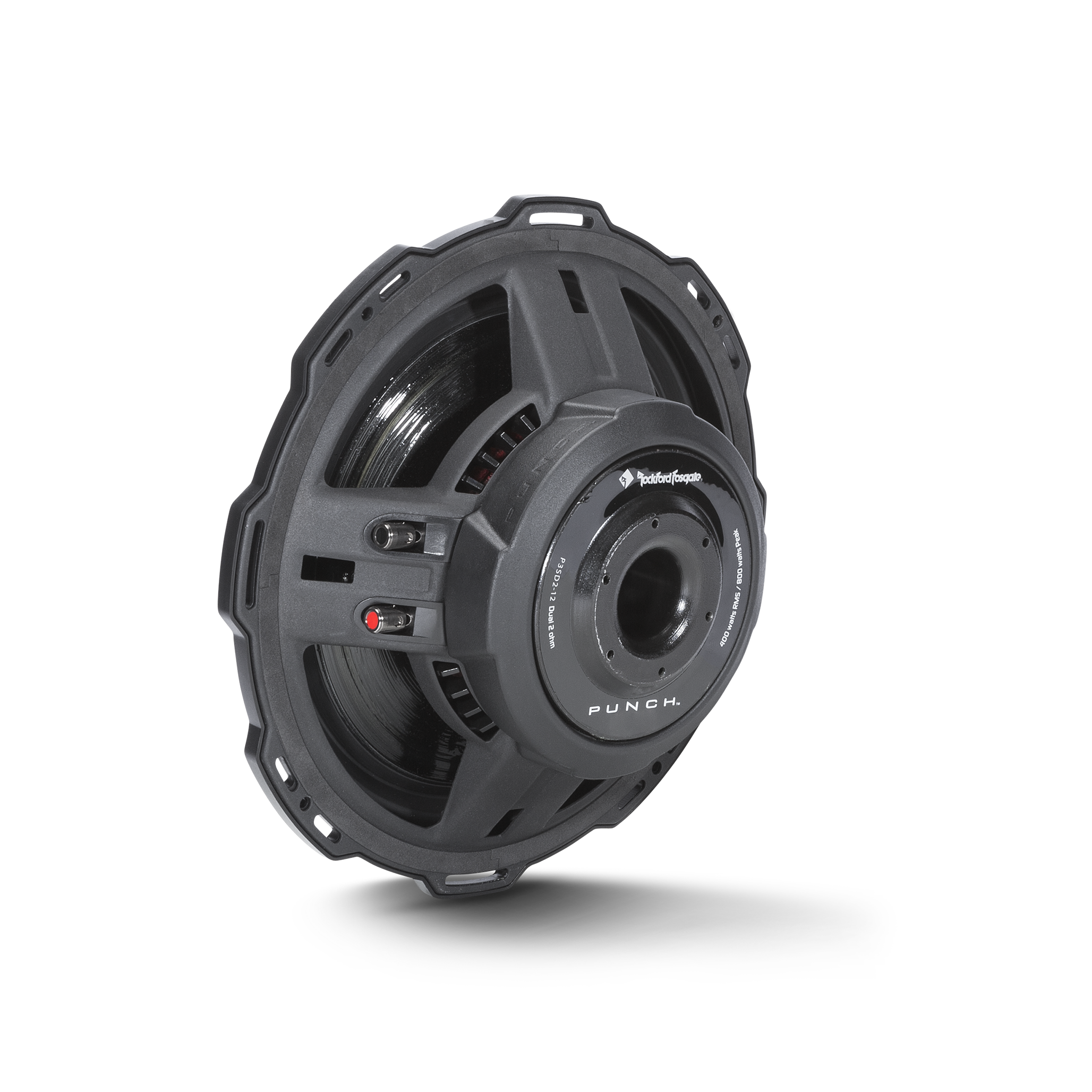

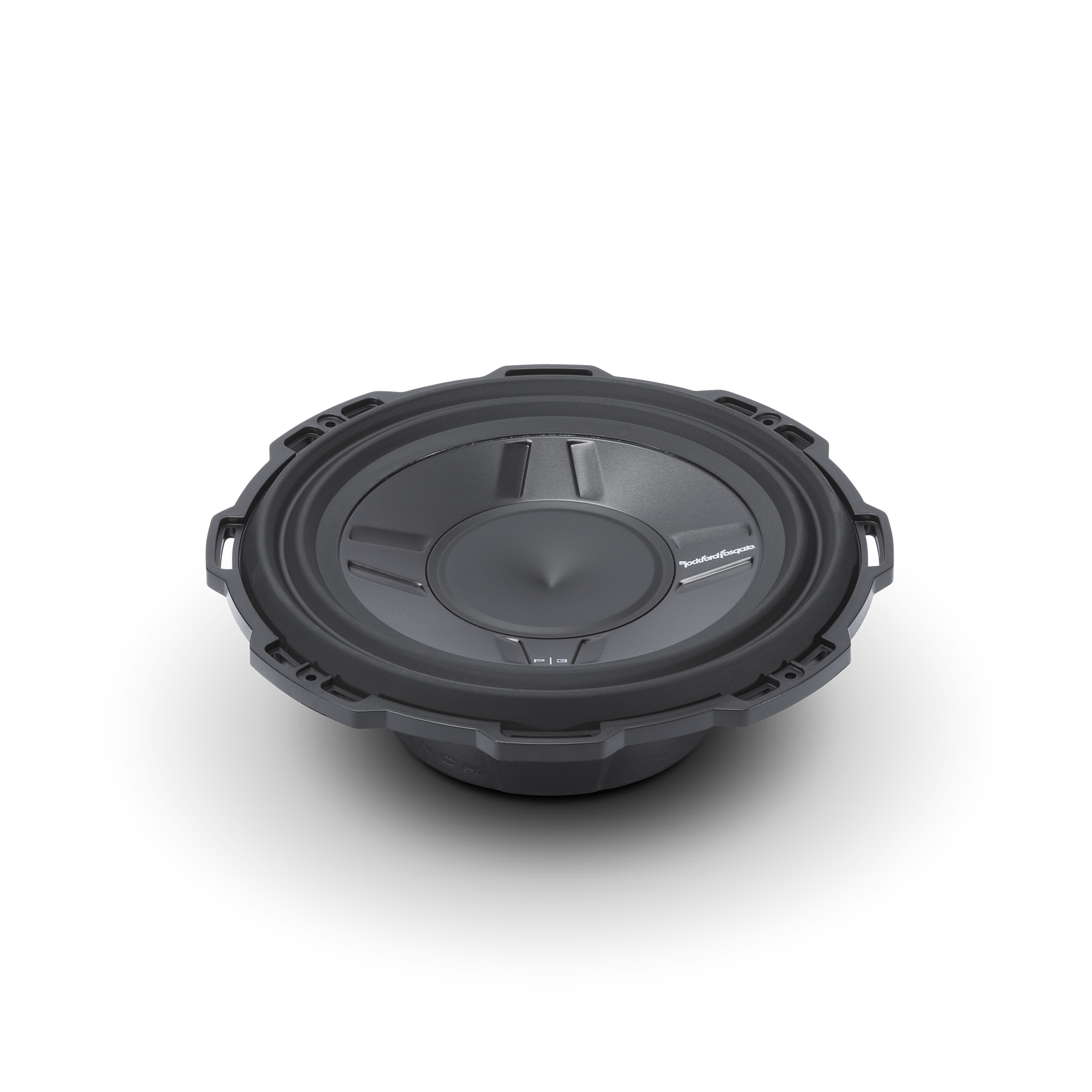

Rockford Fosgate P3S 12" shallow mount subwoofer delivers "Punch" even when depth is limited. The P3SD4-12 features Dual 4-Ohm voice coils for wiring flexibility and 400 Watts RMS power handling.
Features
- 1 Year Warranty
- Anodized aluminum cone and dustcap
- M-Roll SantopreneTM surround
- Dual linear spider with embedded 16 AWG tinsel leads
- Optimized for both sealed and vented enclosures

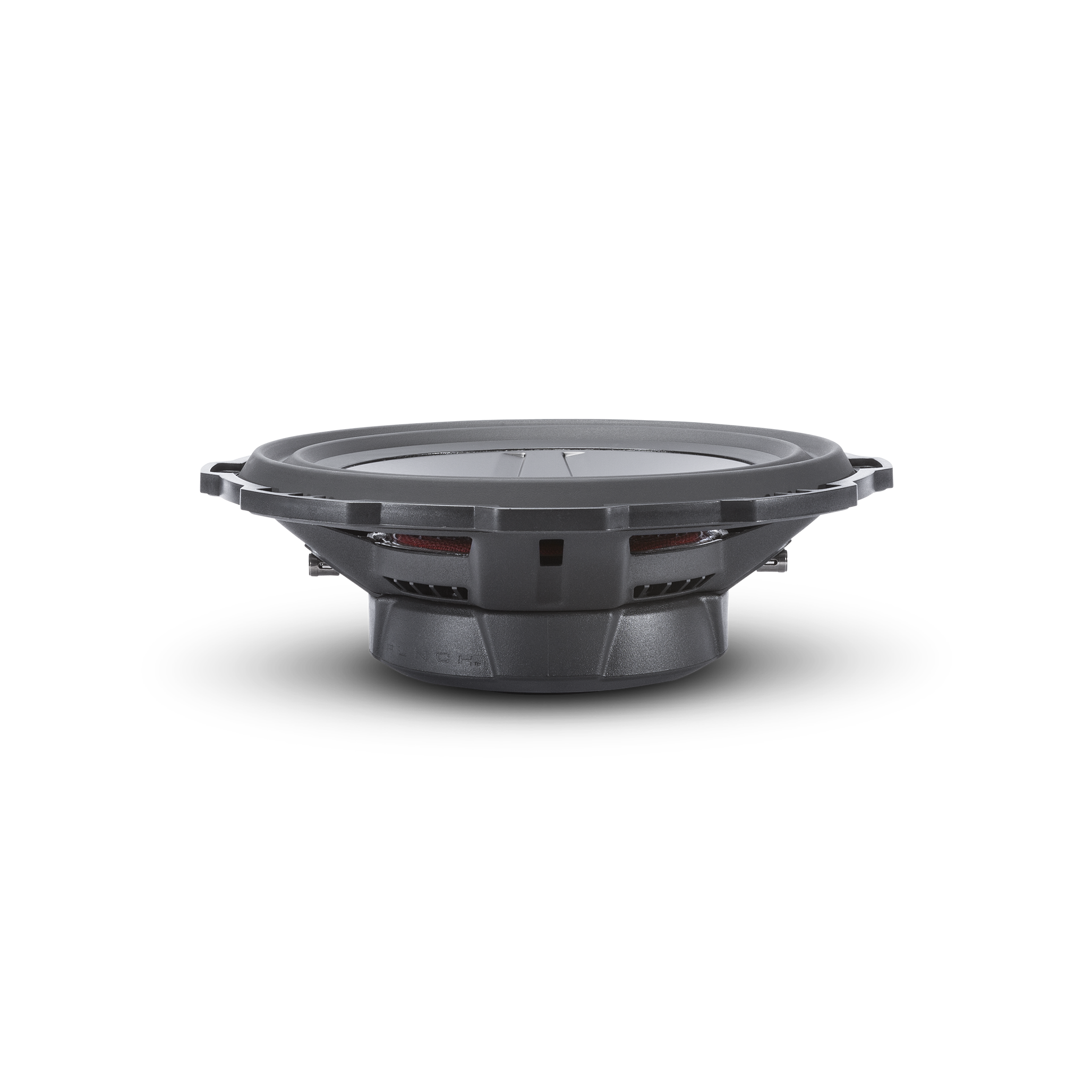

- Shallow Motor Assembly
- StampCast basket with integrated spider venting
- Diamond cut cast aluminum trim ring with optional grille
Specifications
- Nominal Impedance: Dual 4-Ohm
- Shipping Weight: 13.25 Lbs. (6.01 kg.)
- Size: 12"
- Speaker Connector: Dual 10 AWG Compression
- Mounting Depth: 3.65 in. (92.5 mm)
- Magnet Weight (oz): 51 oz. (1.45 kg.)
- Voice Coil Diameter: 2.5" (65.5 mm)
- Re (Ohms): 6.8
- Qms: 5.7
- Vas (Liters): 35.3
- Fs (Hz): 35.4
- Qts: 0.72
- Qes: 0.83
- Cutout Diameter: 11.22 in. (285.0 mm)
- Woofer Displacement: 0.086 cu. ft. (2.45 Liters)
- Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
- Le (mH): 4.4
- Sd (cm2): 500
- SPL (dB @ 1w/1m): 85
- Xmax (mm): 8.1
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
- Vented Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)
