Overview

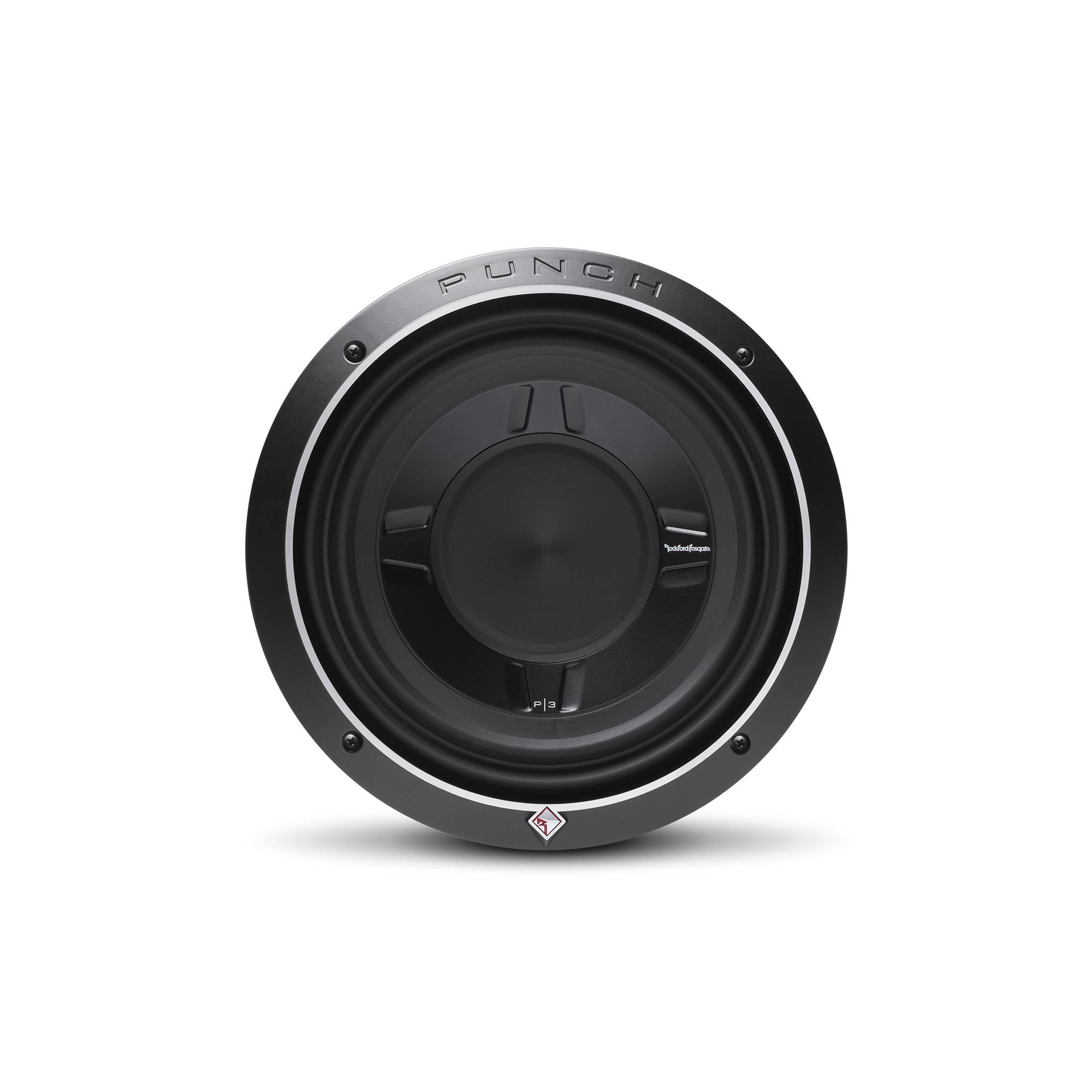

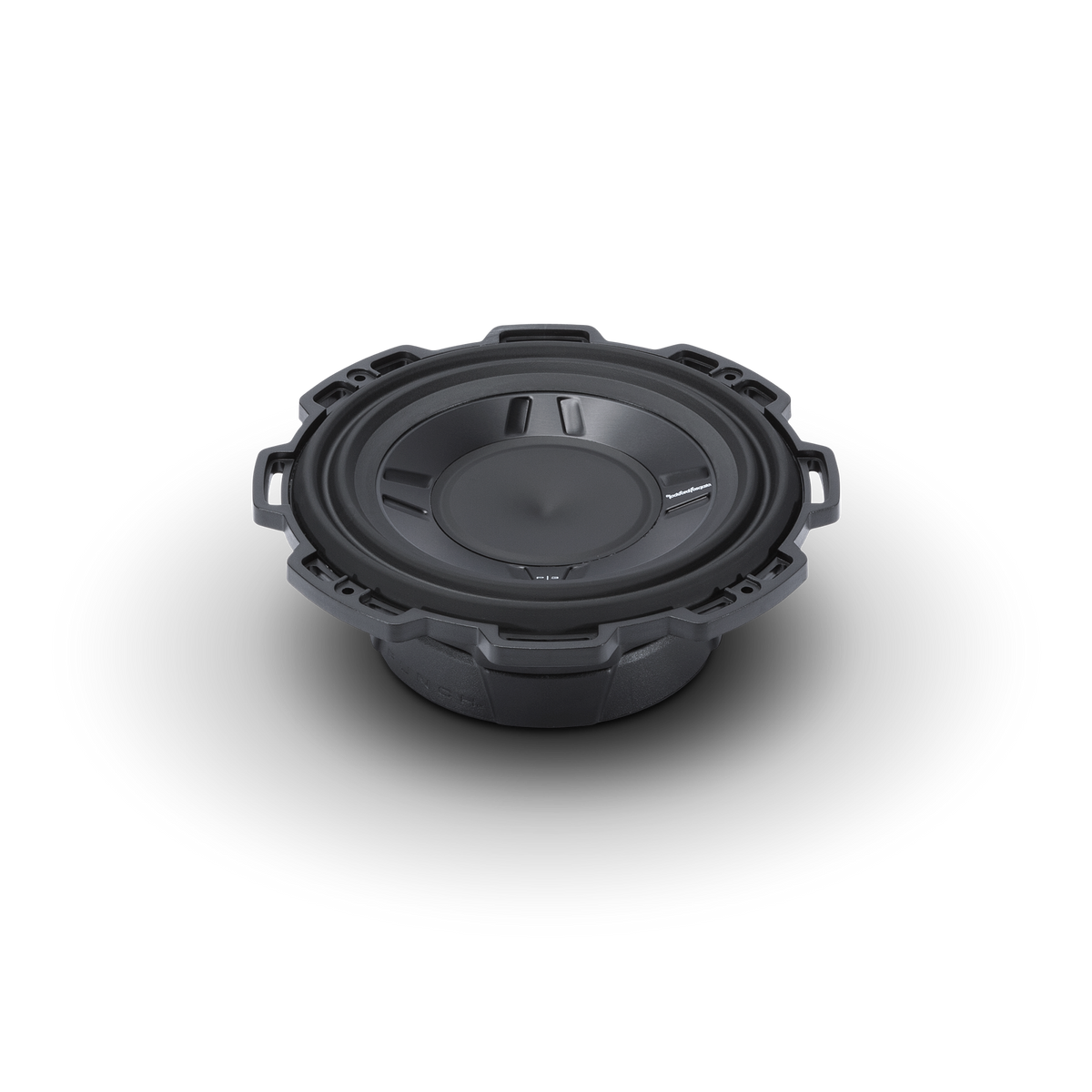

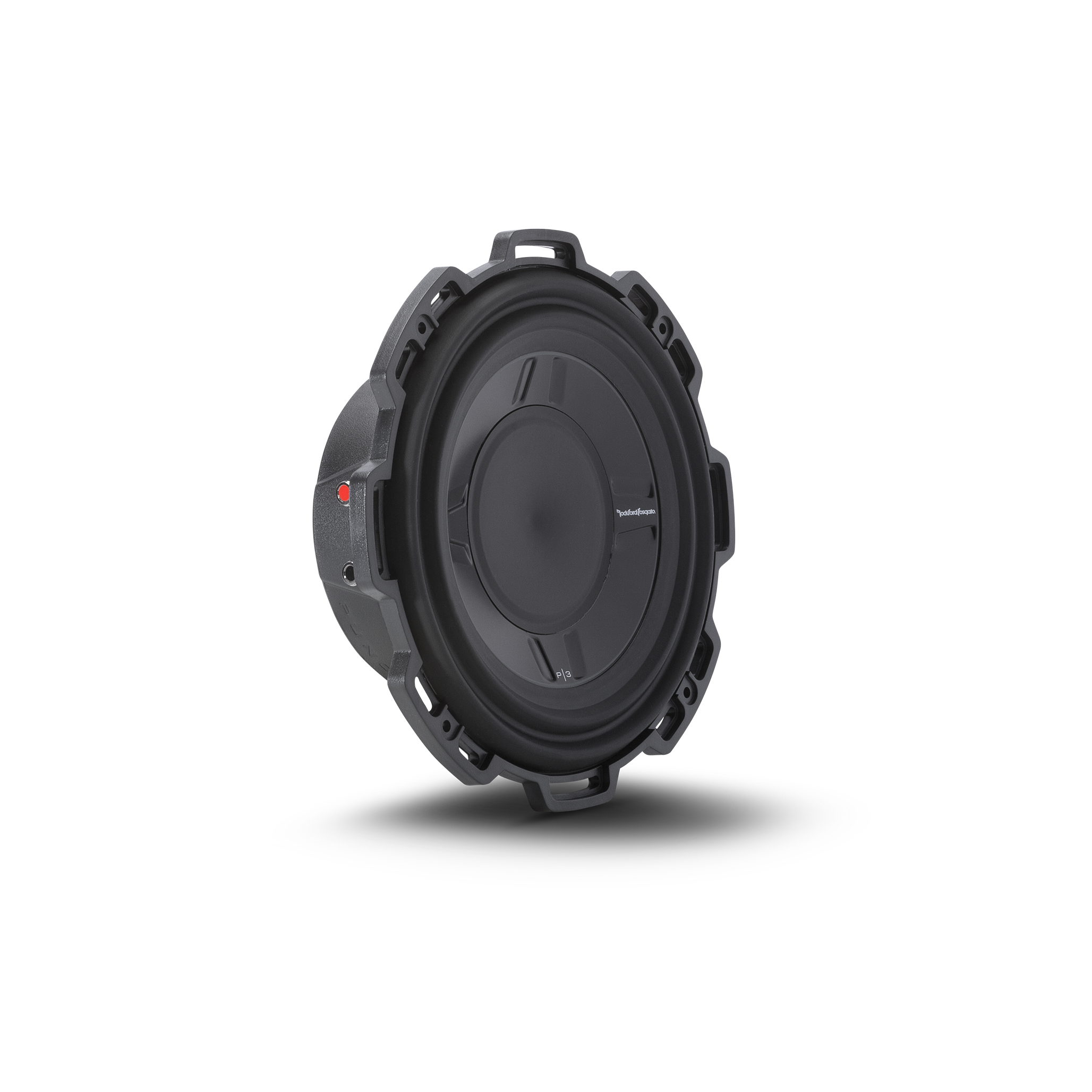

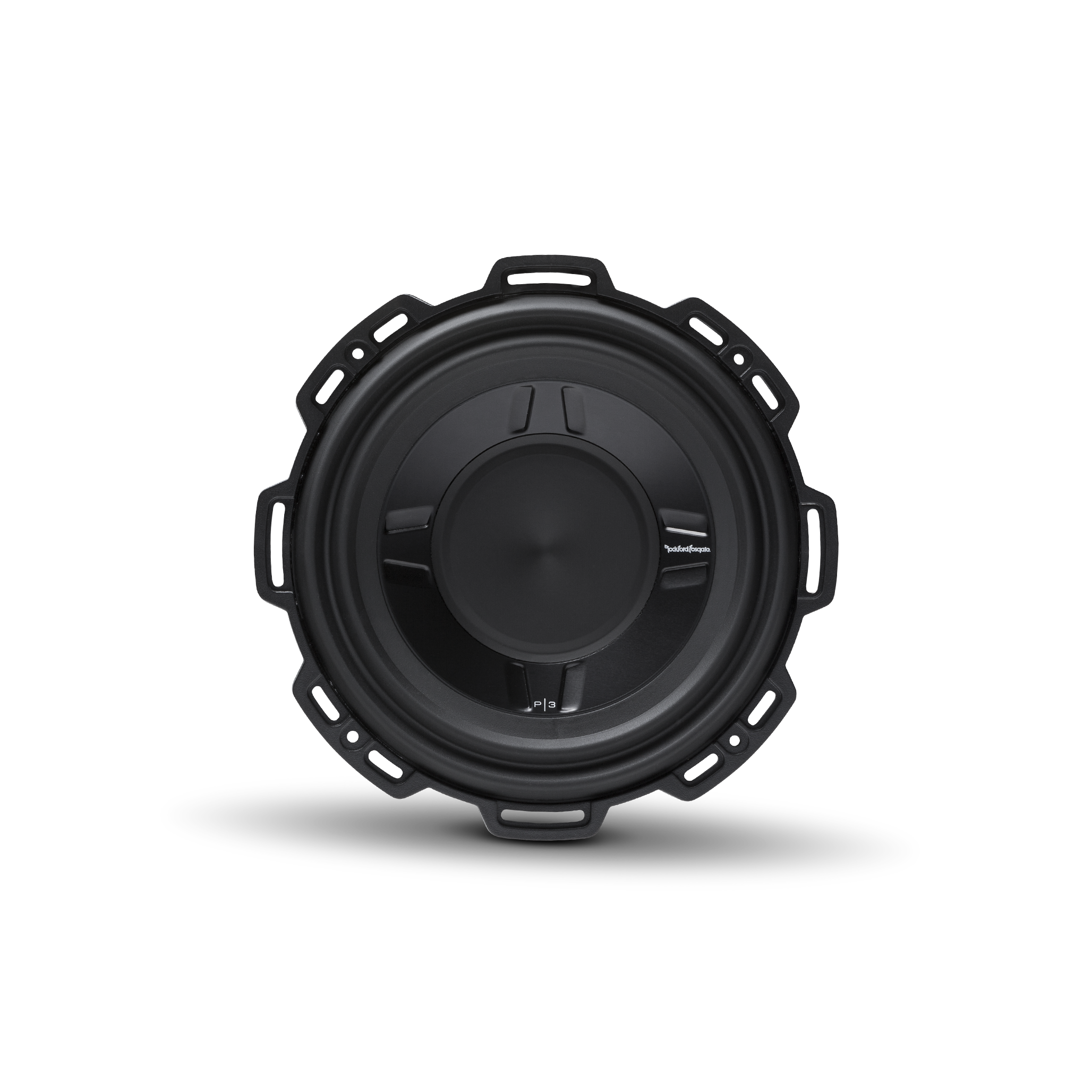

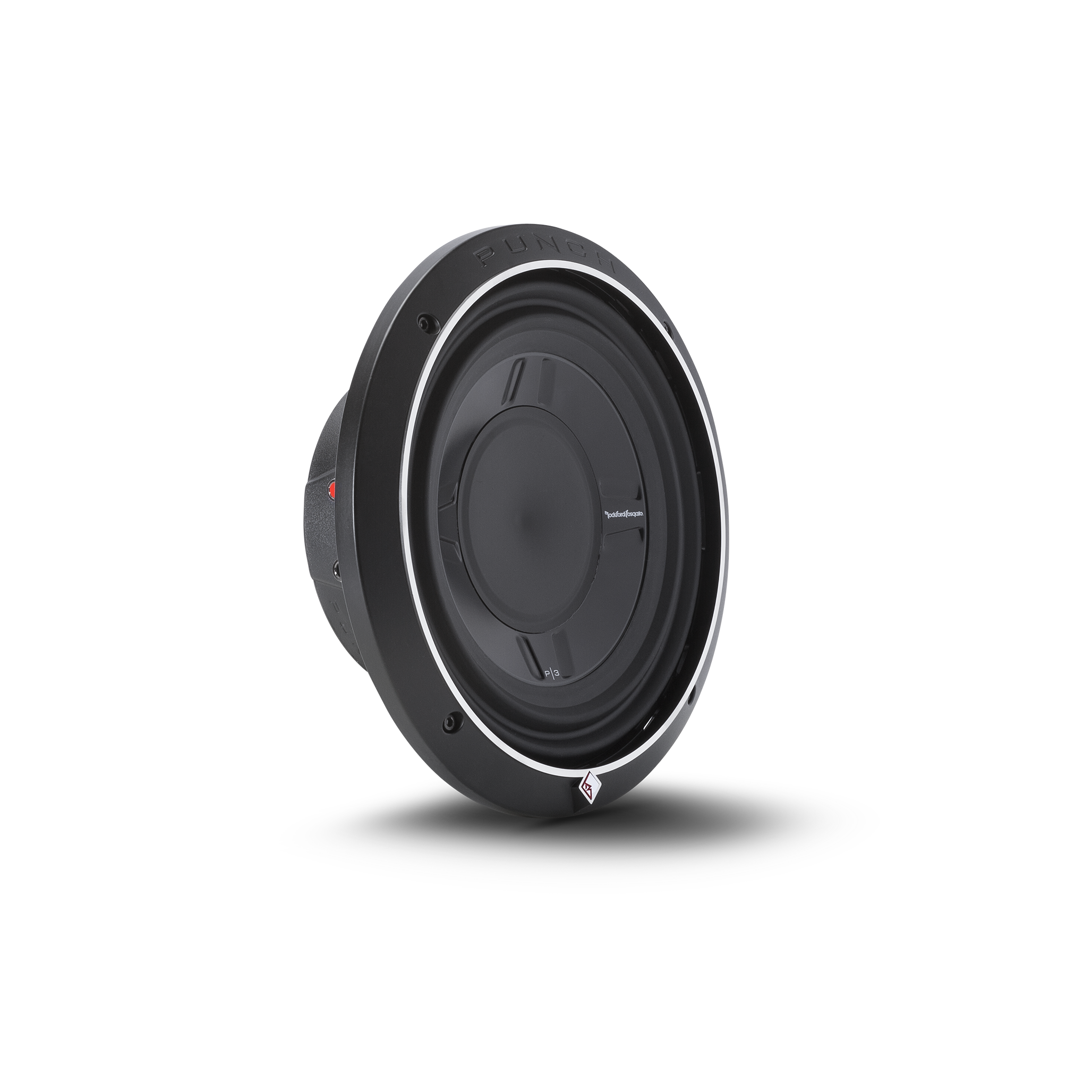

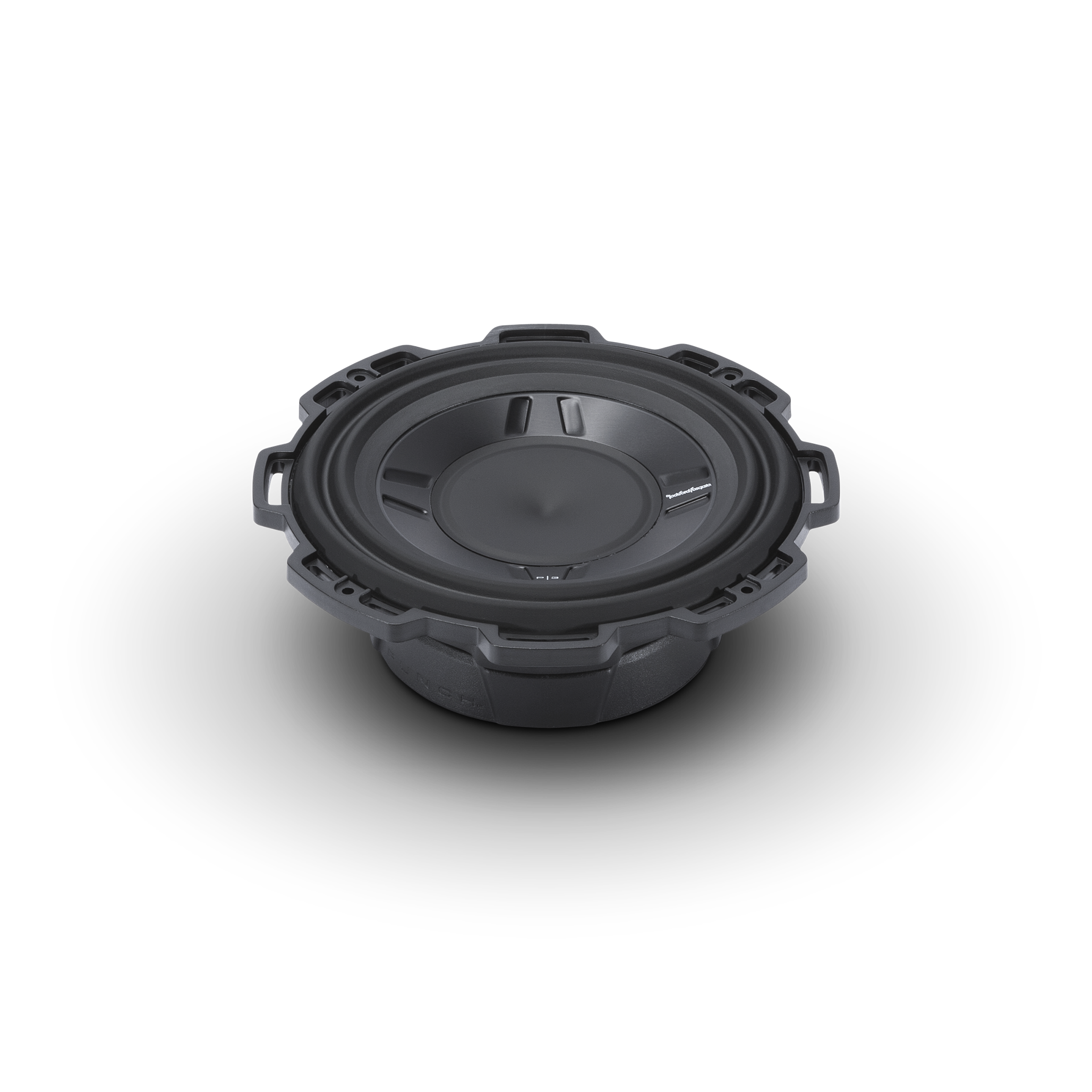

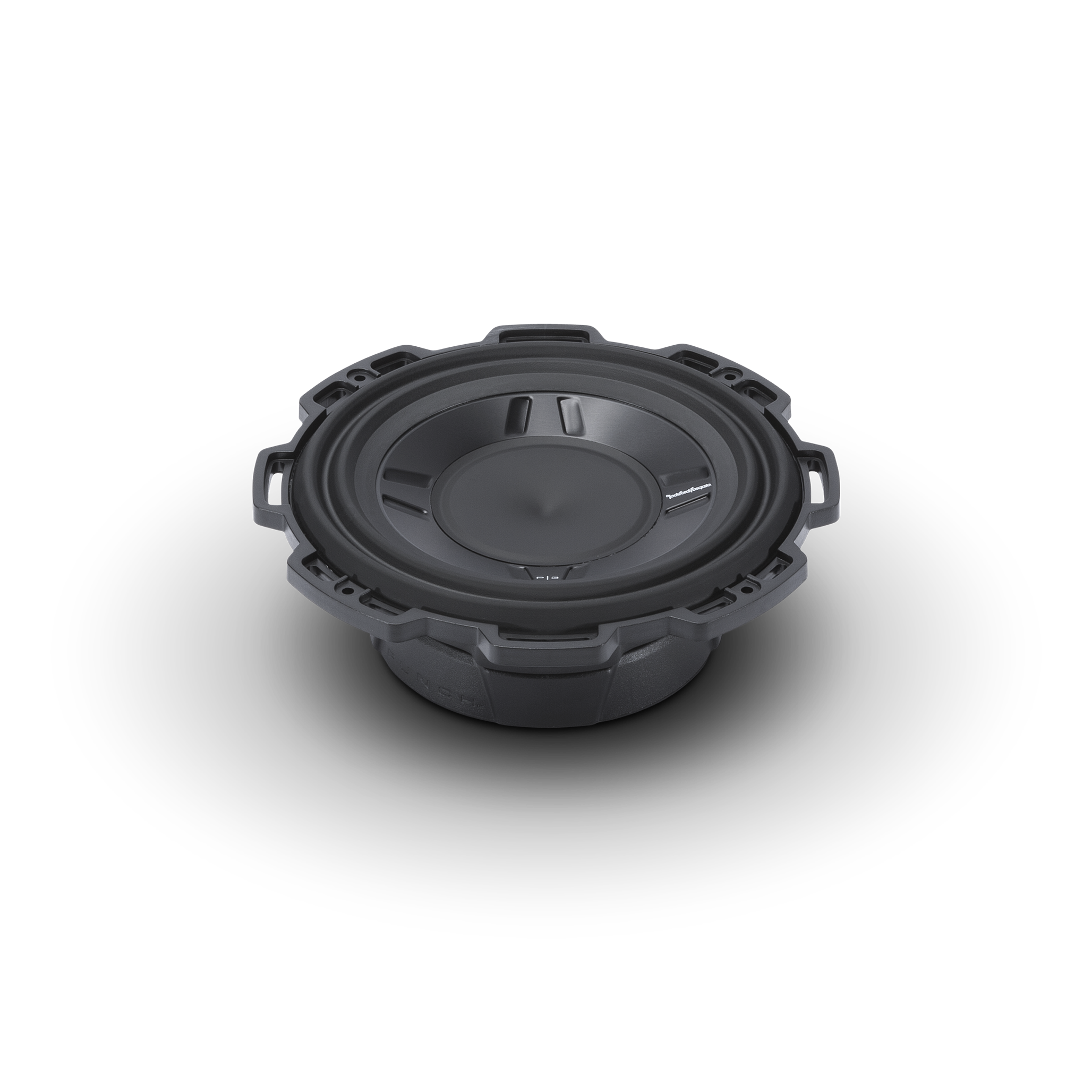

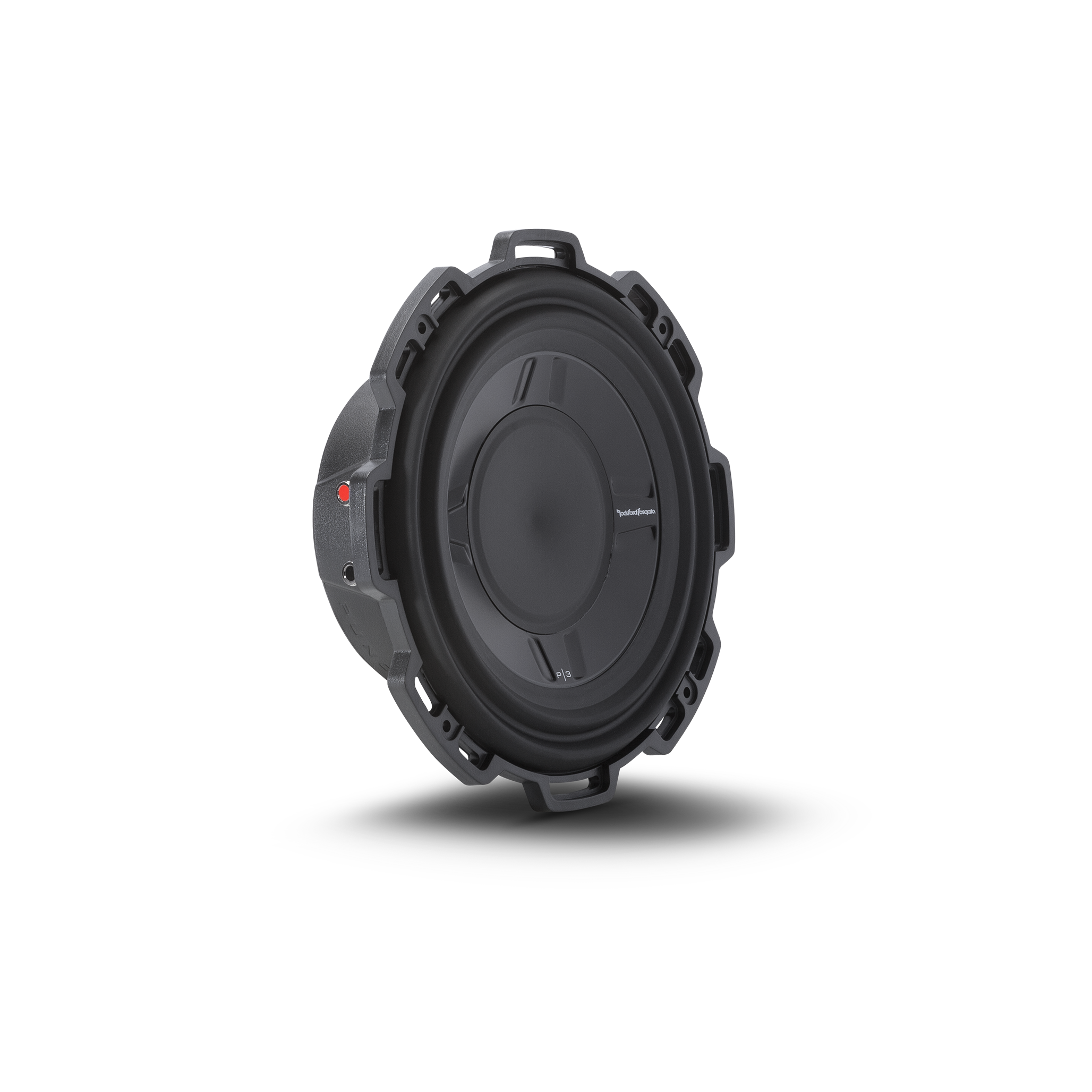

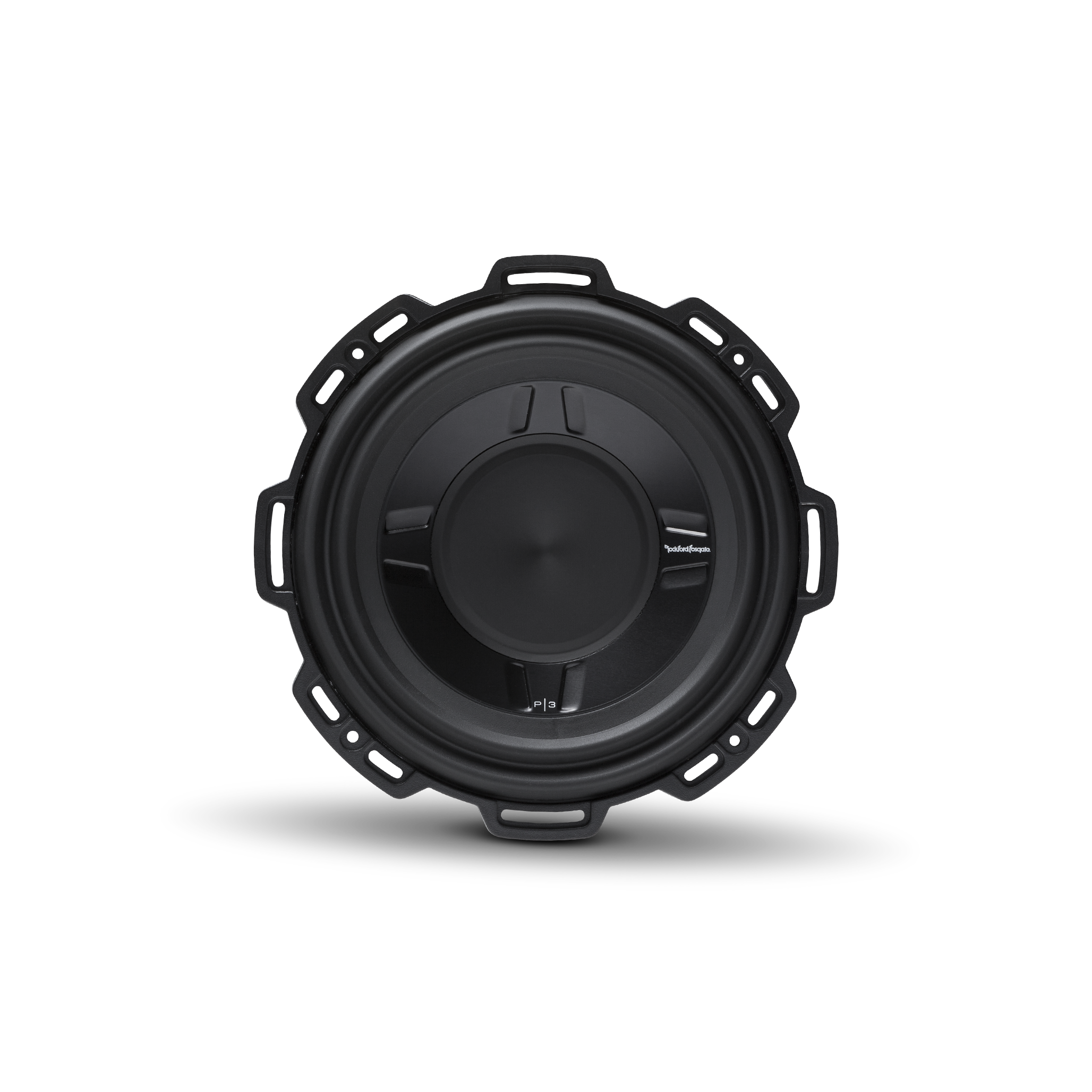

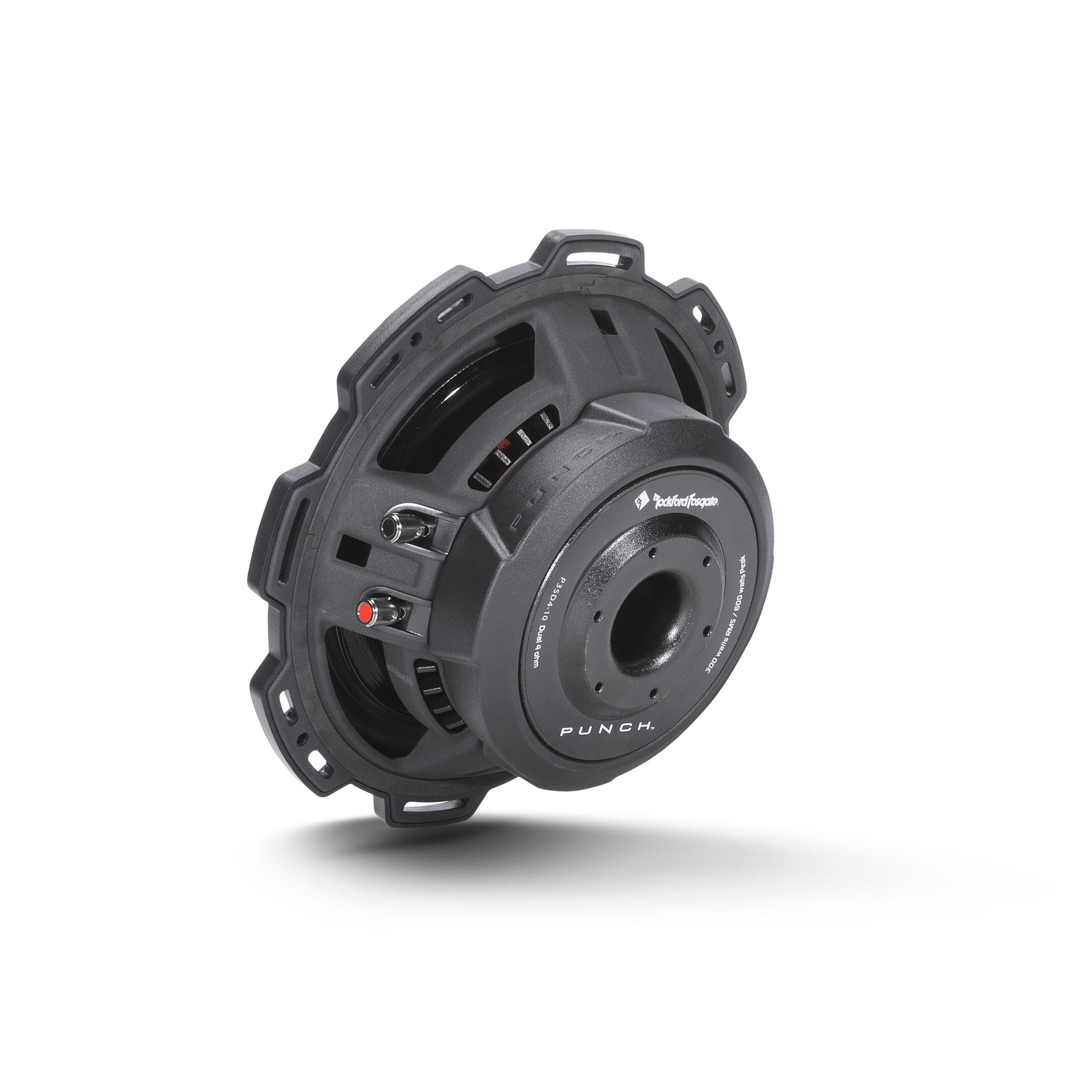

Rockford Fosgate P3S 10" shallow mount subwoofer delivers "Punch" even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.
Features
- 1 Year Warranty
- Anodized aluminum cone and dustcap
- M-Roll SantopreneTM surround
- Dual linear spider with embedded 16 AWG tinsel leads
- Optimized for both sealed and vented enclosures
- Shallow Motor Assembly
- StampCast basket with integrated spider venting

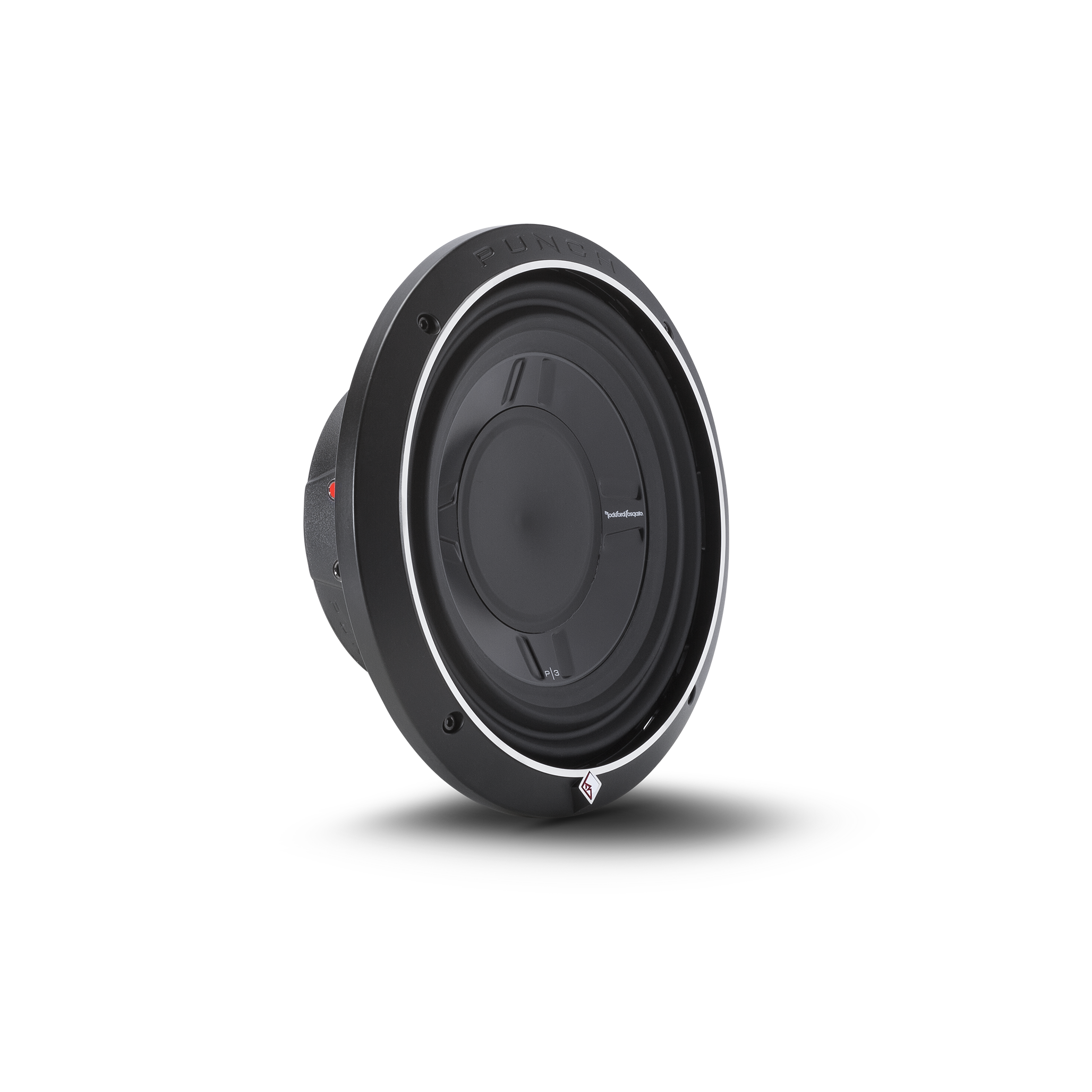

- Diamond cut cast aluminum trim ring with optional grille
Specifications
- Magnet Weight (kg) NOT USED: 1.32 oz. (47 kg.)
- Sd (cm2): 333
- Size: 10"
- Speaker Connector: Dual 10 AWG Compression
- Nominal Impedance: Dual 4-Ohm
- Magnet Weight (oz): 47 oz. (1.32 Kg)
- Voice Coil Diameter: 2.5" (65.5 mm)
- SPL (dB @ 1w/1m): 83
- Cutout Diameter: 9.06 in. (230.0 mm)
- Woofer Displacement: 0.074 cu. ft. (2.1 Liters)
- Fs (Hz): 42
- Qms: 6
- Vas (Liters): 14.3
- Qts: 0.78
- Mounting Depth: 3.50 in. (89.0 mm)
- Qes: 0.9
- Shipping Weight: 11.9 Lbs. (5.39 kg.)
- Xmax (mm): 8.1
- Power Handling (Watts RMS): 300 Watts RMS; 600 Watts Max
- Re (Ohms): 6.8
- Le (mH): 4.3
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.5 cu. ft. (14.1 Liters)
- Vented Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
