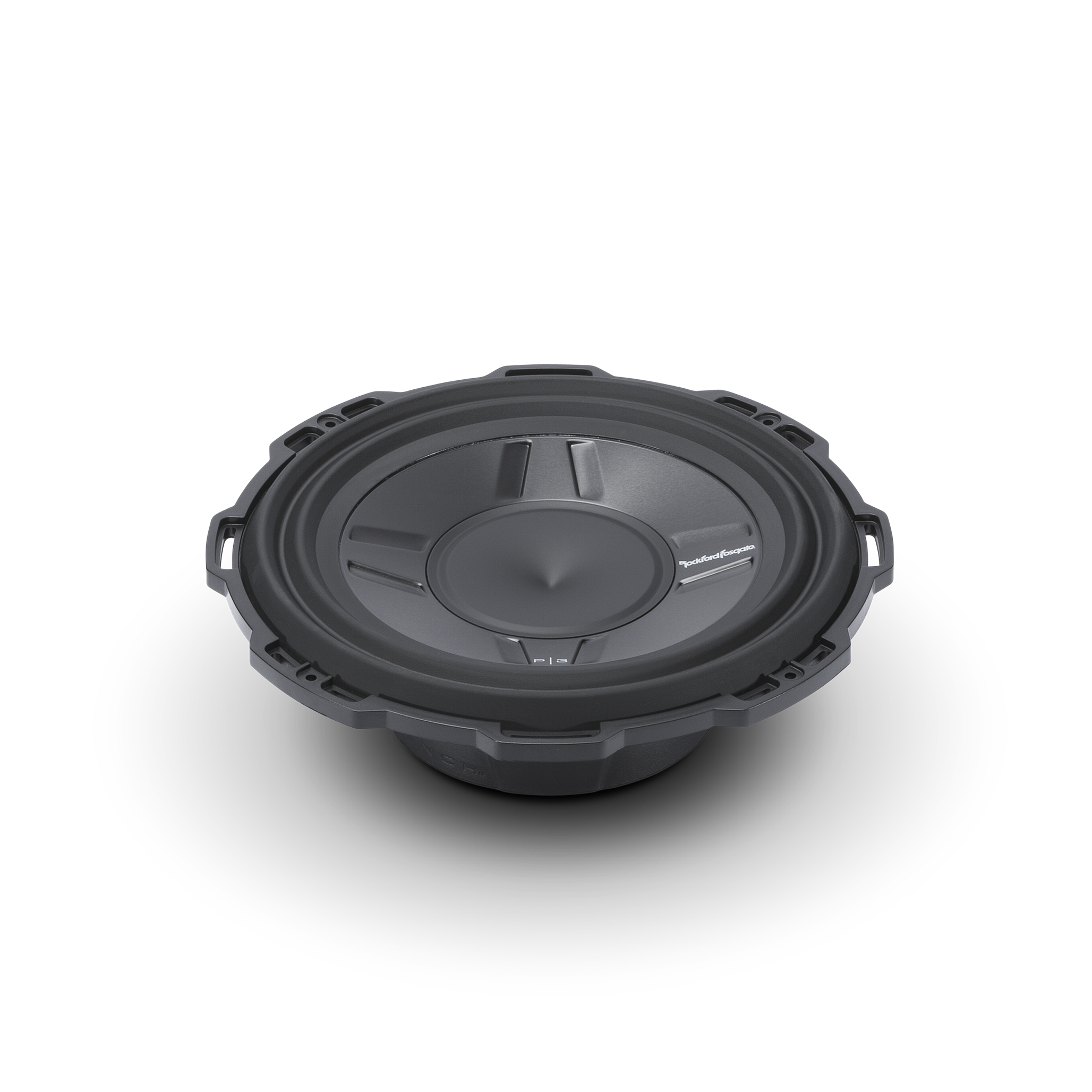

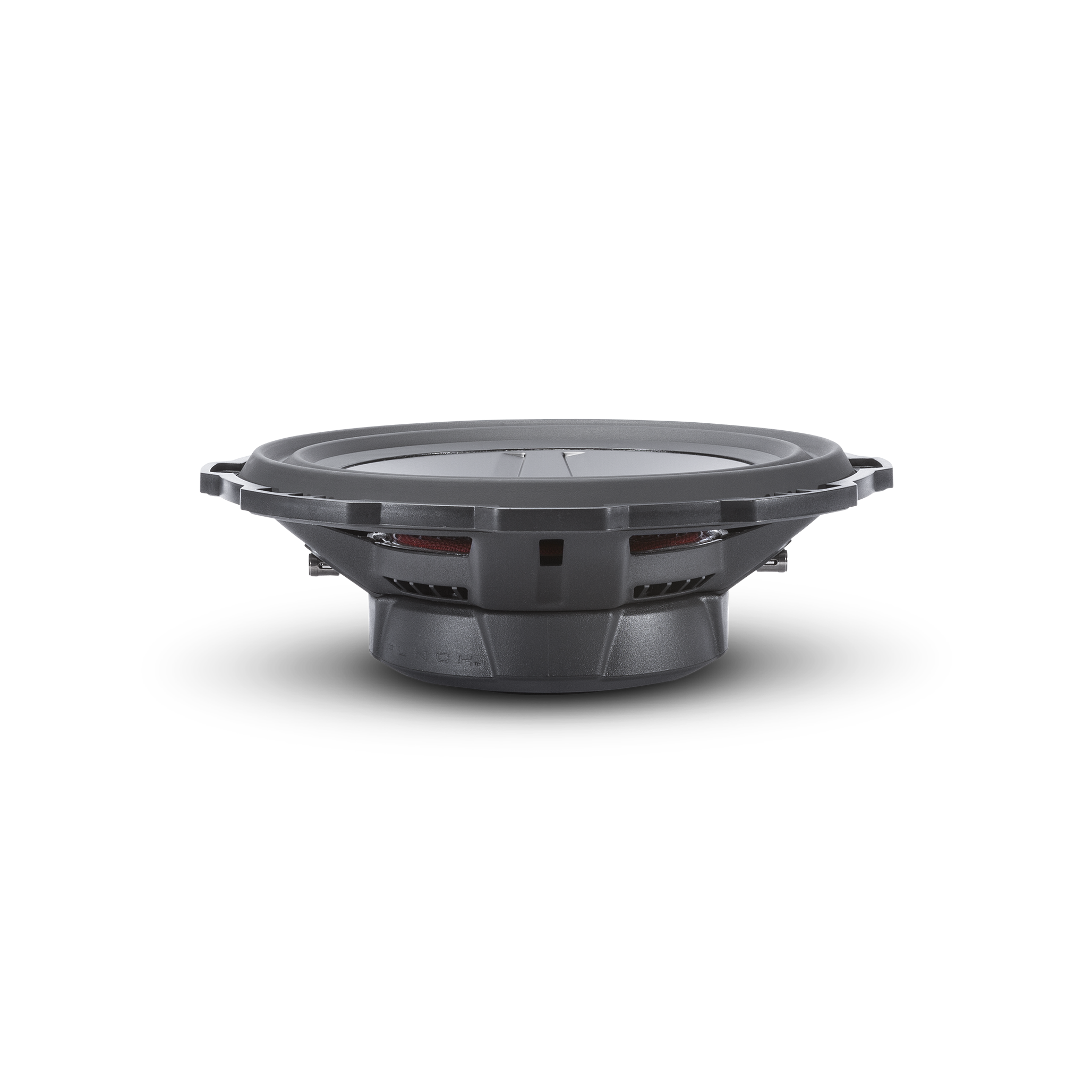

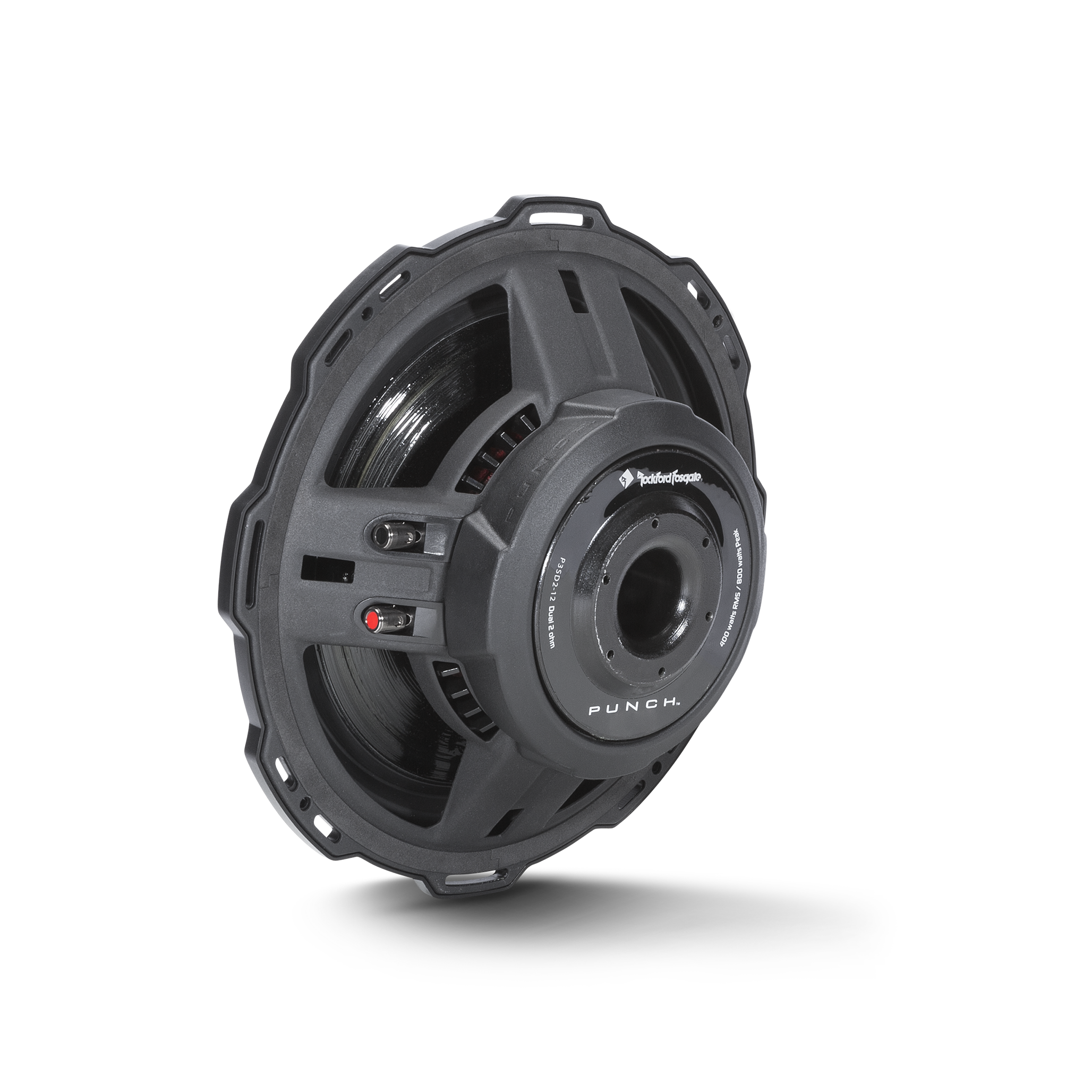

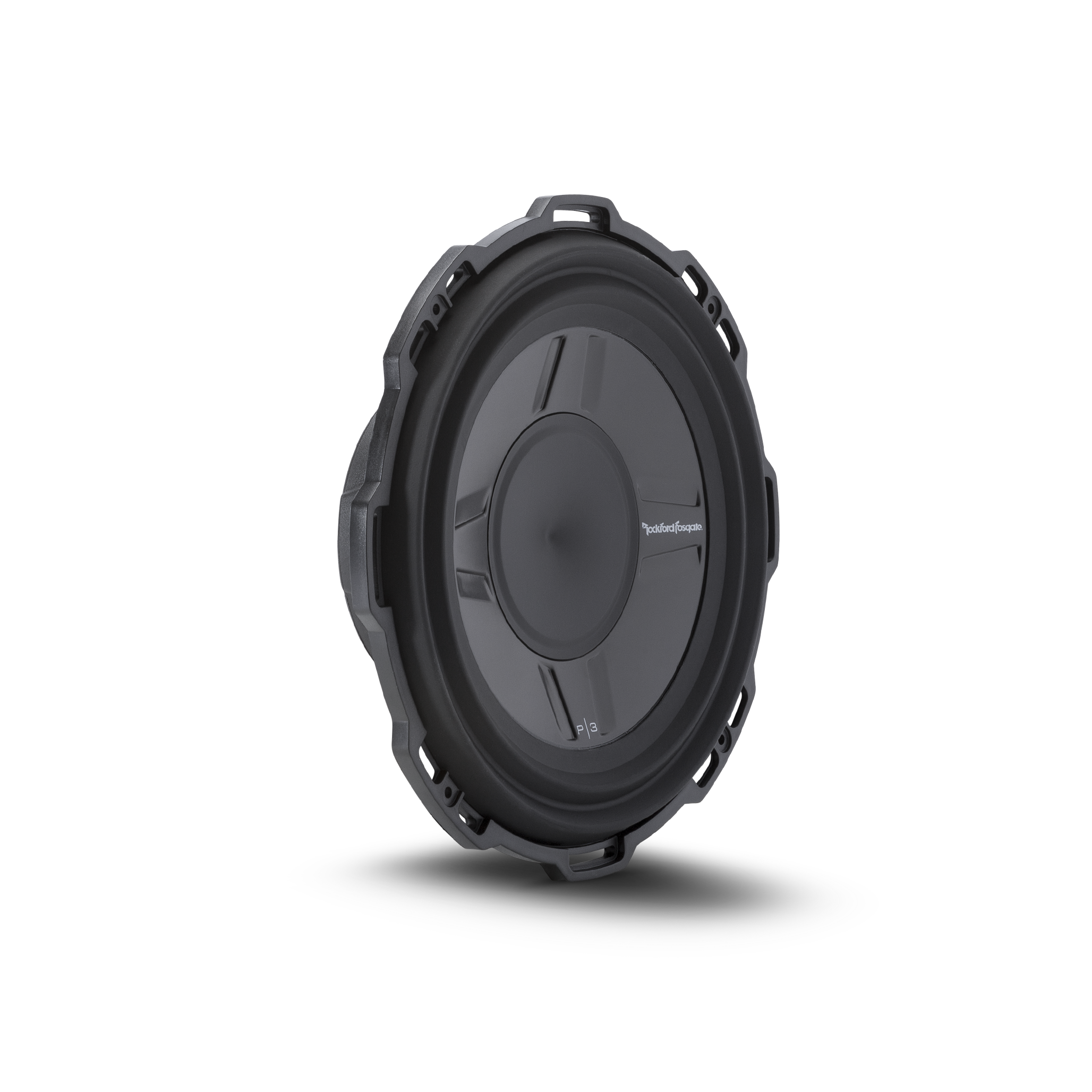

Overview

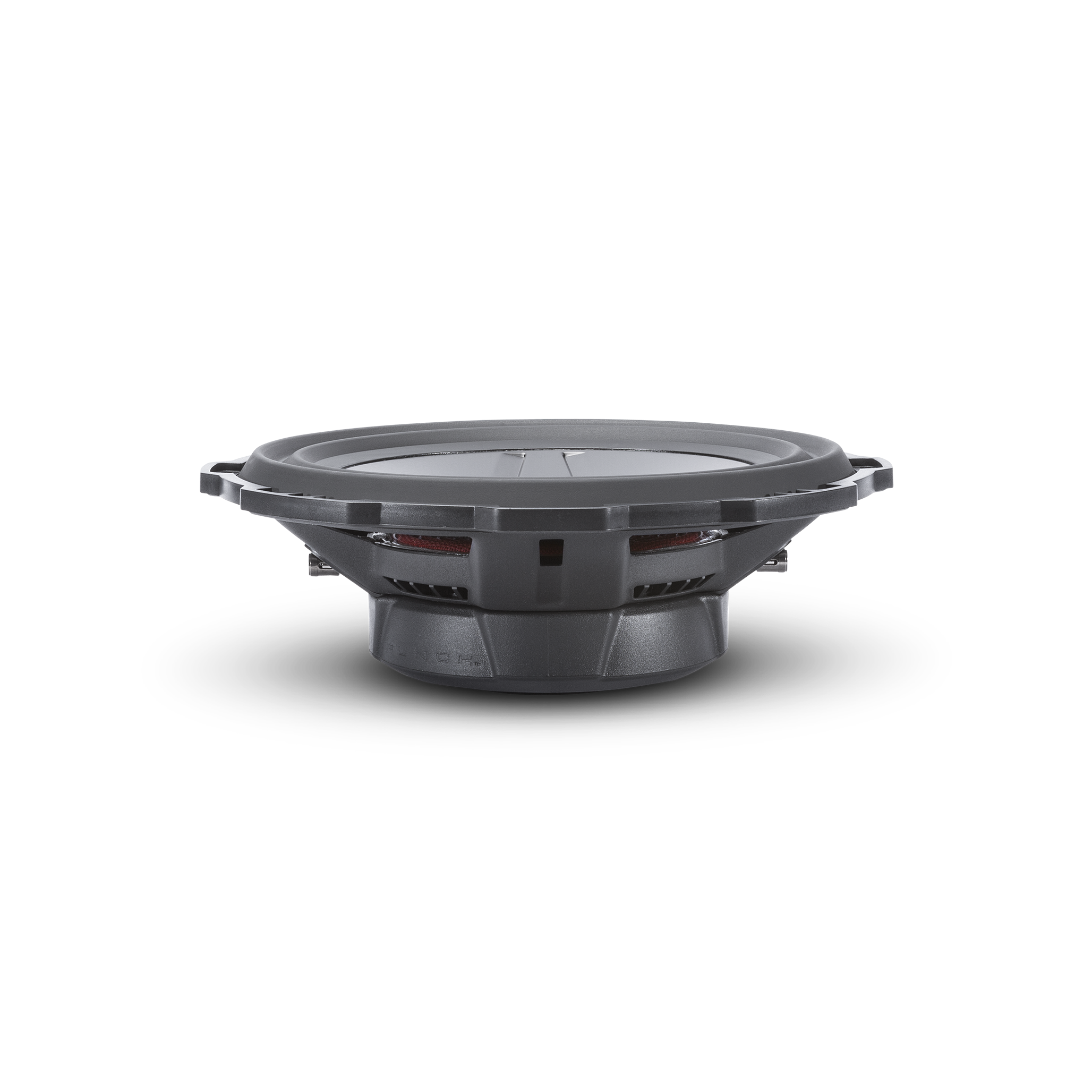

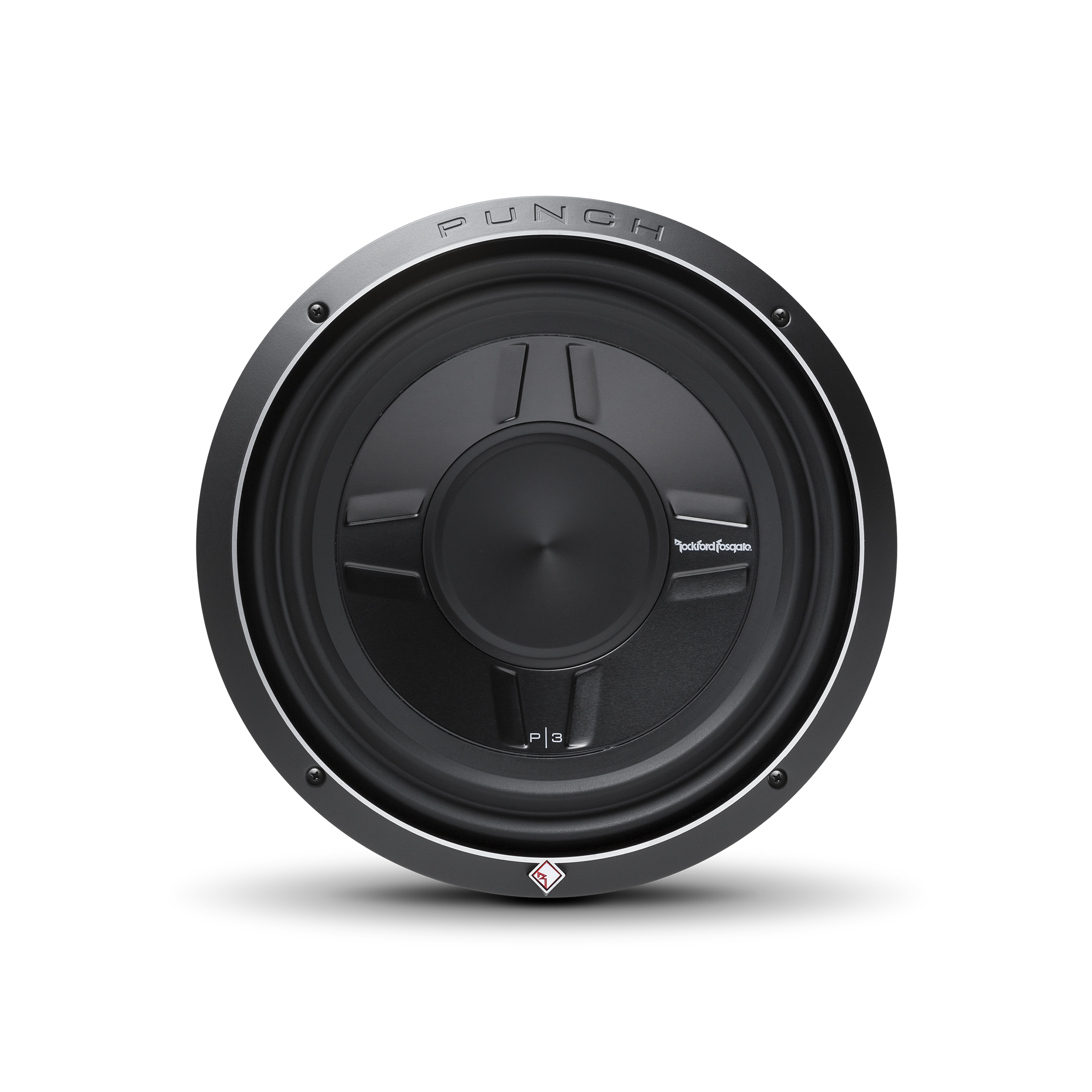

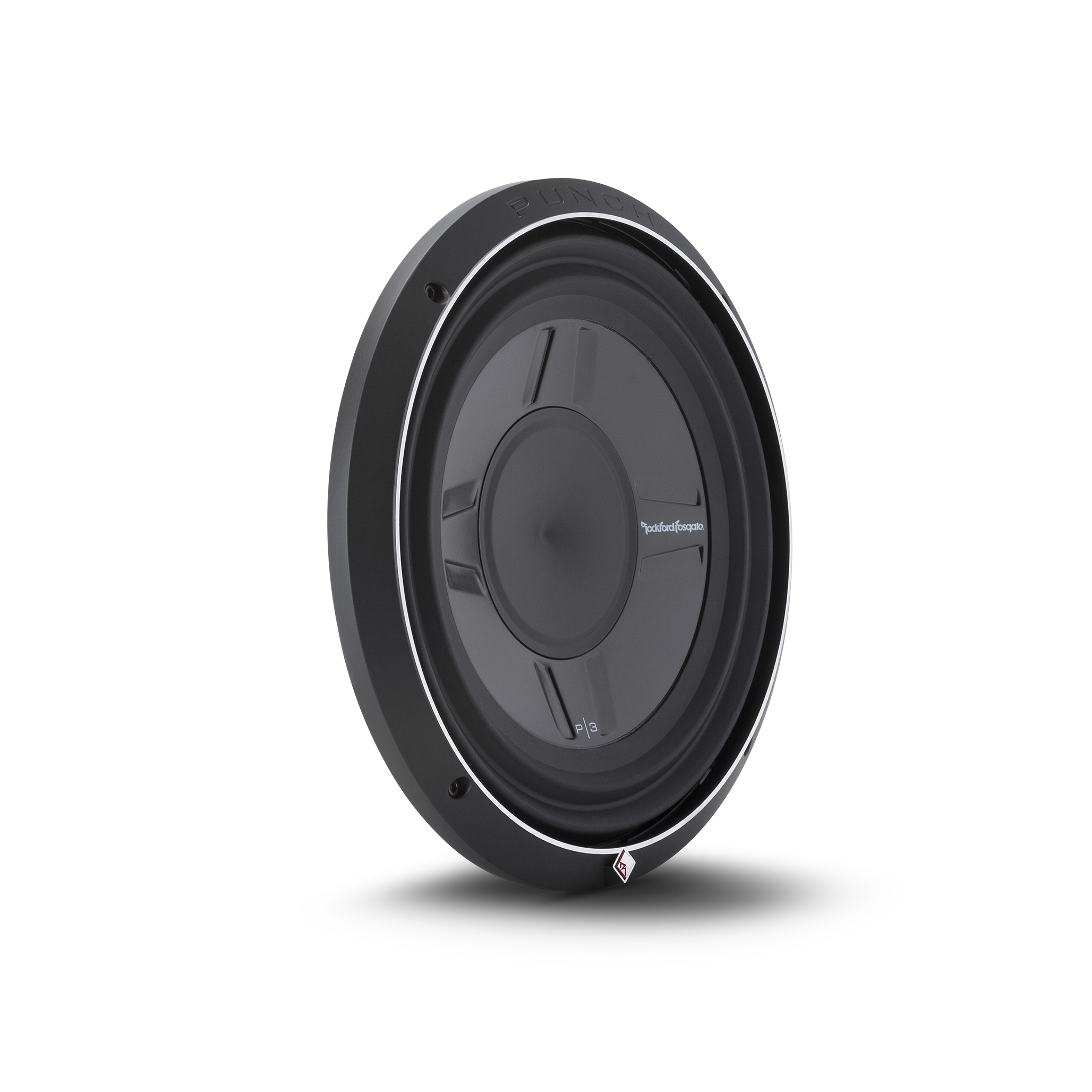

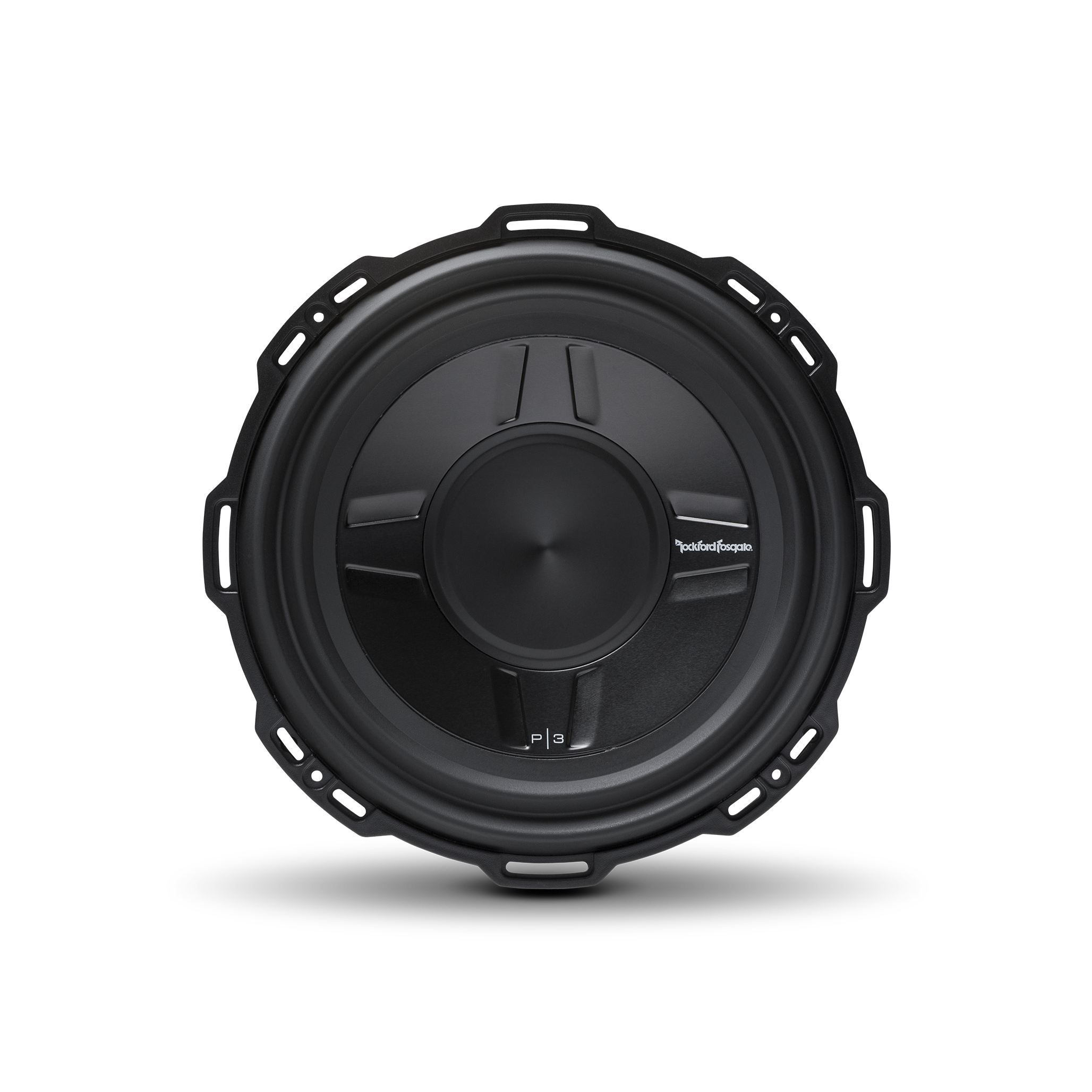

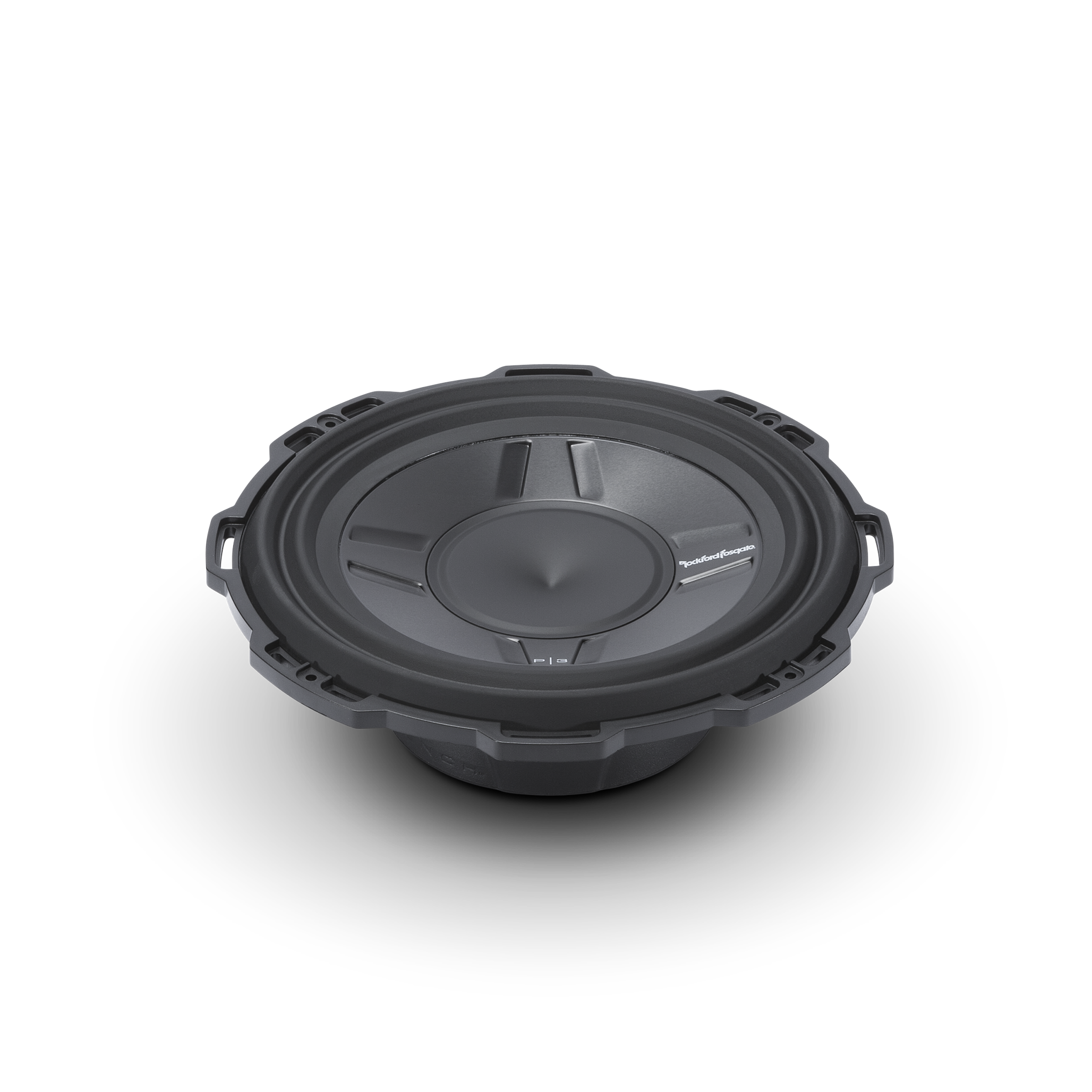

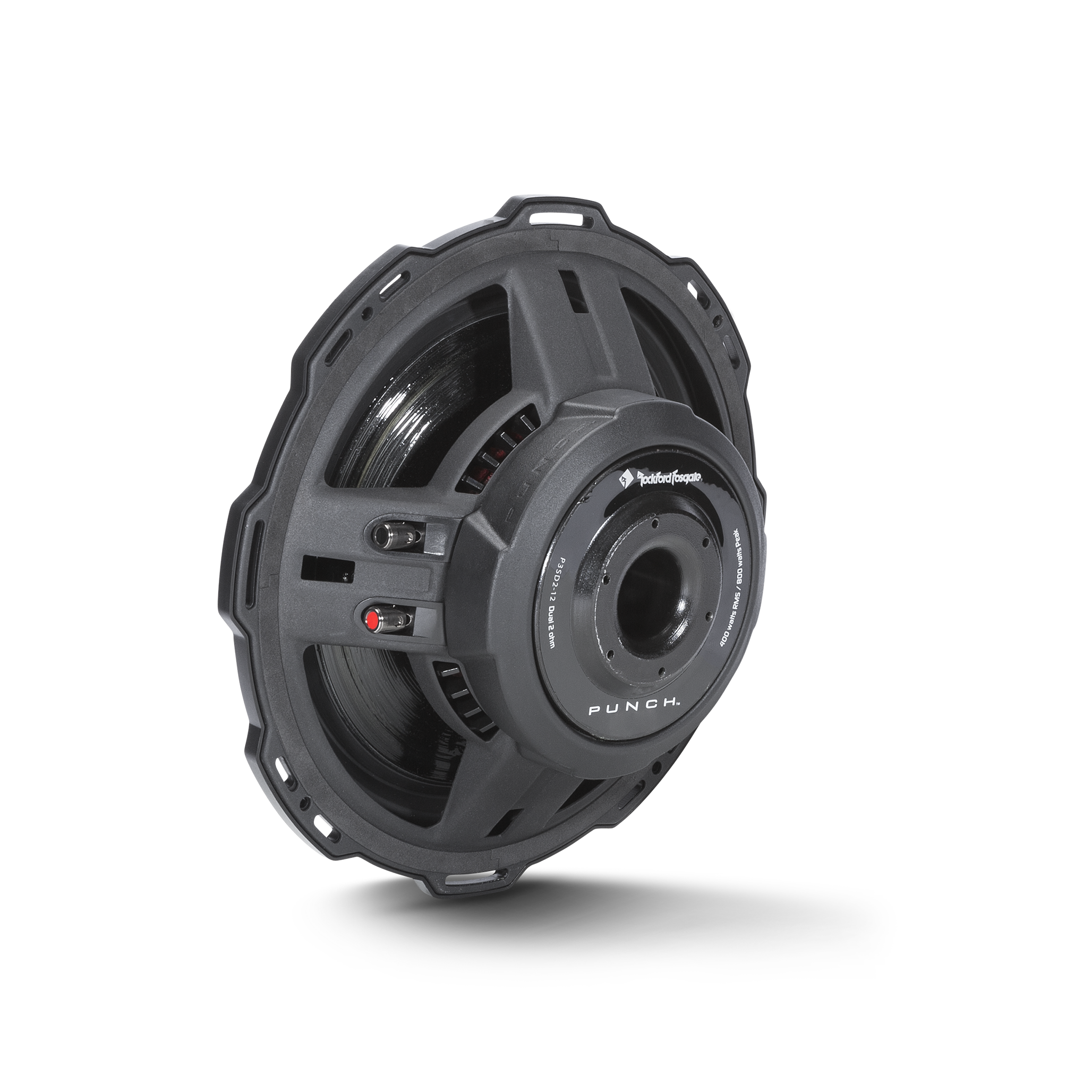

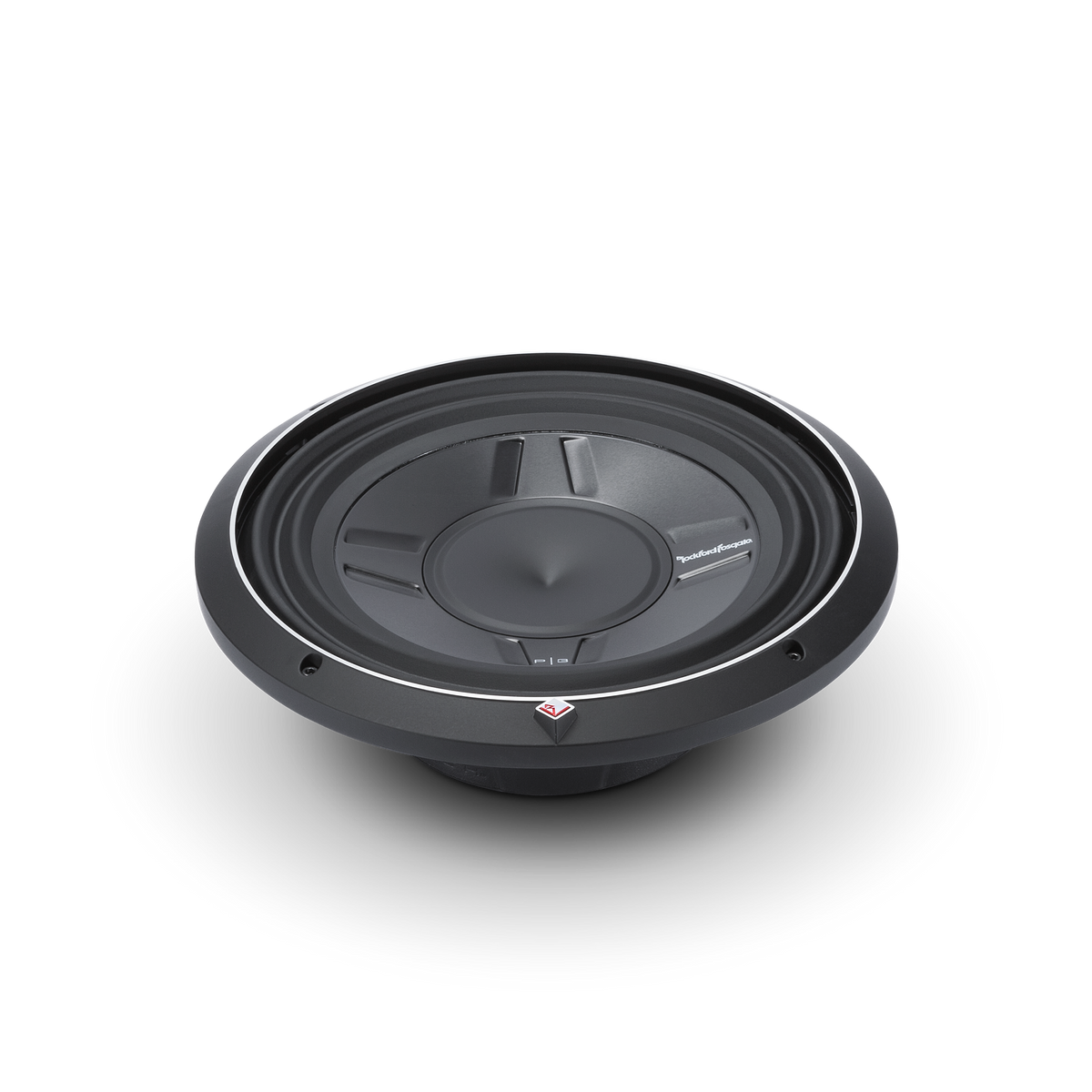

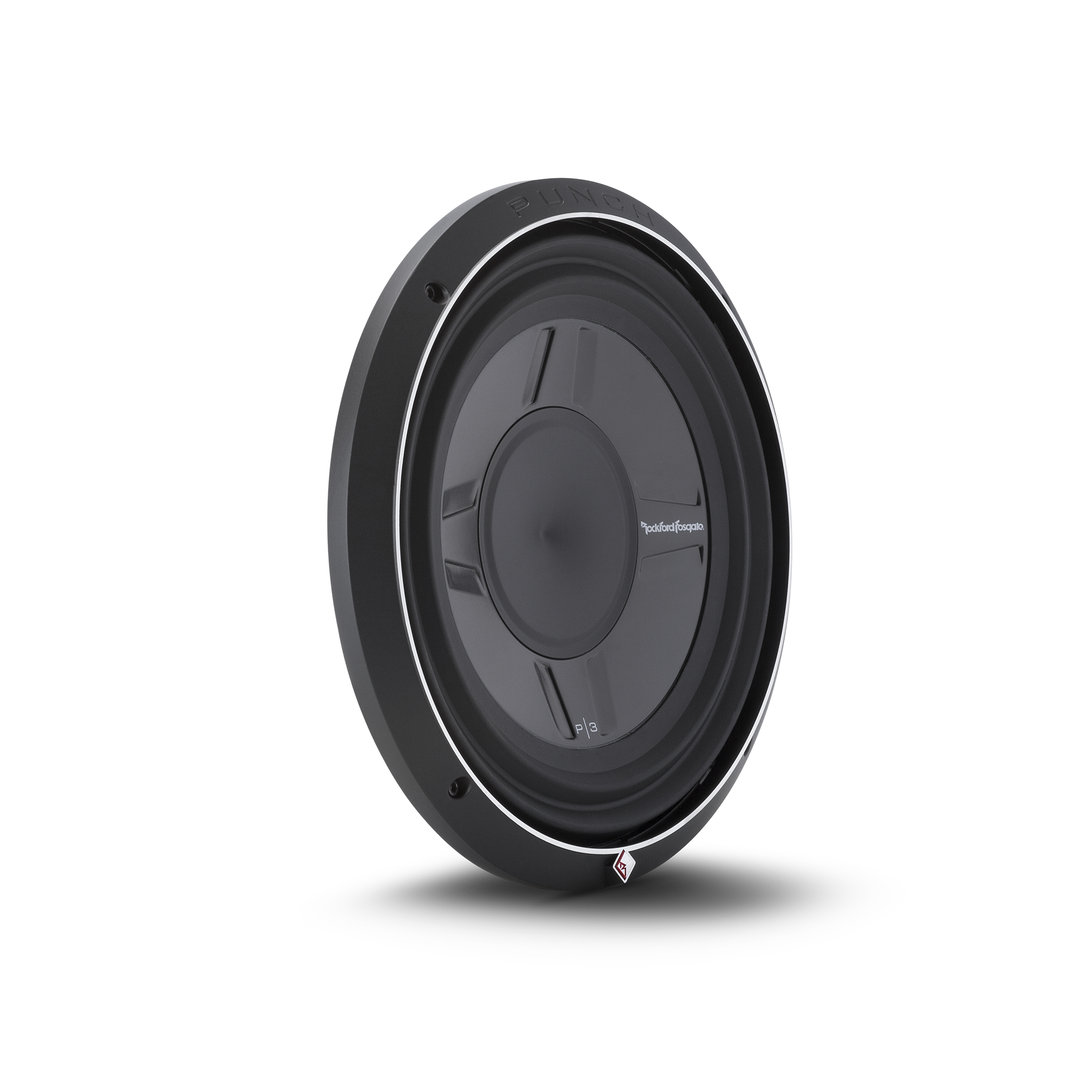

The P3S 12" shallow mount subwoofer delivers "Punch" even when depth is limited. The P3SD2-12 features Dual 2-Ohm voice coils for wiring flexibility.
Features

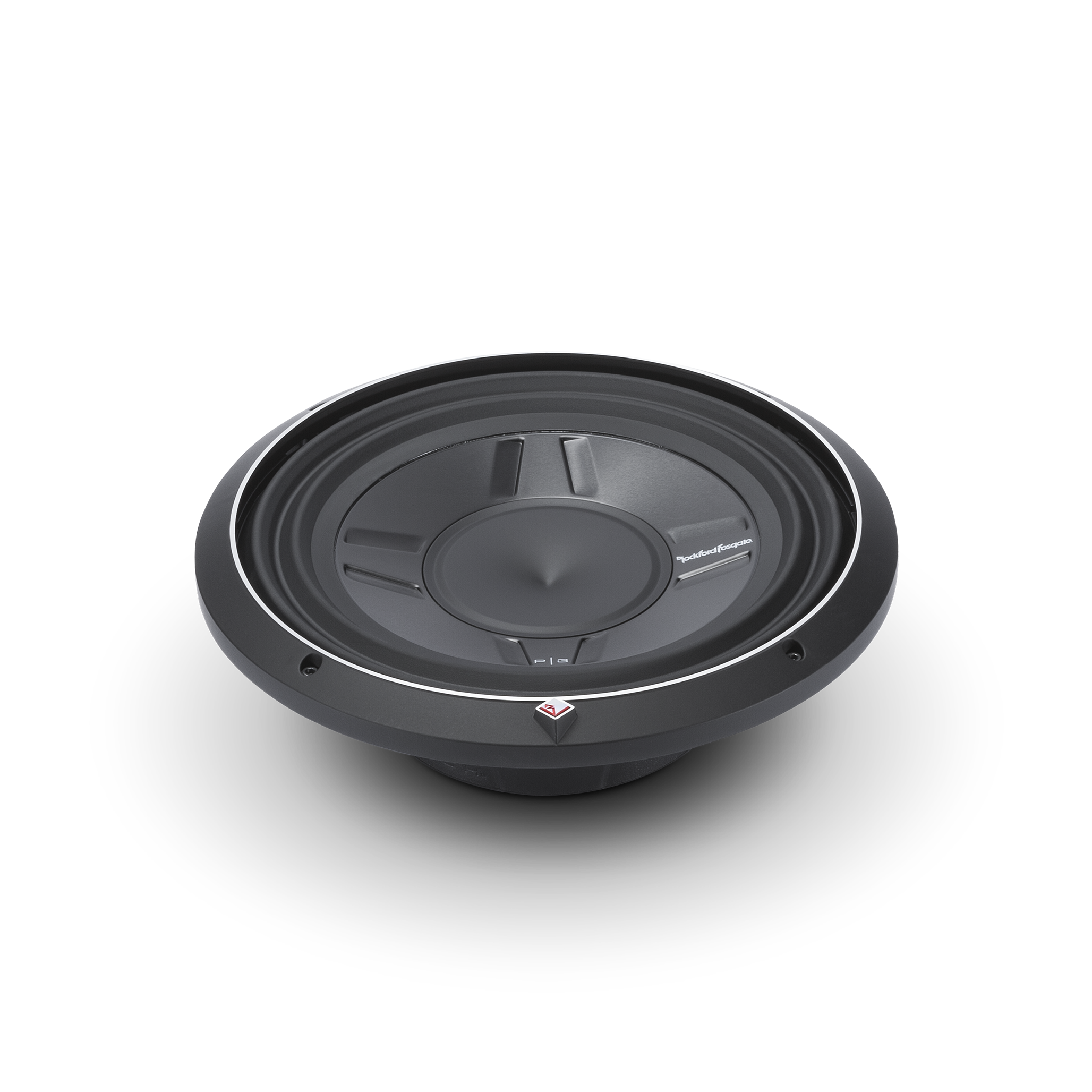

- Diamond cut cast aluminum trim ring with optional grille
- Dual linear spider with embedded 16 AWG tinsel leads
- StampCast basket with integrated spider venting
- Anodized aluminum cone and dustcap
- M-Roll SantopreneTM surround
- Optimized for both sealed and vented enclosures
- Shallow Motor Assembly
- 1 Year Warranty
Specifications
- Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
- Size: 12"
- Nominal Impedance: Dual 2-Ohm
- Speaker Connector: Dual 10 AWG Compression
- Magnet Weight (oz): 51 oz. (1.45 kg.)
- Shipping Weight: 13.25 Lbs. (6.01 kg.)
- Voice Coil Diameter: 2.5" (65.5 mm)
- SPL (dB @ 1w/1m): 85
- Cutout Diameter: 11.22 in. (285.0 mm)
- Woofer Displacement: 0.086 cu. ft. (2.45 Liters)
- Fs (Hz): 34
- Qts: 0.67
- Vas (Liters): 35.3
- Qes: 0.75
- Mounting Depth: 3.65 in. (92.5 mm)
- Qms: 6.6
- Xmax (mm): 8.4
- Re (Ohms): 3.4
- Le (mH): 2.8
- Sd (cm2): 500
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.0 cu. ft. (28.3 Liters)
- Vented Box Volume (Vb): 1.25 cu. ft. (35.3 Liters)
