P3S-1X10

Overview

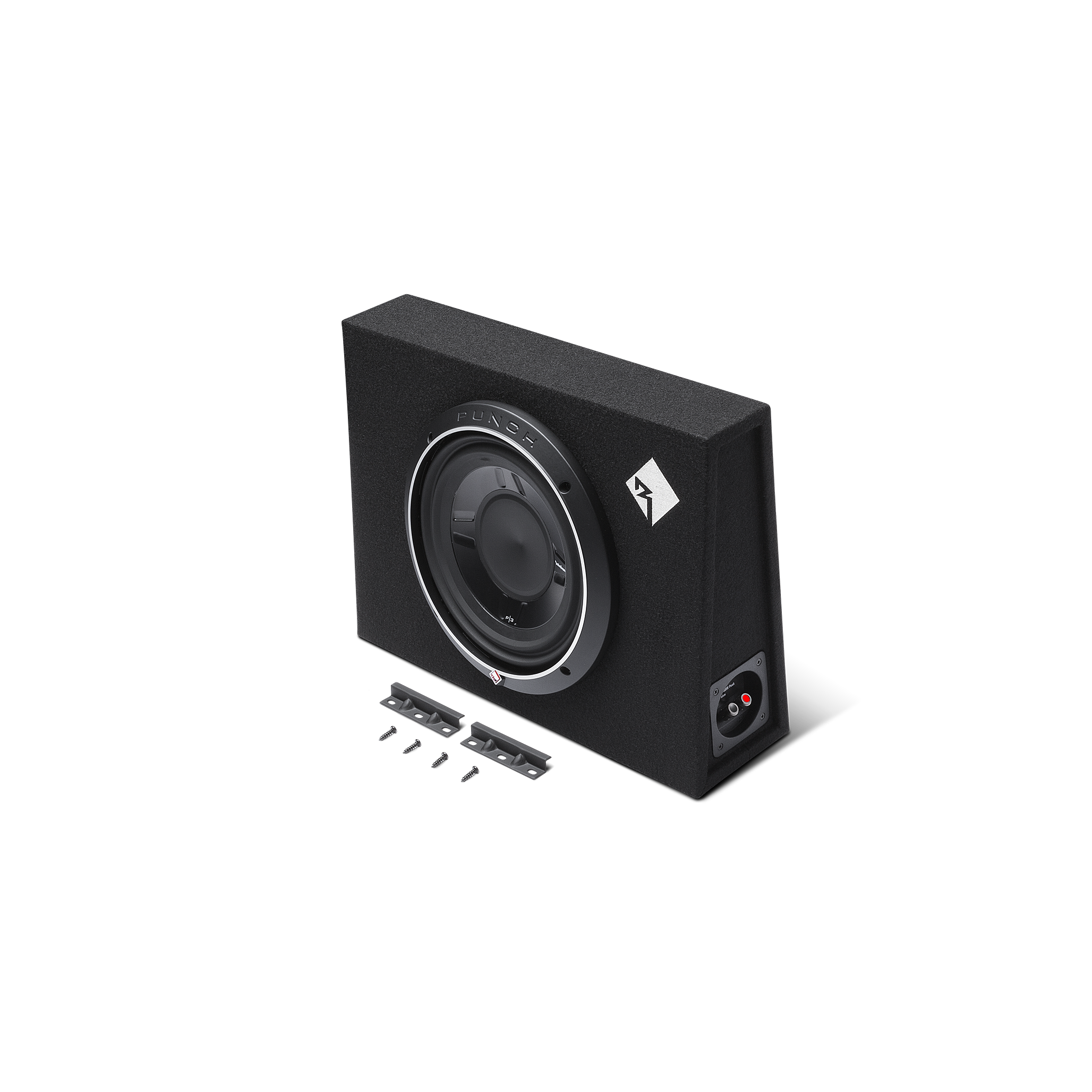

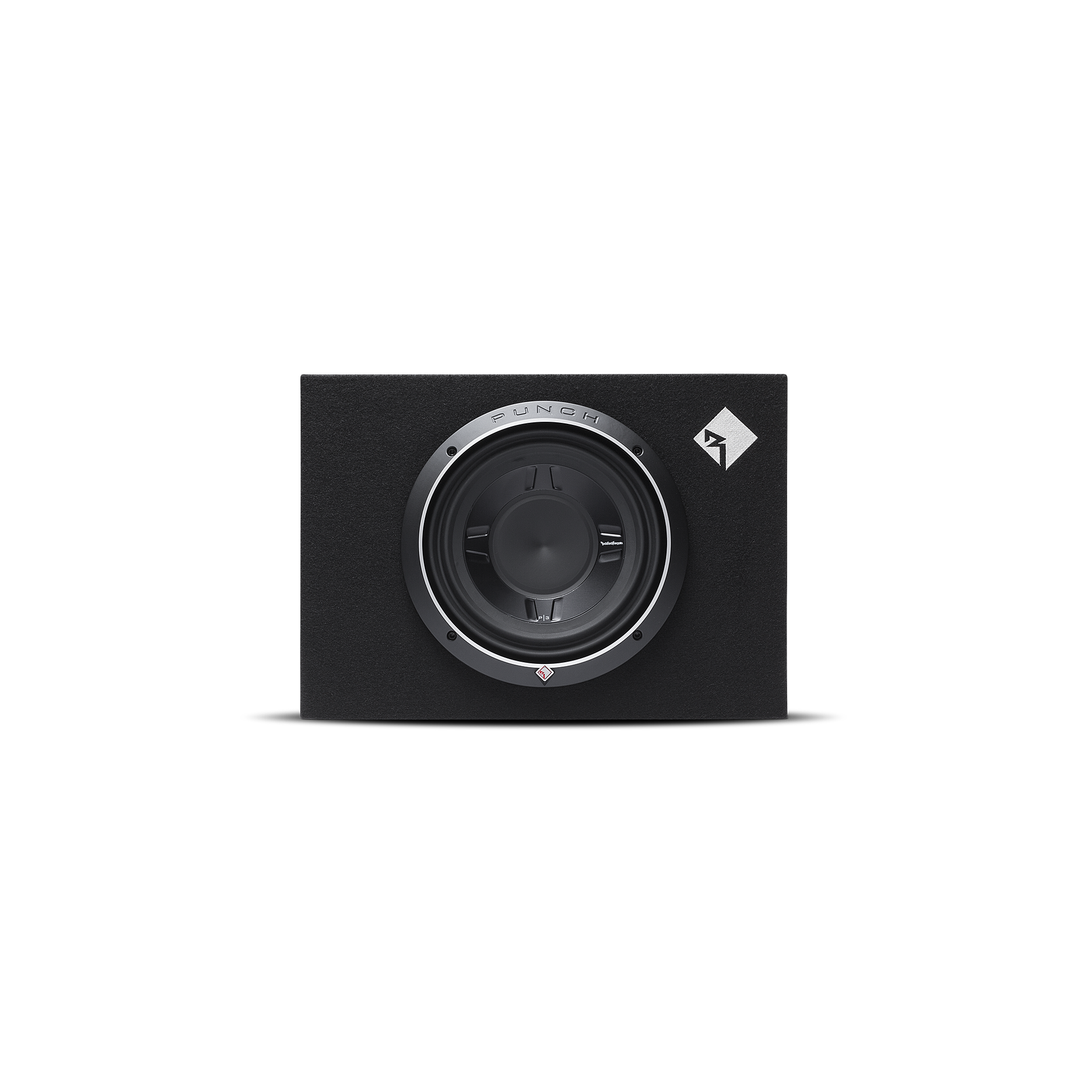

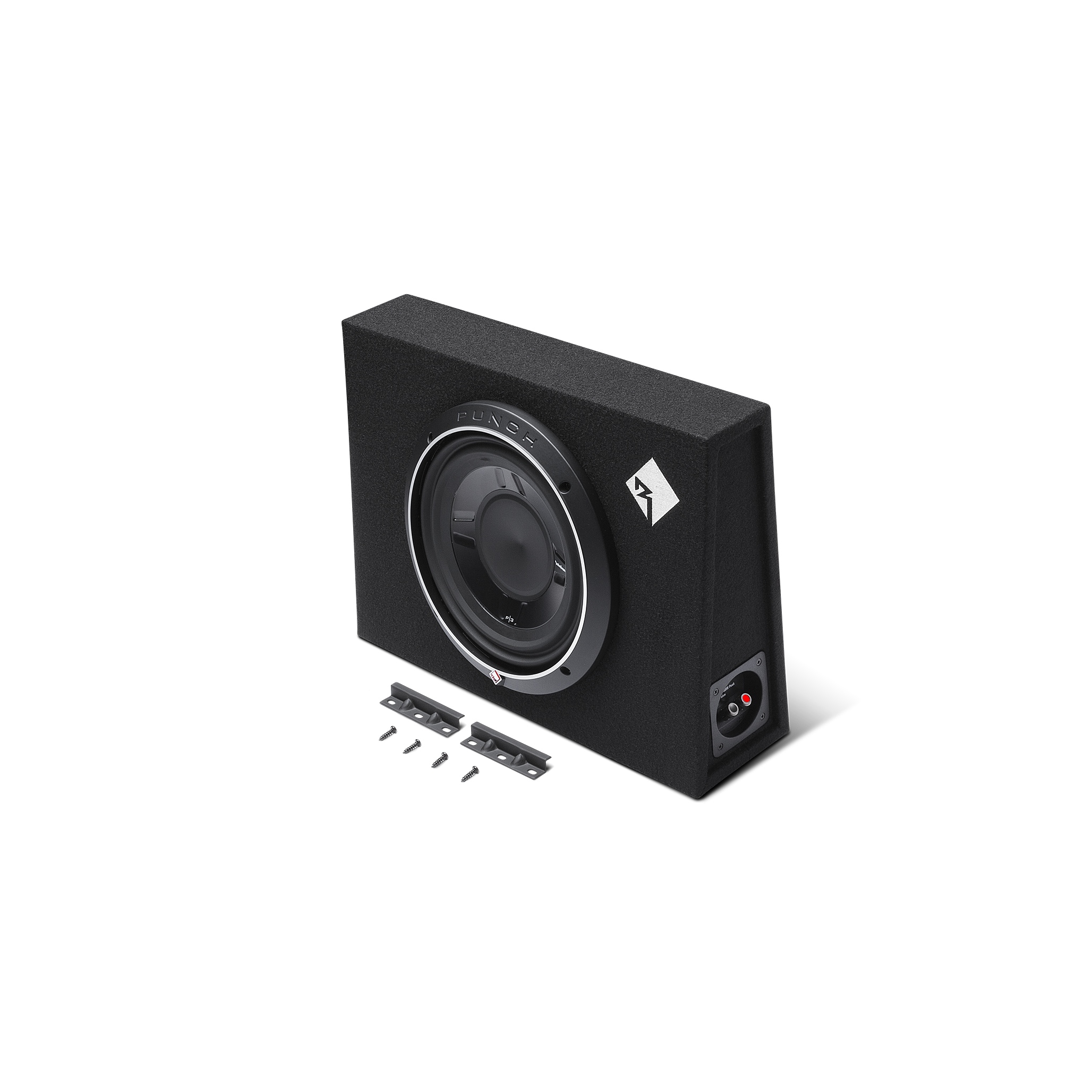

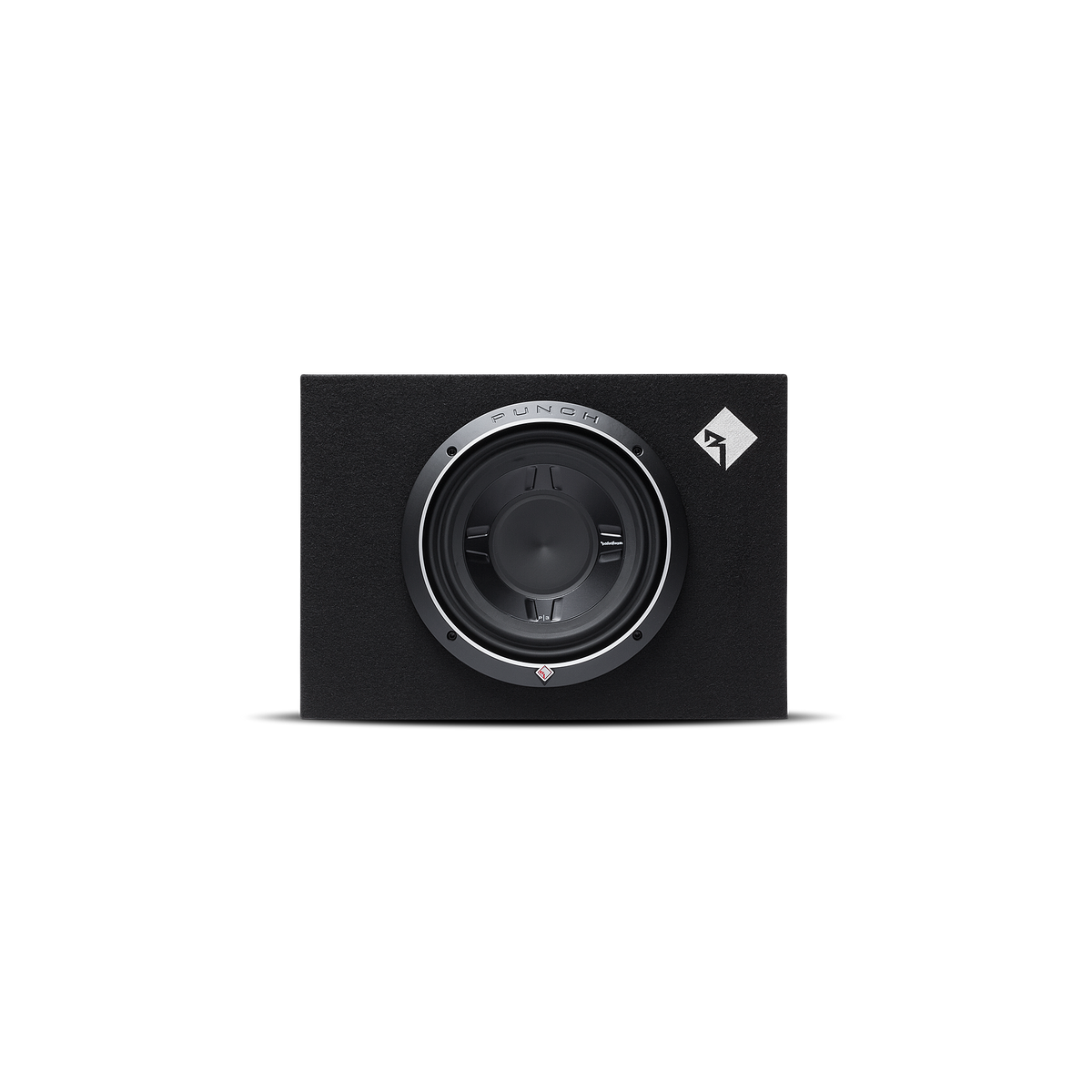

The P3S-1X10 is a single 10" Punch Shallow subwoofer rated at 300 Watts RMS loaded in a sealed enclosure. This subwoofer enclosure is internally wired to a 1-Ohm load and features 5/8" MDF and 10 AWG quick-release input terminals.

Features

• 1 Year Warranty
• 1-Ohm wired impedance
• 10 AWG input terminals
• Computer optimized design
• Constructed with 5/8" MDF
• Covered with high density carpet
• Included trim ring ready to accept optional stamped mesh grille insert
• Sealed truck box style enclosure
• Wired exclusively with Rockford Fosgate speaker cable

Specifications

• Dimensions; Box (H x W x D); Wedge (H x W x D1 x D2): 13.5 x 19.0 x D1 5.3 - D2 3.3 (in); 34.29 x 48.26 x D1 13.46 - D2 8.38 (cm)
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Enclosure Type: Shallow
• Nominal Impedance (ea): 1-Ohm; Internally wired to create a 1-Ohm amplifier load
• Power Handling (Watts RMS): 300 Watts RMS; 600 Watts Max
• Shipping Weight: 22.2 Lbs. (10.06 kg)

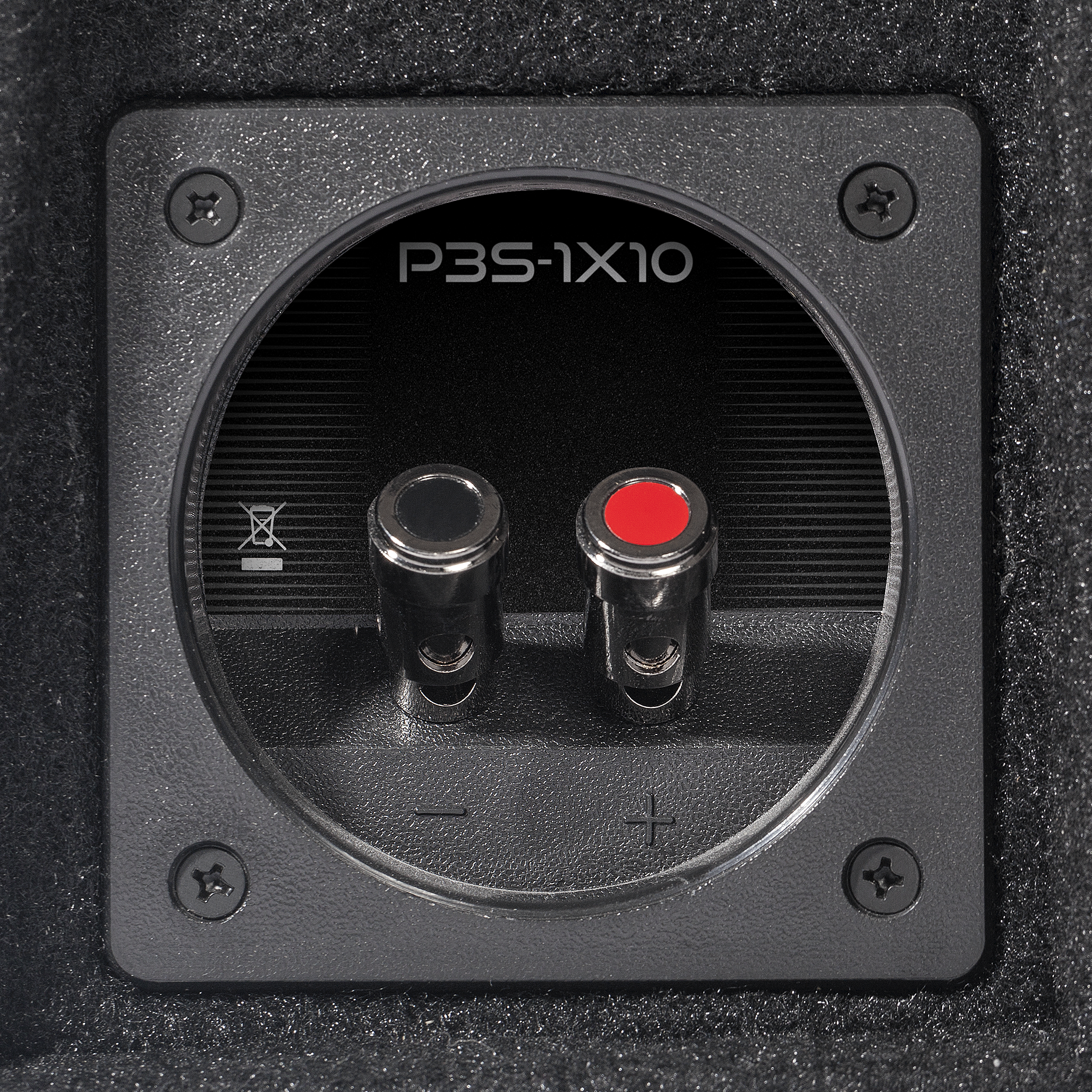

• Speaker Connector: Up to 10 AWG compression terminals
• Woofer Quantity: 1
• Woofer Series: Punch P3S (P3SD2-10)
• Woofer Size: 10"
