P3D4-15
Overview

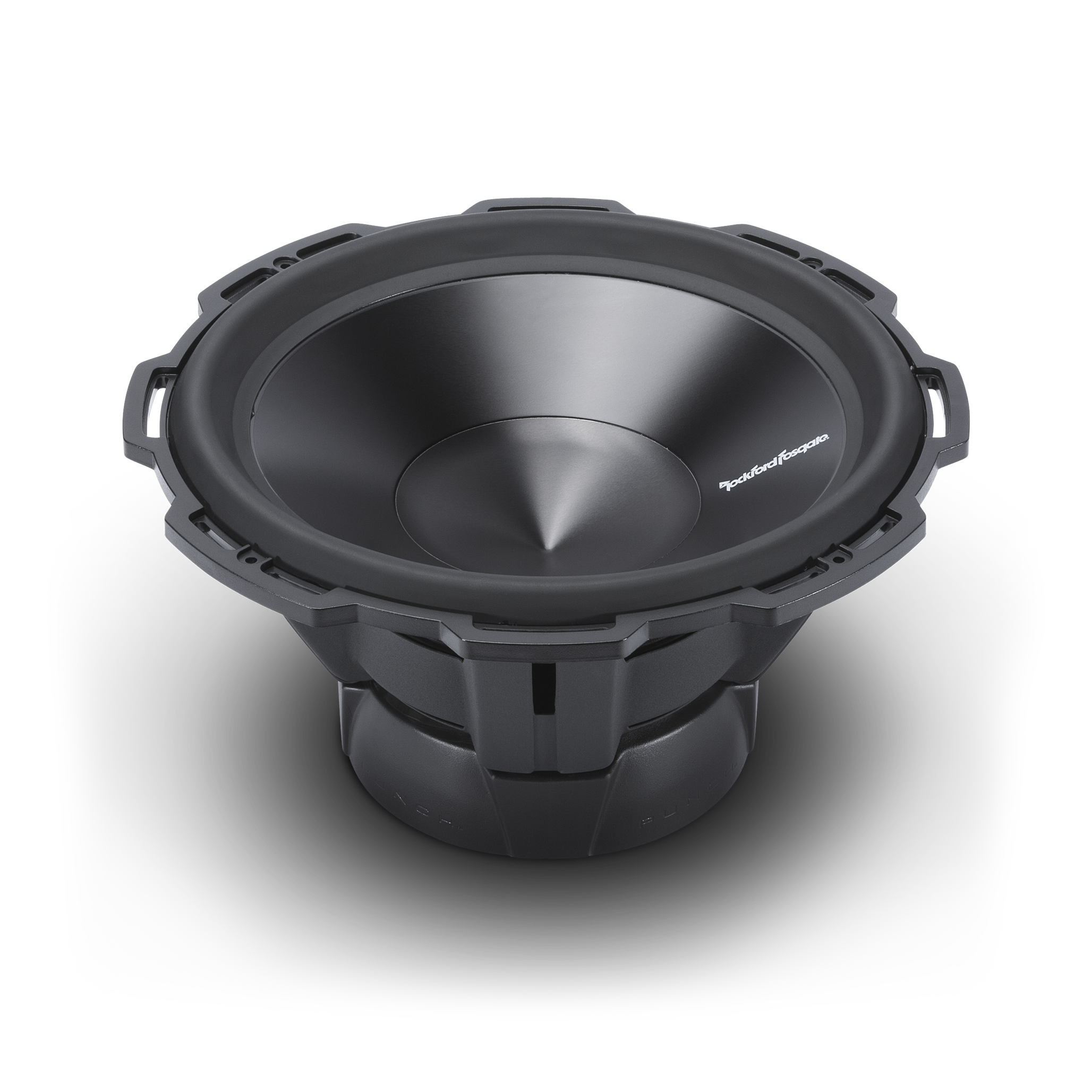

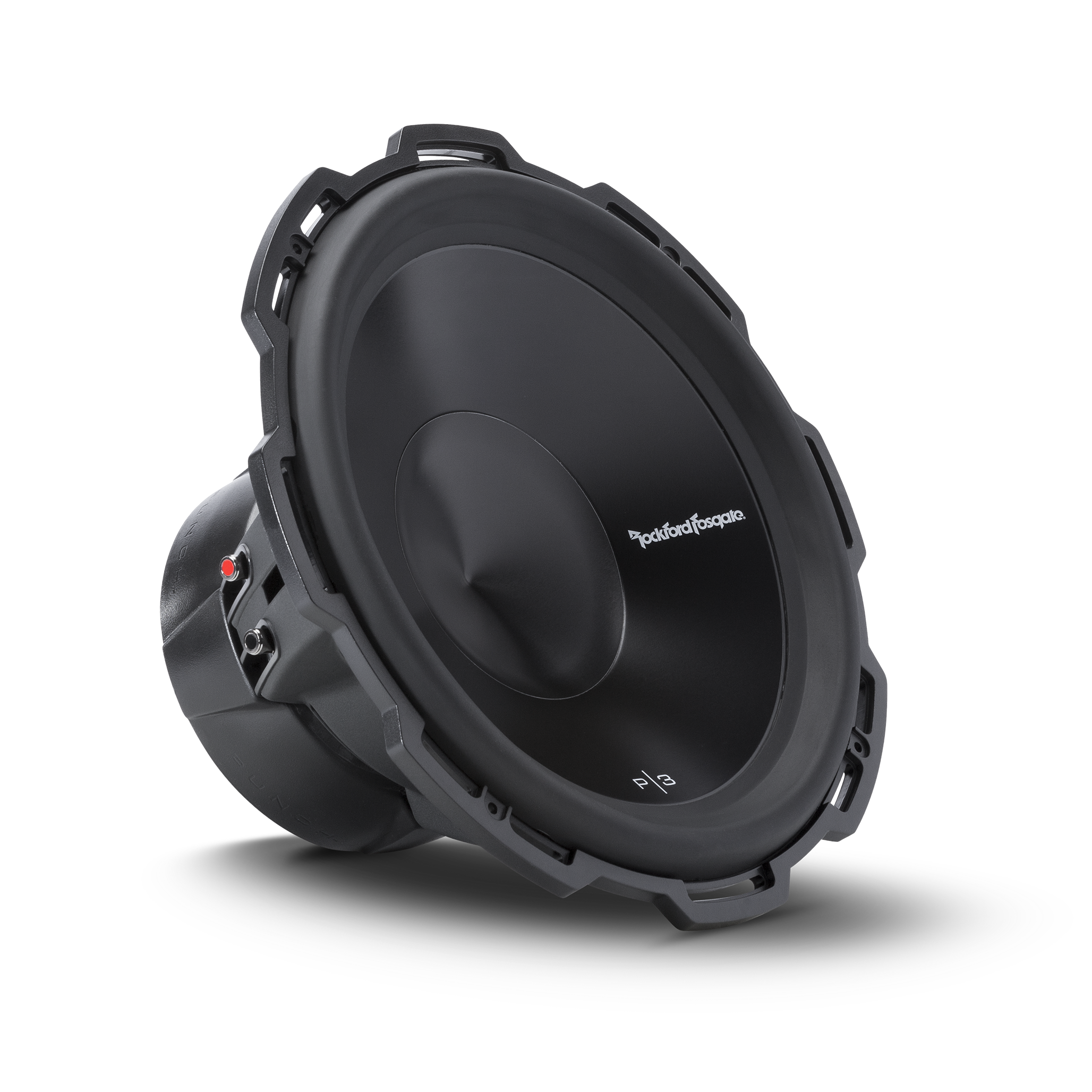

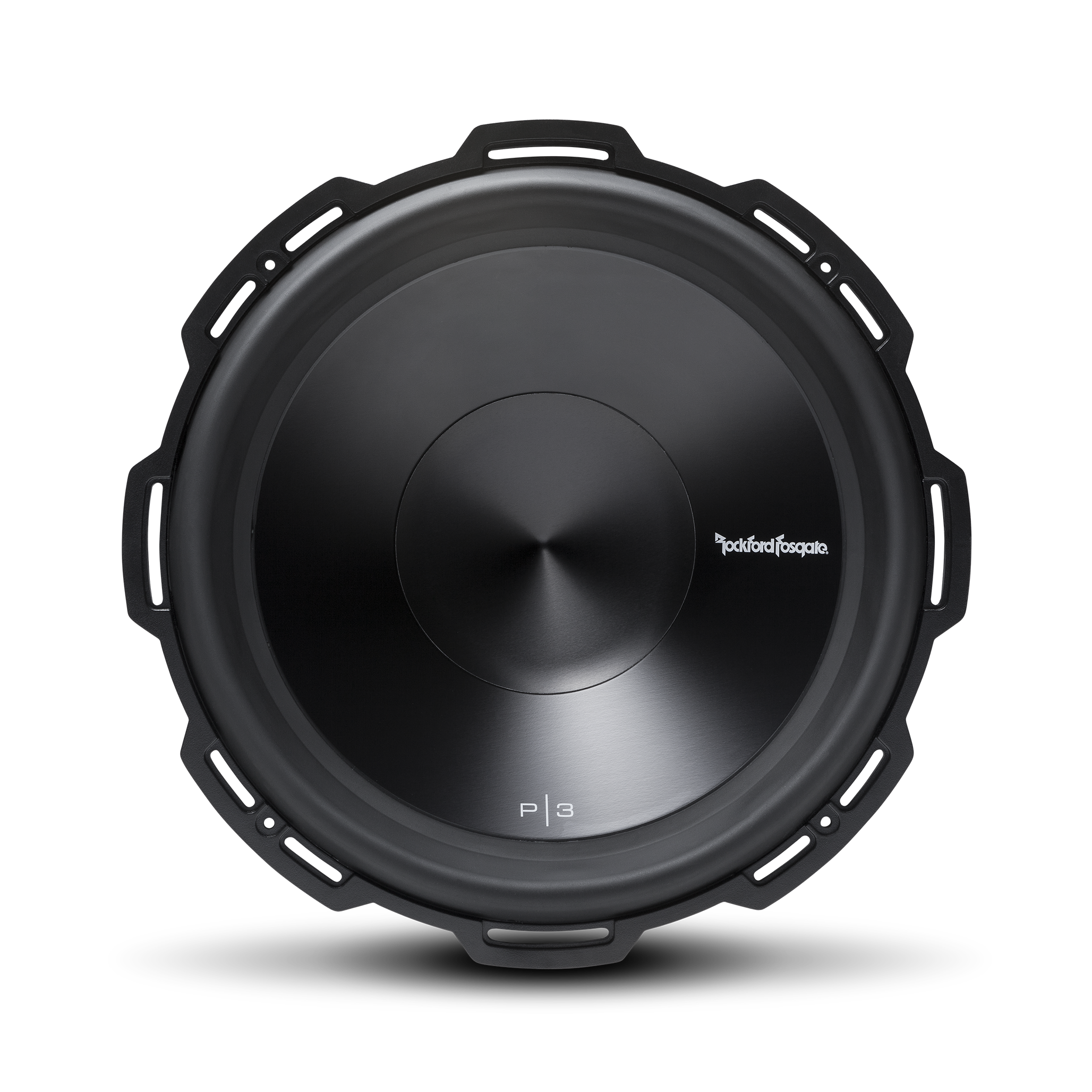

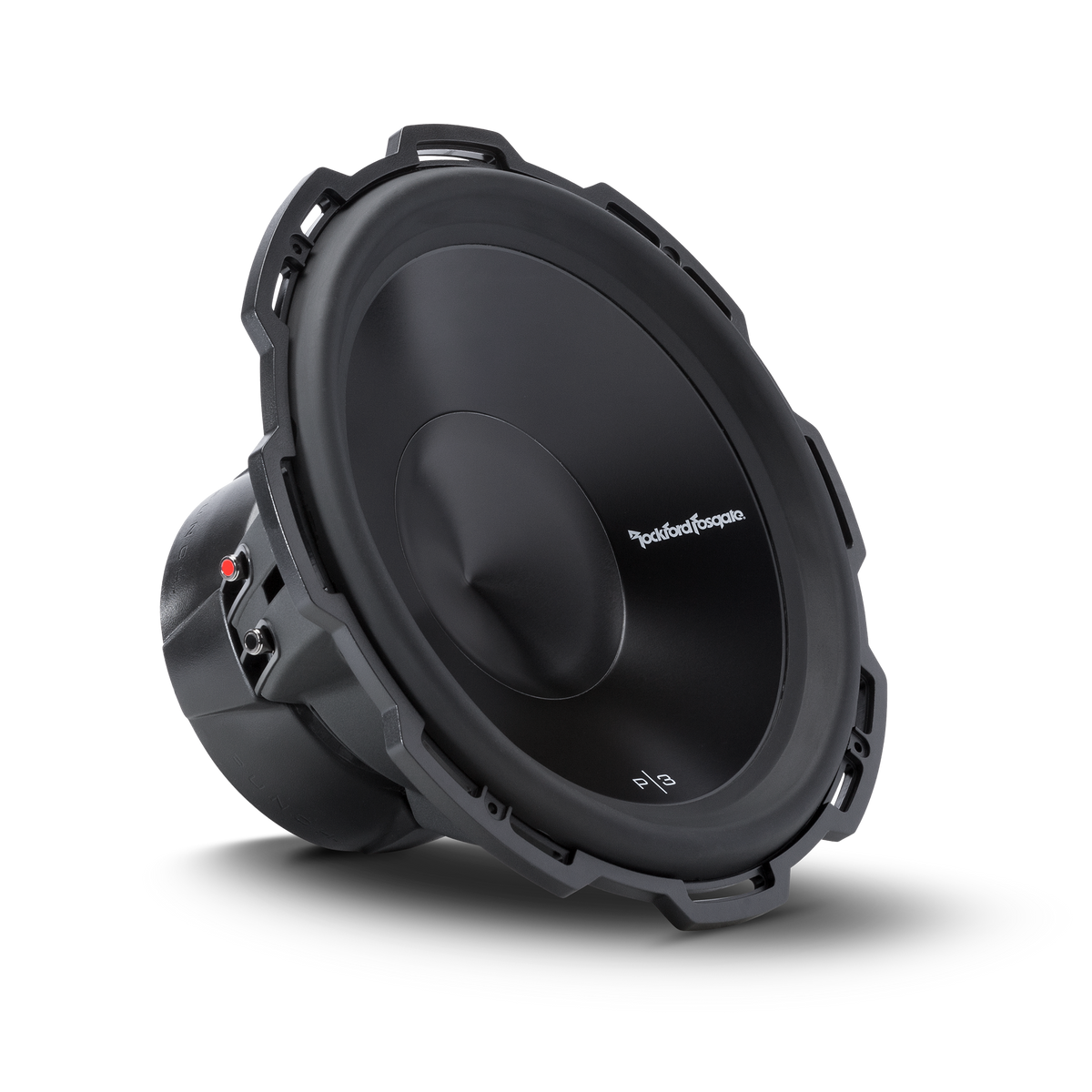

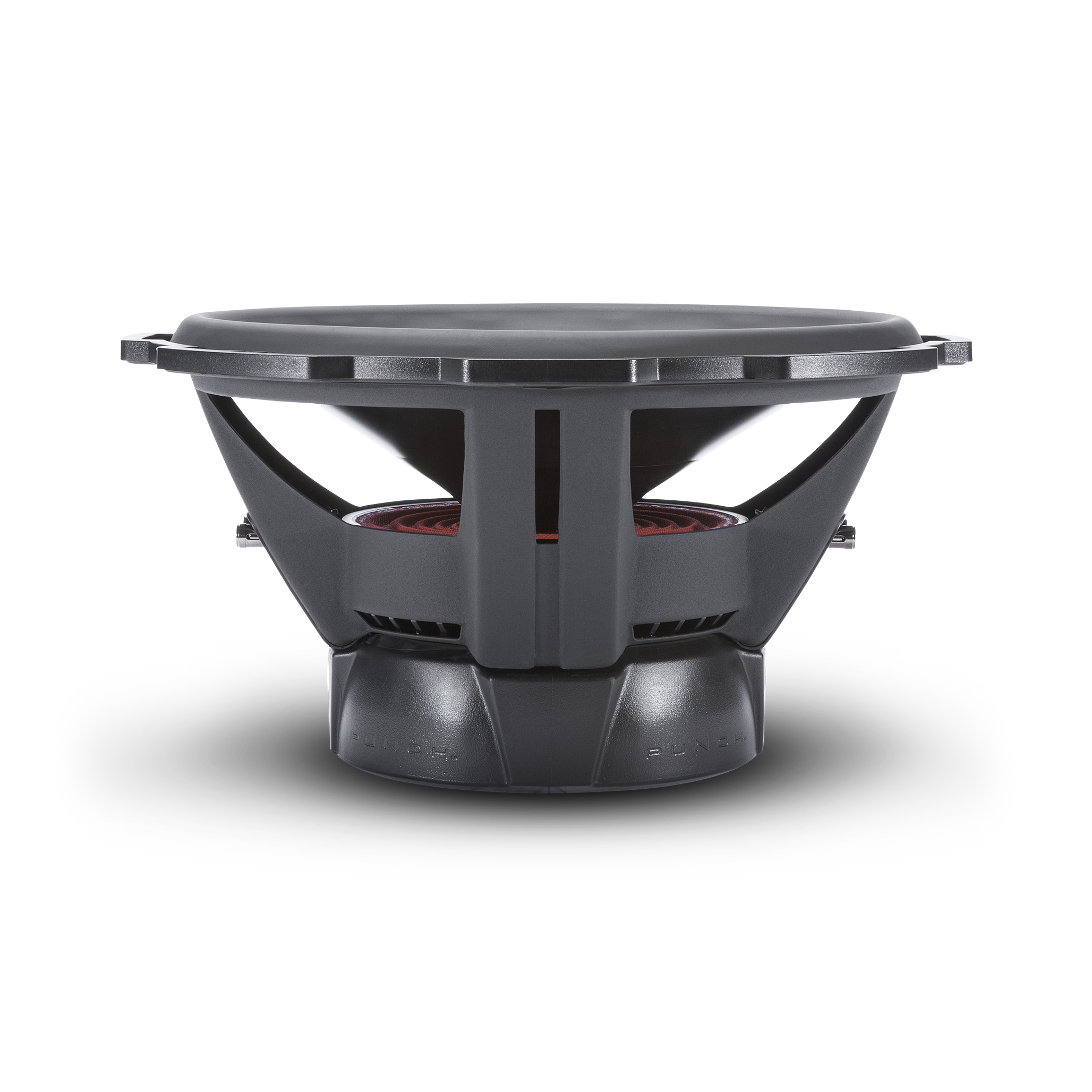

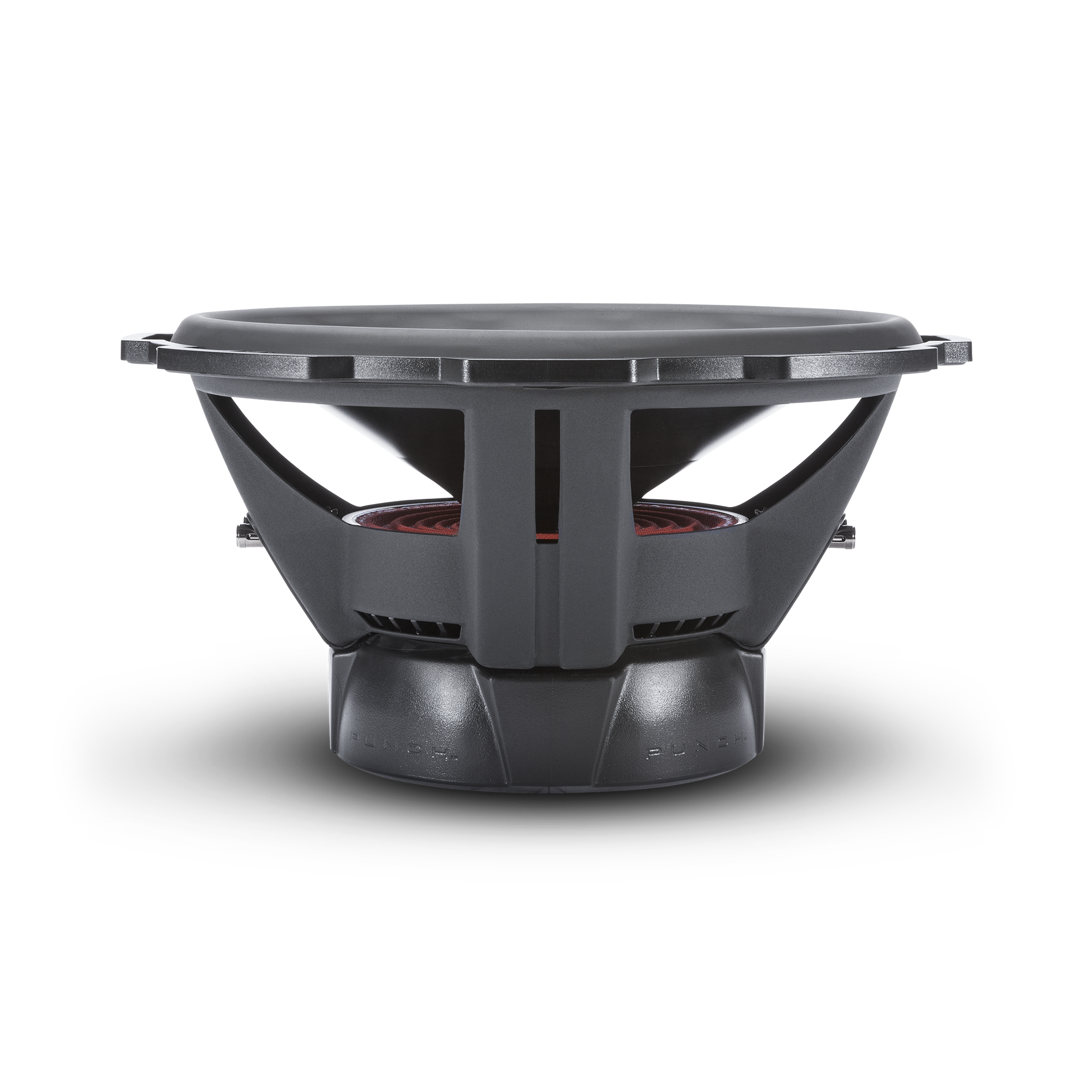

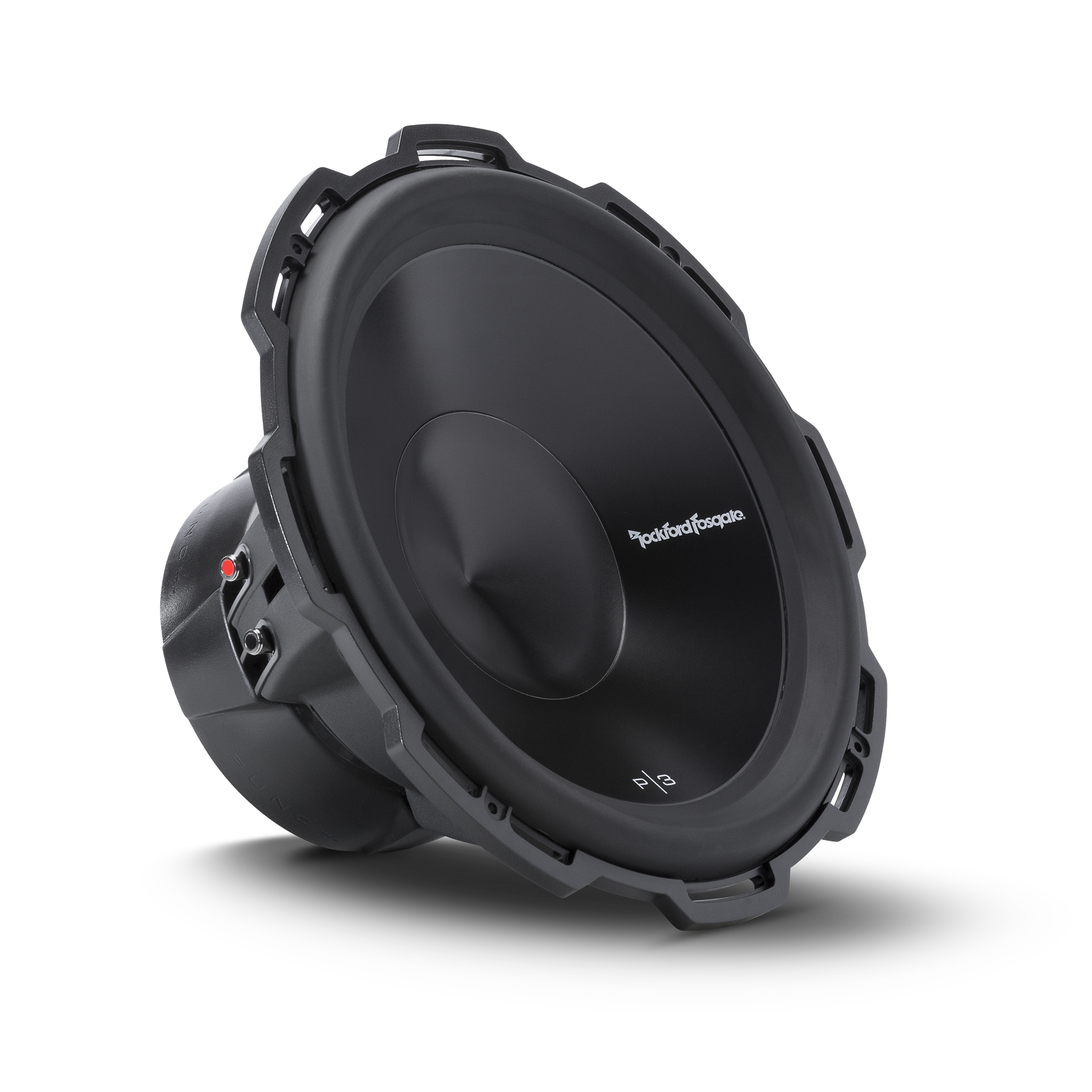

The P3D4-15 is the best performing Rockford Fosgate Punch series subwoofer. The P3 15" features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
Features
- 1 Year Warranty
- Anodized aluminum cone and dustcap

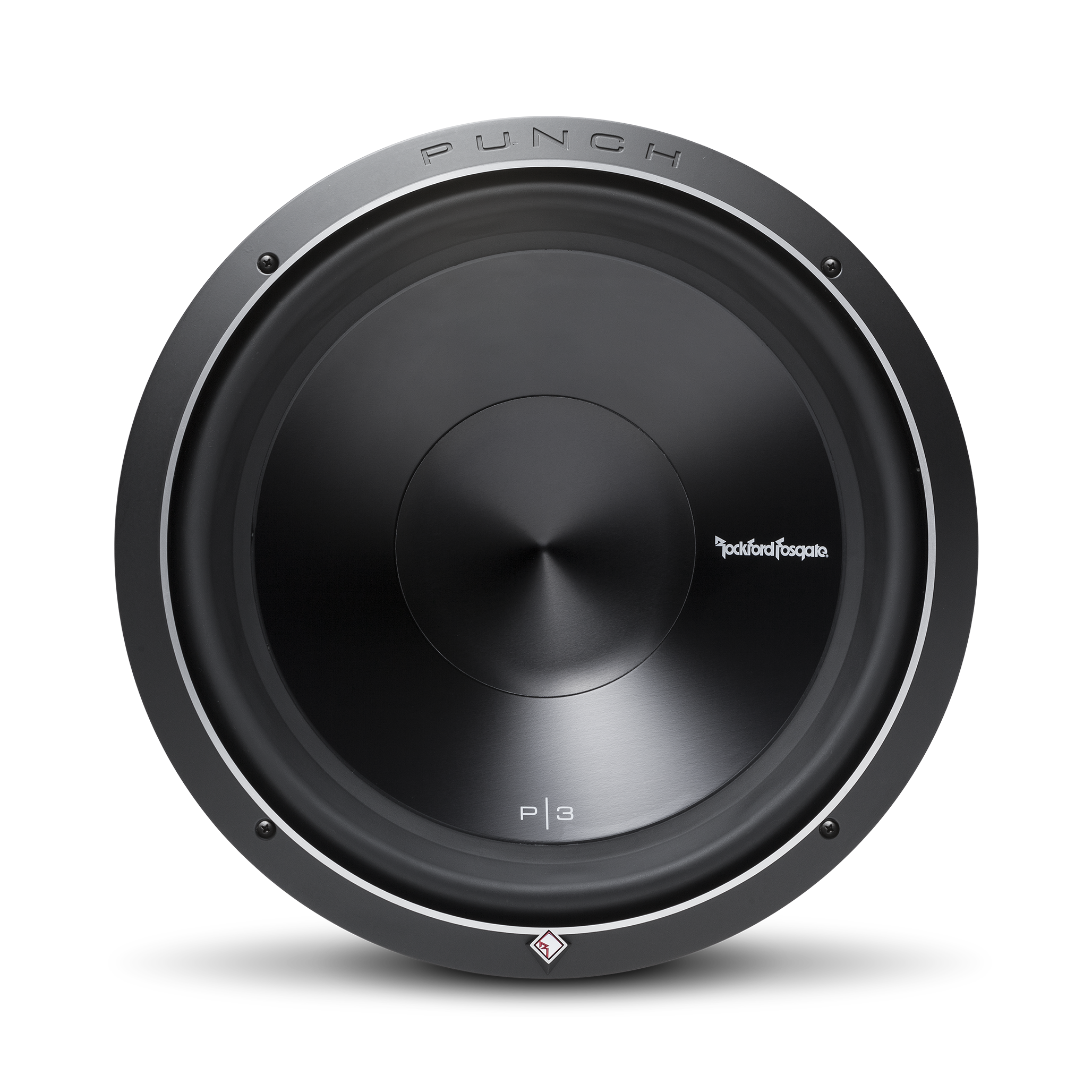

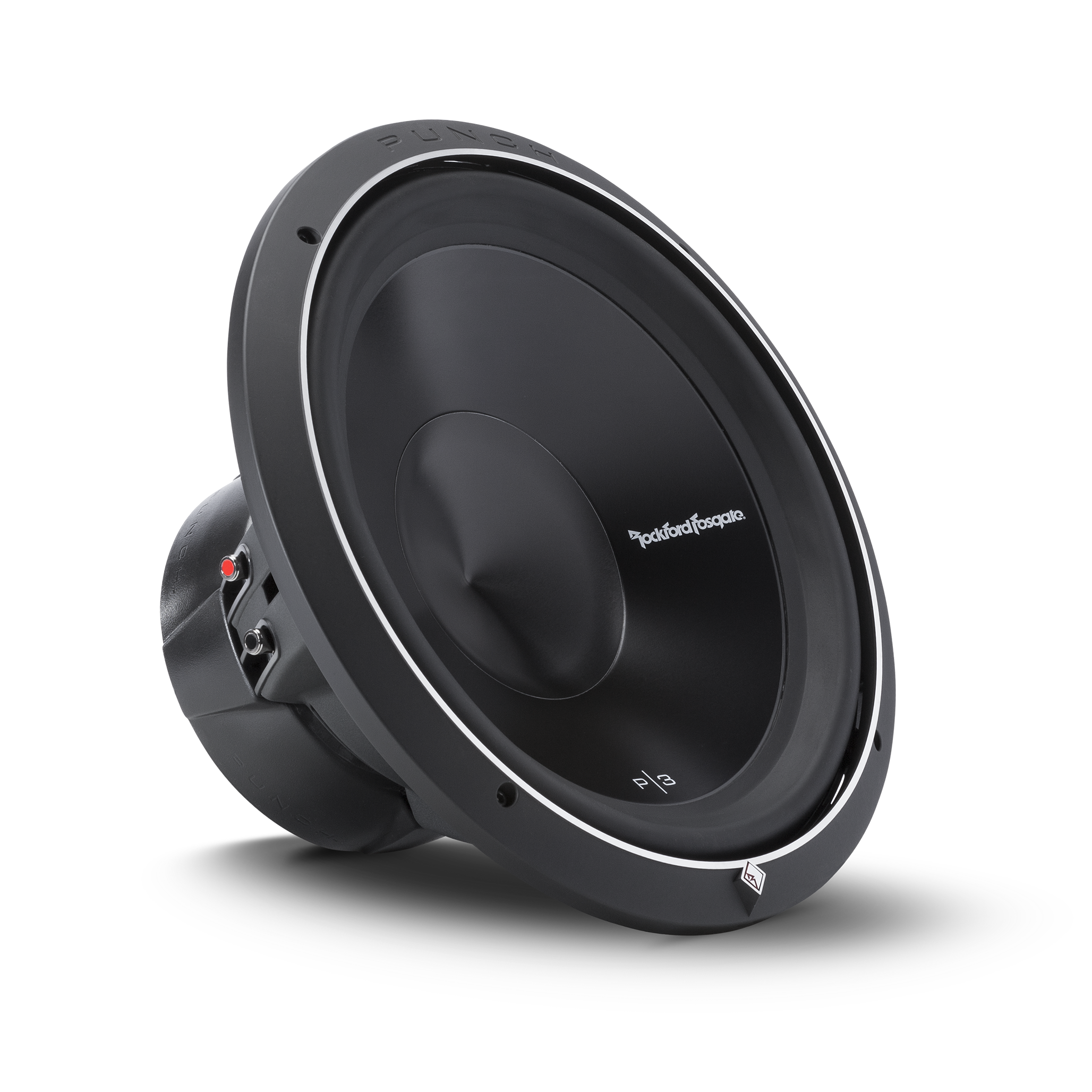

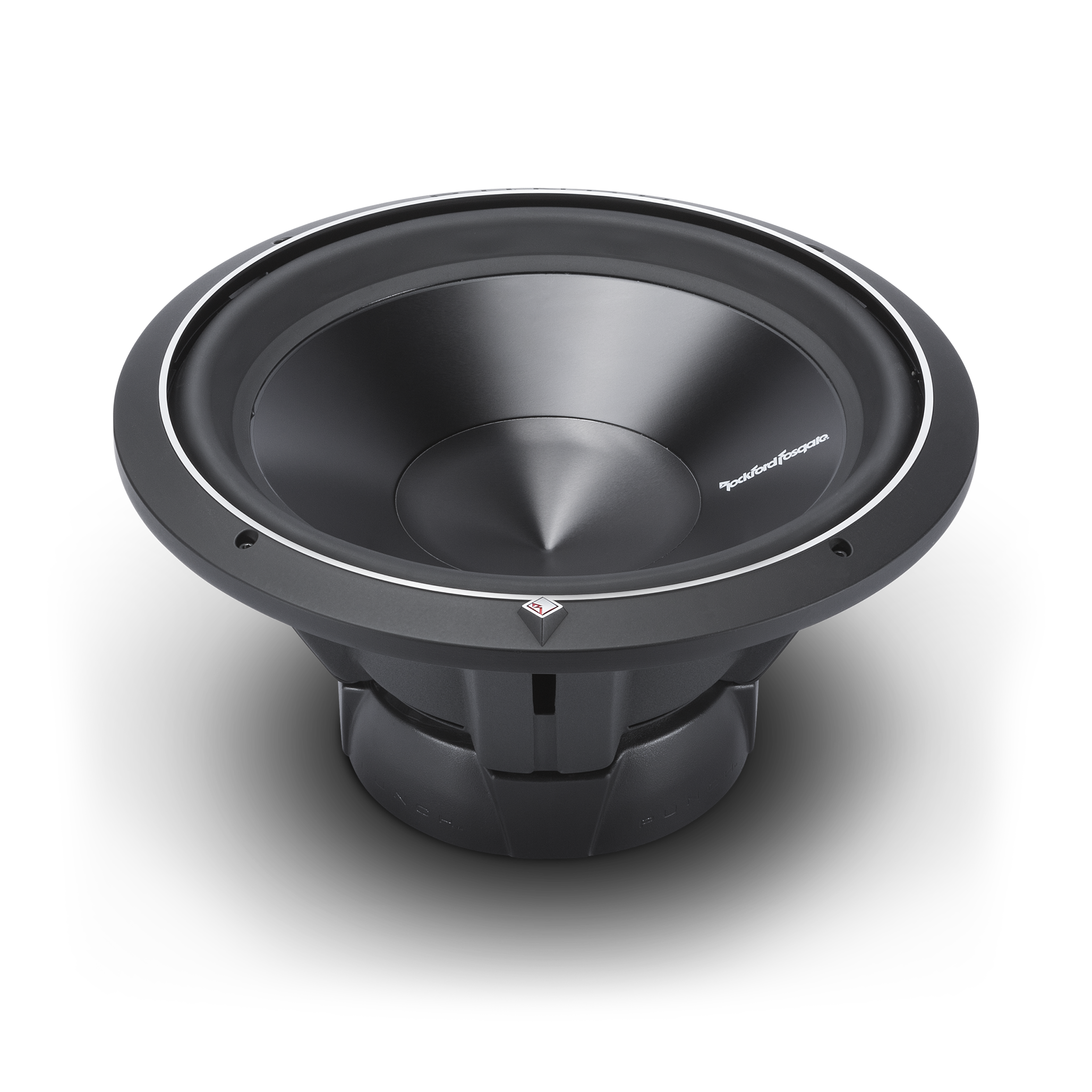

- Diamond cut cast aluminum trim ring with optional grille
- Custom 10-AWG nickel plated push terminals

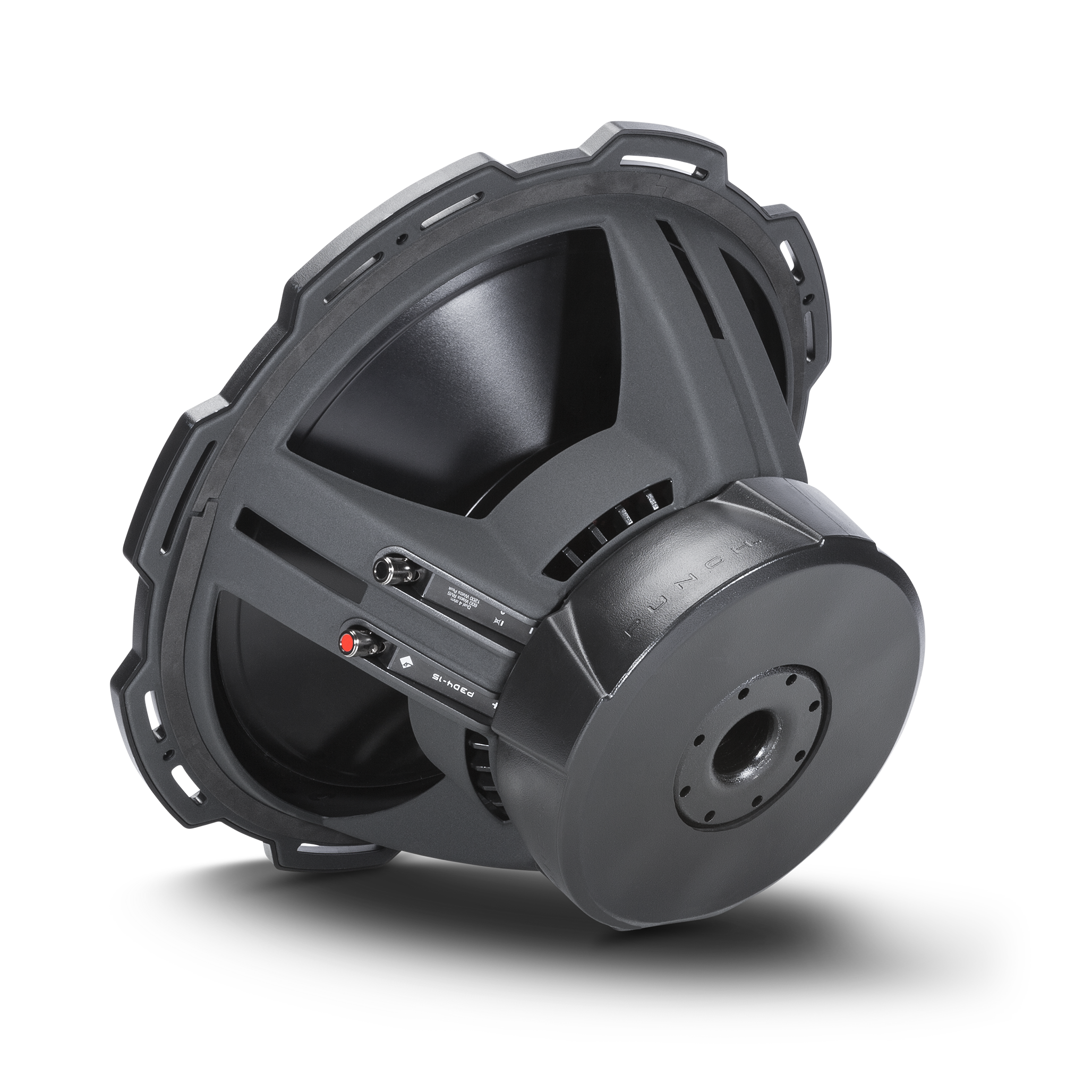

- Extended pole piece and bumped vented backplate

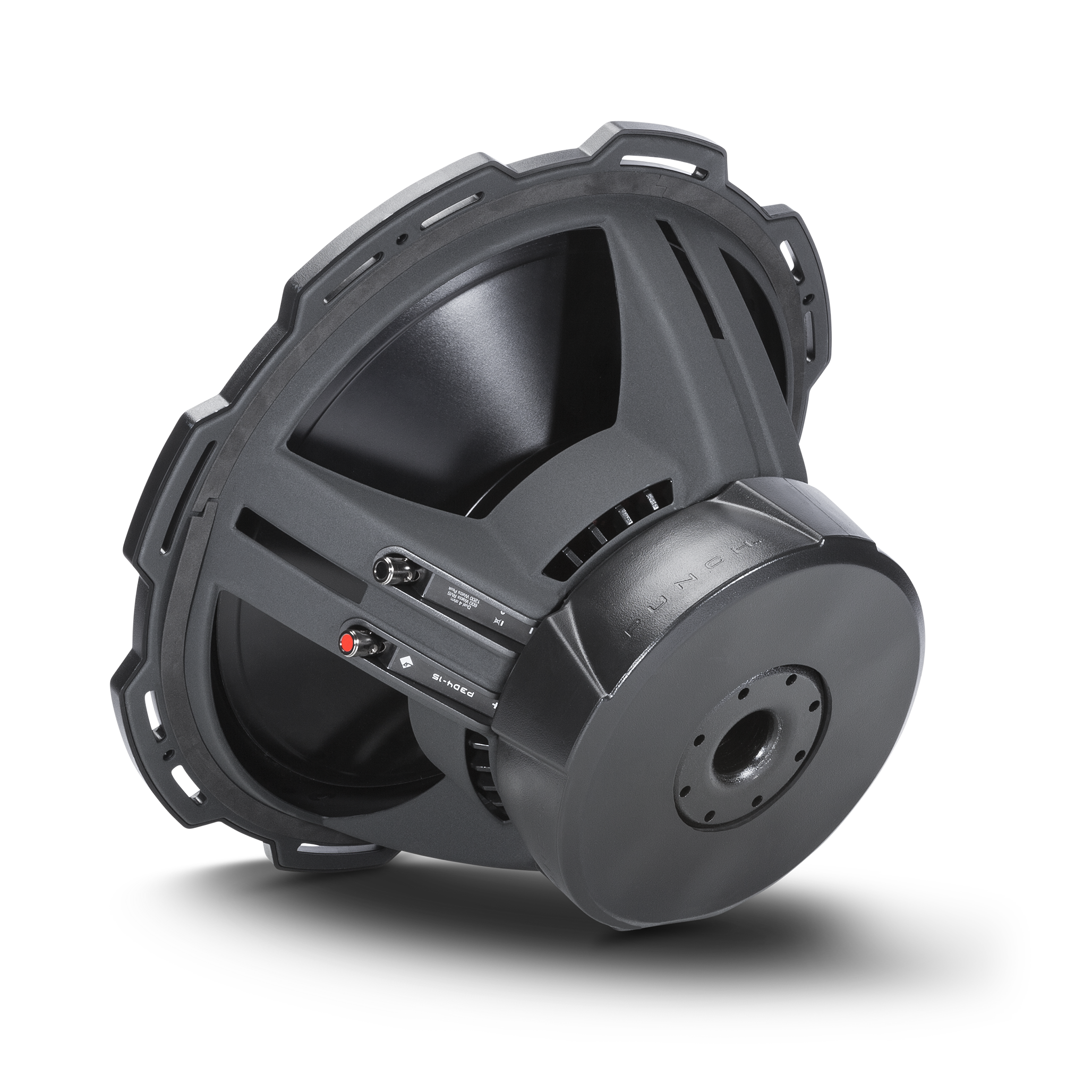

- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex re-inforcement collar
Specifications
- Size: 15"
- Mounting Depth: 7.58 in. (192.5 mm)
- Magnet Weight (oz): 96 oz. (2.73 kg.)
- Voice Coil Diameter: 2.5" (65.5 mm)
- Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
- Nominal Impedance: Dual 4-Ohm
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 23.3 Lbs. (10.56 kg)
- Fs (Hz): 22.4
- Cutout Diameter: 13.94 in. (353 mm)
- SPL (dB @ 1w/1m): 86
- Qts: 0.57
- Qes: 0.64
- Qms: 4.9
- Vas (Liters): 155.8
- Re (Ohms): 6.4
- Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
- Le (mH): 6.45
- Xmax (mm): 15.9
- Sd (cm2): 894
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
