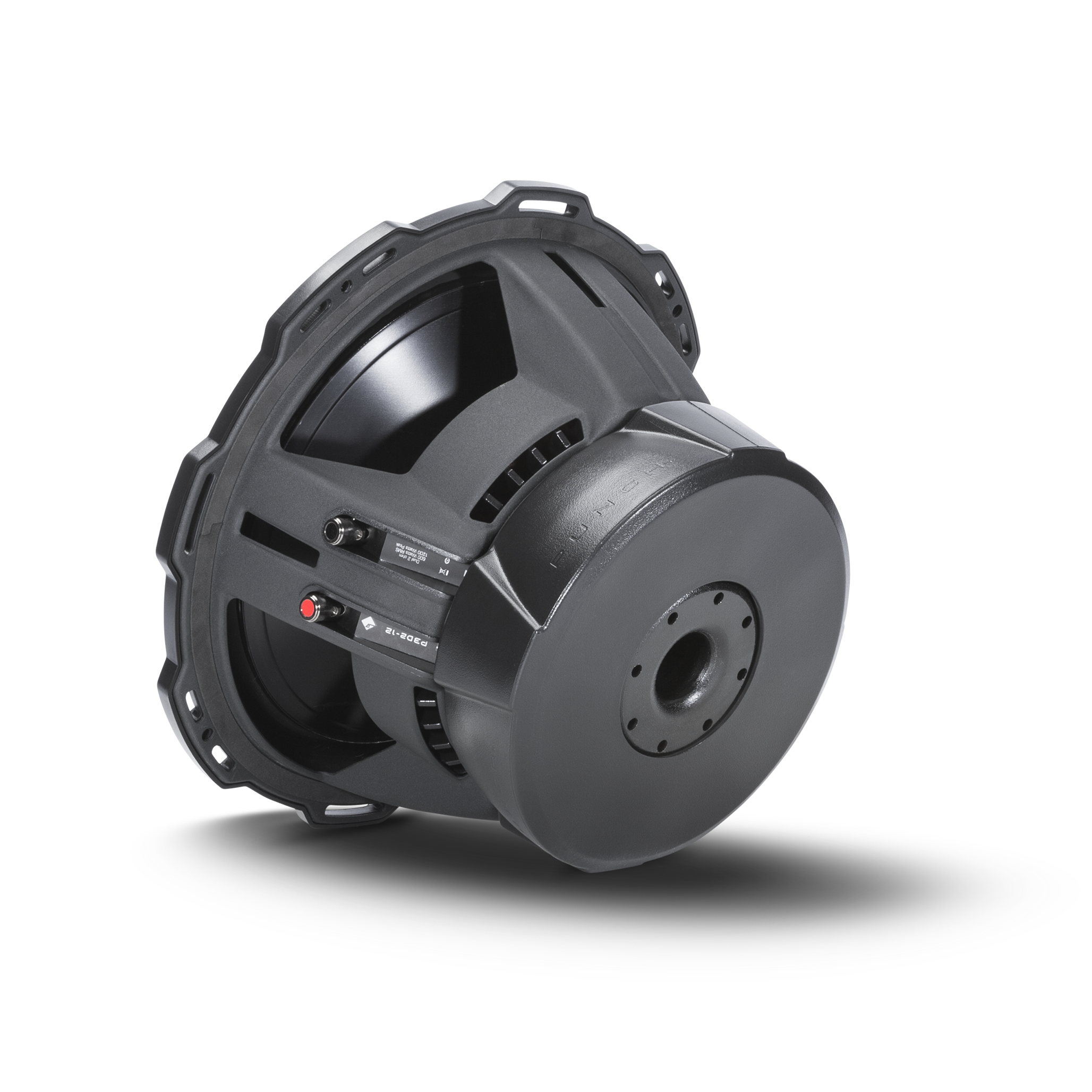

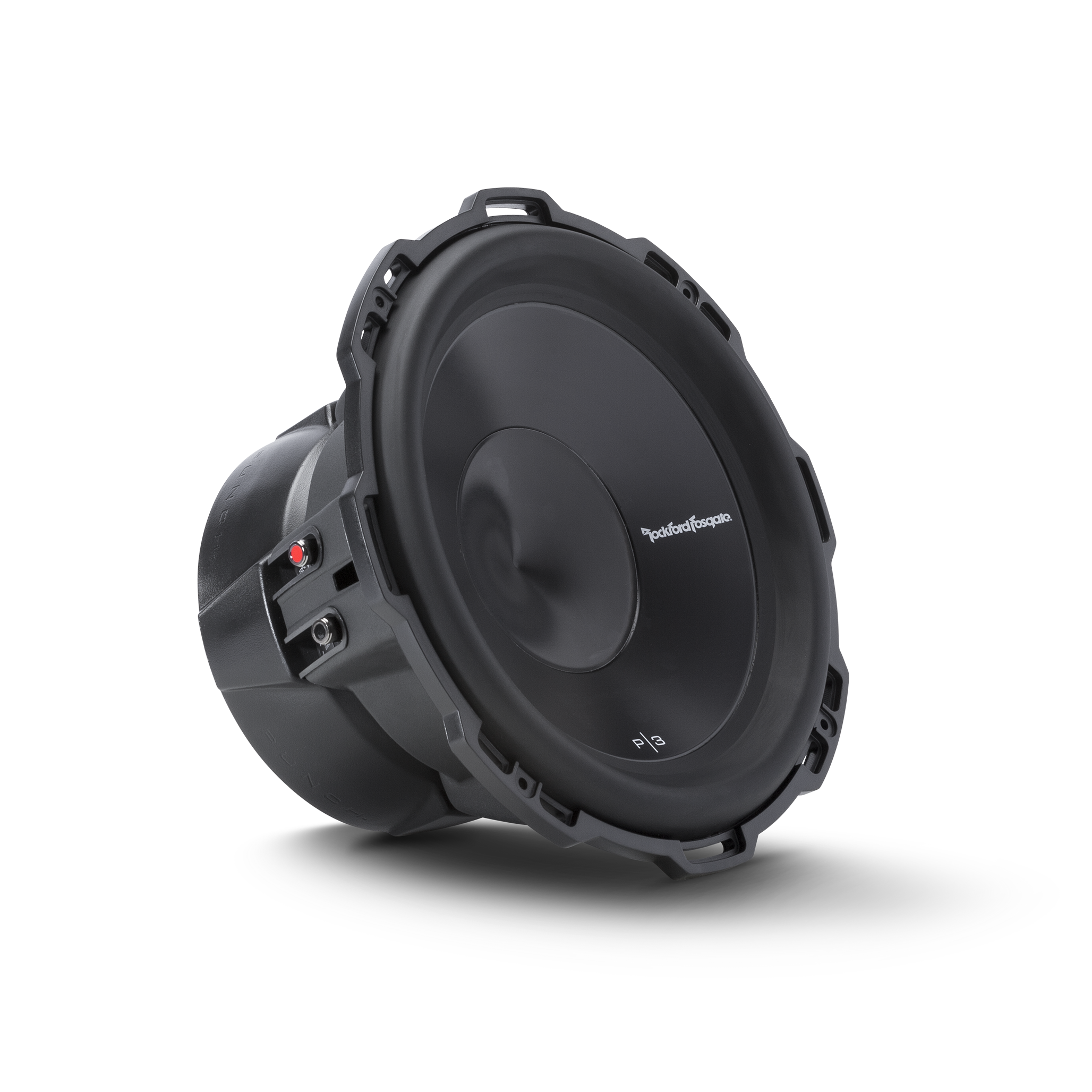

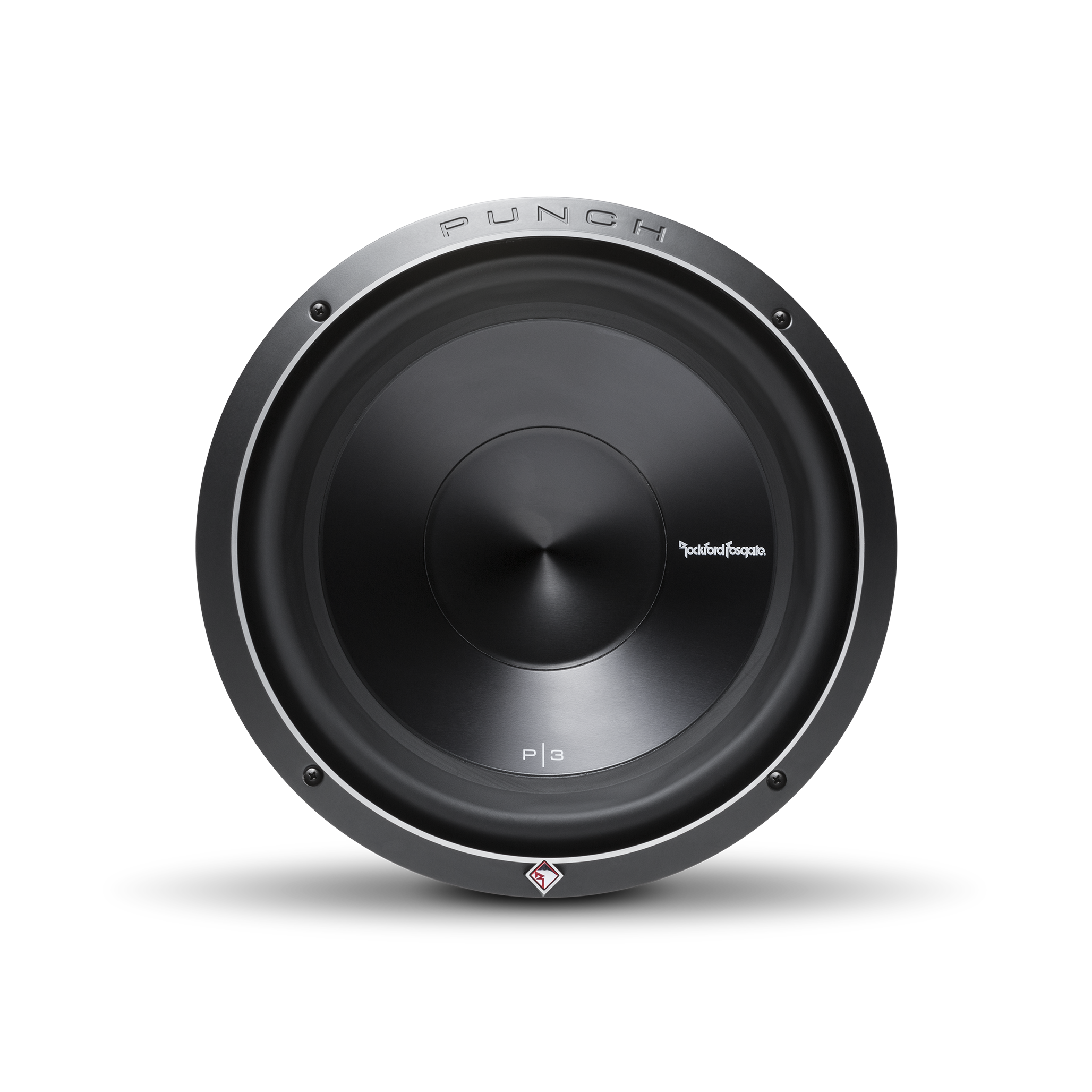

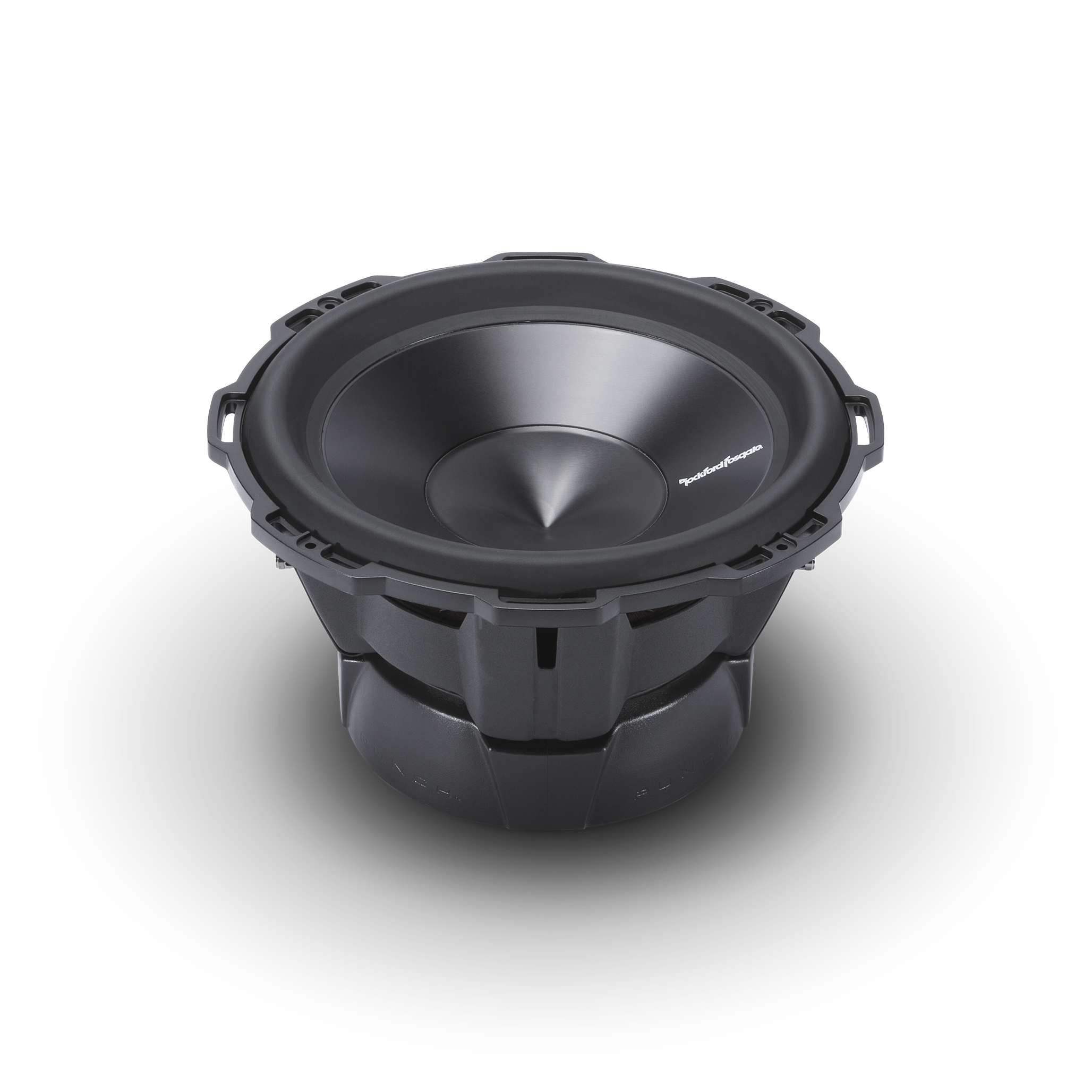

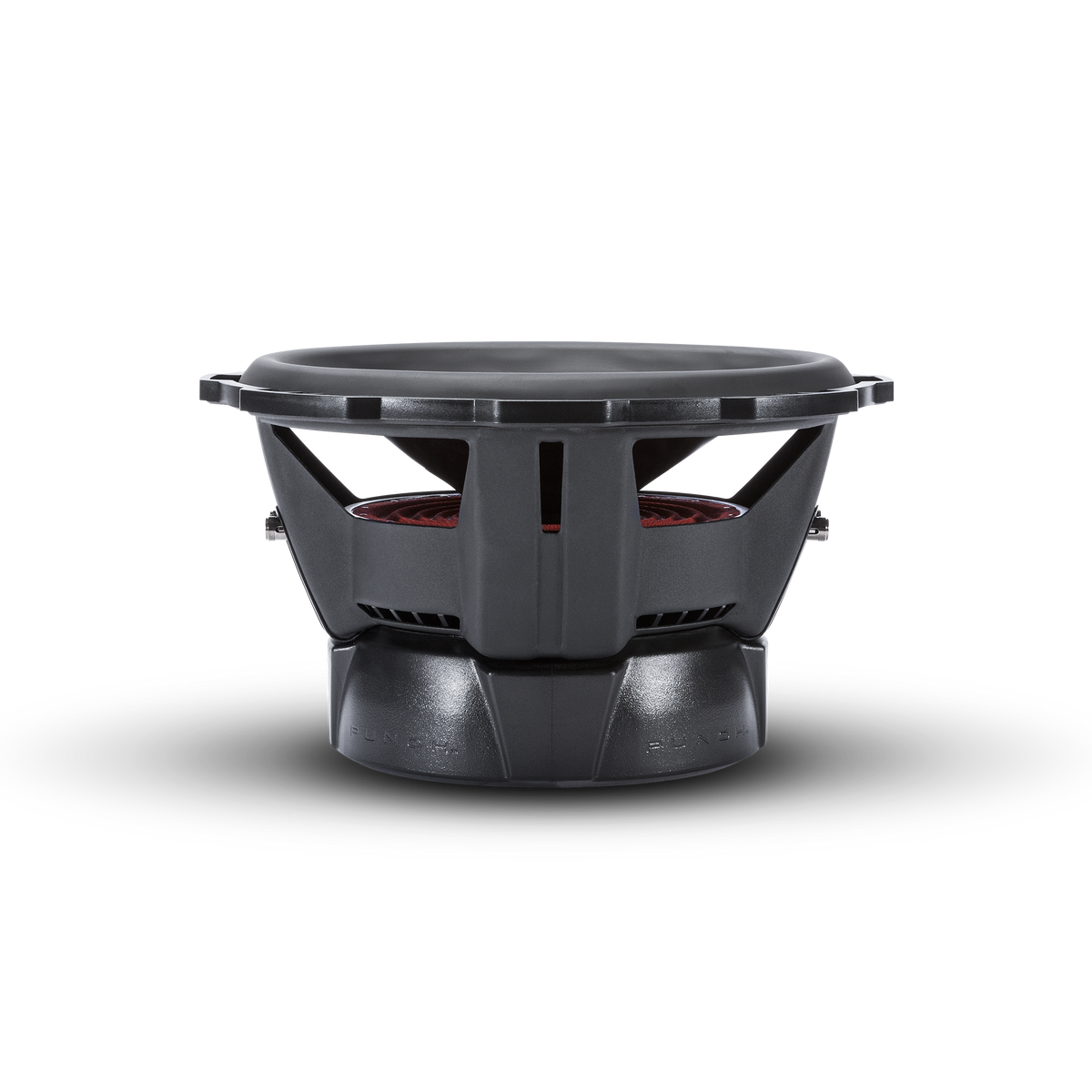

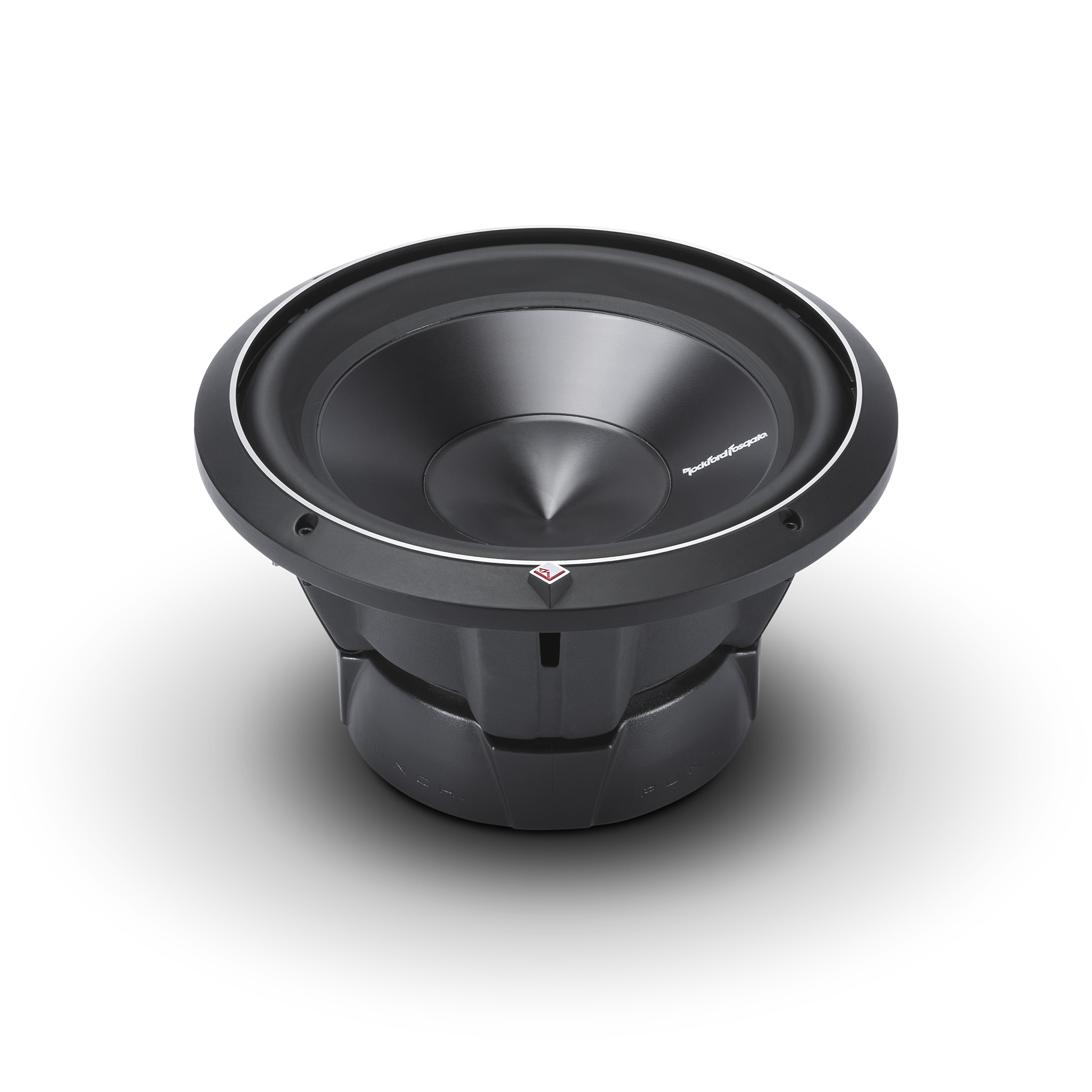

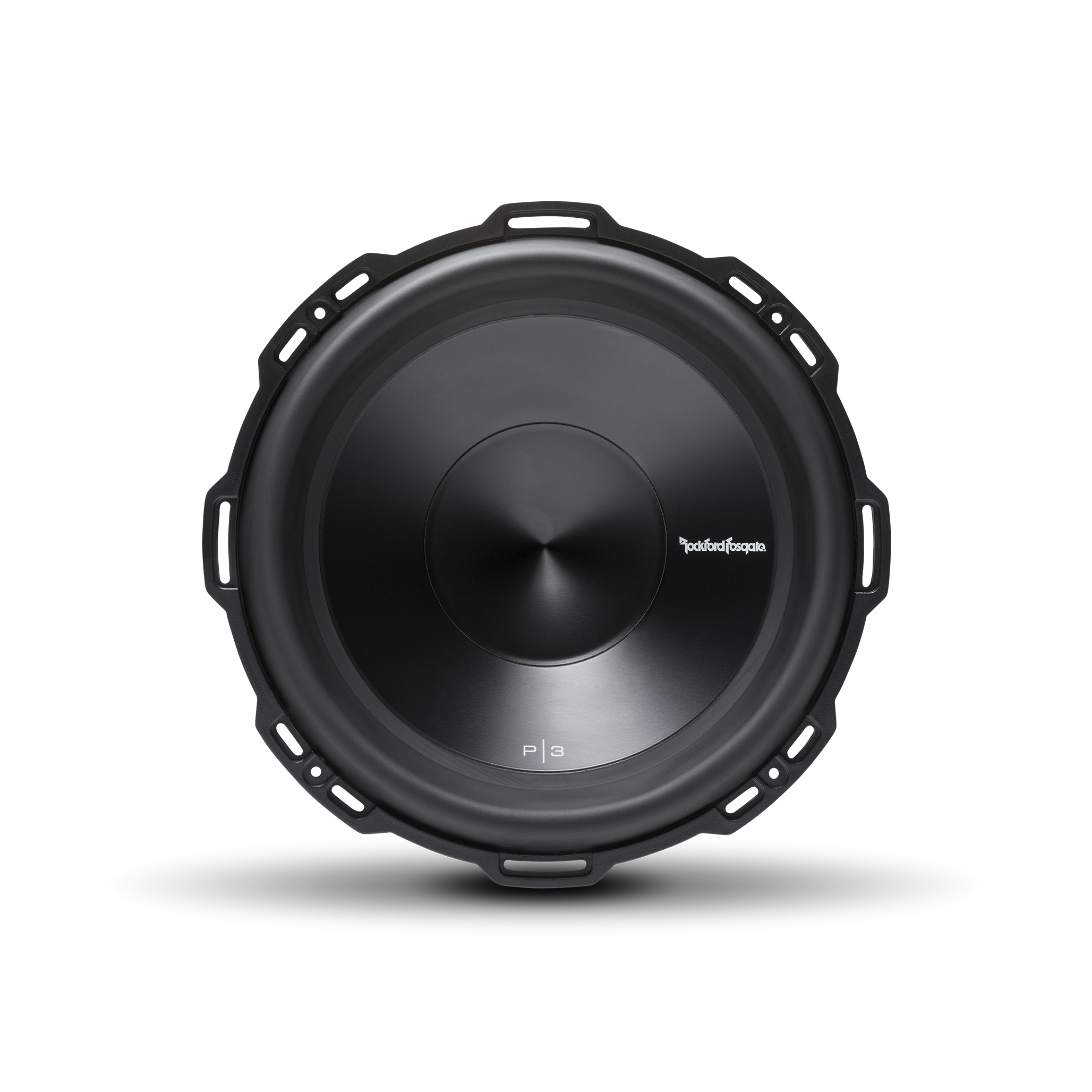

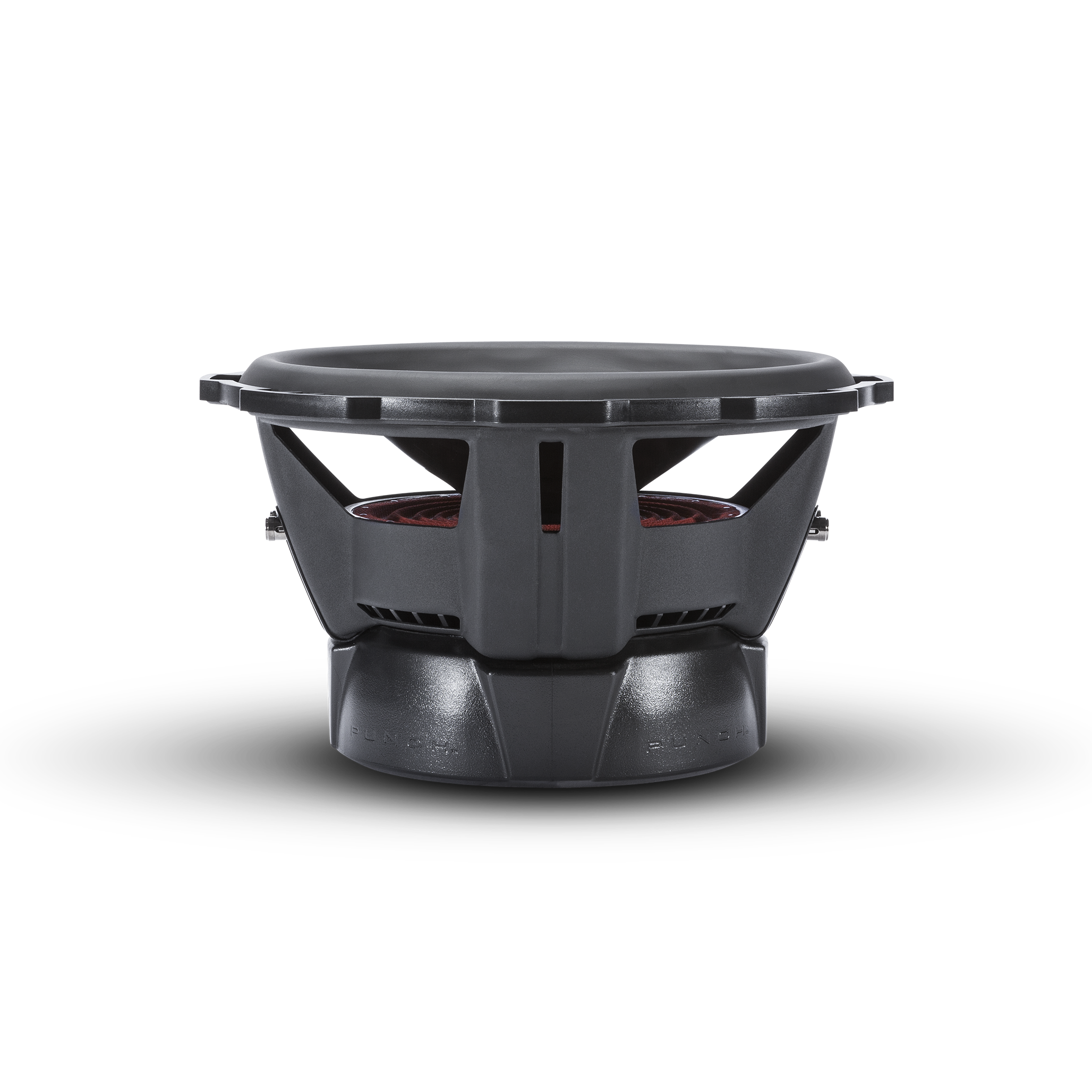

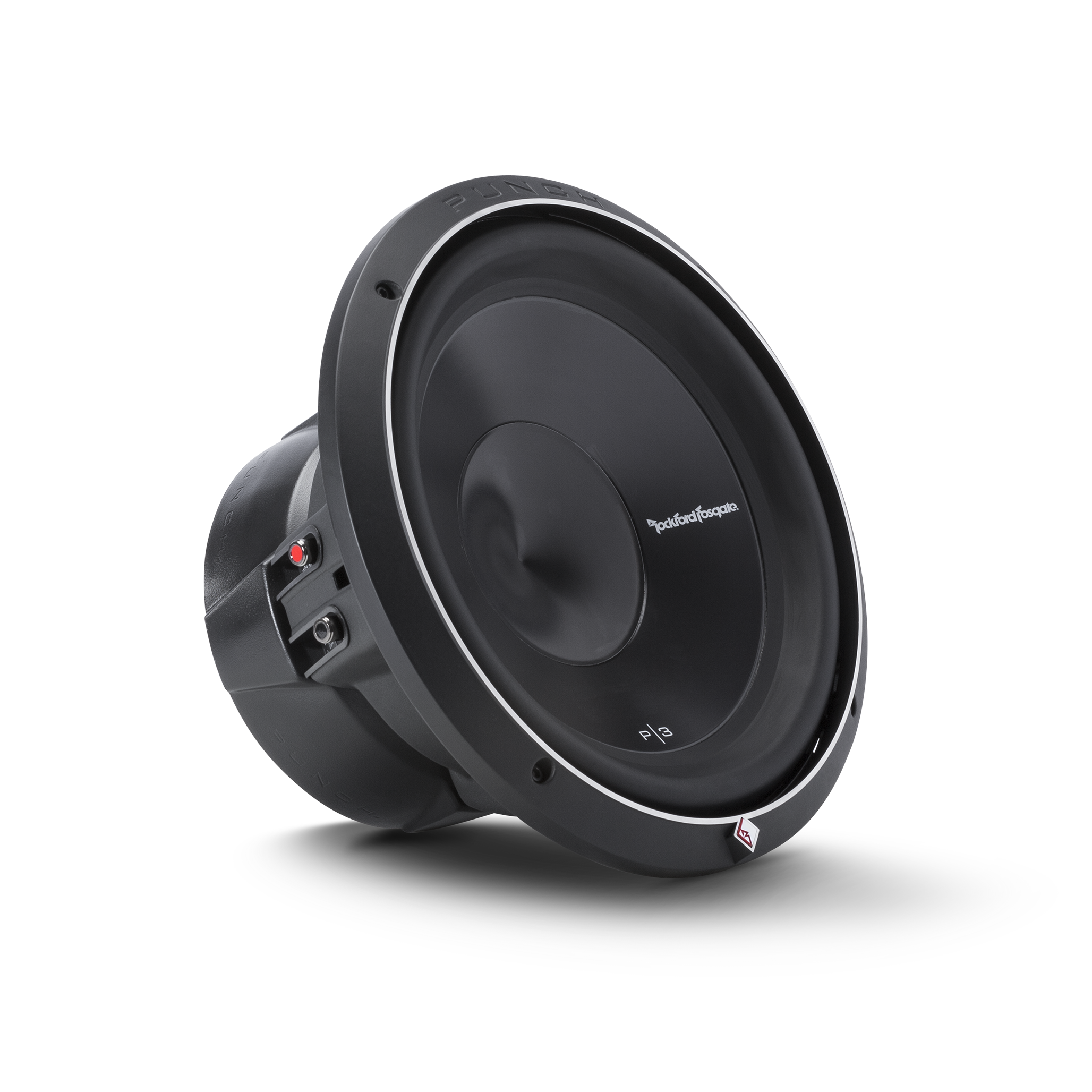

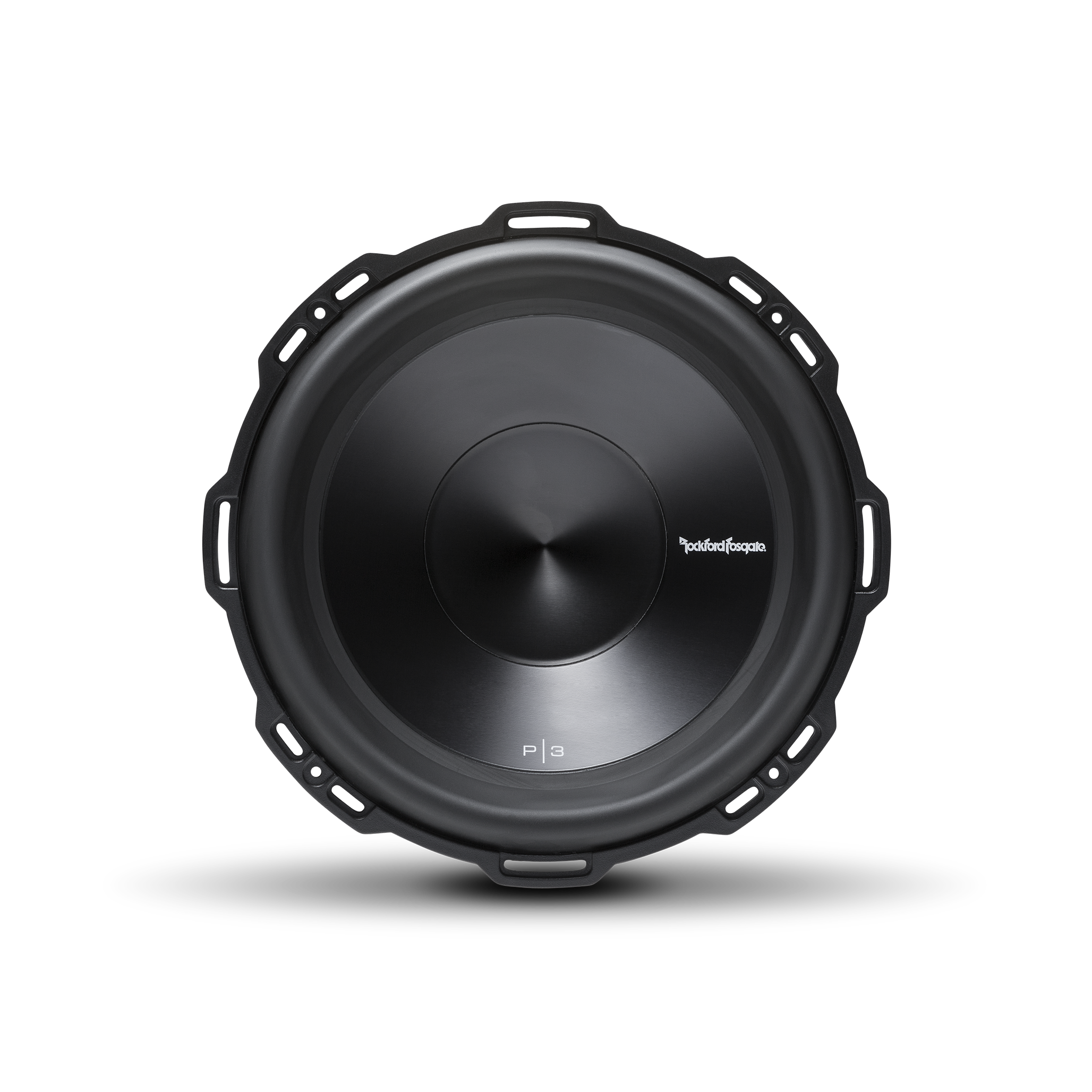

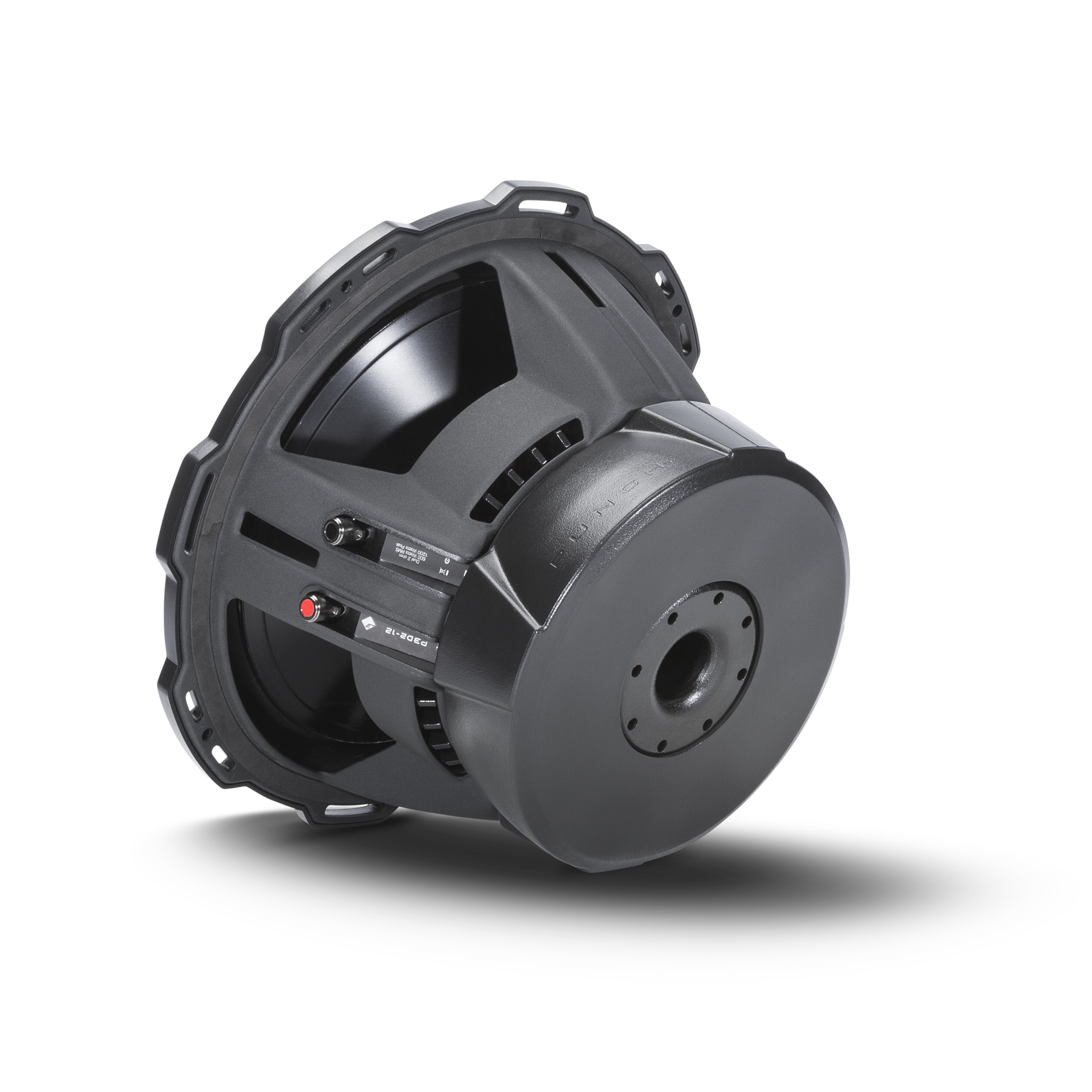

Punch 12" P3 4-Ohm DVC Subwoofer

Overview

The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer for cars and trucks. The P3 12” features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.

Features

• Custom 10-AWG nickel plated push terminals
• Dual linear spider with embedded 16 AWG tinsel leads
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Anodized aluminum cone and dustcap
• Extended pole piece and bumped vented backplate
• Protective PVC textured magnet cover
• StampCast basket with integrated spider venting
• 1 Year Warranty
• Diamond cut cast aluminum trim ring with optional grille

Technologies

• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
• CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
• Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Specifications

CEA-2031 Compliant
Size	12"
Power Handling	600 Watts RMS 1200 Watts Max
Subwoofer Type	Standard
Nominal Impedance	Dual 4-Ohm
Speaker Connector	Dual 10 AWG compression
Voice Coil Type	Dual Voice Coil
Voice Coil Diameter	2.5" (65.5 mm)
Magnet Weight (oz)	96 oz. (2.73 kg.)
Fs (Hz)	27.7
Qes	0.57
Qts	0.52
Qms	5.6
Vas (Liters)	57.7
Le (mH)	6.94
Re (Ohms)	6.4
Sd (cm2)	570
Xmax (mm)	15.9
SPL (dB @ 1w/1m)	85
Cutout Diameter	11.25 in. (285 mm)
Mounting Depth	6.66 in. (169.3 mm)
Woofer Displacement	0.106 cu. ft. (3.0 Liters)
Sealed Box Volume (Vb)	1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)	1.79 cu. ft. (50.6 Liters)
Shipping Weight	20.9 lb. (9.48 kg)
