Overview

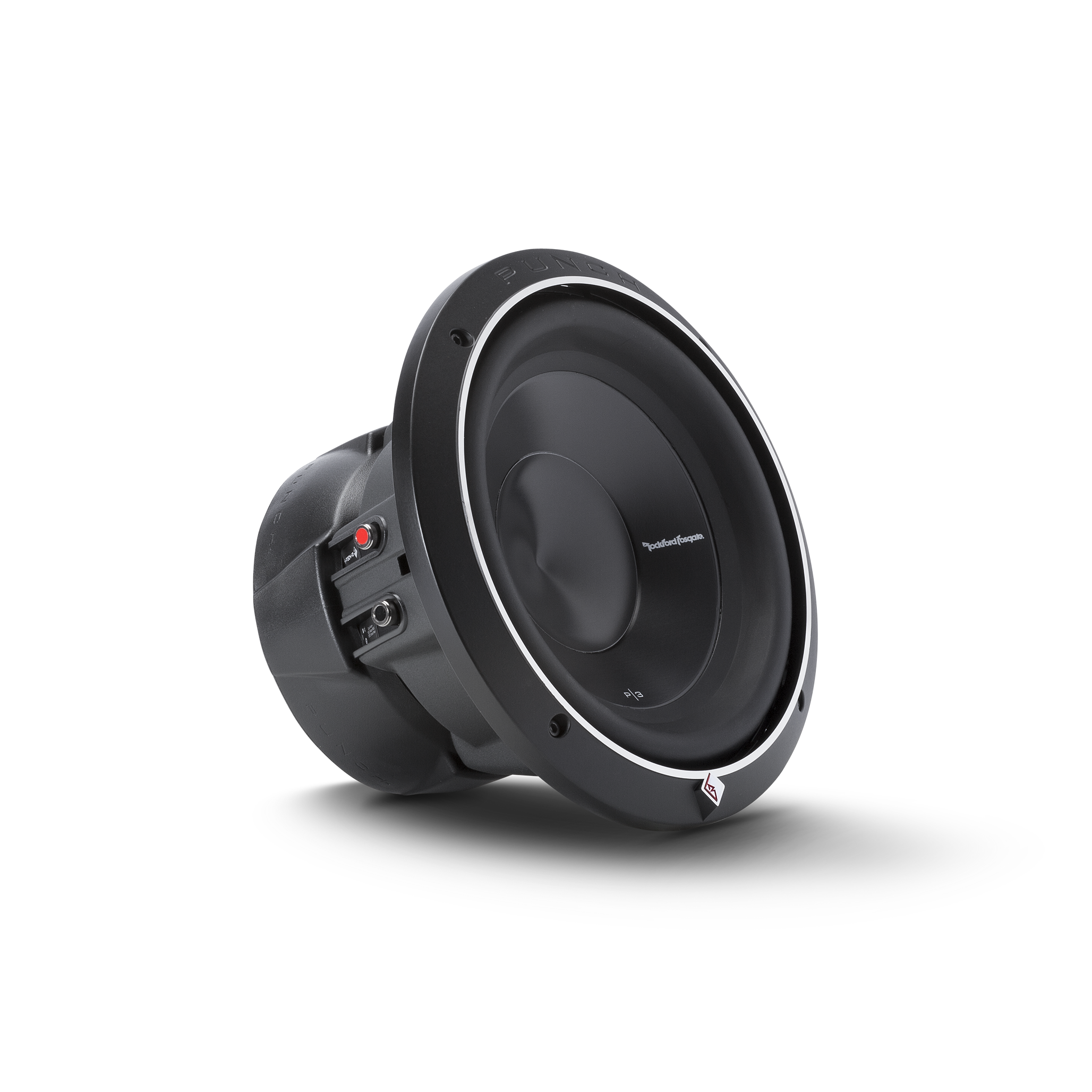

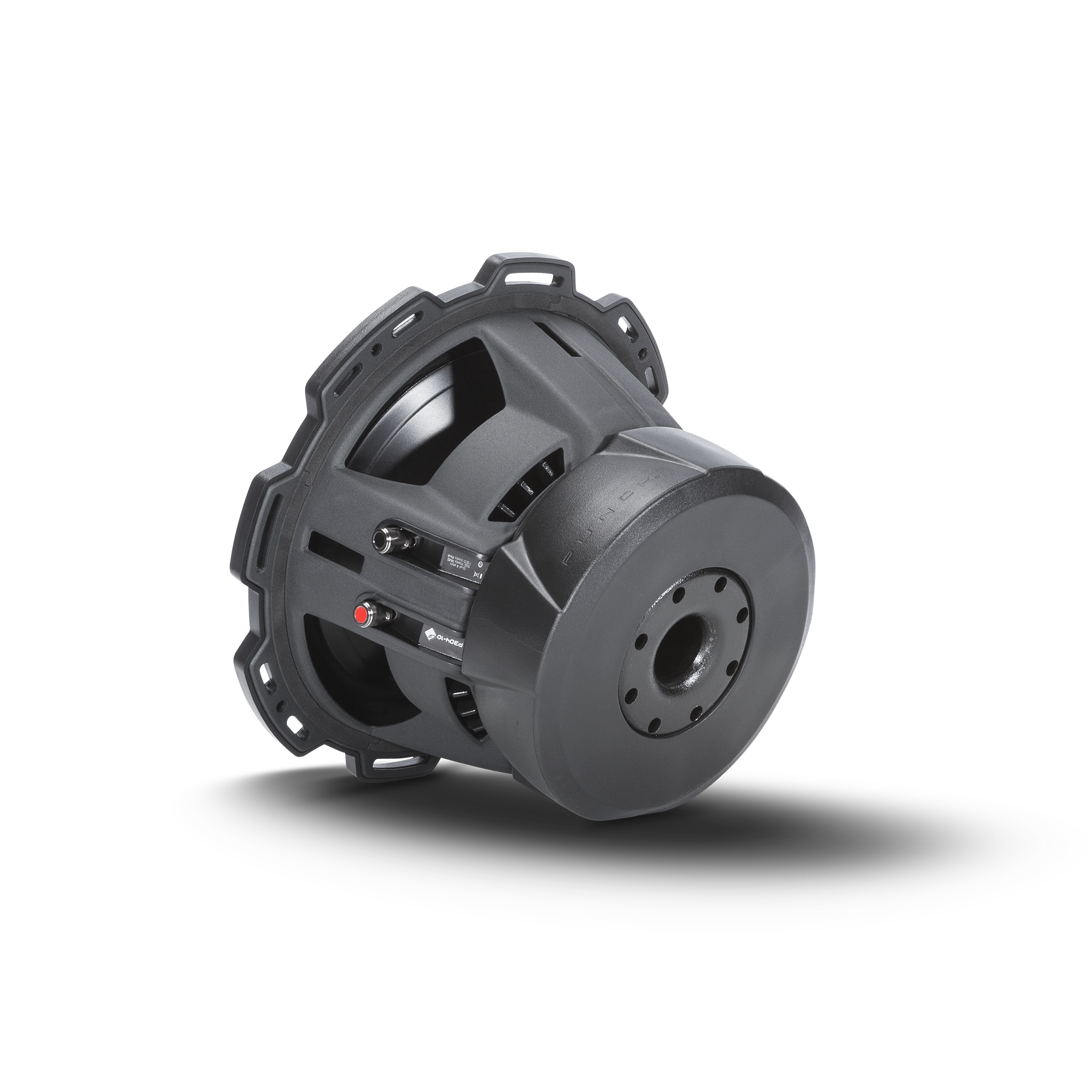

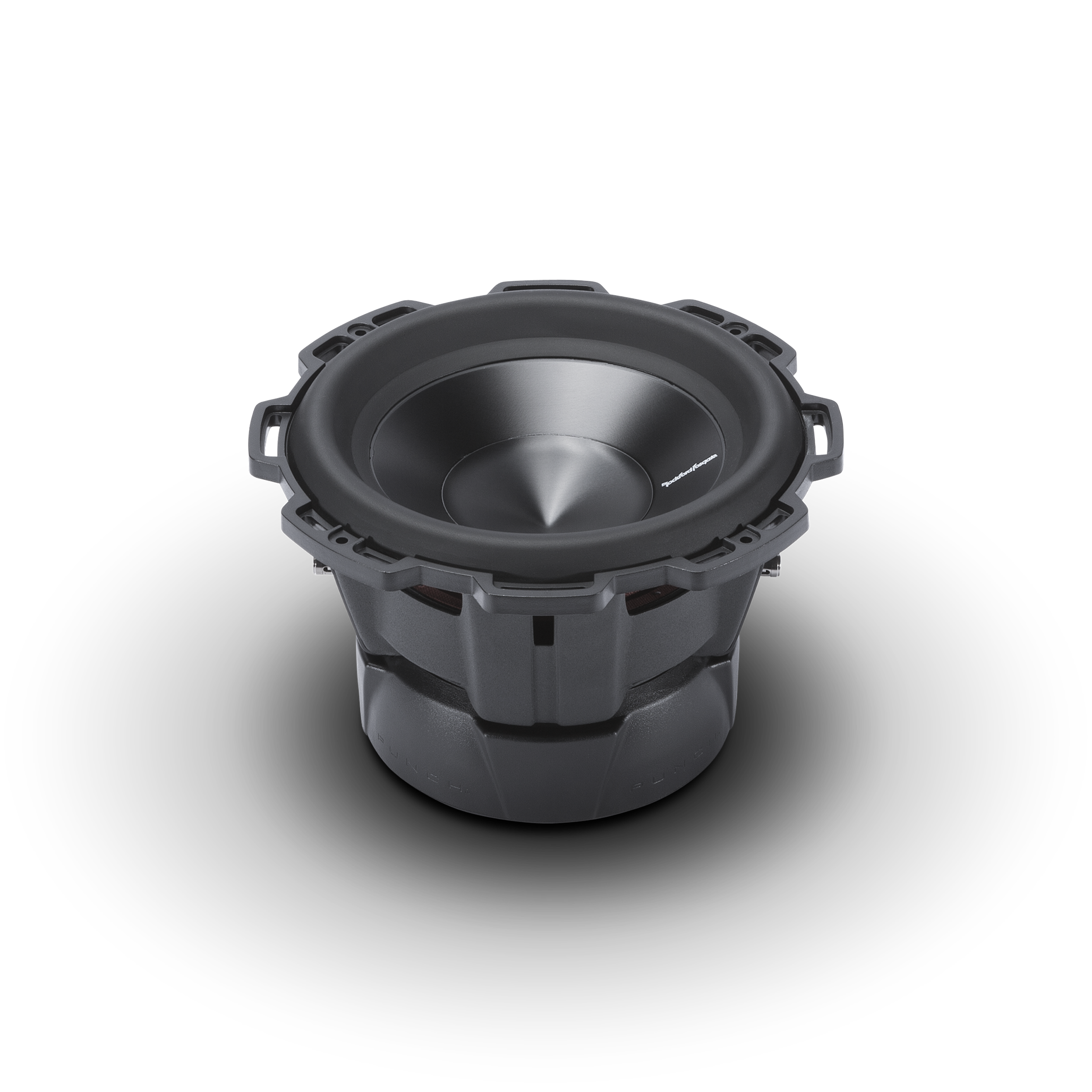

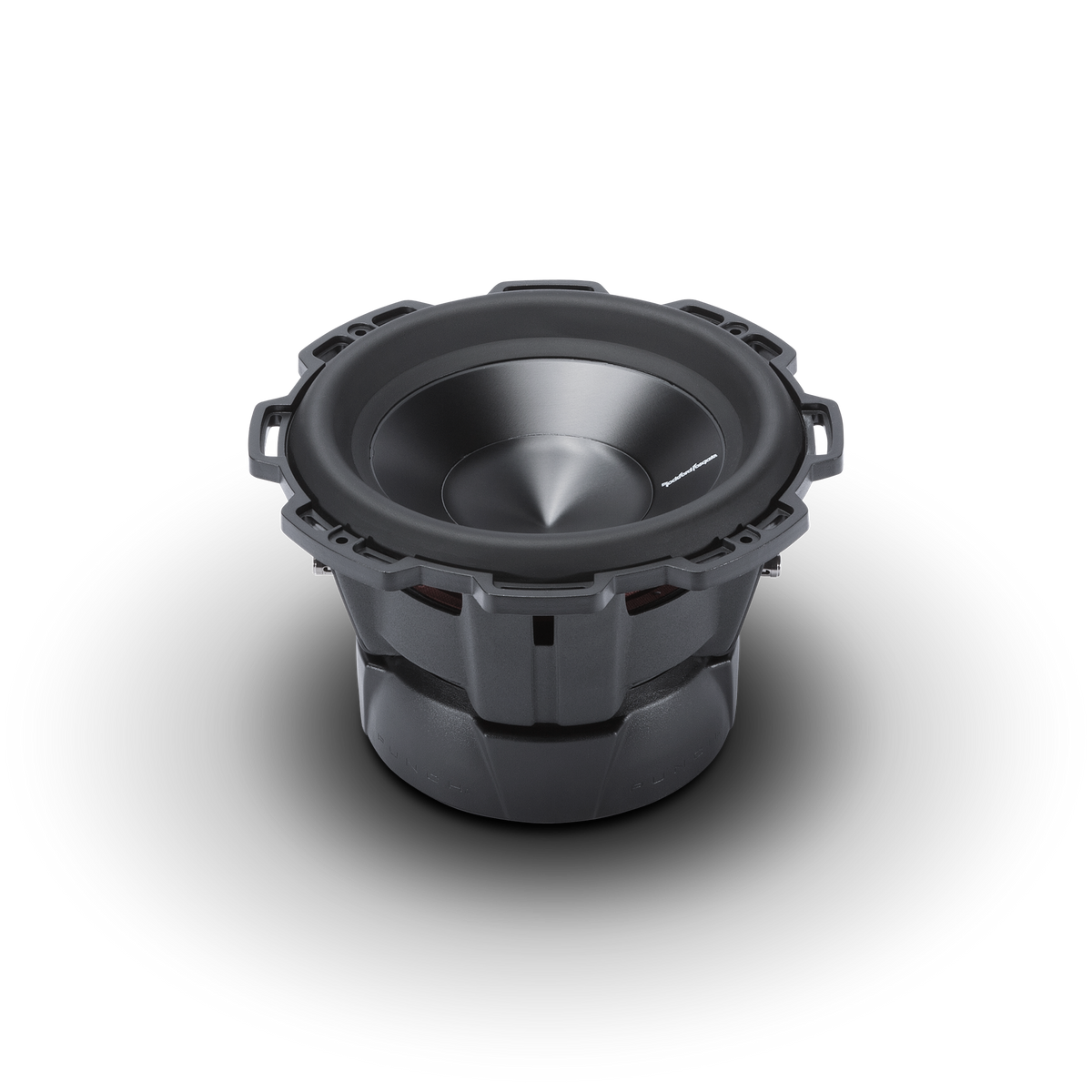

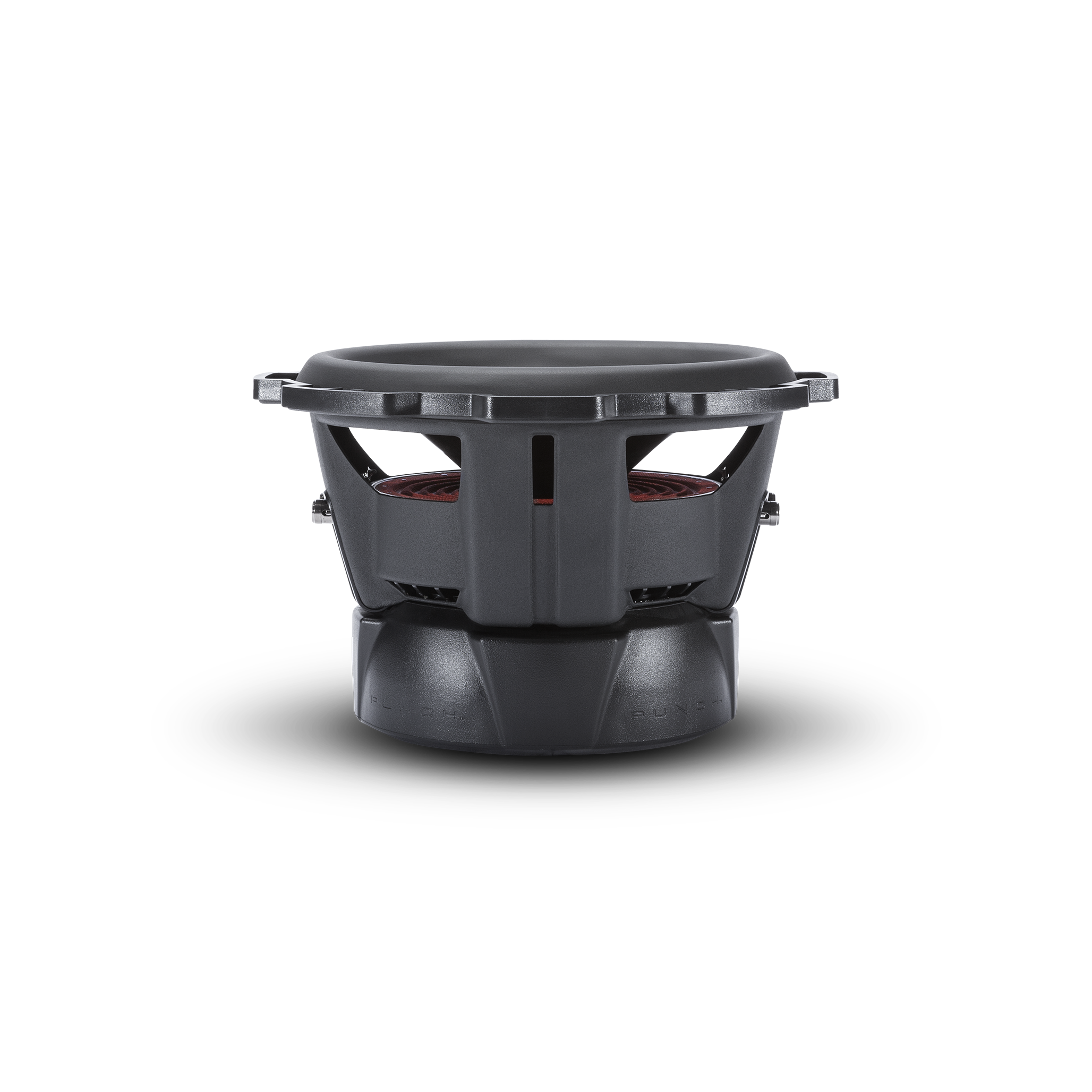

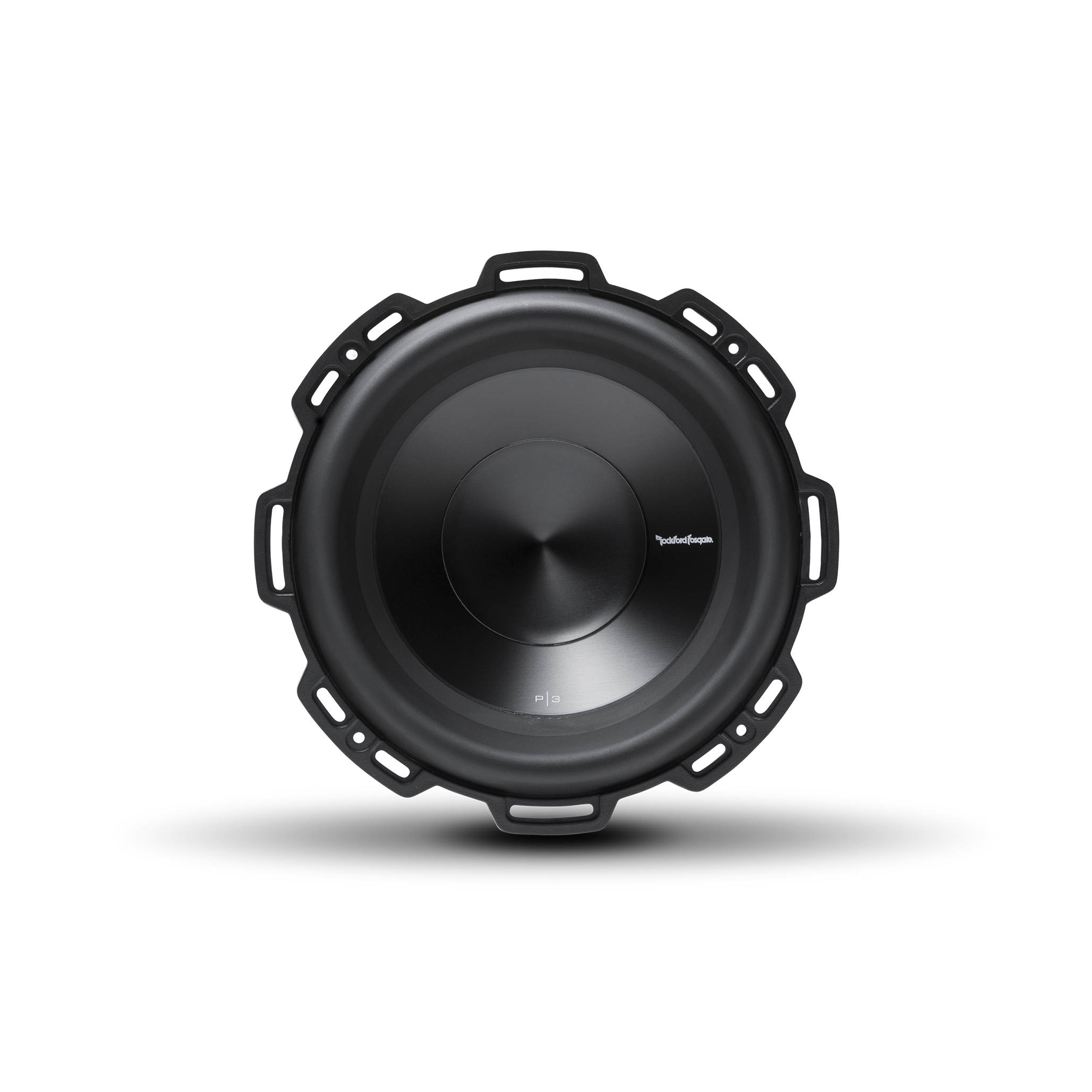

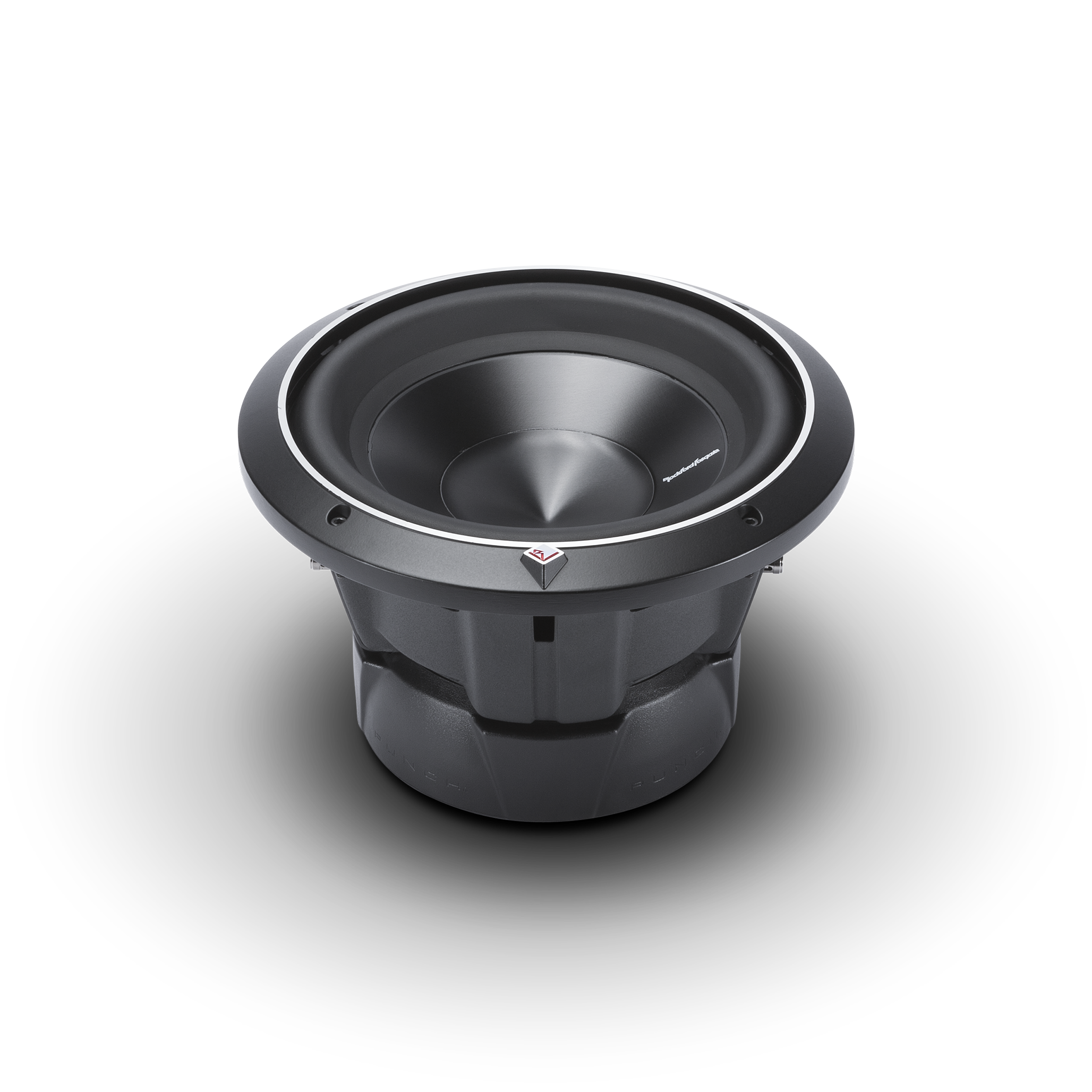

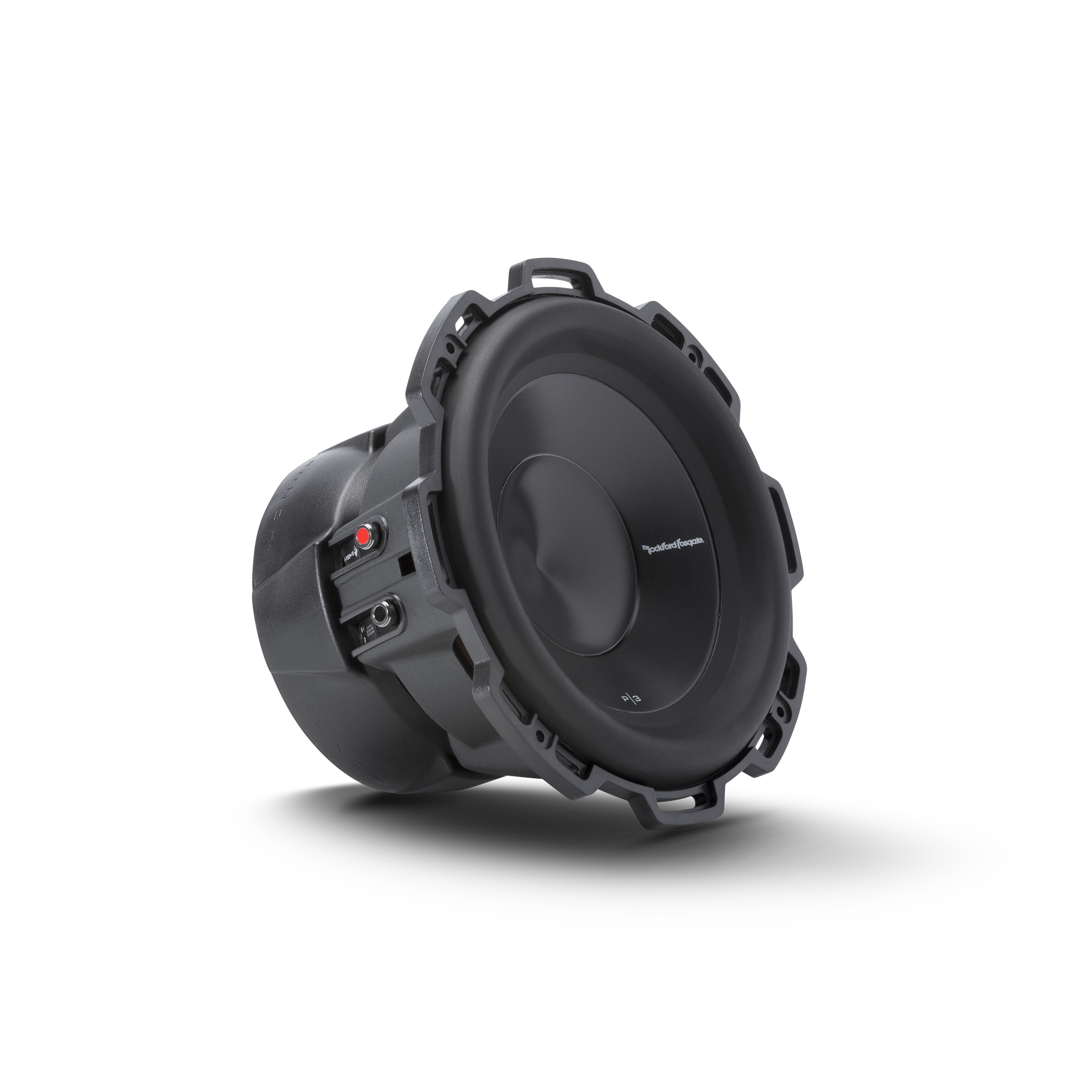

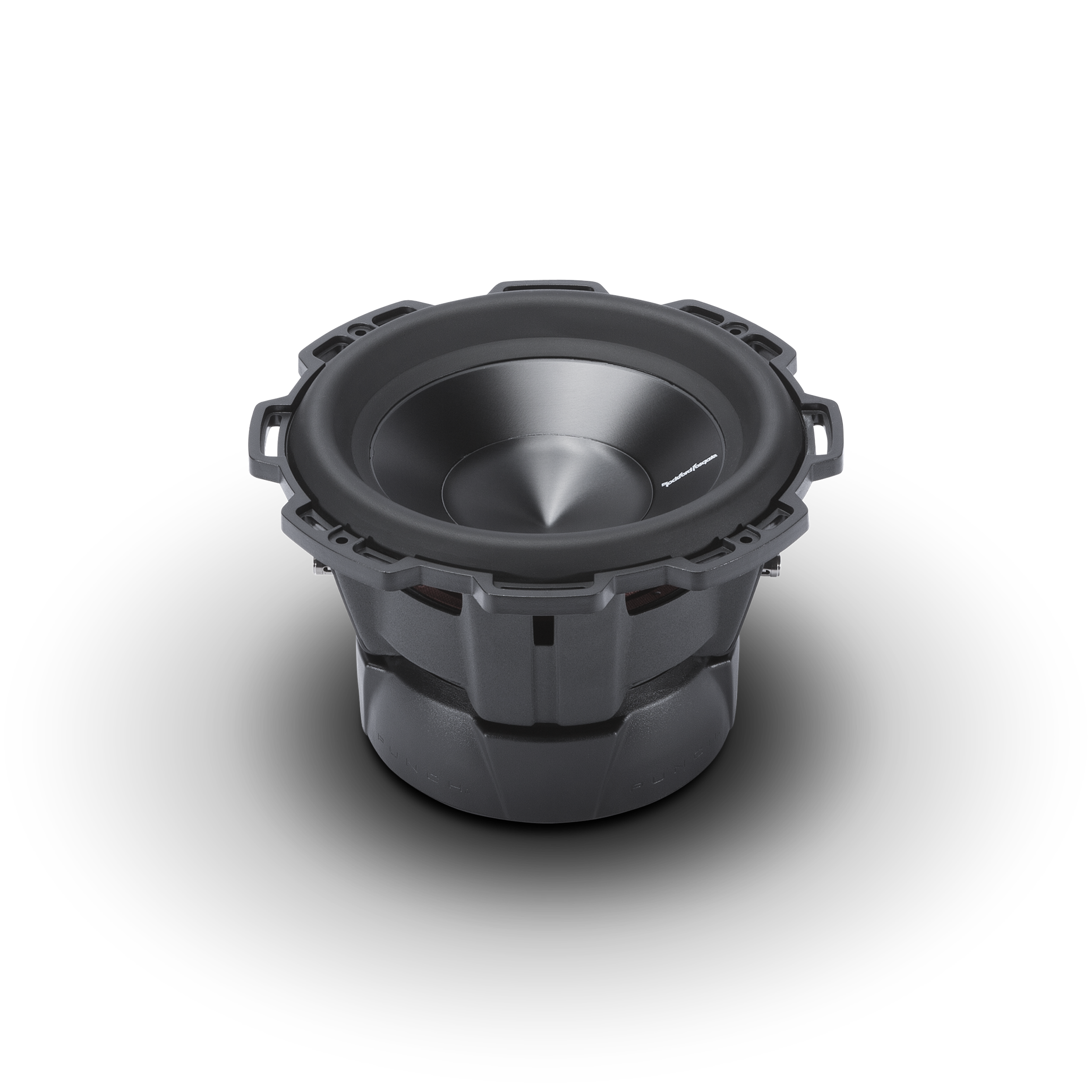

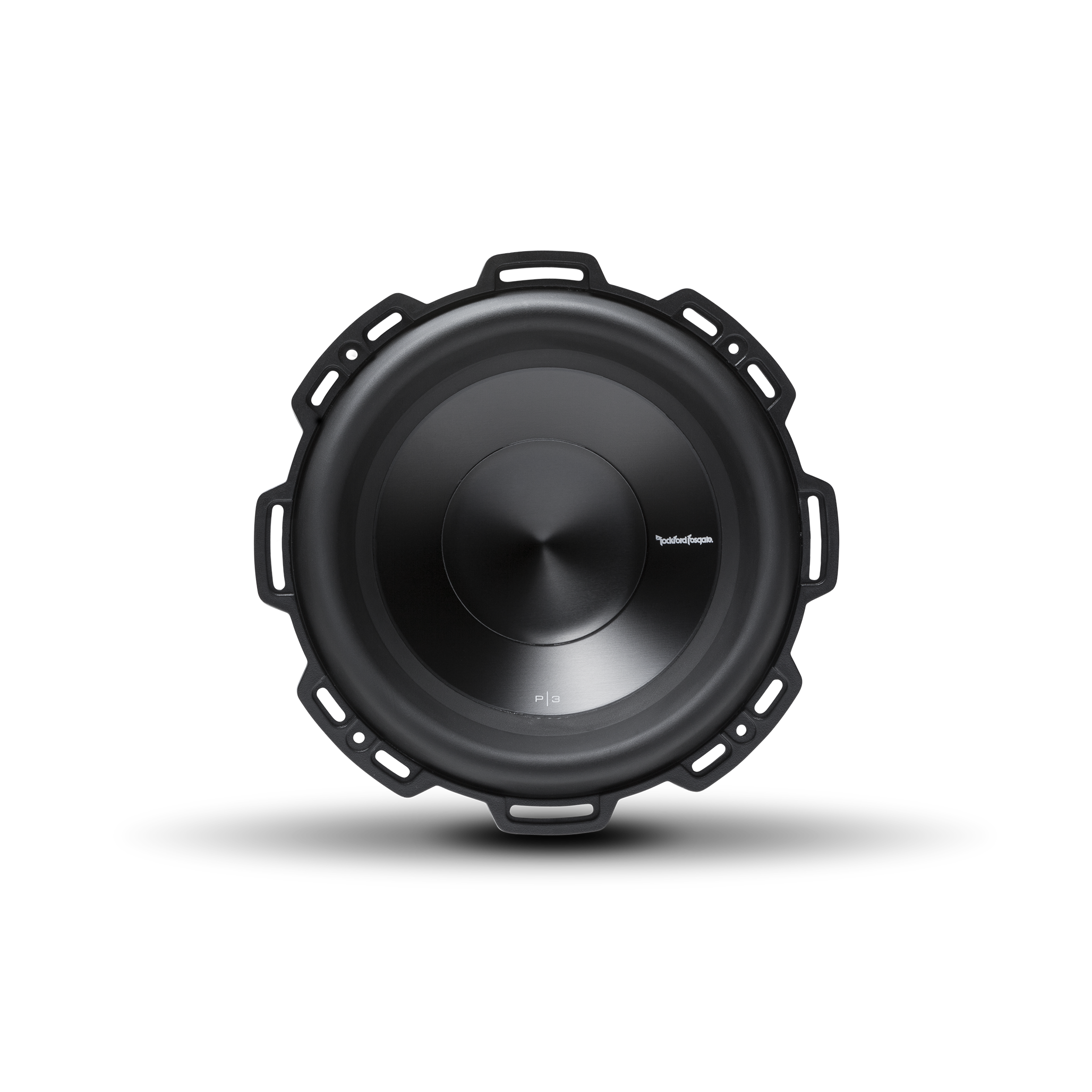

The P3D4-10 is the best performing Rockford Fosgate Punch series subwoofer. The P3 10" features Dual 4-Ohm voice coils, 500 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring.
Features
- 1 Year Warranty
- Anodized aluminum cone and dustcap

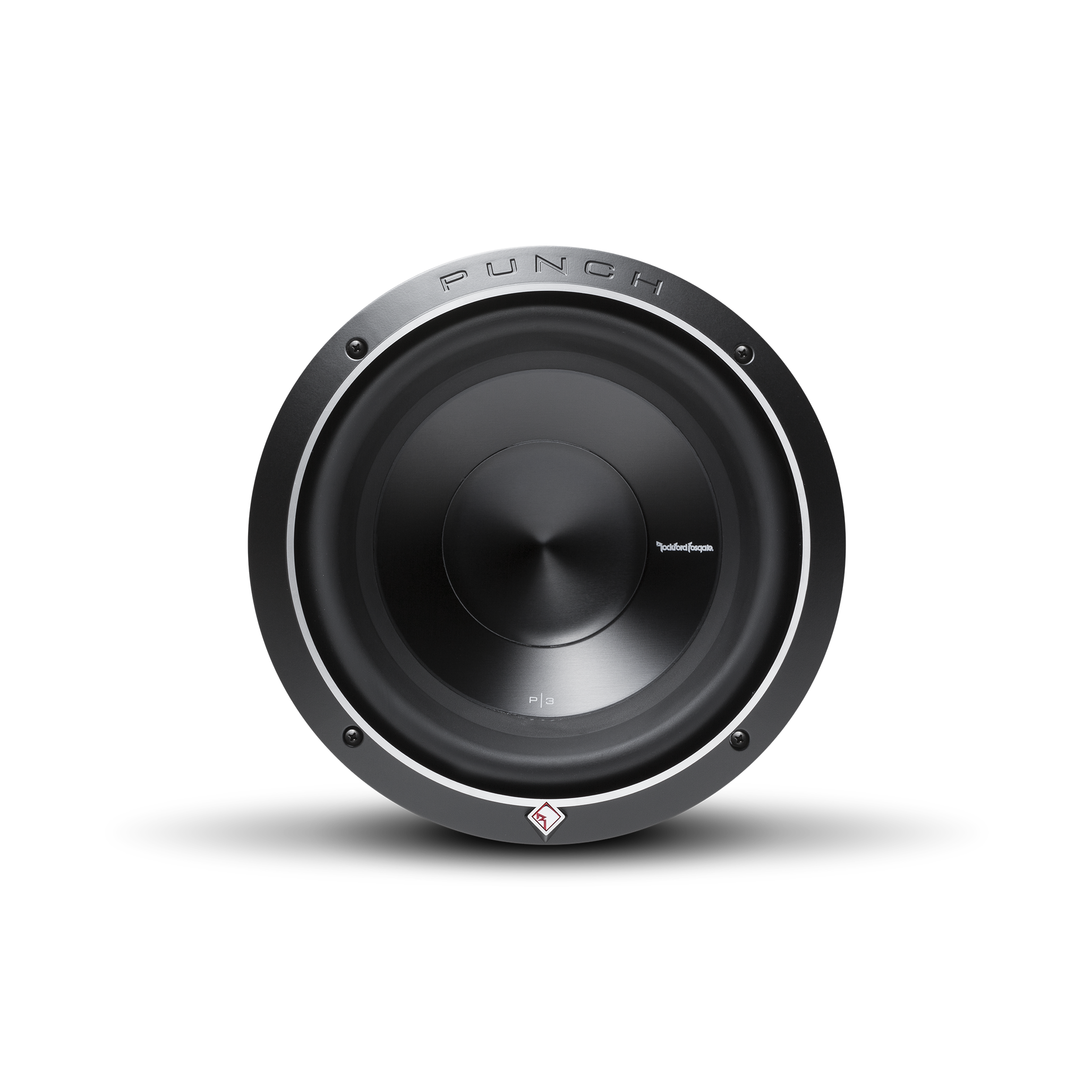

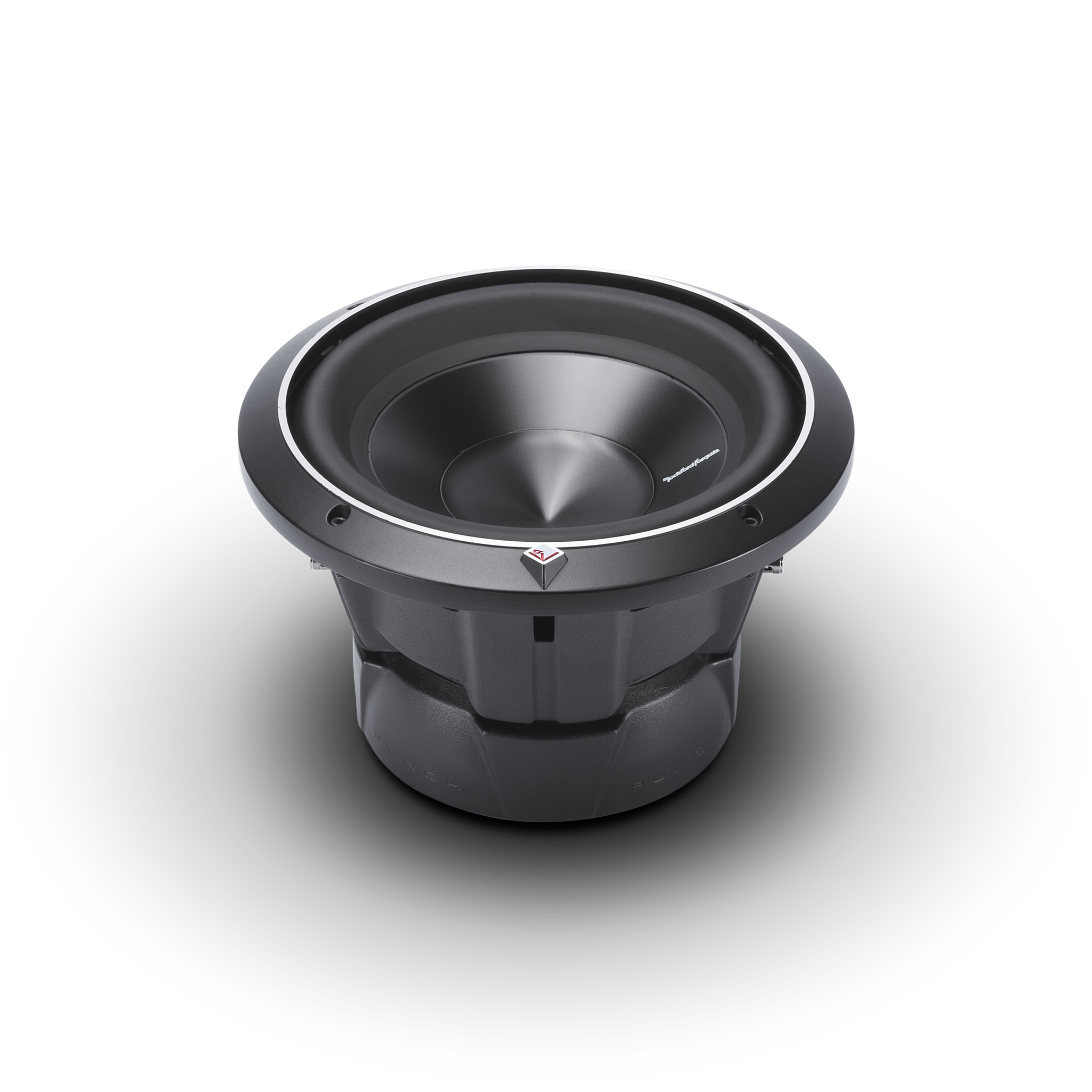

- Diamond cut cast aluminum trim ring with optional grille

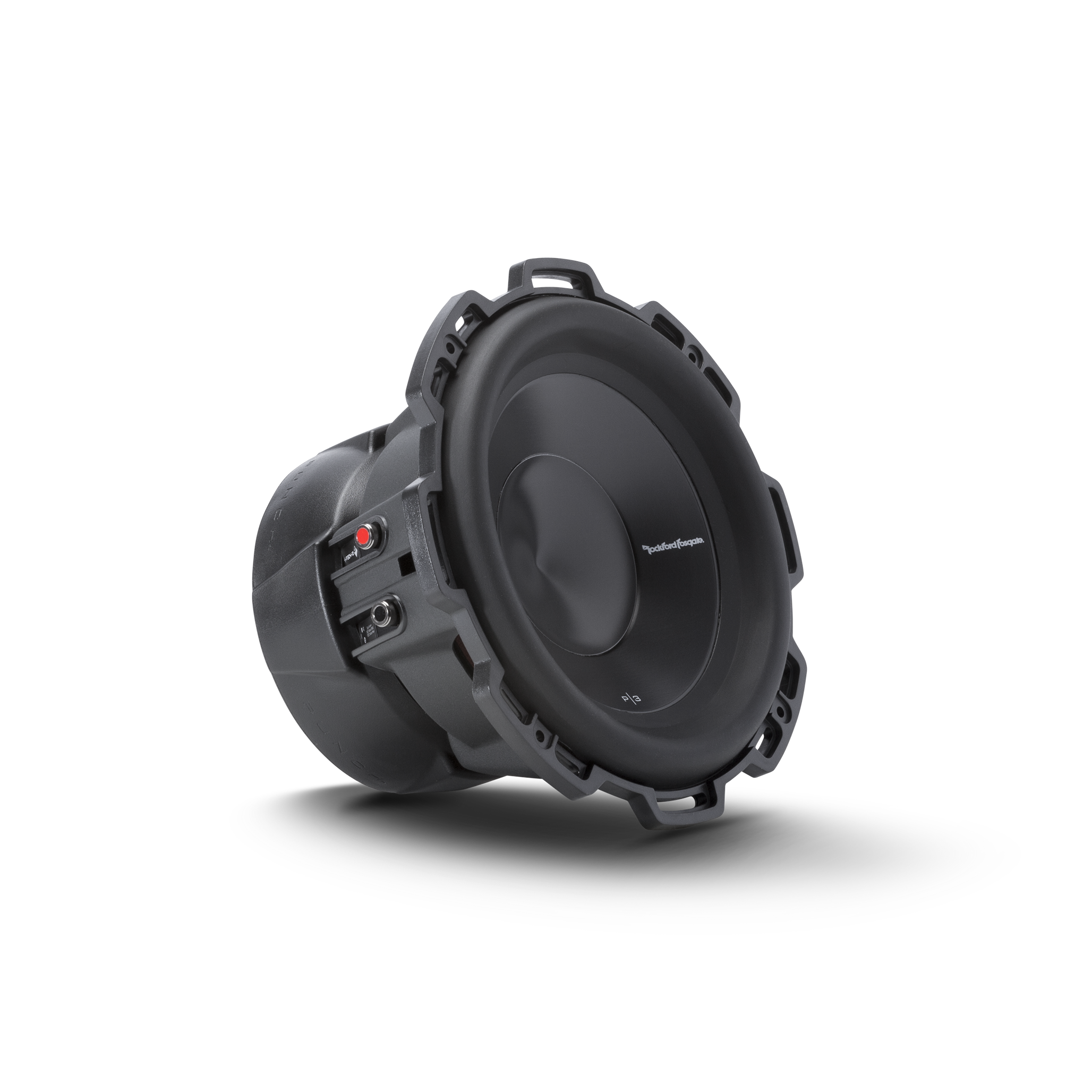

- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex re-inforcement collar
Specifications
- Power Handling (Watts RMS): 500 Watts RMS; 1000 Watts Max
- Mounting Depth: 6.18 in. (156.8 mm)
- Magnet Weight (oz): 81 oz. (2.30 kg.)
- Voice Coil Diameter: 2.5" (65.5 mm)
- Nominal Impedance: Dual 4-Ohm
- Size: 10"
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 17.3 Lbs. (7.8 kg)
- SPL (dB @ 1w/1m): 82
- Cutout Diameter: 9.13 in. (232 mm)
- Le (mH): 7
- Qts: 0.56
- Xmax (mm): 15.9
- Fs (Hz): 28
- Qes: 0.63
- Qms: 5
- Vas (Liters): 27
- Re (Ohms): 6.4
- Woofer Displacement: 0.070 cu. ft. (2.0 Liters)
- Sd (cm2): 360
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
