Overview

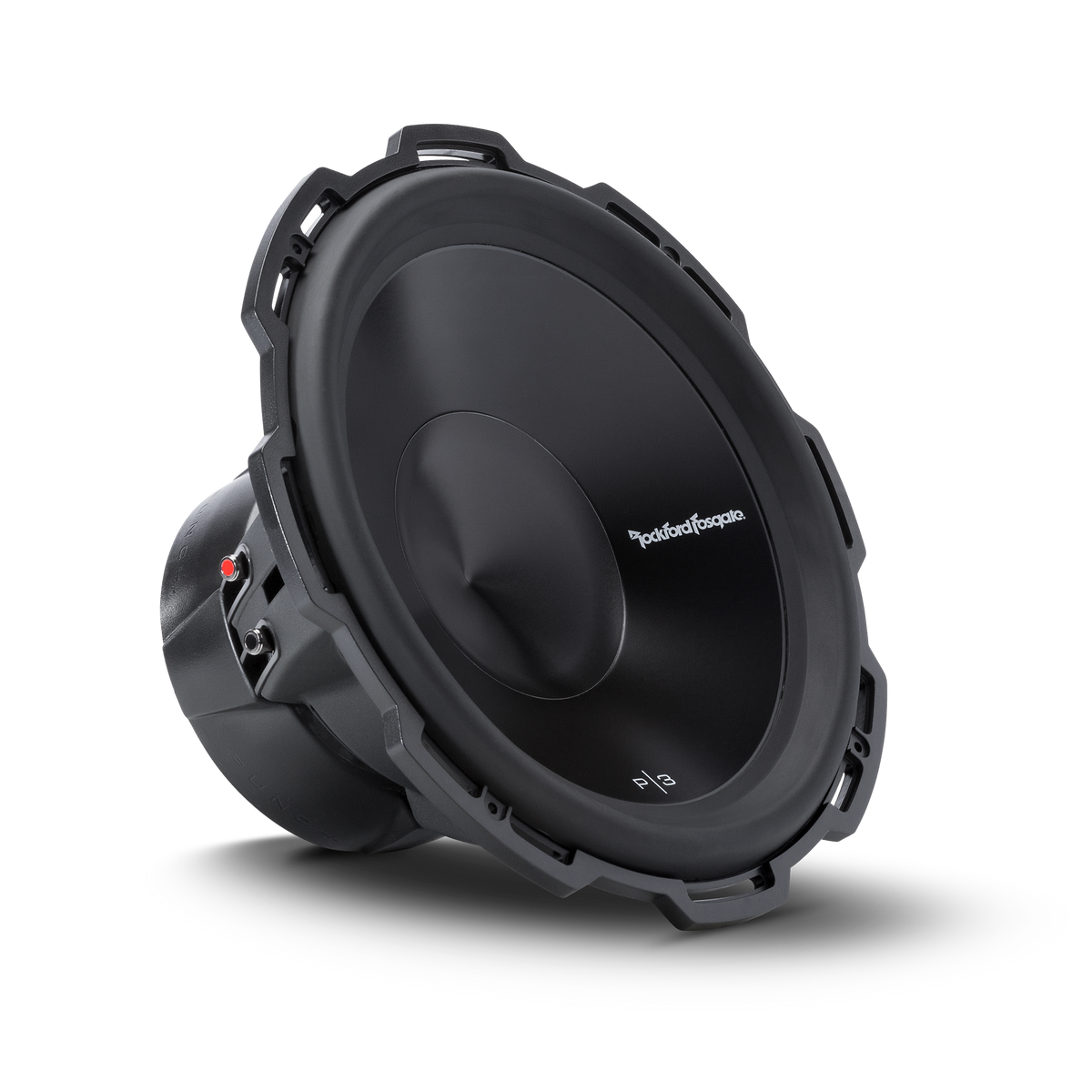

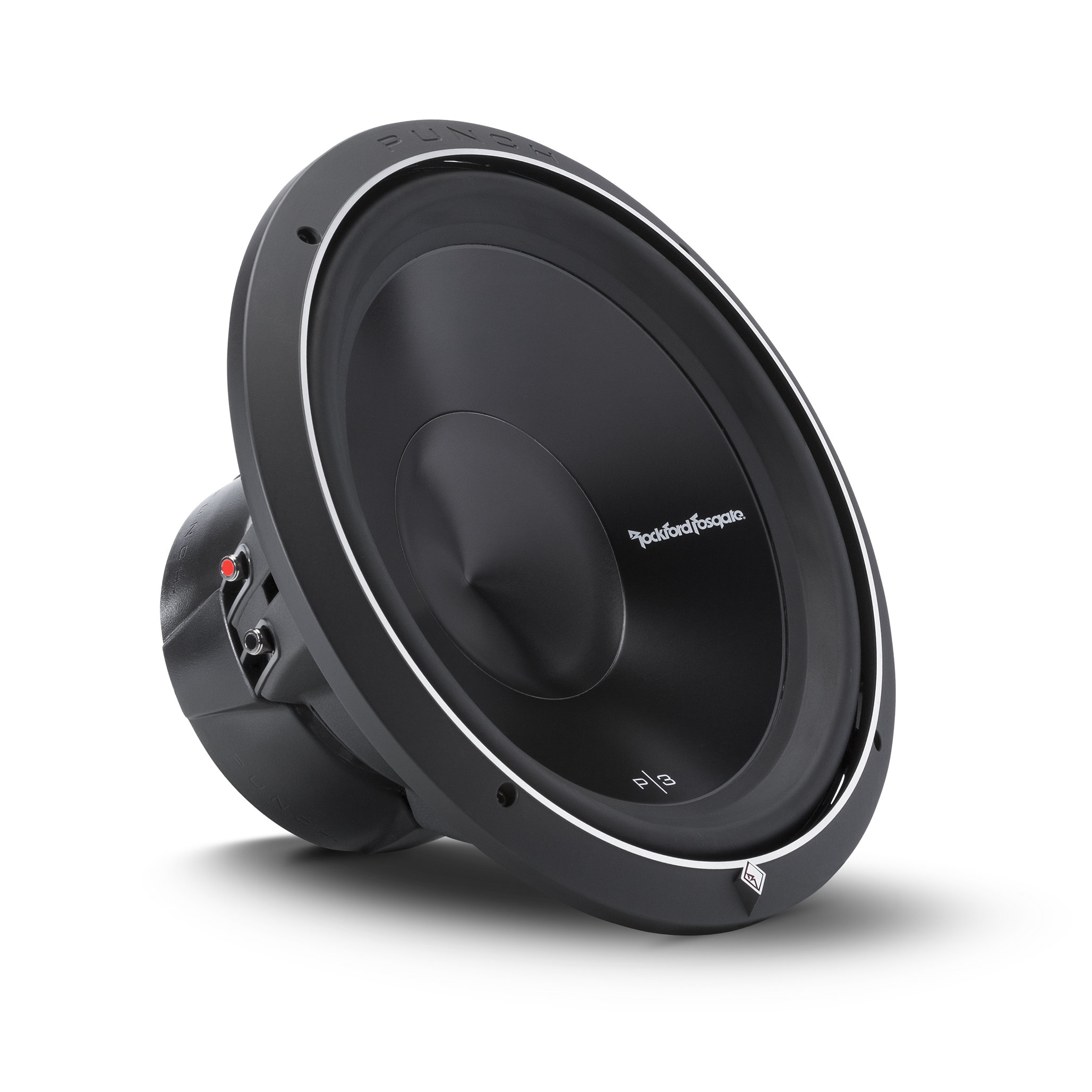

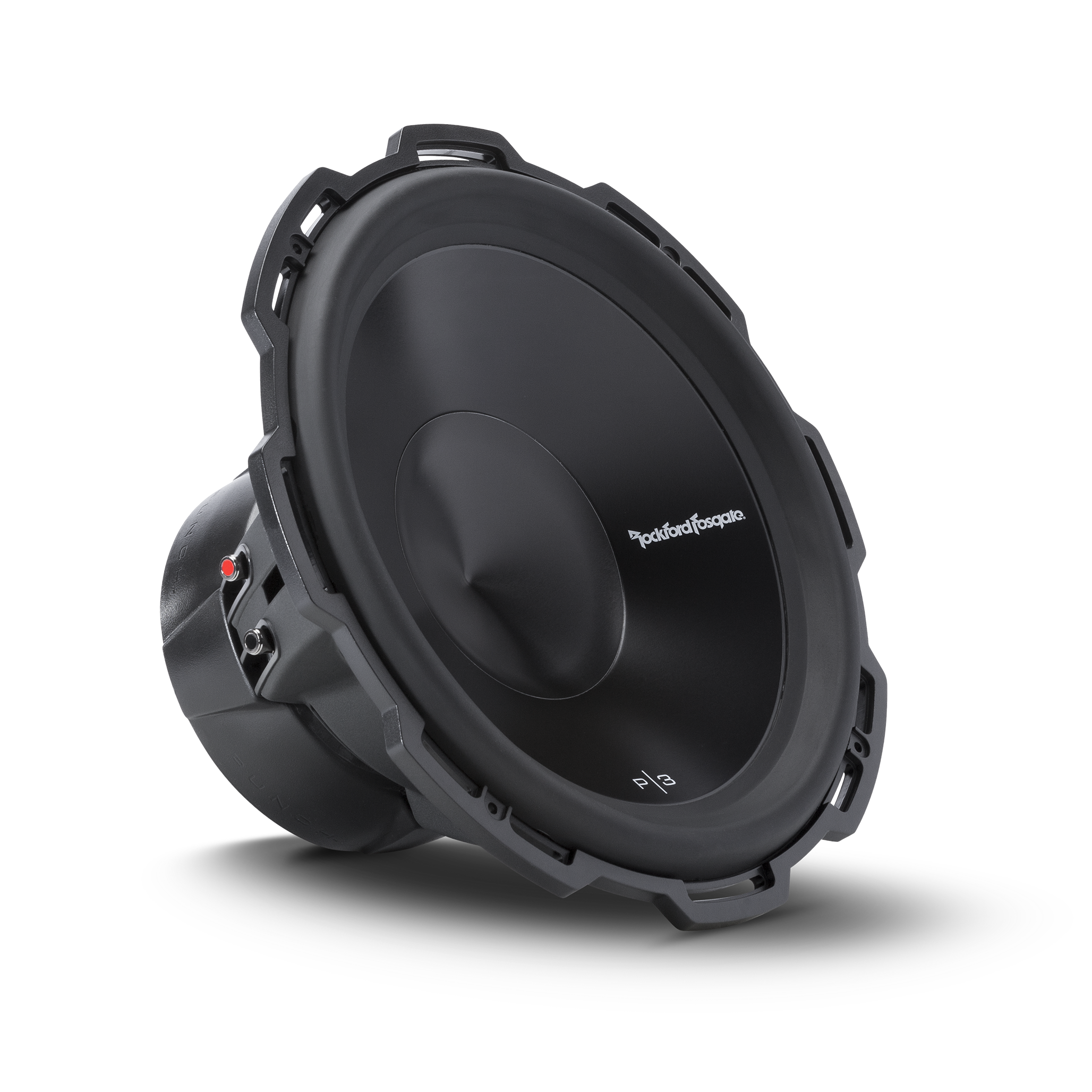

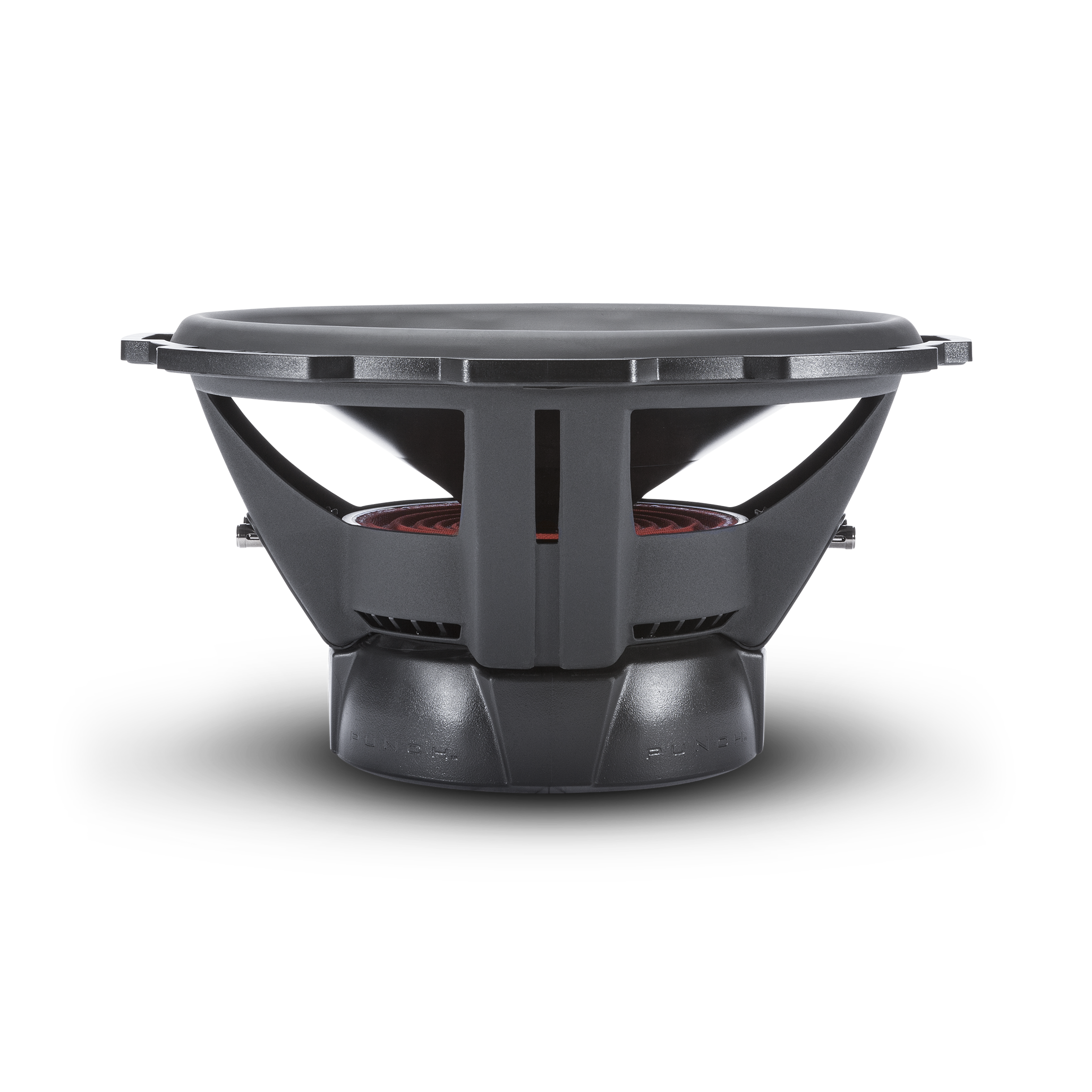

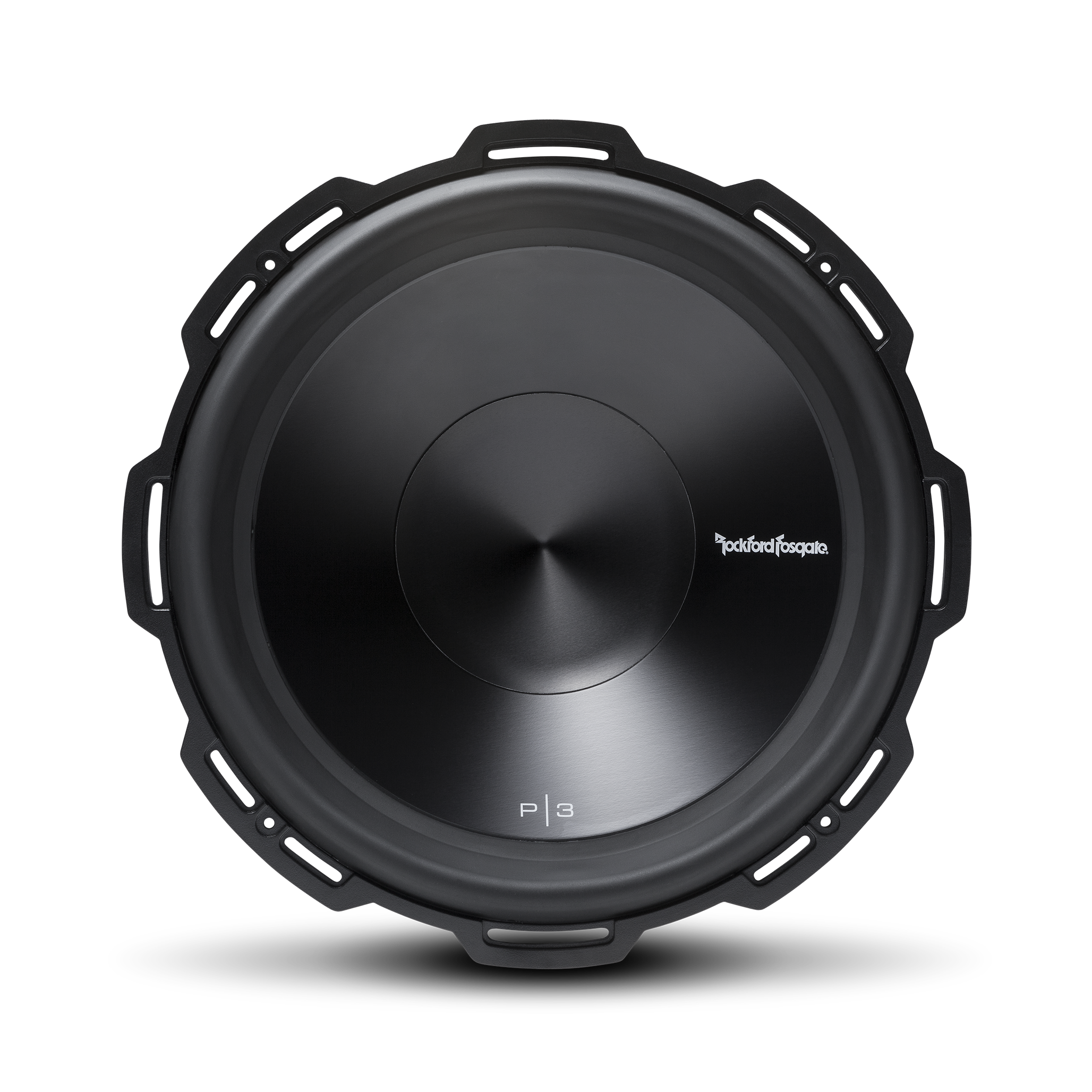

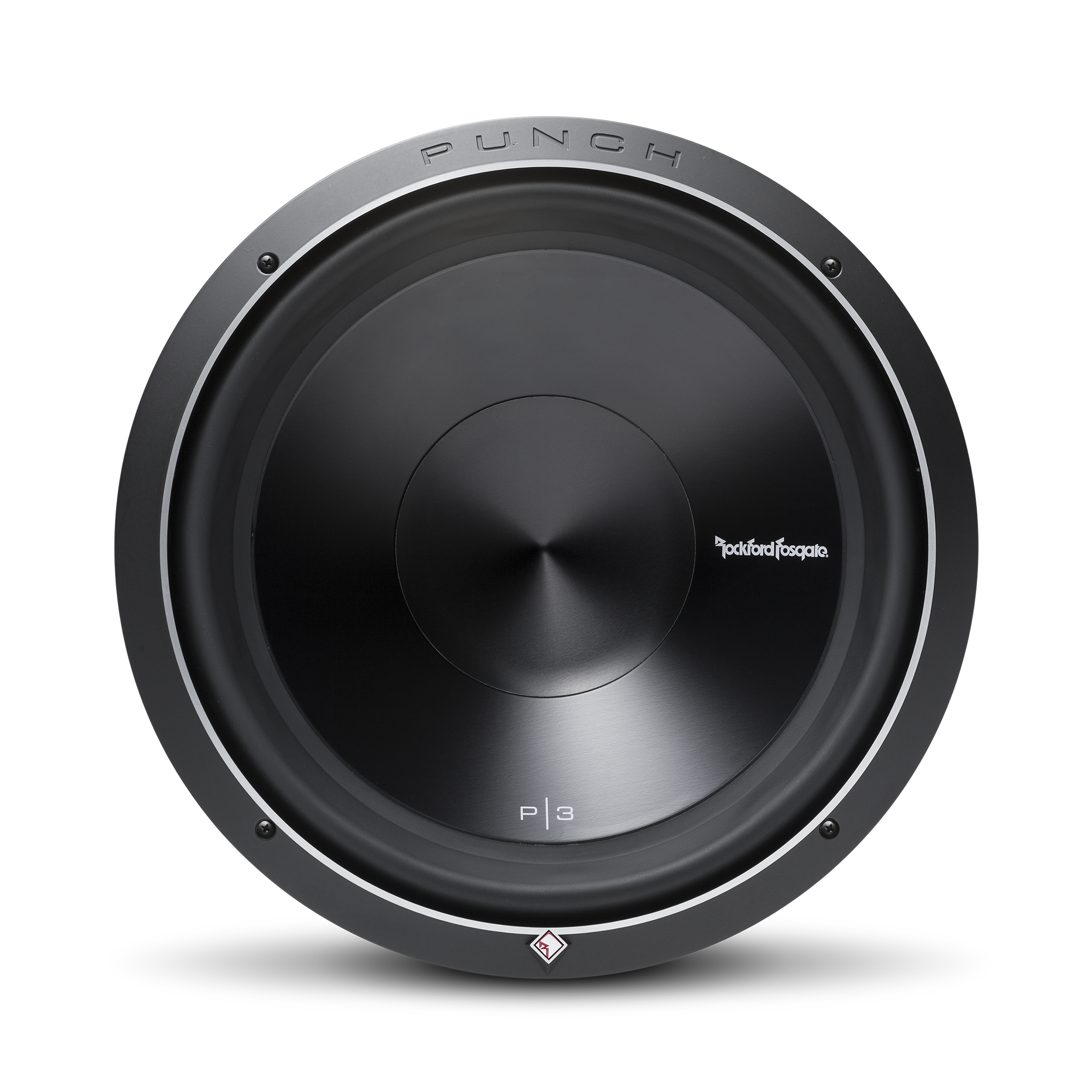

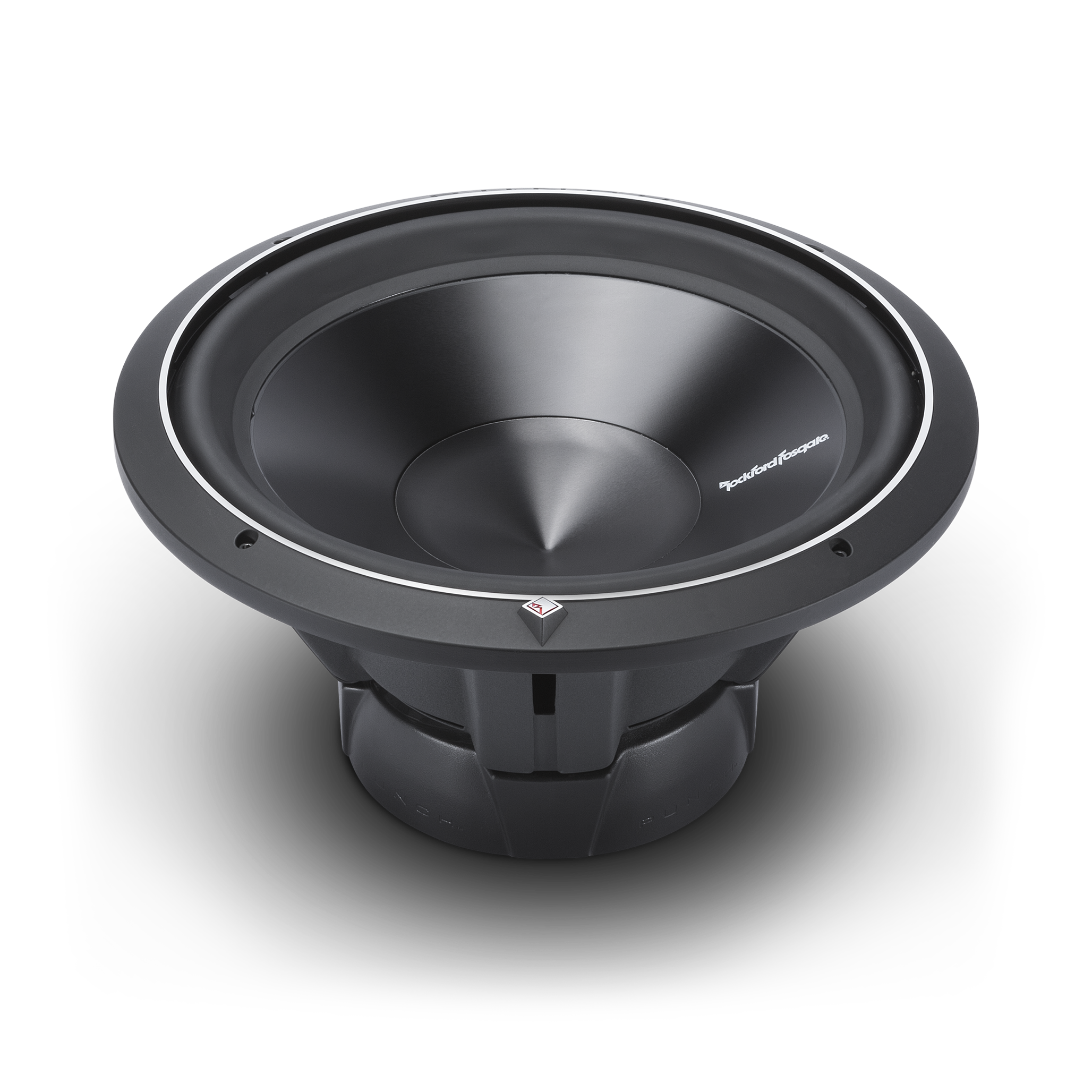

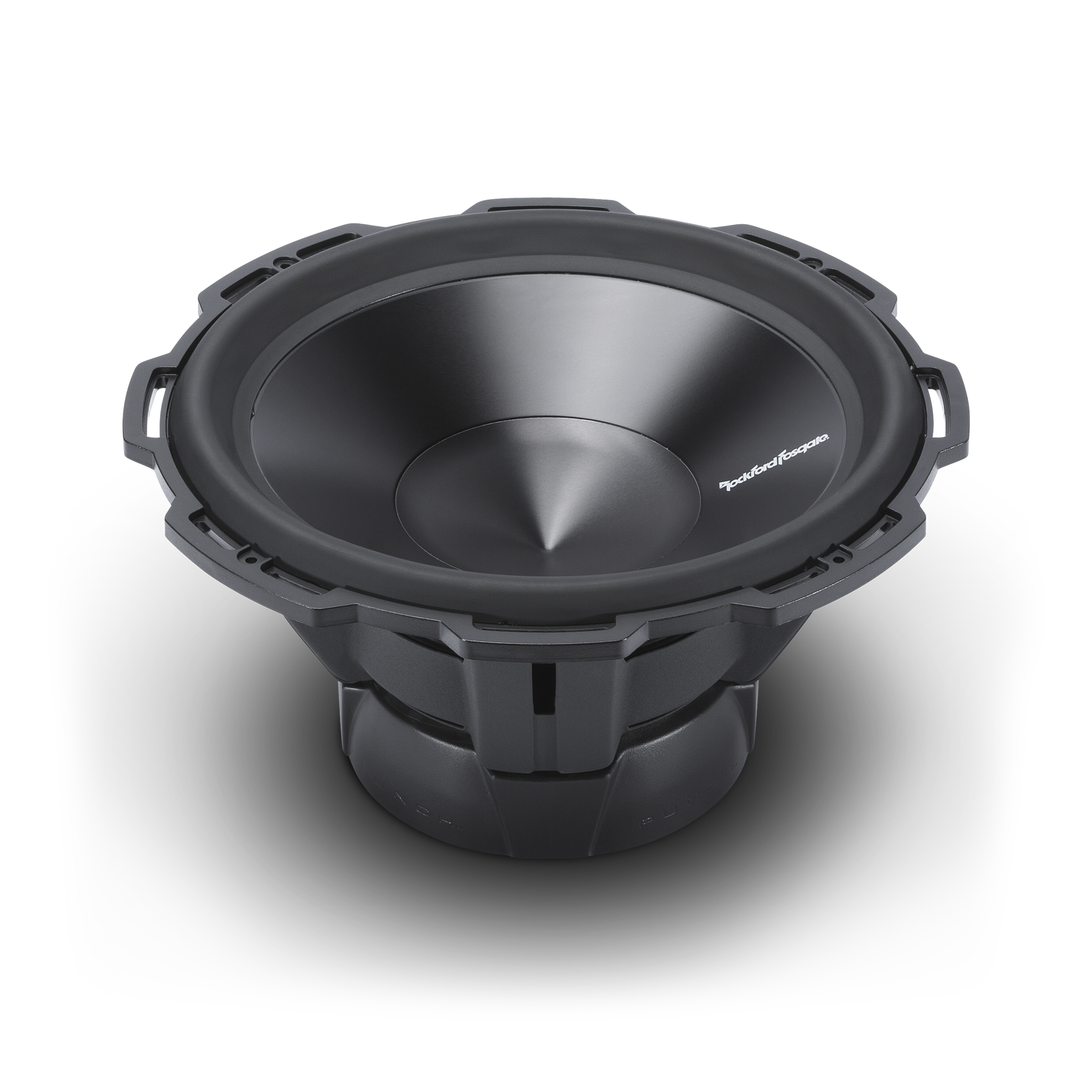

The P3D2-15 is the best-performing Rockford Fosgate Punch series subwoofer. The P3 15" features Dual 2-Ohm voice coils, & 600 Watts RMS of power handling.
Features
- Custom 10-AWG nickel plated push terminals
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Anodized aluminum cone and dustcap
- Diamond cut cast aluminum trim ring with optional grille
- Extended pole piece and bumped vented backplate
- StampCast basket with integrated spider venting
- 1 Year Warranty
- Protective PVC textured magnet cover
Specifications
- Power Handling (Watts RMS): 600 Watts RMS; 1200 Watts Max
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 23.3 Lbs. (10.56 kg)
- Size: 15"
- Magnet Weight (oz): 96 oz. (2.73 kg.)
- Mounting Depth: 7.58 in. (192.5 mm)
- Nominal Impedance: Dual 2-Ohm
- Voice Coil Diameter: 2.5" (65.5 mm)
- Cutout Diameter: 13.94 in. (353 mm)
- Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
- Qts: 0.54
- Vas (Liters): 155.8
- Fs (Hz): 21.7
- Qes: 0.58
- Le (mH): 4.06
- Qms: 7.2
- SPL (dB @ 1w/1m): 86
- Xmax (mm): 15.2
- Re (Ohms): 3.2
- Sd (cm2): 894
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
