Overview

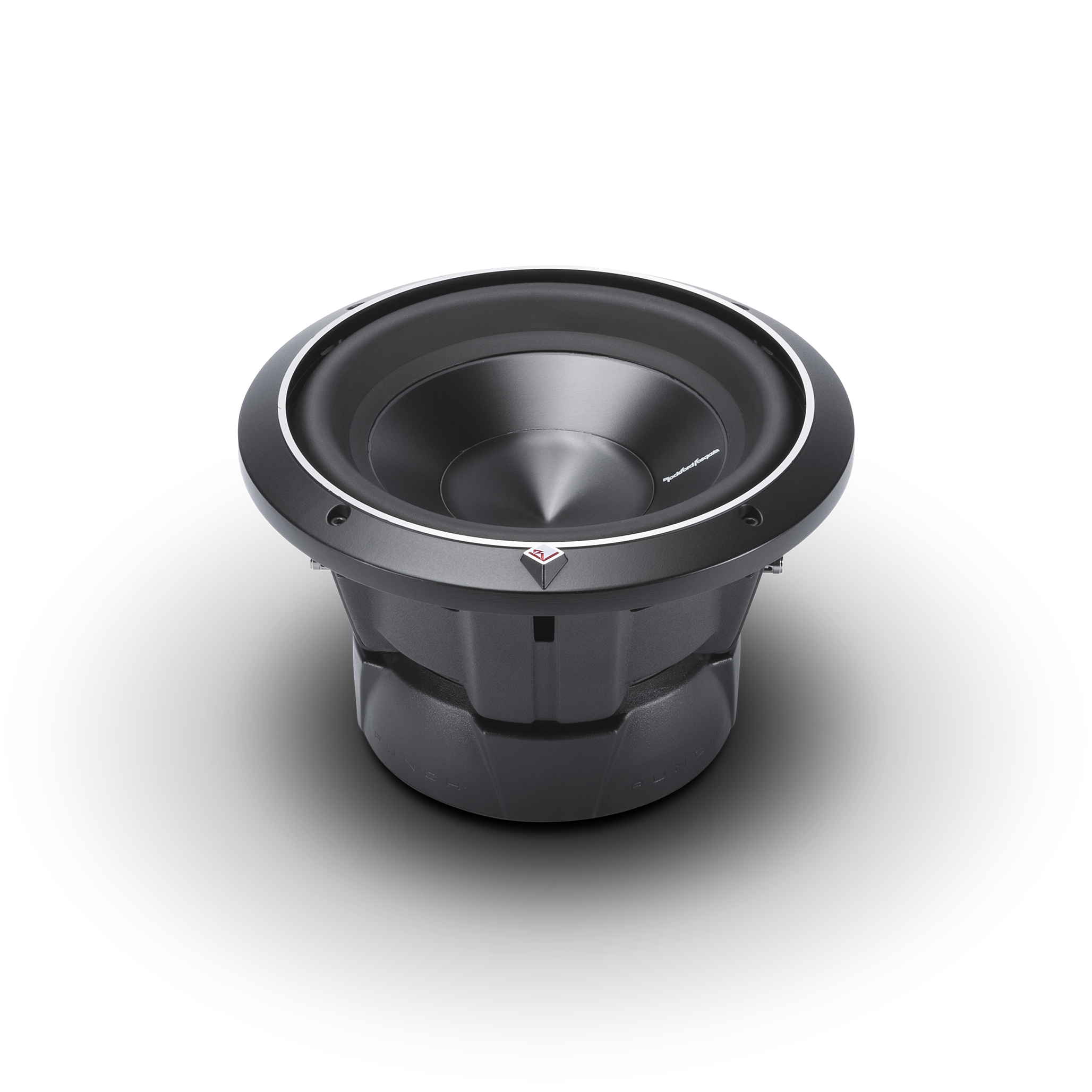

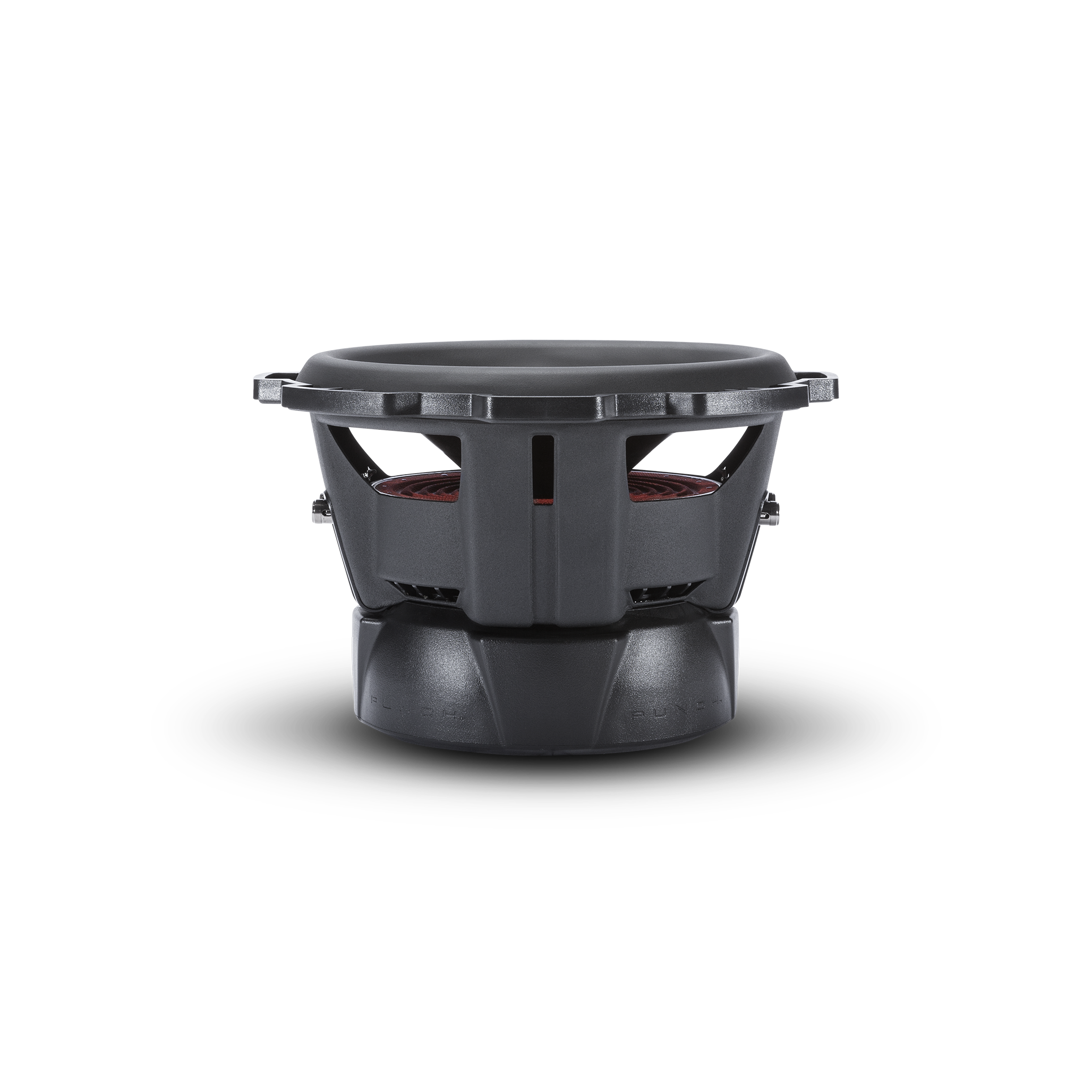

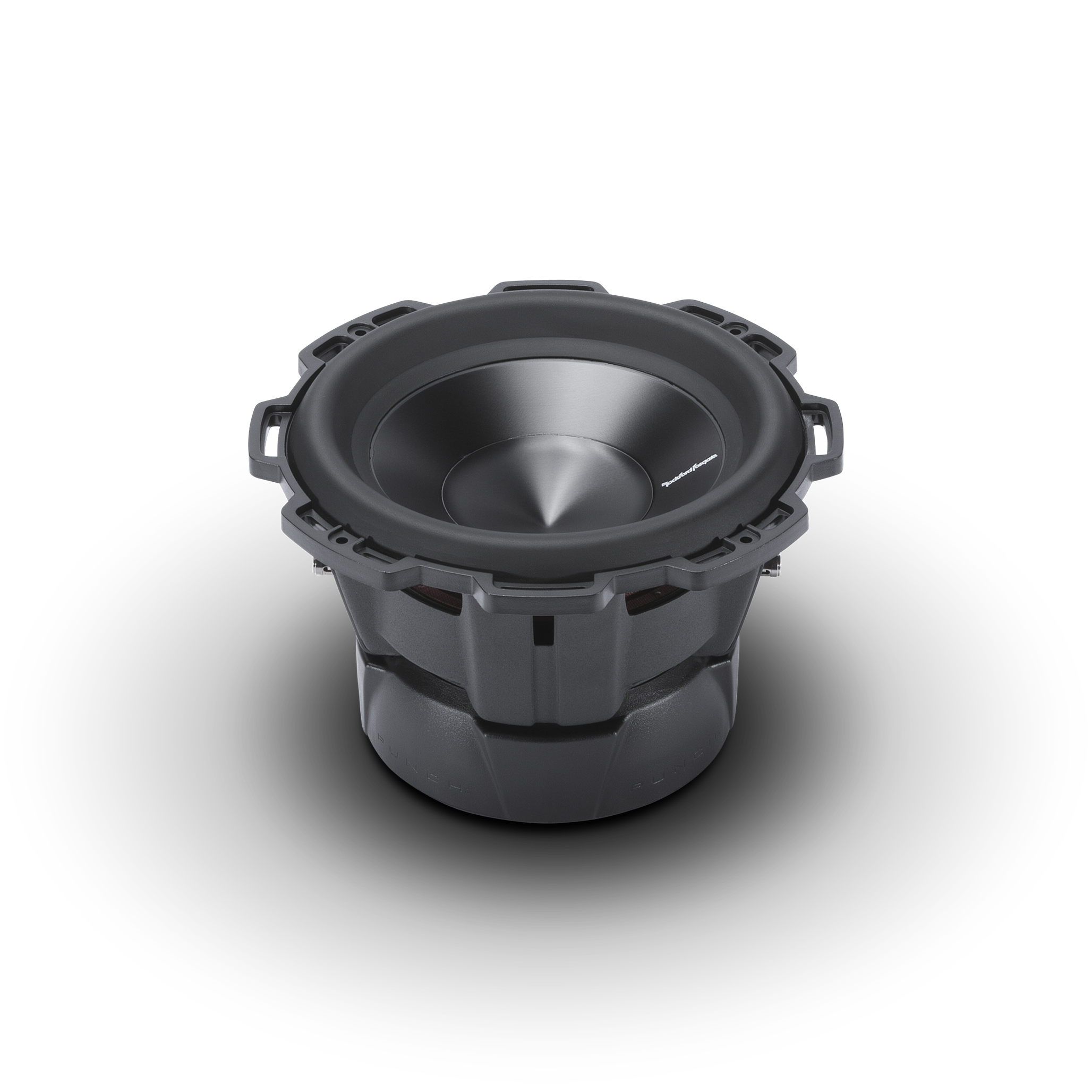

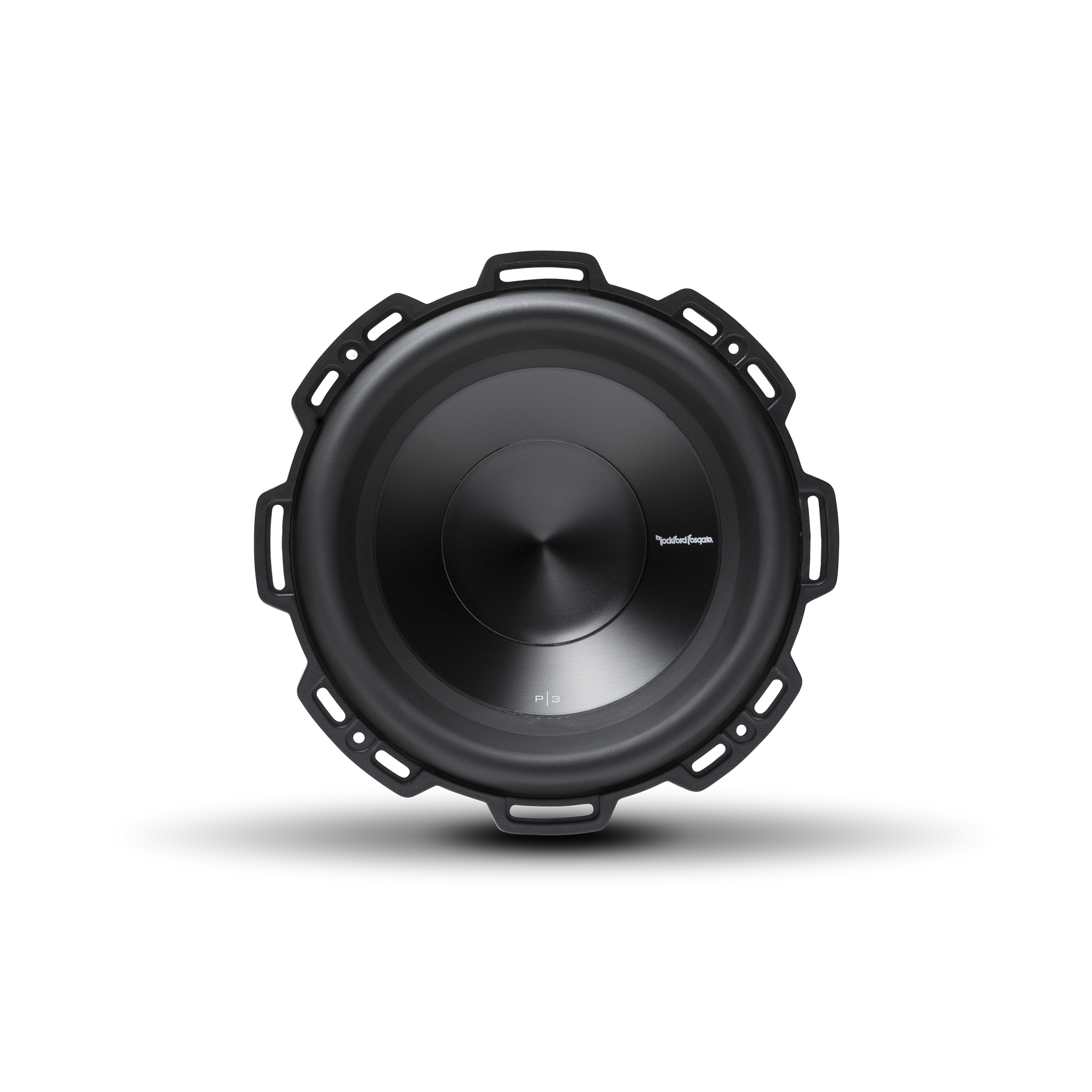

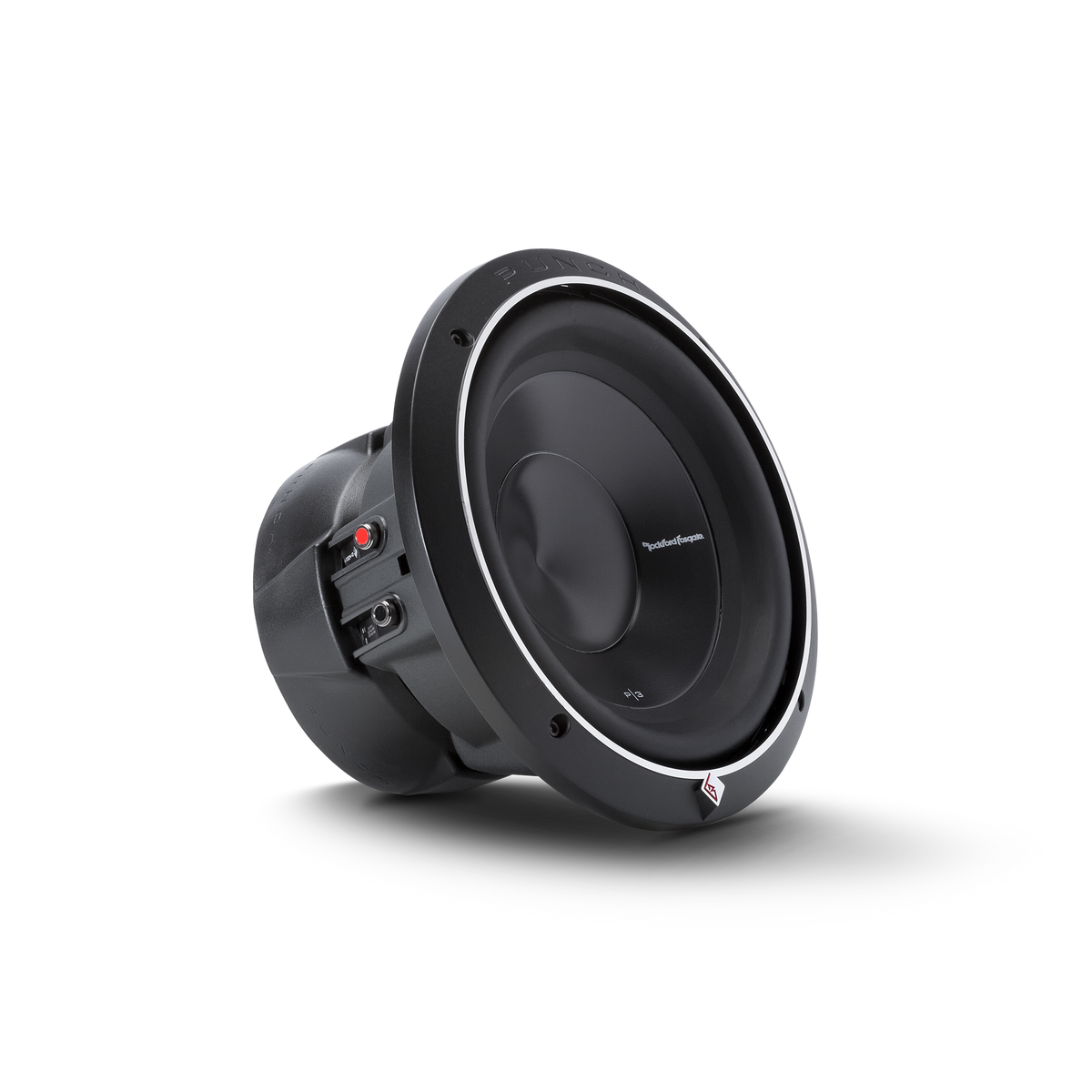

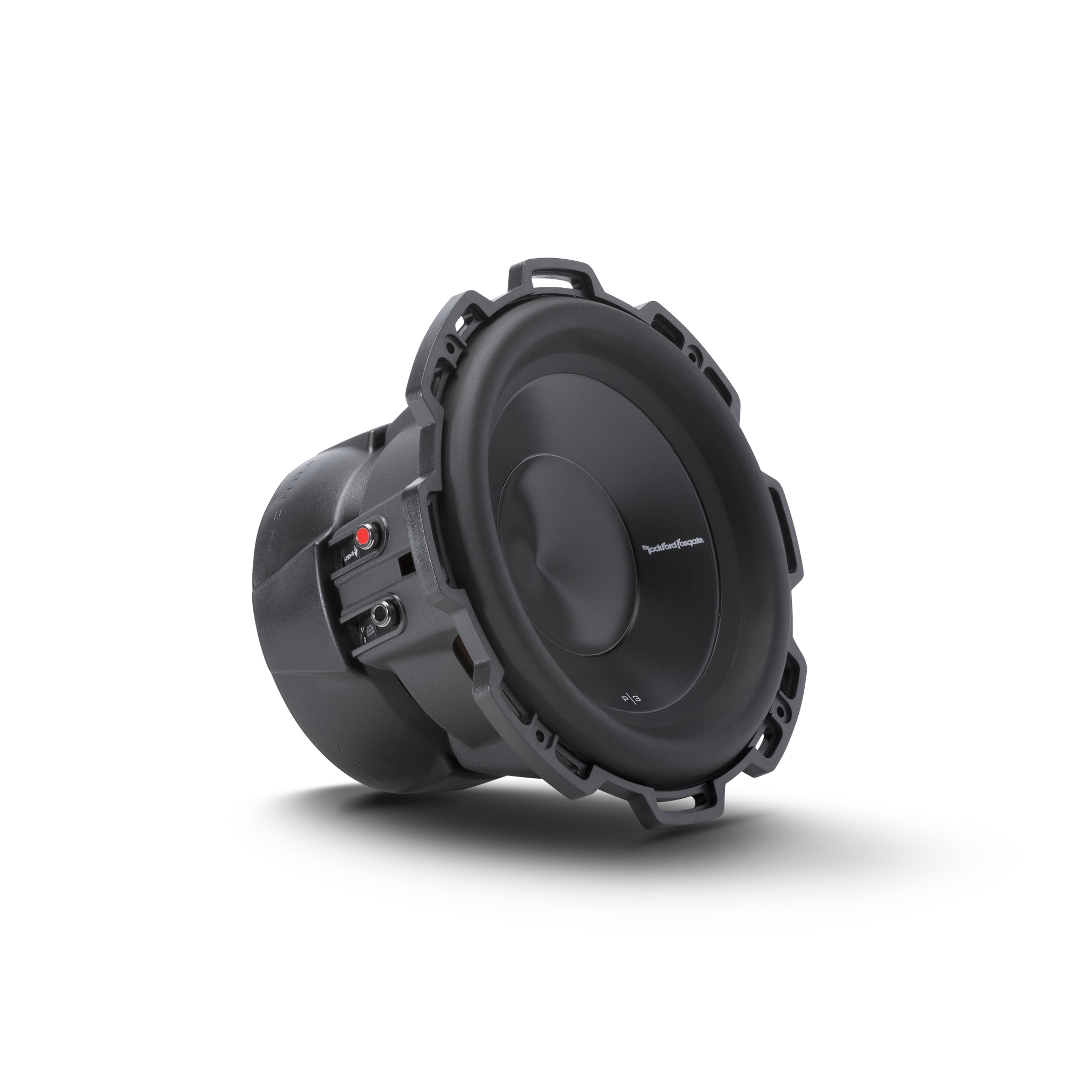

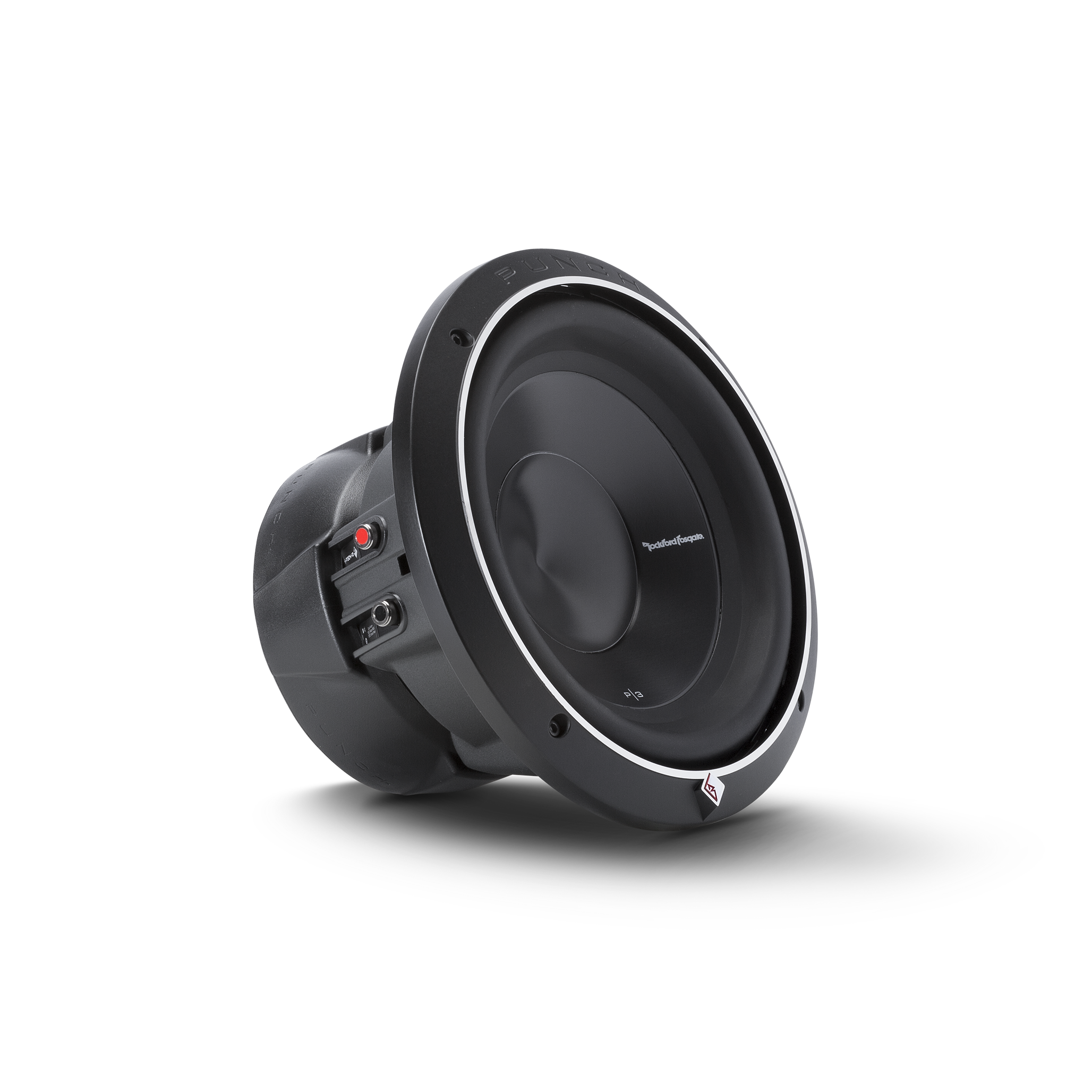

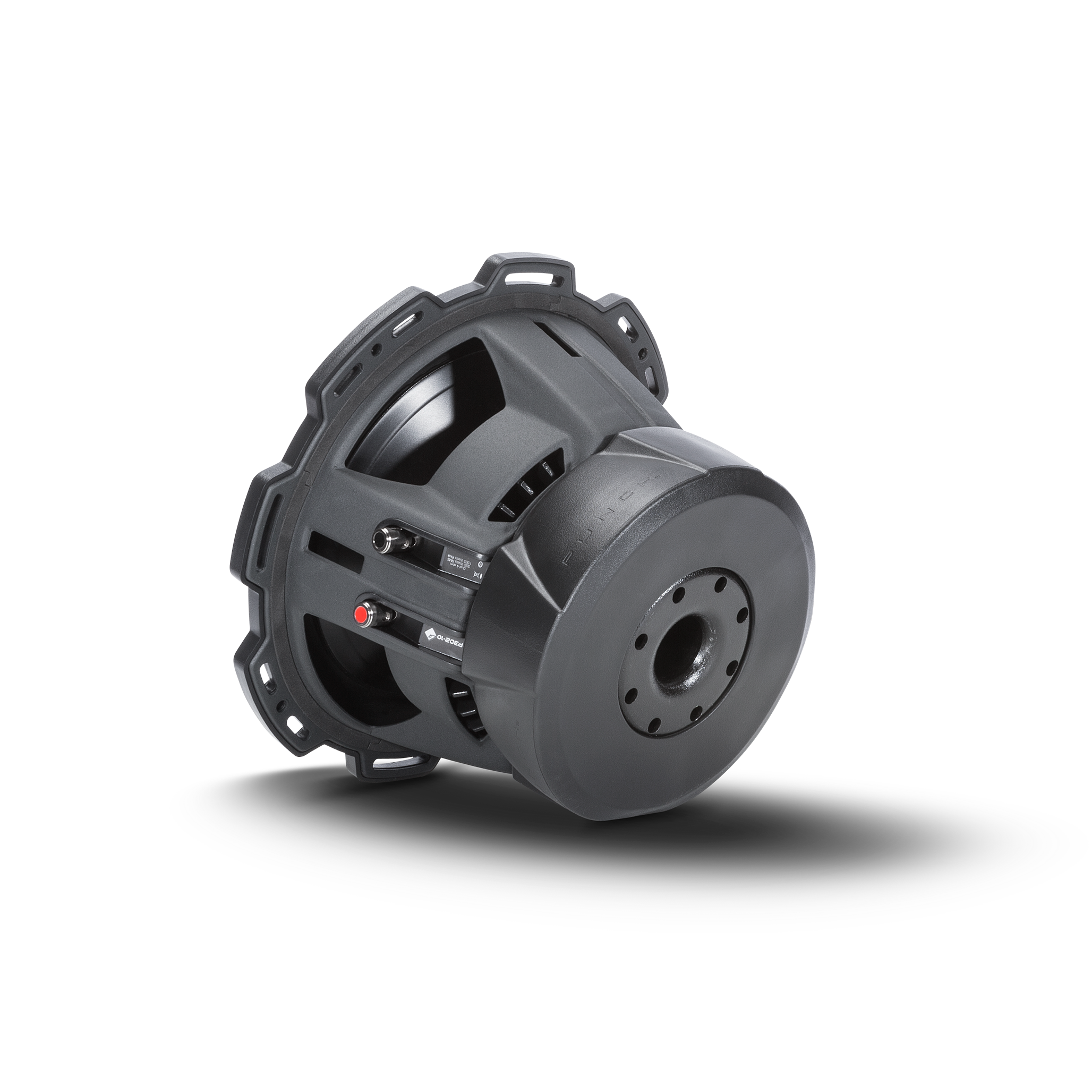

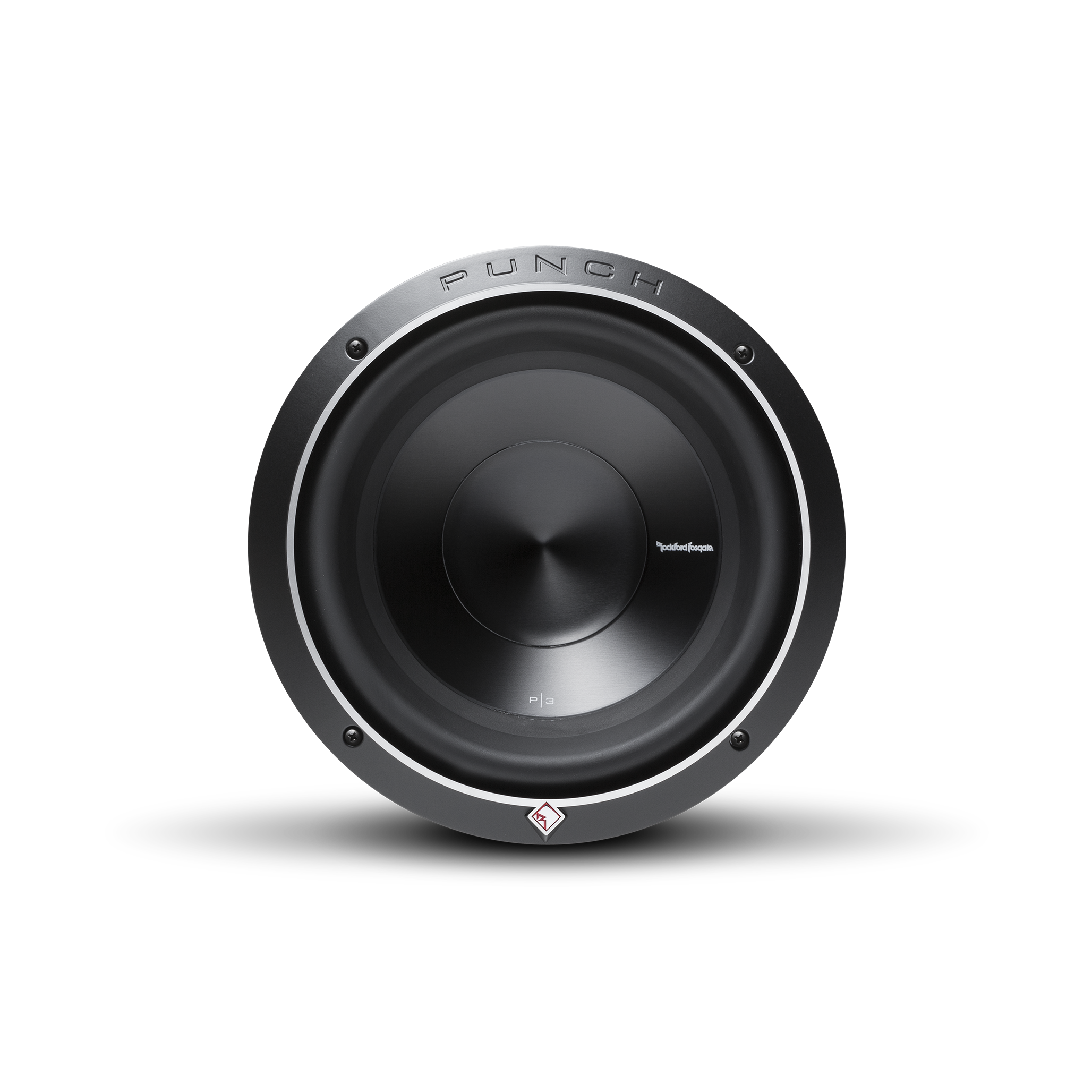

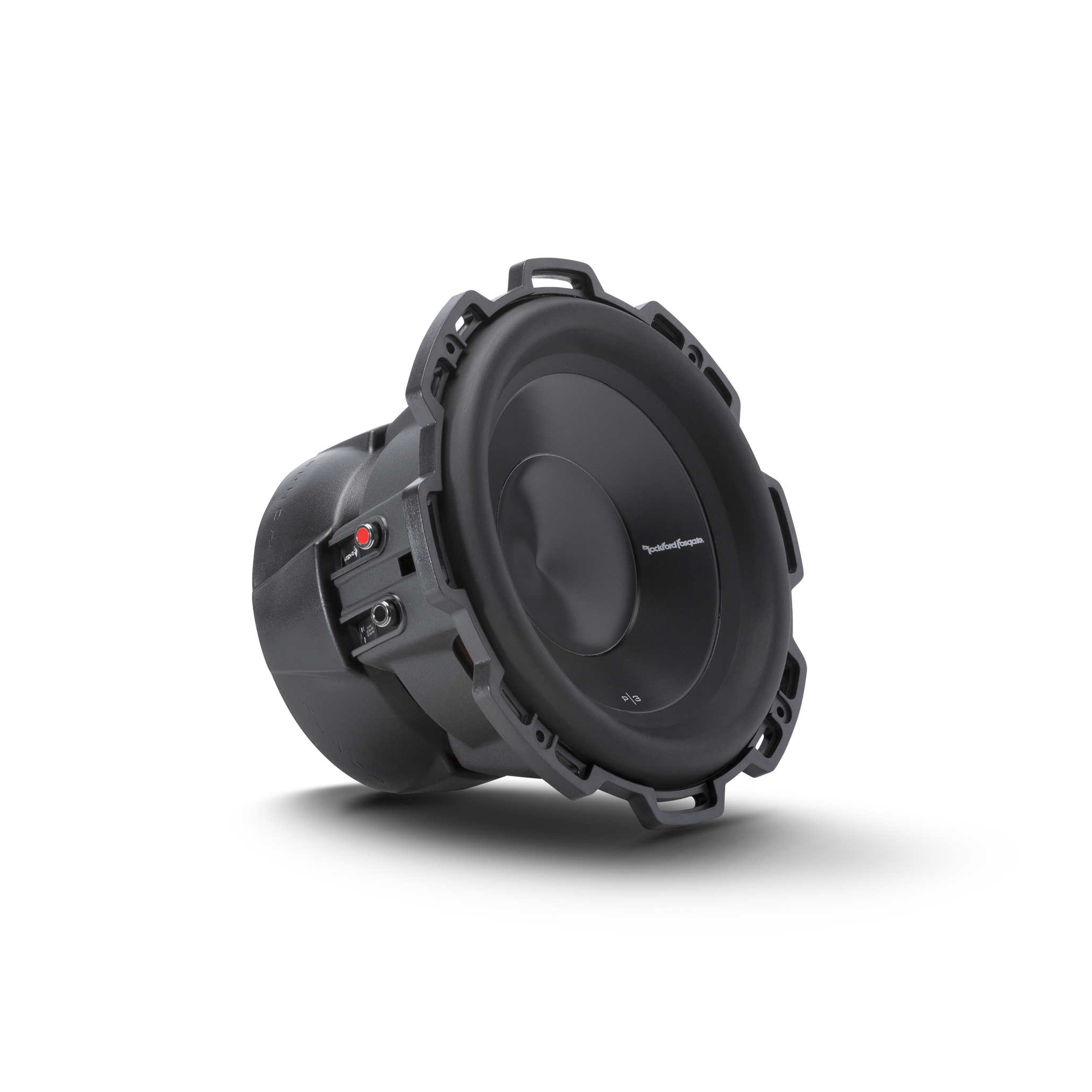

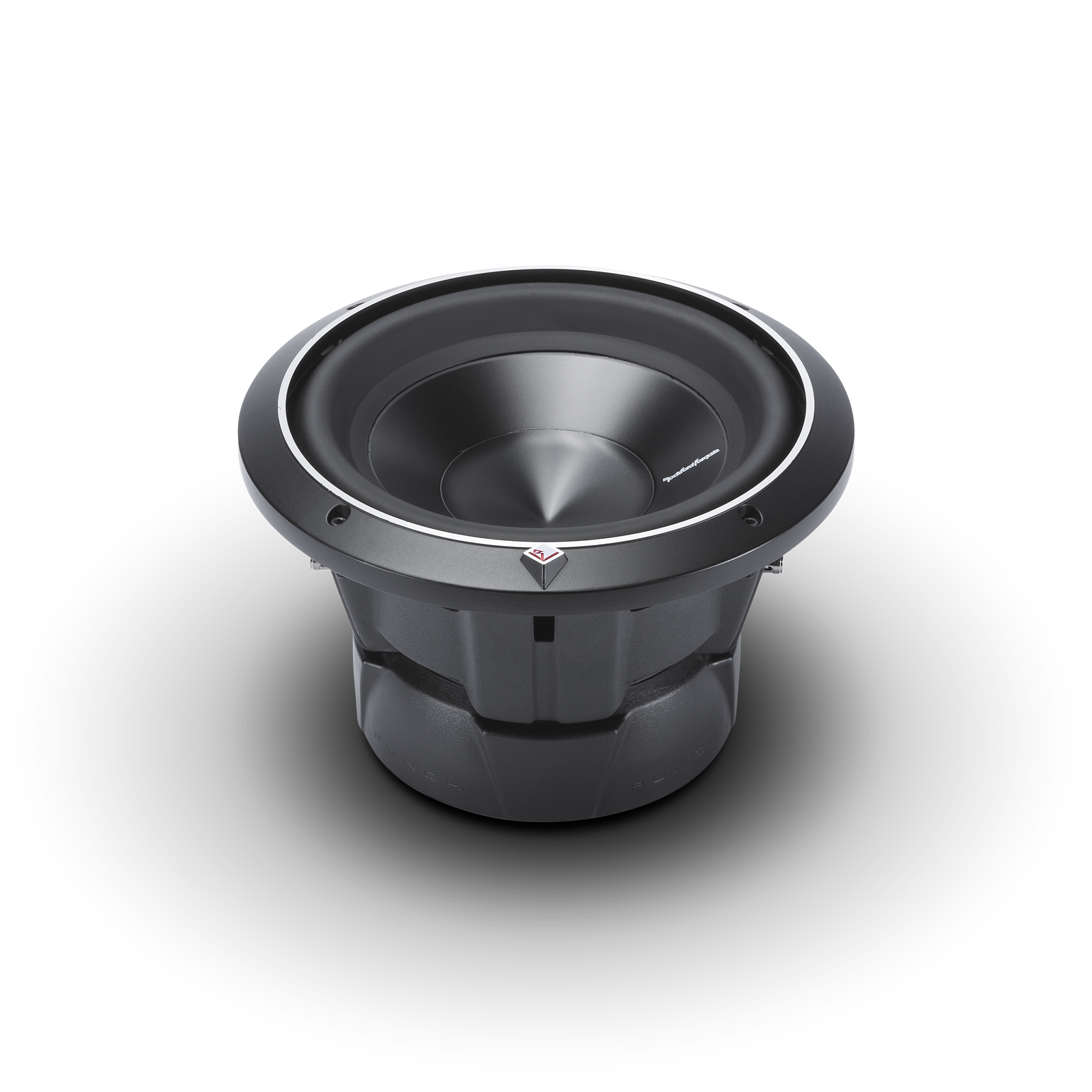

The P3D2-10 is the best-performing Rockford Fosgate Punch series subwoofer. The P3 10" features Dual 2-Ohm voice coils, & 500 Watts RMS of power handling.
Features
- Anodized aluminum cone and dustcap
- Extended pole piece and bumped vented backplate
- Rubberized over-mold for greater grip
- Custom 10-AWG nickel plated push terminals
- Diamond cut cast aluminum trim ring with optional grille
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Protective PVC textured magnet cover
- 1 Year Warranty
- StampCast basket with integrated spider venting
Specifications
- Power Handling (Watts RMS): 500 Watts RMS; 1000 Watts Max
- Shipping Weight: 17.3 Lbs. (7.8 kg)
- Sd (cm2): 360
- Speaker Connector: Dual 10 AWG compression
- Size: 10"
- Mounting Depth: 6.18 in. (156.8 mm)
- Nominal Impedance: Dual 2-Ohm
- Voice Coil Diameter: 2.5" (65.5 mm)
- Fs (Hz): 26.6
- Woofer Displacement: 0.070 cu. ft. (2.0 Liters)
- Qes: 0.54
- Qms: 6
- Vas (Liters): 27
- SPL (dB @ 1w/1m): 82
- Qts: 0.49
- Cutout Diameter: 9.13 in. (232 mm)
- Le (mH): 4.5
- Re (Ohms): 3.2
- Magnet Weight (oz): 81 oz. (2.30 kg.)
- Xmax (mm): 15.2
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
