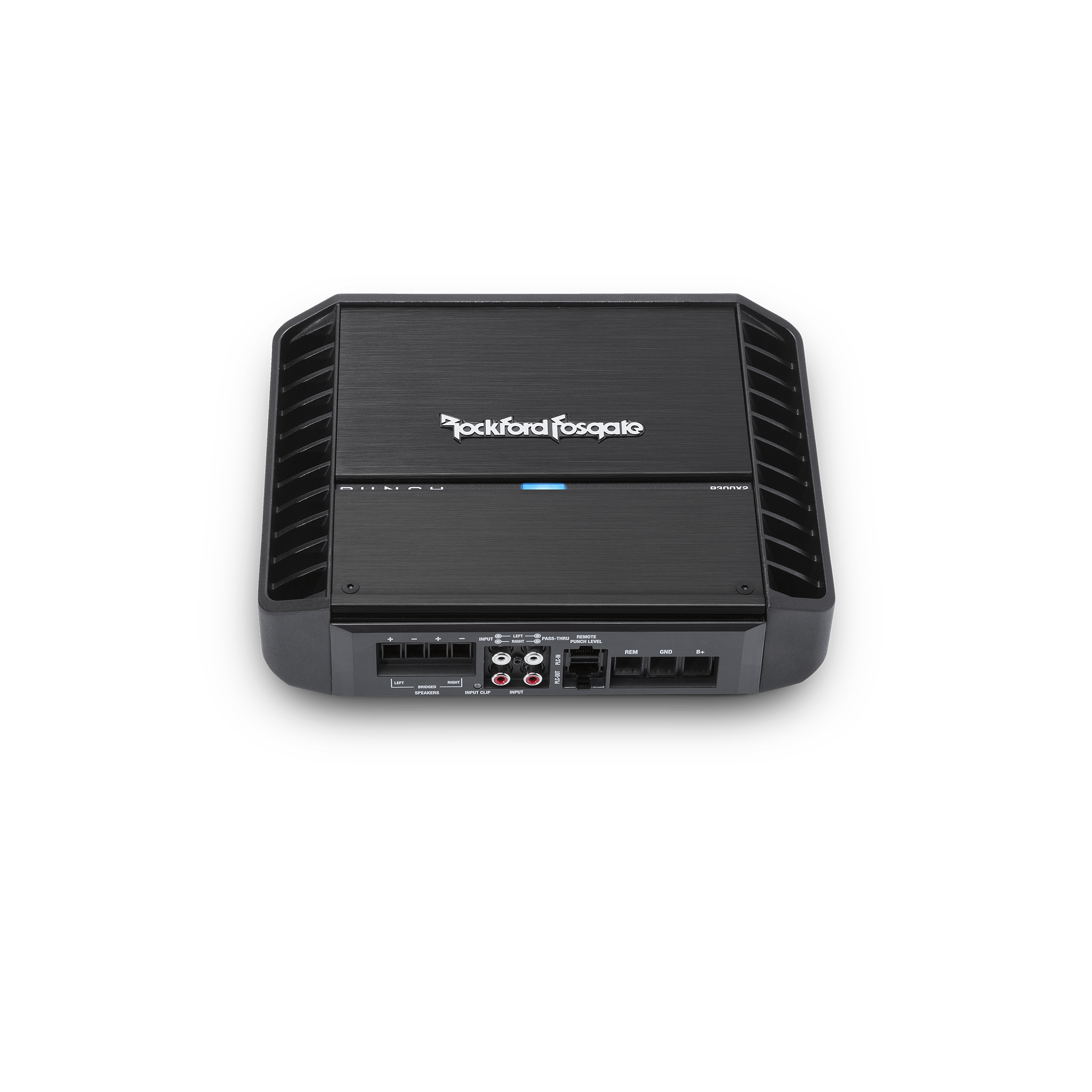

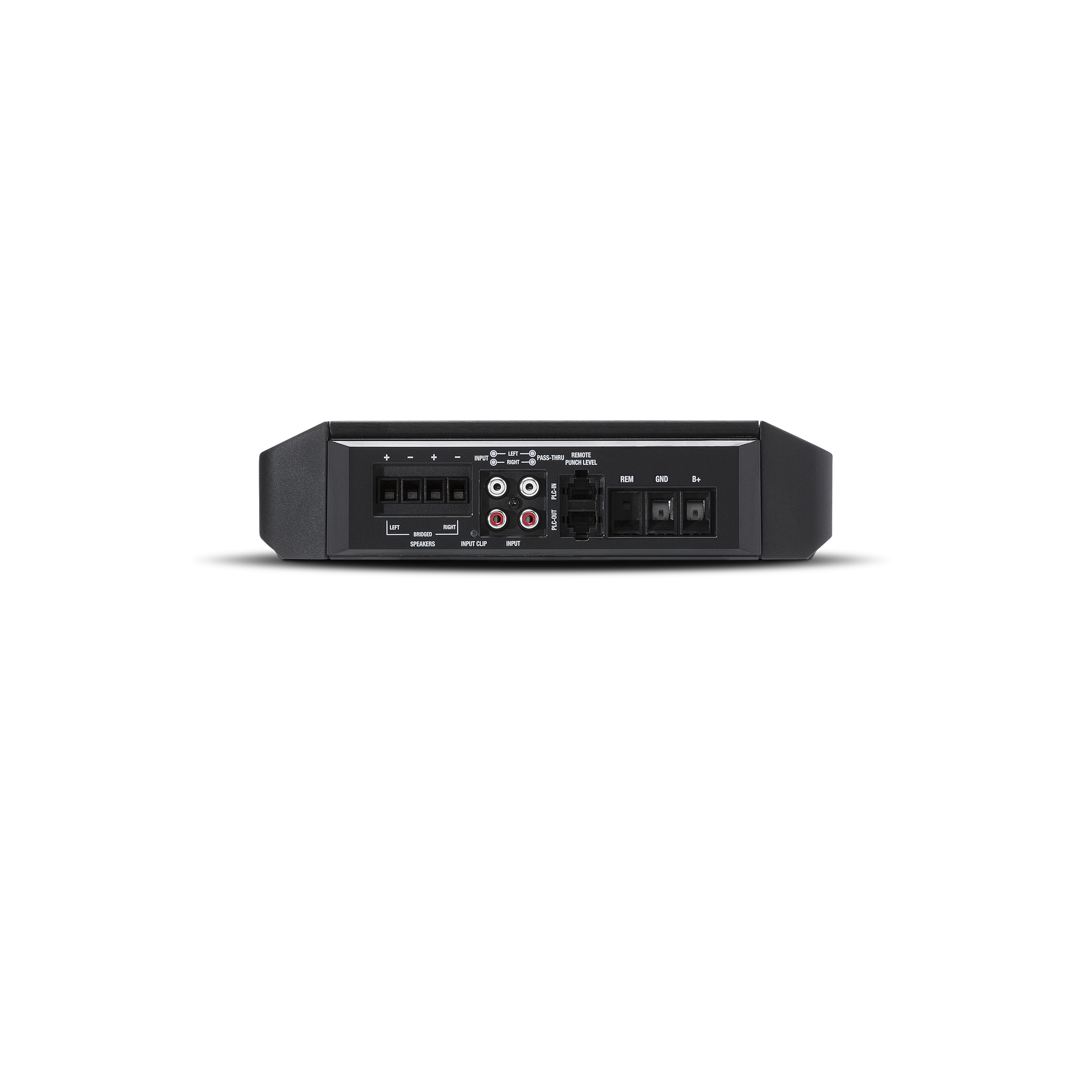

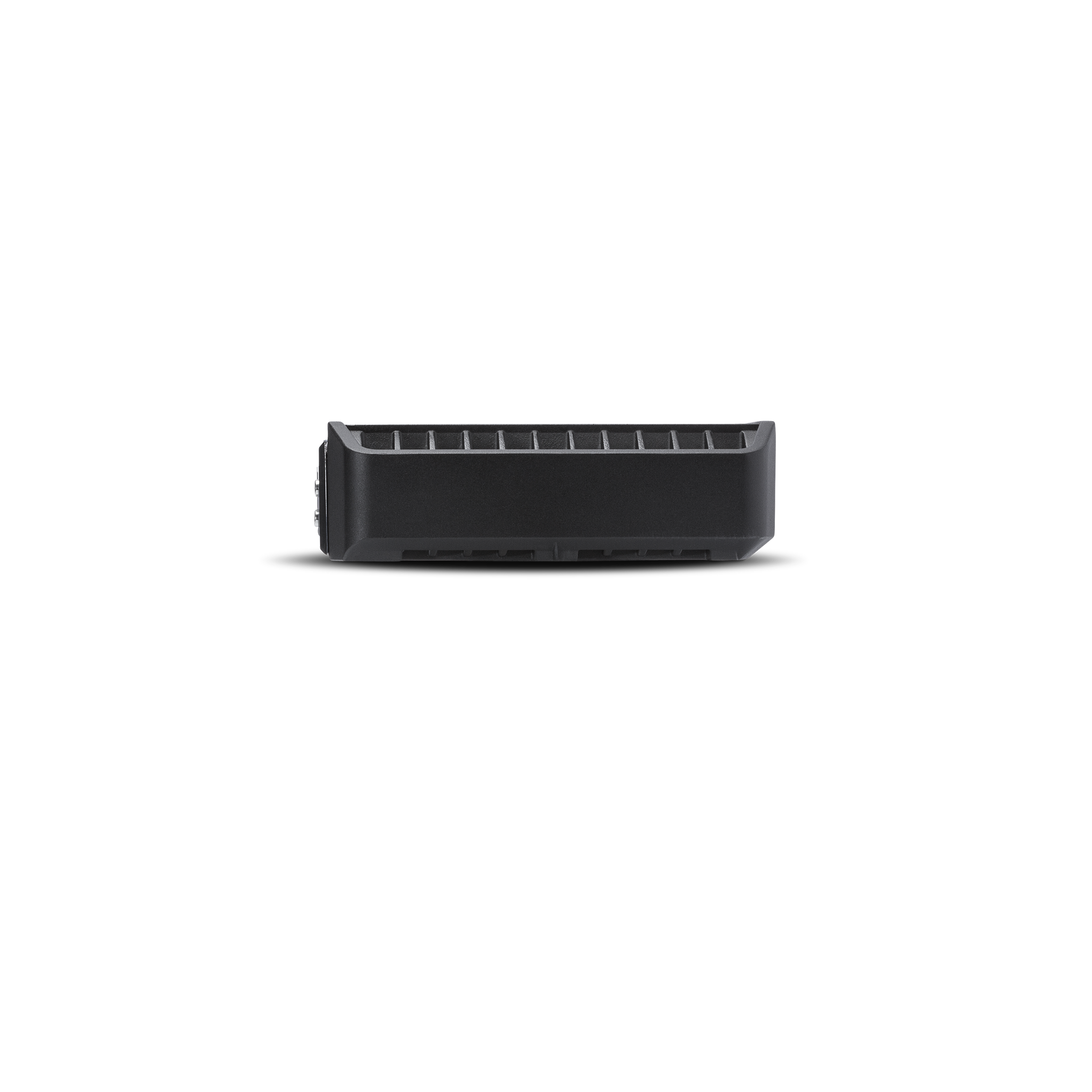

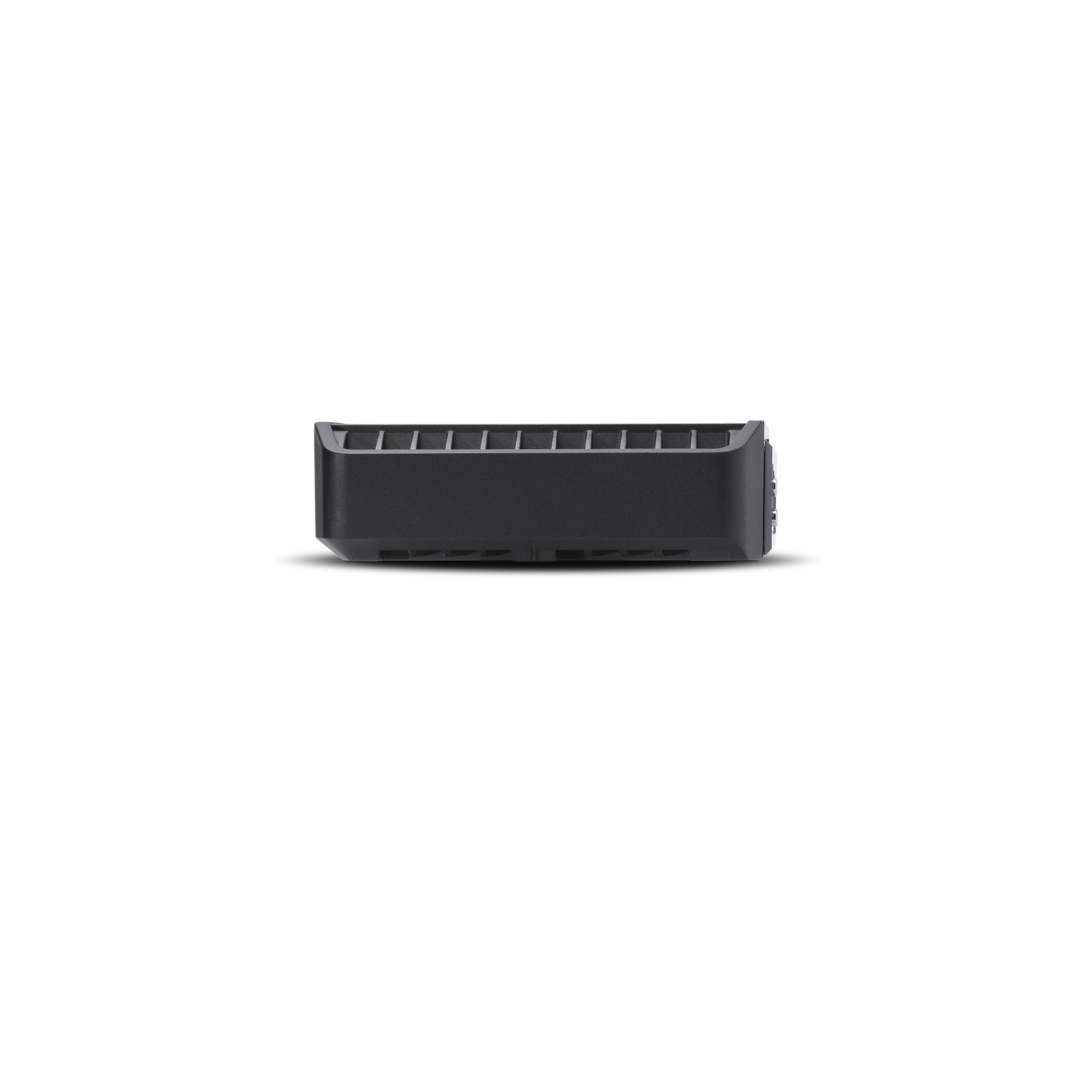

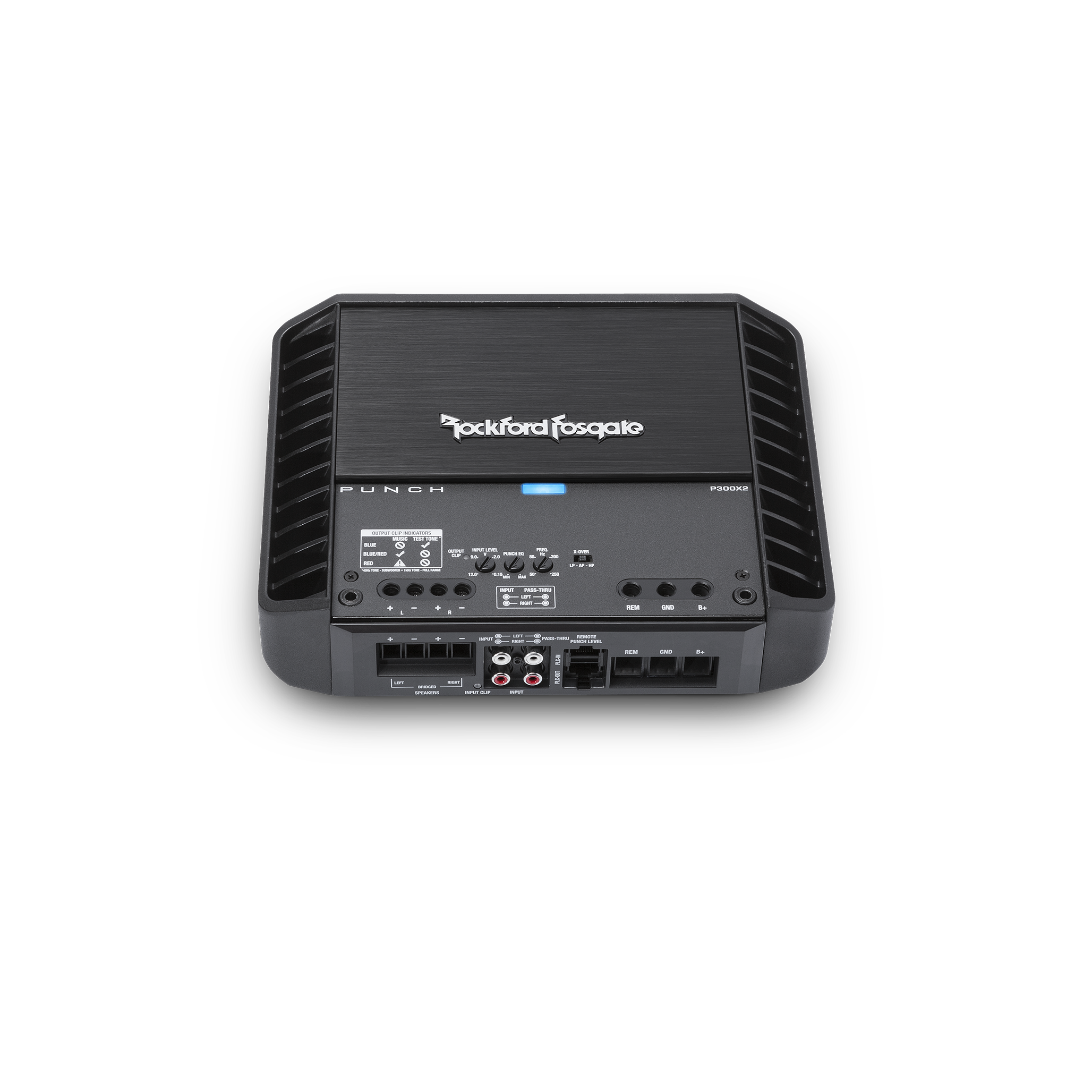

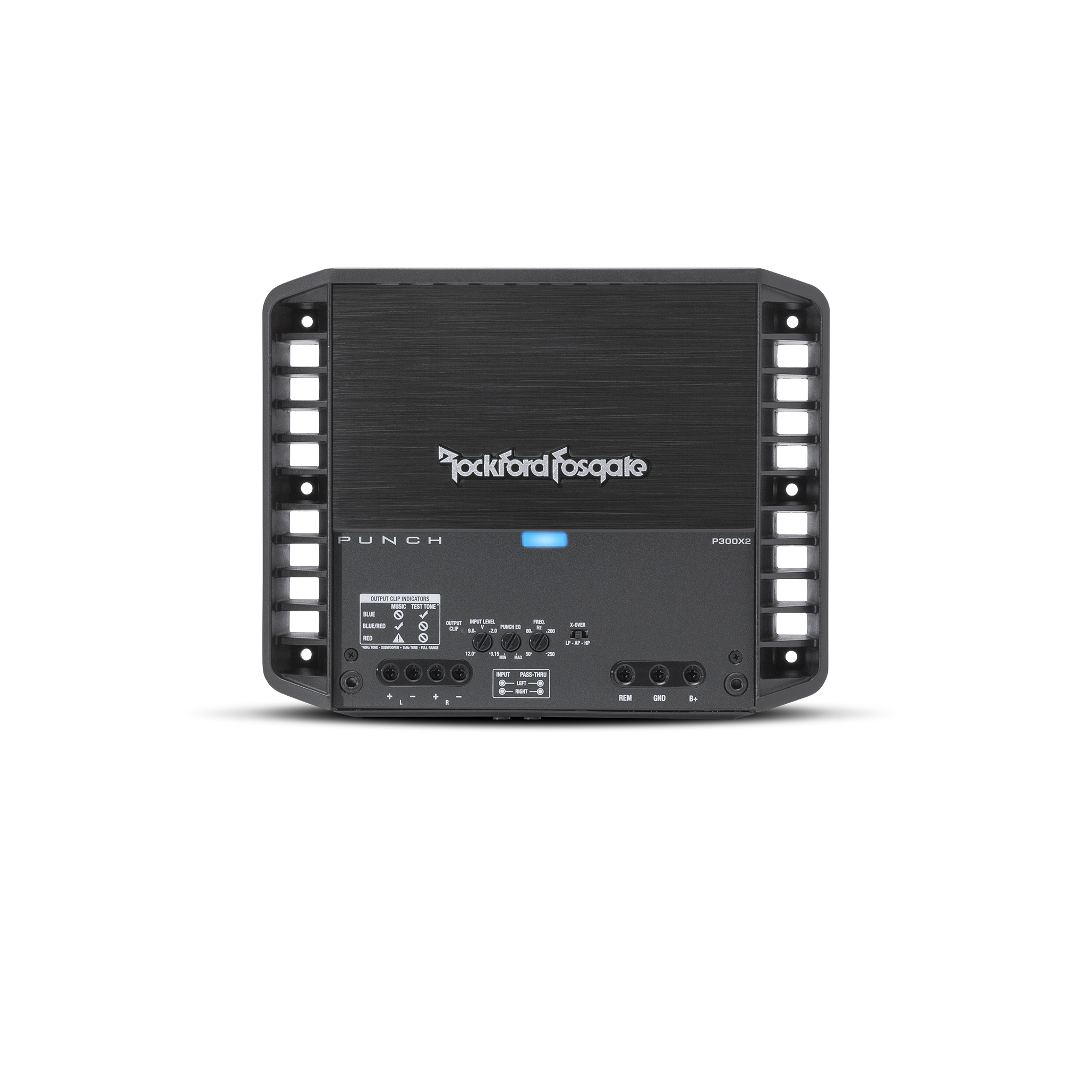

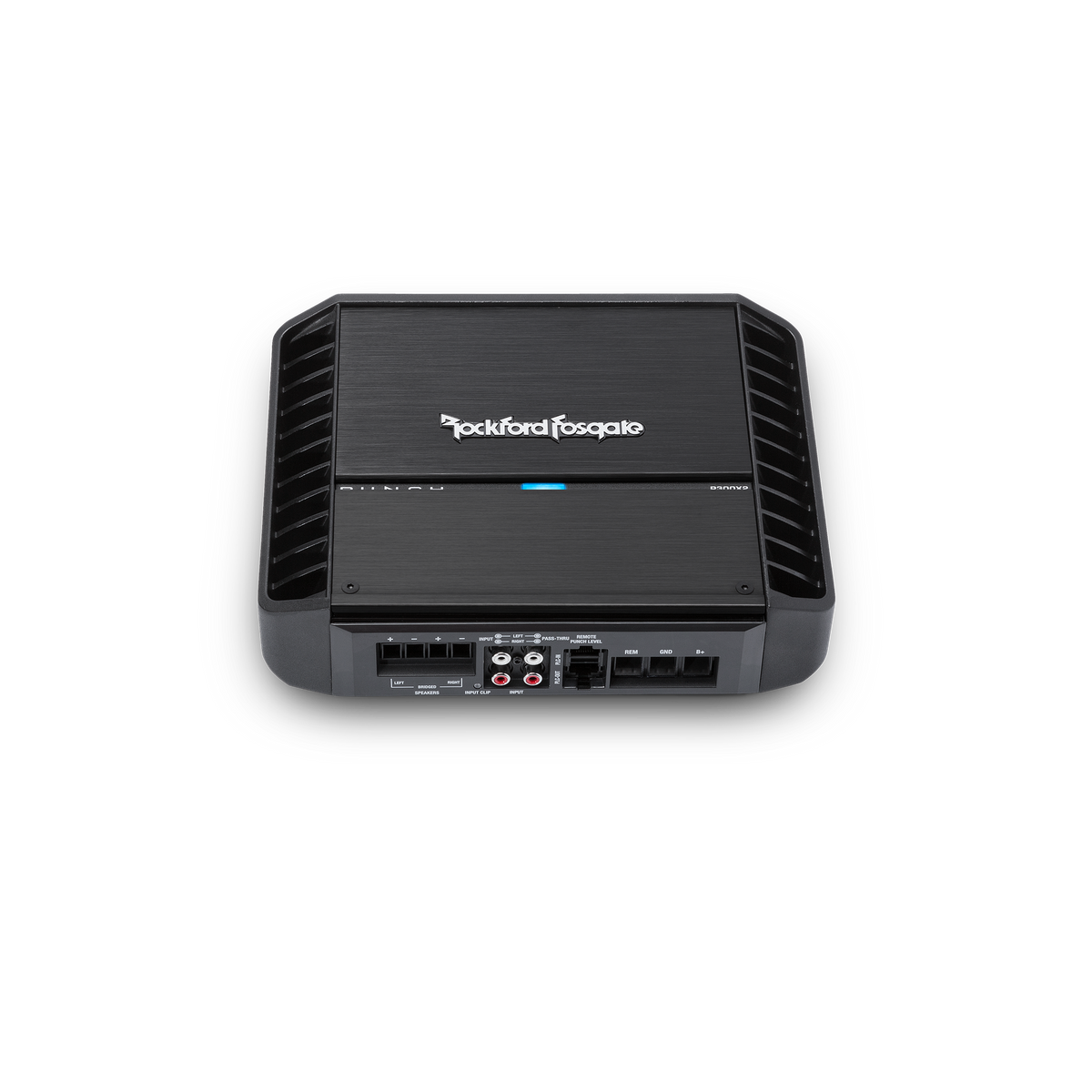

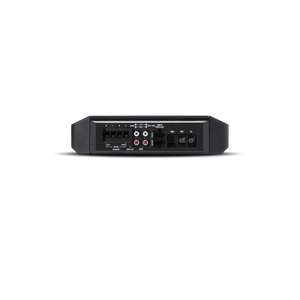

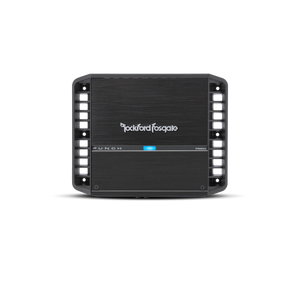

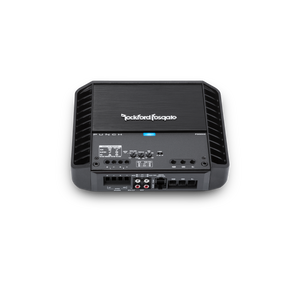

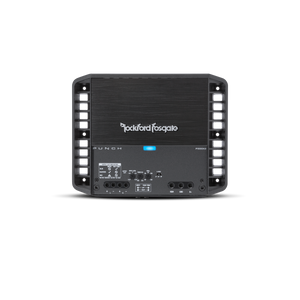

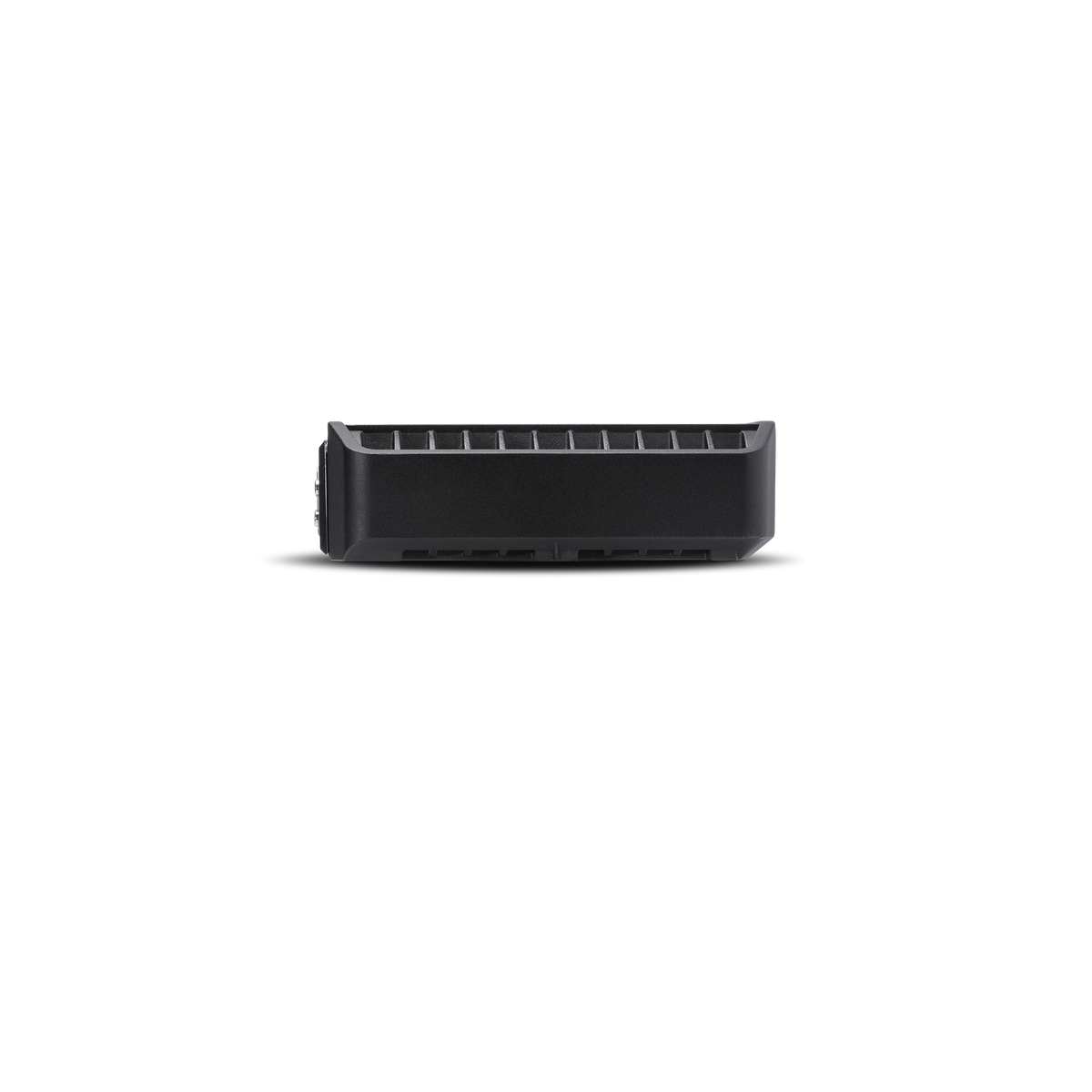

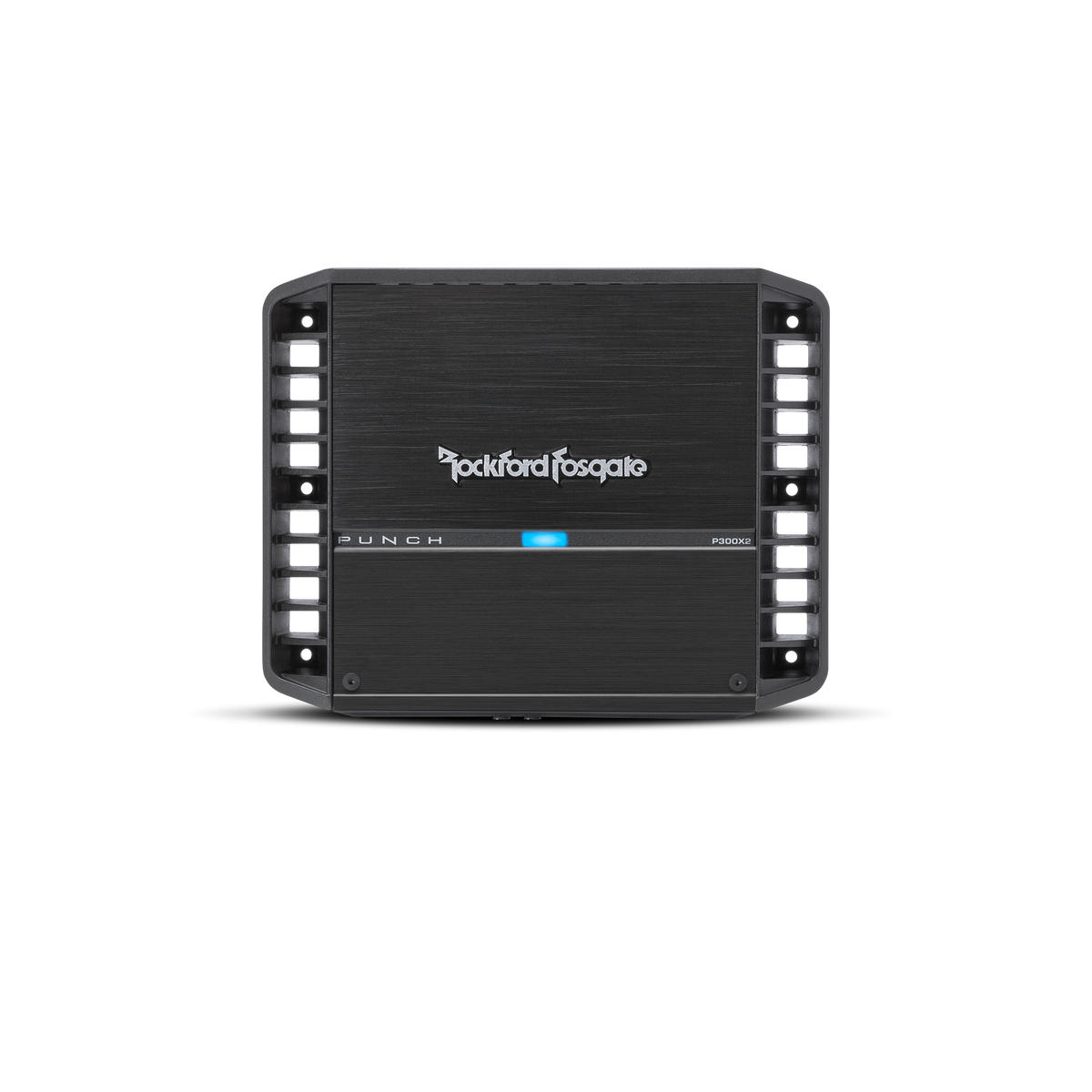

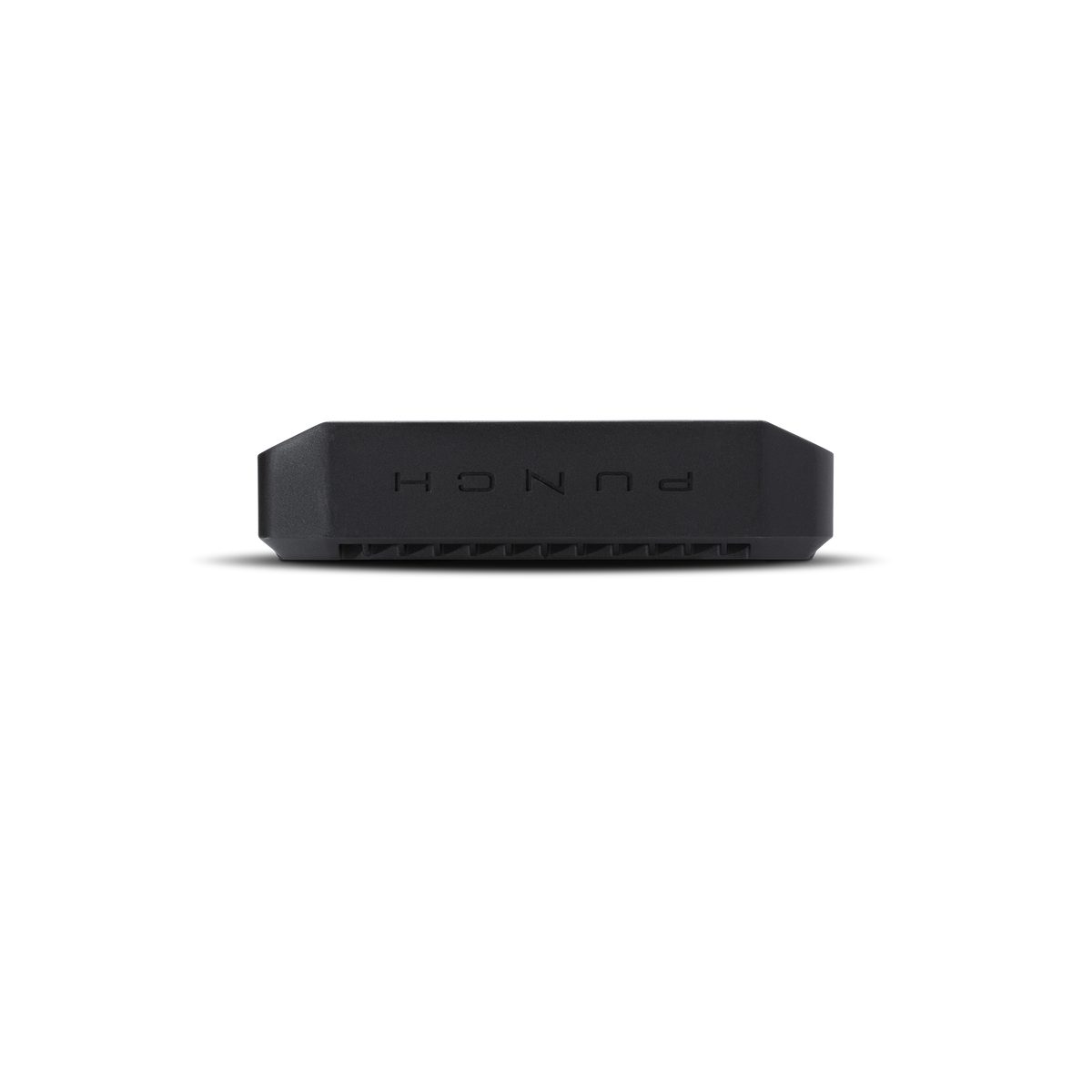

P300X2

Overview

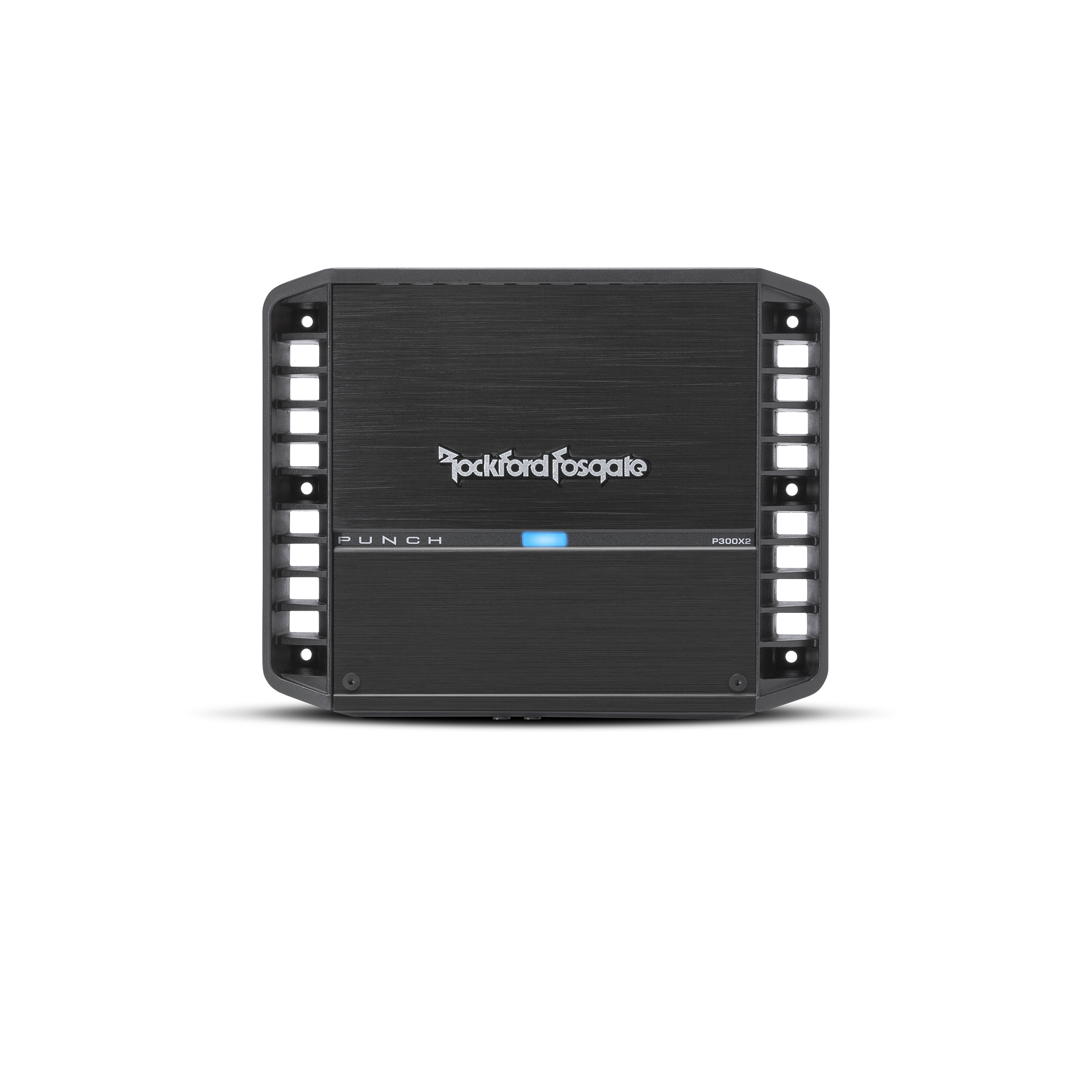

The Punch P300X2 is a 2-channel stereo amplifier producing 150 Watts into each channel at 2-Ohms. This amp is great with full-range or component systems.

Features

• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Short circuit protection
• On-board Punch EQ with +18dB boost @ 45Hz
• Over current protection
• Cast aluminum heatsink
• 1 Year Warranty
• Muted turn on

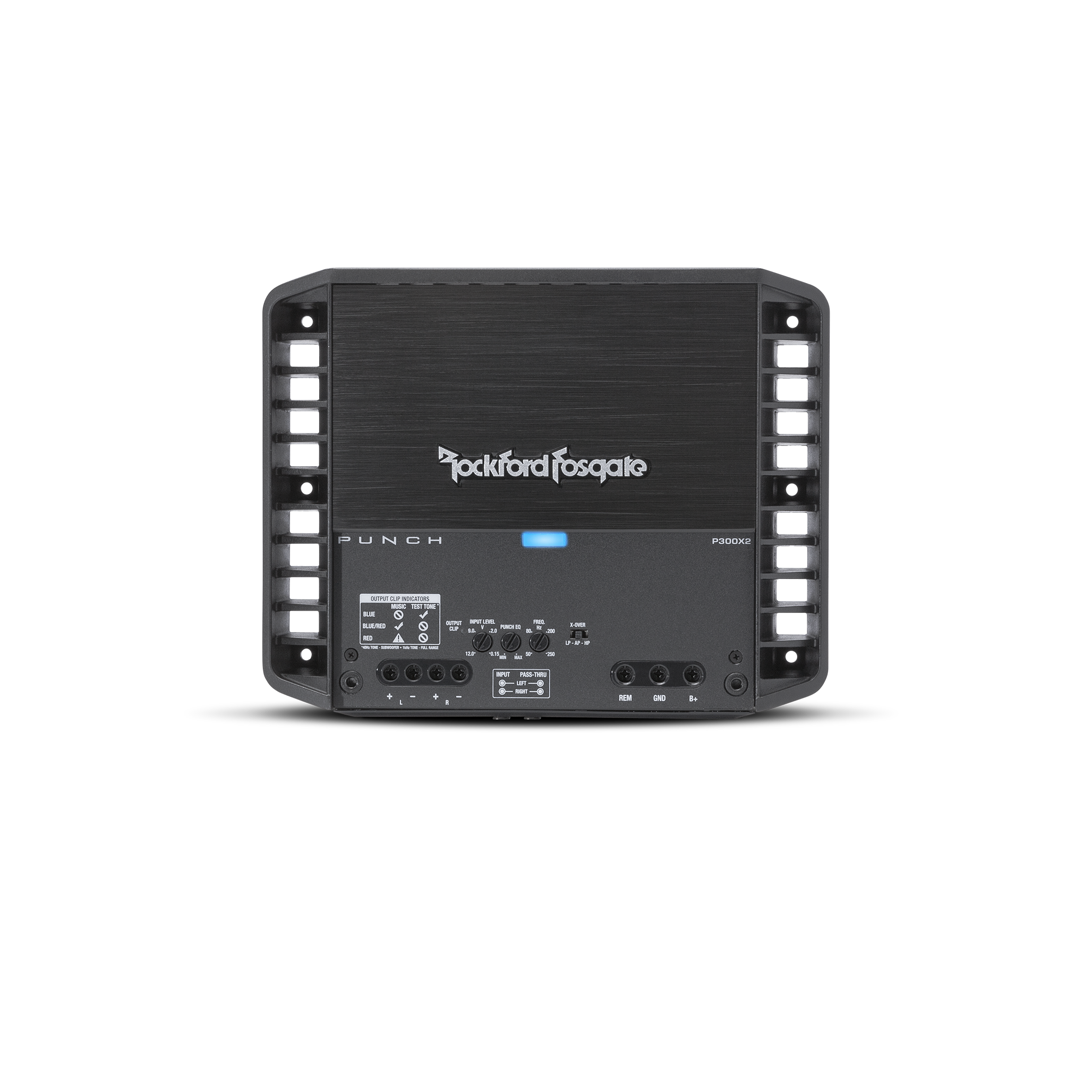

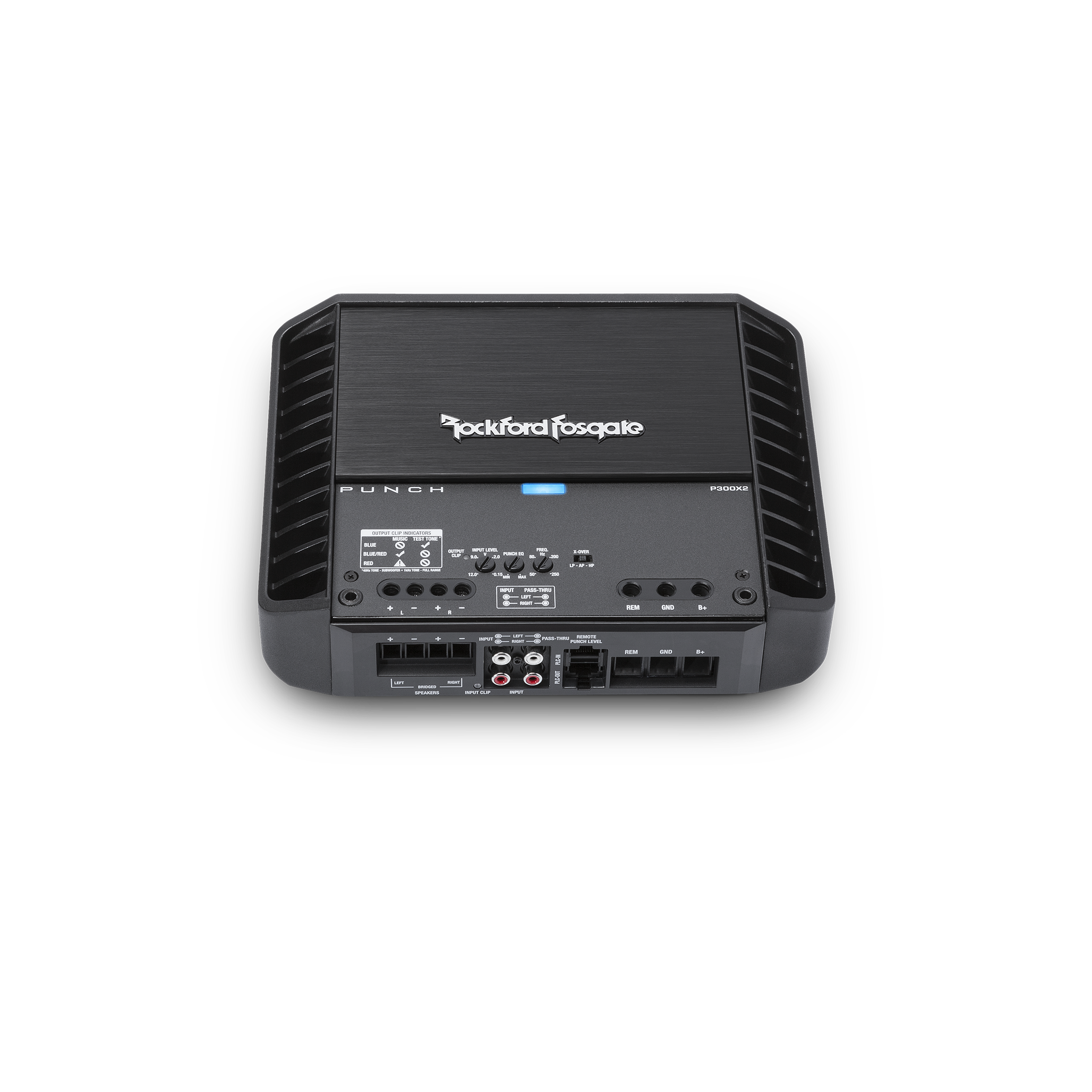

• Stealth top mounted control panel

Specifications

• CEA-2006 Compliant: CEA-2006 Power Rating; 100W x 2 @ 4Ohm; <=1.0% THD+N
• Number of Channels: 2
• Frequency Response: 20Hz-20kHz
• Total Power; (Sum of Rated Power): 300 Watts
• Rated Power; (RMS Continuous Power): 100 Watts x 2 @ 4-Ohm; 150 Watts x 2 @ 2-Ohm; 300 Watts x 1 @ 4-Ohm Bridged
• Bridgeable: Yes
• Dynamic Power; (PVC/PowerCube): 122 Watts x 2 @ 4-Ohms 0 deg Res; 215 Watts x 2 @ 2-Ohms 0 deg Res; 435 Watts x 1 @ 4-Ohms Bridged 0 deg Res
• Input Sensitivity: 150 mV - 12 V
• Crossover Controls: High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth; Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth; All-Pass: Yes
• Tone Controls: 0dB to +14dB @ 12.5kHz; 0dB to +18dB @ 45Hz
• Signal Output: Low Level: 1 RCA Pair
• Speaker Wire Gauge: 8 AWG to 18 AWG
• Cooling: Convection
• Heat Sink Type: Die Cast Aluminum
• Circuit Topology Class: Class A/B
• Efficiency (average): 69% @ 4-Ohm
• Power Input Connector: Captive C-Clamp
• Operating Voltage: 9 - 16 VDC
• Signal Input: Hi/Low Level: 1 RCA Pair
• Power Wire Gauge: 8 AWG to 4 AWG
• Speaker Output Connector: Captive C-Clamp
• Signal-to-Noise (CEA): >85 dB
• Total Harmonic Distortion (THD+Noise): 4-Ohm: 2-Ohm: <1.0%
• Remote Controls: Optional Punch Level Control (PLC2) Ready
• Visual Indicators: Power/Protect/Thermal LED; Input Clip LED3; Output Clip LED1,2,3; LED Color Legend:; 1BLUE: 2VIOLET: 1% THD; 3RED: 10%+ THD
• Recommended Fuse; (not included): 50 A
• Average Current Draw (13.8V Music): 23 A
• Max. Current Draw (13.8V Sinewave): 45 A
• Suggested Alternator: 75 A
• Channel Separation: >50 dB
• Common Mode Rejection: >55 dB
• Damping Factor: >500
• Dimensions (H x W x D): 2.38 x 7.76 x 9.86 (in); 6.05 x 19.71 x 25.04 (cm)
• Shipping Weight: 9.5 Lbs. (4.3 Kg.)
