P300-12

Overview

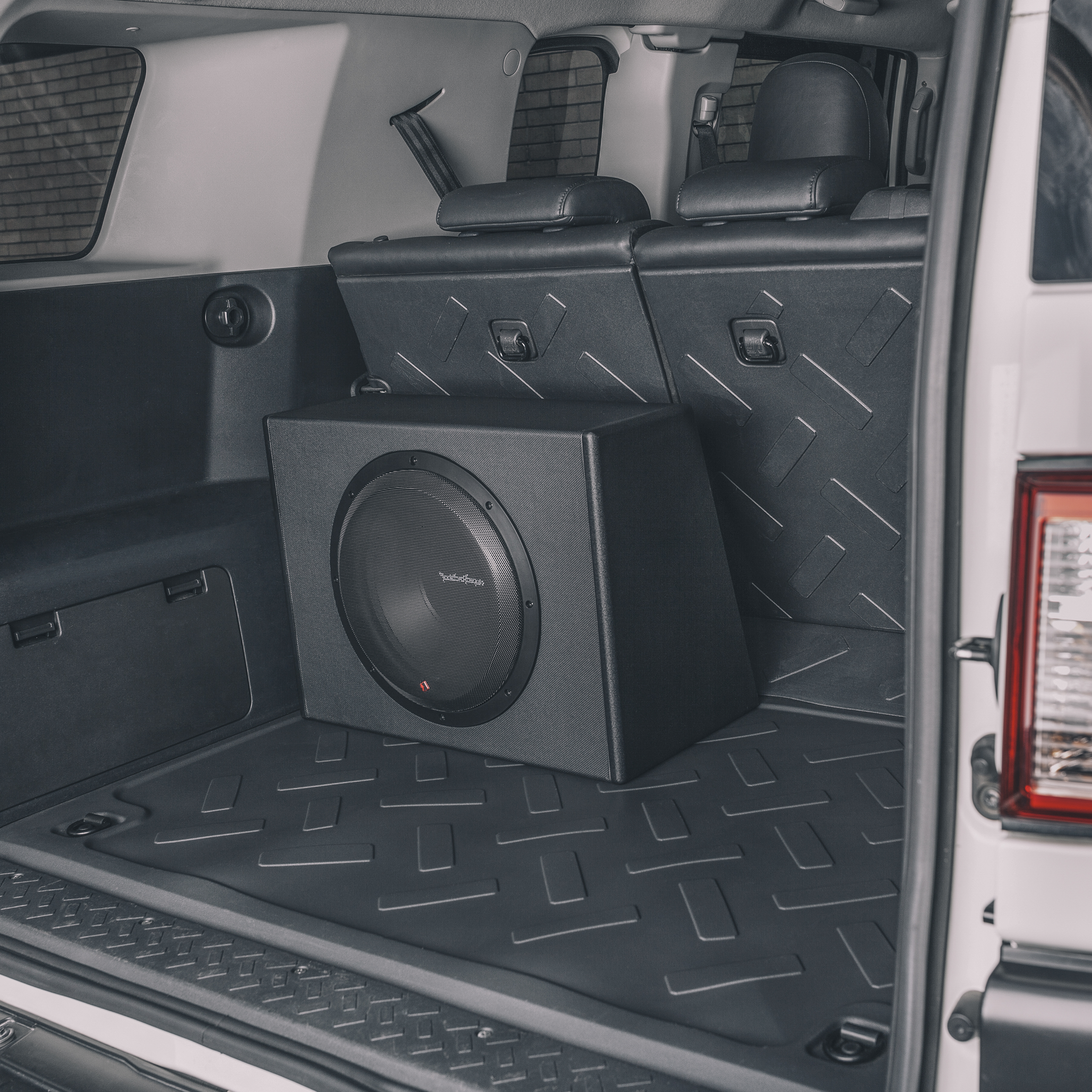

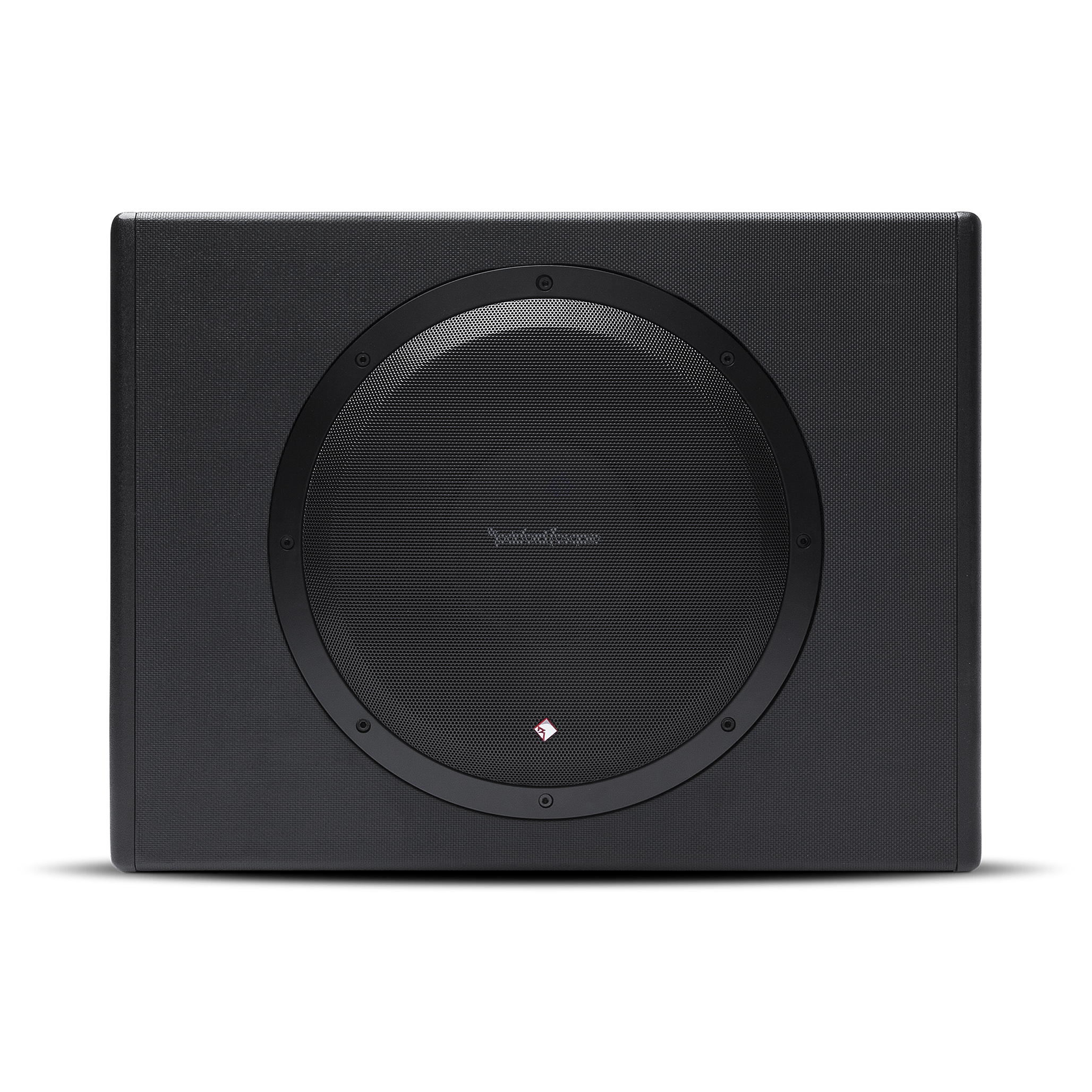

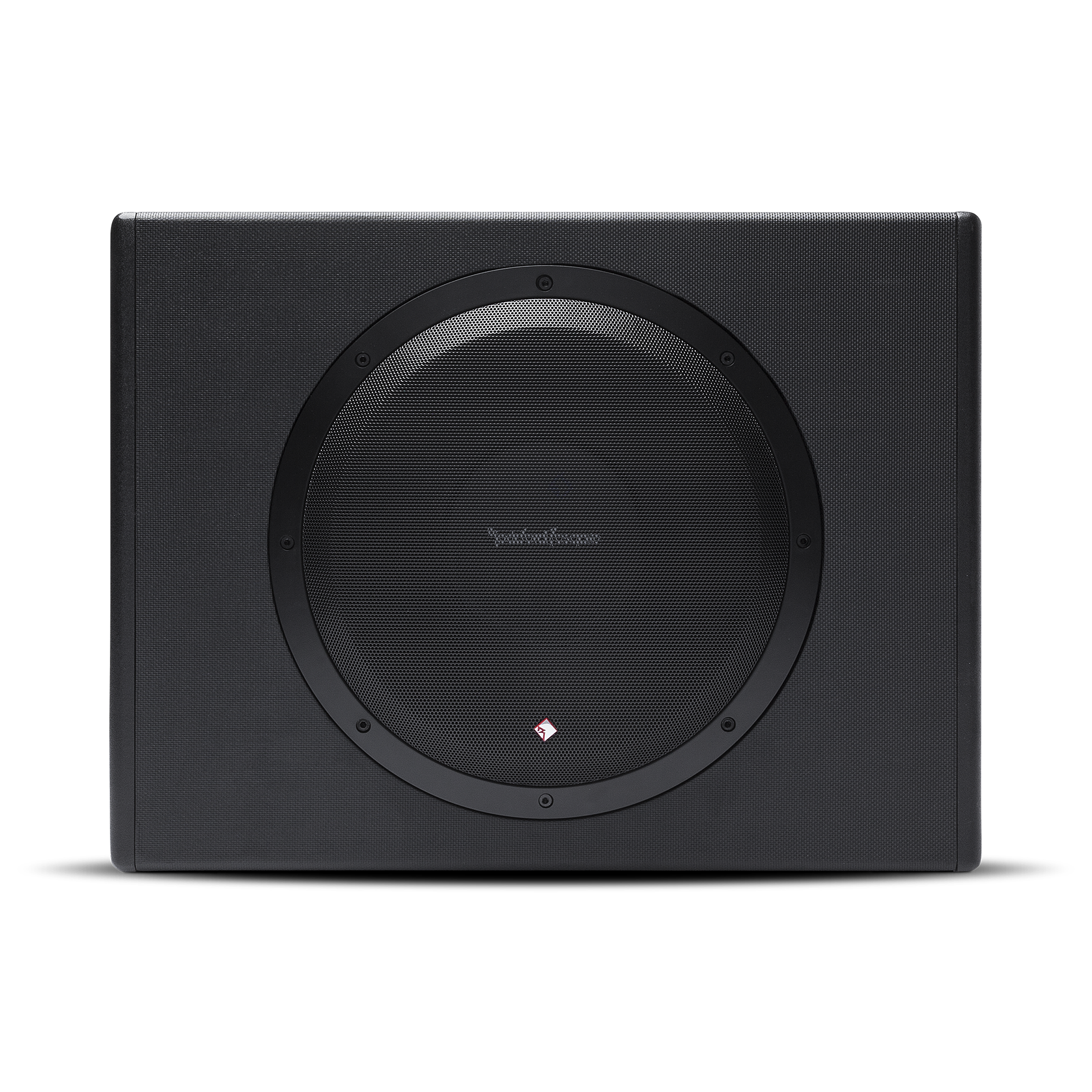

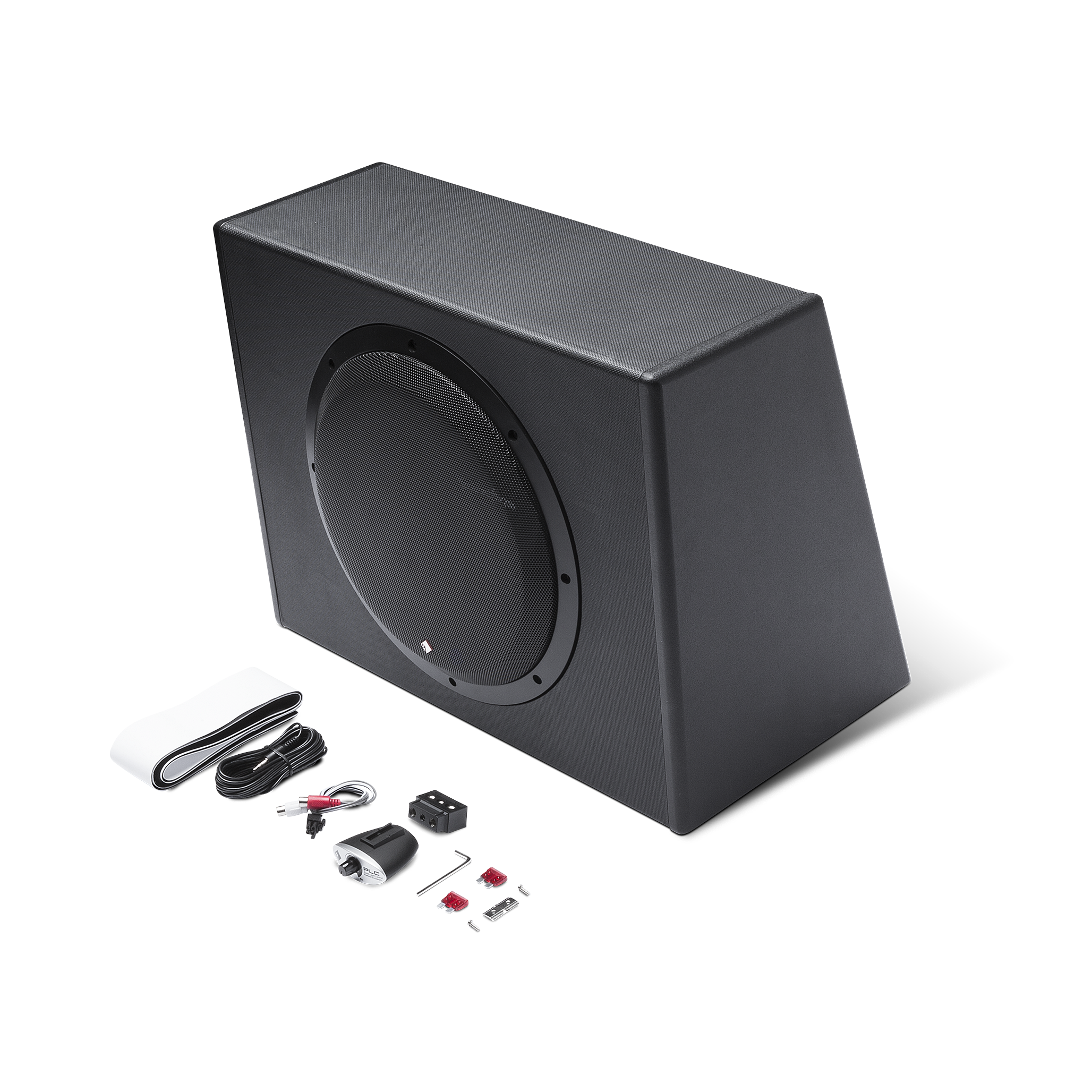

The P300-12 features a Punch 12" subwoofer in a custom sealed enclosure and is powered by a mighty 300 Watt amplifier.

Features

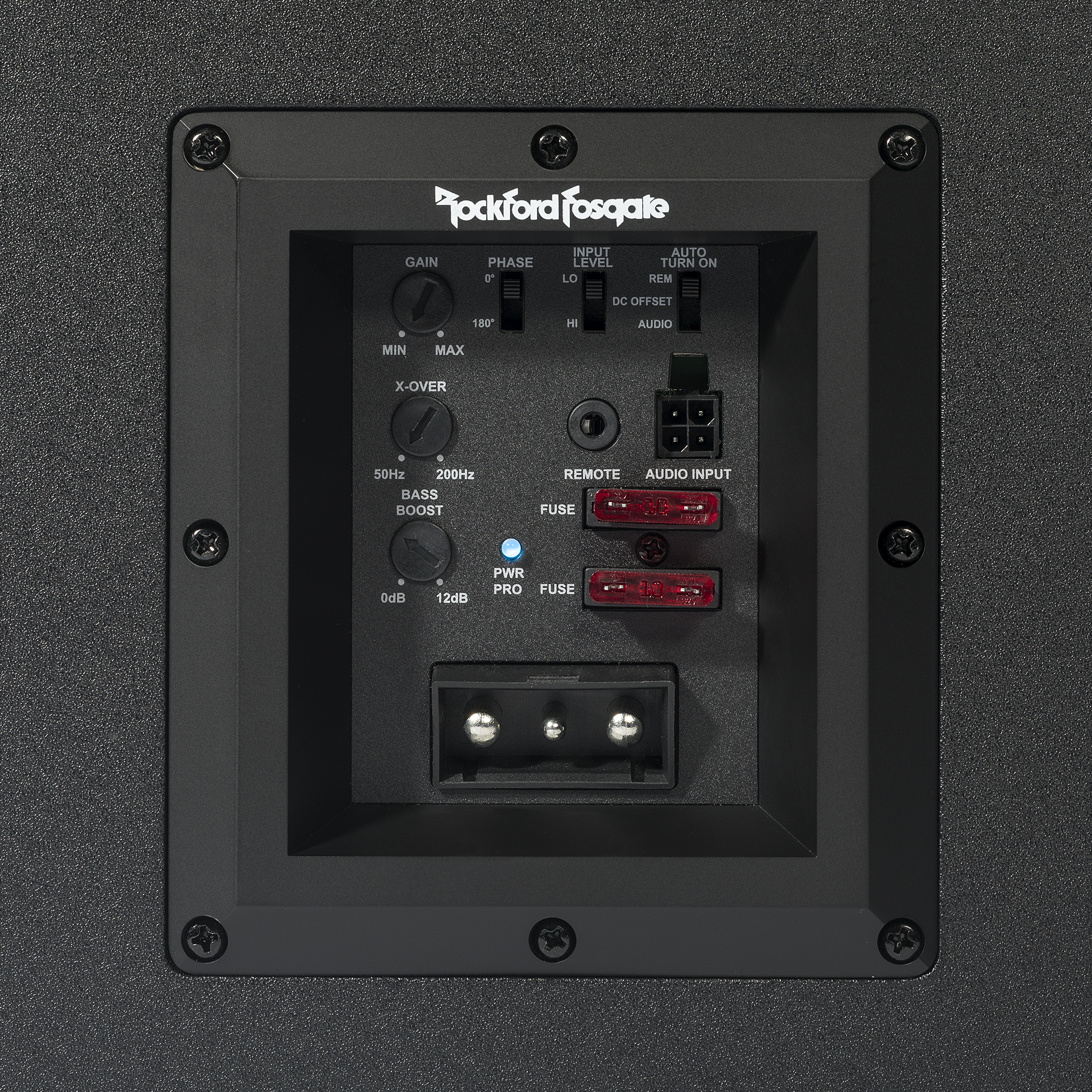

• "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
• 1 Year Warranty
• Adjustable 12db/Octave low pass crossover
• Built-in 0 deg/180 deg phase switch
• Built-in adjustable bass boost EQ
• Constructed with 5/8" MDF
• Covered with industrial heat activated vinyl
• Detachable Power/Ground connector
• High-efficiency, low current design
• Intelligent auto turn on/off function
• Large AWG input terminals
• Proprietary high output woofer
• Remote bass level control included
• Separate low level and speaker level inputs
• Thermal and over/under voltage protection

Specifications

• Nominal Impedance (ea): -
• Cooling: Convection
• Signal Input: Low-Level: 1 RCA Pair; High-Level: Left/Right Summed Inputs
• Tone Controls: Gain & Bass Boost
• Frequency Response: 20 Hz to 200 Hz
• Integrated Amplifier: 300 Watts RMS
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Woofer Quantity: 1
• Power Input Connector: Quick Disconnect; Replacement Part: 1130-59232-01
• Woofer Series: Proprietary
• Woofer Size: 12"
• Remote Control: Included
• Crossover Controls: Variable 50 Hz to 200 Hz; 12dB/Octave Butterworth
• Enclosure Type: Amplified
• Power Handling (Watts RMS): 300 Watts RMS
• Visual Indicators: Power; Protect

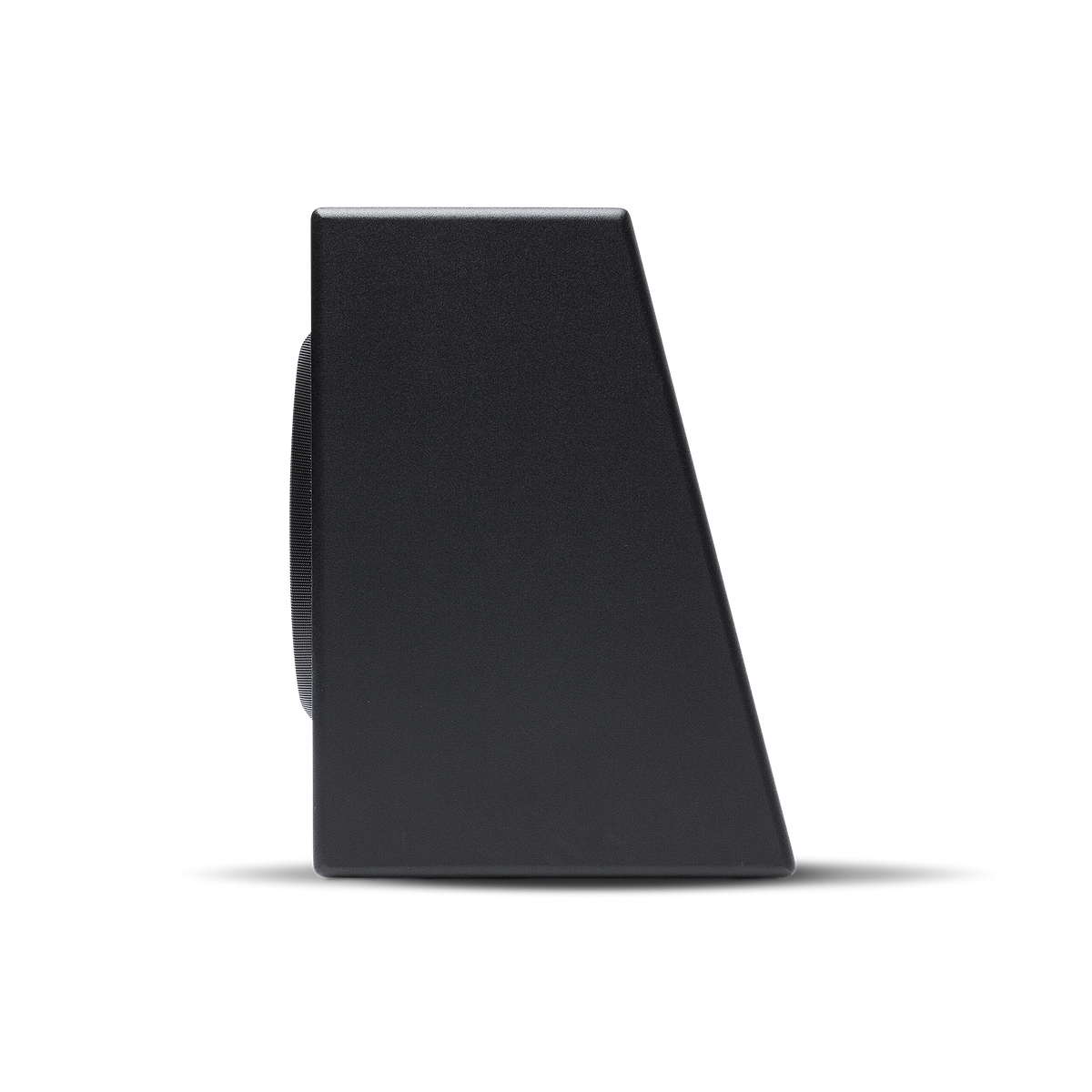

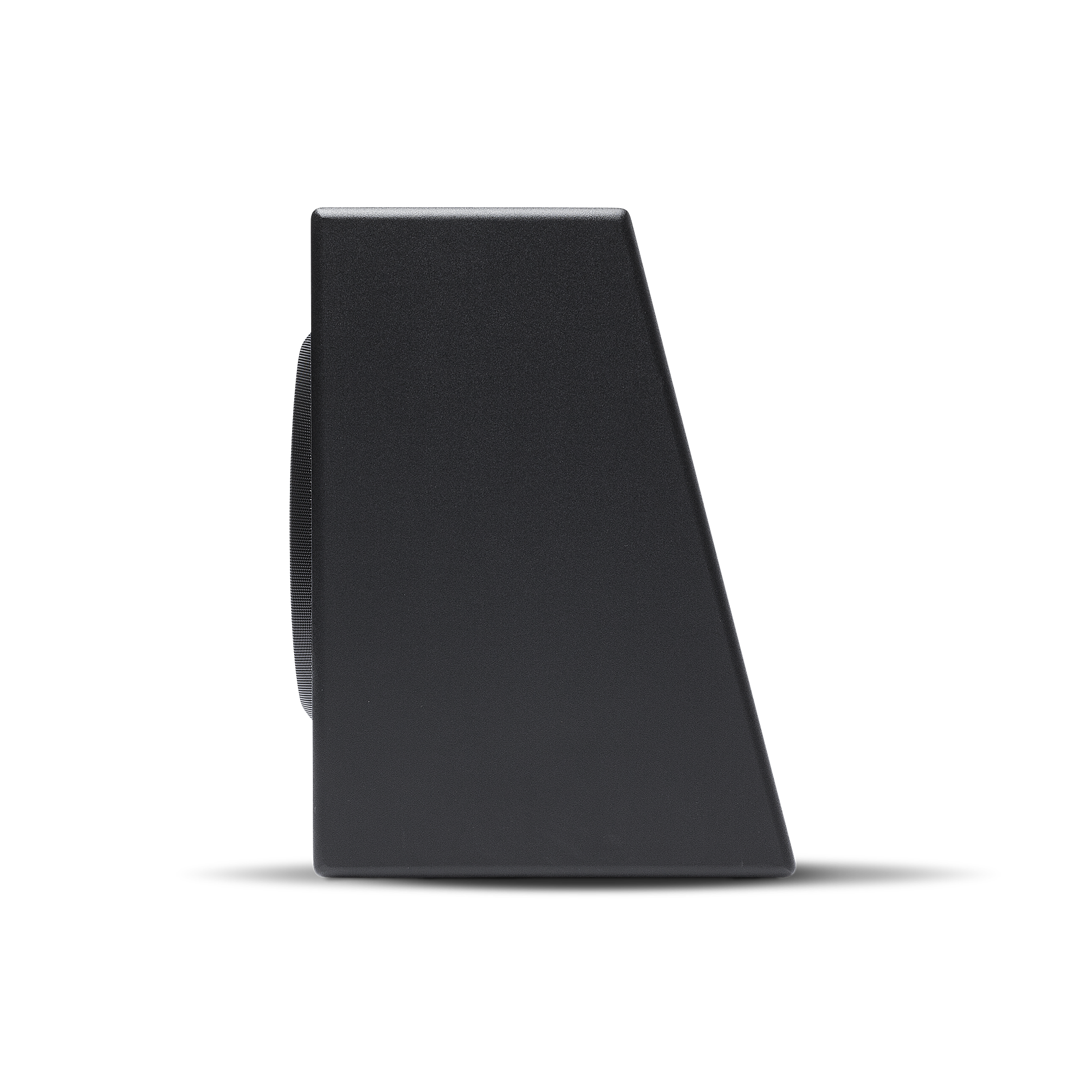

• Dimensions; Box (H x W x D); Wedge (H x W x D1 x D2): 15 x 19.8 x D1 11 - D2 7 (in); 38.1 x 50.29 x D1 27.94 - D2 17.78 (cm)
• Shipping Weight: 29.6 Lbs. (13.42 kg.)
• Power Wire Gauge: 8 AWG
• Circuit Topology Class: Class-D
• Heat Sink Type: Extruded Aluminum
