P300-10

Overview

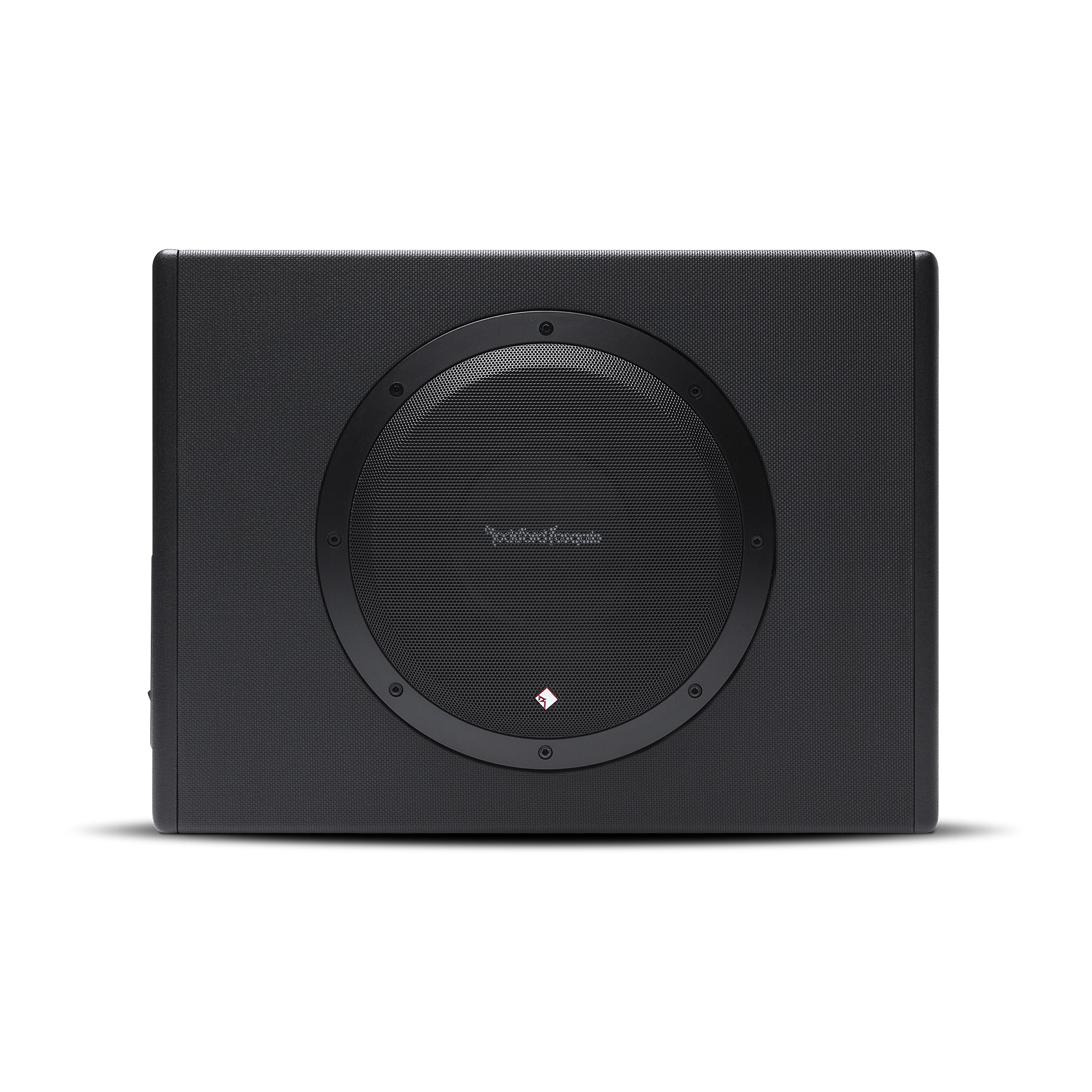

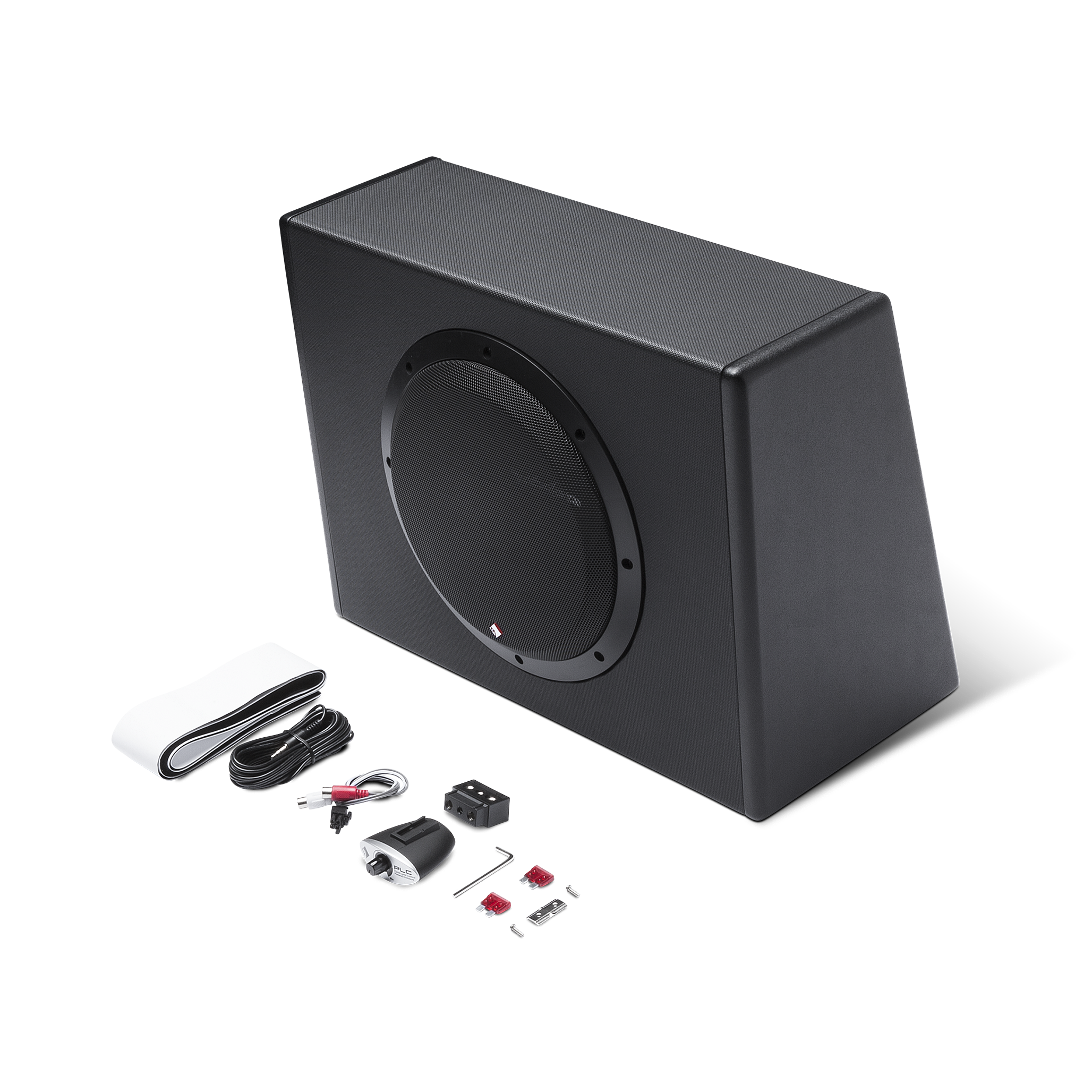

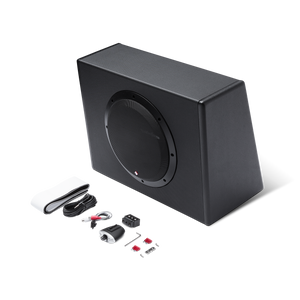

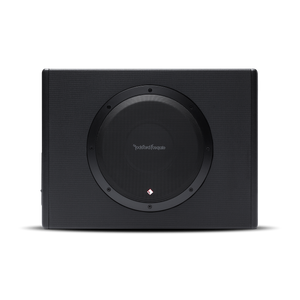

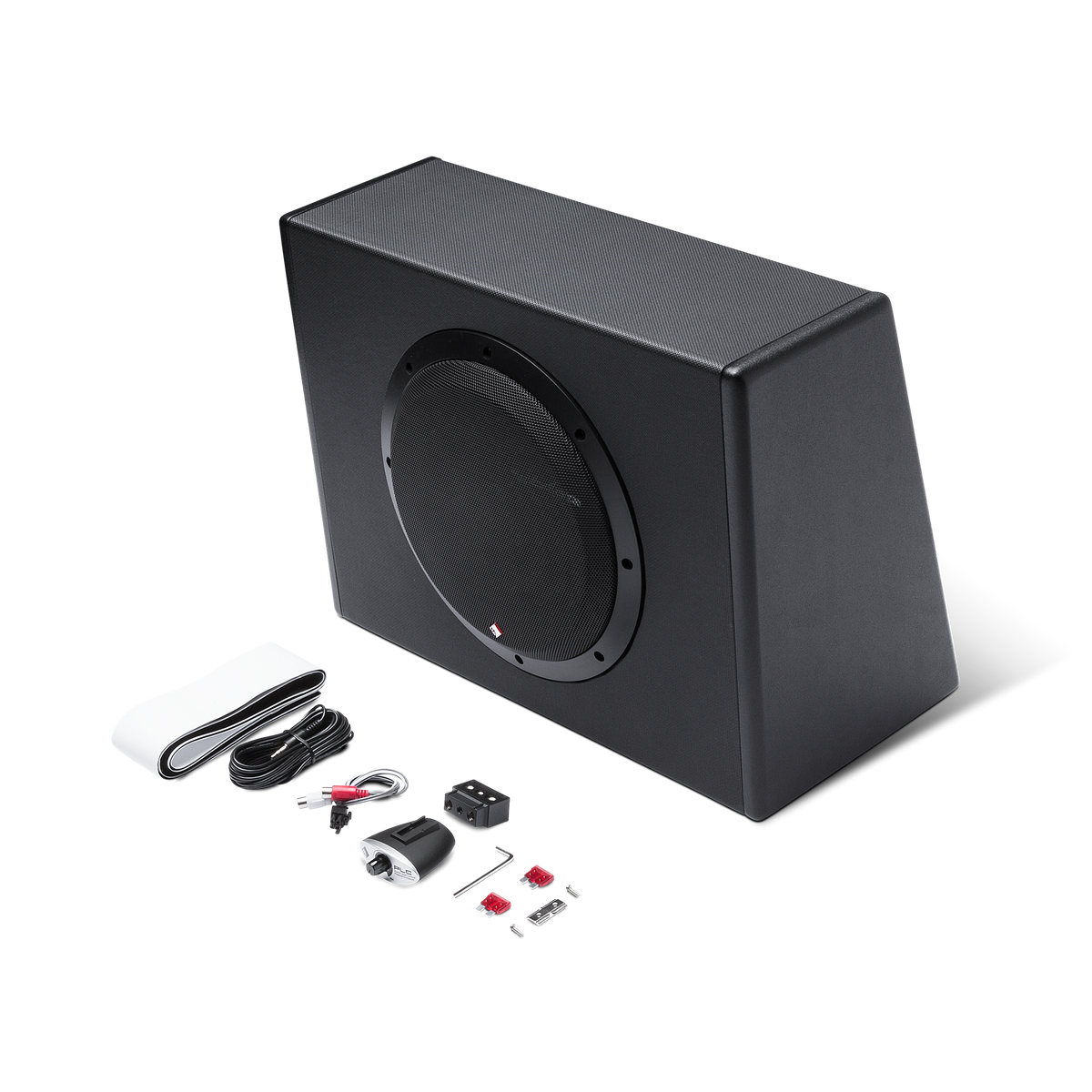

The P300-10 features a Punch 10" subwoofer in a custom sealed enclosure and is powered by a mighty 300 Watt amplifier.

Features

• "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
• 1 Year Warranty
• Adjustable 12db/Octave low pass crossover
• Built-in 0 deg/180 deg phase switch
• Built-in adjustable bass boost EQ
• Constructed with 5/8" MDF
• Covered with industrial heat activated vinyl
• Detachable Power/Ground connector
• High-efficiency, low current design
• Intelligent auto turn on/off function
• Large AWG input terminals
• Proprietary high output woofer
• Remote bass level control included
• Separate low level and speaker level inputs
• Thermal and over/under voltage protection

Specifications

• Nominal Impedance (ea): -
• Crossover Controls: Variable 35Hz to 150Hz; 12dB/Octave Butterworth
• Frequency Response: 25 Hz to 200 Hz
• Integrated Amplifier: 300 Watts RMS
• Power Handling (Watts RMS): 300 Watts RMS
• Woofer Quantity: 1
• Enclosure Type: Amplified
• Woofer Size: 10"
• Woofer Series: Proprietary
• Power Wire Gauge: 8 AWG
• Shipping Weight: 23.8 Lbs. (10.79 kg)
• Heat Sink Type: Extruded Aluminum
• Circuit Topology Class: Class-D
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Remote Control: Included

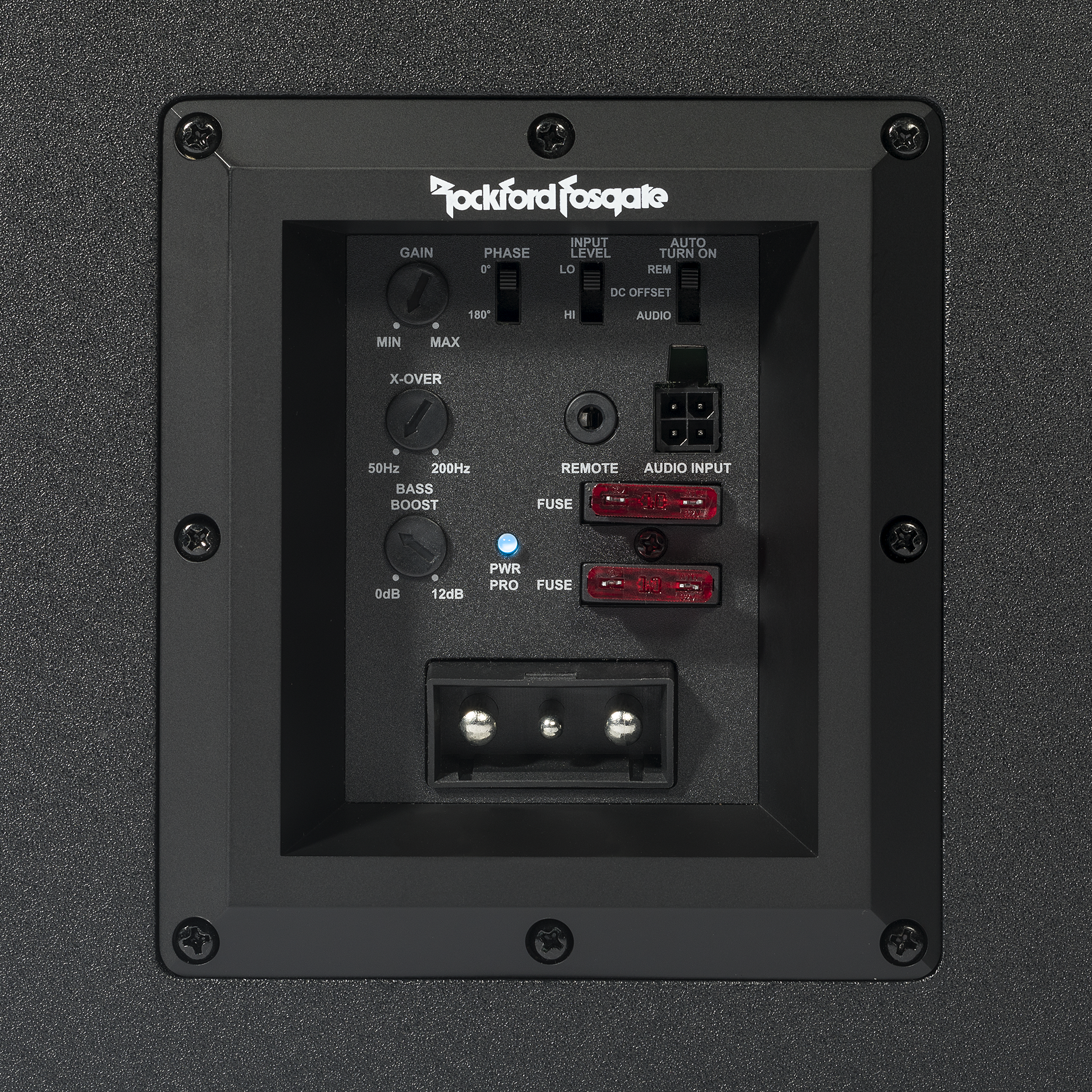

• Tone Controls: Gain & Bass Boost
• Power Input Connector: Quick Disconnect; Replacement Part: 1130-59232-01
• Signal Input: Low-Level: 1 RCA Pair; High-Level: Left/Right Summed Inputs
• Cooling: Convection
• Dimensions; Box (H x W x D); Wedge (H x W x D1 x D2): 13.3 x 18 x D1 8.9 - D2 5.9 (in); 33.7 x 45.72 x D1 22.6 - D2 14.98 (cm)
• Visual Indicators: Power; Protect
