Overview

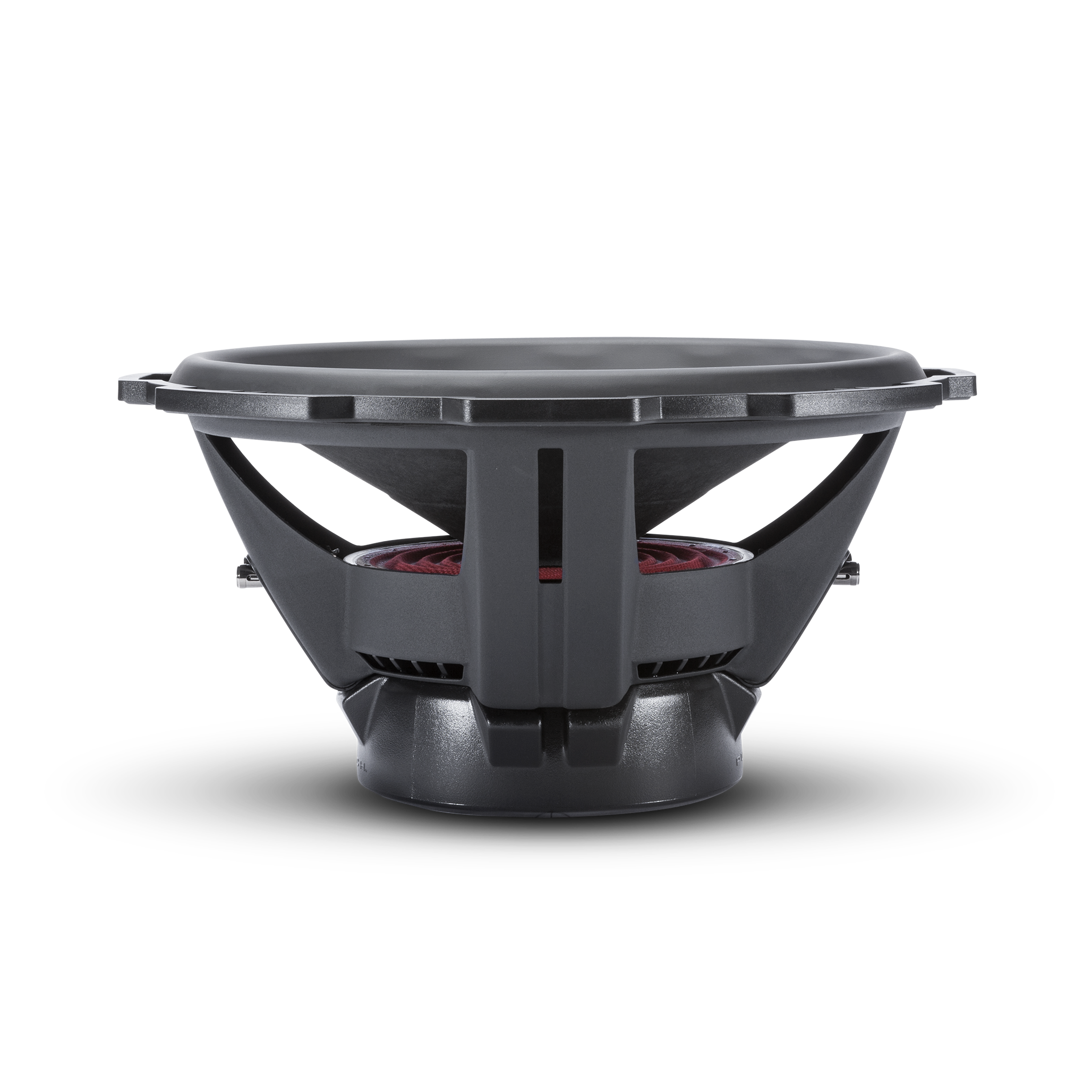

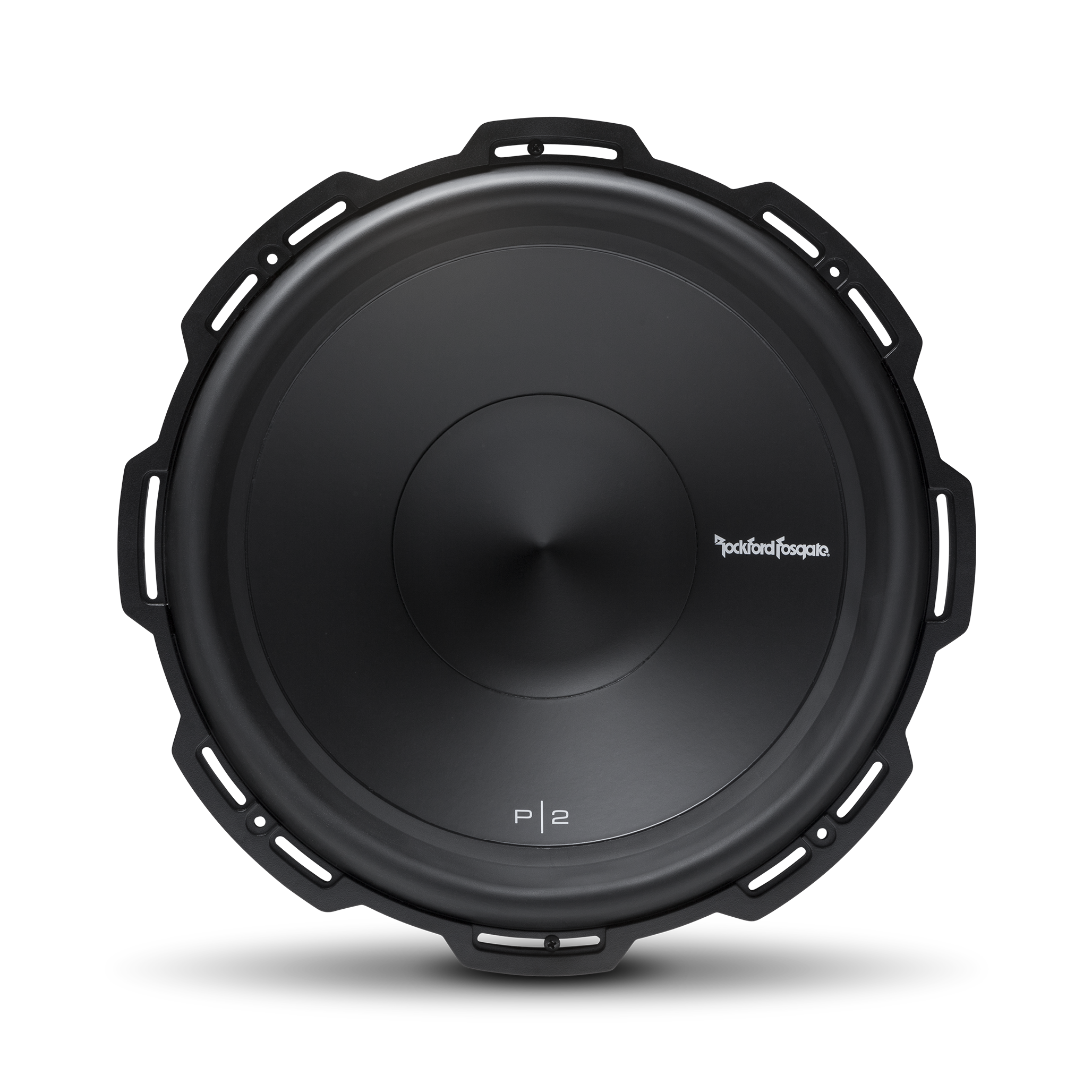

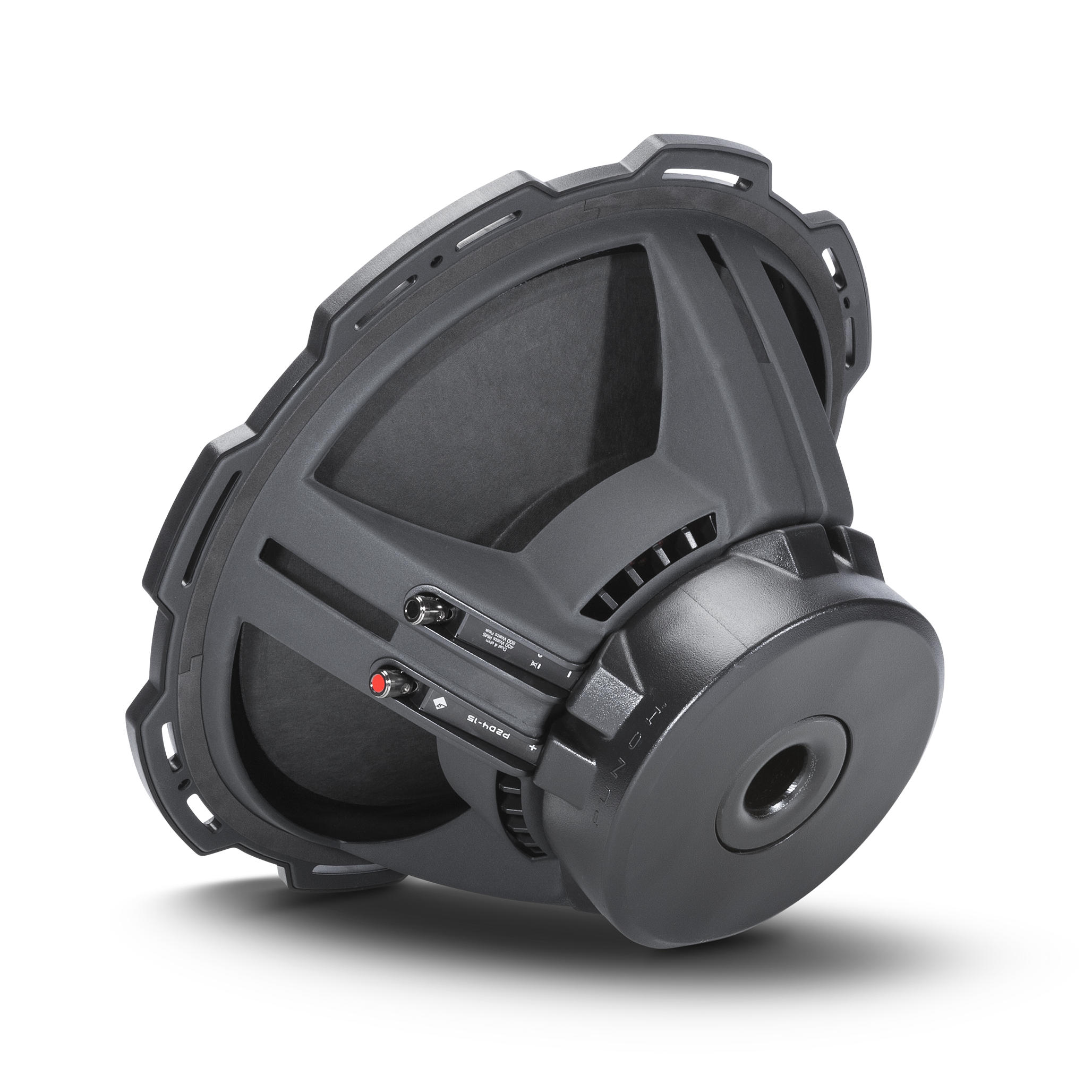

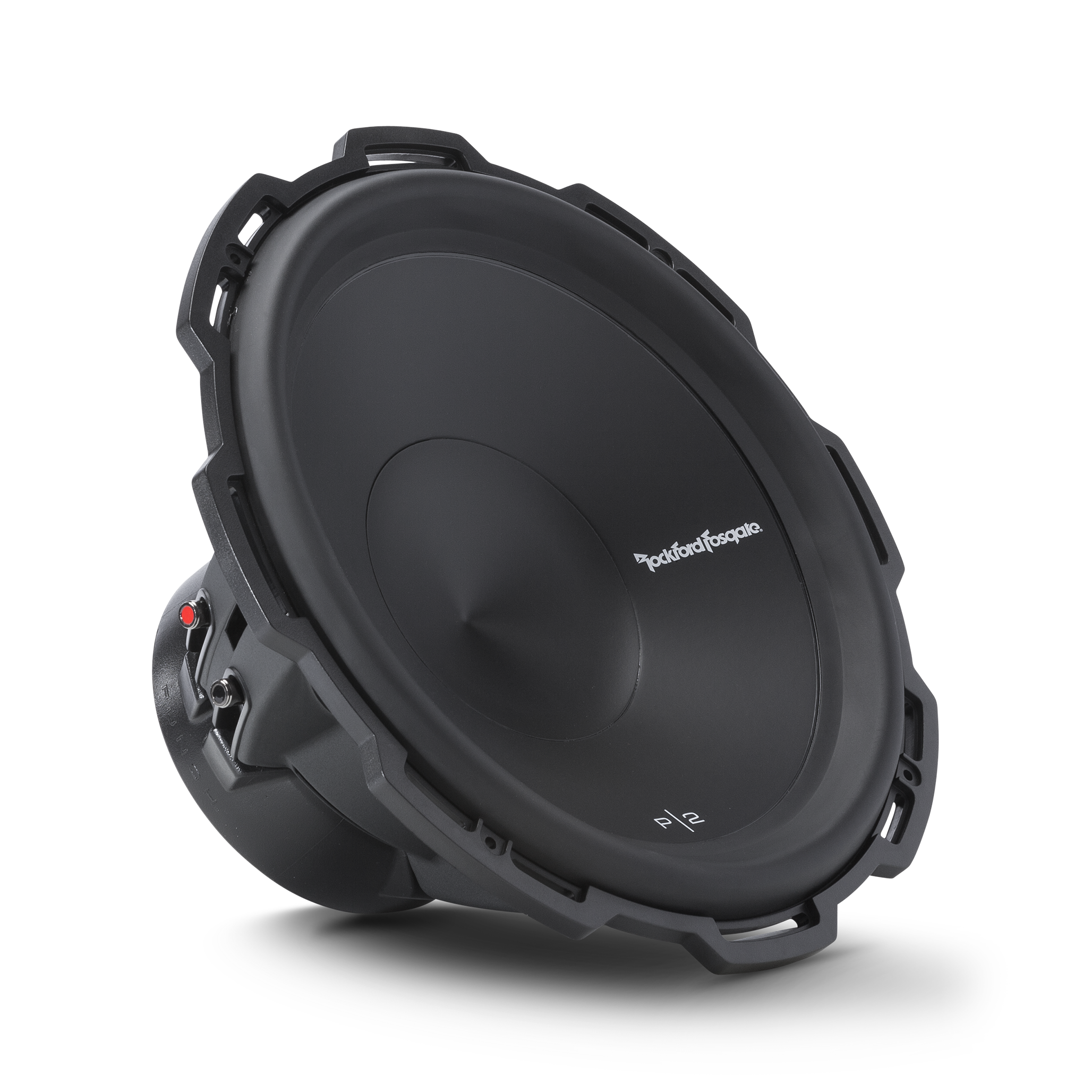

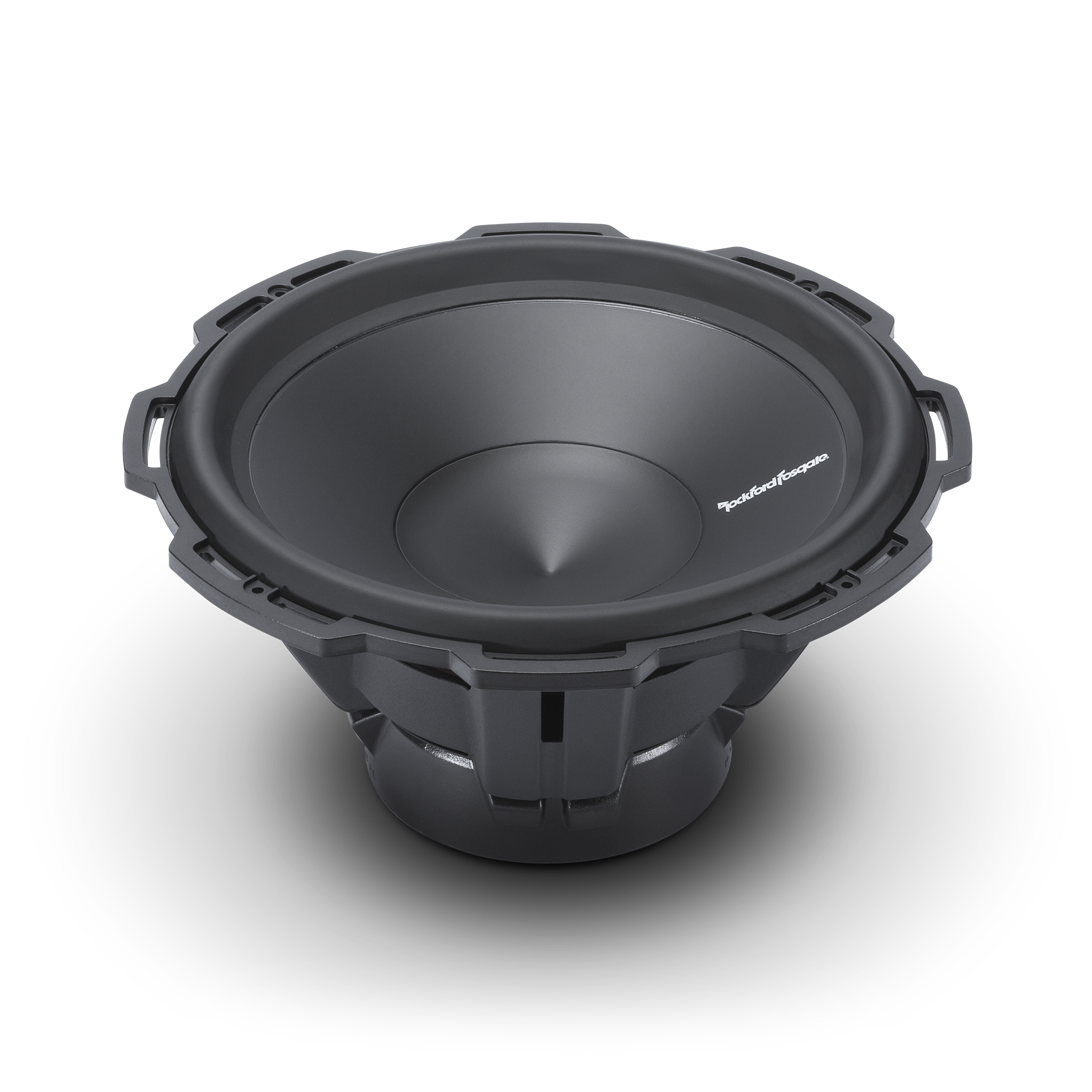

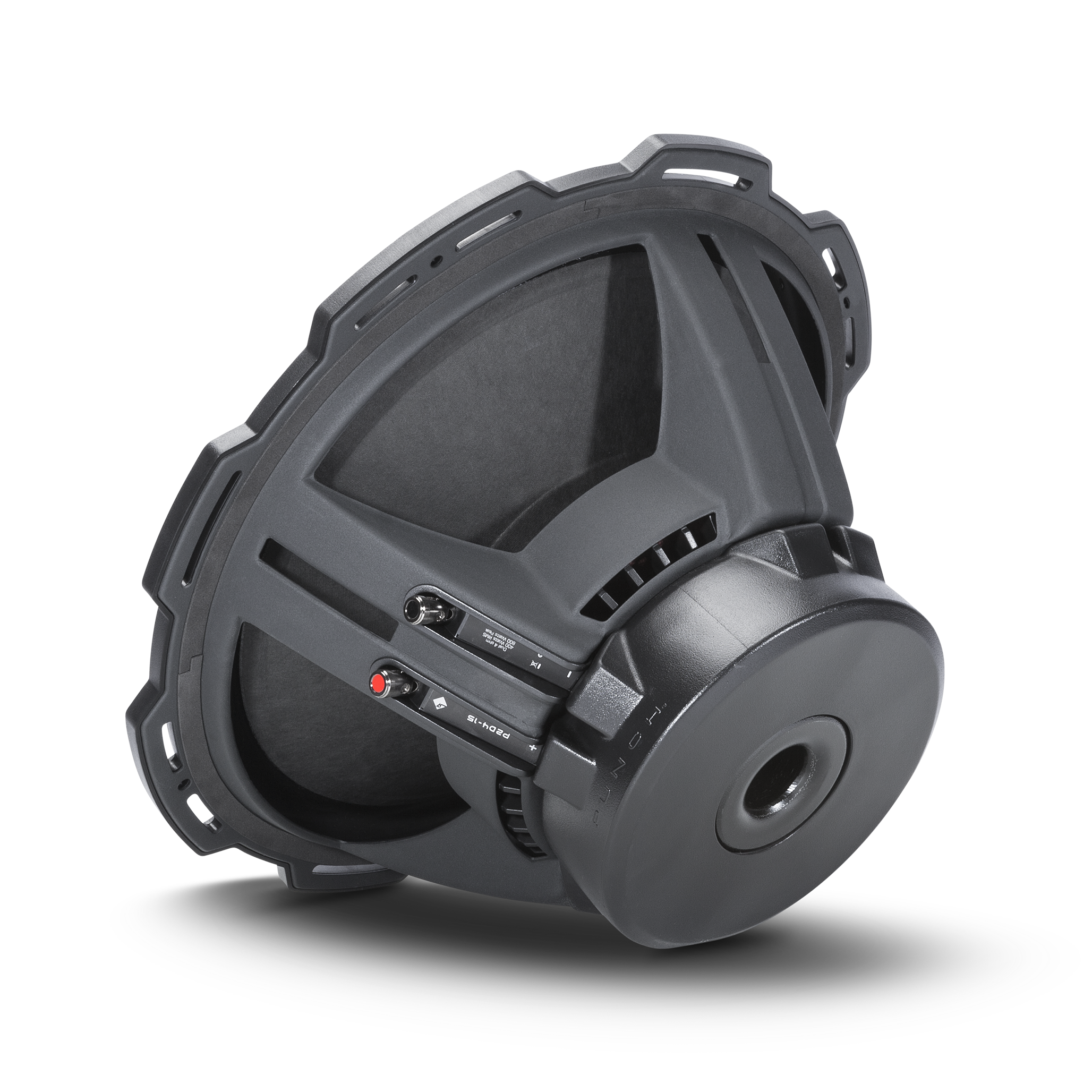

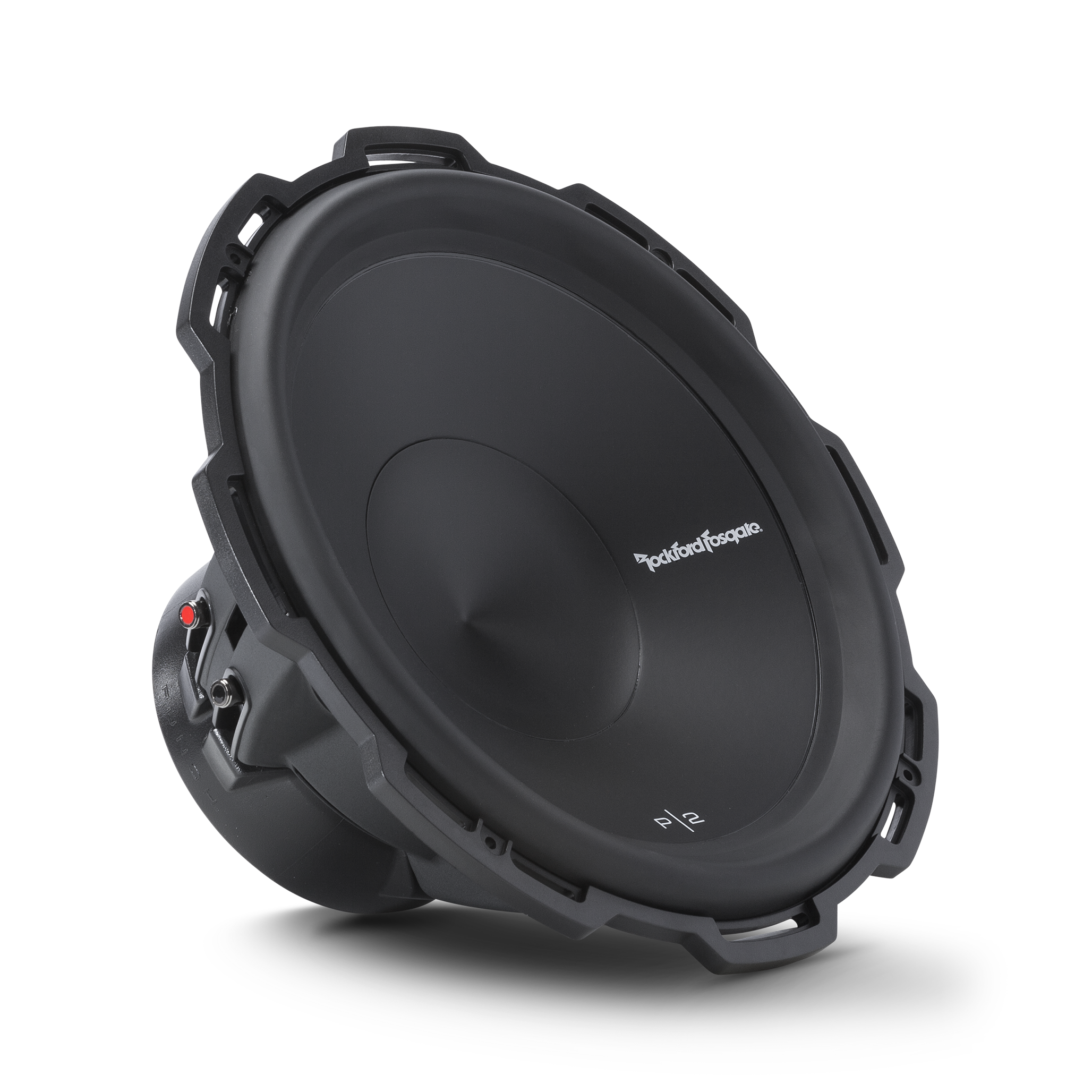

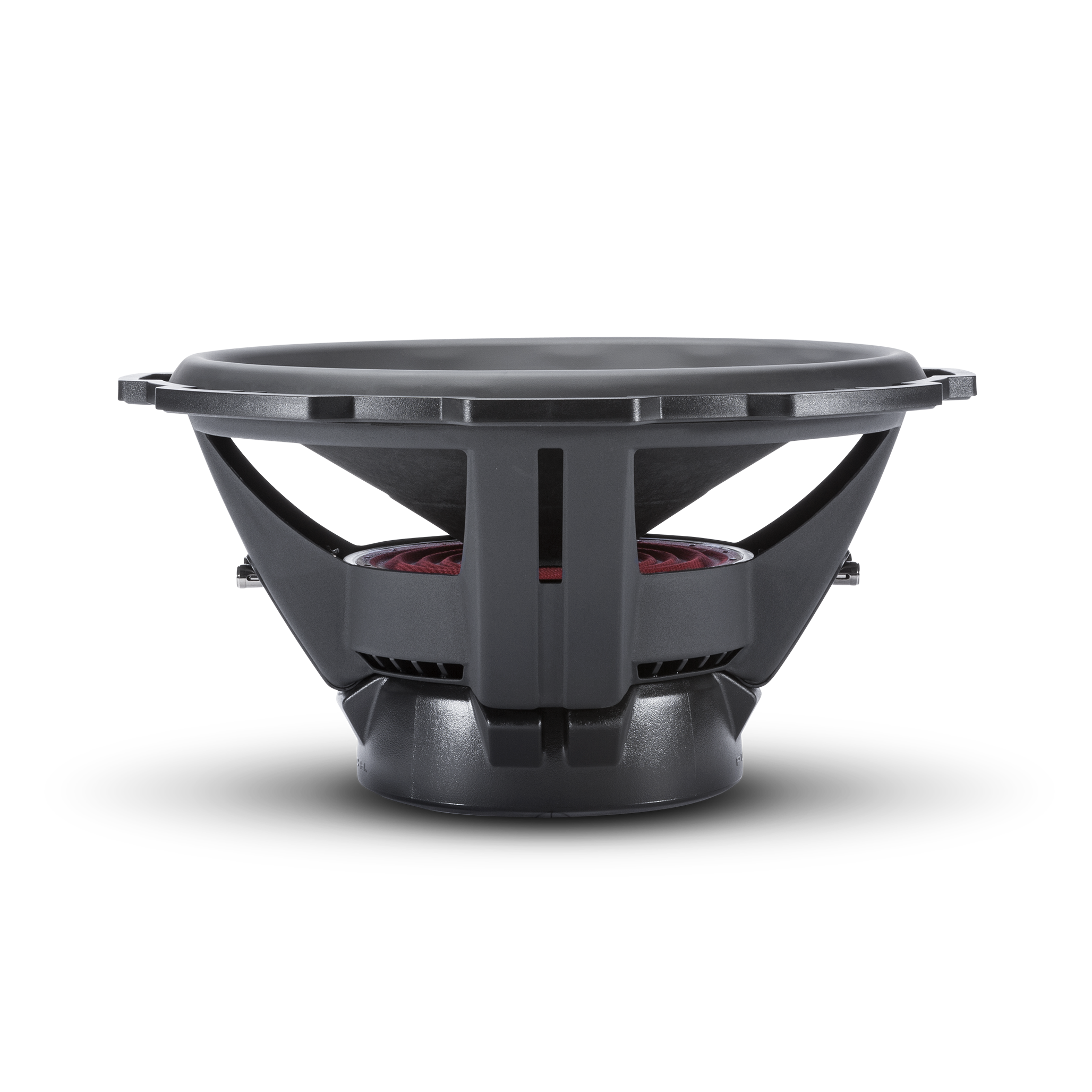

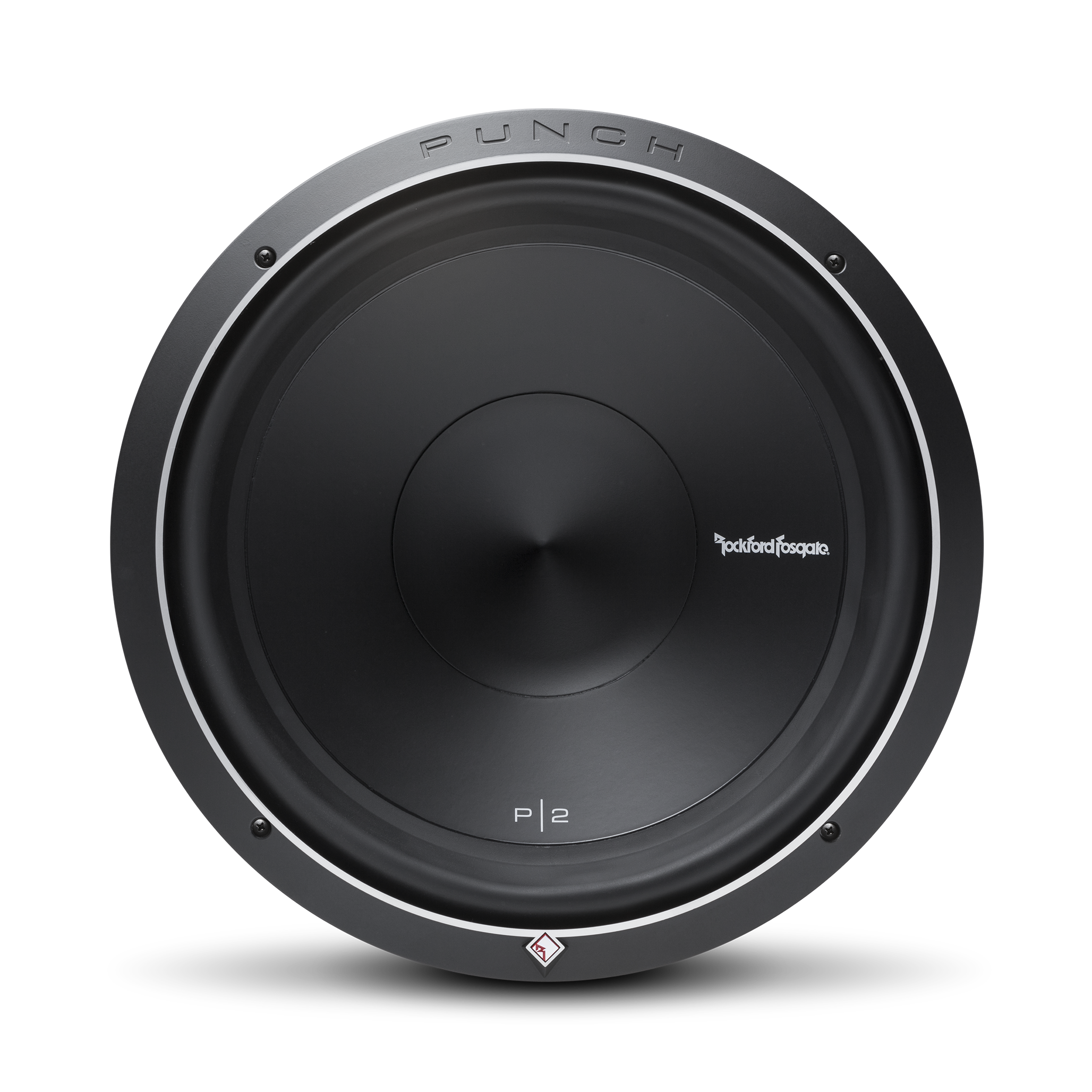

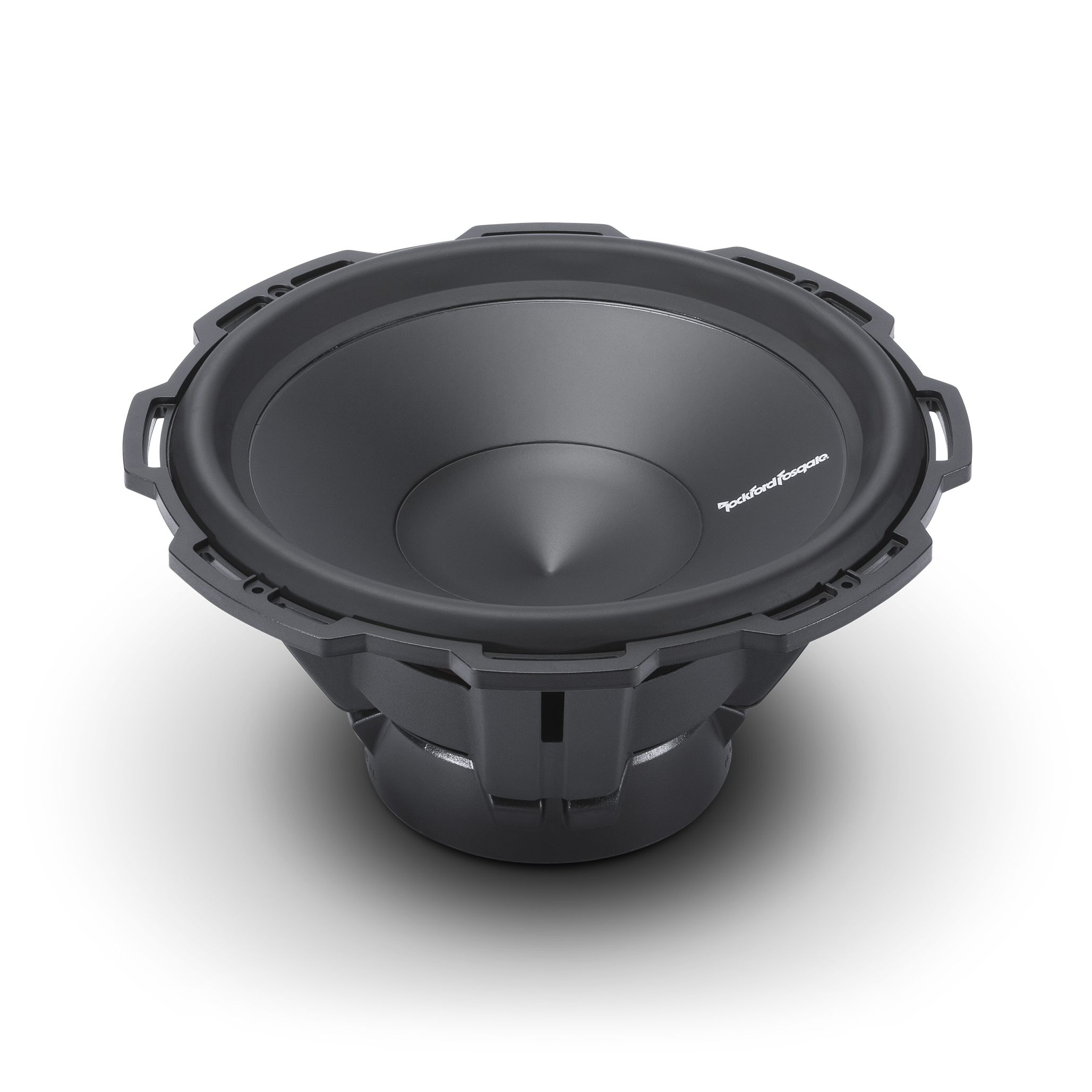

The Rockford Fosgate P2 15" subwoofer continues "The PUNCH" tradition. The P2D4-15 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Features
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Custom 10-AWG nickel plated push terminals

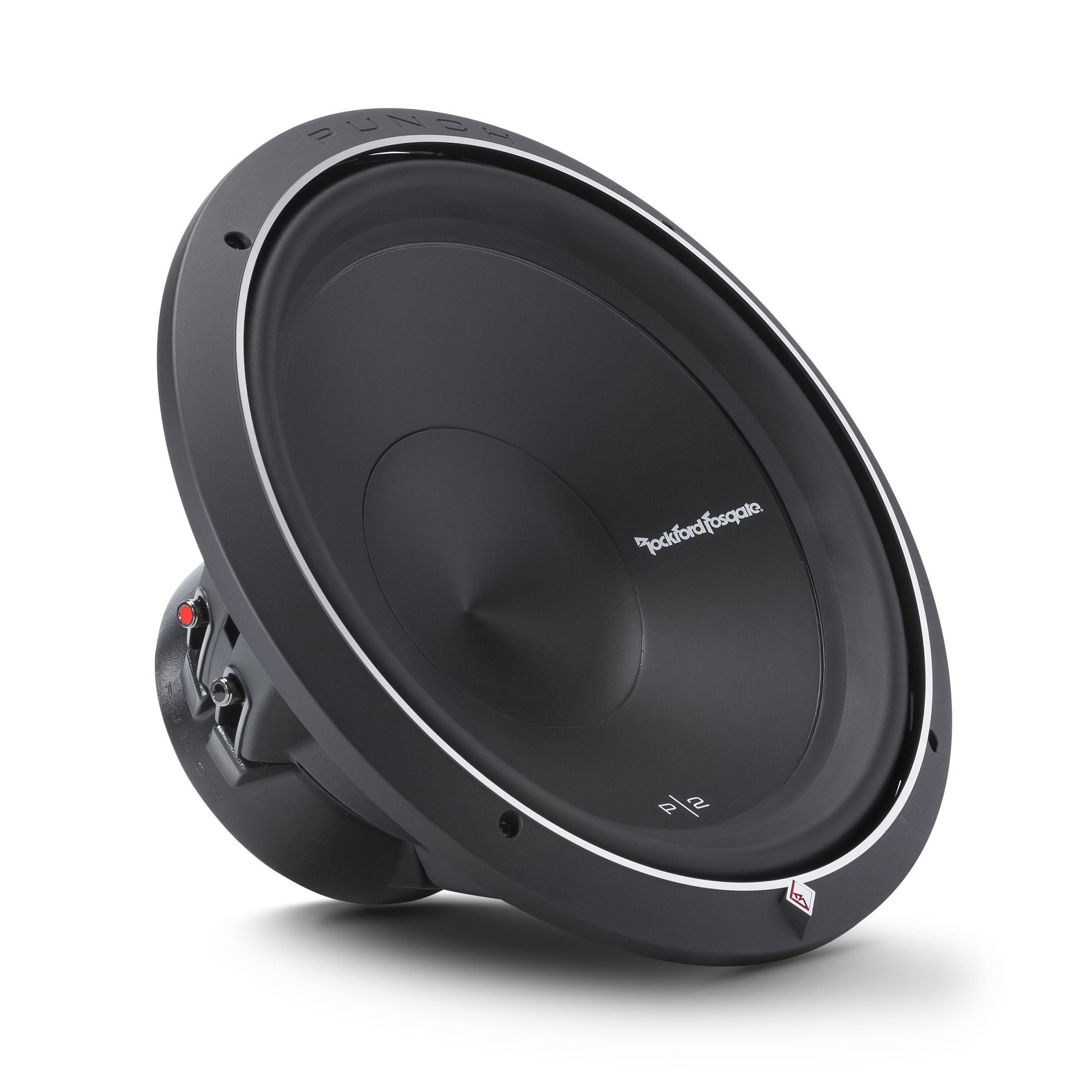

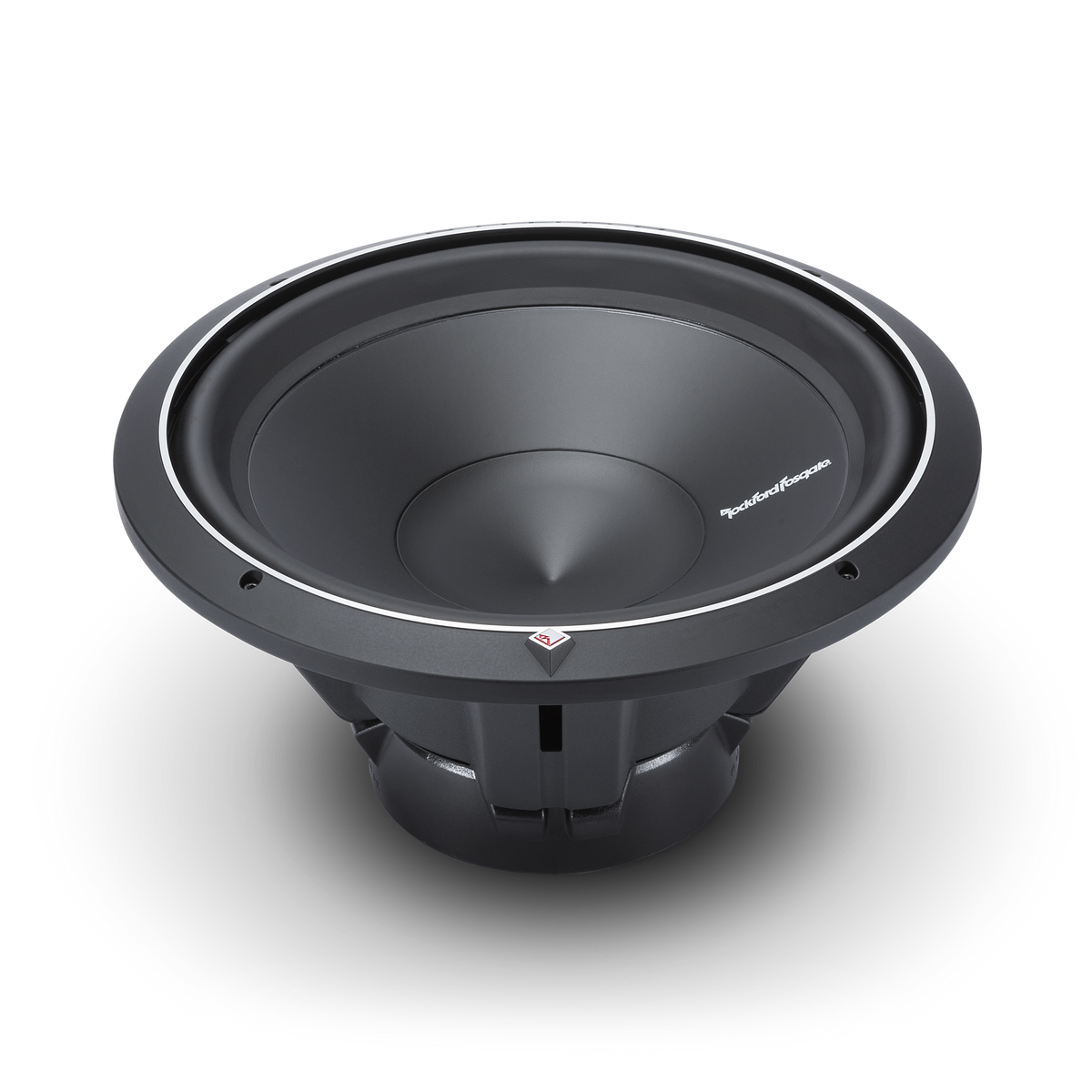

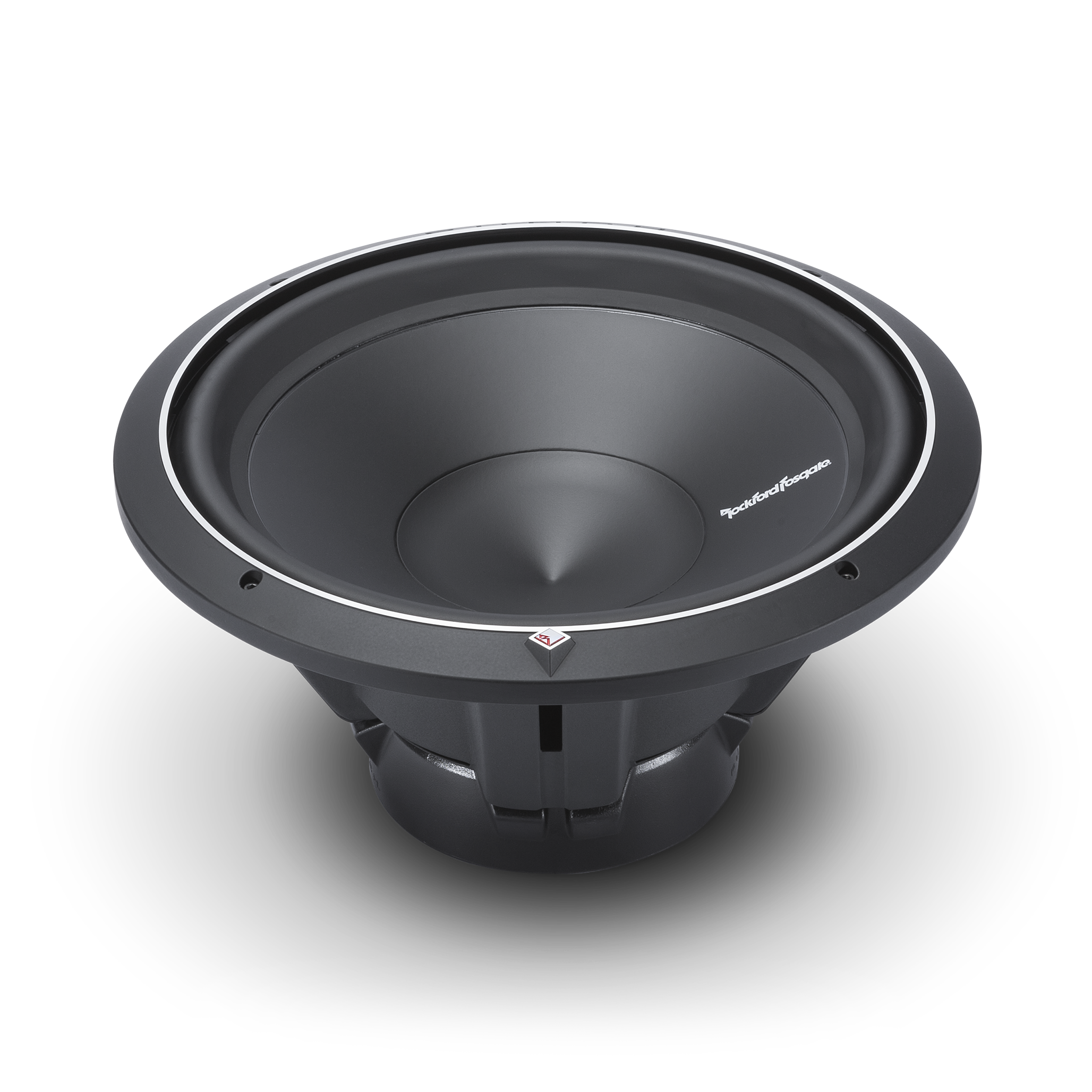

- Diamond cut cast aluminum trim ring with optional grille
- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
Specifications
- Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
- Mounting Depth: 7.34 in. (186.5 mm)
- Magnet Weight (oz): 81 oz. (2.30 kg.)
- Voice Coil Diameter: 2.25" (57.15 mm)
- Nominal Impedance: Dual 4-Ohm
- Size: 15"
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 17.9 Lbs. (8.11 kg)
- SPL (dB @ 1w/1m): 86
- Cutout Diameter: 13.9 in. (353 mm)
- Re (Ohms): 6.4
- Le (mH): 5.4
- Fs (Hz): 20.9
- Qts: 0.66
- Qes: 0.74
- Qms: 5.7
- Vas (Liters): 219.6
- Woofer Displacement: 0.134 cu. ft. (3.8 Liters)
- Xmax (mm): 12.2
- Sd (cm2): 894
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
