P2D4-12
P2D4-12
P2D4-12
Overview

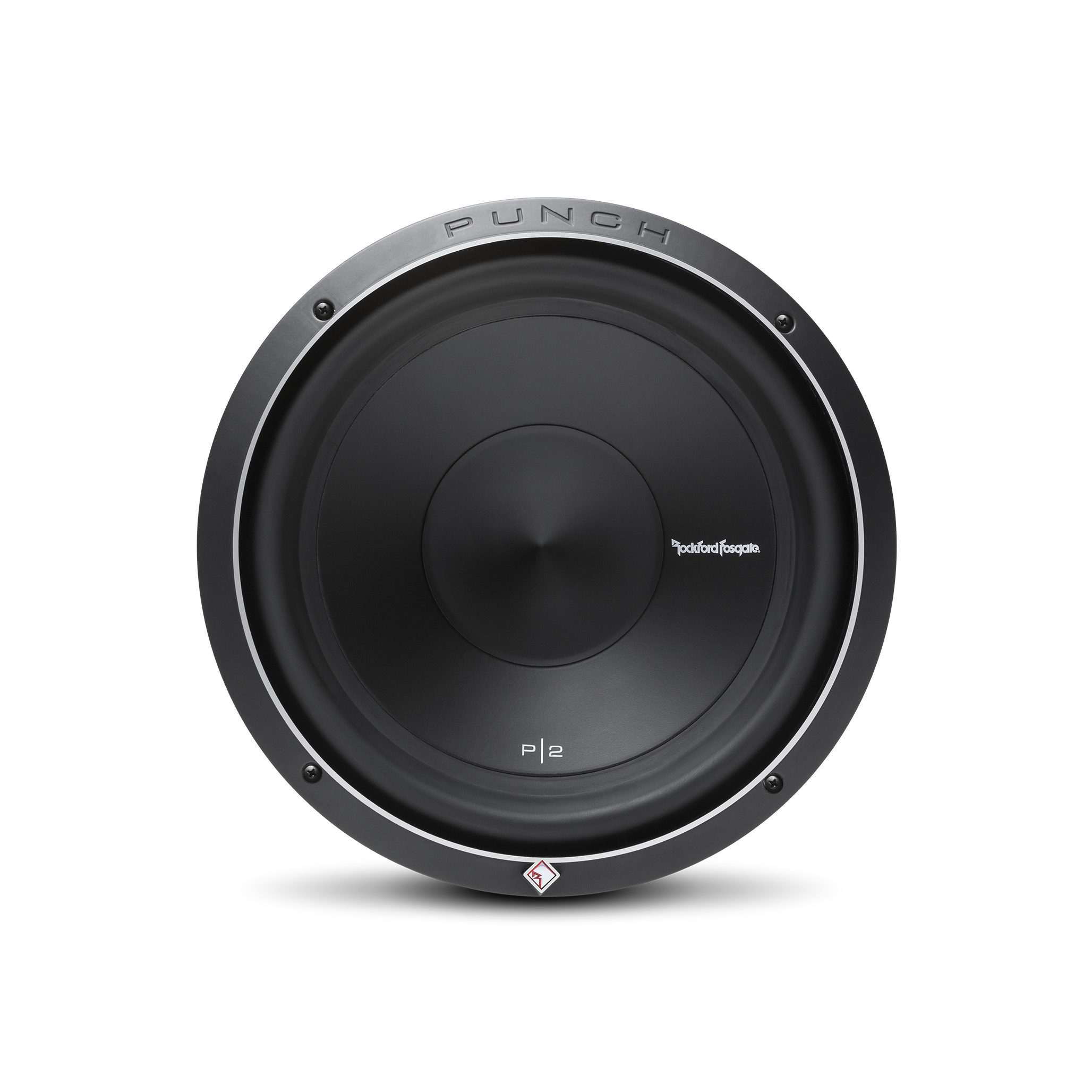

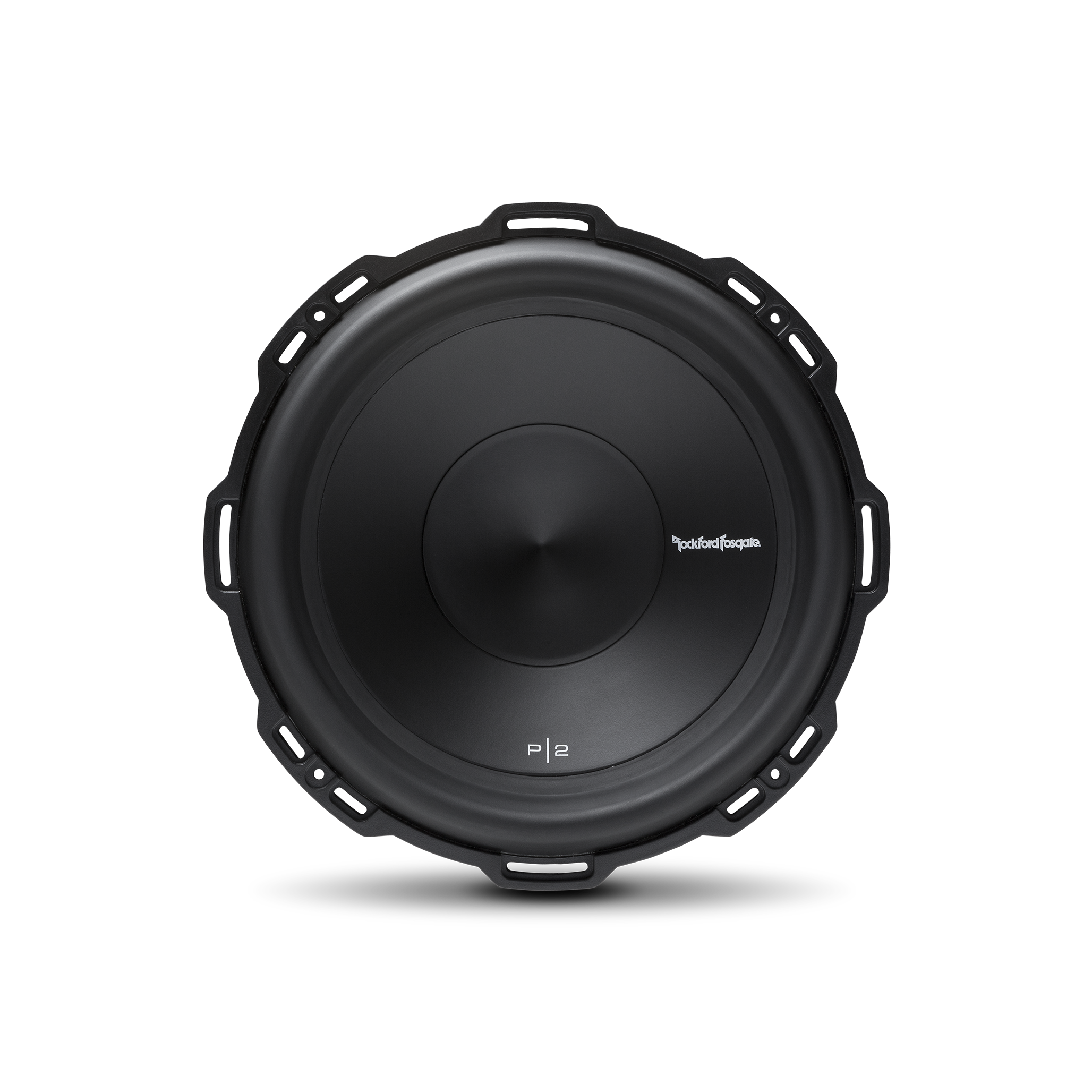

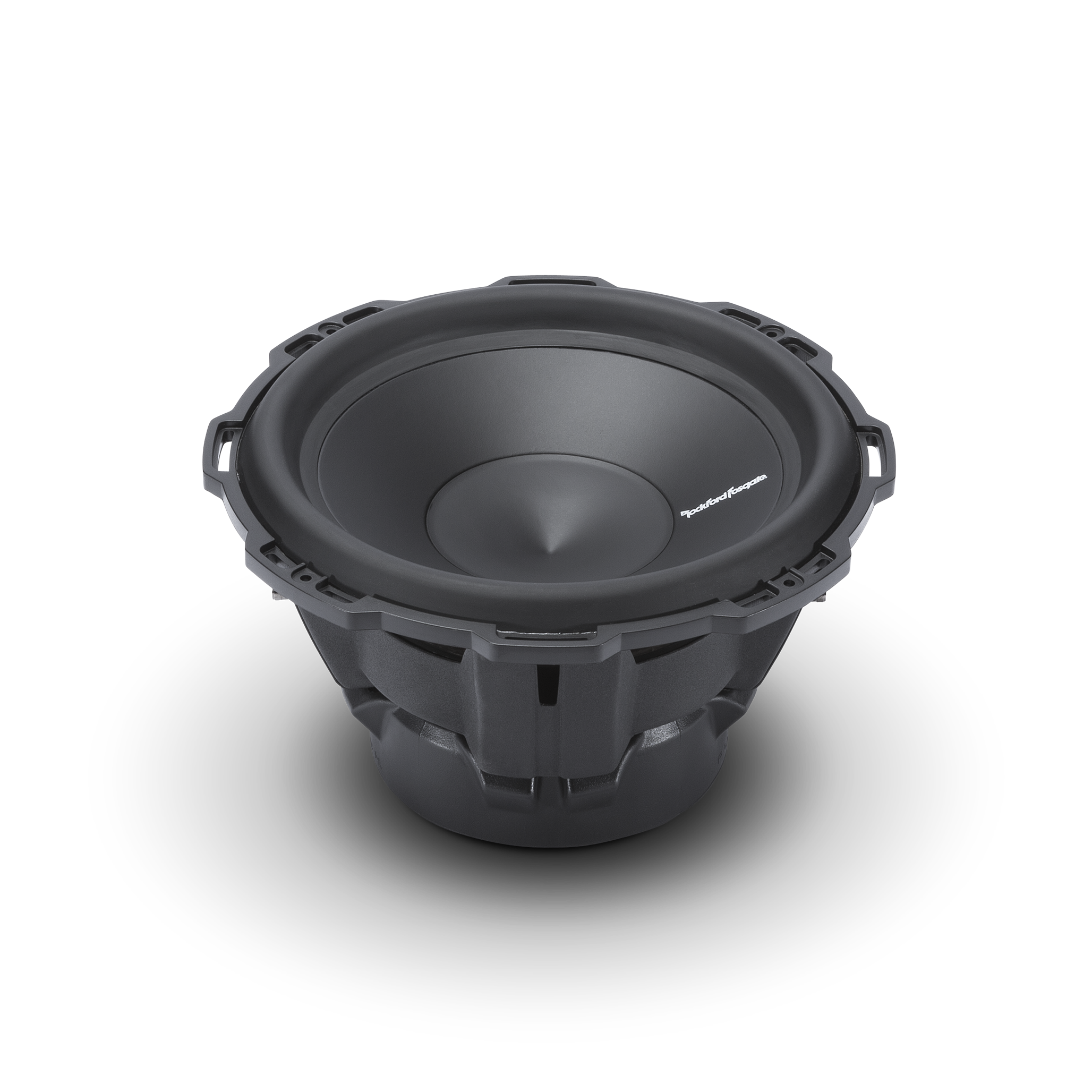

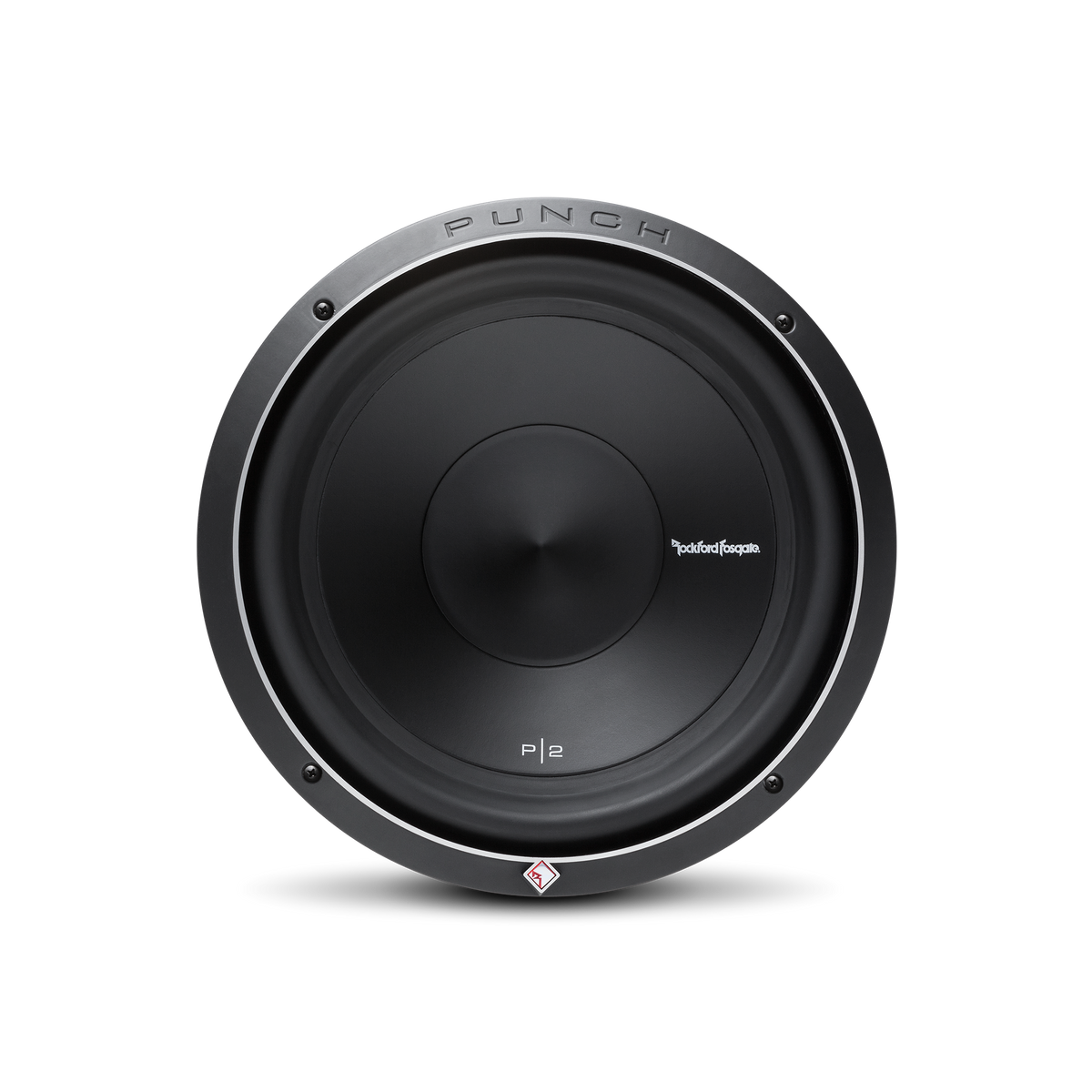

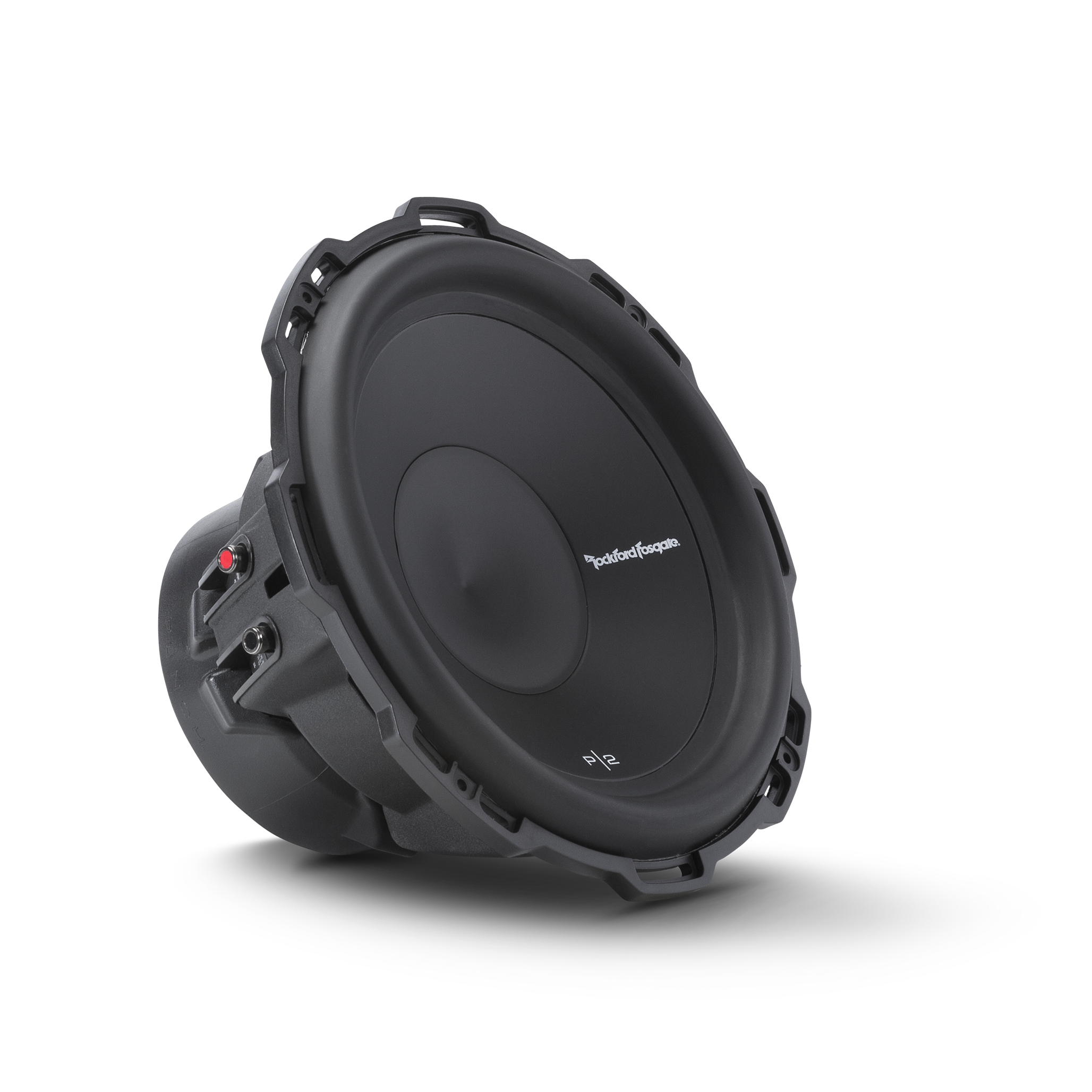

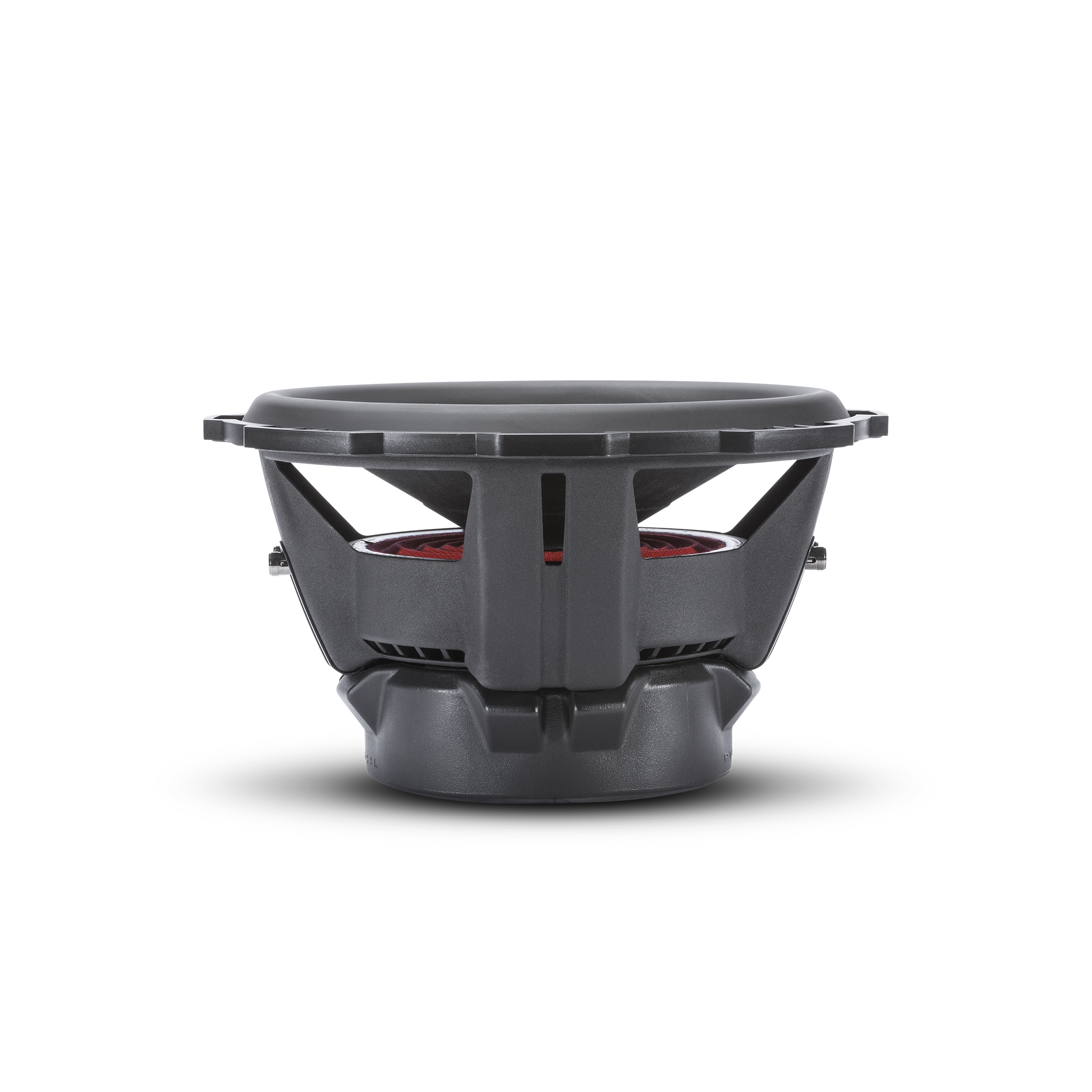

The Rockford Fosgate P2 12" subwoofer continues "The PUNCH" tradition. The P2D4-12 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Features
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Custom 10-AWG nickel plated push terminals

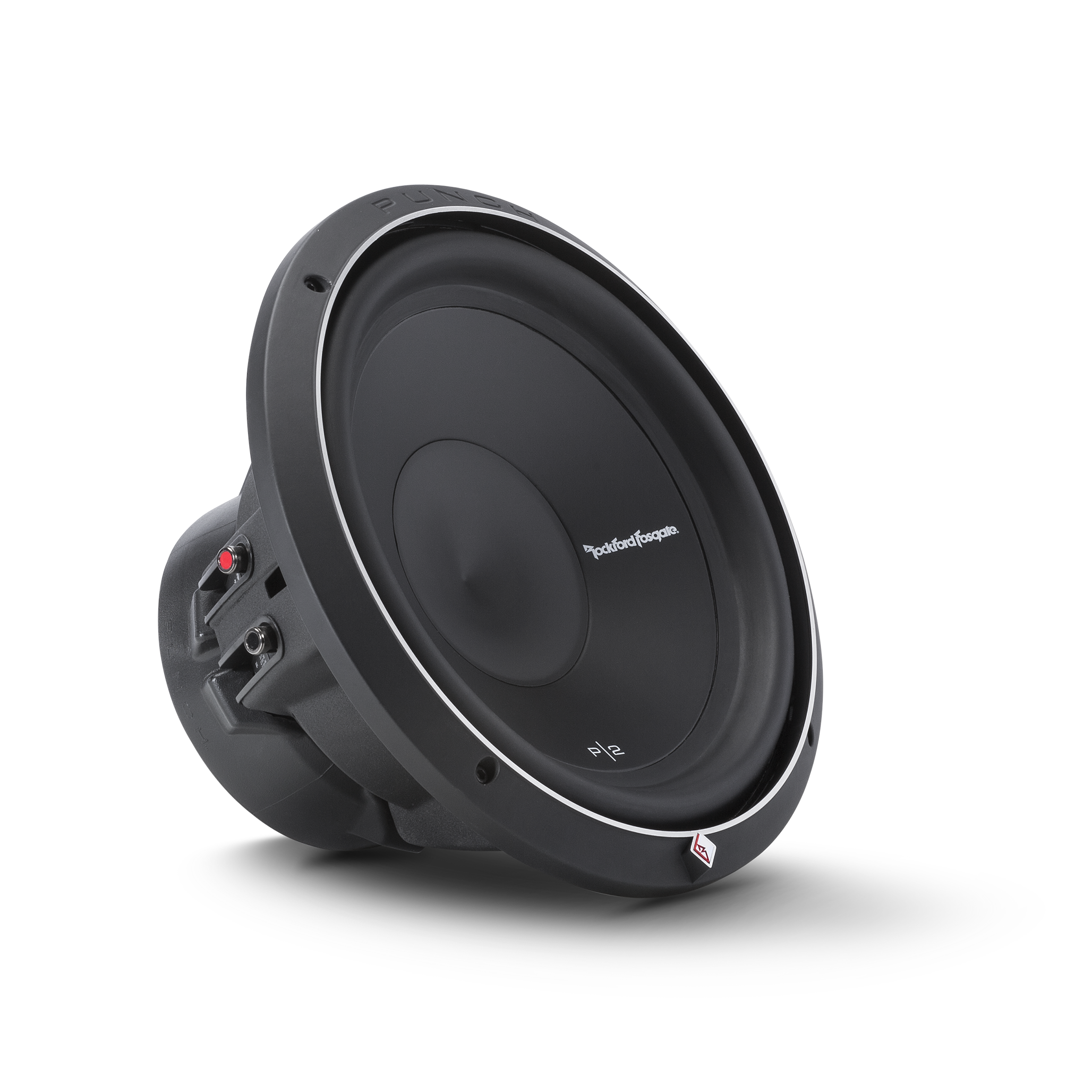

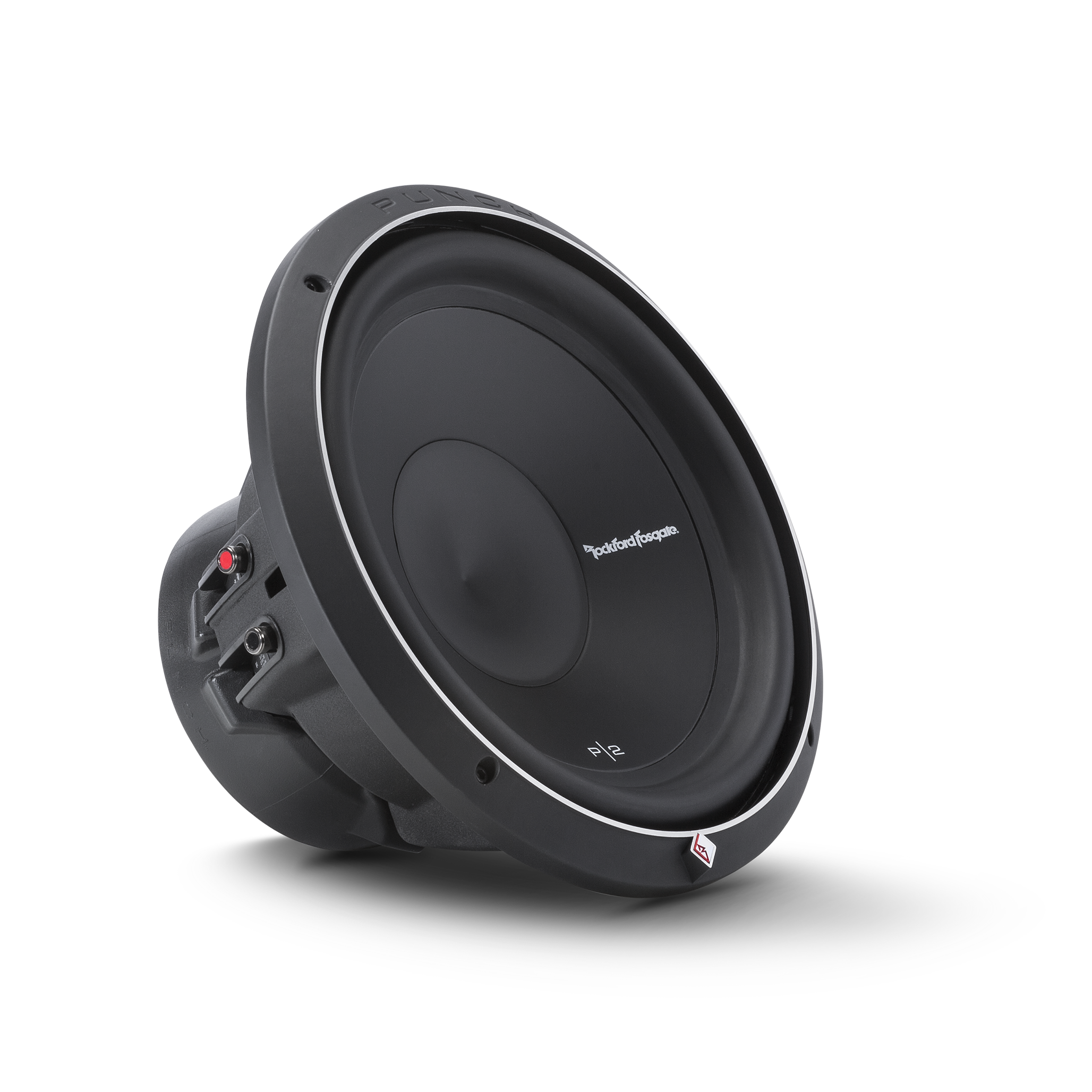

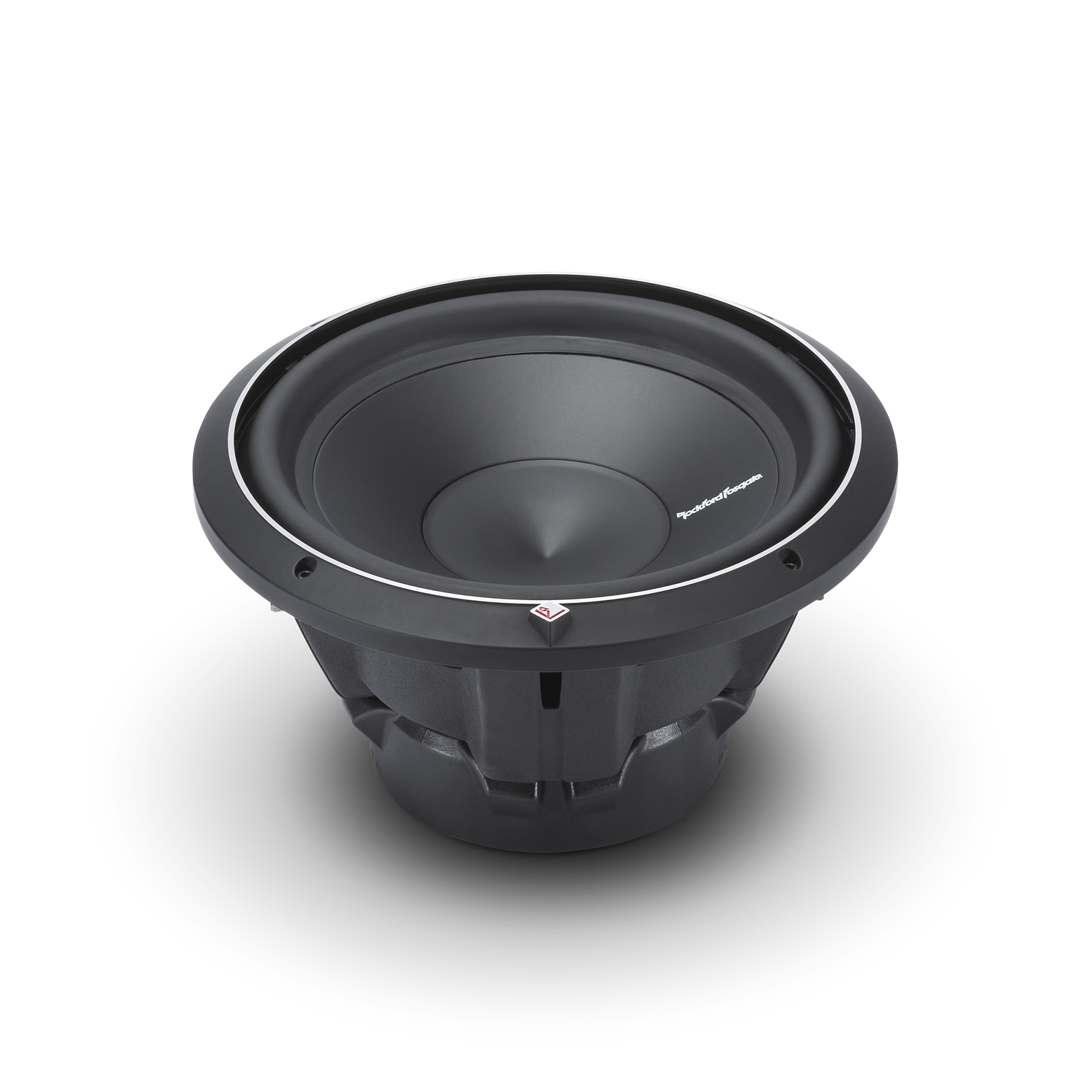

- Diamond cut cast aluminum trim ring with optional grille
- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
Specifications
- Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
- Nominal Impedance: Dual 4-Ohm
- Size: 12"
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 15.6 Lbs. (7.07 kg)
- Cutout Diameter: 11.22 in. (285 mm)
- Re (Ohms): 6.4
- Qes: 0.59
- Qms: 6.3
- Mounting Depth: 6.40 in. (162 mm)
- SPL (dB @ 1w/1m): 86
- Voice Coil Diameter: 2.25" (57.15 mm)
- Fs (Hz): 27.2
- Qts: 0.54
- Vas (Liters): 81.5
- Xmax (mm): 13.3
- Le (mH): 5.5
- Woofer Displacement: 0.085 cu. ft. (2.4 Liters)
- Magnet Weight (oz): 72.8 oz. (2.06 kg.)
- Sd (cm2): 570
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
