Overview

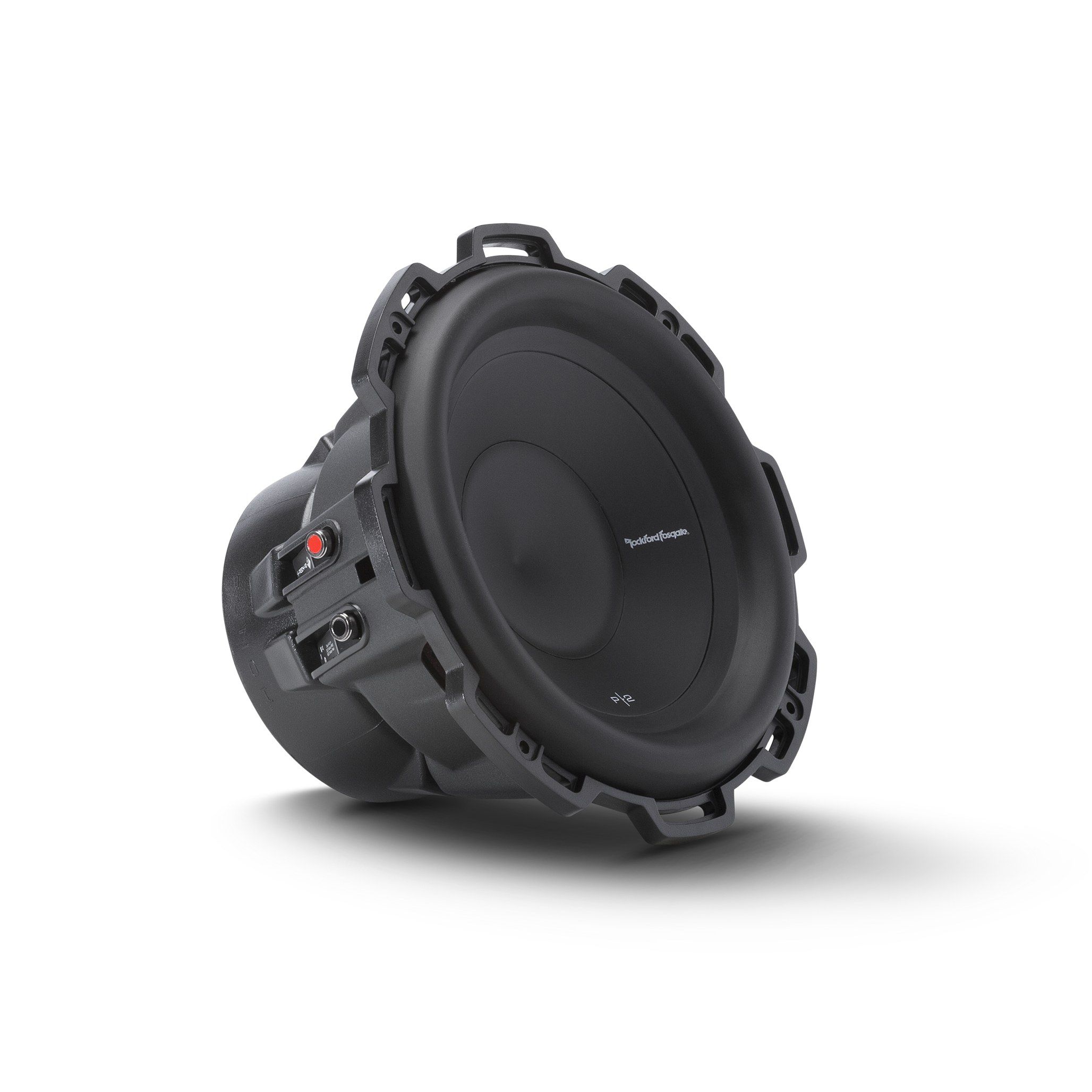

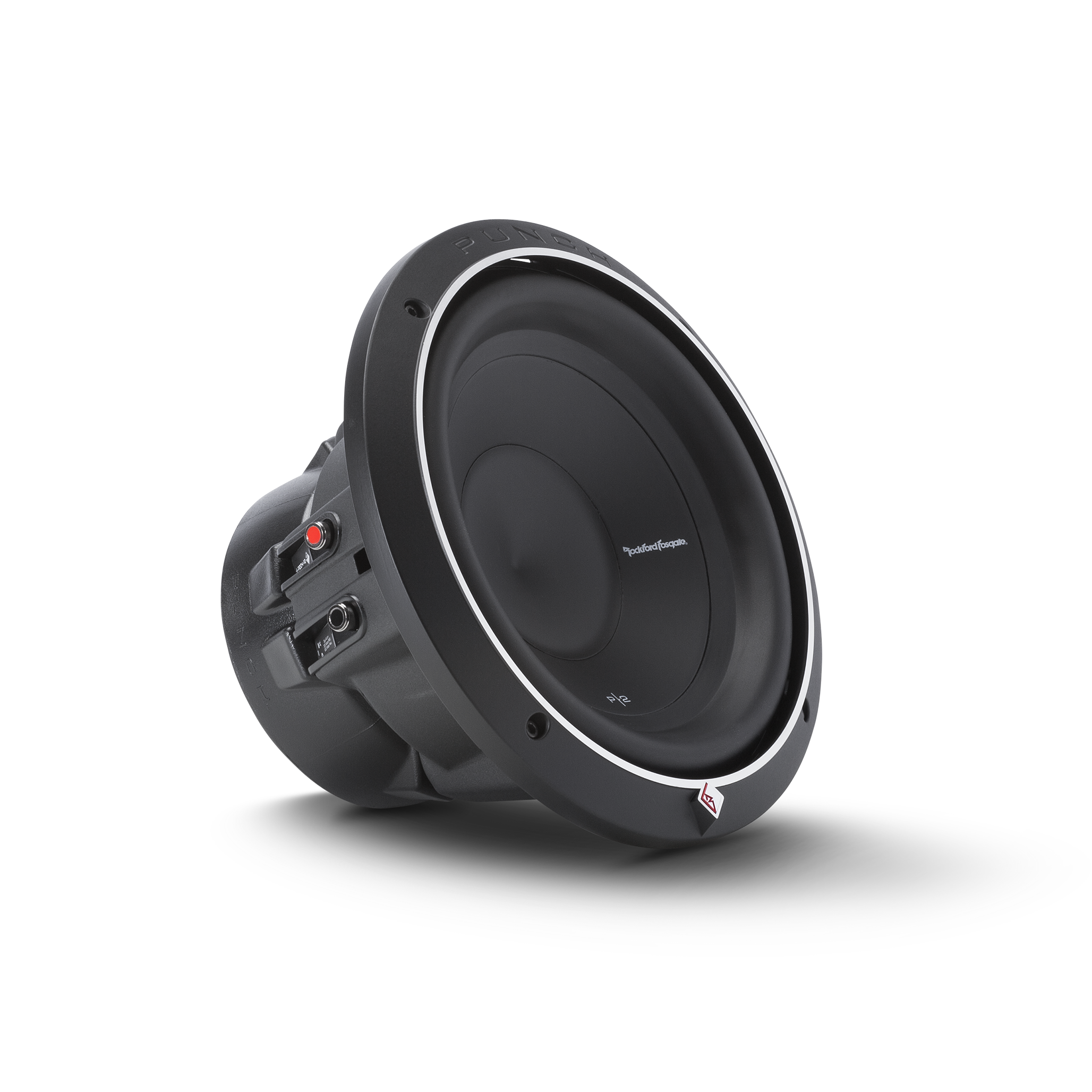

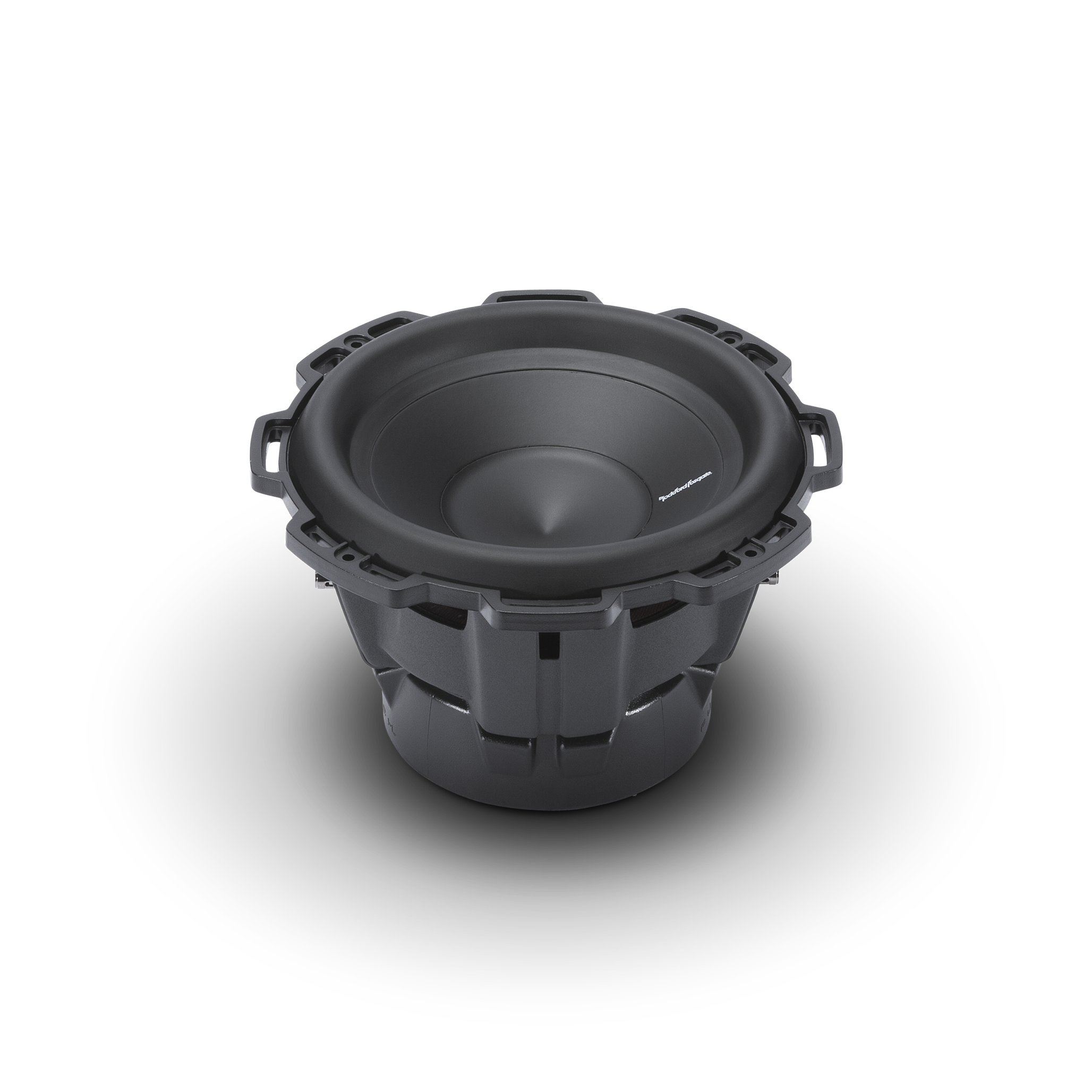

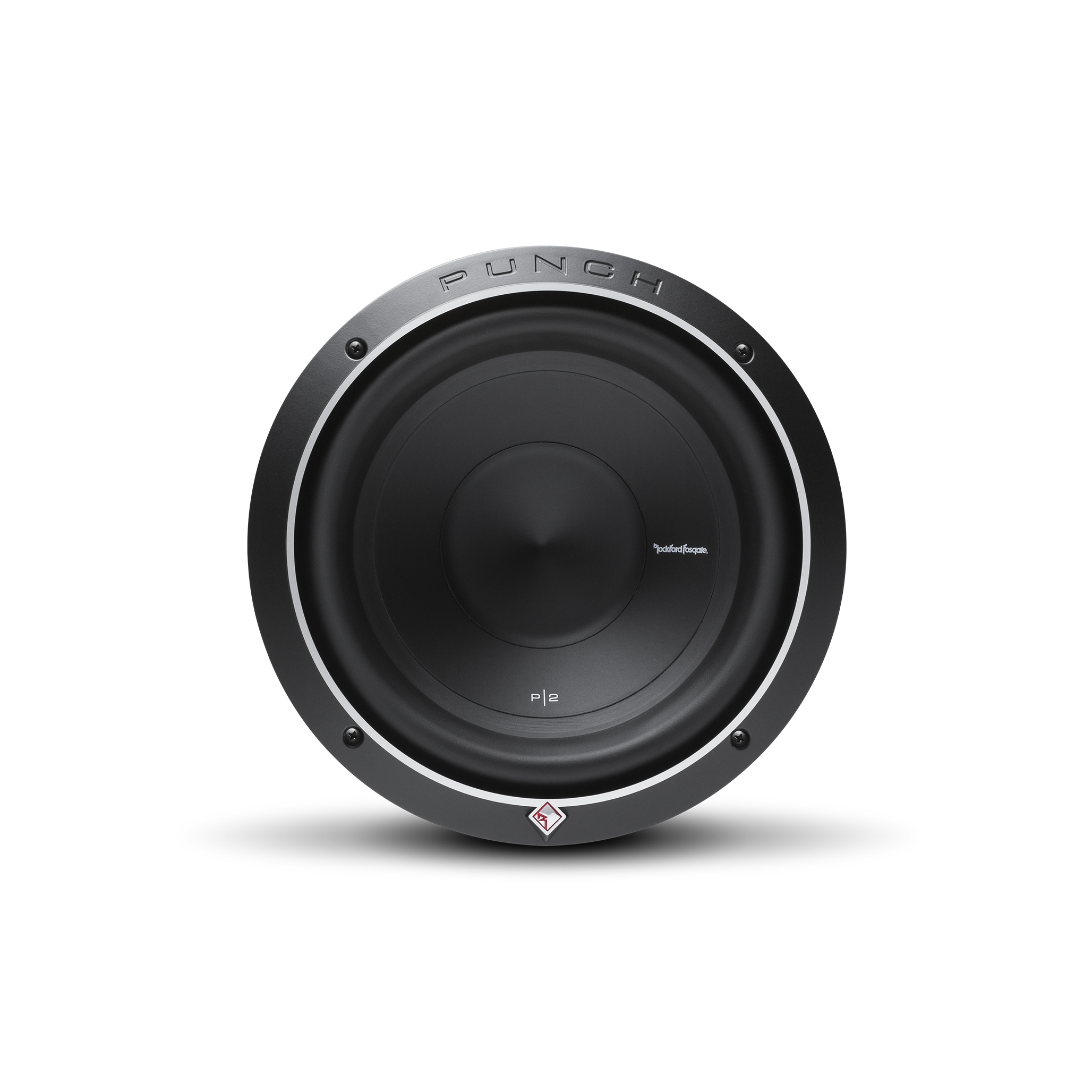

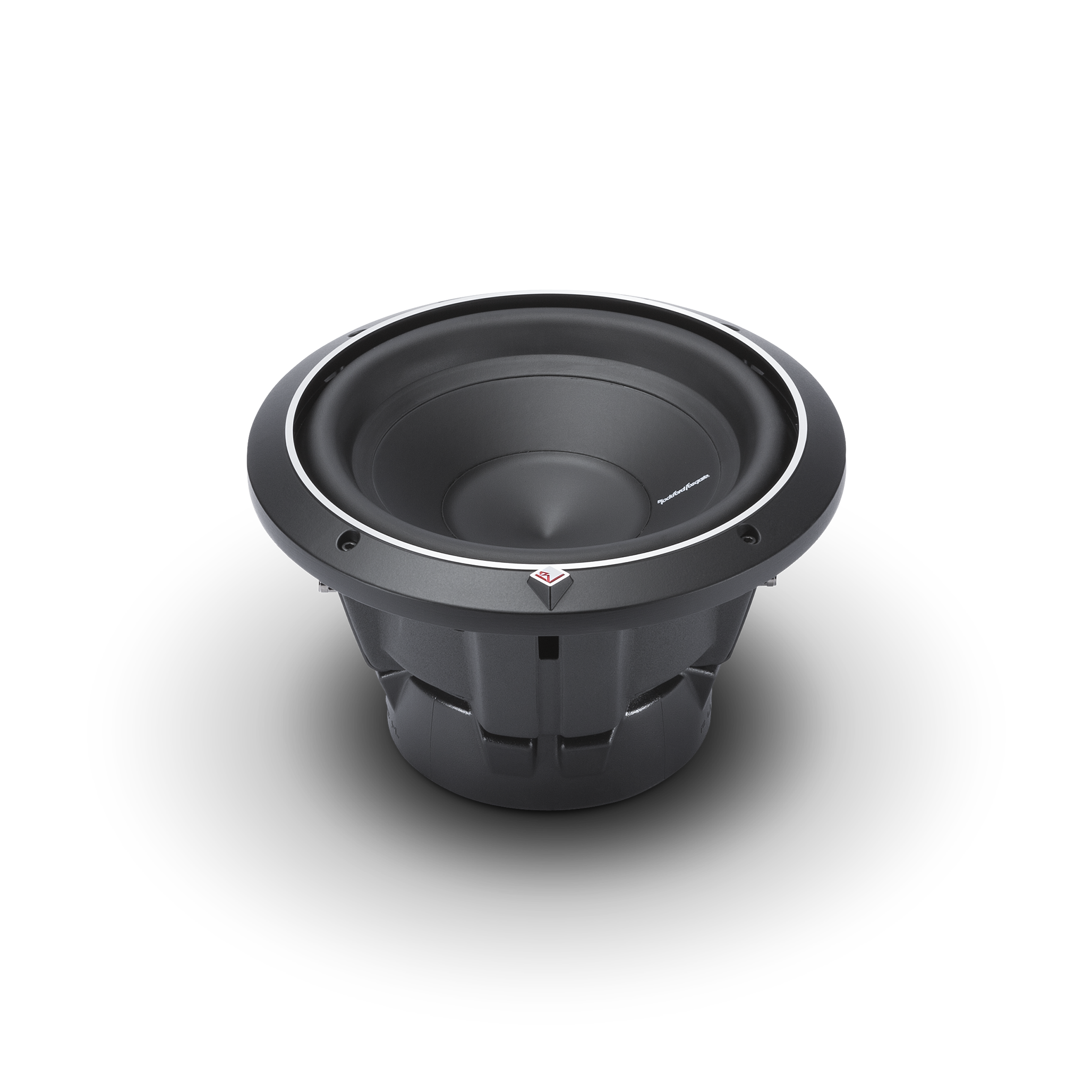

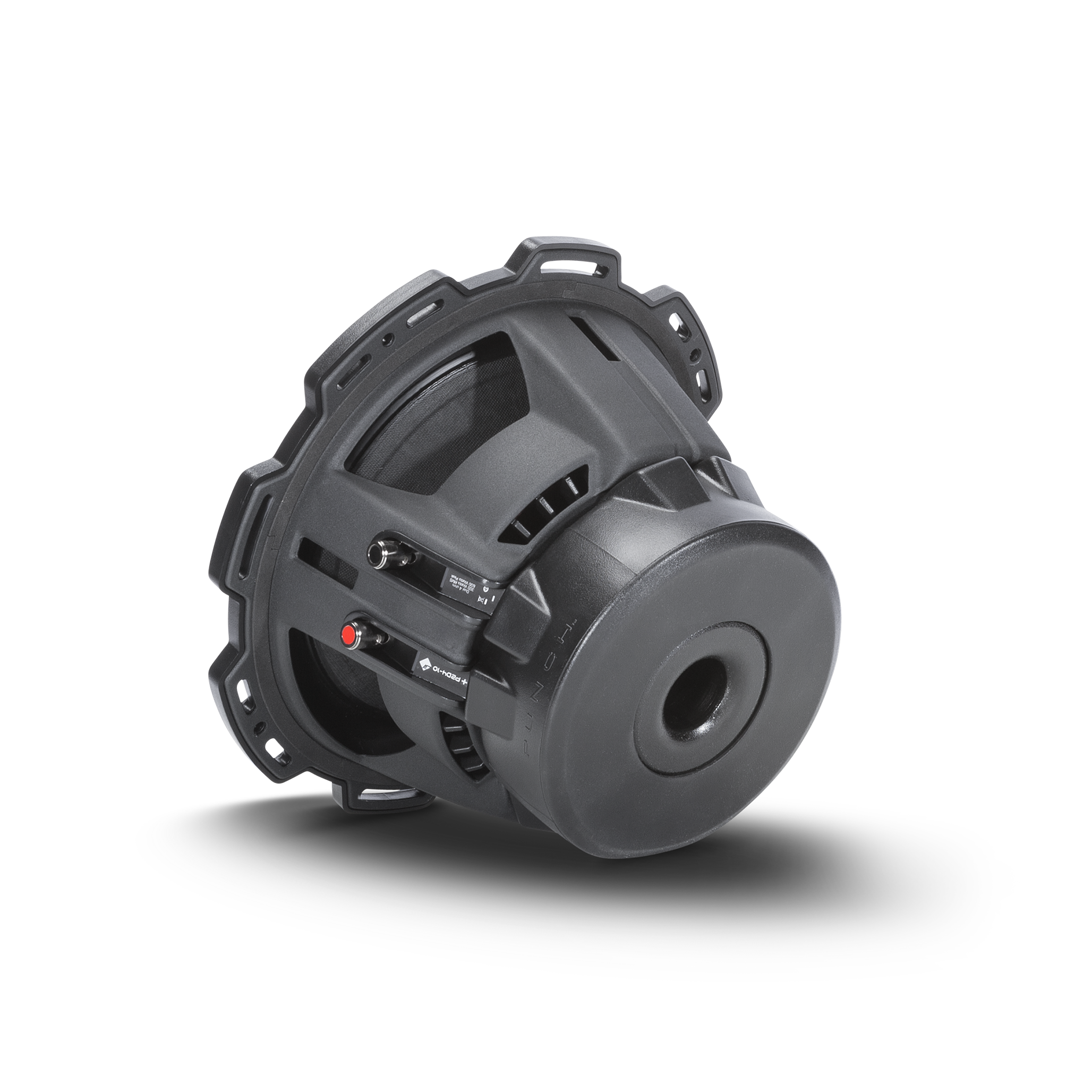

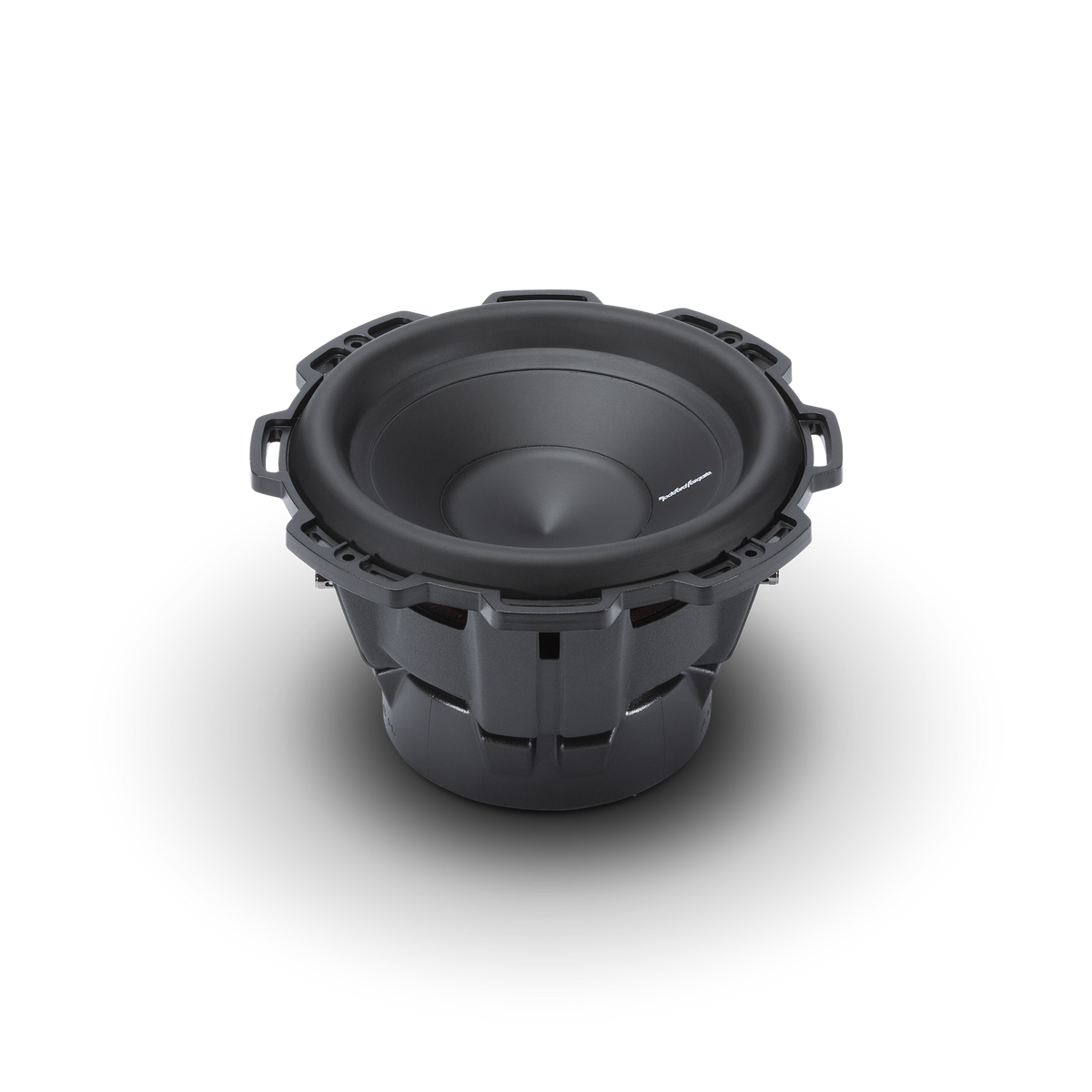

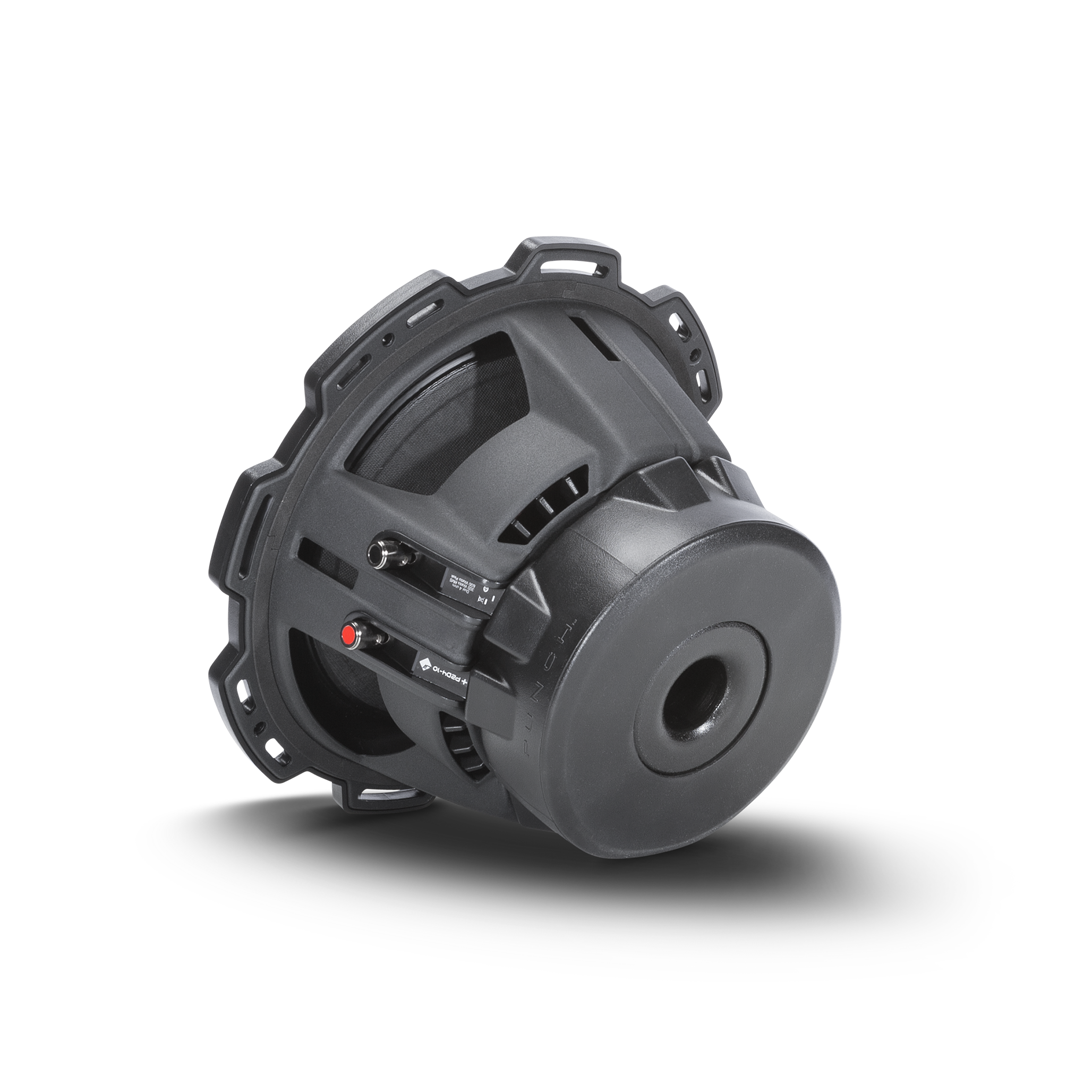

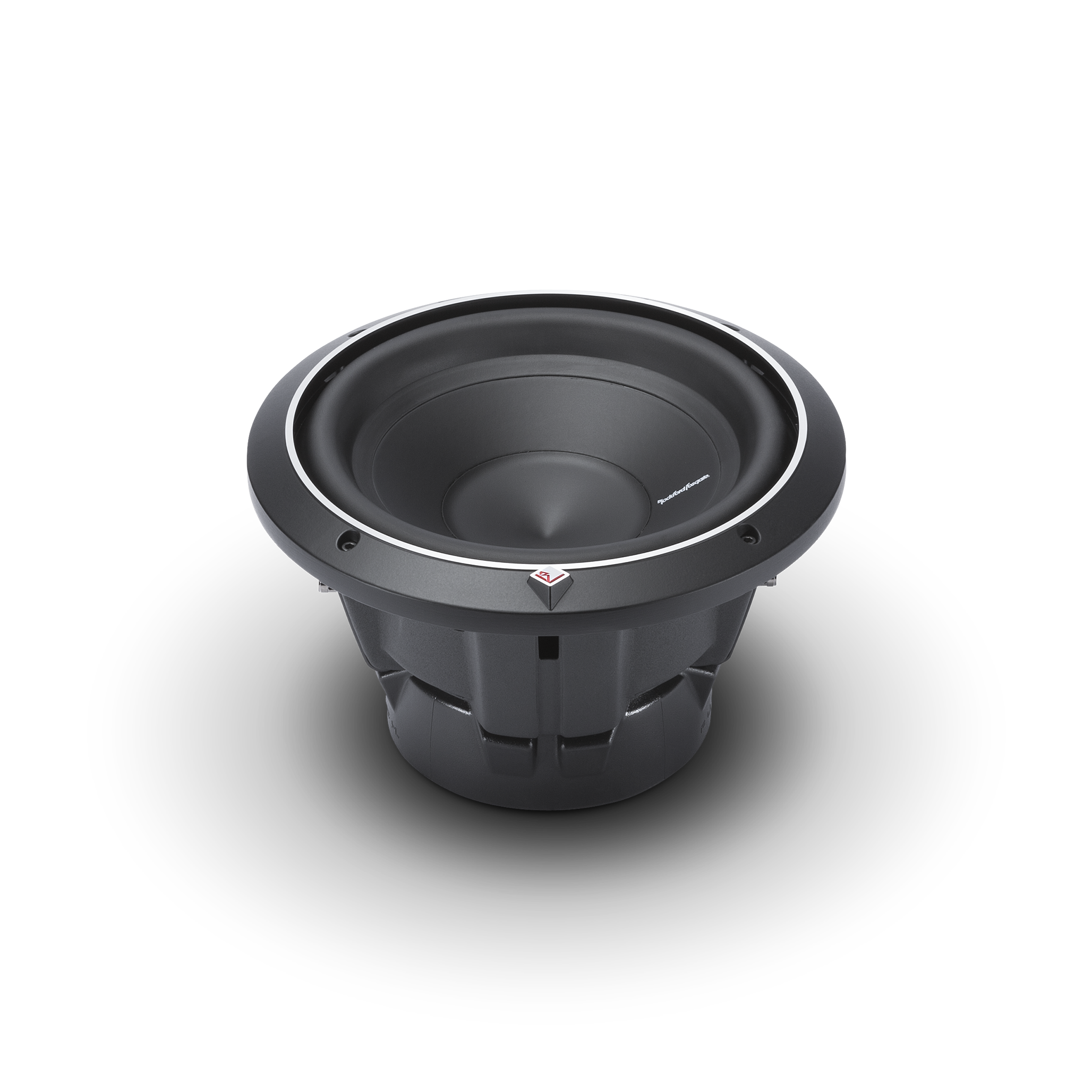

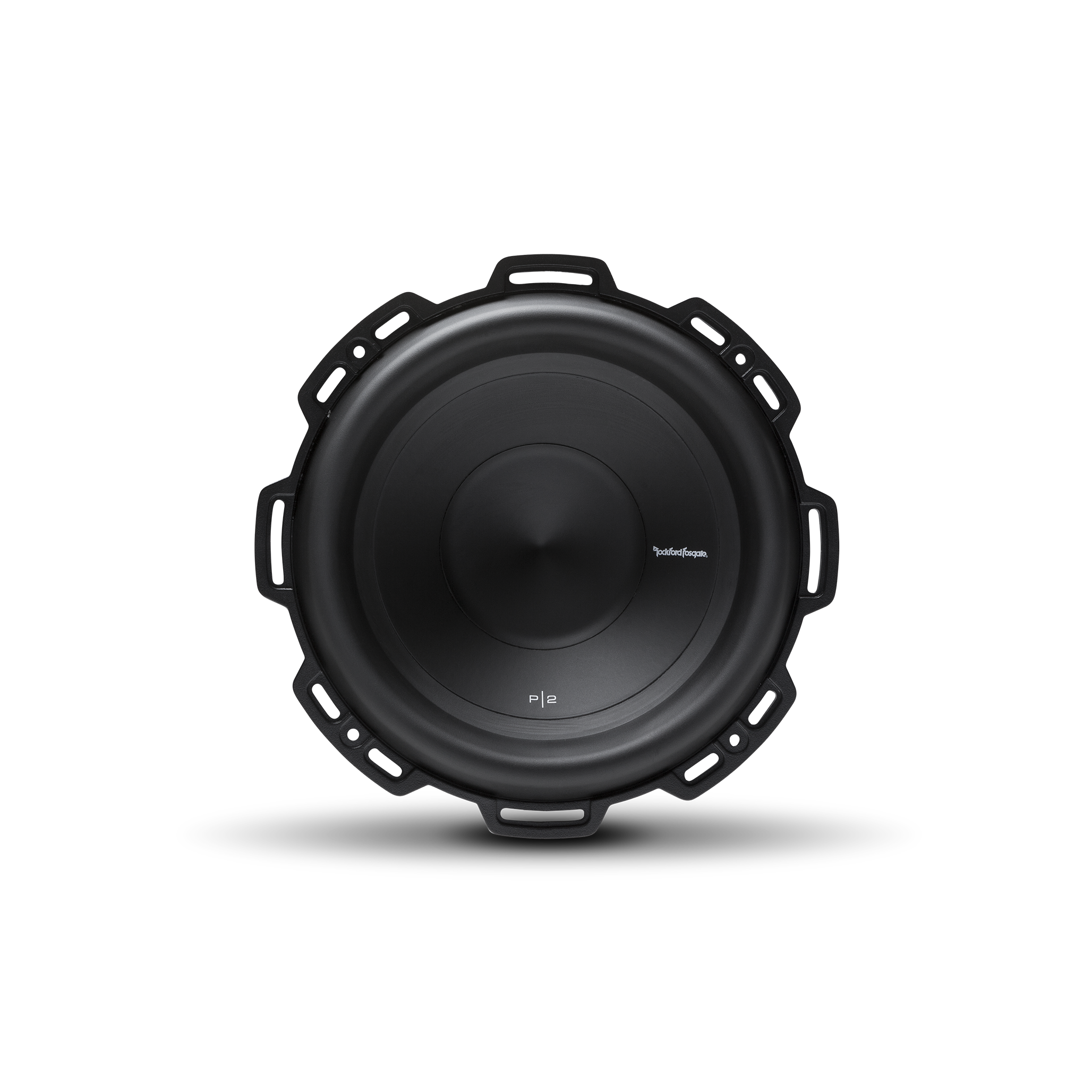

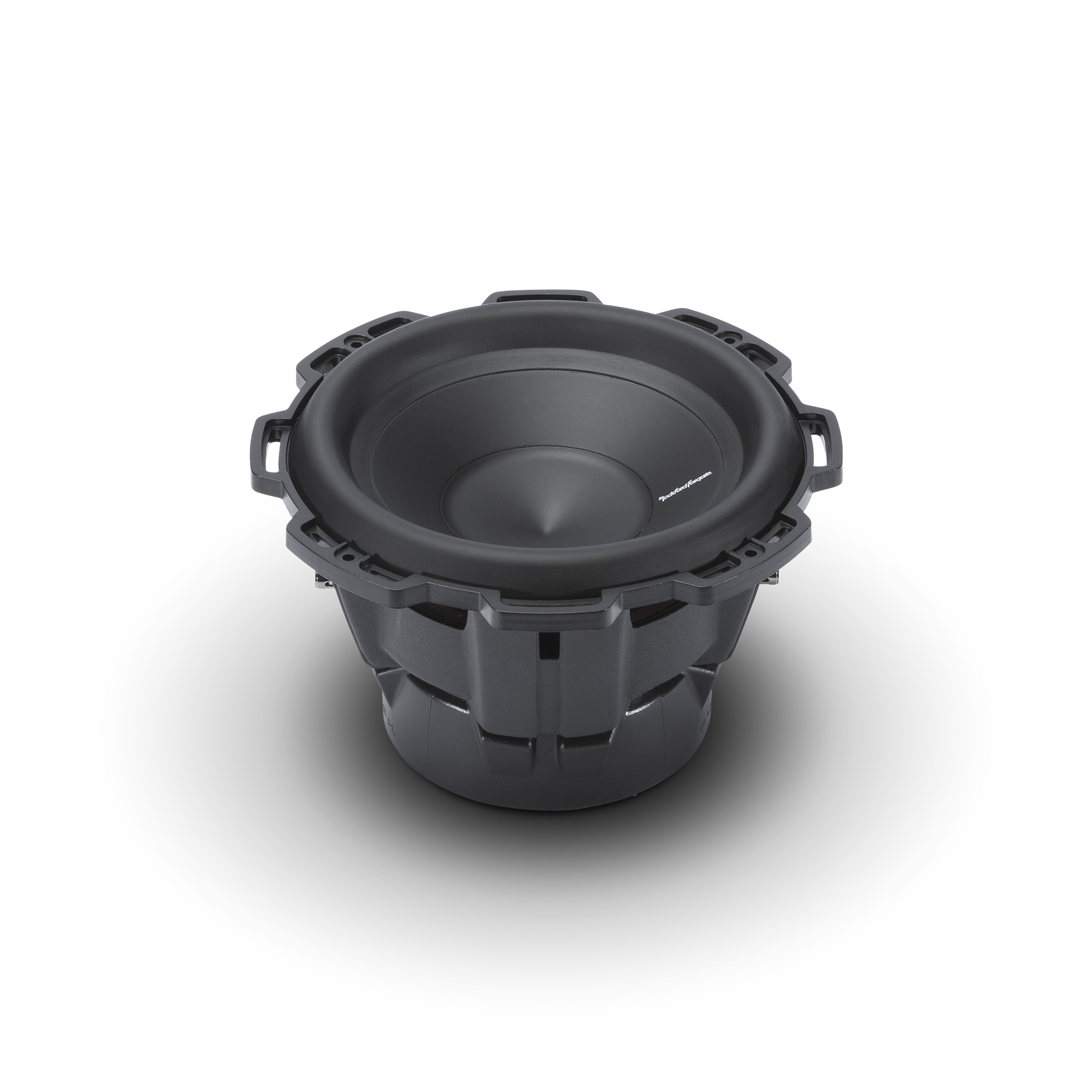

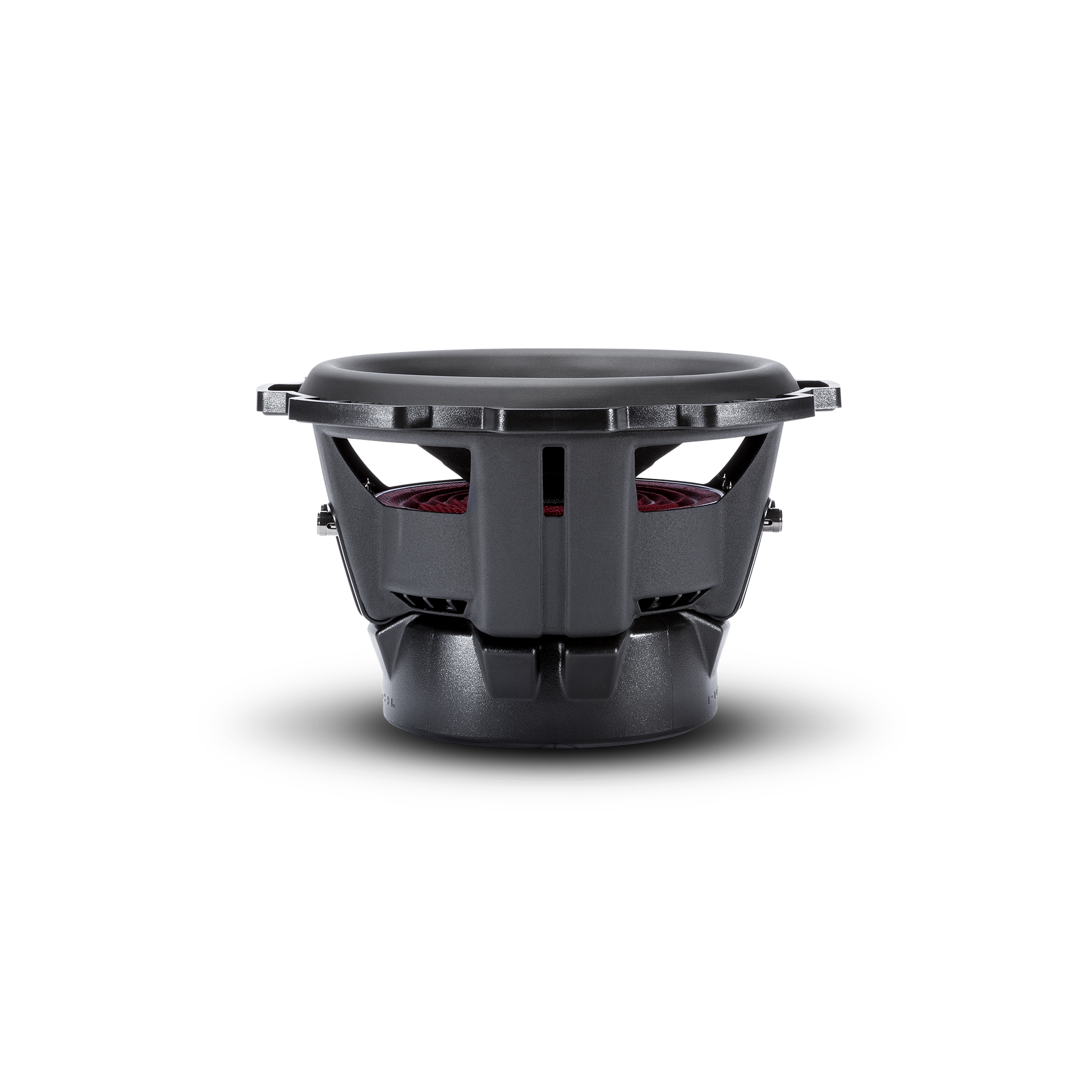

The Rockford Fosgate P2 10" subwoofer continues "The PUNCH" tradition. The P2D4-10 features a Dual 4-Ohm voice coil, 300 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Features
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Custom 10-AWG nickel plated push terminals
- Diamond cut cast aluminum trim ring with optional grille
- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
Specifications
- Power Handling (Watts RMS): 300 Watts RMS; 600 Watts Max
- Mounting Depth: 5.92 in. (150.4 mm)
- Nominal Impedance: Dual 4-Ohm
- Voice Coil Diameter: 2.25" (57.15 mm)
- Size: 10"
- Magnet Weight (oz): 66.4 oz. (1.88 kg.)
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 13.6 Lbs. (6.16 kg)
- Cutout Diameter: 9.13 in. (232 mm)
- Qts: 0.57
- SPL (dB @ 1w/1m): 84
- Fs (Hz): 30.8
- Qes: 0.62
- Qms: 7
- Vas (Liters): 35.4
- Woofer Displacement: 0.060 cu. ft. (1.7 Liters)
- Xmax (mm): 11
- Le (mH): 5.3
- Re (Ohms): 6.4
- Sd (cm2): 360
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
