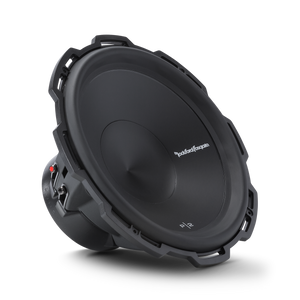

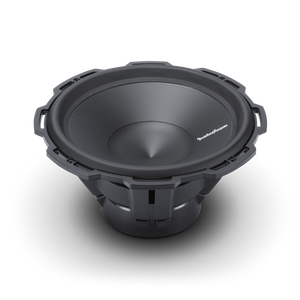

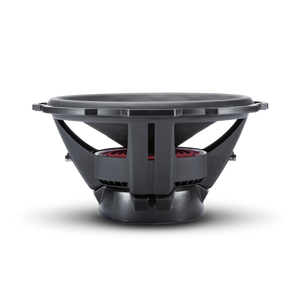

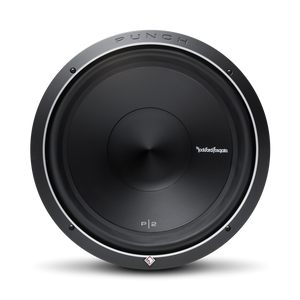

P2D2-15

Overview

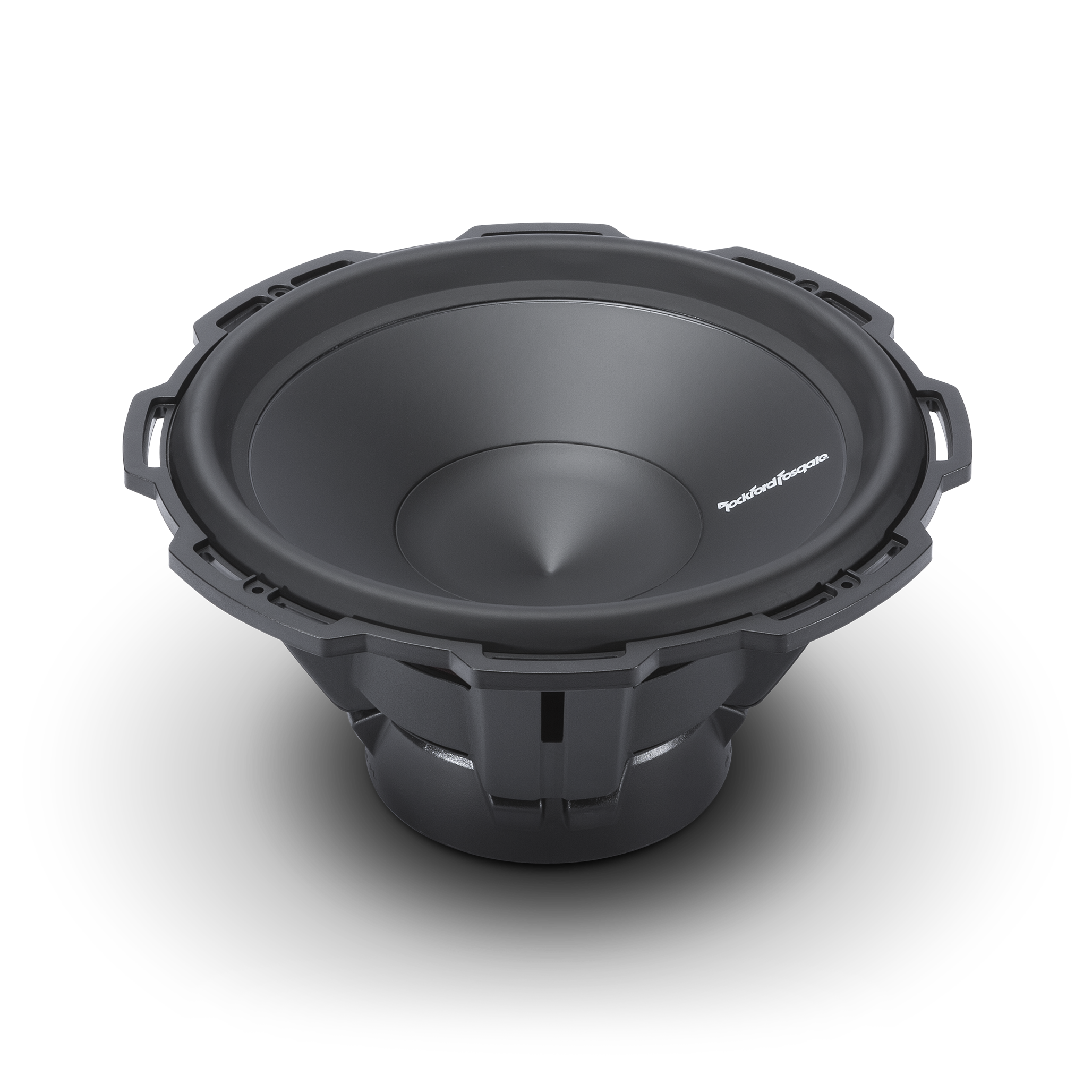

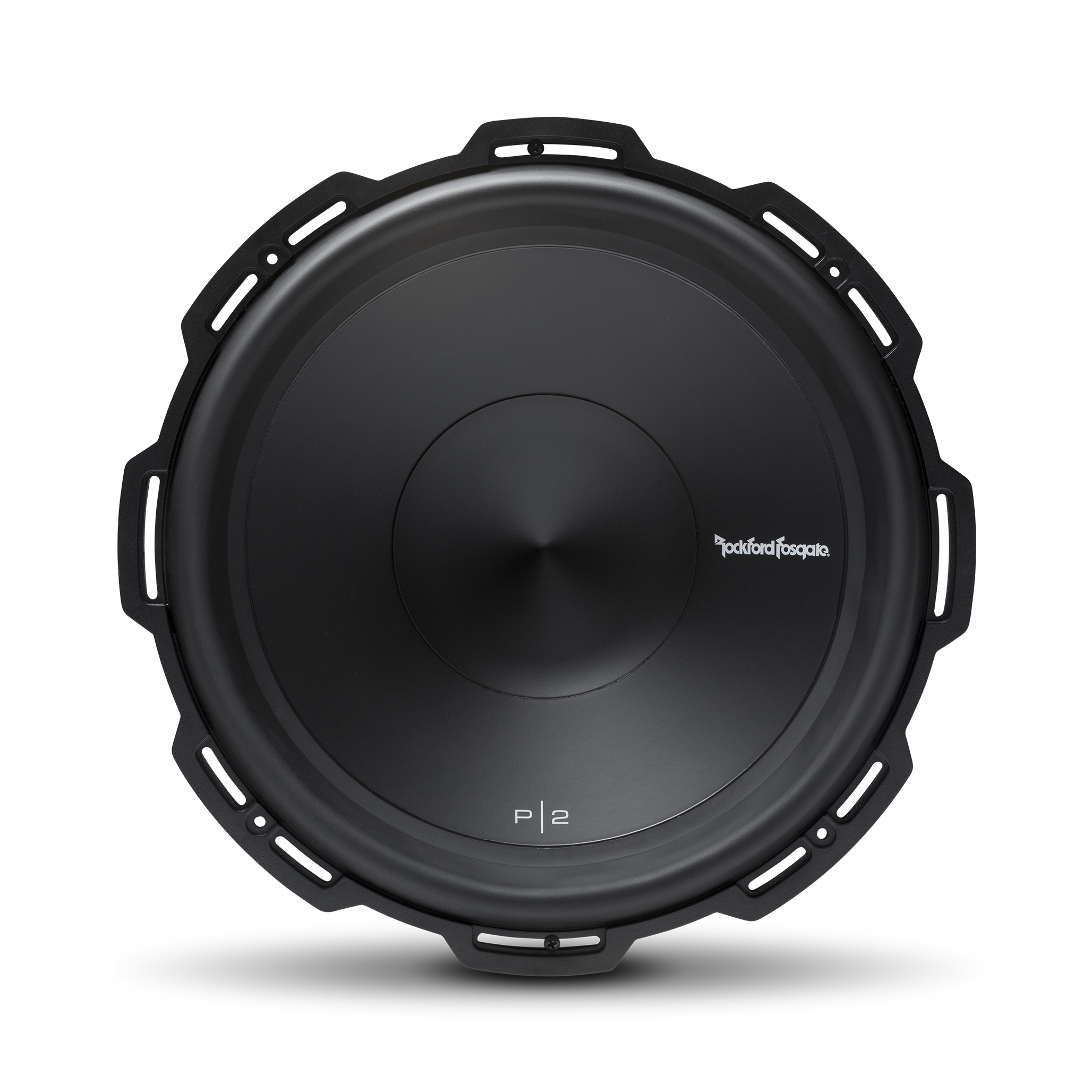

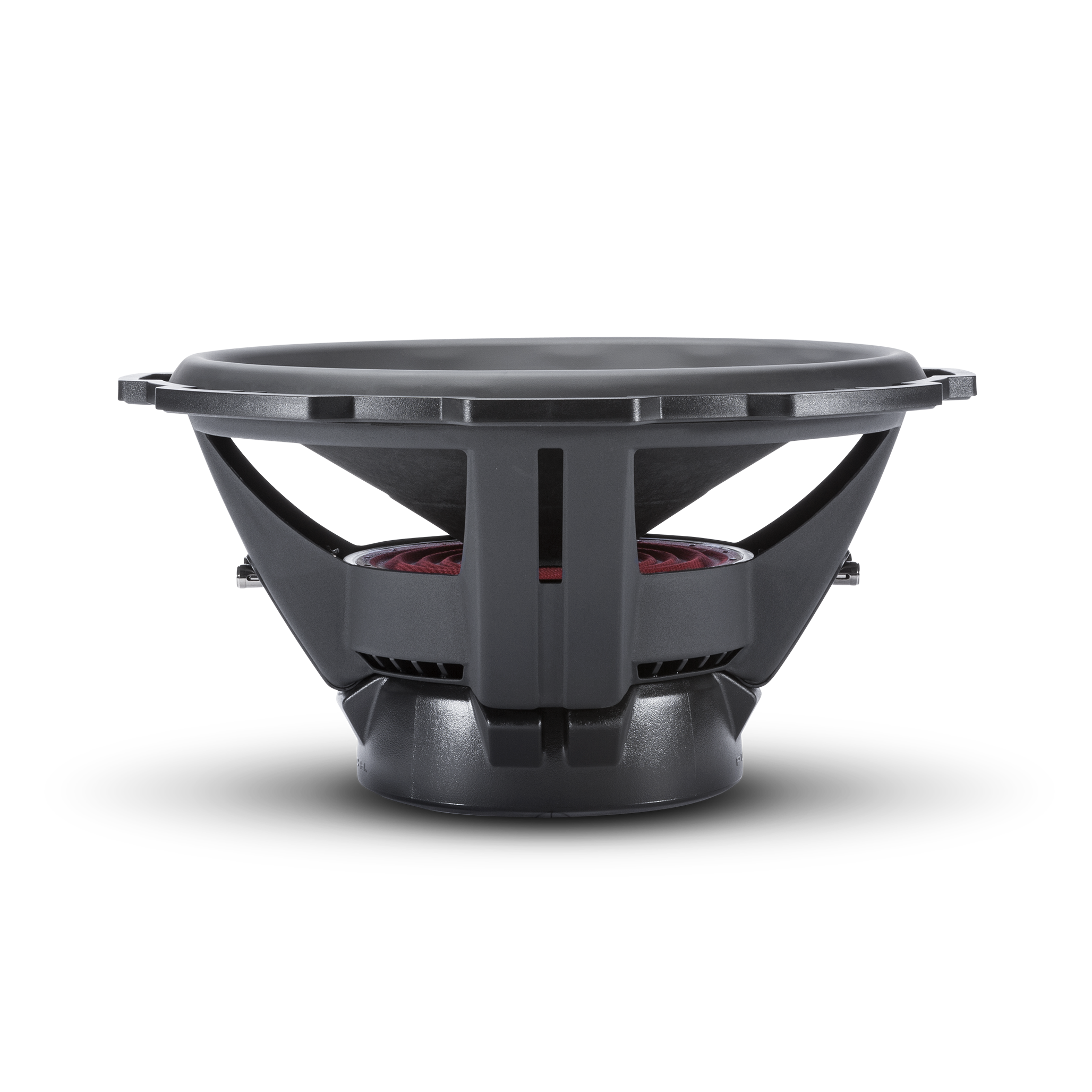

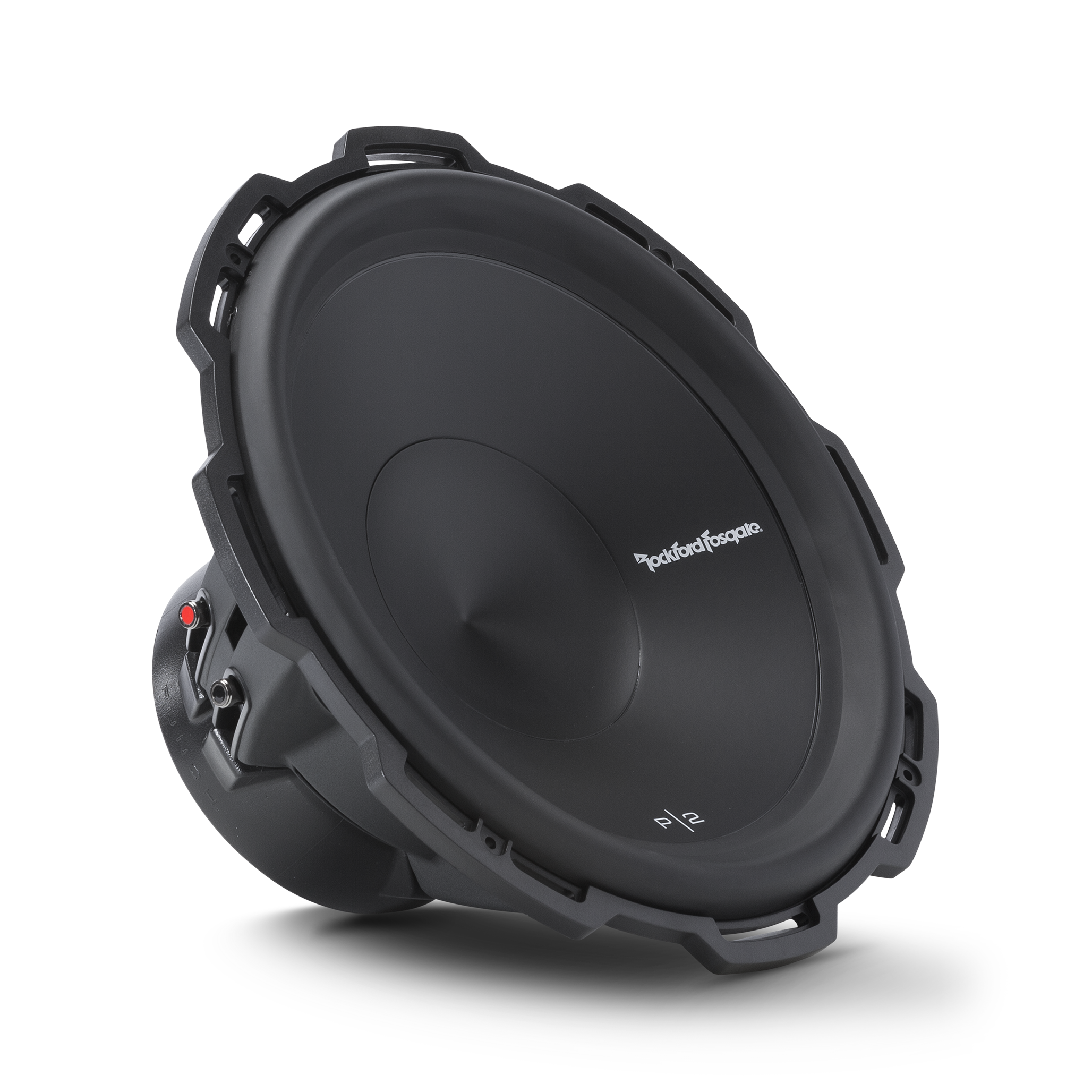

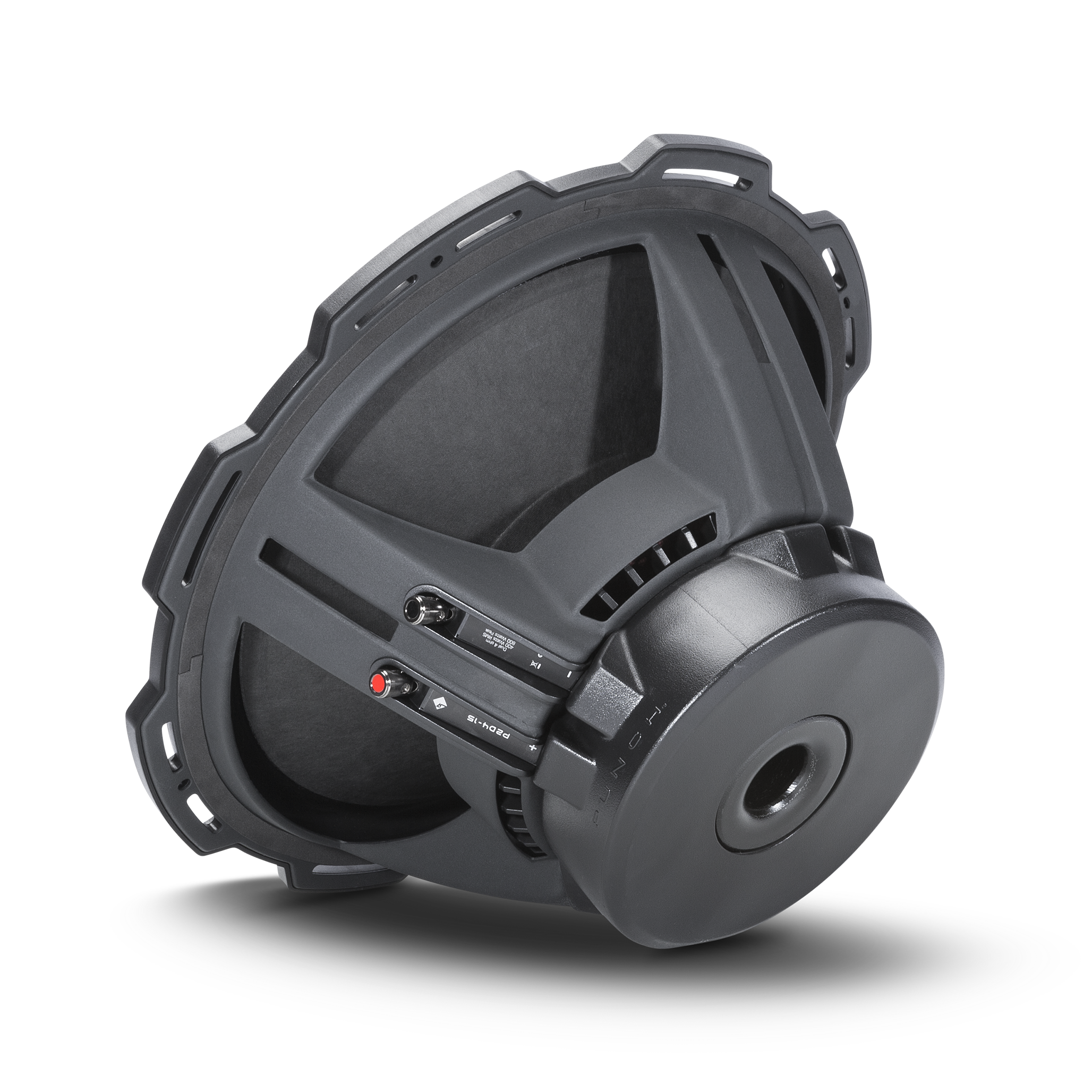

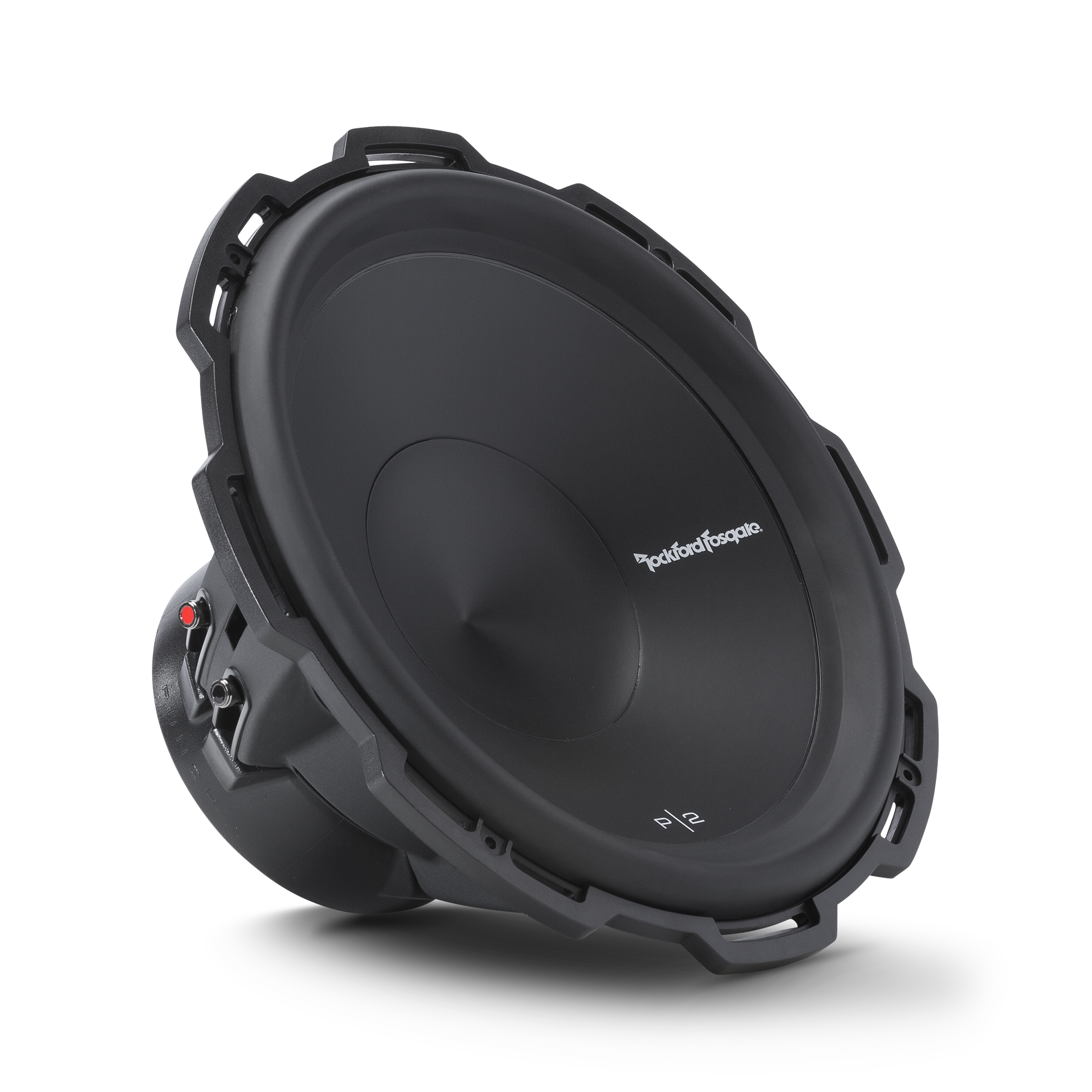

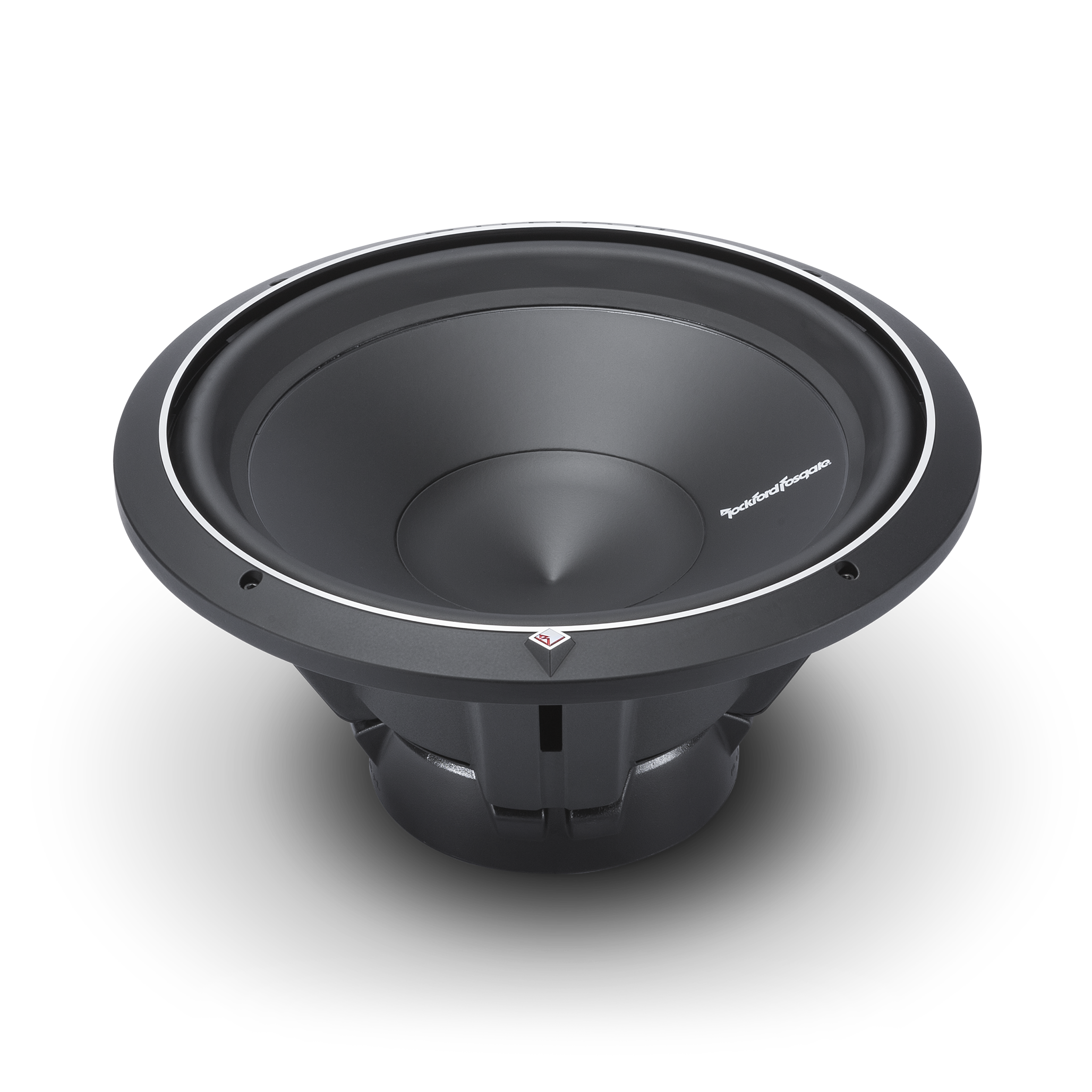

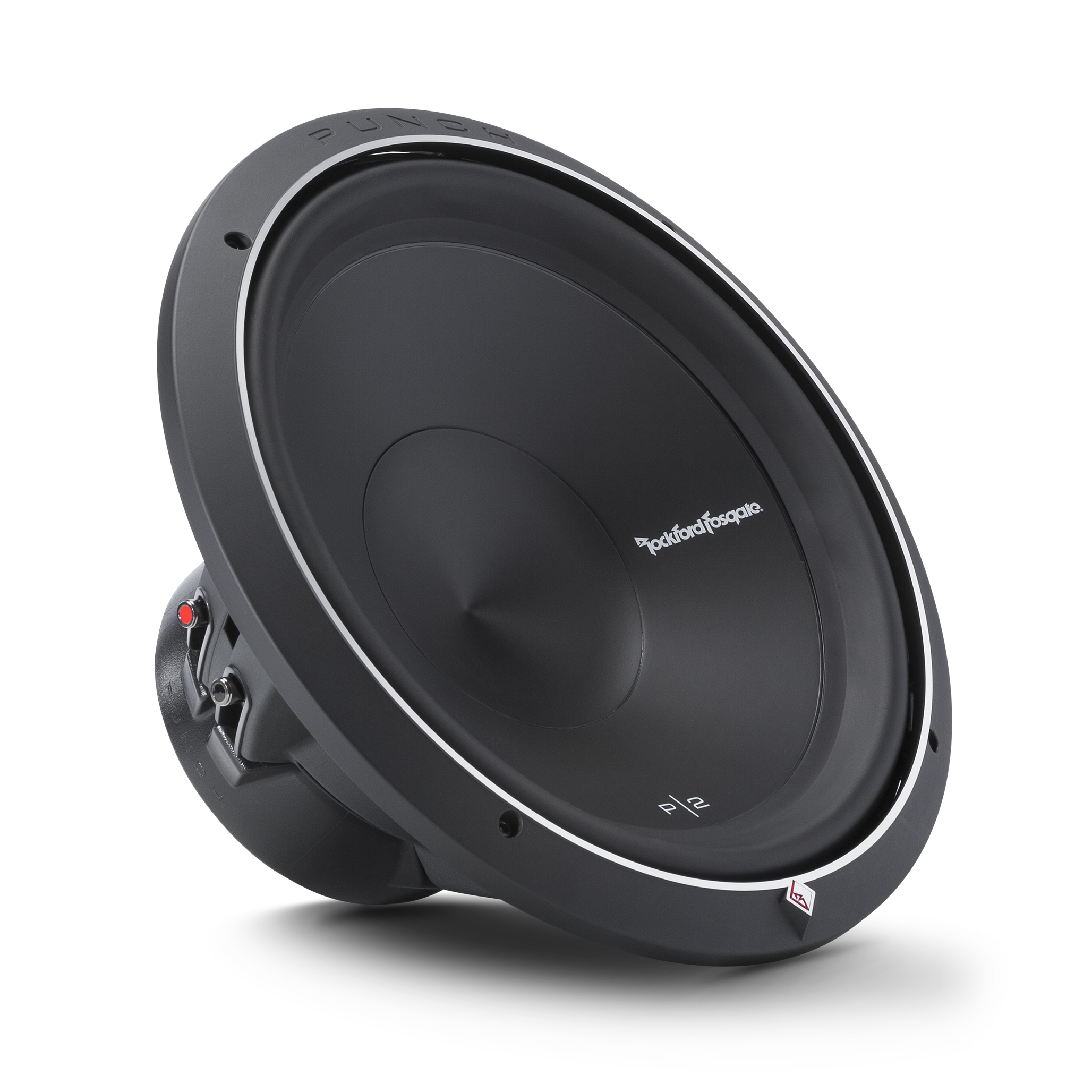

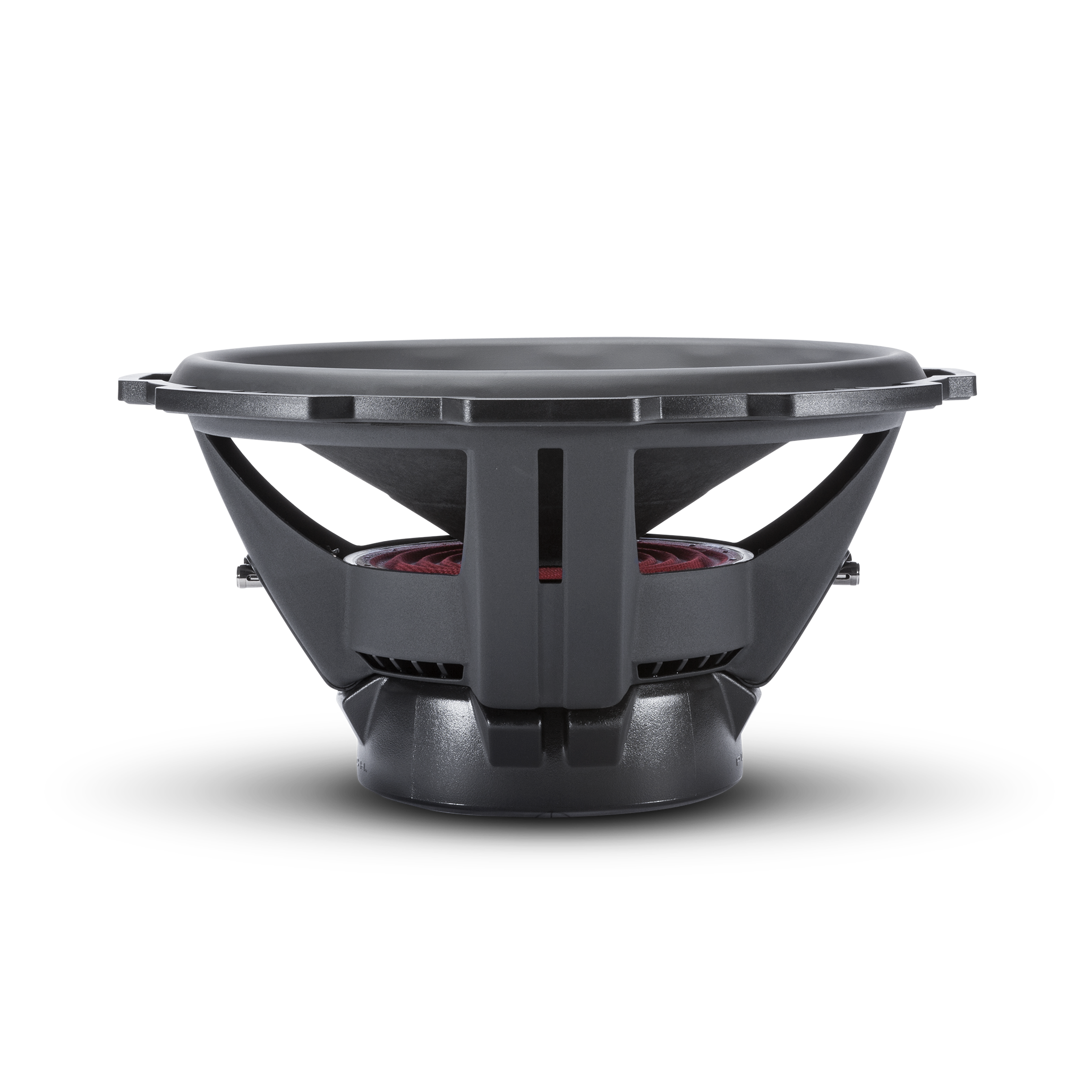

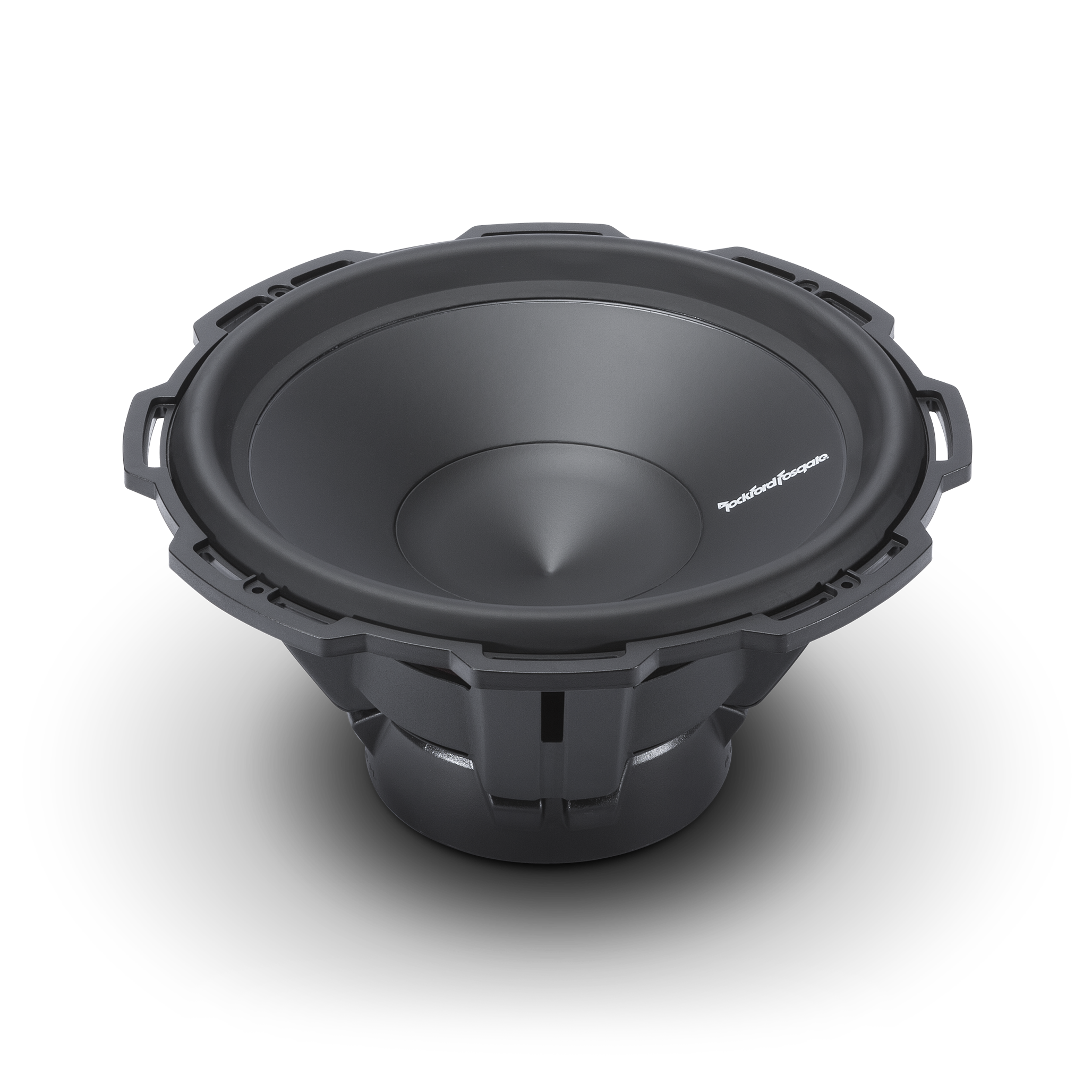

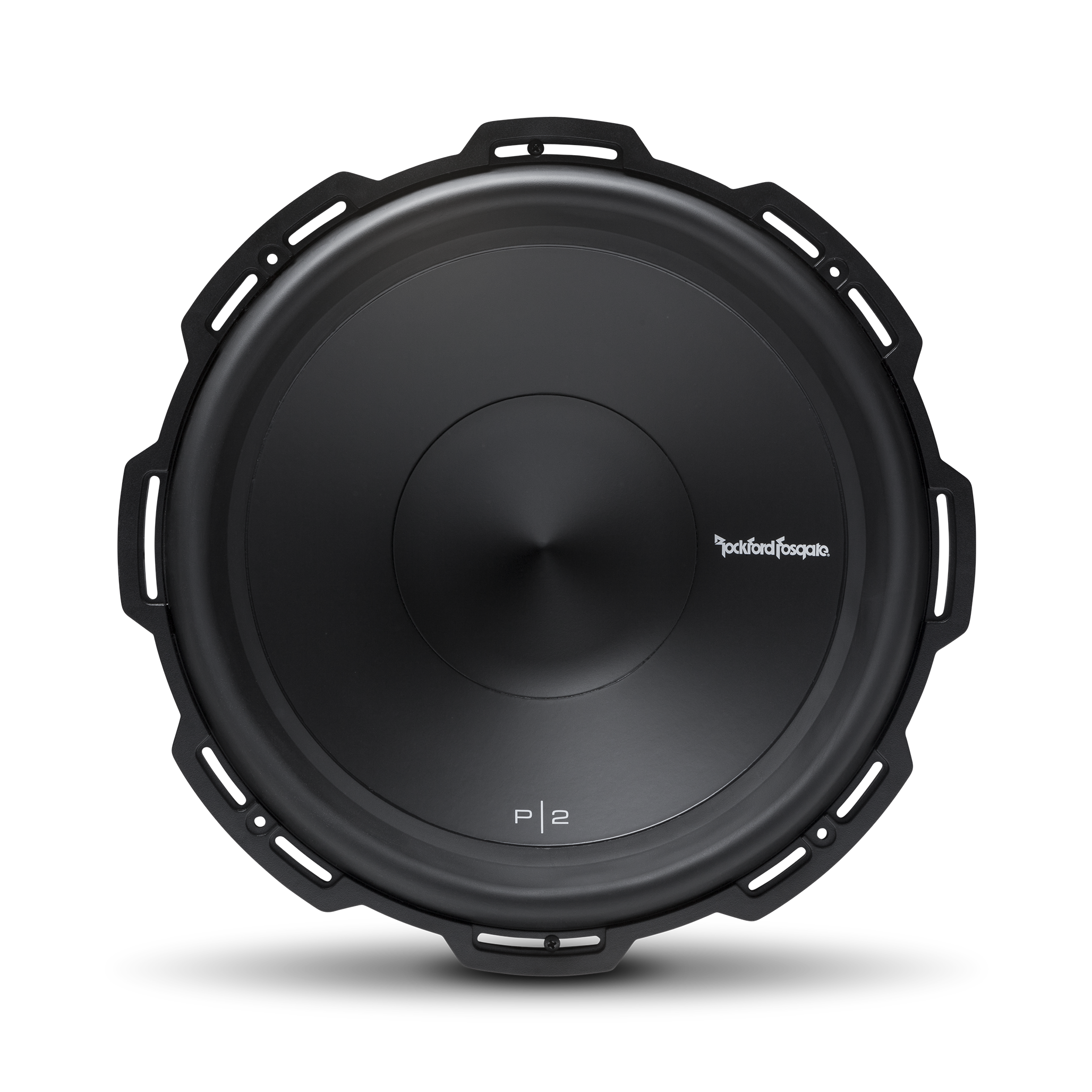

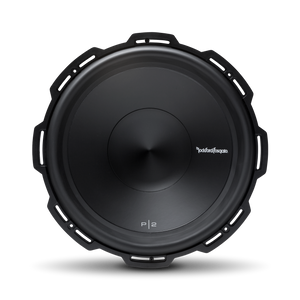

The Rockford Fosgate P2 15" subwoofer continues "The PUNCH" tradition. The P2D2-15 features a Dual 2-Ohm voice coil, & 400 Watts RMS power handling.

Features

• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• High-temp voice coil with spun-laced Nomex re-inforcement collar

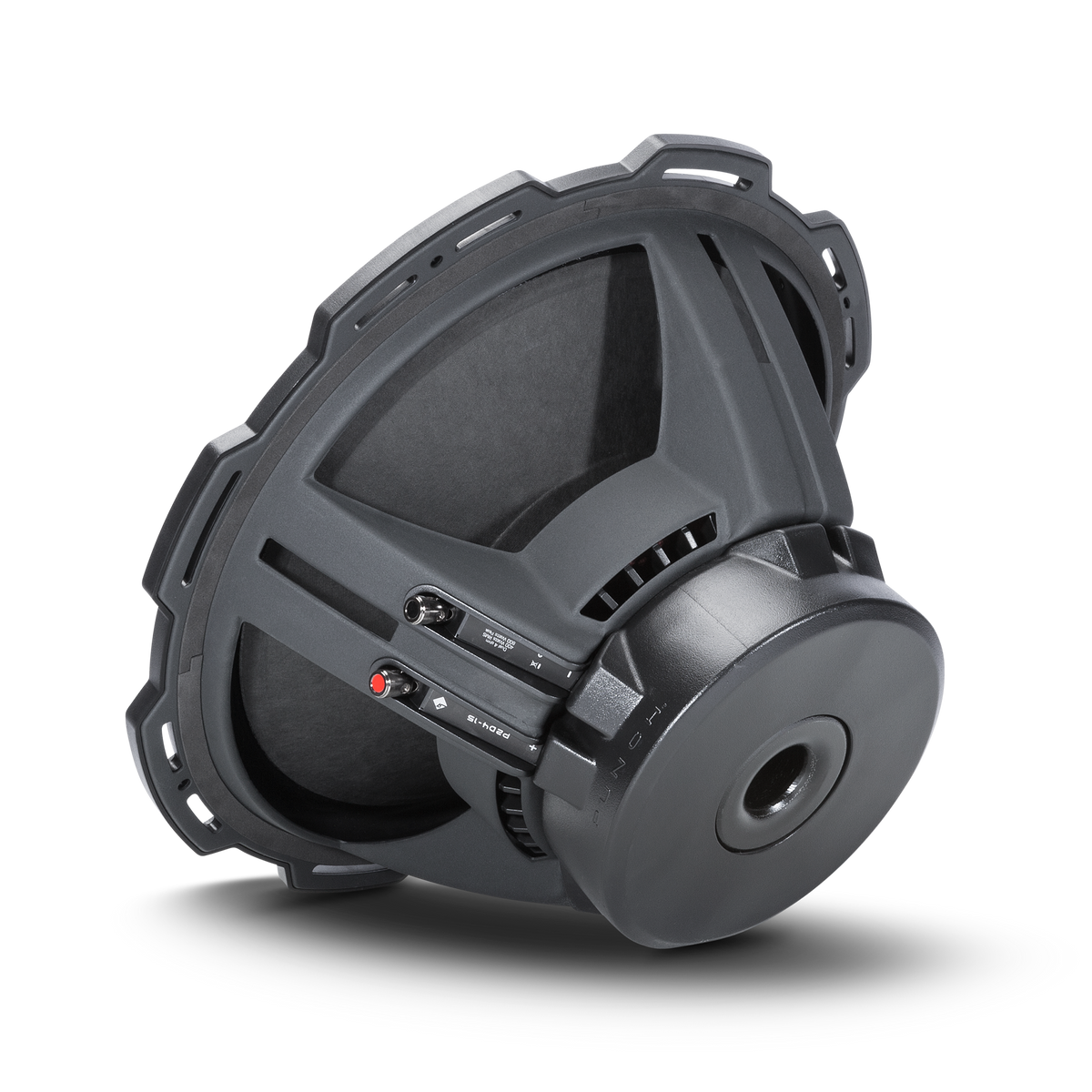

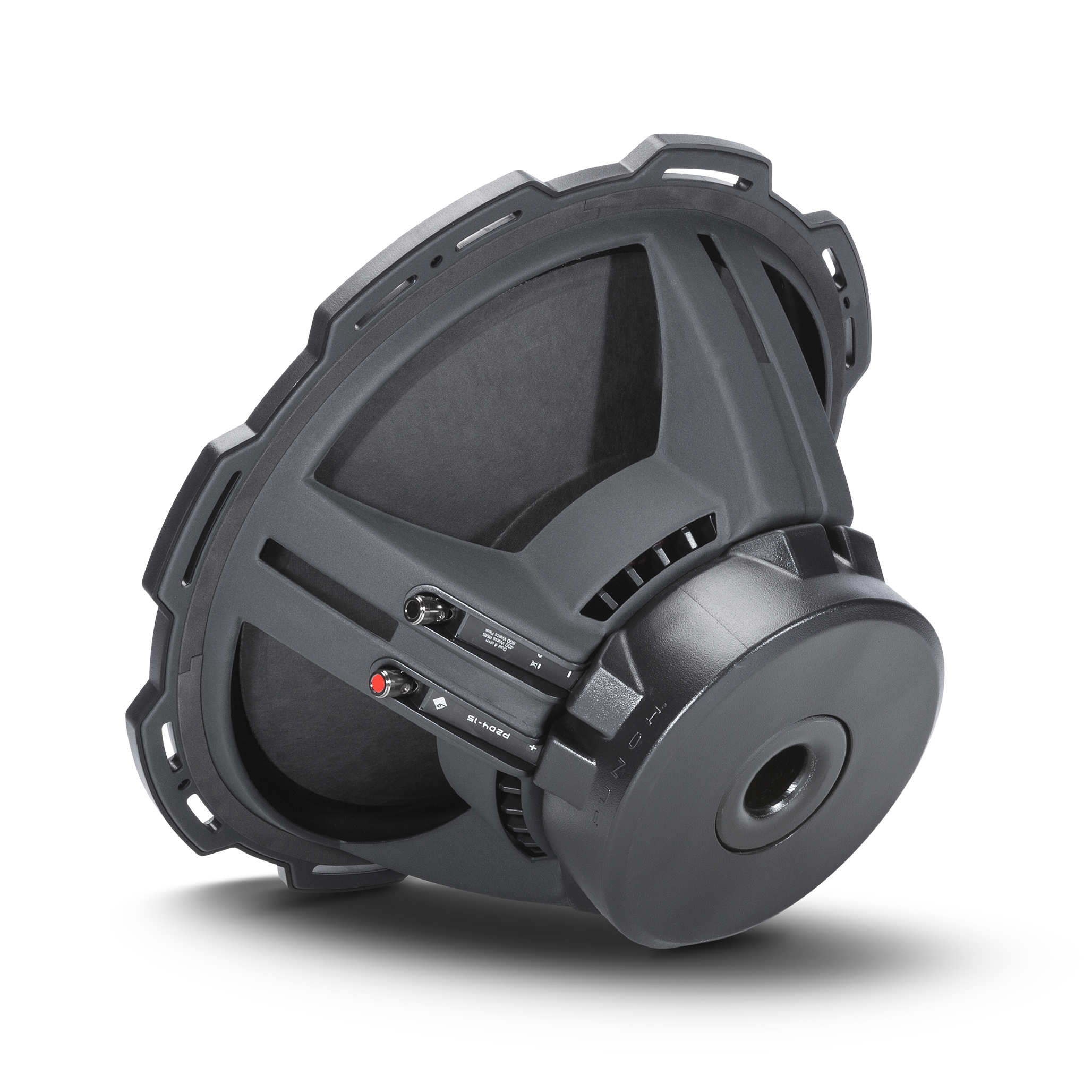

• Custom 10-AWG nickel plated push terminals

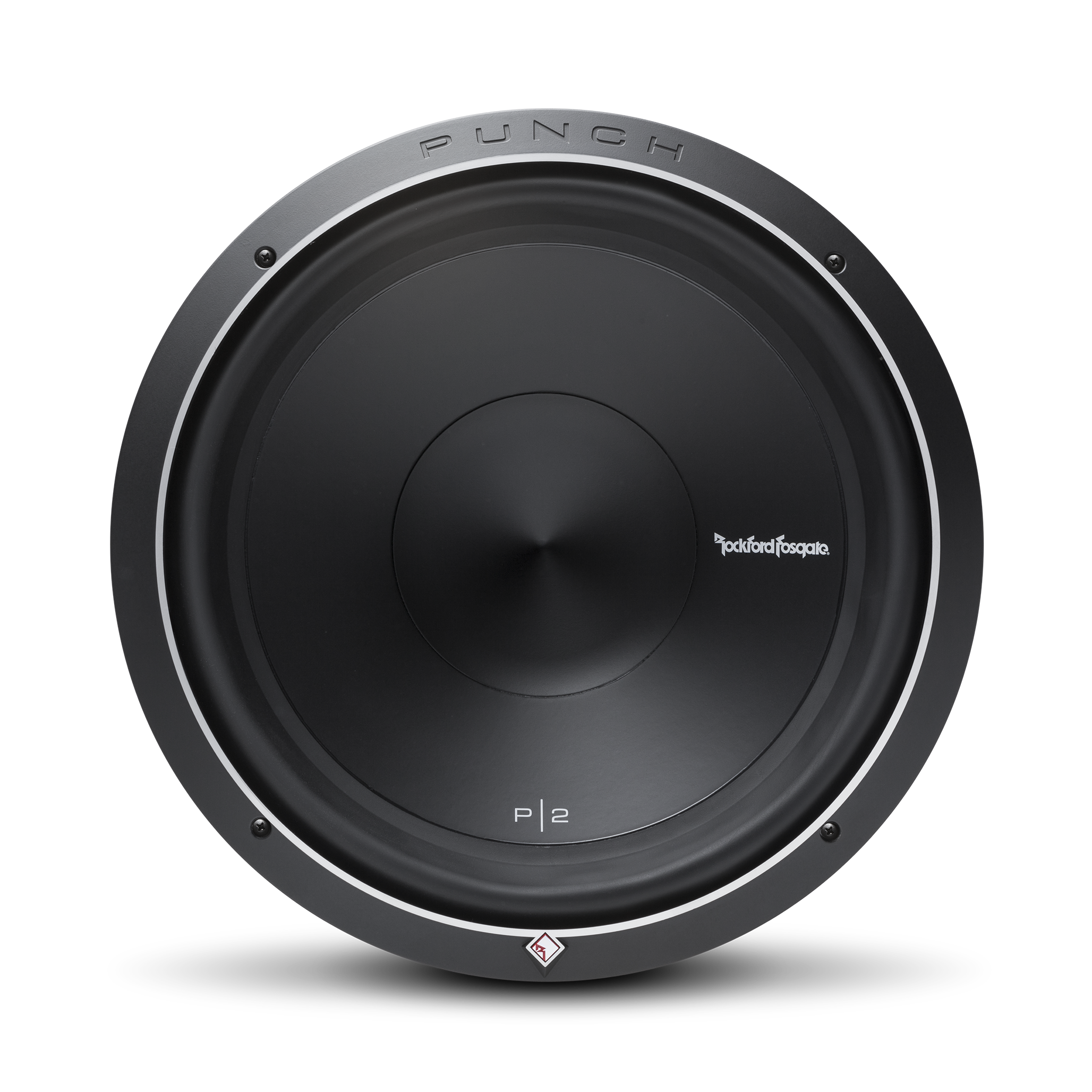

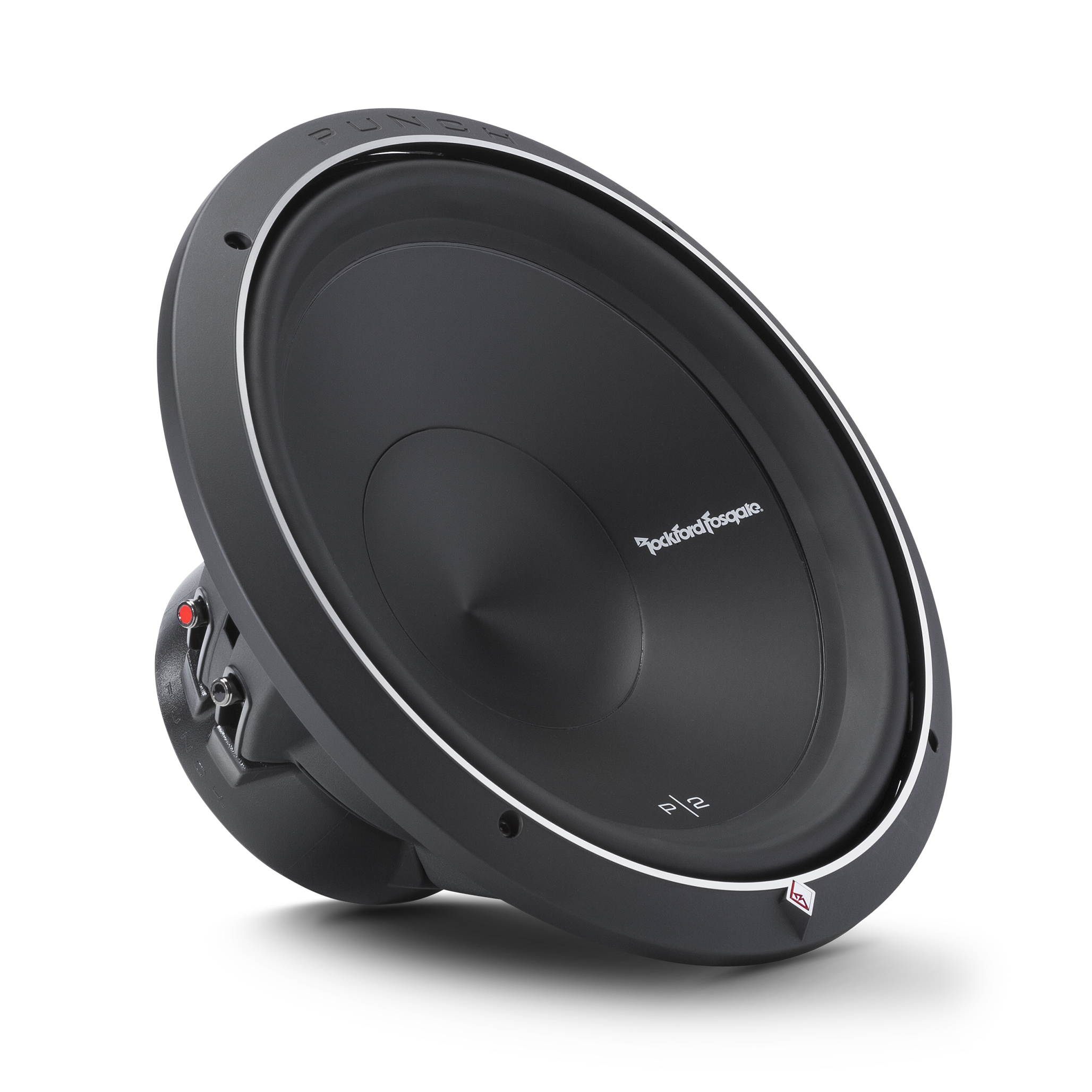

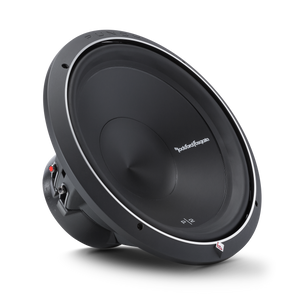

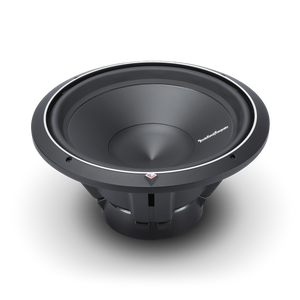

• Diamond cut cast aluminum trim ring with optional grille
• Protective PVC textured magnet cover

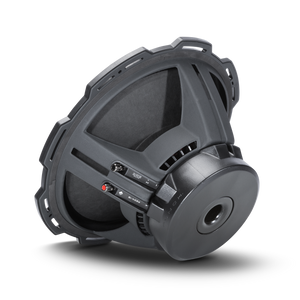

• StampCast basket with integrated spider venting
• 1 Year Warranty
• Kevlar fiber reinforced paper cone

Specifications

• Power Handling (Watts RMS): 400 Watts RMS; 800 Watts Max
• Speaker Connector: Dual 10 AWG compression
• Shipping Weight: 17.9 Lbs. (8.11 kg)
• Size: 15"
• Magnet Weight (oz): 72.8 oz. (2.06 kg.)
• Mounting Depth: 7.34 in. (186.5 mm)
• Nominal Impedance: Dual 2-Ohm
• Voice Coil Diameter: 2.25" (57.15 mm)
• Fs (Hz): 20
• Woofer Displacement: 0.134 cu. ft. (3.8 Liters)
• Qts: 0.62
• Vas (Liters): 219.6
• Qes: 0.69
• Qms: 6.4
• Re (Ohms): 3.3
• Cutout Diameter: 13.9 in. (353 mm)
• Le (mH): 3.4
• SPL (dB @ 1w/1m): 86
• Xmax (mm): 13.3
• Sd (cm2): 894
• Subwoofer Type: Standard
• Voice Coil Type: Dual Voice Coil
• Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
• Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
