Overview

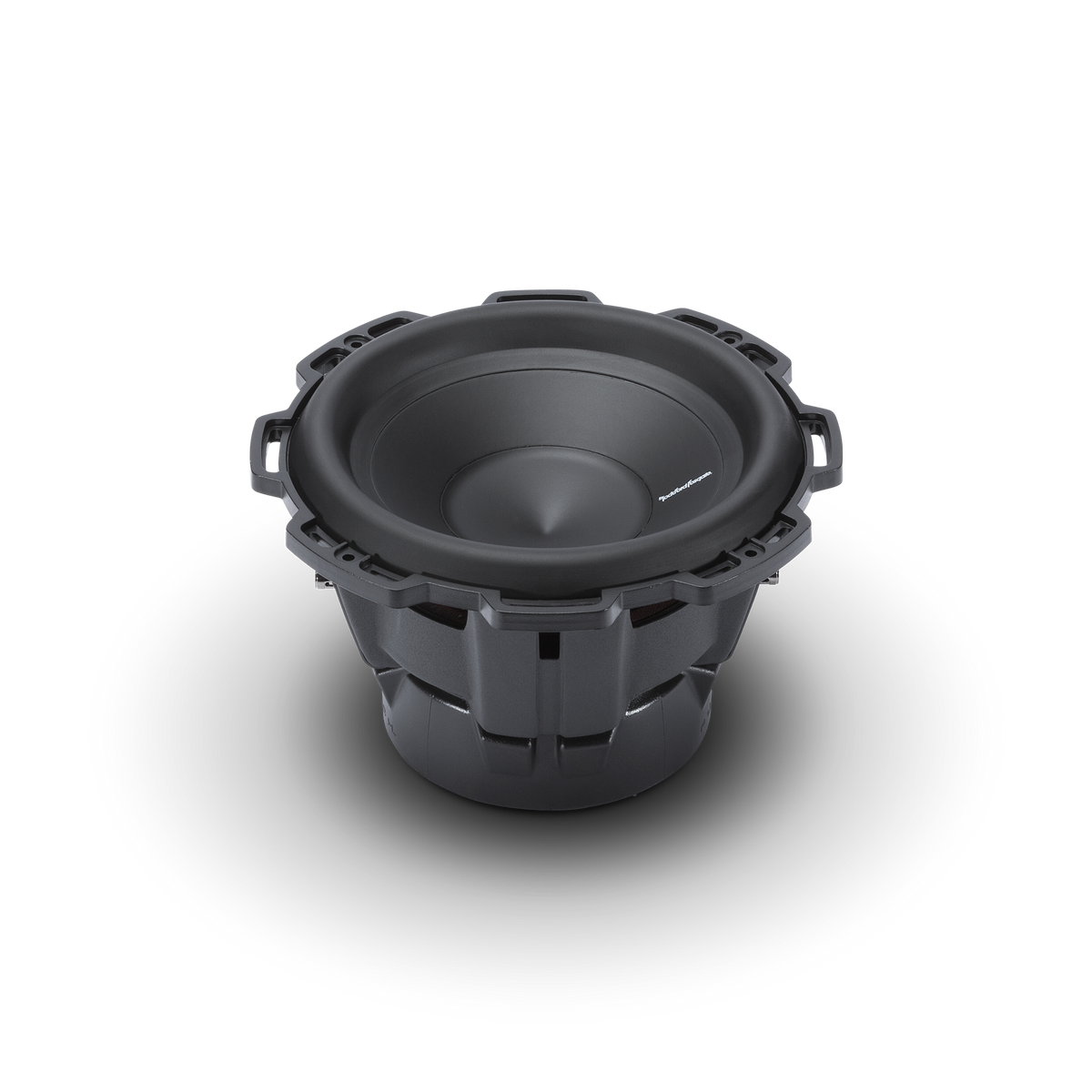

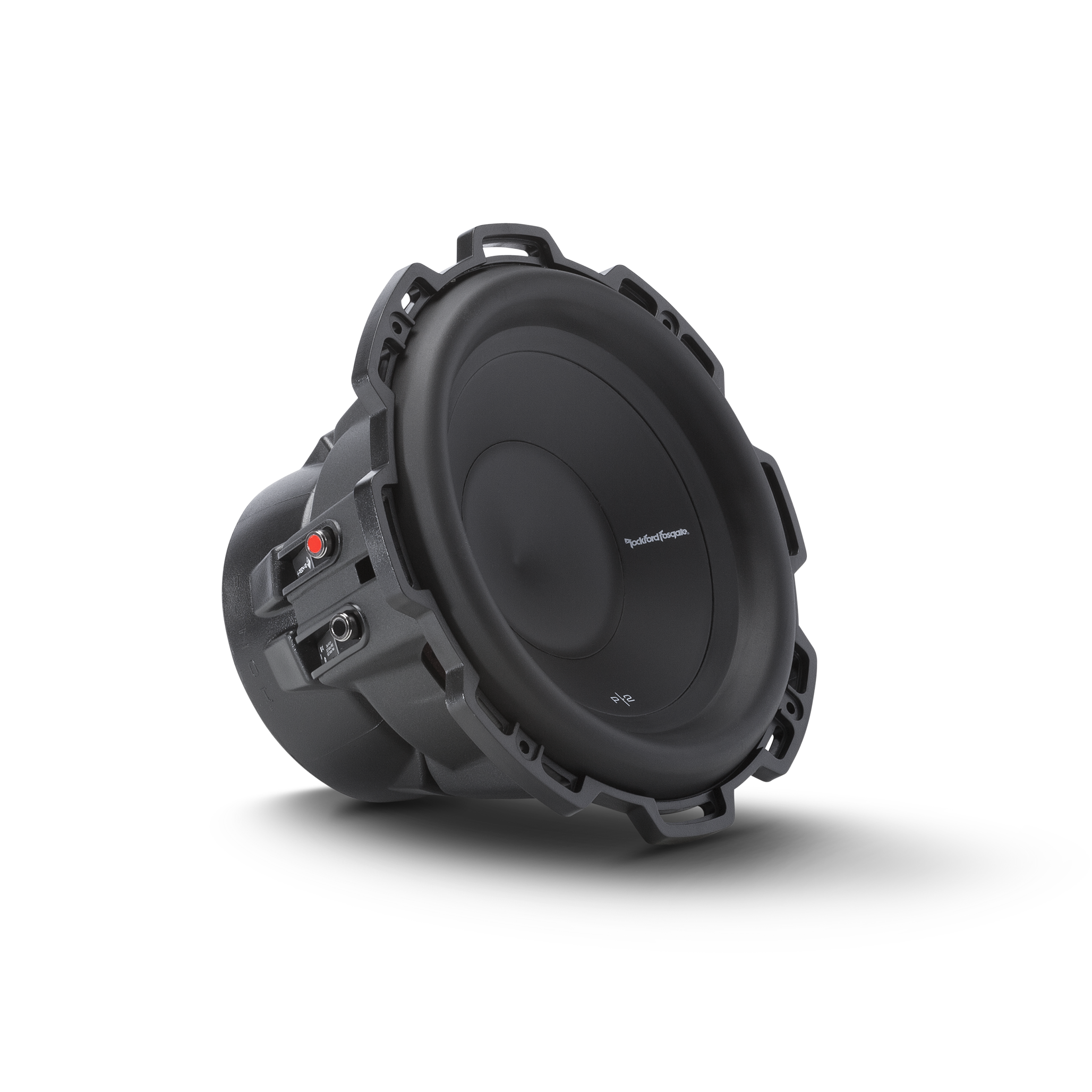

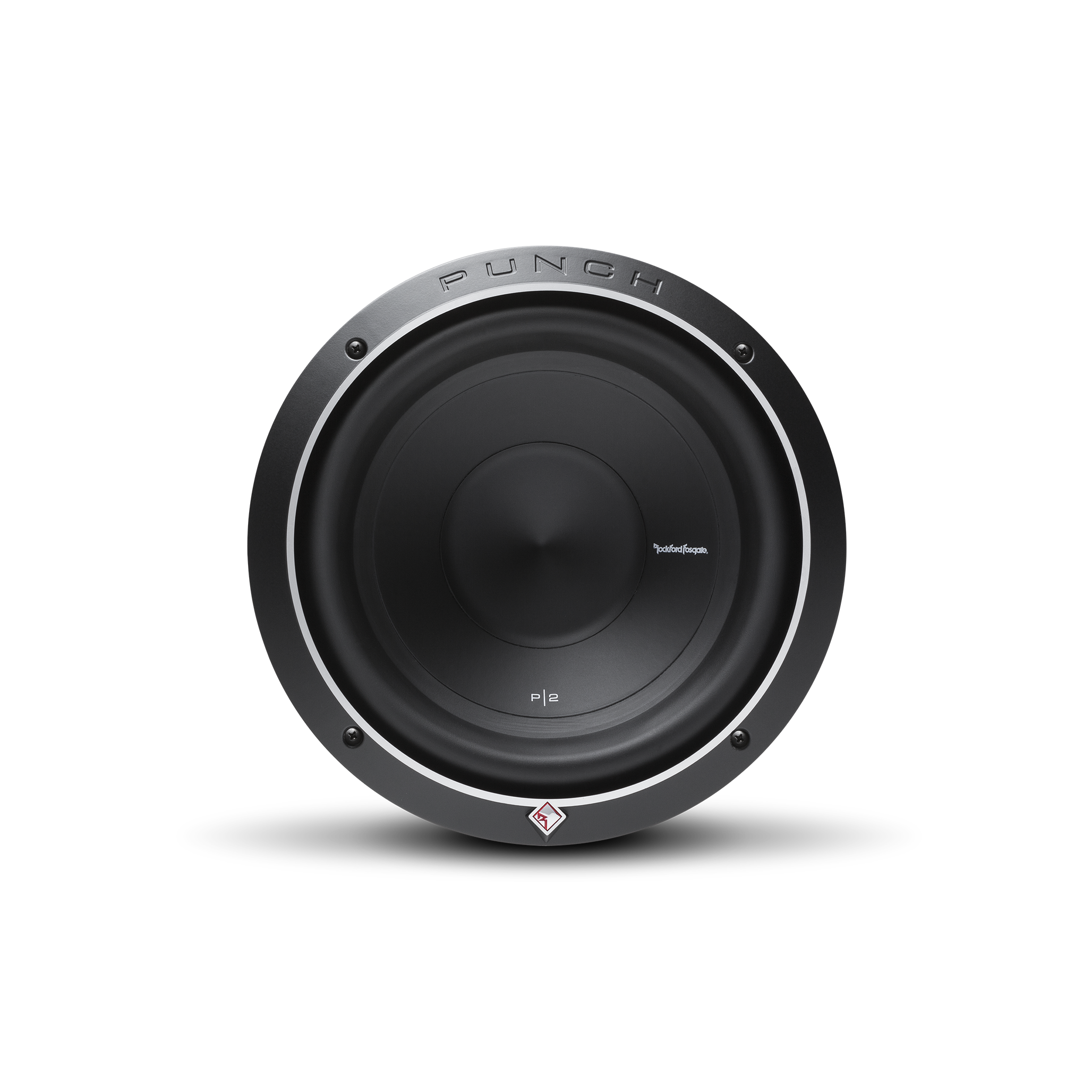

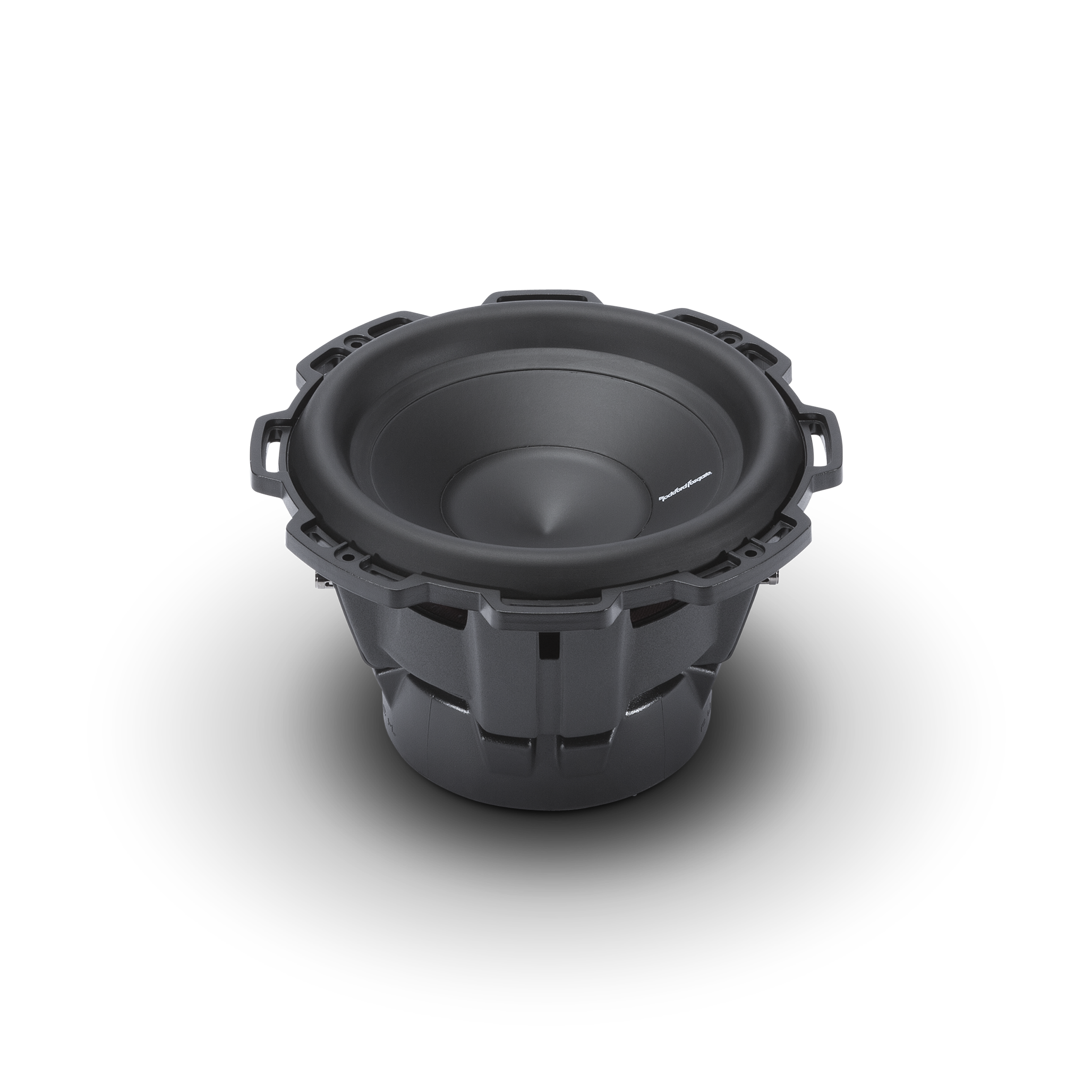

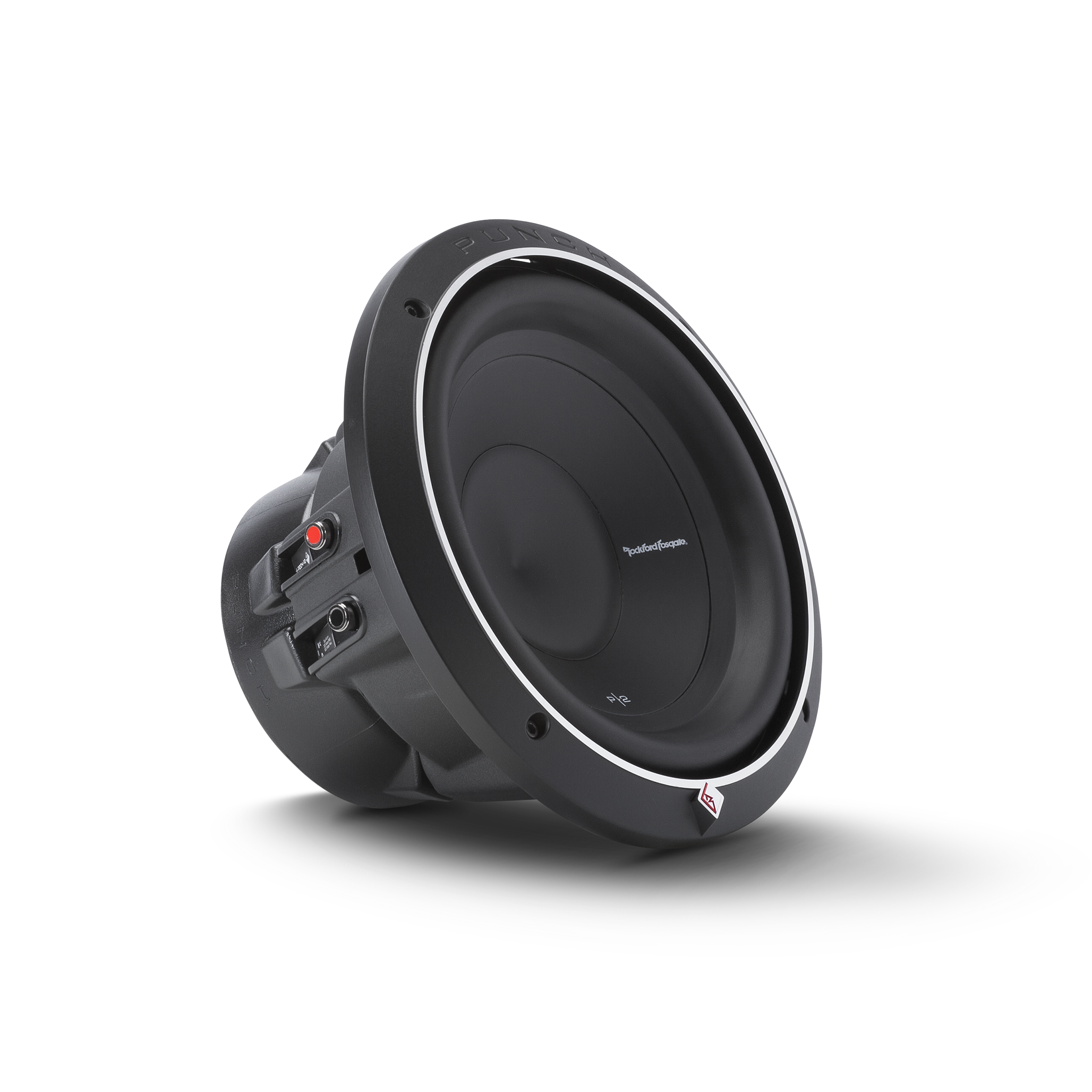

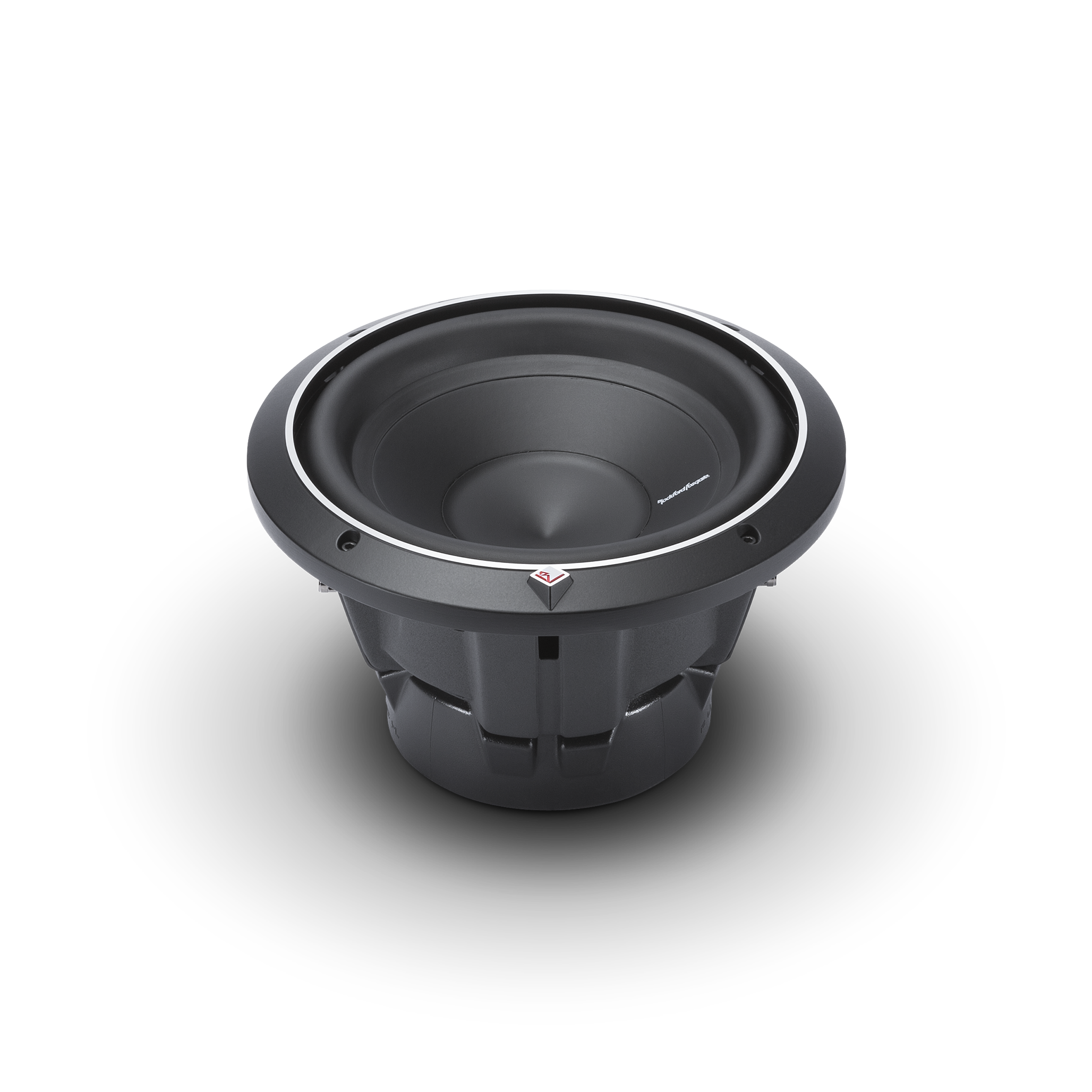

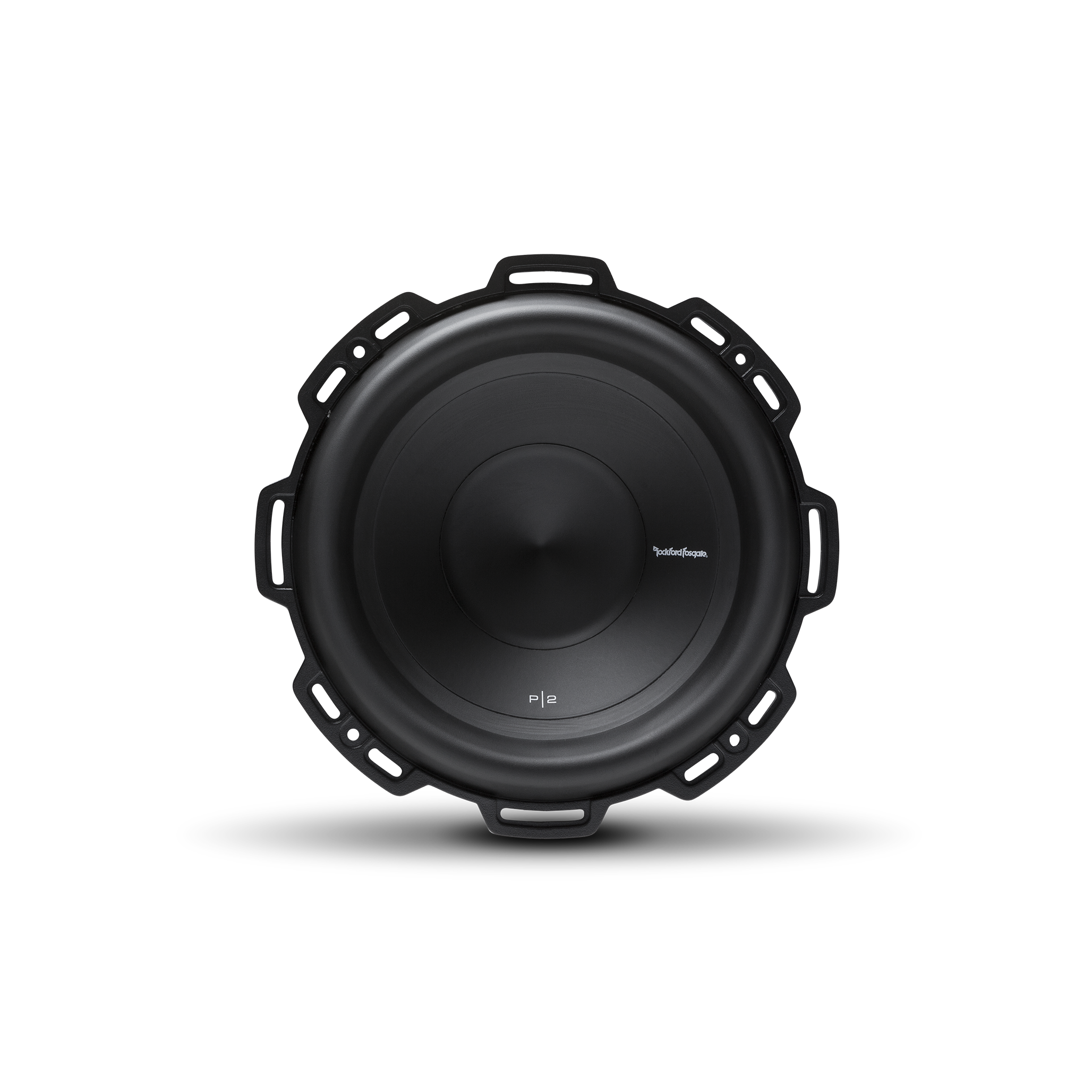

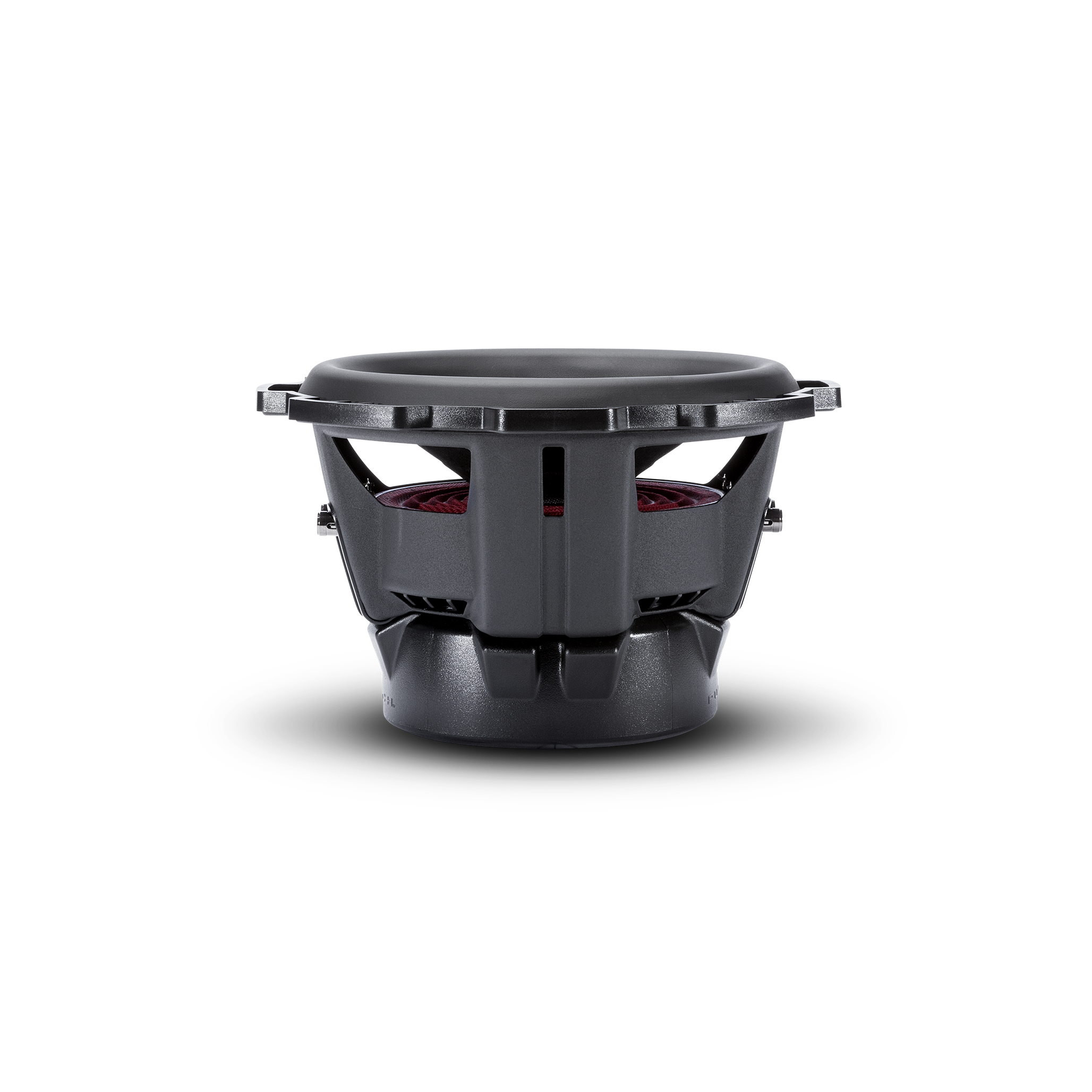

The P2 10-inch subwoofer for cars and trucks continues "The PUNCH" tradition. The P2D2-10 sub features a Dual 2-Ohm DVC and 300 watts of power handling.
Features
- Dual linear spider with embedded 16 AWG tinsel leads
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Custom 10-AWG nickel plated push terminals

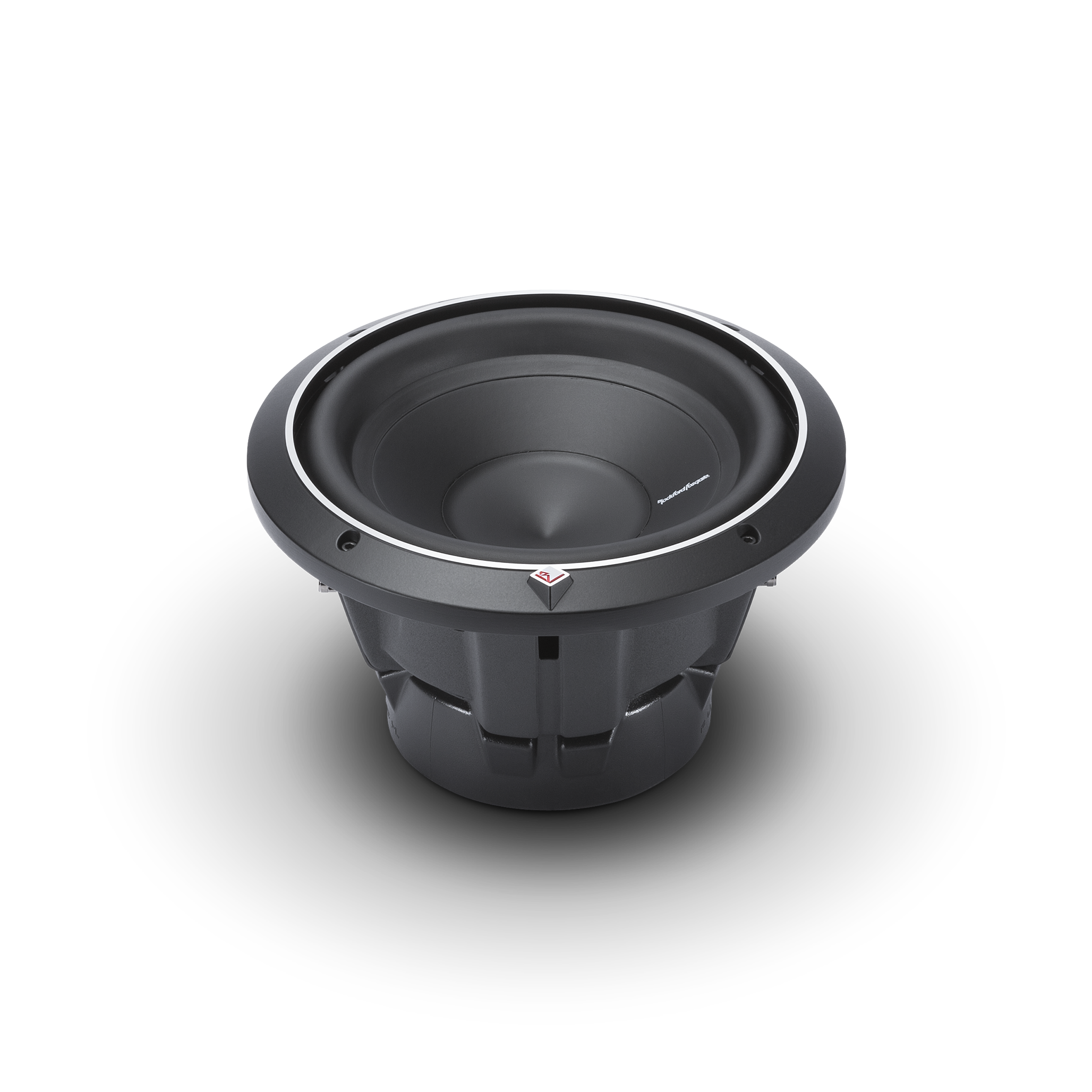

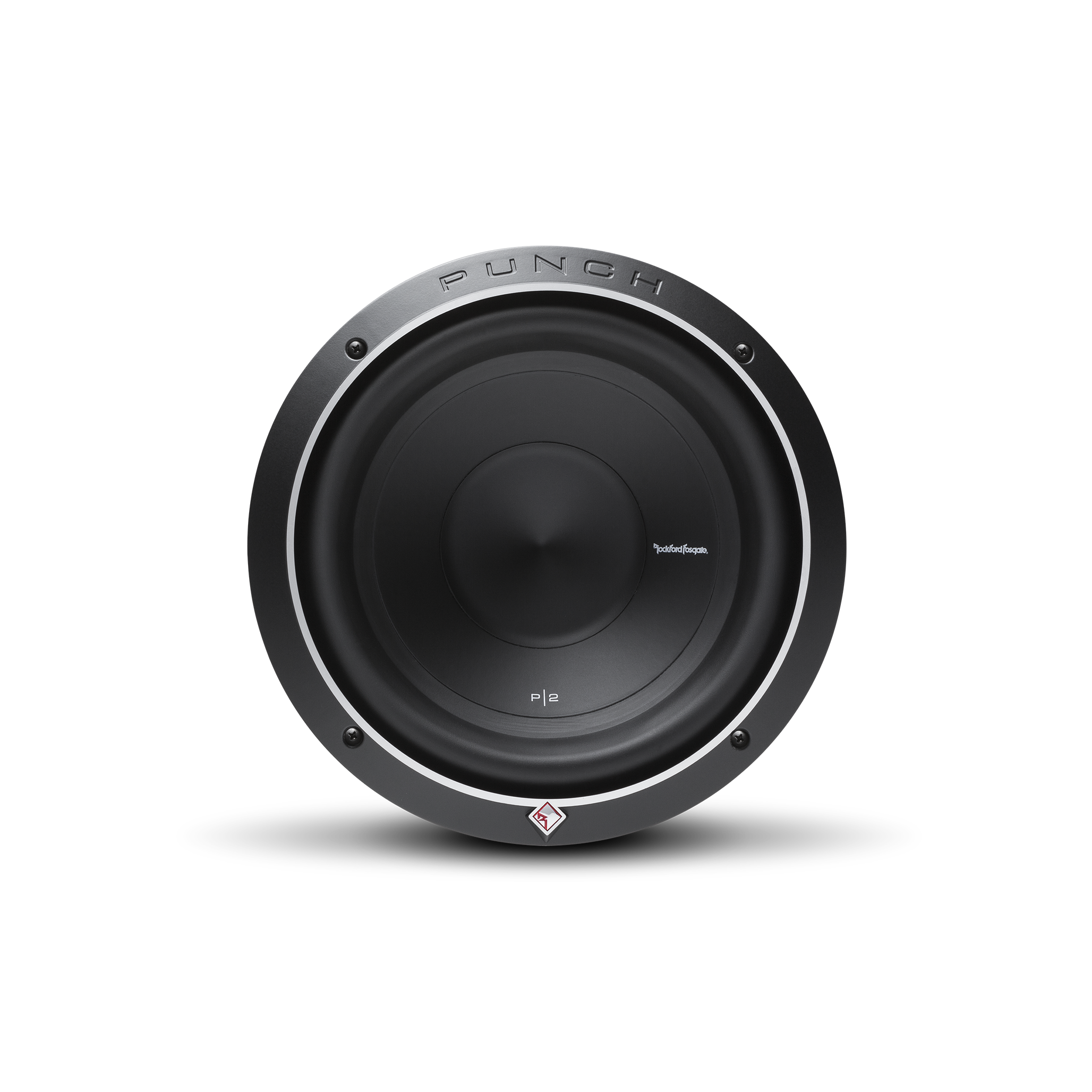

- Diamond cut cast aluminum trim ring with optional grille
- Protective PVC textured magnet cover
- StampCast basket with integrated spider venting
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
Specifications
- Power Handling (Watts RMS): 300 Watts RMS; 600 Watts Max
- Qms: 7
- Qes: 0.54
- Vas (Liters): 35.4
- Size: 10"
- Mounting Depth: 5.92 in. (150.4 mm)
- Nominal Impedance: Dual 2-Ohm
- Voice Coil Diameter: 2.25" (57.15 mm)
- SPL (dB @ 1w/1m): 84
- Woofer Displacement: 0.060 cu. ft. (1.7 Liters)
- Le (mH): 3.32
- Xmax (mm): 11
- Magnet Weight (oz): 66.4 oz. (1.88 kg.)
- Fs (Hz): 29
- Shipping Weight: 13.6 Lbs. (6.16 kg)
- Qts: 0.5
- Speaker Connector: Dual 10 AWG compression
- Re (Ohms): 3.2
- Cutout Diameter: 9.13 in. (232 mm)
- Sd (cm2): 360
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
