Overview

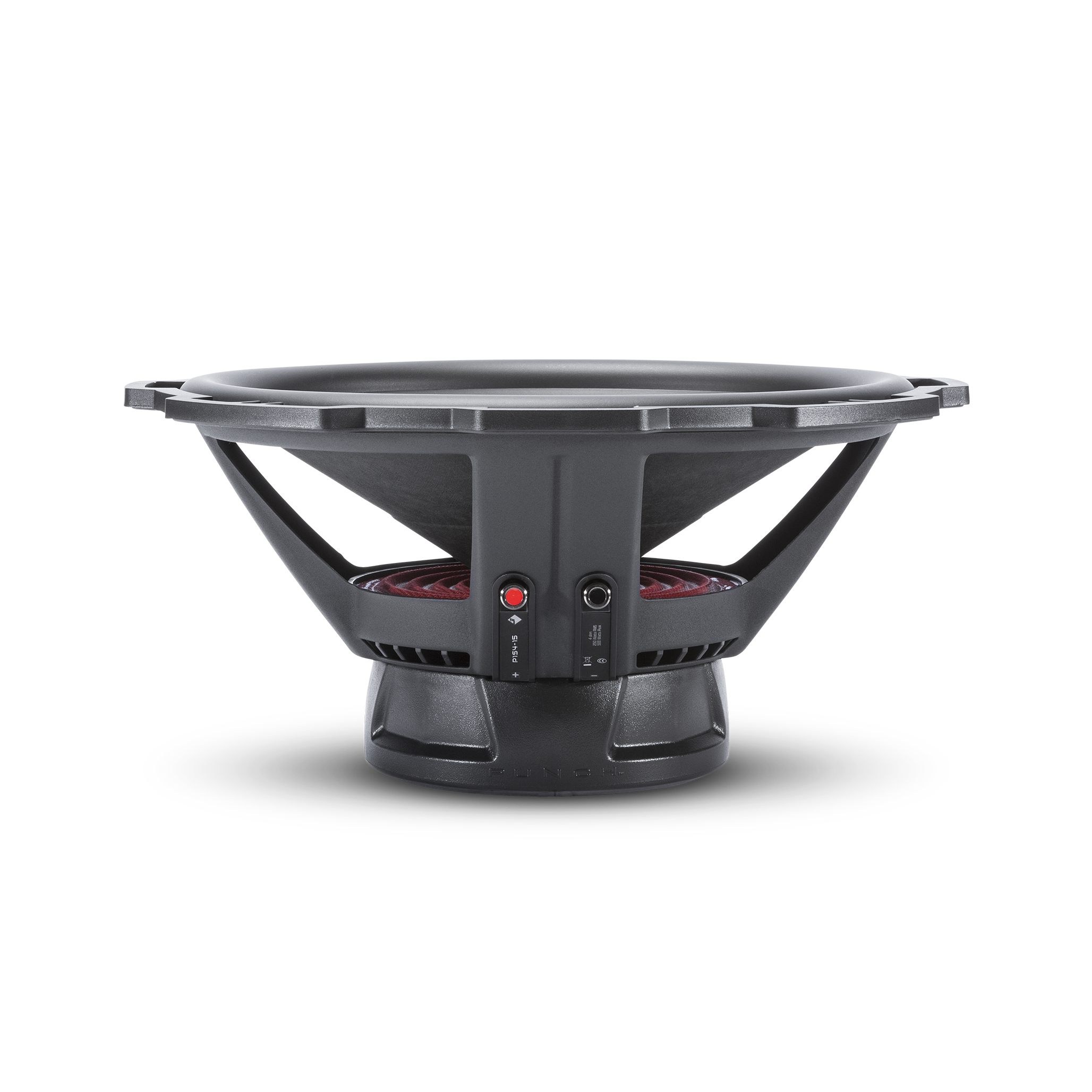

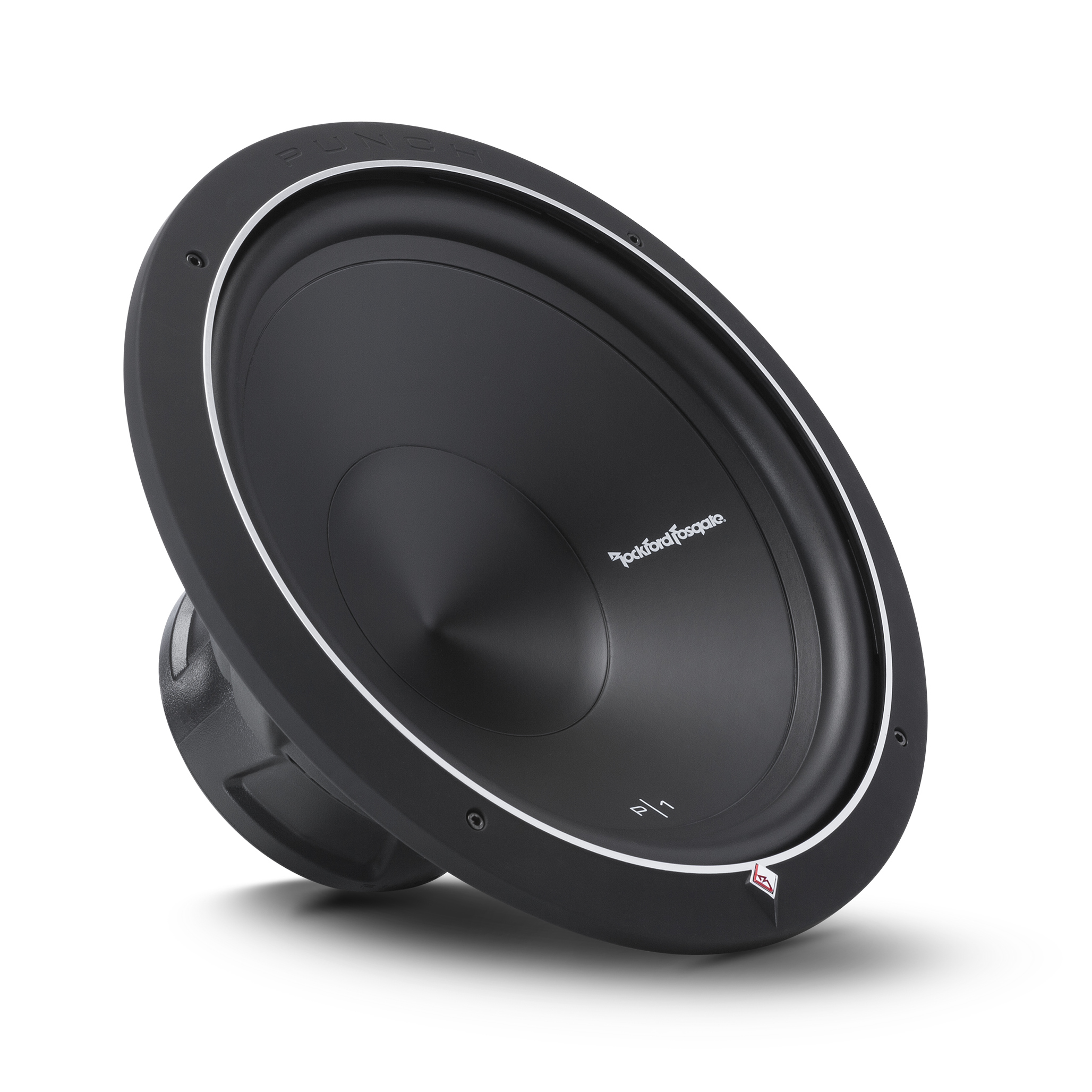

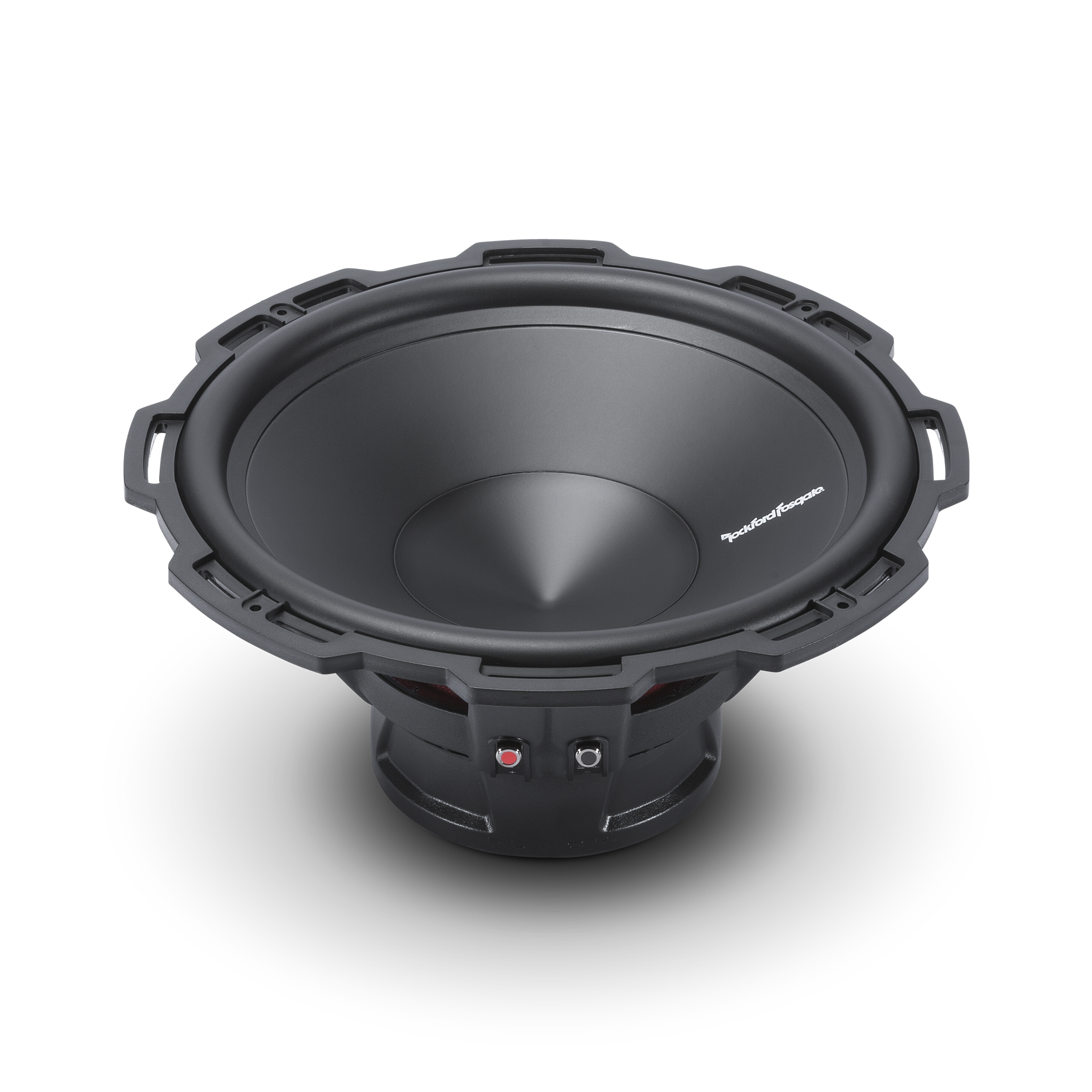

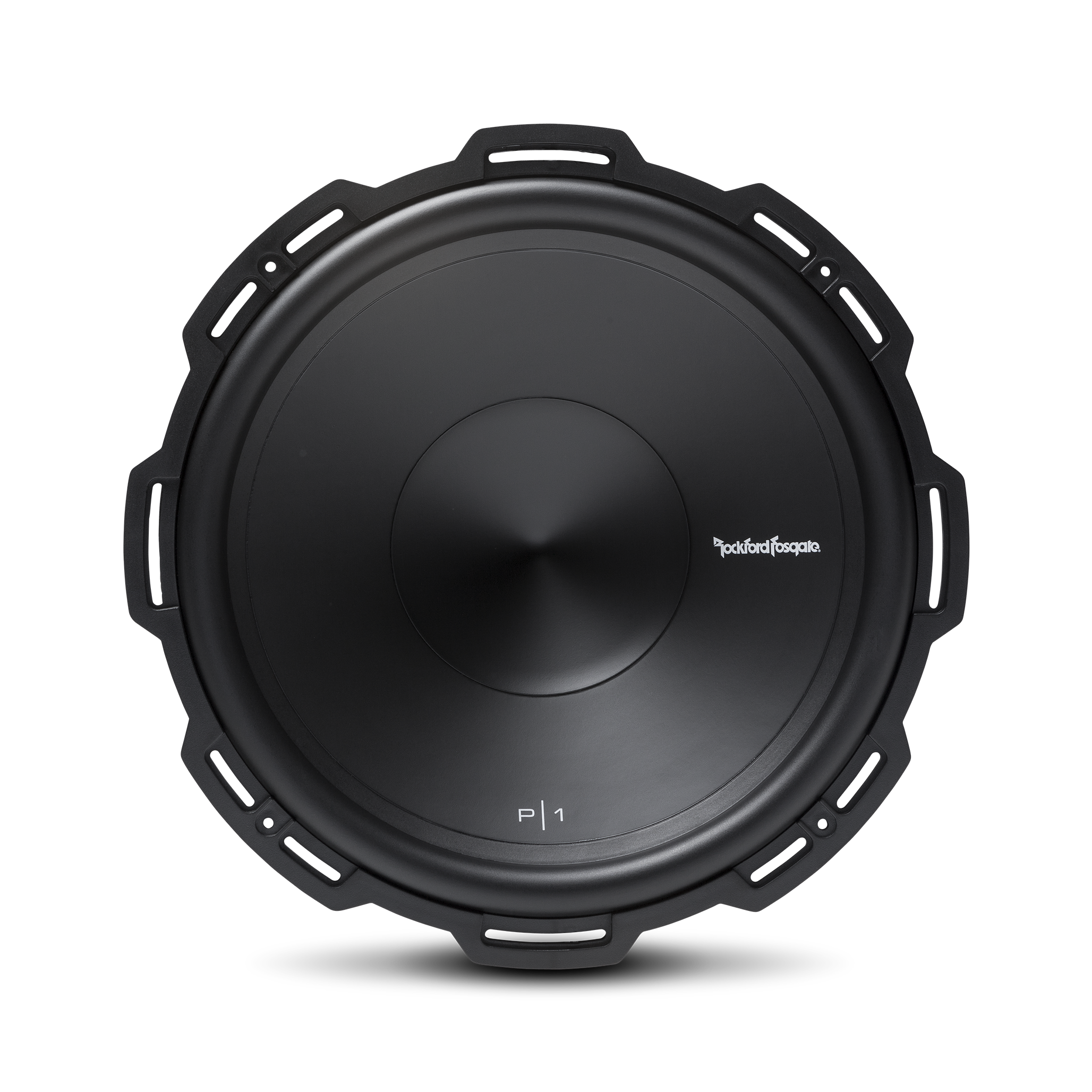

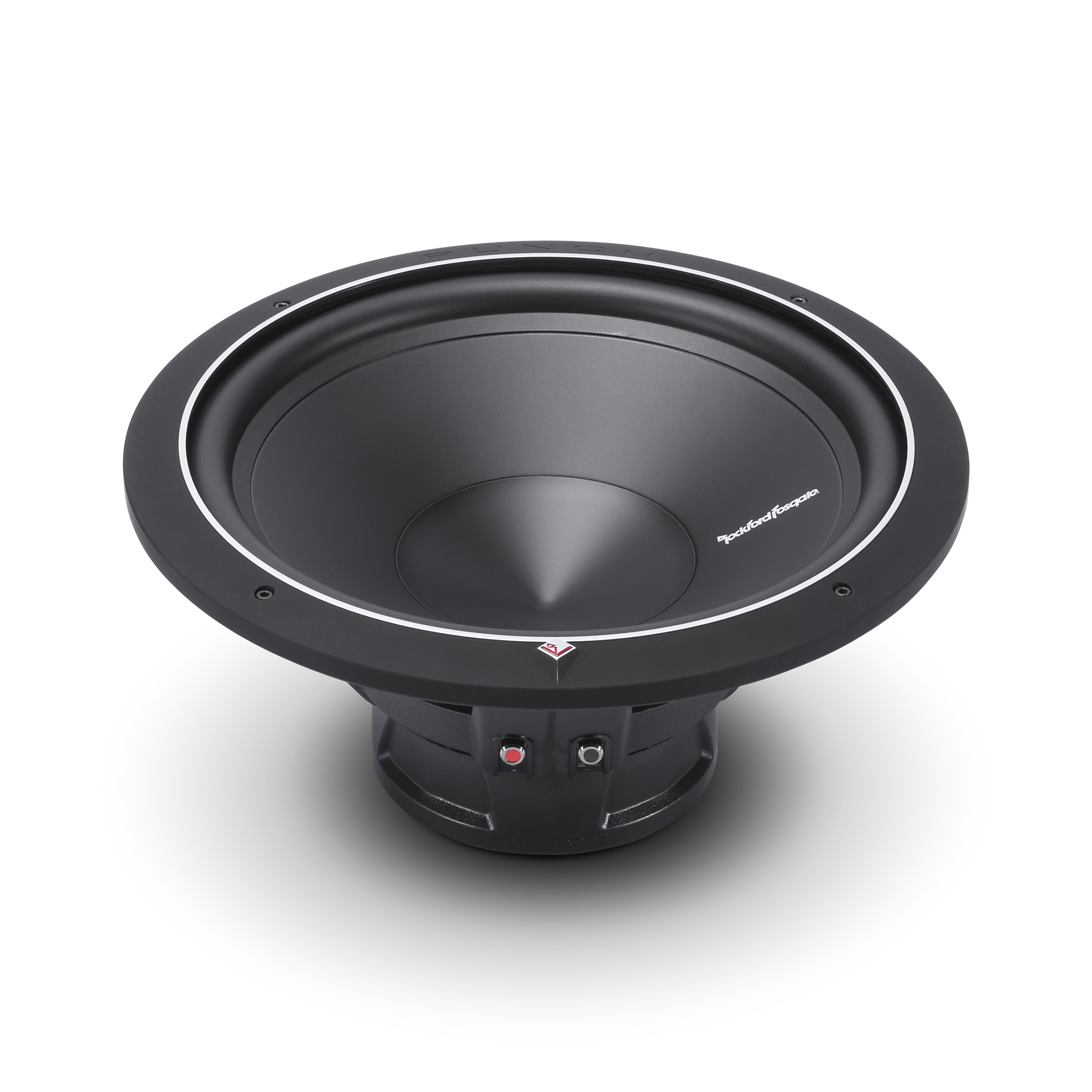

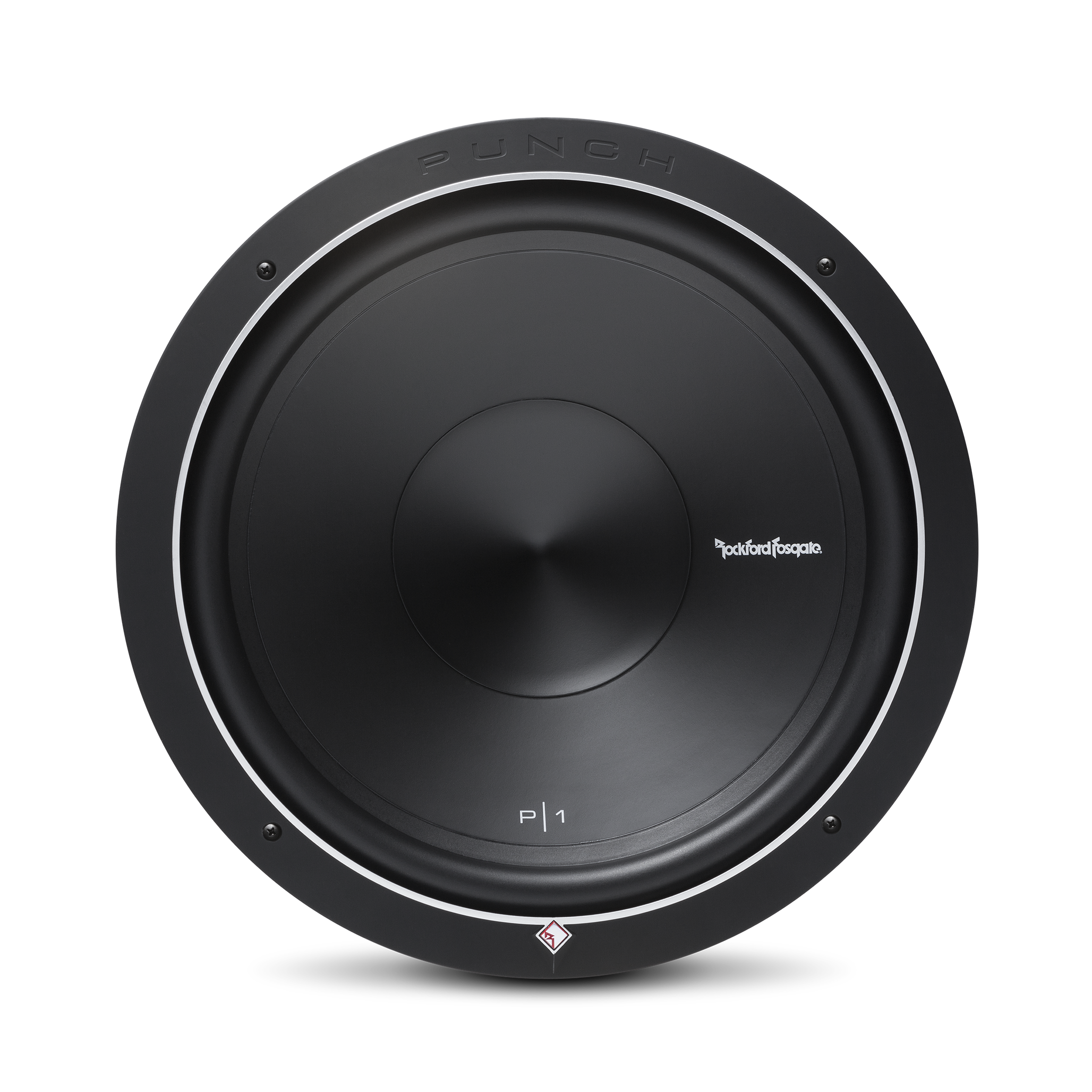

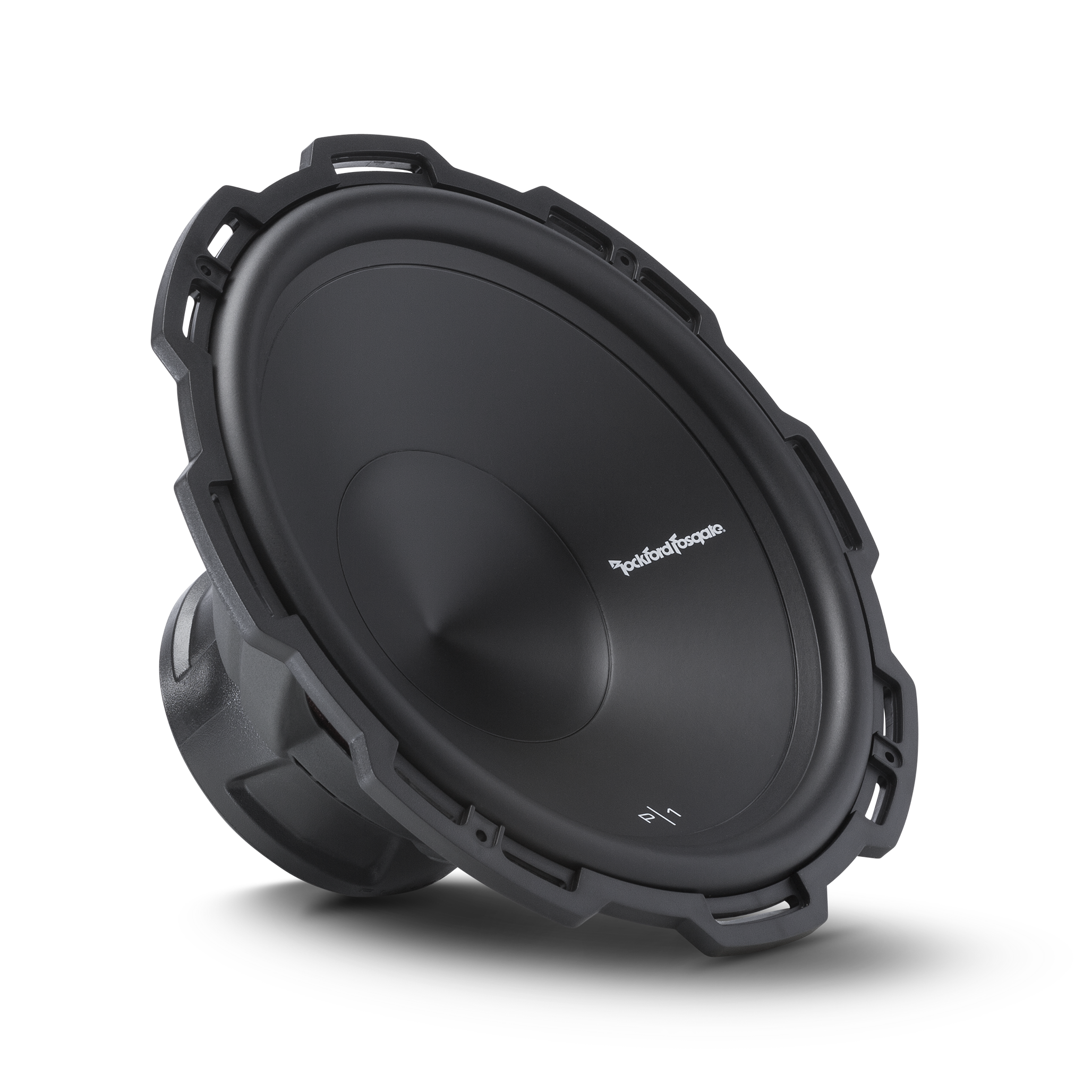

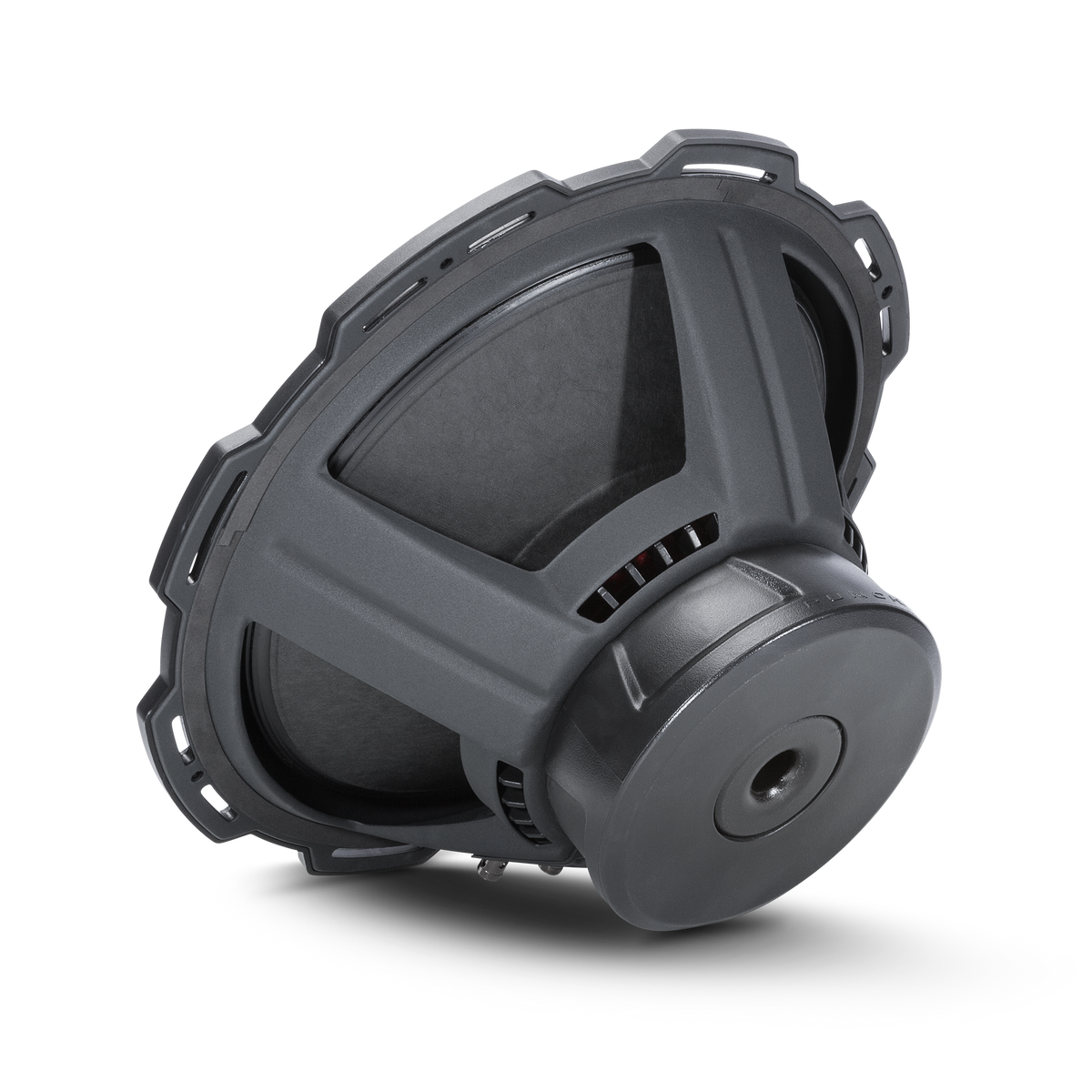

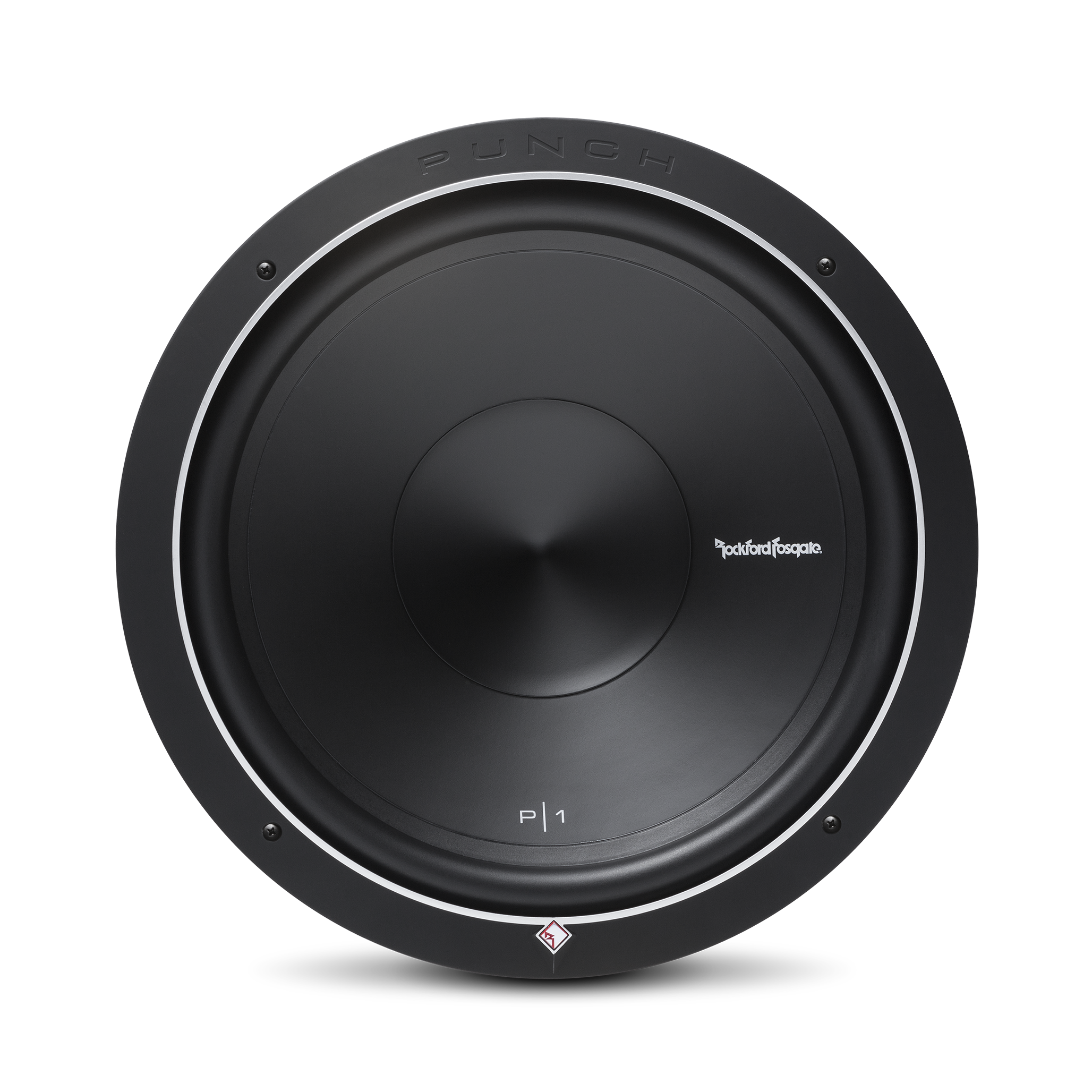

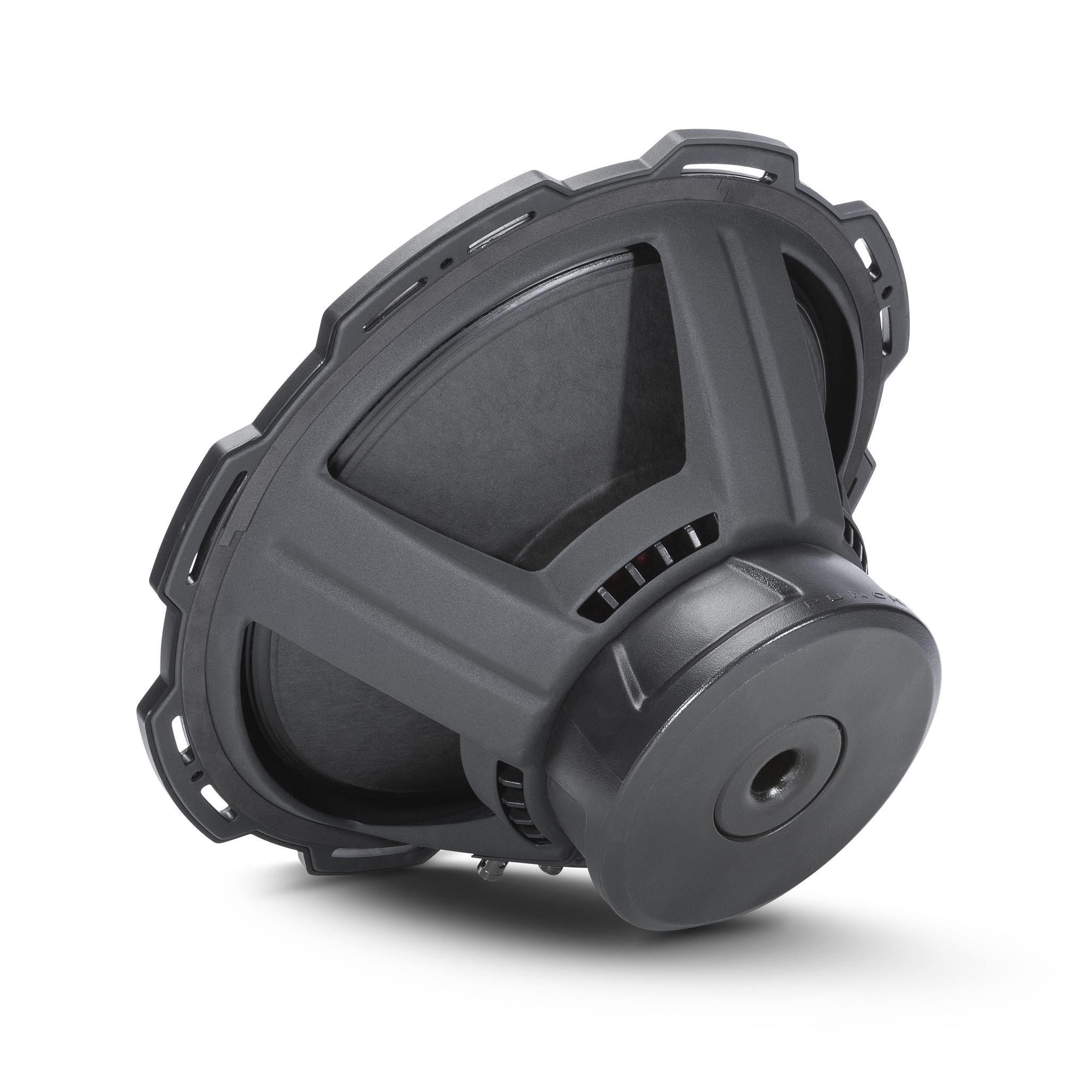

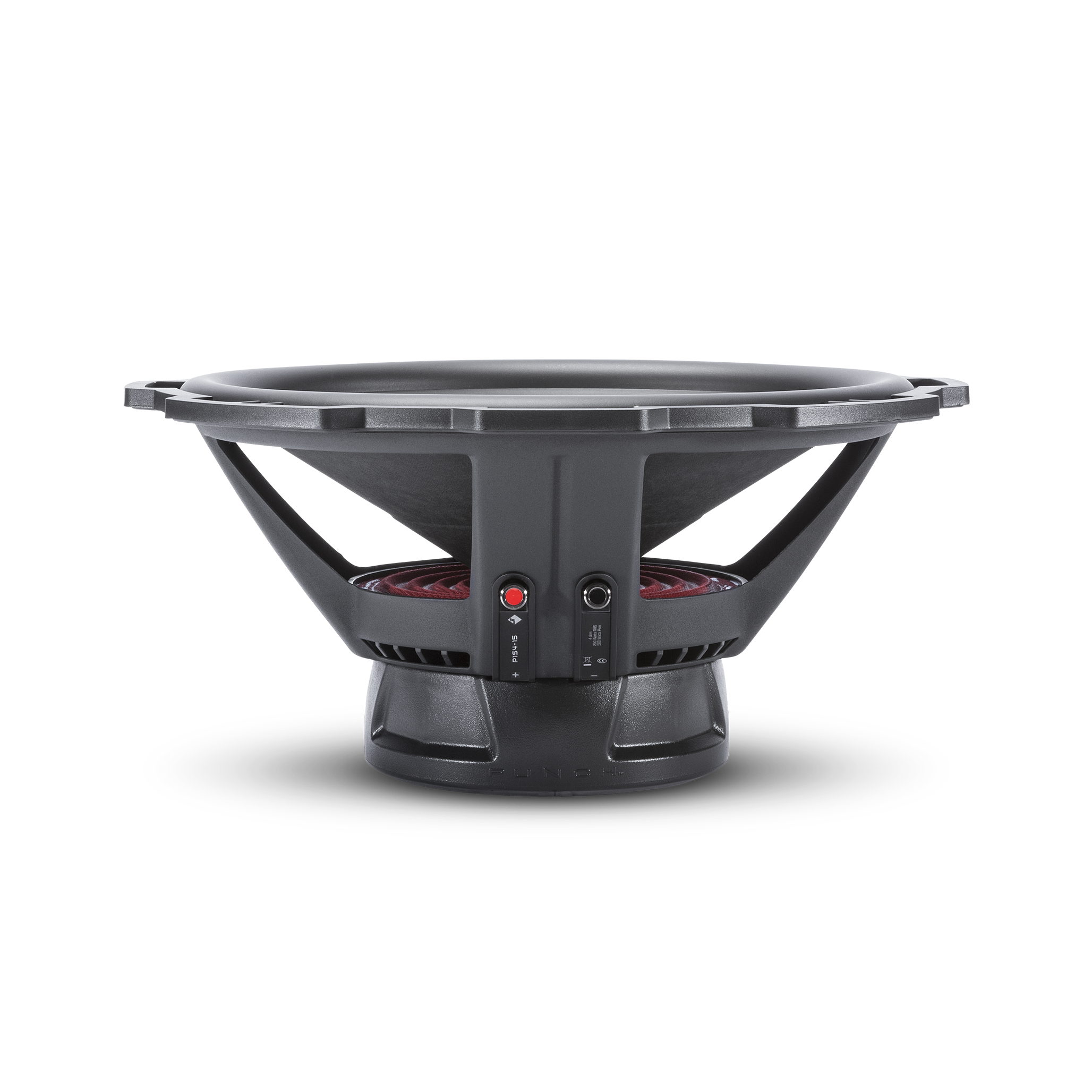

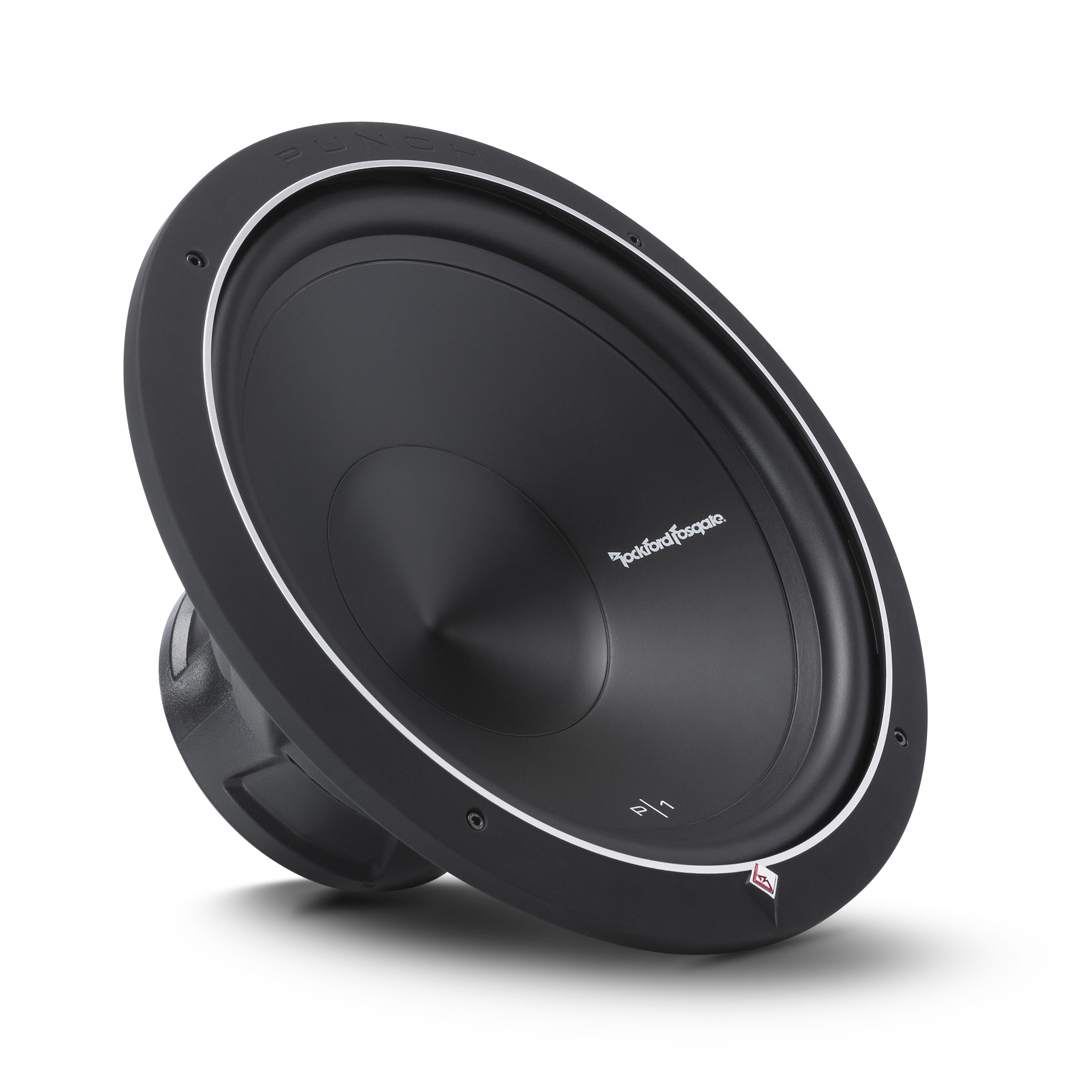

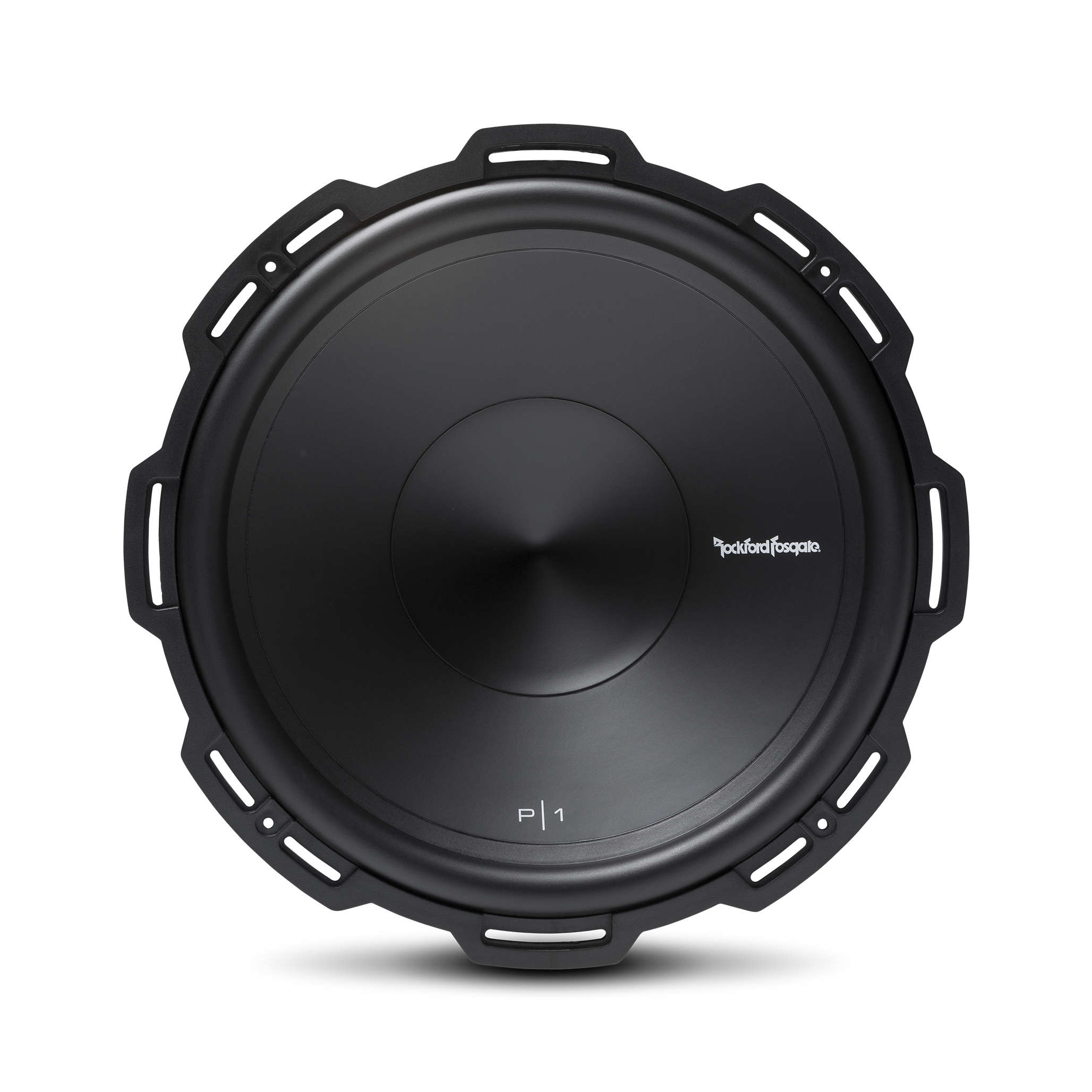

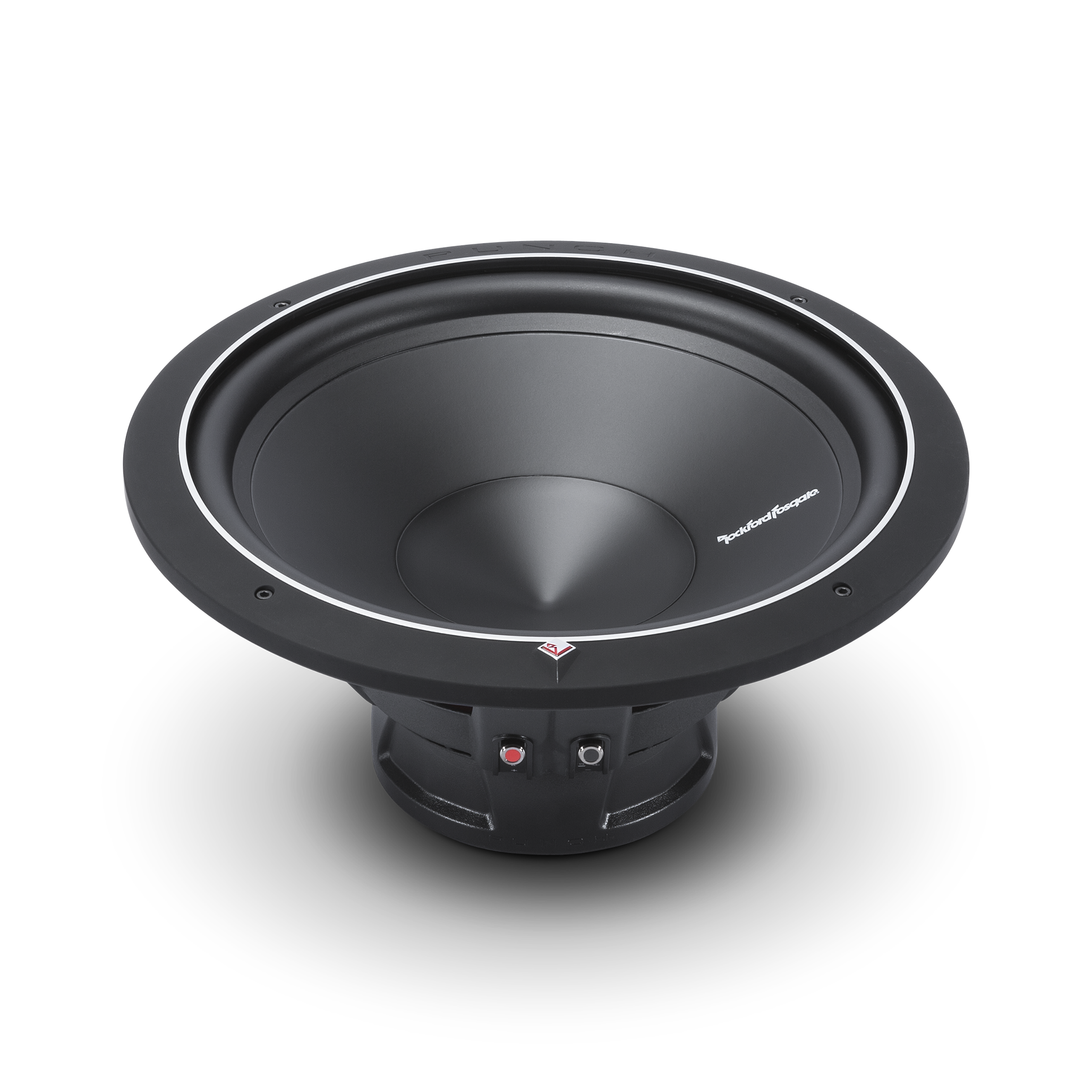

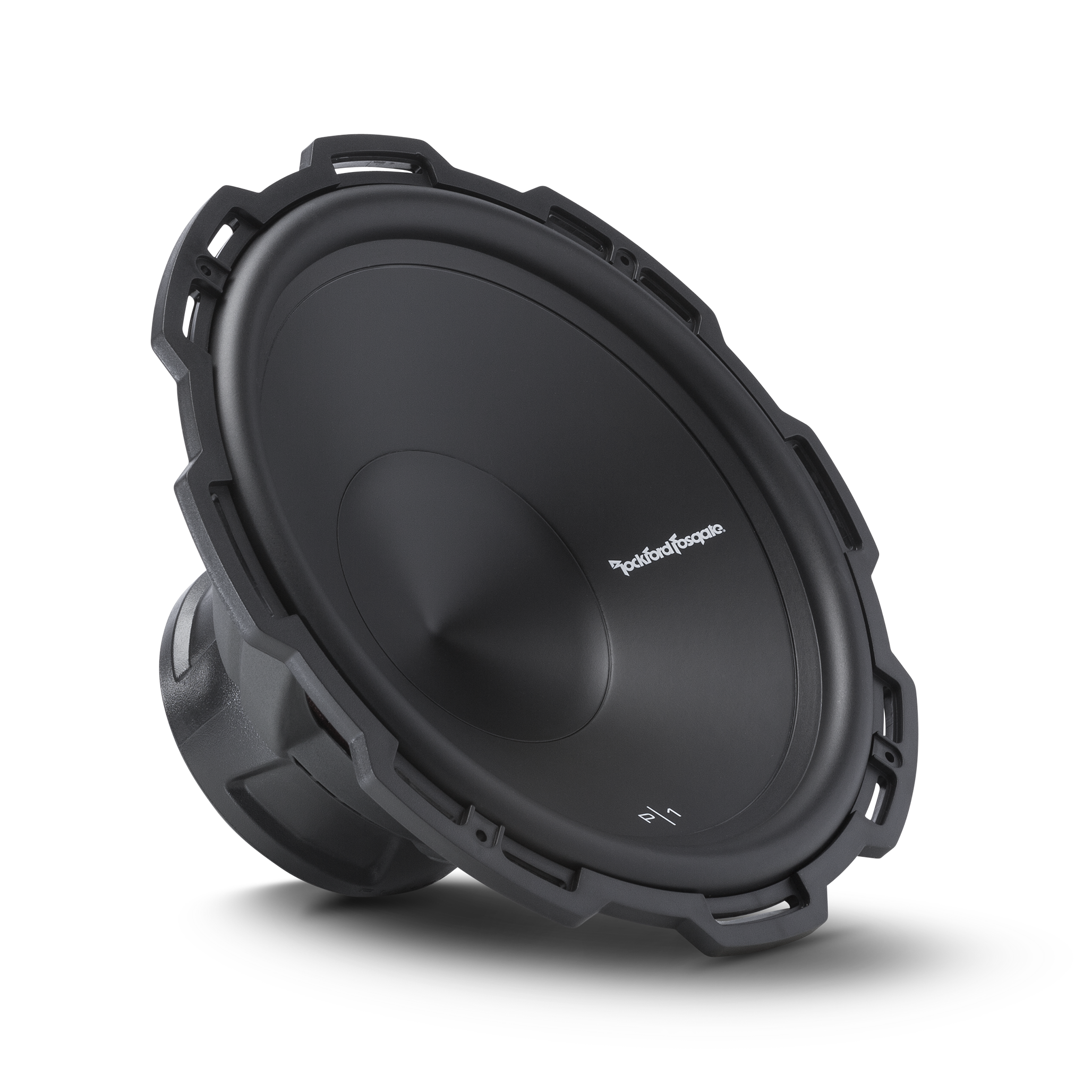

Rockford Fosgate P1 15" is the first in a family of famous "Punch" subwoofers. The P1S4-15 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Features
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
Specifications
- Speaker Connector: Dual 10 AWG compression
- Voice Coil Type: Single Voice Coil
- Sd (cm2): 876
- Subwoofer Type: Standard
- Voice Coil Diameter: 2.0" (51.6 mm)
- Nominal Impedance: 4-Ohm
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- Size: 15"
- Qts: 0.55
- Fs (Hz): 23
- Magnet Weight (oz): 60 oz. (1.70 kg.)
- Re (Ohms): 3.6
- Qes: 0.62
- Qms: 3.2
- SPL (dB @ 1w/1m): 87
- Vas (Liters): 191.5
- Le (mH): 3.14
- Cutout Diameter: 13.85 in. (351.8 mm)
- Xmax (mm): 9
- SPL (dB @ 2.8v/1m): 90
- Mounting Depth: 6.98 in. (177.2 mm)
- Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
- Shipping Weight: 16.3 Lbs. (7.39 kg)
