Overview

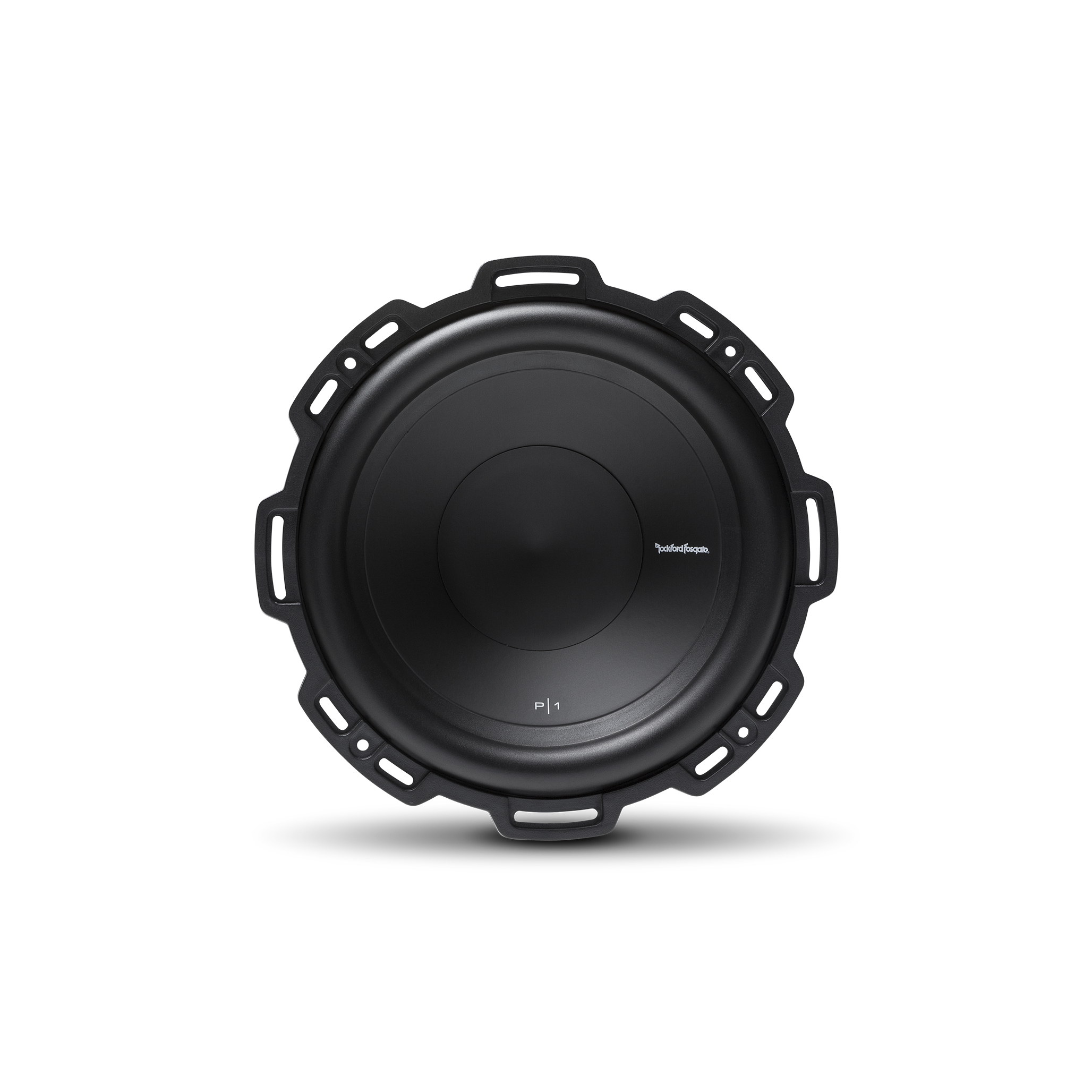

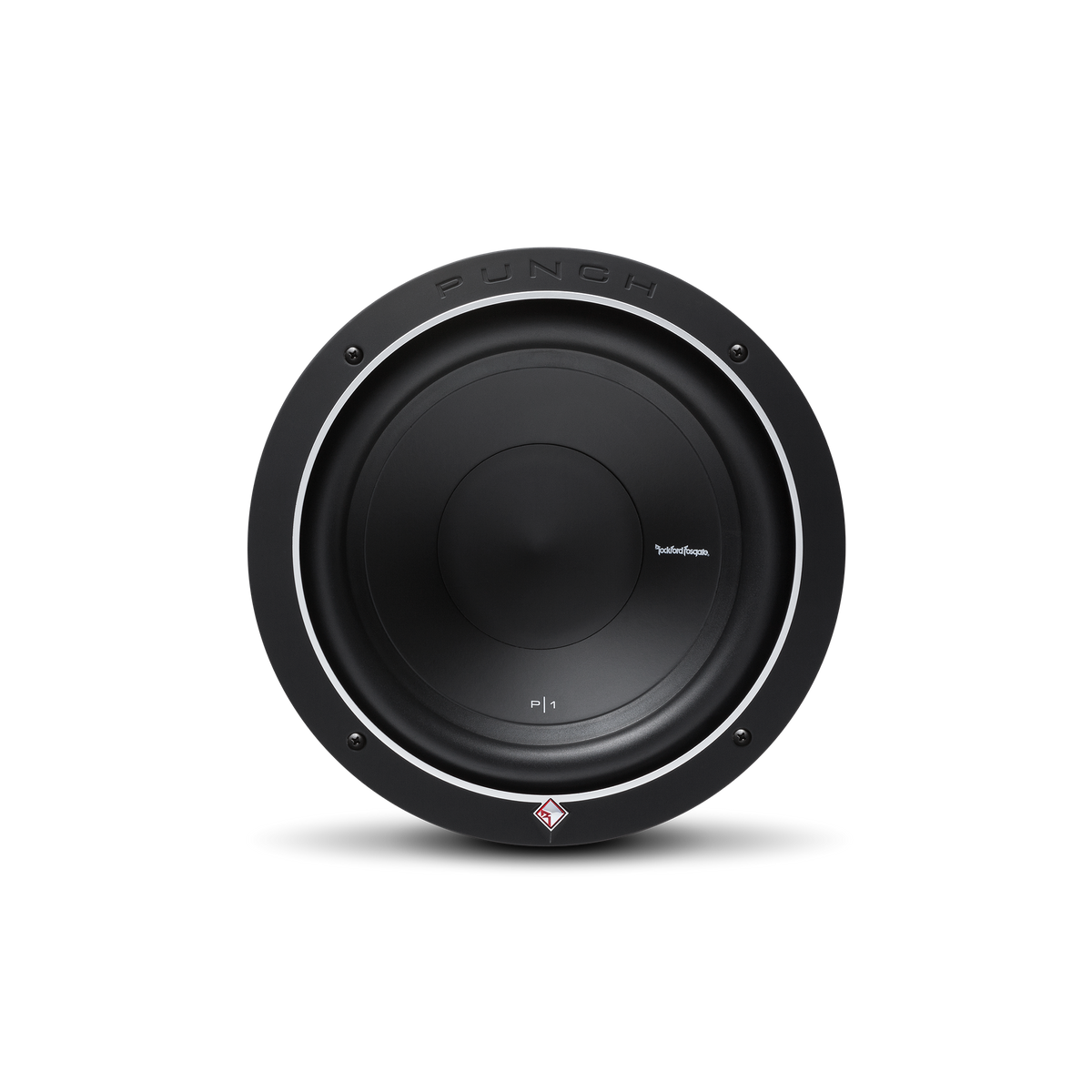

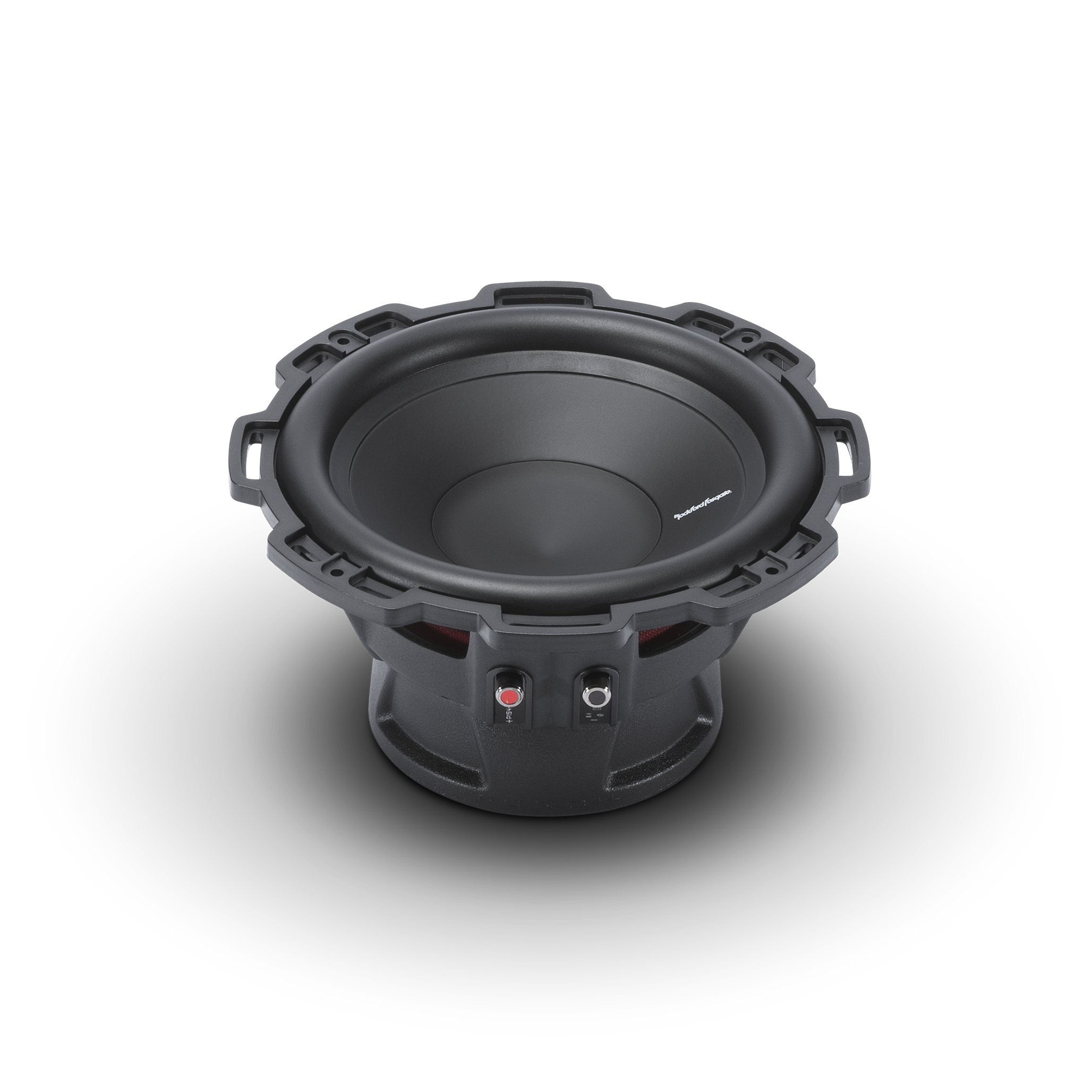

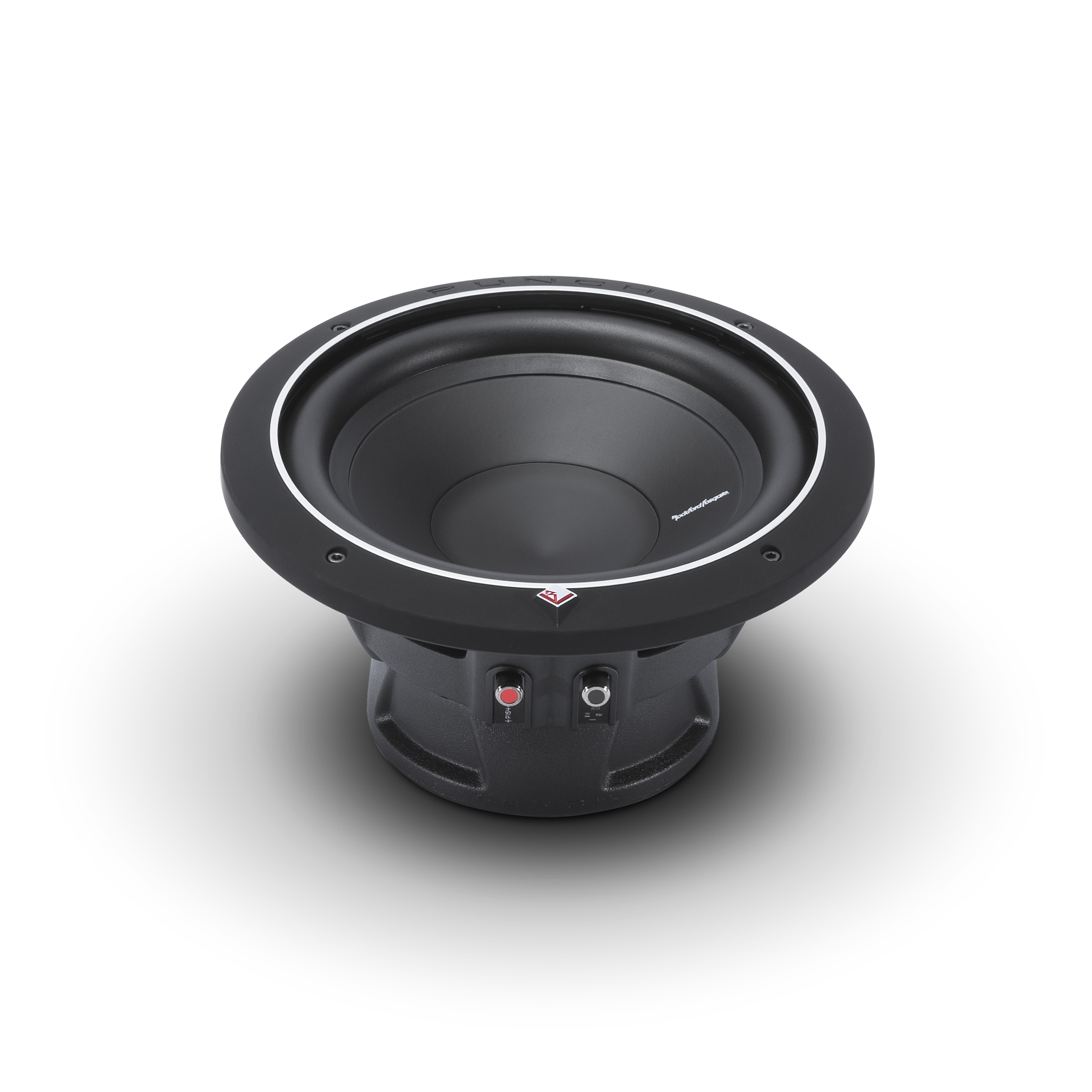

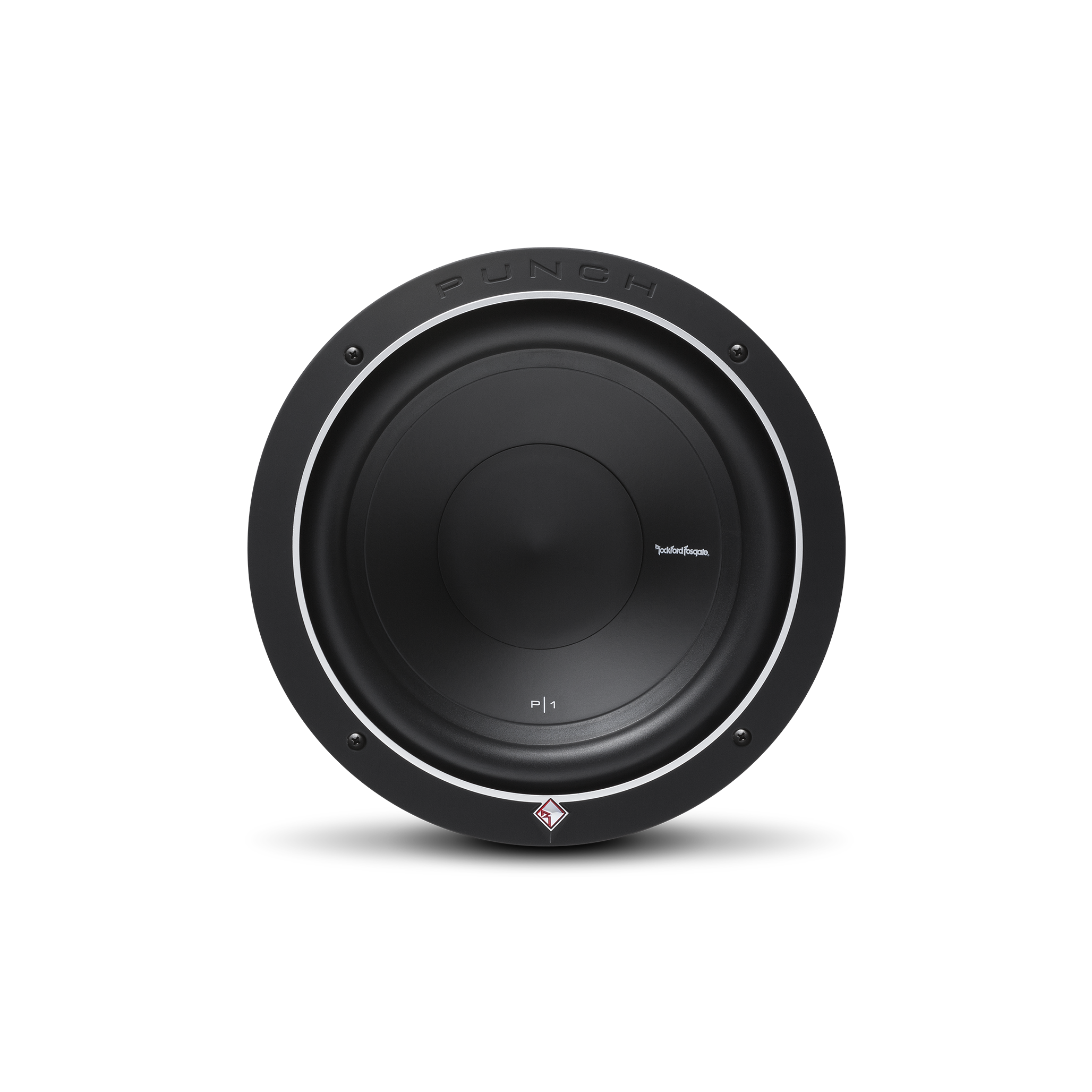

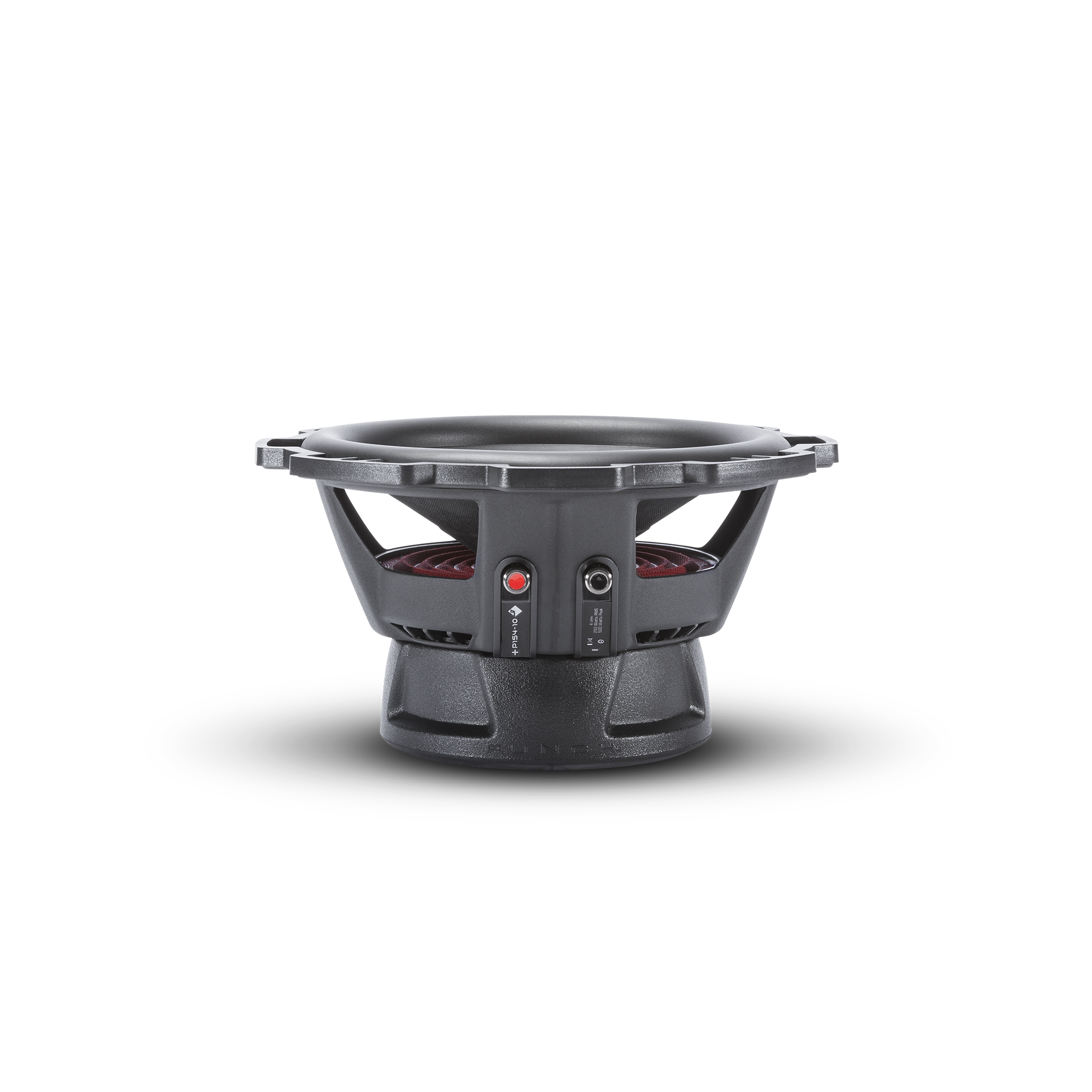

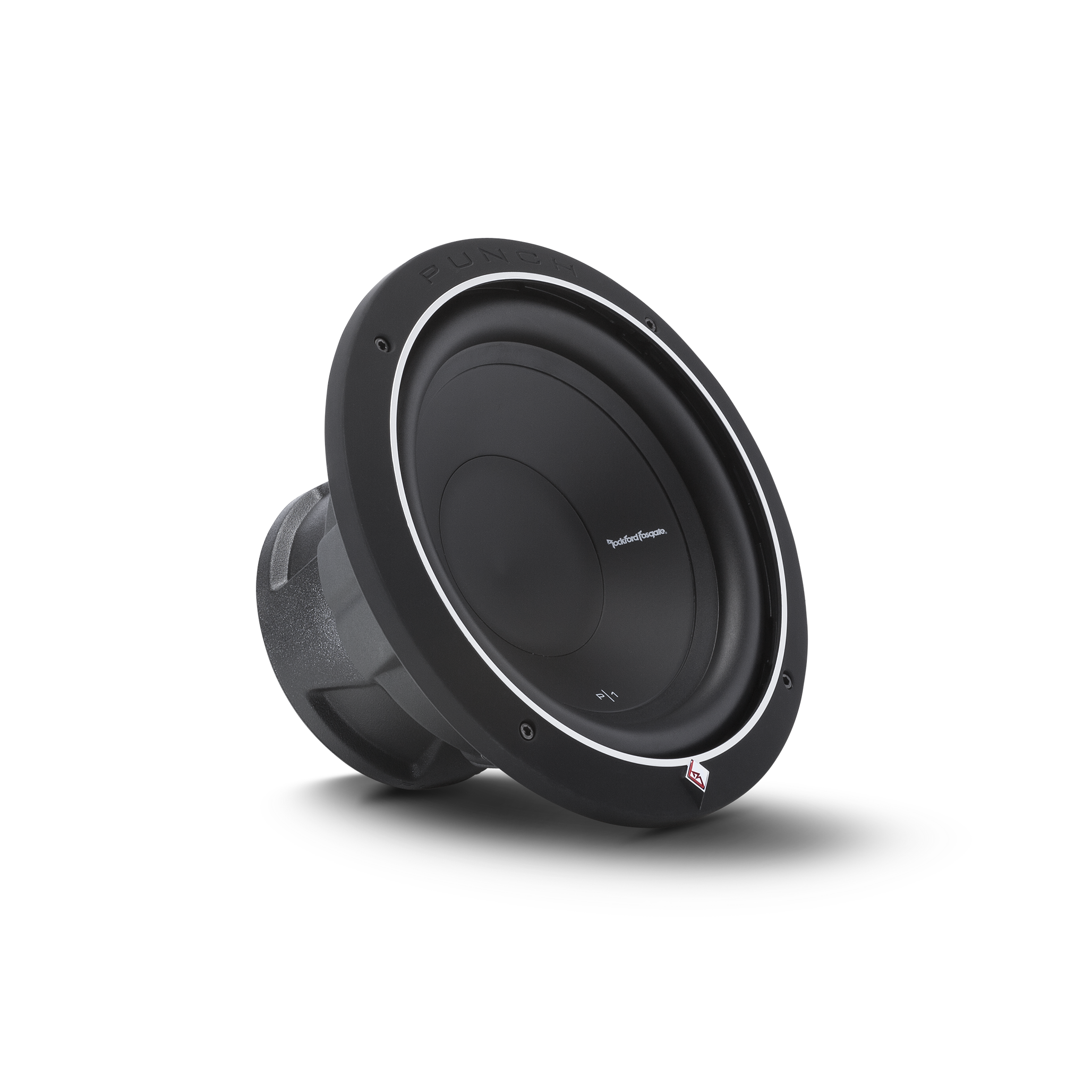

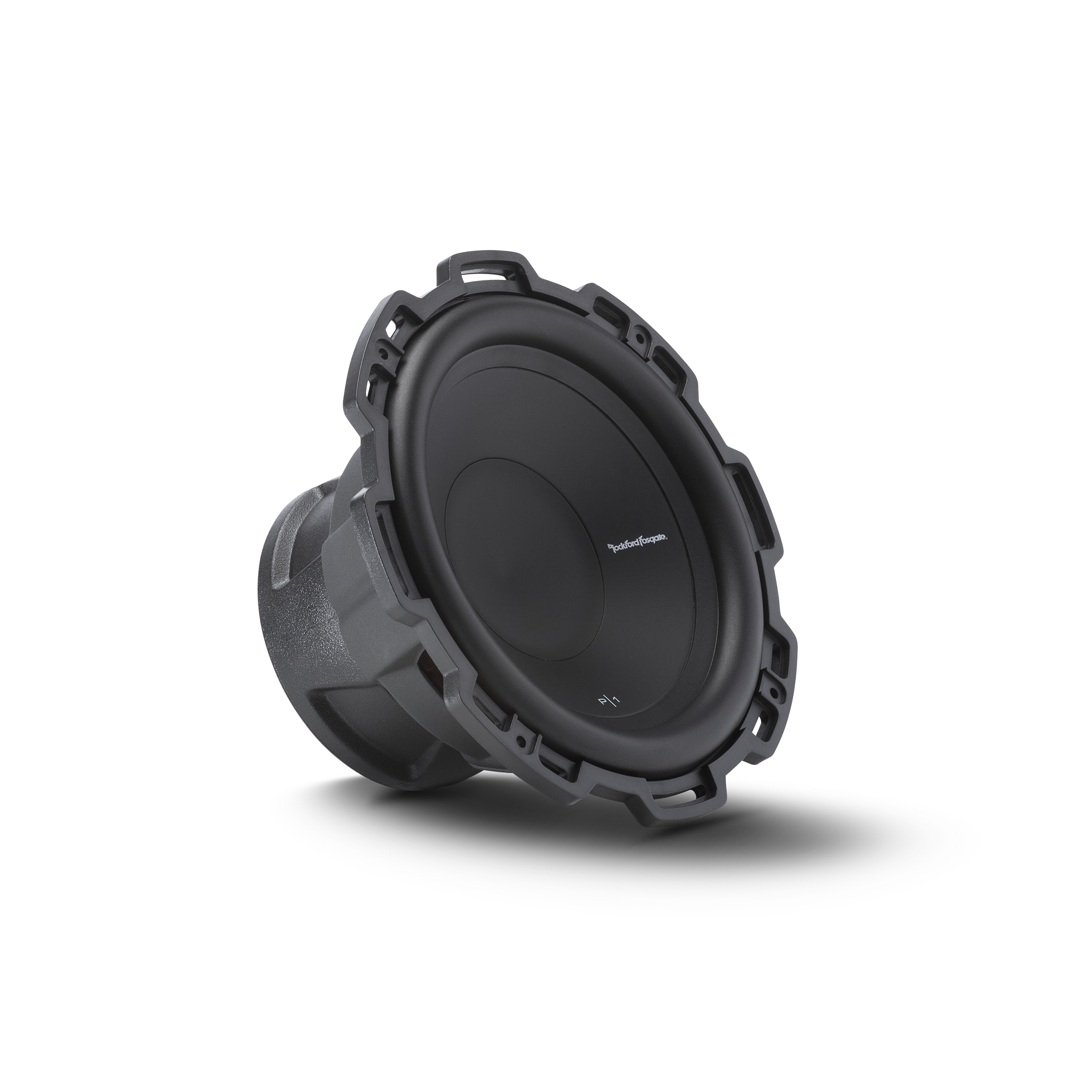

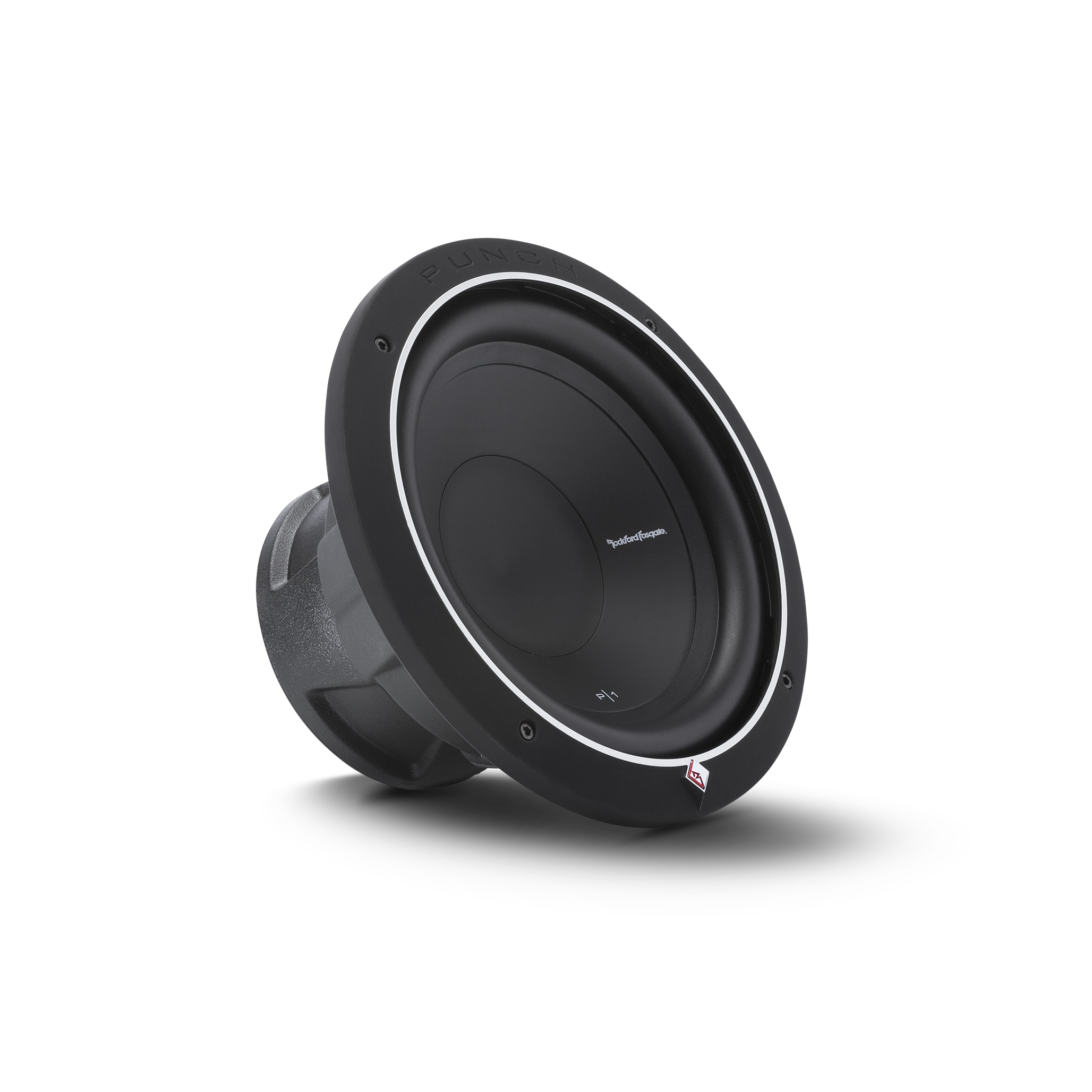

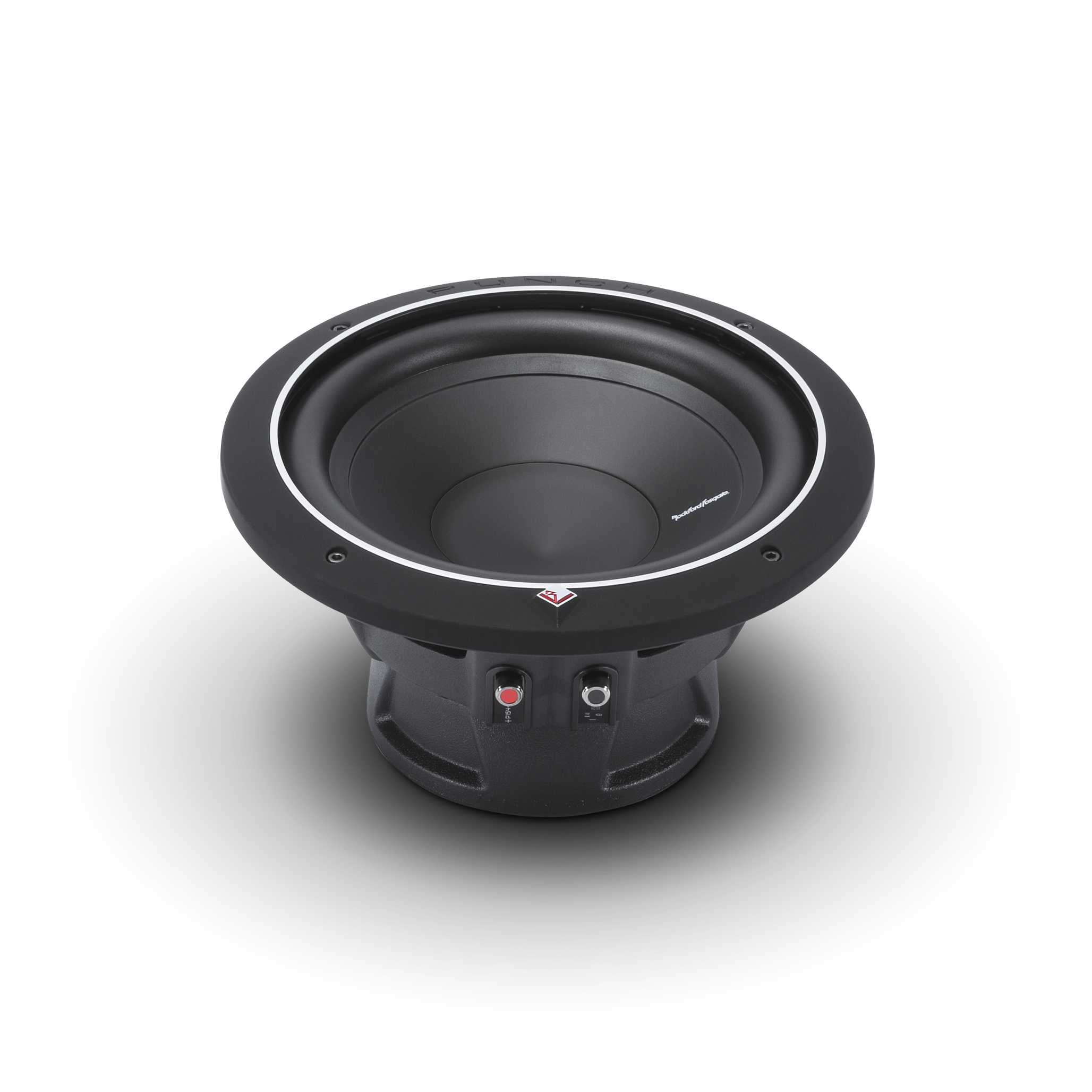

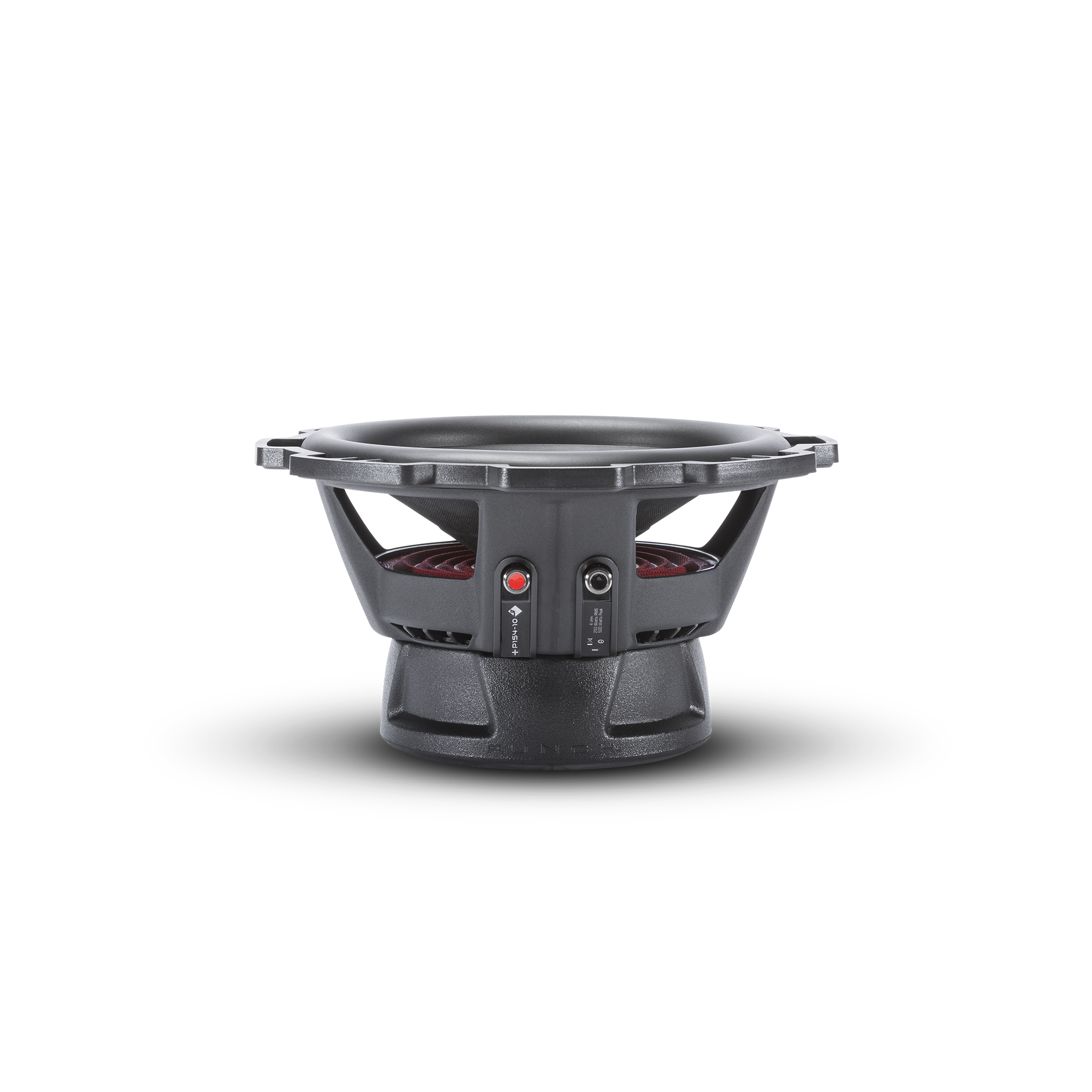

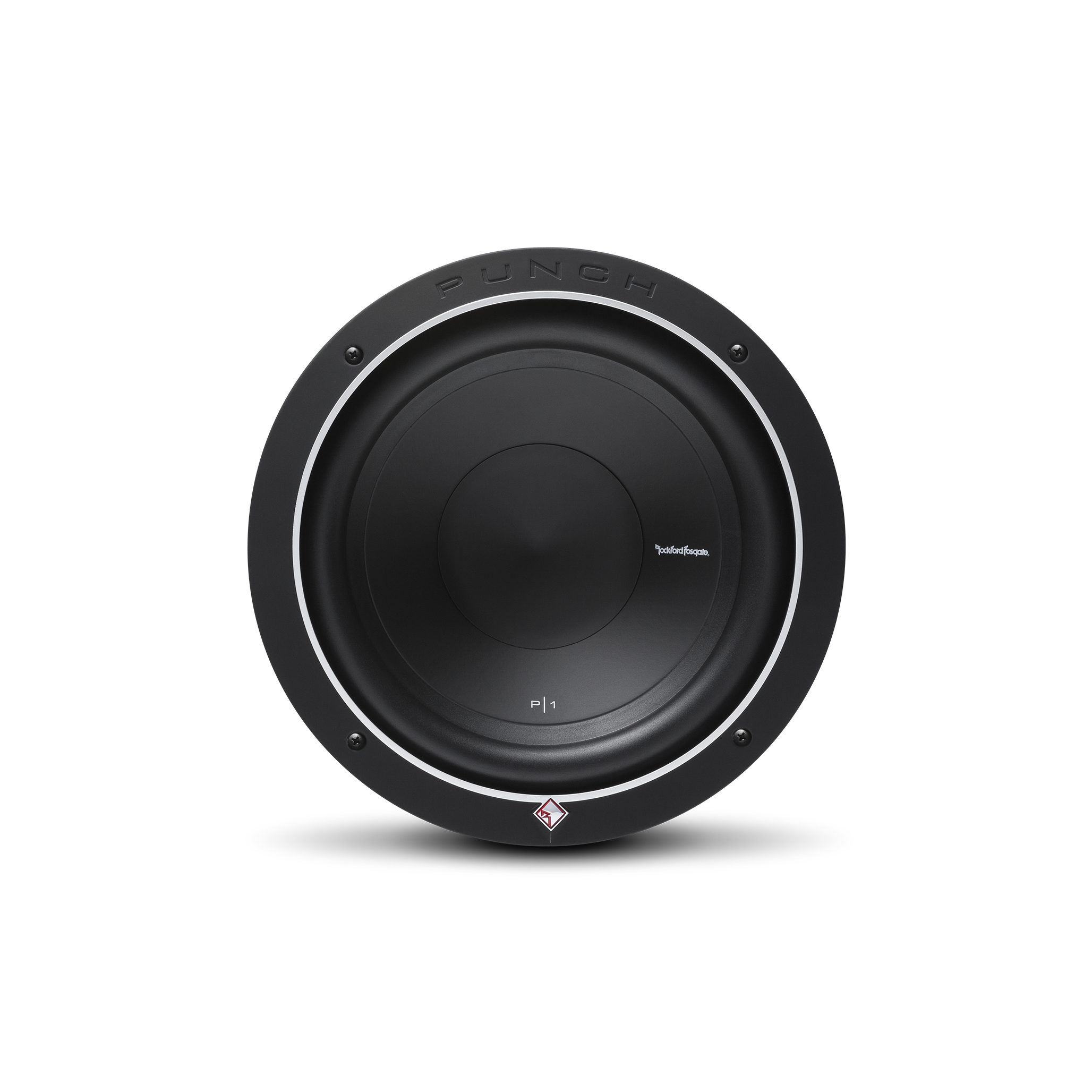

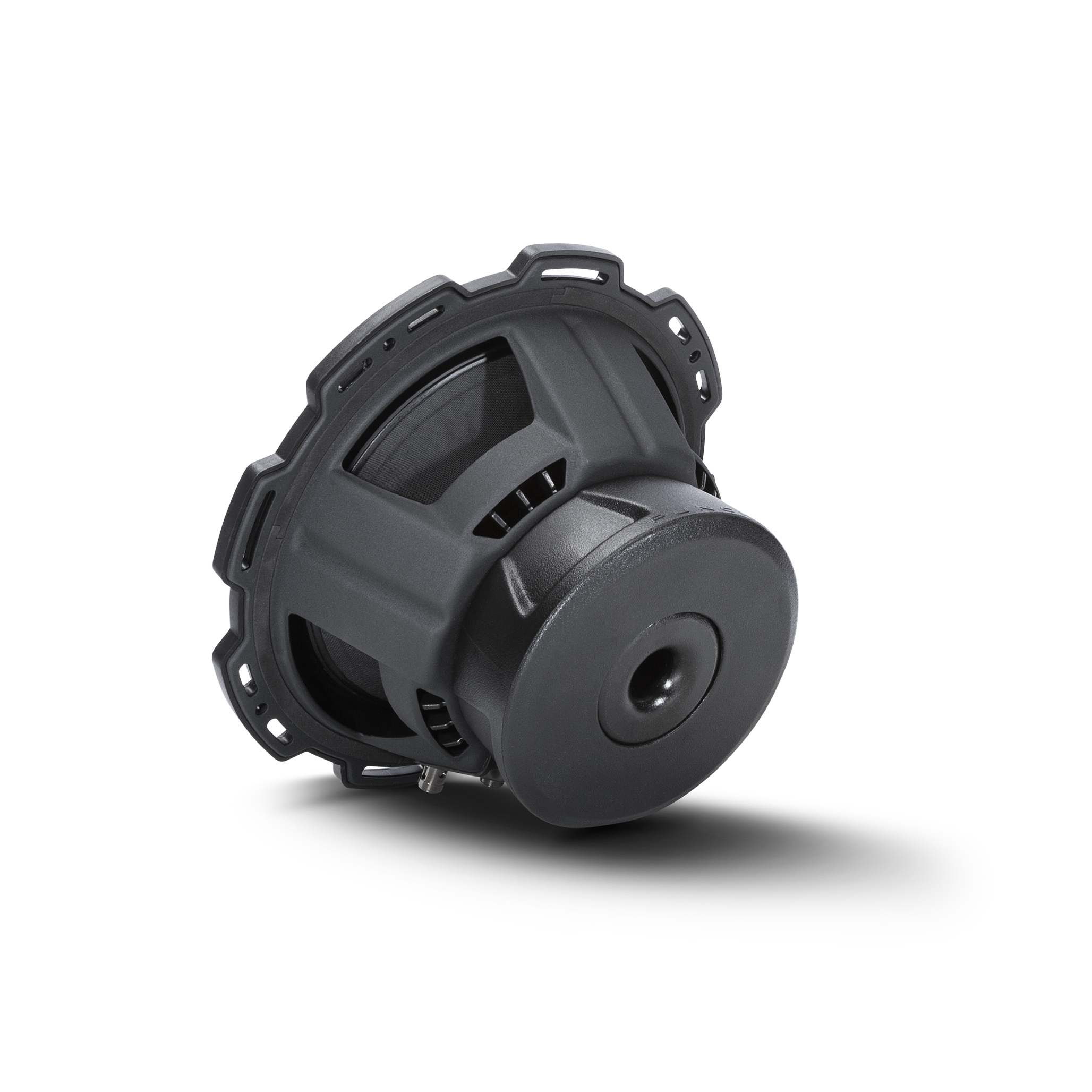

Rockford Fosgate P1 10" is the first in a family of famous "Punch" subwoofers. The P1S4-10 features a 4-Ohm voice coil, and 250 Watts RMS power handling.
Features
- Kevlar fiber reinforced paper cone
- Rubberized ABS trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads
- 1 Year Warranty
- Protective PVC textured magnet cover
Specifications
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Subwoofer Type: Standard
- Nominal Impedance: 4-Ohm
- Voice Coil Type: Single Voice Coil
- Size: 10"
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- Qms: 3
- Qes: 0.61
- Qts: 0.52
- Fs (Hz): 30
- Speaker Connector: Dual 10 AWG compression
- Re (Ohms): 3.6
- Voice Coil Diameter: 2.0" (51.6 mm)
- Vas (Liters): 40
- SPL (dB @ 1w/1m): 85
- Sd (cm2): 370
- Le (mH): 2.81
- Xmax (mm): 9
- Mounting Depth: 5.33 in. (135.4 mm)
- SPL (dB @ 2.8v/1m): 88
- Cutout Diameter: 9.14 in. (232 mm)
- Woofer Displacement: 0.056 cu. ft. (1.6 Liters)
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
- Shipping Weight: 10.9 Lbs. (4.94 kg)
