Overview

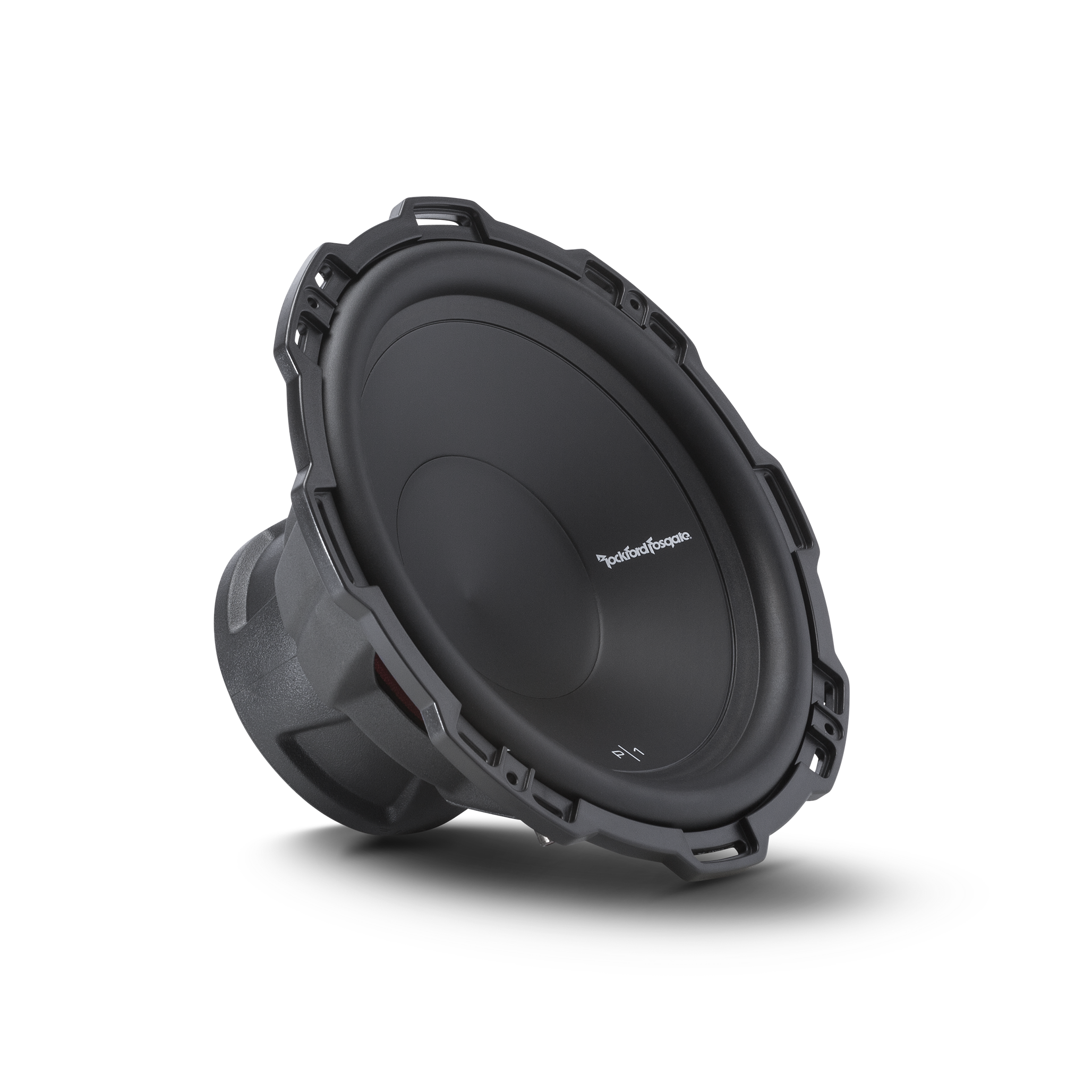

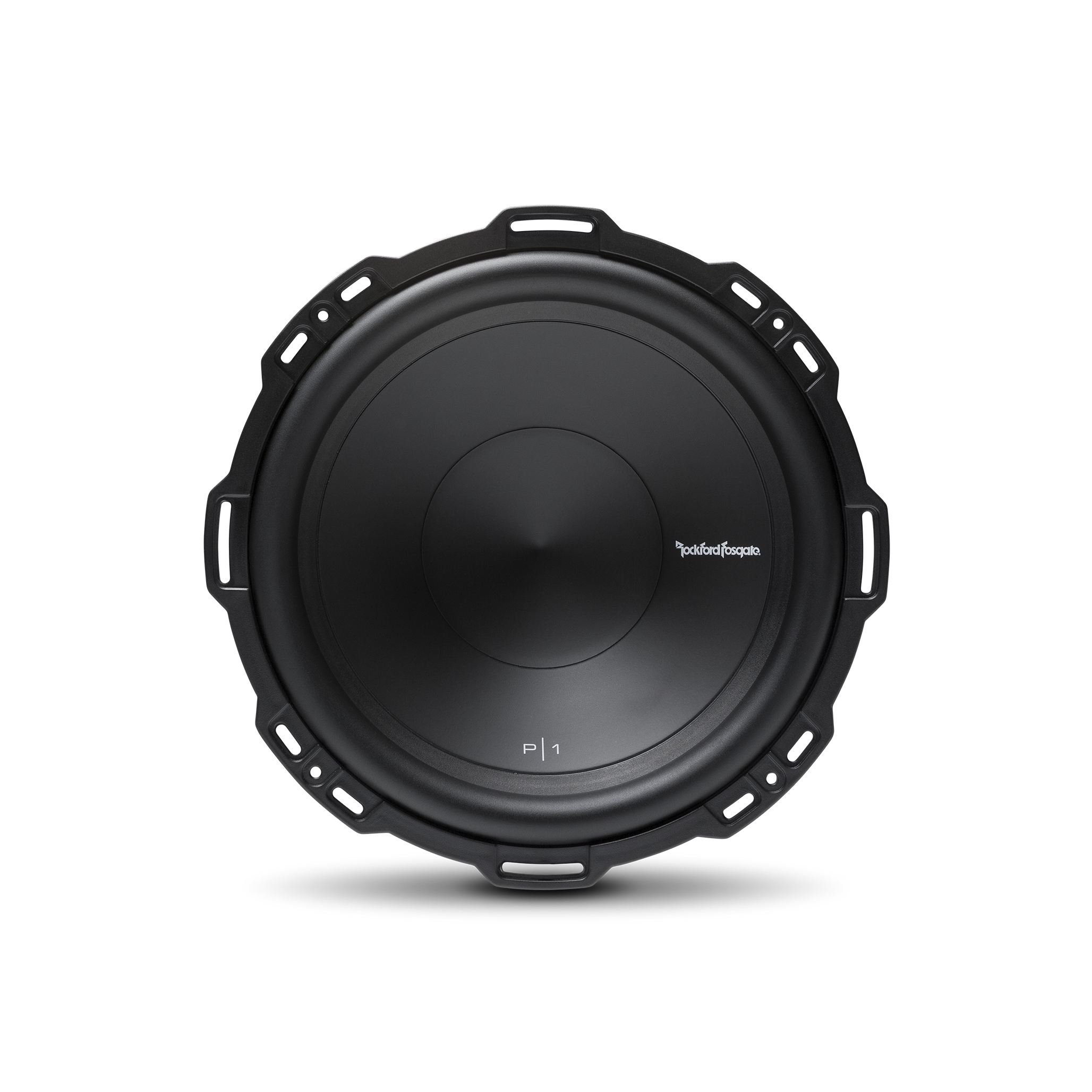

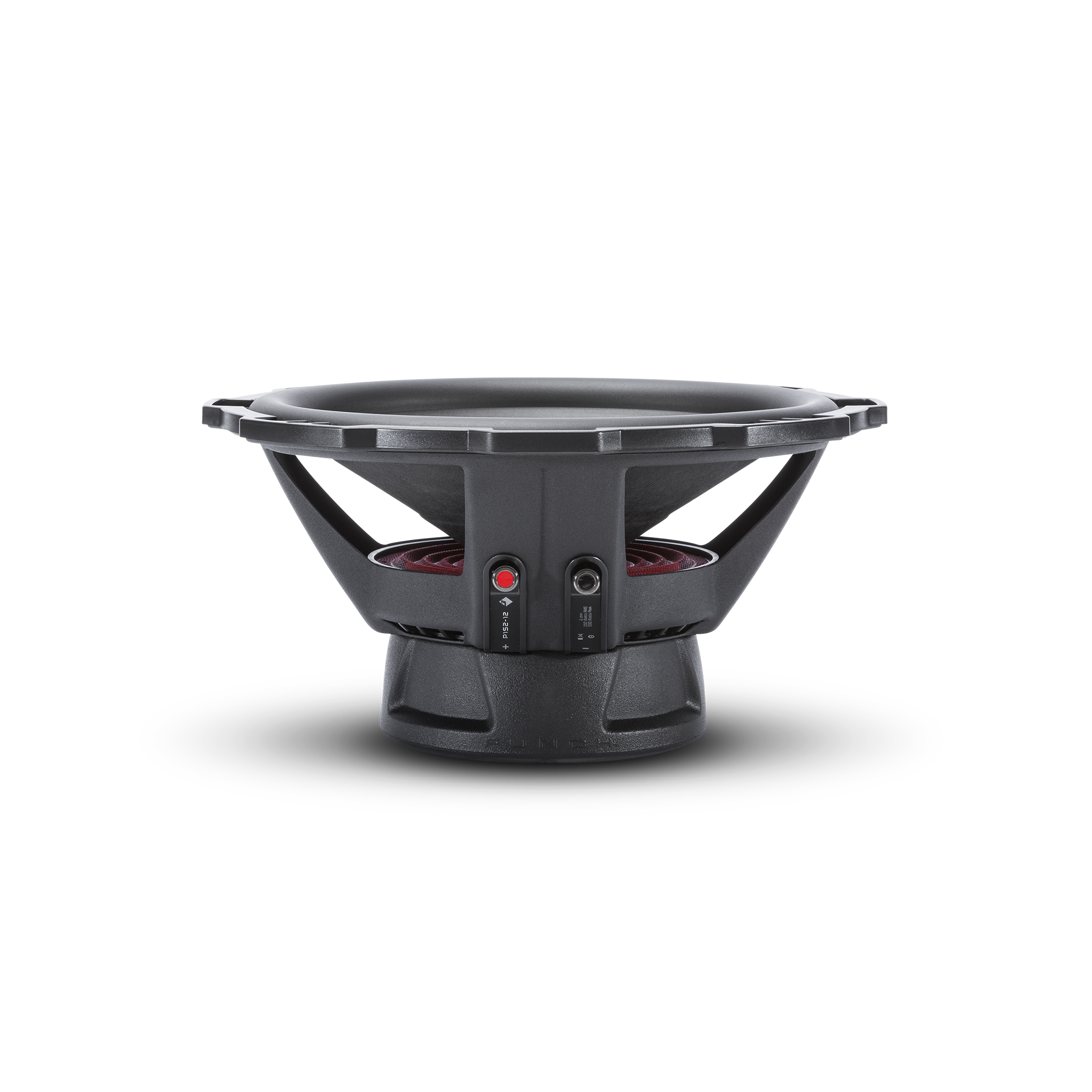

Rockford Fosgate P1 12" is the first in a family of famous "Punch" subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Features
- 1 Year Warranty
- Kevlar fiber reinforced paper cone

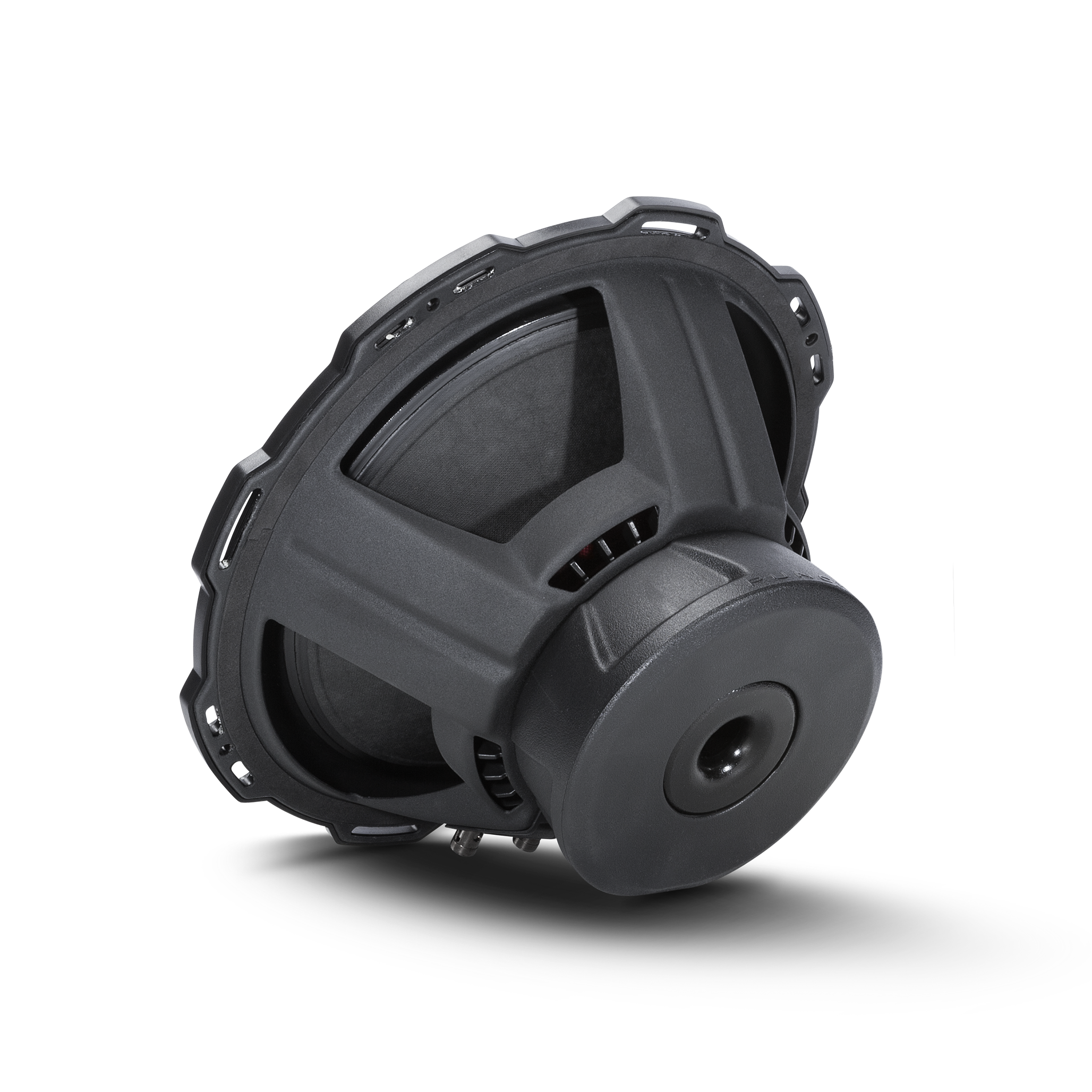

- StampCast basket with integrated spider venting
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Linear spider with embedded 16 AWG tinsel leads

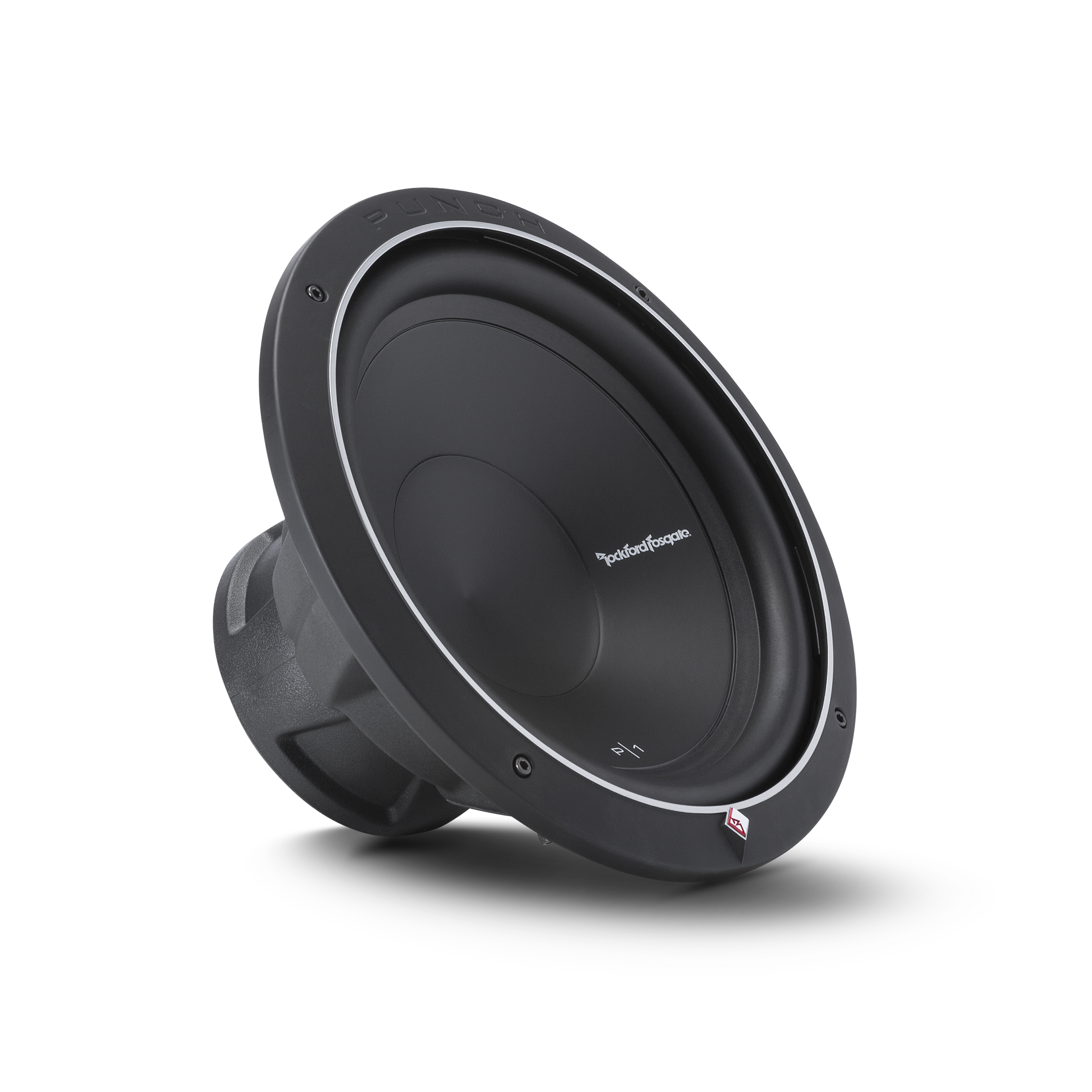

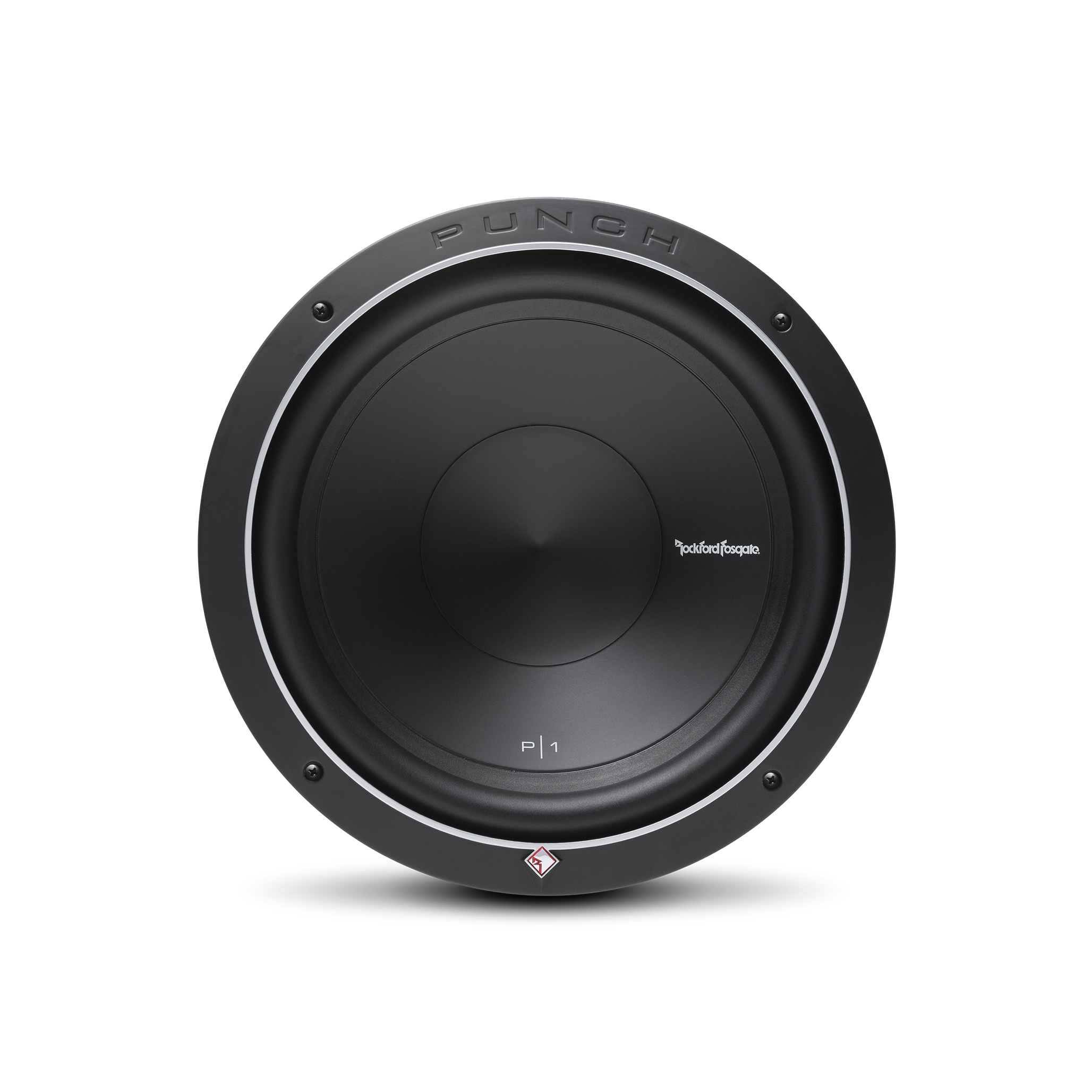

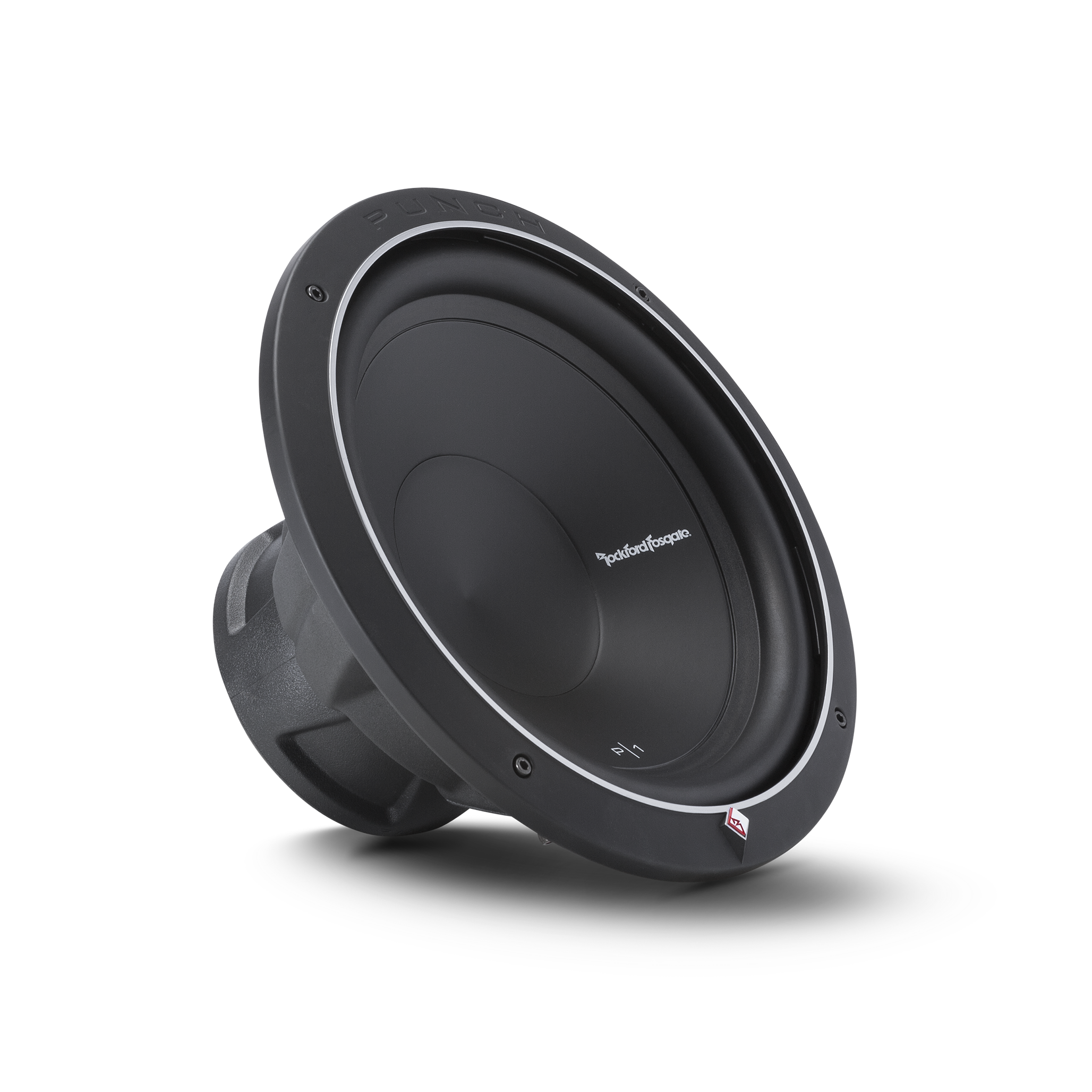

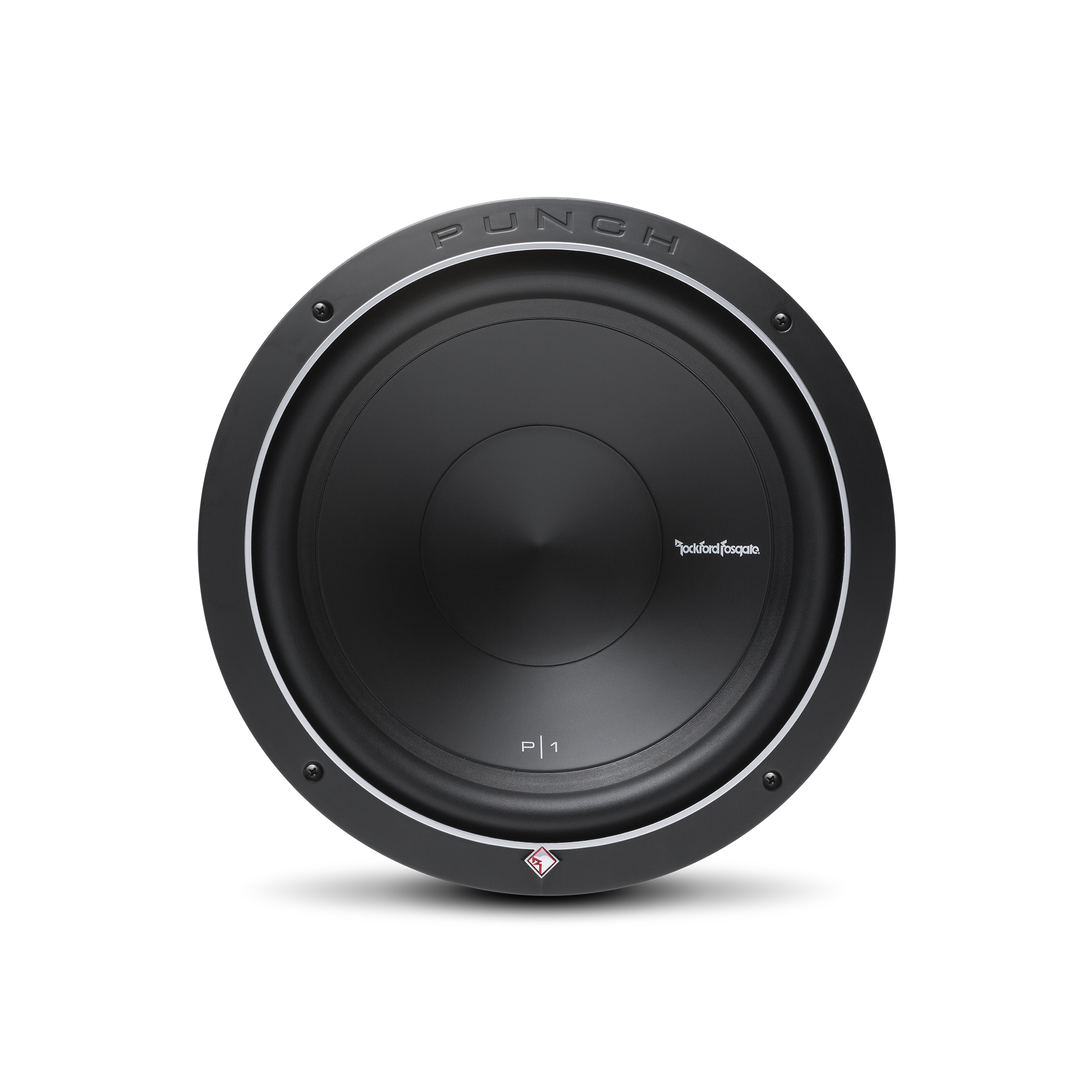

- Rubberized ABS trim ring with optional grille

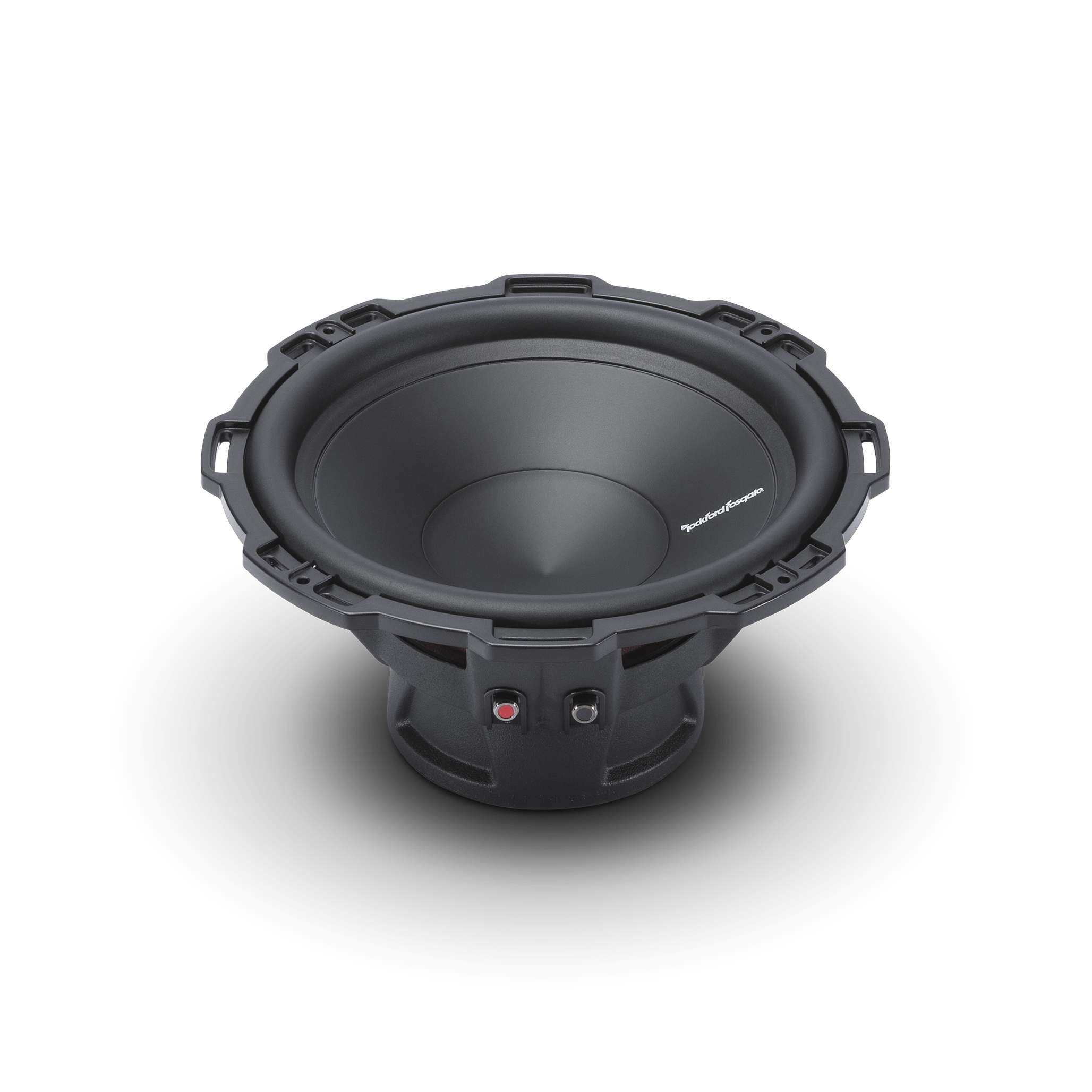

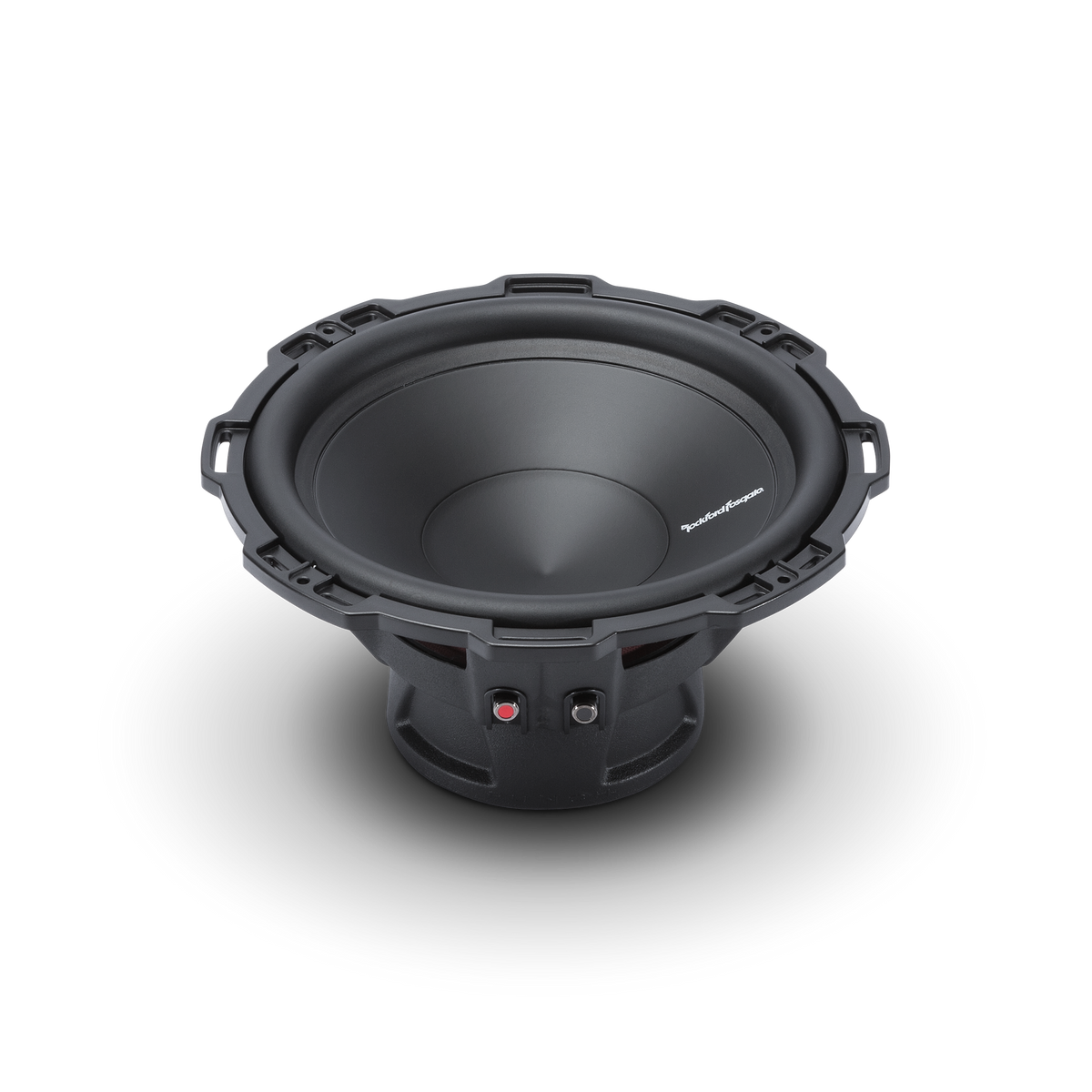

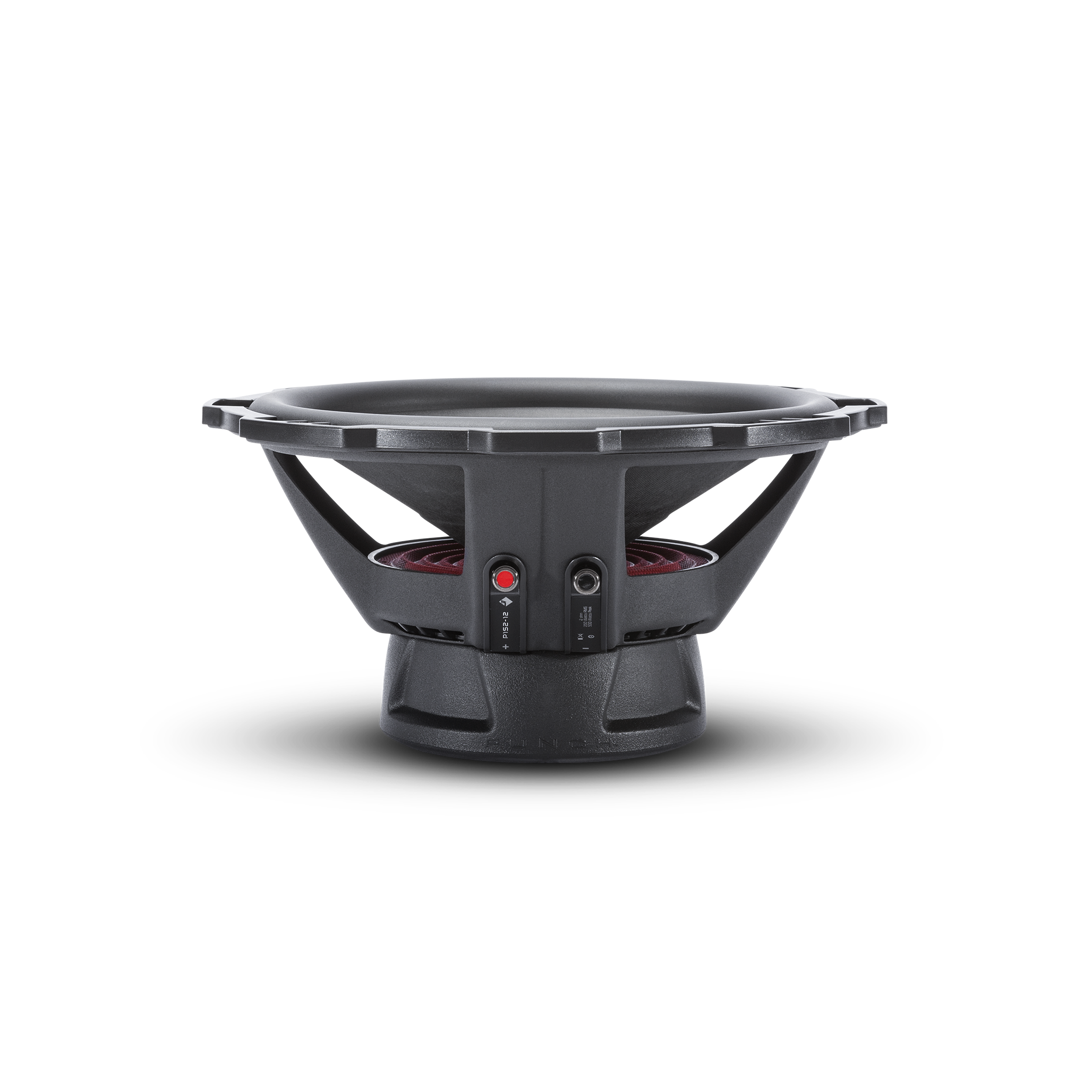

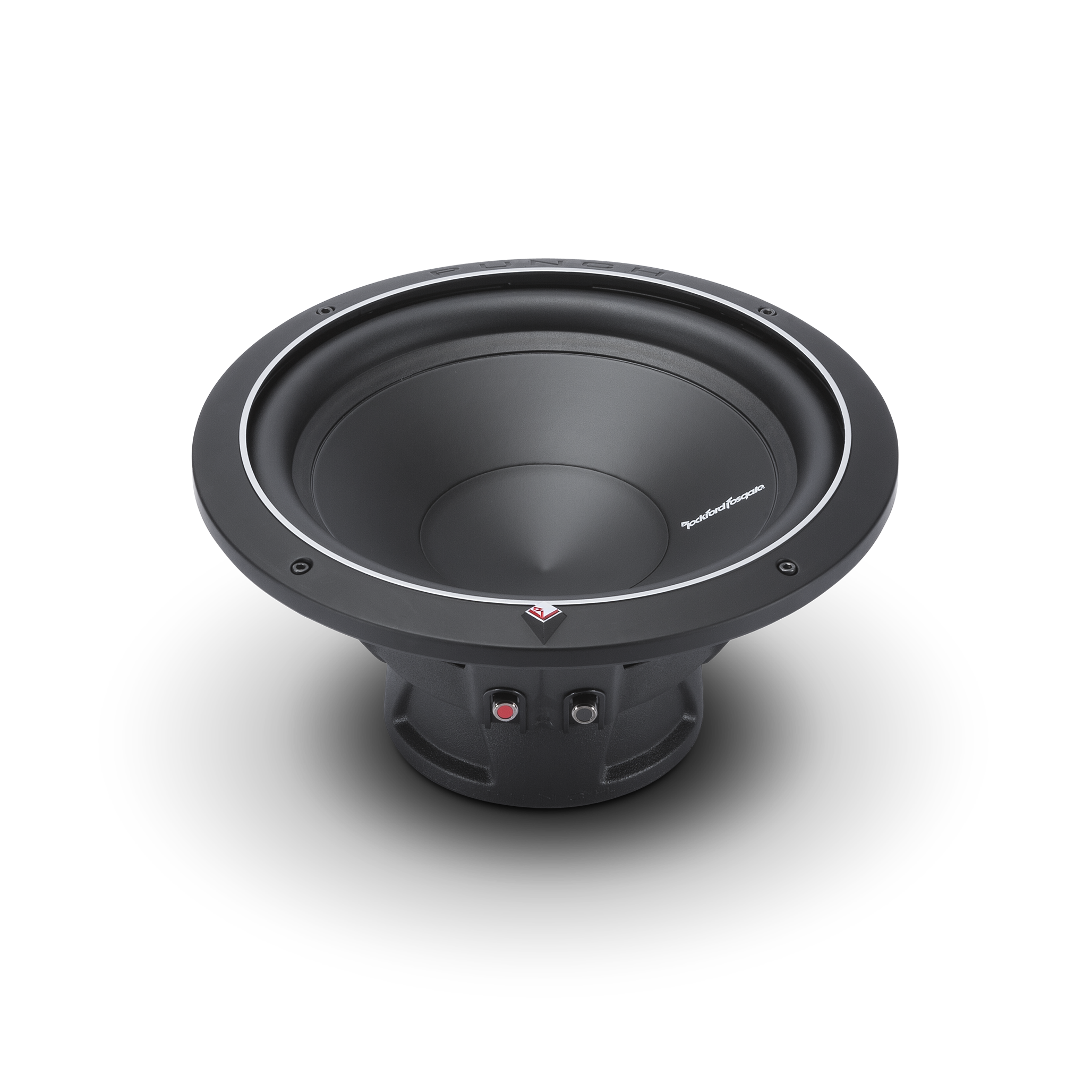

- Custom 10-AWG nickel plated push terminals

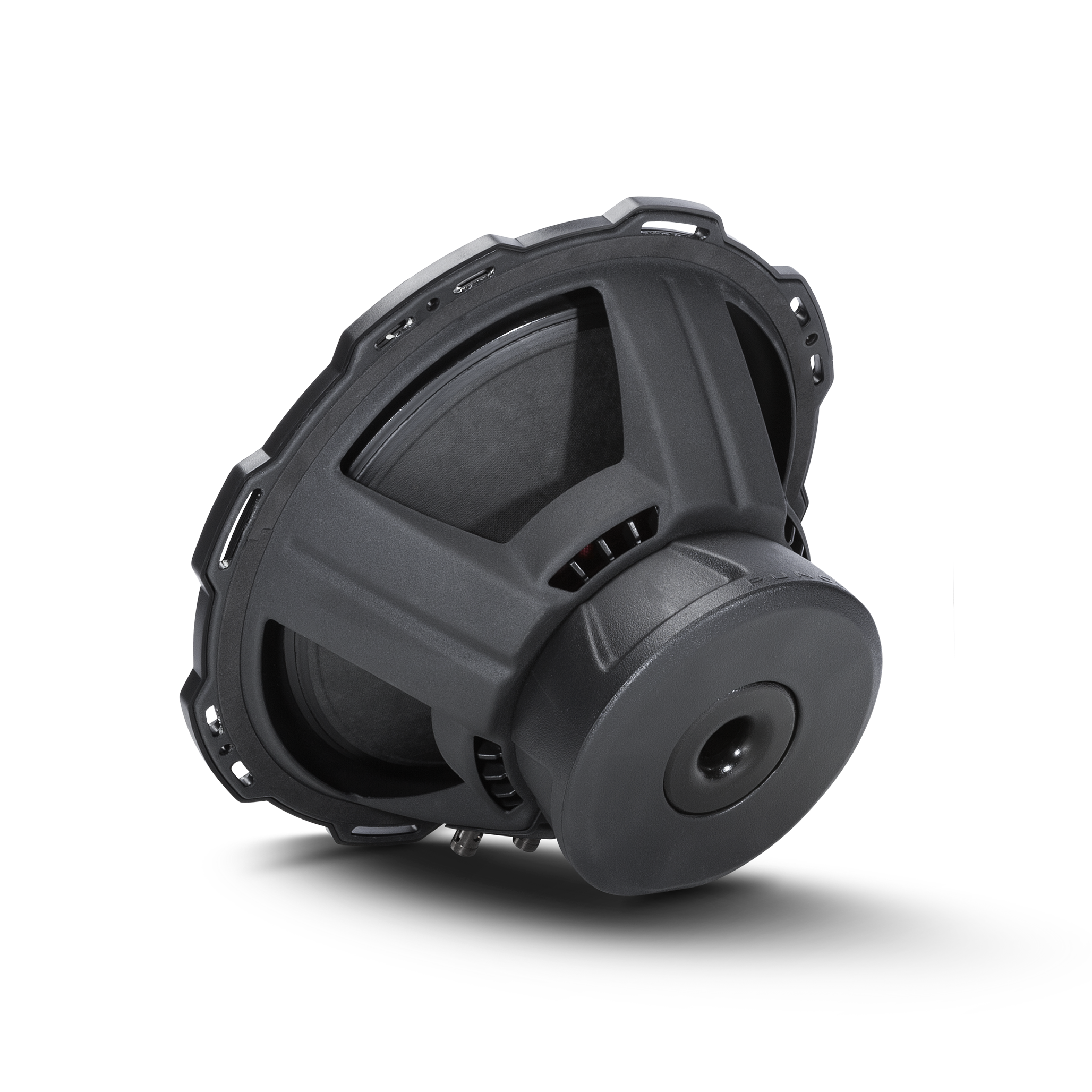

- Protective PVC textured magnet cover
Specifications
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Voice Coil Type: Single Voice Coil
- Re (Ohms): 1.8
- Subwoofer Type: Standard
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- Voice Coil Diameter: 2.0" (51.6 mm)
- Nominal Impedance: 2-Ohm
- Size: 12"
- Speaker Connector: Dual 10 AWG compression
- Sd (cm2): 548
- Qts: 0.55
- Vas (Liters): 88.3
- Qms: 3.39
- Qes: 0.84
- Fs (Hz): 25
- Le (mH): 1.17
- Xmax (mm): 9
- SPL (dB @ 1w/1m): 86
- SPL (dB @ 2.8v/1m): 89
- Cutout Diameter: 11.22 in. (285 mm)
- Mounting Depth: 6.0 in. (152.4 mm)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
- Shipping Weight: 12.5 Lbs. (5.66 Kg)
