Overview

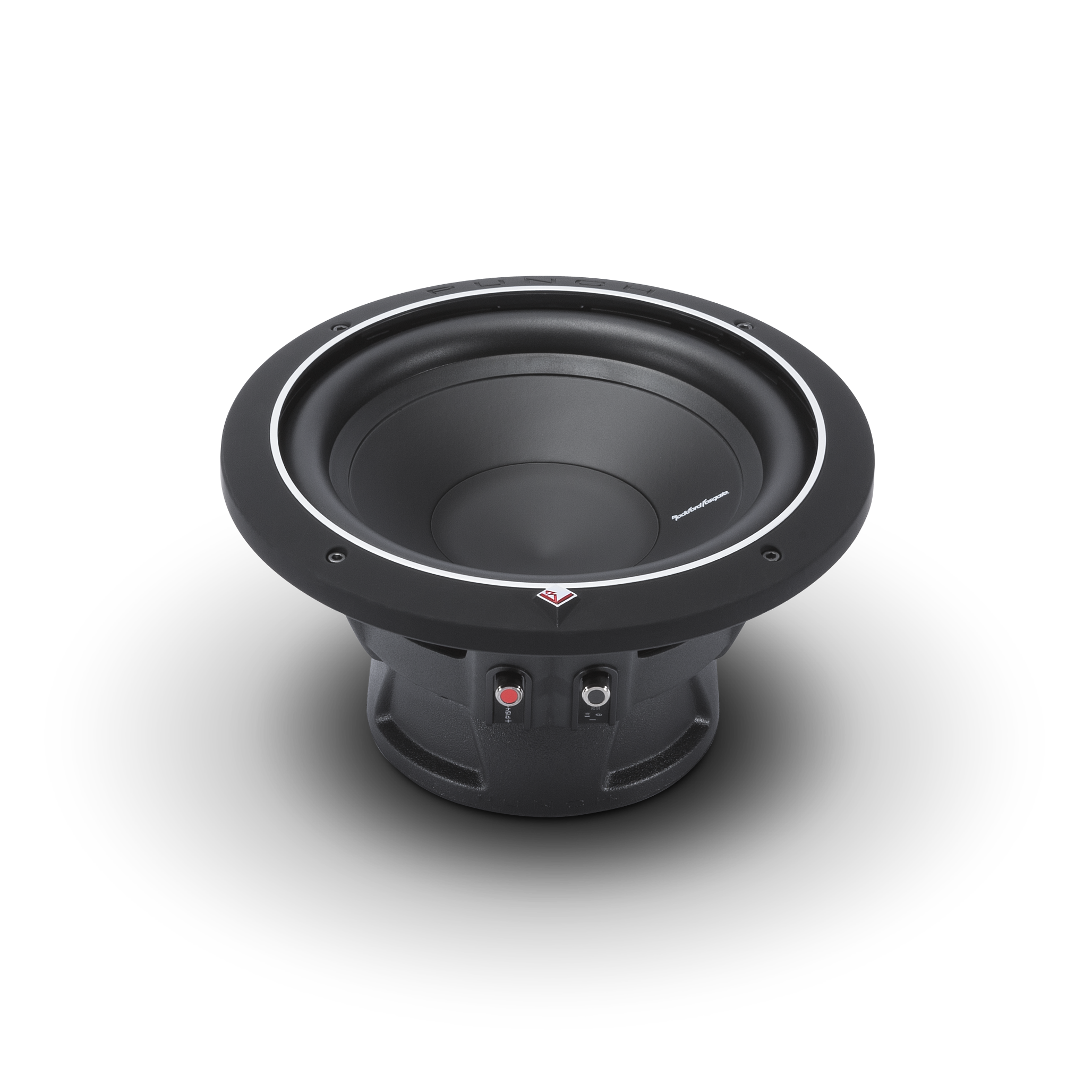

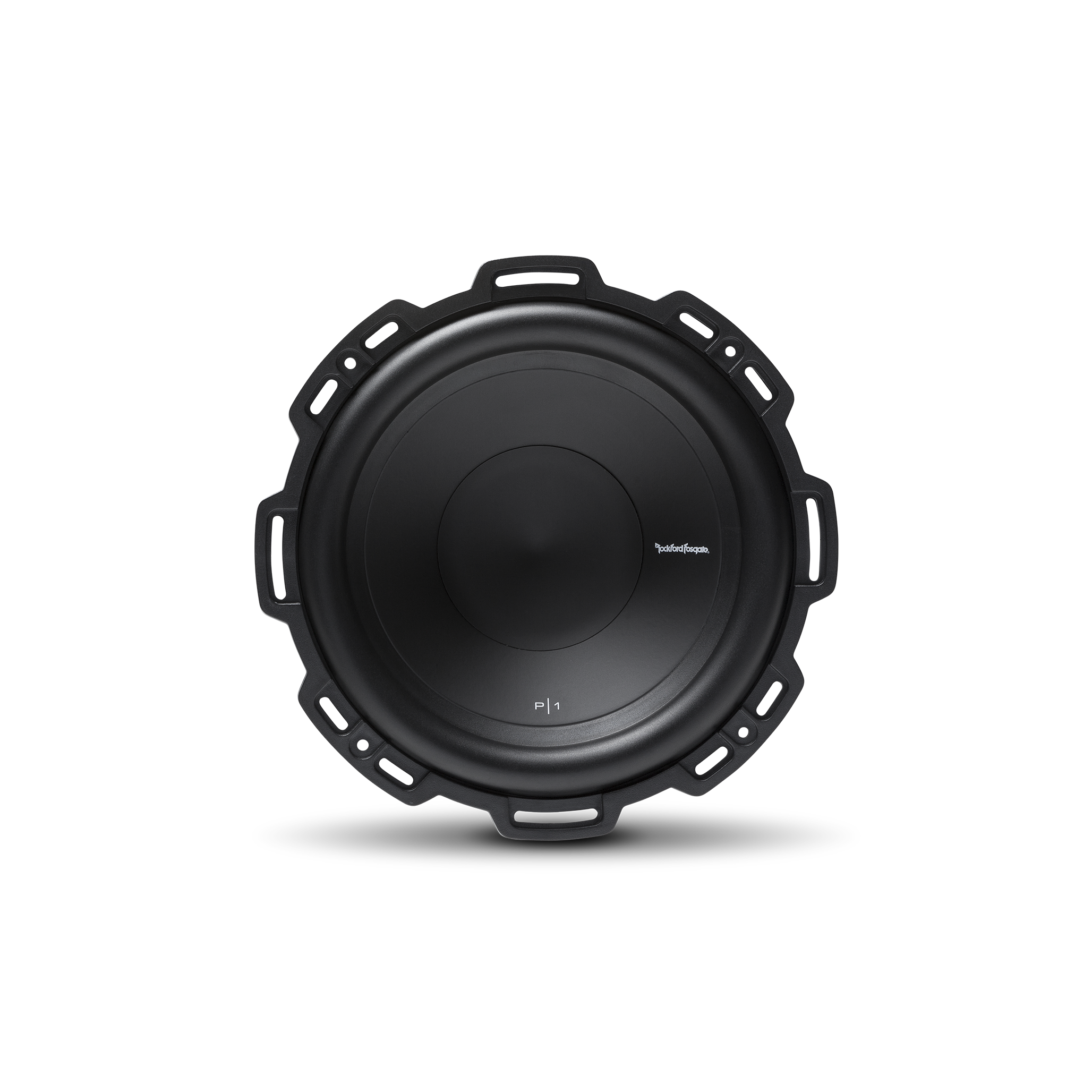

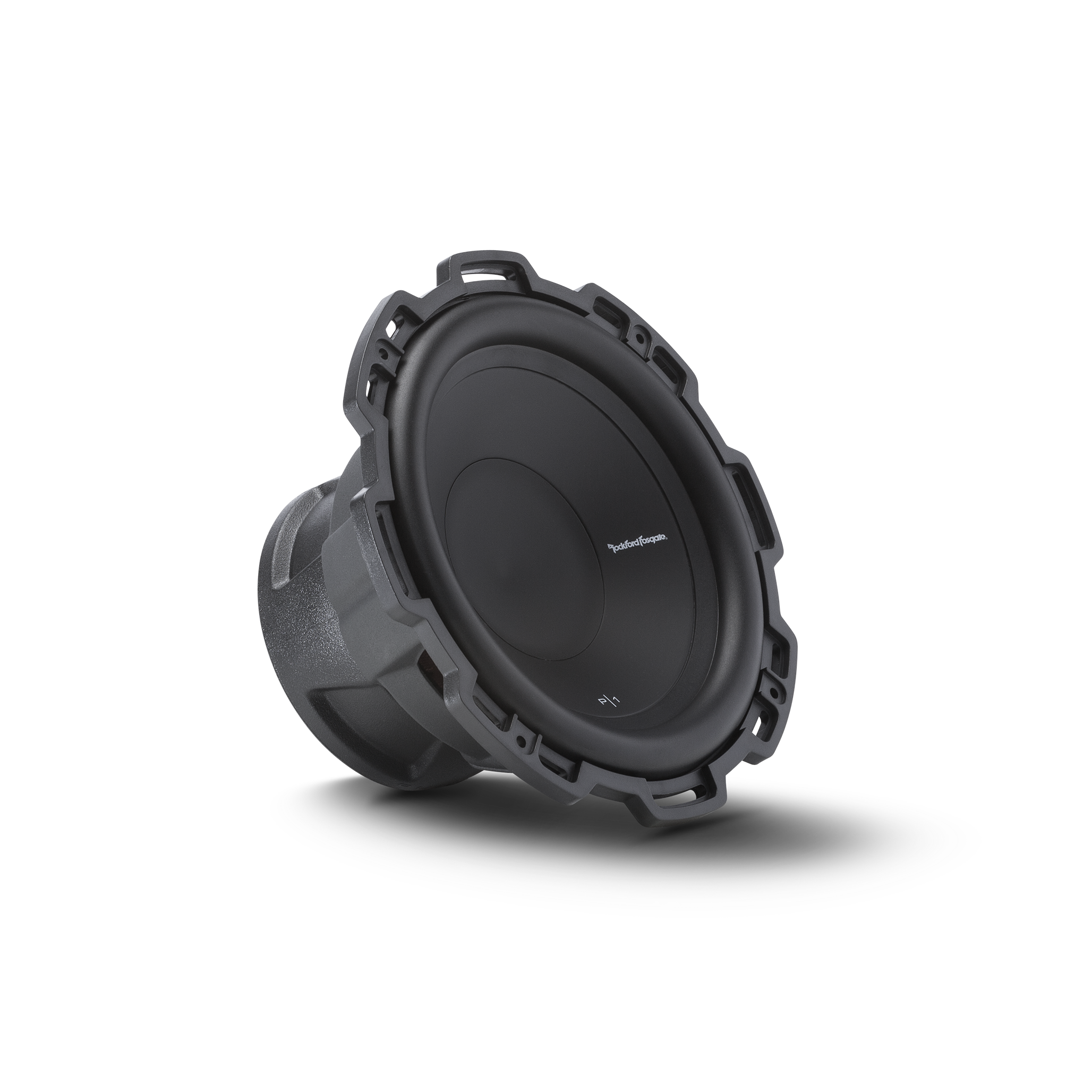

Rockford Fosgate P1 10" is the first in a family of famous "Punch" subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Features
- Kevlar fiber reinforced paper cone

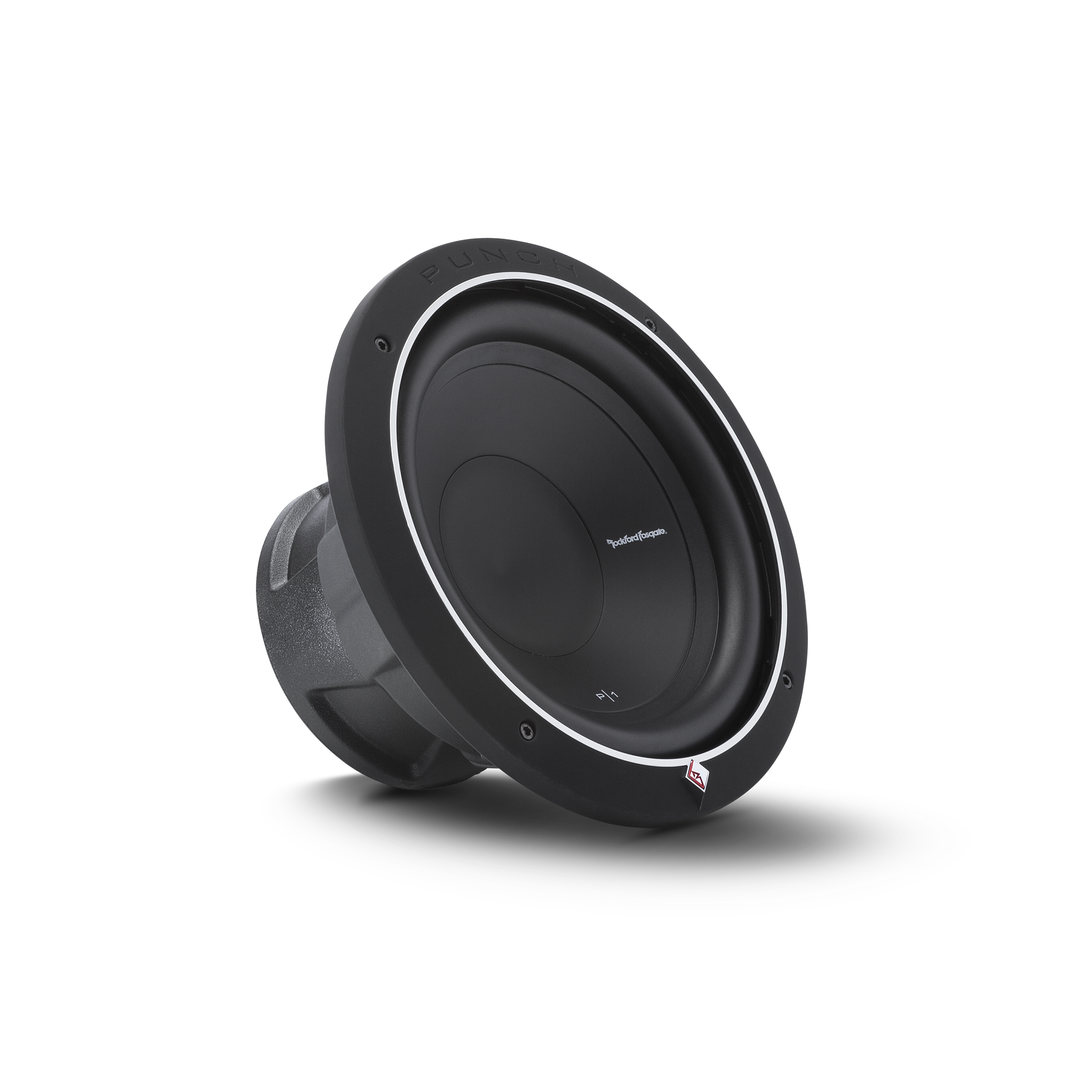

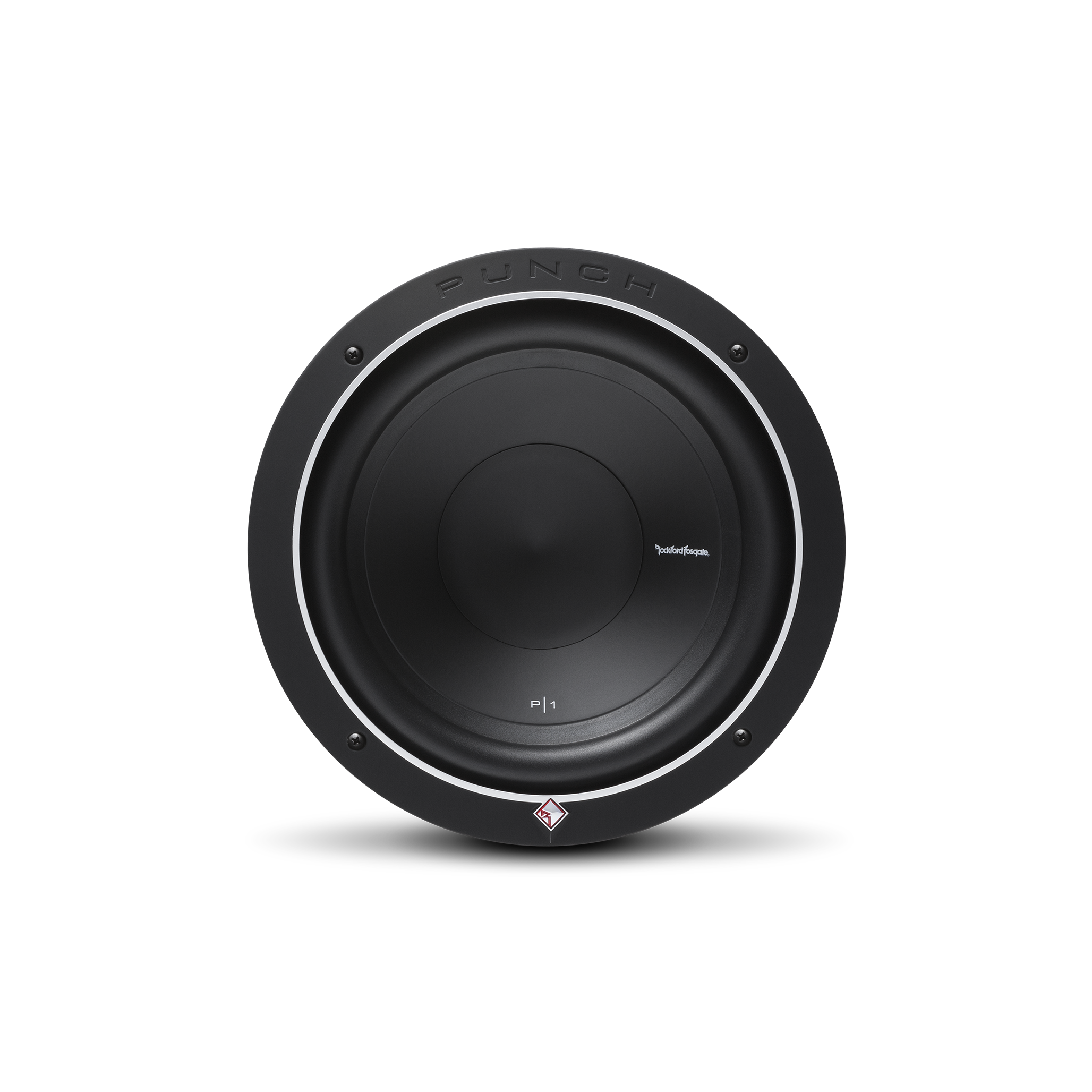

- Rubberized ABS trim ring with optional grille
- StampCast basket with integrated spider venting
- 1 Year Warranty

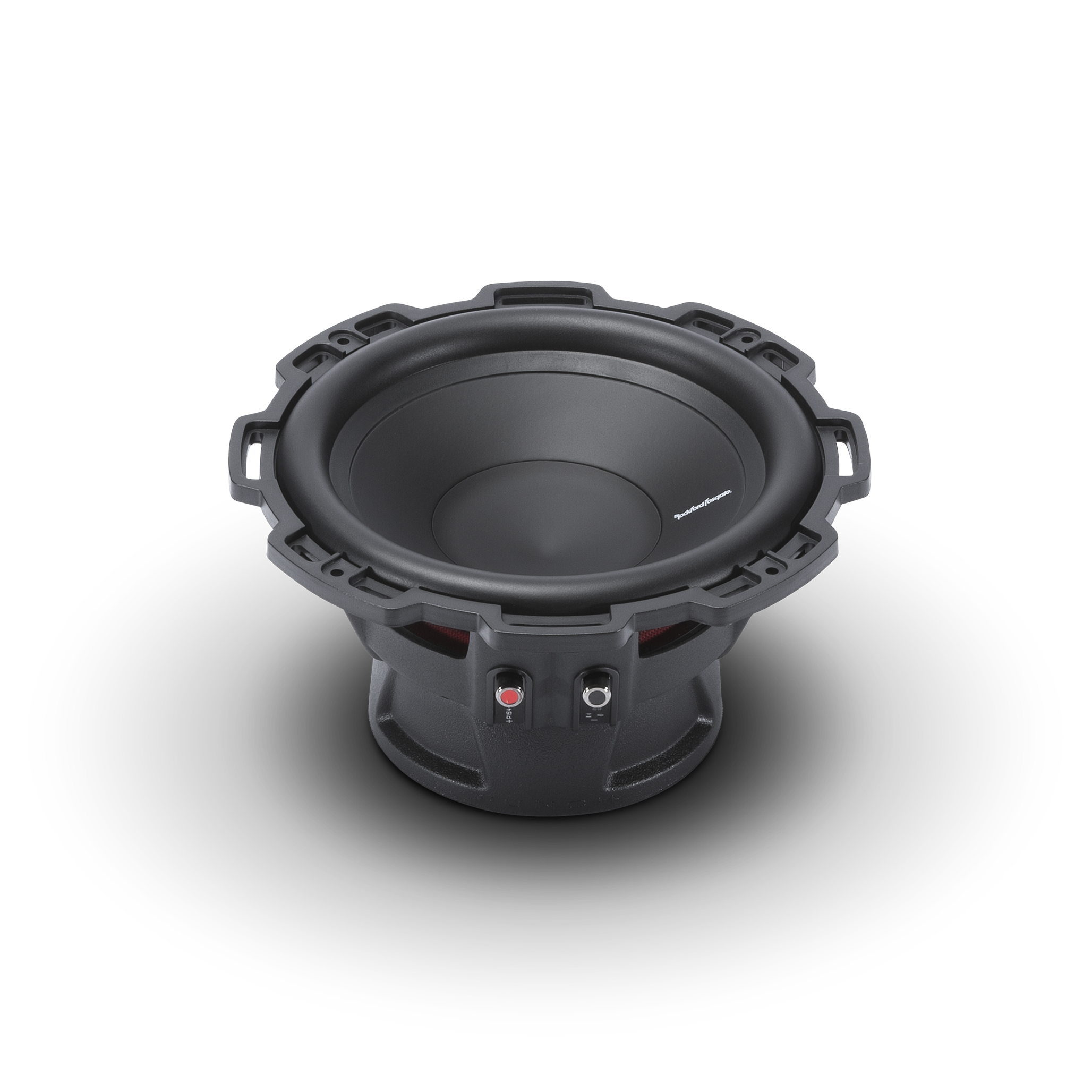

- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex re-inforcement collar
- Protective PVC textured magnet cover
Specifications
- Power Handling (Watts RMS): 250 Watts RMS; 500 Watts Max
- Voice Coil Type: Single Voice Coil
- Subwoofer Type: Standard
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Qts: 0.52
- Size: 10"
- Xmax (mm): 9
- Qms: 2.7
- Fs (Hz): 30
- Nominal Impedance: 2-Ohm
- Re (Ohms): 1.6
- Voice Coil Diameter: 2.0" (51.6 mm)
- Speaker Connector: Dual 10 AWG compression
- Mounting Depth: 5.33 in. (135.4 mm)
- Le (mH): 1.16
- Vas (Liters): 35.4
- Qes: 0.75
- SPL (dB @ 1w/1m): 85
- Sd (cm2): 370
- Cutout Diameter: 9.14 in. (232 mm)
- SPL (dB @ 2.8v/1m): 88
- Woofer Displacement: 0.056 cu. ft. (1.6 Liters)
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
- Shipping Weight: 11.1 Lbs. (5.03 kg)
