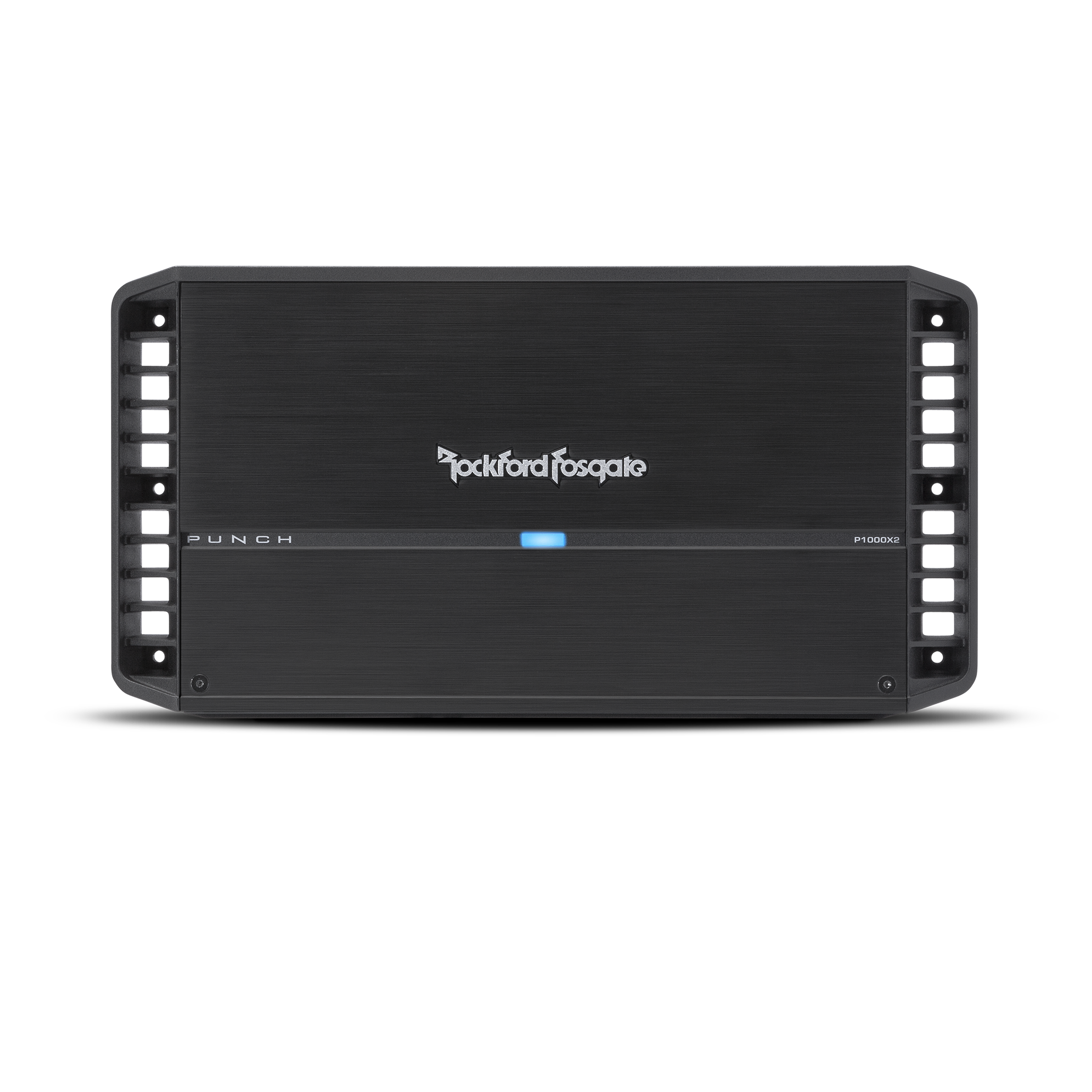

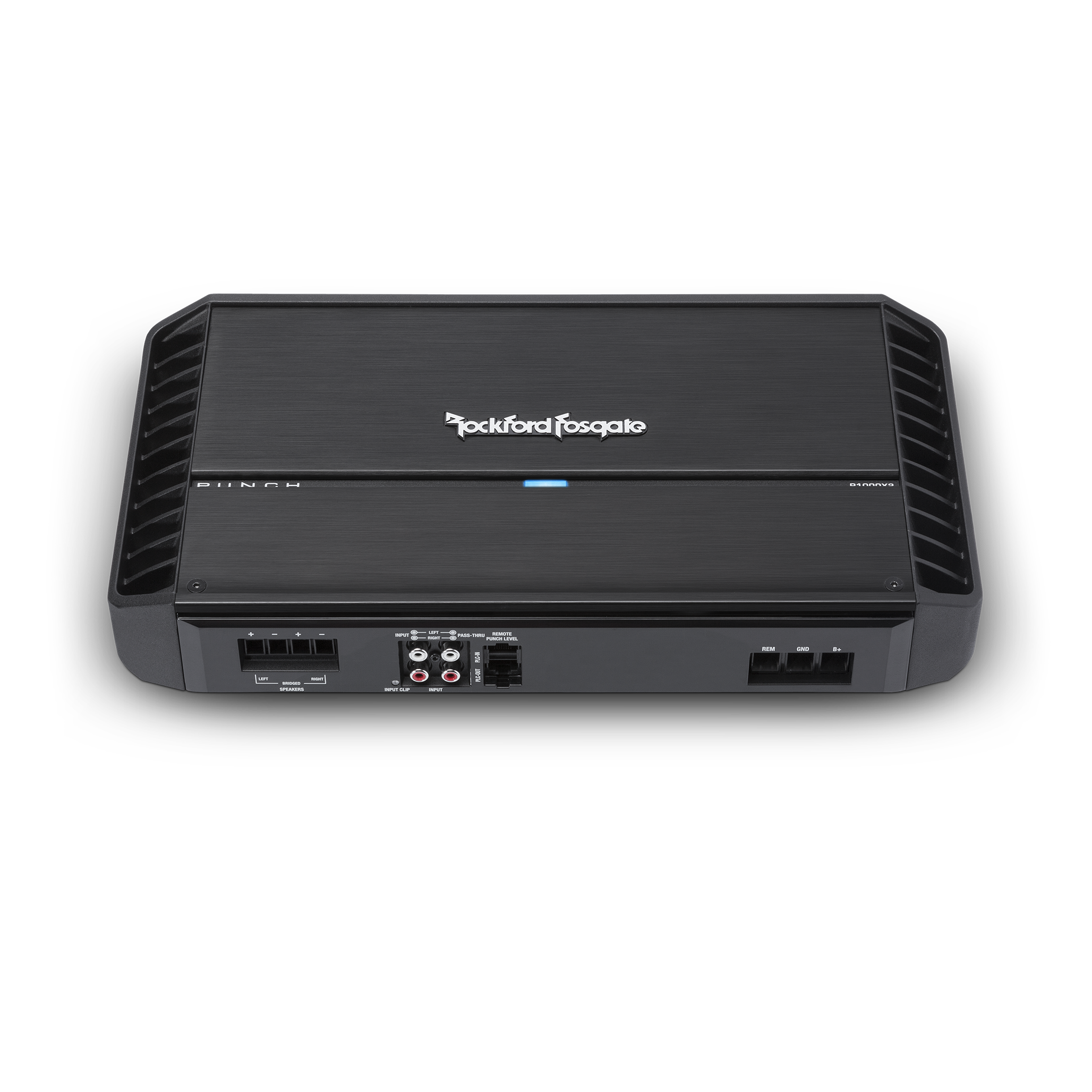

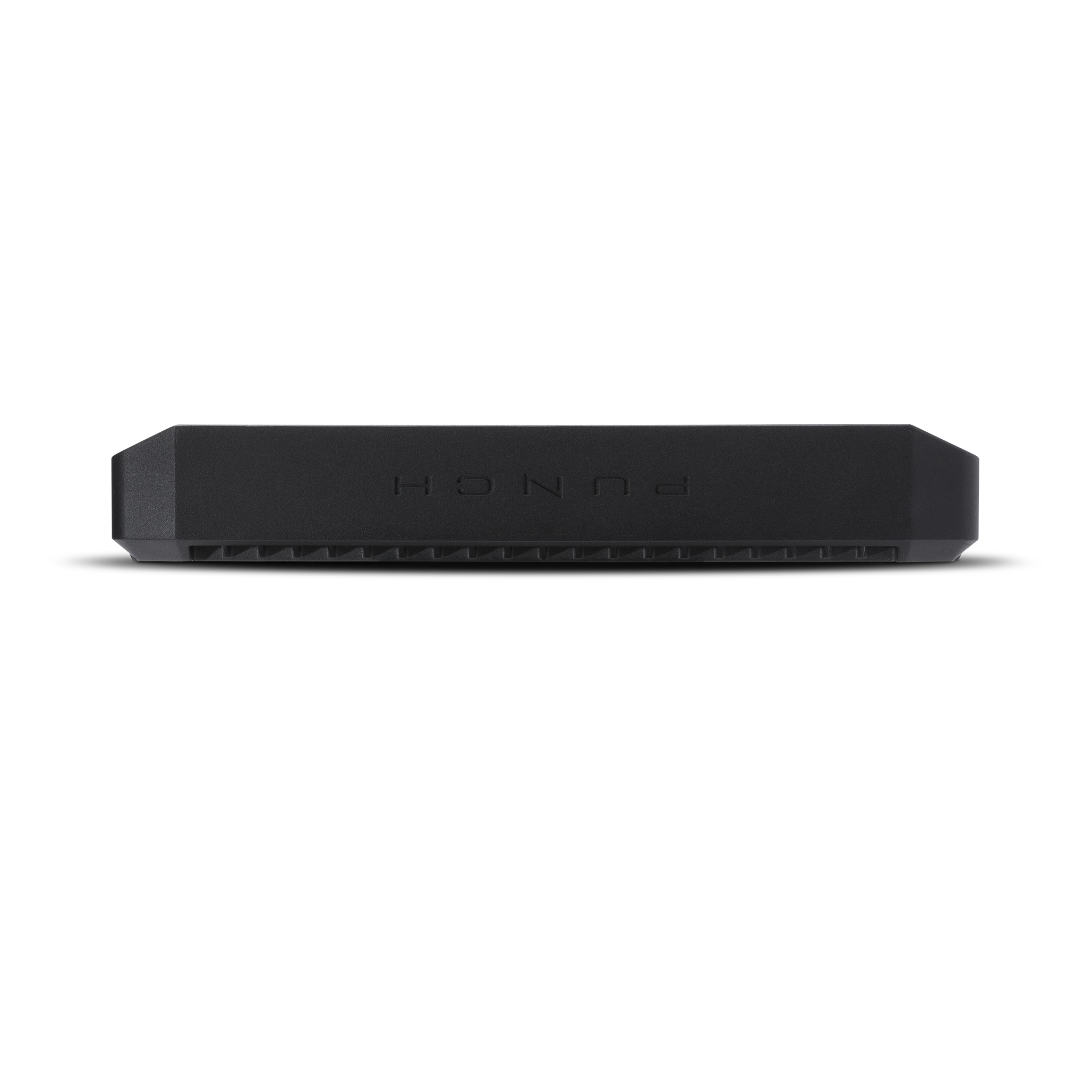

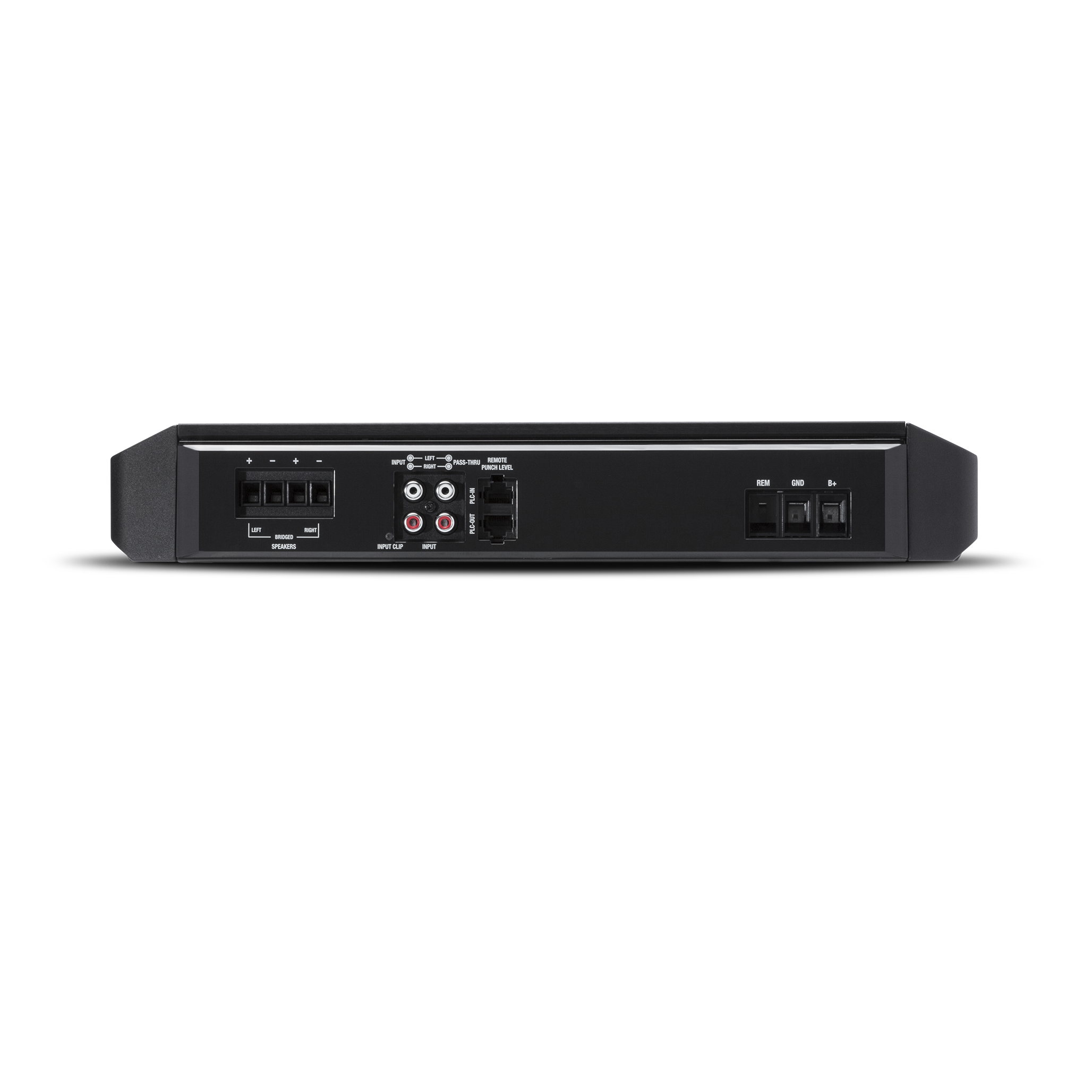

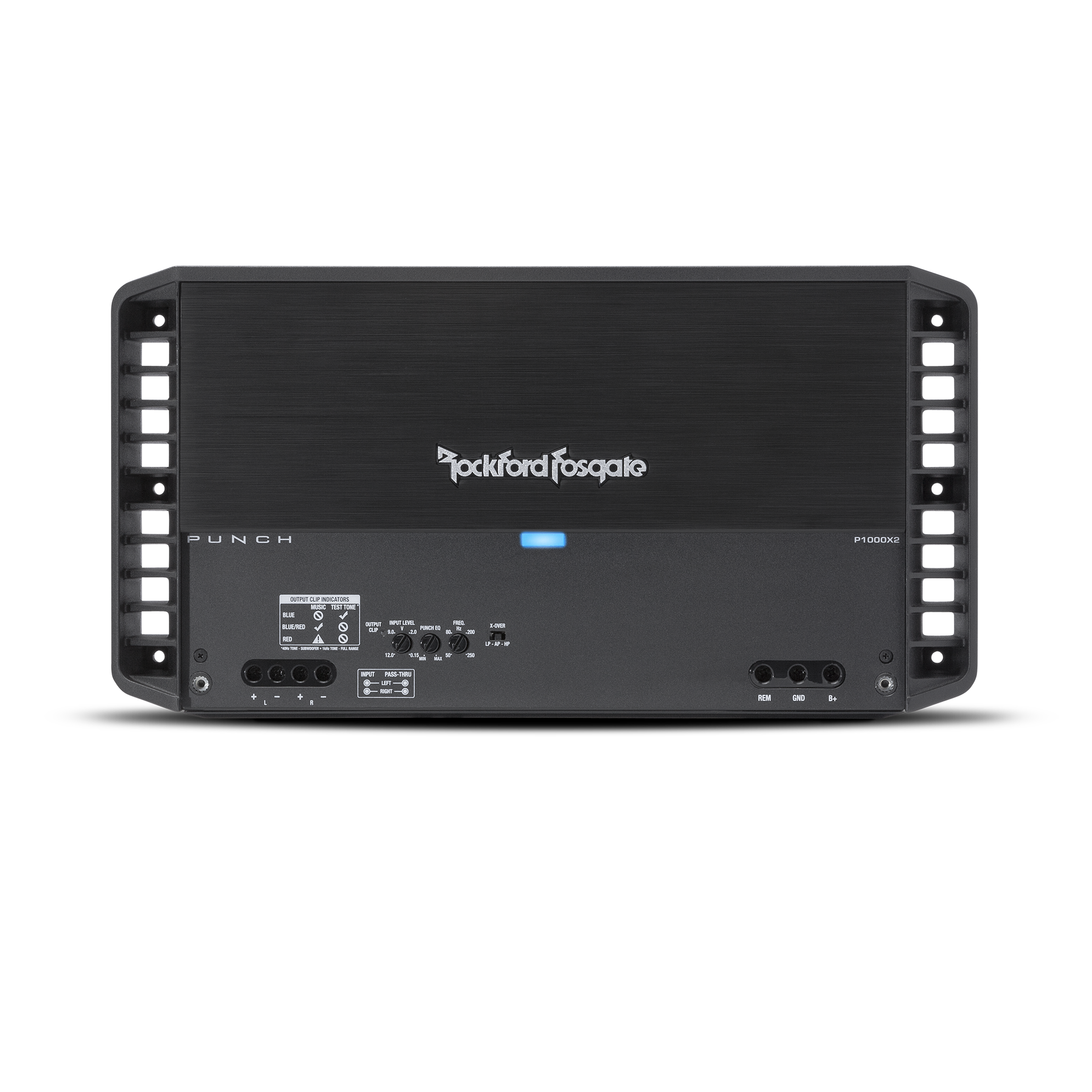

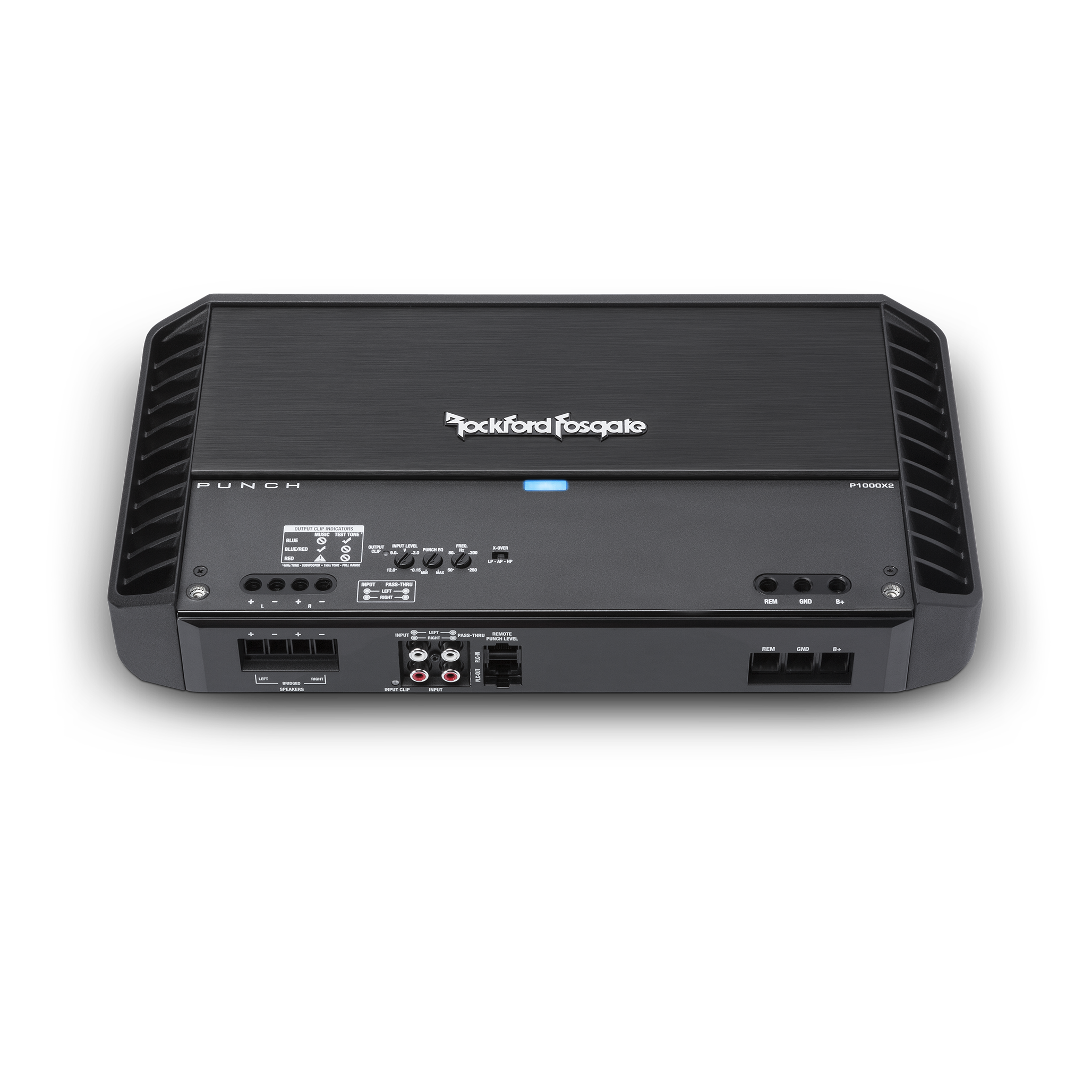

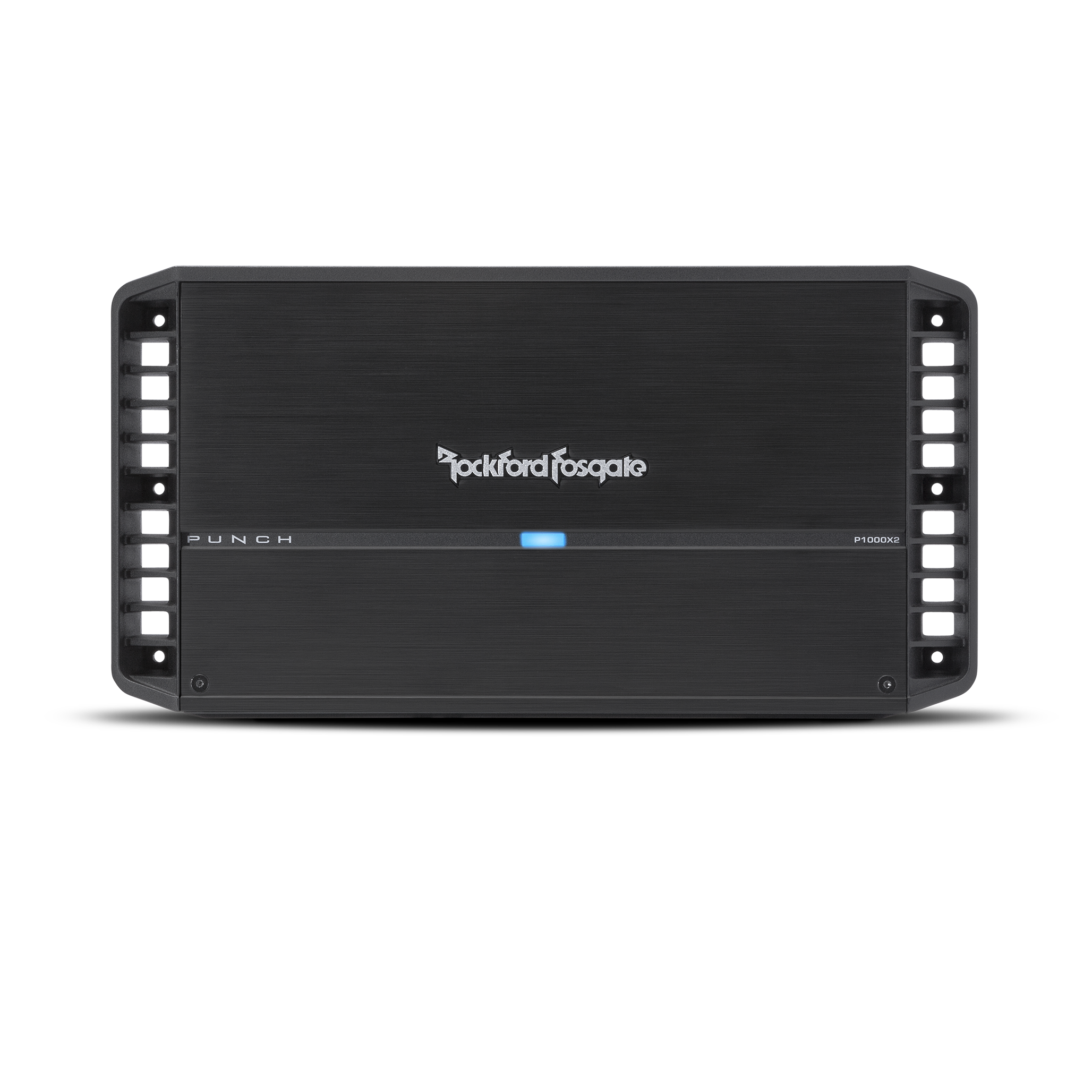

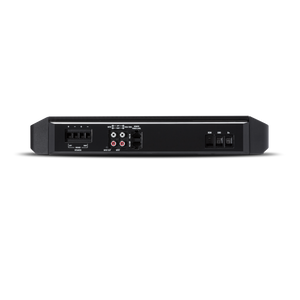

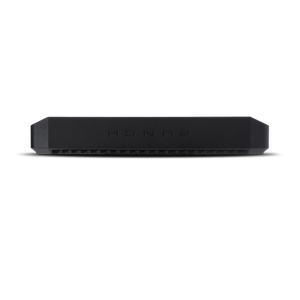

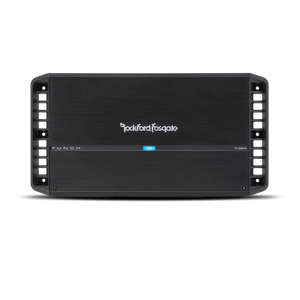

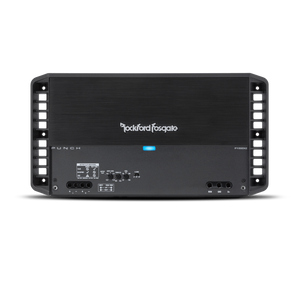

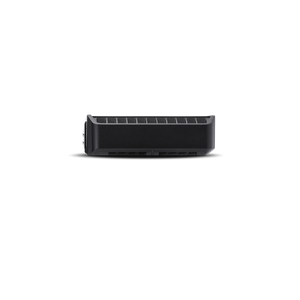

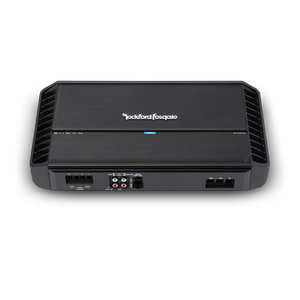

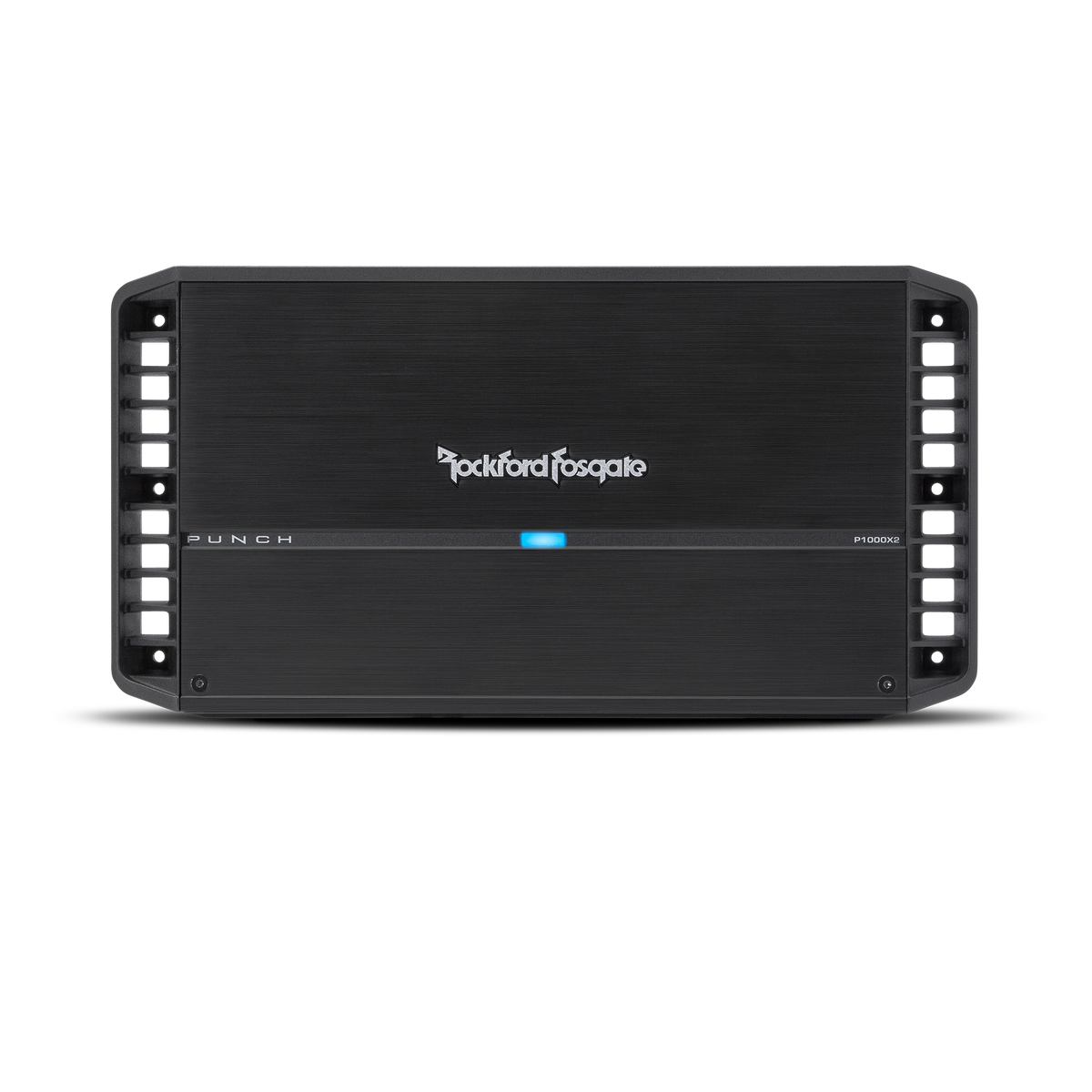

Punch 1,000 Watt 2-Channel Amplifier

Overview

The Punch P1000X2 is a 2-channel stereo amplifier capable of producing 500 Watts into each channel at 2-Ohms. The P1000X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.

Features

• RCA pass-thru outputs
• 12dB/octave Butterworth crossover
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Short circuit protection
• On-board Punch EQ with +18dB boost @ 45Hz
• Over current protection

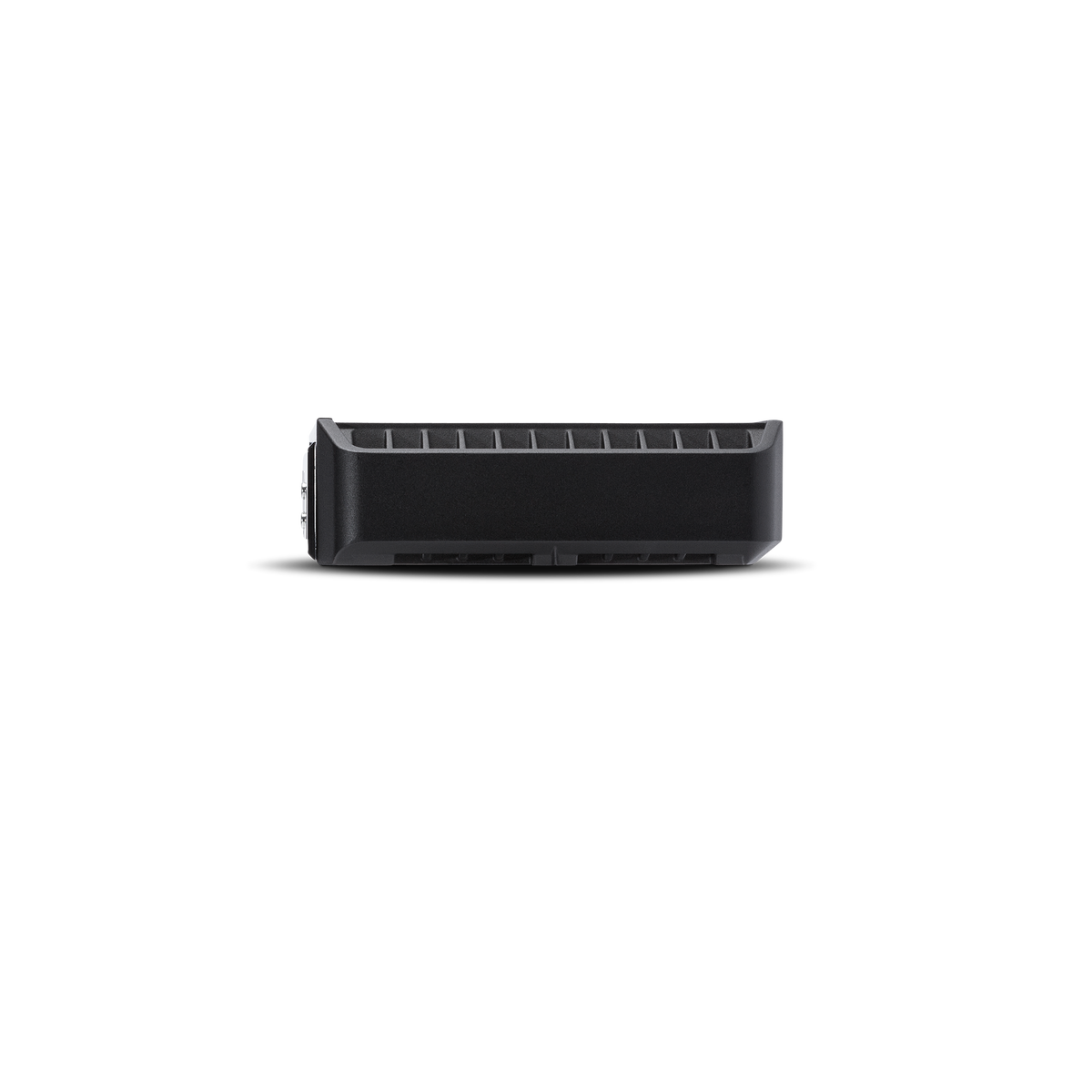

• Cast aluminum heatsink
• 1 Year Warranty
• Muted turn on

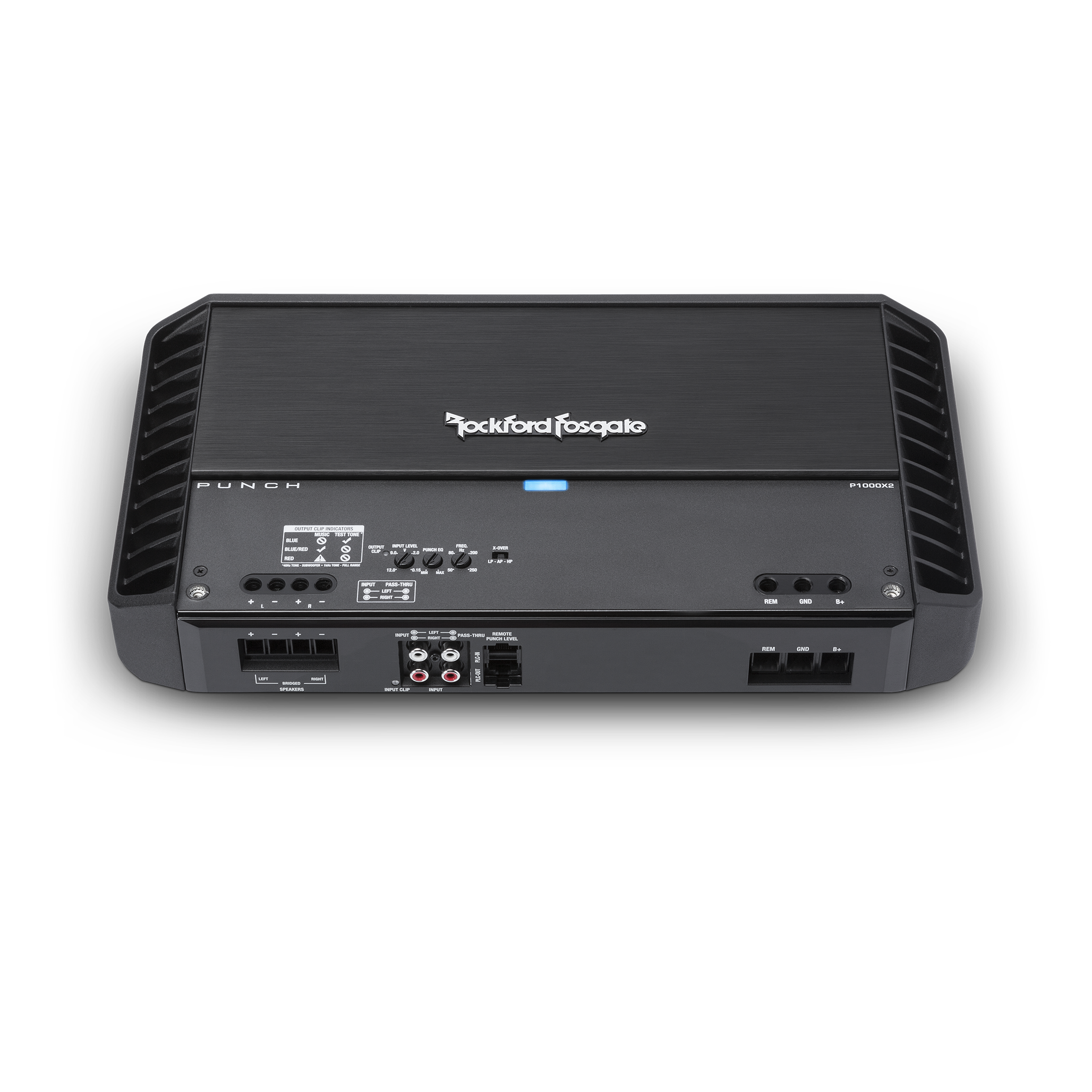

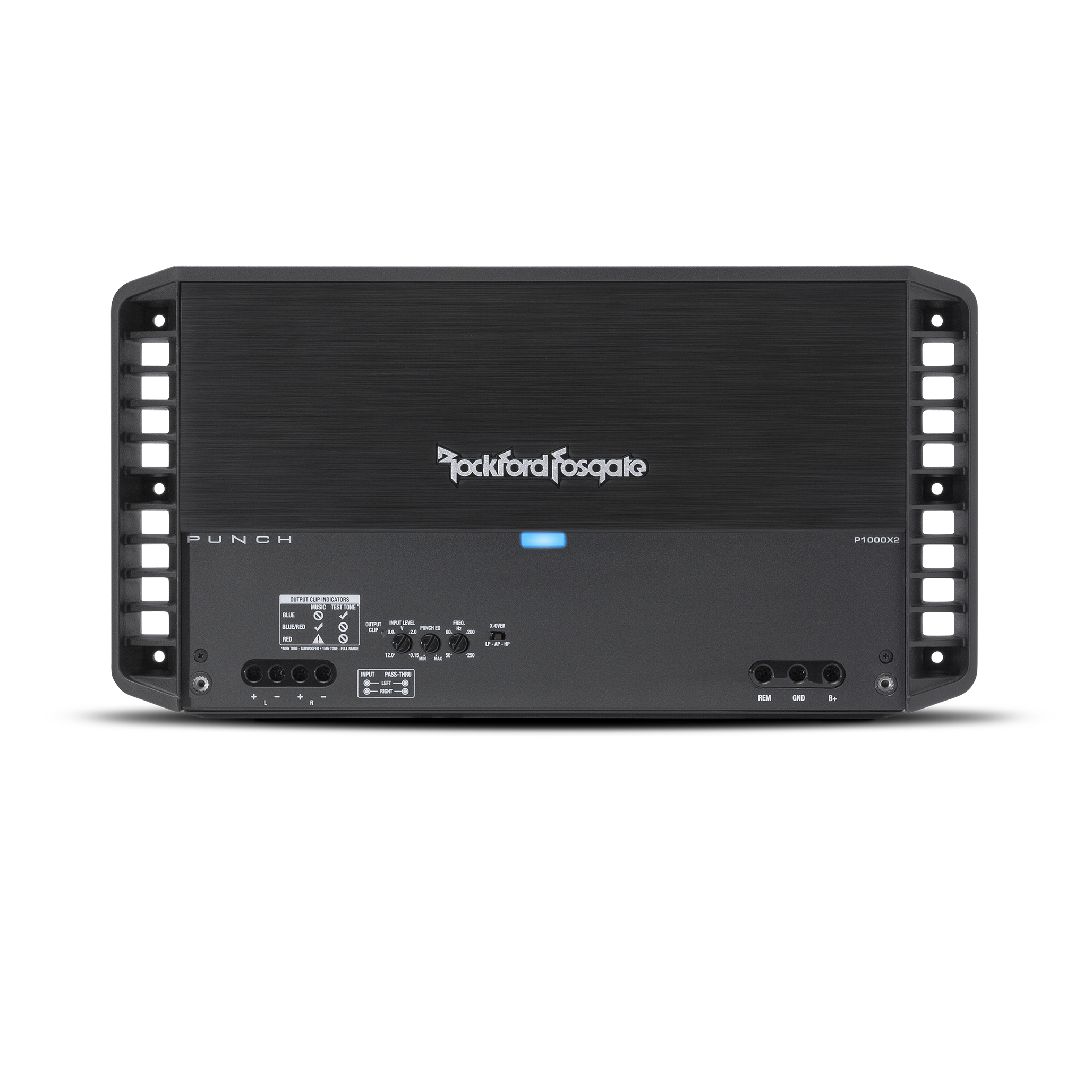

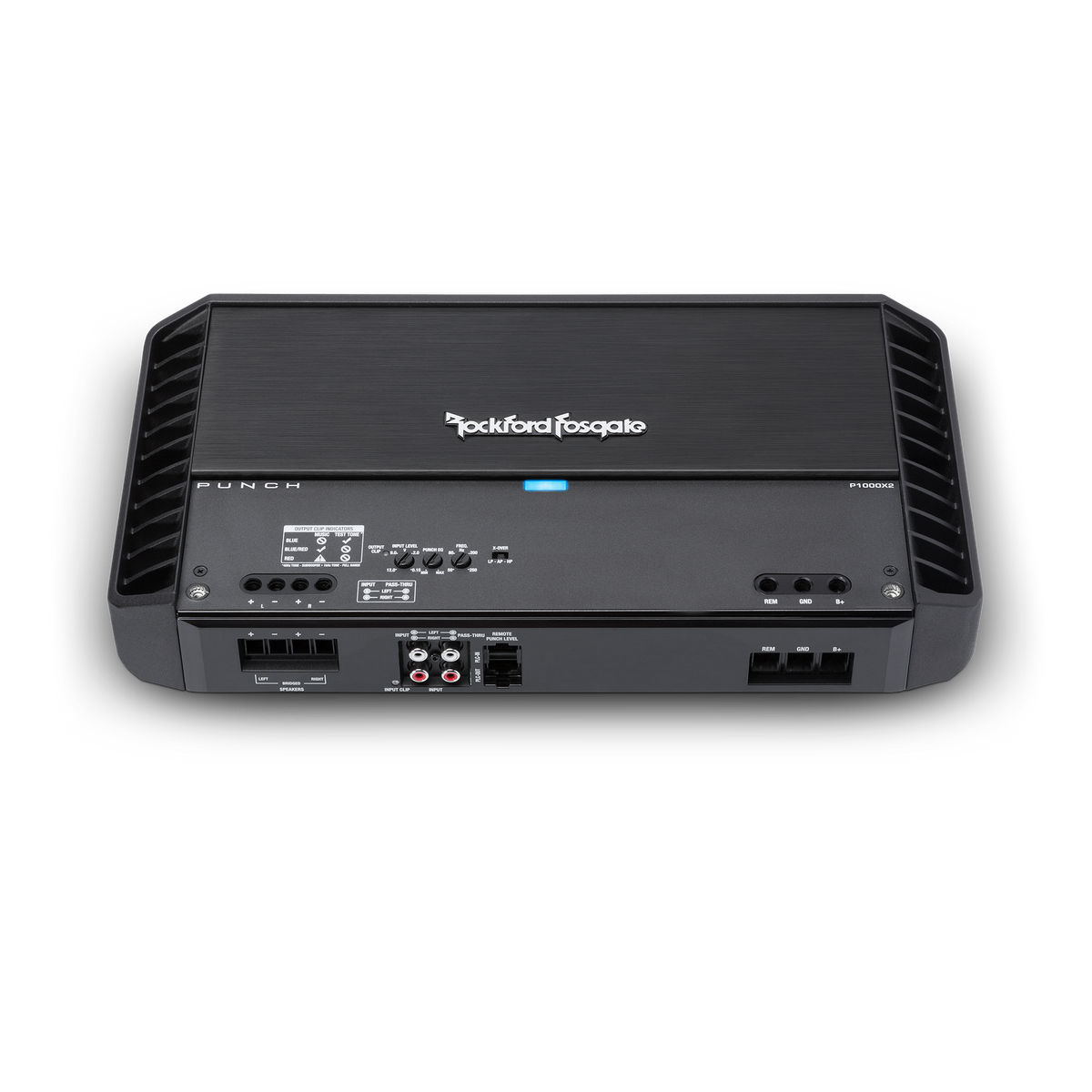

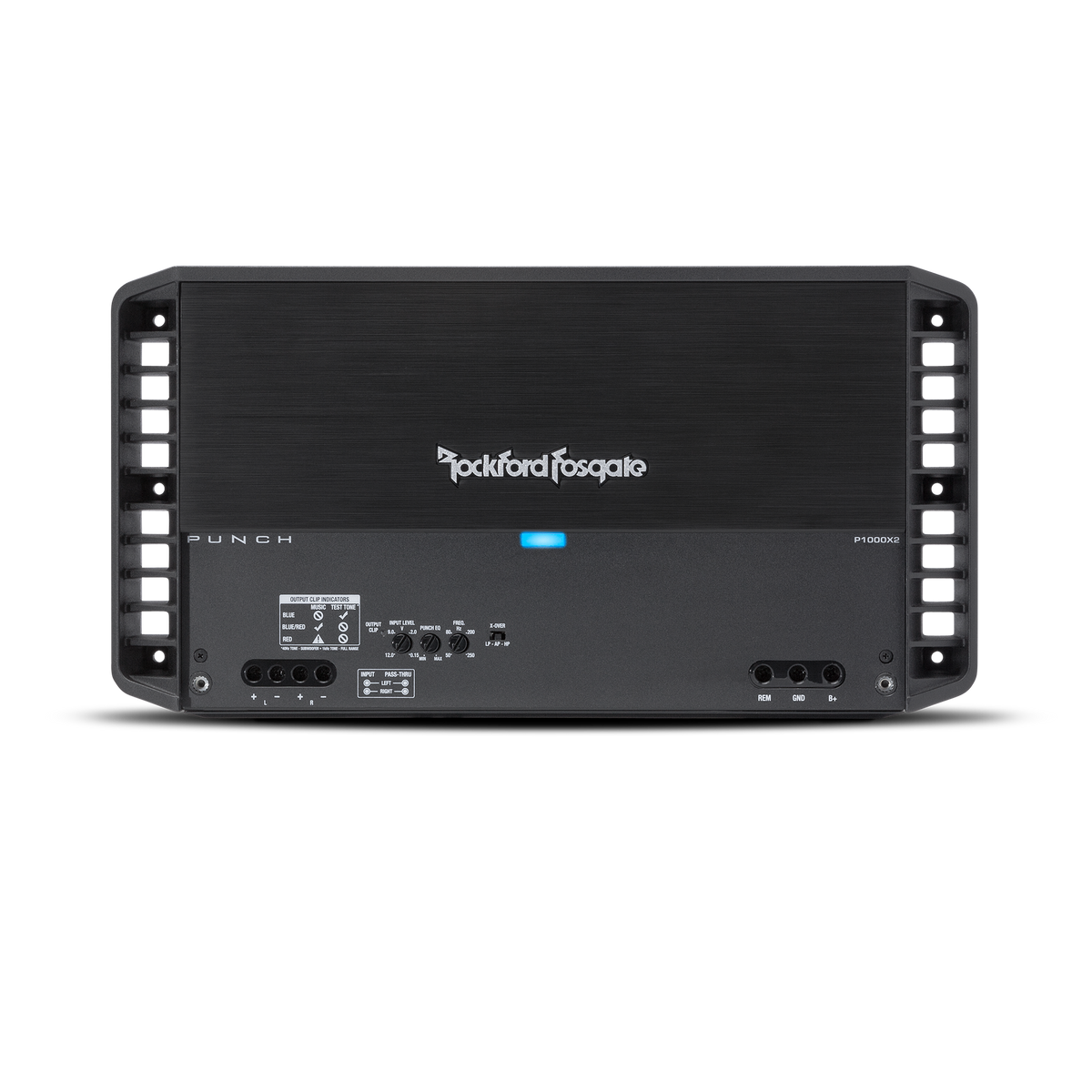

• Stealth top mounted control panel

Technologies

• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 300W x 2 @ 4Ω ≤1.0% THD+N
Number of Channels	2
Rated Power (RMS Continuous Power)	300 Watts x 2 @ 4-Ohm 500 Watts x 2 @ 2-Ohm 1000 Watts x 1 @ 4-Ohm Bridged
Total Power (Sum of Rated Power)	1000 Watts RMS
Dynamic Power (PVC/PowerCube®)	401 Watts x 2 @ 4-Ohms 0° Res 656 Watts x 2 @ 2-Ohms 0° Res
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	140 A
Suggested Alternator	100 A
Bridgeable	Yes
Crossover Controls	High-Pass/Low-Pass (HP/LP): 50Hz-250Hz 12dB/octave Butterworth
Input Sensitivity	150 mV - 12 V
Power Input Connector	Captive C-Clamp
Power Wire Gauge	4 AWG
Remote Controls	Optional Punch Level Control (PLC2) Ready
Speaker Wire Gauge	8 AWG to 18 AWG
Dimensions (H x W x D)	2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm)
Frequency Response	20Hz to 20kHz +/- 1.0dB
Circuit Topology Class	Class A/B
Shipping Weight	15 lb. (6.80 Kg.)
Efficiency (average)	69% @ 4-Ohm 64% @ 2-Ohm
Tone Controls	Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Punch EQ2 Treble: 0dB to +12dB @ 12.5kHz Function depends upon LP/AP/HP switch position

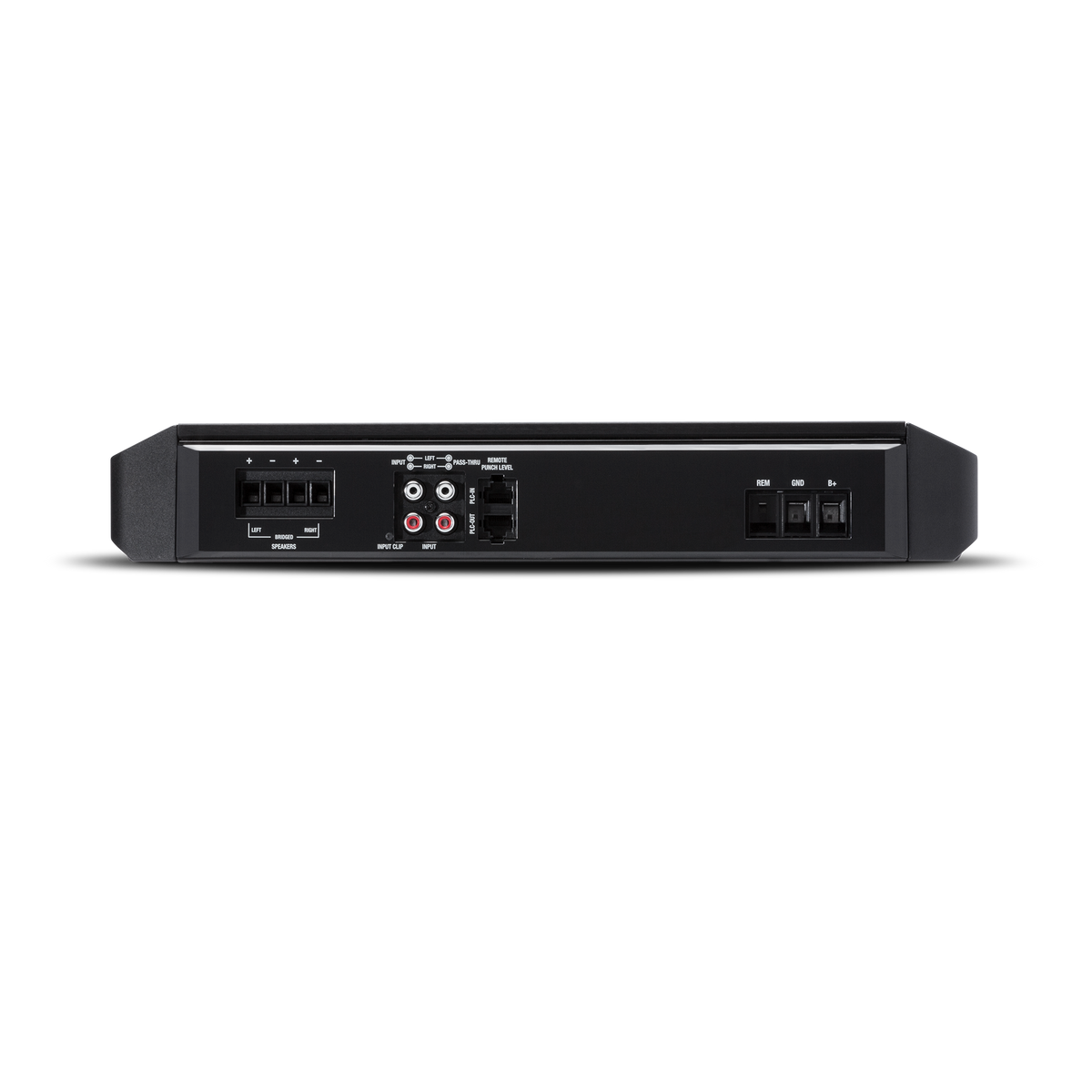

Signal Input	Hi/Low level: 1 RCA pair
Signal Output	Low level: 1 RCA pair
Speaker Output Connector	Captive C-Clamp
Heat Sink Type	Cast aluminum
Cooling	Convection
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Visual Indicators	Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Average Current Draw (13.8V Music)	70 A
Signal-to-Noise (CEA)	>85 dB
Channel Separation	>50 dB
Common Mode Rejection	>55 dB
Damping Factor	>500
Max. Current Draw (13.8V Sinewave)	140 A
